2BAZT10024001HV Keypad with WiFi and Bluetooth

INSTALL GUIDE - 6 BUTTON KEYPAD DIMMER Page 1www. hellosavi.com© 2023 SAVI Controls Rev.09/12/23 1.Shut off power to the circuit at circuit breaker or fuse box WARNING: SHOCK HAZARD Turn OFF the power to the branch circuit for the switch and lighting fixture at the service panel. All wiring con-nections must be made with the POWER OFF to avoid personal injury and/or damage to the dimmer. This device is intended for installation in accordance with the National Electric Code and local regulations in the United States and the Canadian Electrical Code and local regulations in Canada. If you are unsure or uncomfortable about performing the installation, consult a qualified electrician 6 Button Keypad Dimmer Wiring / Installation Instructions 2.Remove wallplate 3.Remove the switch mounting screws 4.Carefully remove the switch from the switch box. DO NOT disconnect the wires. 5.There are up to five screw terminals on the switch, these are marked: a.GROUND b.LINE -- Black (connected to power) c.LOAD -- Black or Red (connected to lighting/load) d.TRAVELER -- Black or Red (only in 3-way installations) e.NEUTRAL -- White f.Match these screw terminals to the wires connected to the existing switch. 6.Disconnect the wires from the existing switch. Label wires according to the previous terminal connection. IMPORTANT: Verify power is OFF to switch box before continuing. 1.Press the top button to turn the light ON or press the bottom to turn it OFF 2.Press/ hold the UP arrow to dim the light UP, or press/ hold the Down Arrow dim DOWN For attachment using the enclosure's holes, strip insulation 5/8in (16mm). UL specifies the tightening torque for the screws is 14Kgf-cm (12lbf-in). 1.Connect the green or bare copper ground wire to the GROUND terminal 2.Connect the black wire from the light to the LOAD terminal 3.Connect the black wire from the electrical service panel (hot) to the LINE terminal 4.Connect the white wire to the NEUTRAL terminal (use a jumper wire if needed) Note: The traveler terminal is only used for 3-way or 4-way wiring and should not be connected if the dimmer is being installed in a 2-way system (one dimmer & one load) 5.Insert dimmer into the switch box being careful not to pinch or crush wires 6.Switch must be independently mounted (vertical position only) 7.Secure the switch to the box using the supplied screws 8.Mount the wallplate 9.Reapply power to the circuit at fuse box or circuit breaker and test the system Wire strip length Basic operation The connected light can be turned ON/OFF in two ways 1.Manually from the front panel of the dimmer 2.Remotely via SAVI Server: Manual control The Keypad allows the user to: Turn ON/OFF or Dim UP/DN the connected fixture Multi-switch wiring For 3-way installations, please refer to the GSmTERiSR switch manual. Wire gauge requirements Use 12AWG or 14AWG wires suitable for at least 75ºC for supplying line (hot), load, neutral, ground, and traveler connections. IMPORTANT: This 6 Button Keypad Dimmer is rated for and intended to only be used with copper wire. Please refer to diagram and follow steps below. Page 2www. hellosavi.com© 2023 SAVI Controls Rev.09/12/23 Supplier’s Declaration of Conformity 47 CFR 2.1077 Compliance Information Model: QK6APD-01 Responsible Party – US Contact Information 2520 Marsh Lane, Carrollton, TX 75006-2401 (214) 785-6510 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user’s authority to operate the equipment. Please visit savicontrols.com to find the full FCC/IC statements. This device complies with Part 15 of the FCC Rules and with RSS of Industry Canada. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. FCC IC Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : 1. L'appareil ne doit pas produire de brouillage, et 2.L'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada. Note: For 3-way configurations, ensure the smart dimmer is installed in the junction box where Line (Hot) enters the electrical circuit. Insert wires into holes, do not wrap wires around screws. Do not remove screws. The Qoralux 6 Button keypad Dimmer is designed to operate in either 120VAC or 277VAC circuits. For 277VAC 3-way circuits, use standard “off-the-shelf” 277VAC compatible 3-way switch. LEGAL Resistive: 15A@120/277V Incandescent: 960W@120V/1385W@277V Operating ambient temperature 0-40°C Method of mounting included: Independently mounted (Vertical position only) Operating control, Type 1.C action Pollution Degree 2 Rated Impulse Voltage 4000 V Software Class A NEMA type 1 enclosure FOR INDOOR USE ONLY QK6APD-01 QK6APD-01 INSTALL GUIDE - 6 BUTTON KEYPAD DIMMER FCC This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. IC This equipment complies with ISED RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any …

Text truncated - open the document above for the full version.

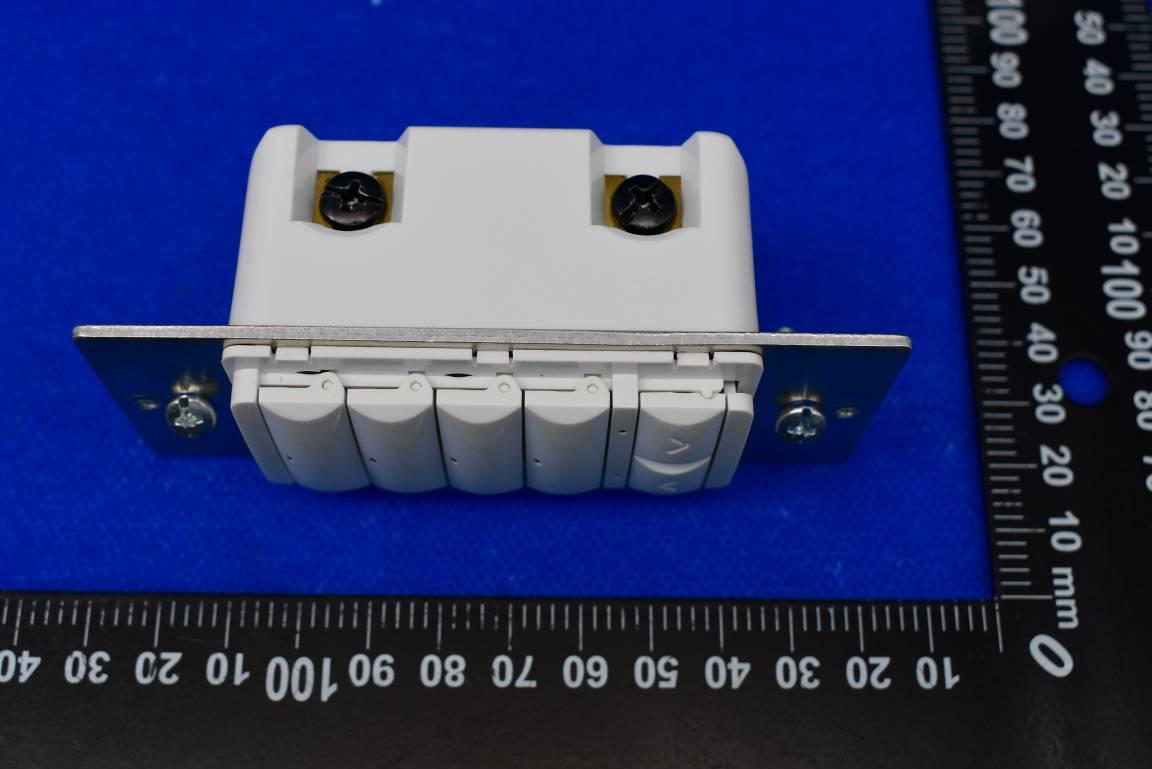

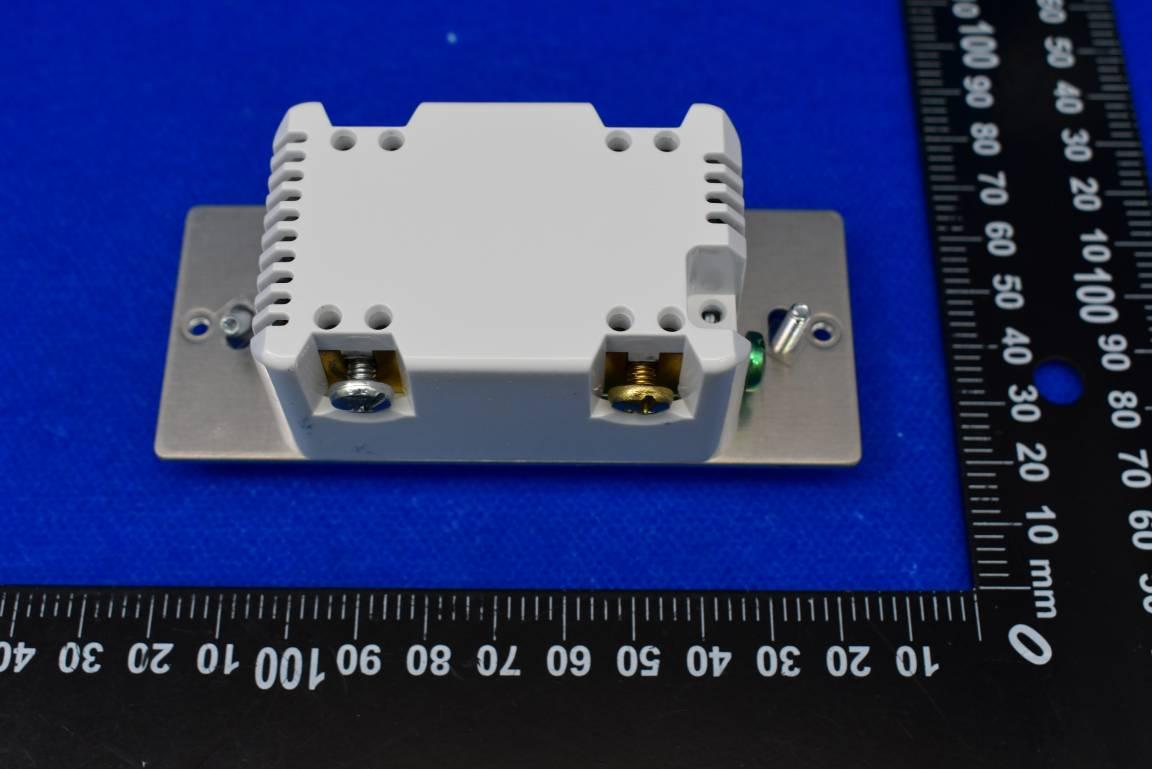

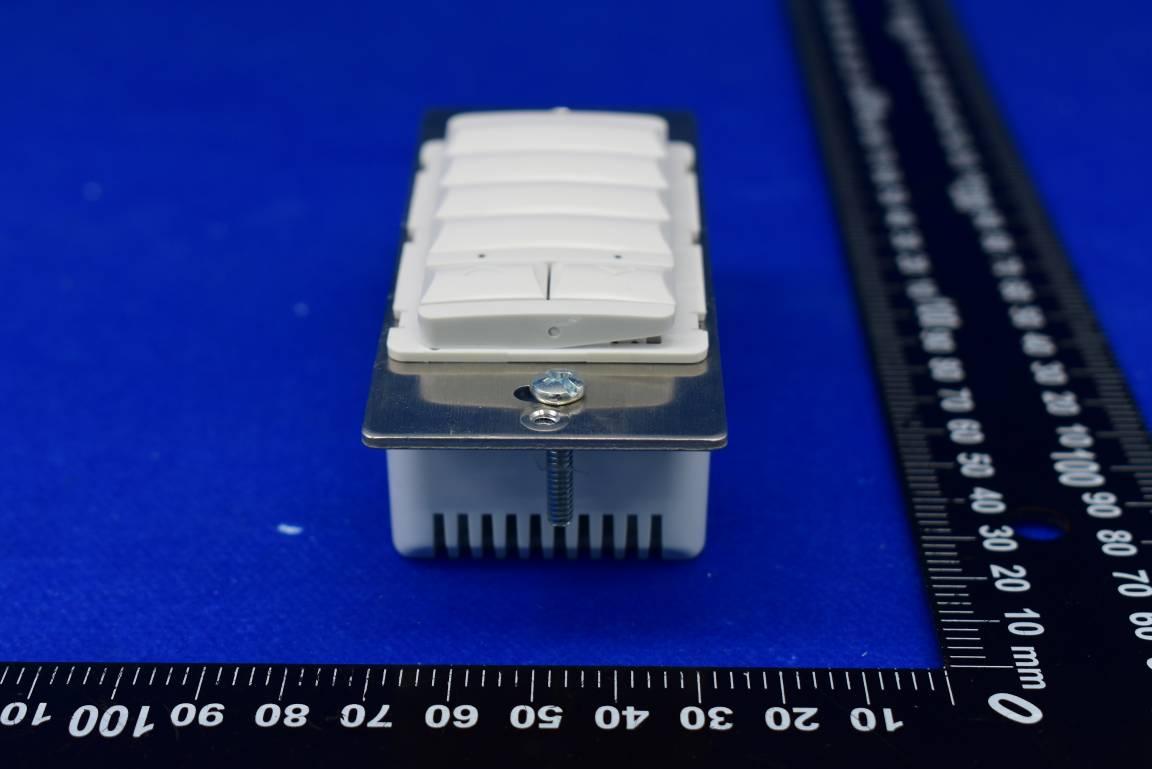

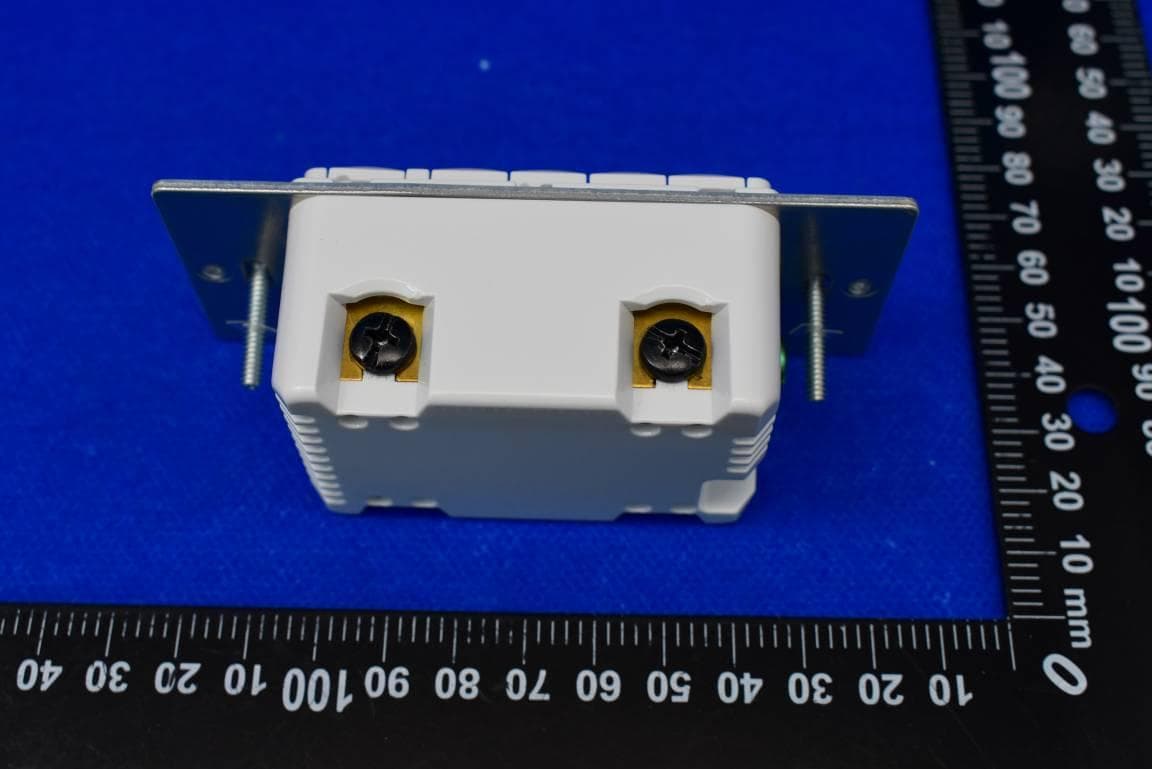

FCC ID: 2BAZT10024001 IC: 30526-10024001 External Photos 1.EUT front view 2.EUT rear view 3.EUT left side view 4.EUT right side view 5.EUT top view 6.EUT bottom view

1 .Label 2 .Label location FCC ID: 2BAZT10024001 IC ID: 30526-10024001 HVIN: QK6APD-01 Paste on the side of the device Label Size: 15*6mm

FCC ID: 2BAZT10024001 IC: 30526-10024001 Internal Photos 1.EUT uncover view 2.Antenna view Bluetooth/2.4G WIFI Antenna

ReportNo.:18220WC302309Page1of7 RFEXPOSURE EVALUATIONREPORT APPLICANT: SaviControls,LLC PRODUCTNAME: HVKeypad MODELNAME: QK6APD-01 BRANDNAME:N/A FCCID:2BAZT10024001 STANDARD(S): 47CFRPart2(2.1091) RECEIPTDATE: 2023-09-14 TESTDATE:2023-09-18to2023-10-12 ISSUEDATE:2023-10-18 Editedby: SuXiaoxian(Rapporteur) Approvedby: ShenJunsheng(Supervisor) ReportNo.:18220WC302309Page2of7 DIRECTORY 1.TechnicalInformation ·········································································································3 1.1ApplicantandManufacturerInformation······································································3 1.2EquipmentunderTest(EUT)Description·····································································3 1.3AppliedReferenceDocuments·······················································································4 2.DeviceCategoryandRFExposureLimit·········································································5 3.MaximumAveragePowerSummary·················································································6 4.RFExposureAssessment··································································································7 AnnexATestingLaboratoryInformation···············································错误！未定义书签。 ChangeHistory VersionDateReasonforchange 1.02023-10-18Firstedition ReportNo.:18220WC302309Page3of7 1.TechnicalInformation Note:Providebyapplicant. 1.1ApplicantandManufacturerInformation Applicant:SaviControls,LLC ApplicantAddress:2520MarshLane,Carrollton,TX75006,UnitedStates Manufacturer:SaviControls,LLC ManufacturerAddress:2520MarshLane,Carrollton,TX75006,UnitedStates 1.2EquipmentunderTest(EUT)Description ProductName:HVKeypad SampleNo.:1# HardwareVersion: N/A SoftwareVersion: N/A ModulationTechnology: BluetoothGFSK WLAN2.4GHz DSSS,OFDM OperatingFrequency Range: Bluetooth2402MHz-2480MHz WLAN2.4GHz2412MHz-2472MHz AntennaType:PCBAntenna AntennaGain:1.77dBi ReportNo.:18220WC302309Page4of7 1.3AppliedReferenceDocuments Leadingreferencedocumentsfortesting: IdentityDocumentTitle Method determination /Remark 47CFRPart2(2.1091) RadioFrequencyRadiationExposure Assessment:mobiledevices Nodeviation KDB447498D01v06GeneralRFExposureGuidanceNodeviation Note1:Additionsto,deviation,orexclusionsfromthemethodshallbejudgedinthe"method determination"columnofadd,deviateorexcludefromthespecificmethodshallbeexplainedin the"Remark"oftheabovetable. Note2:Whenthetestresultisacriticalvalue,wewillusethemeasurementuncertaintygive thejudgmentresultbasedonthe95%confidenceintervals. ReportNo.:18220WC302309Page5of7 2.DeviceCategoryandRFExposureLimit Perusermanual,basedon47CFR2.1091,thisdevicebelongstomobiledevicecategorywith GeneralPopulation/Uncontrolledexposure. MobileDevices: 47CFR2.1091(b) Forpurposesofthissection,amobiledeviceisdefinedasatransmittingdevicedesignedtobe usedinotherthanfixedlocationsandtogenerallybeusedinsuchawaythataseparationdistance ofatleast20centimetersisnormallymaintainedbetweenthetransmitter'sradiatingstructure(s) andthebodyoftheuserornearbypersons.Inthiscontext,theterm“fixedlocation”meansthatthe deviceisphysicallysecuredatonelocationandisnotabletobeeasilymovedtoanotherlocation. Transmittingdevicesdesignedtobeusedbyconsumersorworkersthatcanbeeasilyre-located, suchaswirelessdevicesassociatedwithapersonalcomputer,areconsideredtobemobile devicesiftheymeetthe20centimeterseparationrequirement. GeneralPopulation/UncontrolledExposure: Thegeneralpopulation/uncontrolledexposurelimitsareapplicabletosituationsinwhichthe generalpublicmaybeexposedorinwhichpersonswhoareexposedasaconsequenceoftheir employmentmaynotbemadefullyawareofthepotentialforexposureorcannotexercisecontrol overtheirexposure.Membersofthegeneralpublicwouldcomeunderthiscategorywhen exposureisnotemployment-related;forexample,inthecaseofawirelesstransmitterthat exposespersonsinitsvicinity.Warninglabelsplacedonlow-powerconsumerdevicessuchas cellulartelephonesarenotconsideredsufficienttoallowthedevicetobeconsideredunderthe occupational/controlledcategory,andthegeneralpopulation/uncontrolledexposurelimitsapplyto thesedevices. Table1—LimitsforMaximumPermissibleExposure(MPE) Frequencyrange (MHz) Electricfield strength (V/m) Magneticfield strength (A/m) Powerdensity (mW/cm 2 ) Averagingtime (minutes) (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f 2 )30 30-30027.50.0730.230 300-1500--f/150030 1500-100,000--1.030 f=frequencyinMHz*=Plane-waveequivalentpowerdensity ReportNo.:18220WC302309Page6of7 3.MaximumAveragePowerSummary WirelessModeChannel Frequency (MHz) Max.Average Power (dBm) Tune-upLimit (dBm) BluetoothCH3924801.712.00 WLAN2.4GHzCH1241218.2218.50 Note1:AccordingtoKDB447498,MPEassessmentisbasedonsource-basedtime-averaged maximumconductedoutputpoweroftheRFchannelrequiringassessment,adjustedfortune-up tolerance,andtheminimumtestseparationdistancerequiredfortheexposureconditions. Note2:ThemaximumoutputpowerofWLANandBluetoothisderivedfromthereport 18220WC30230901/02. ReportNo.:18220WC302309Page7of7 4.RFExposureAssessment  StandaloneTransmissionAssessment: Bands Frequency (MHz) Tune-up Power(dBm) Antenna Gain(dBi) E.I.R.P. (mW) Power Density (mW/cm²) Limitfor MPE (mW/cm²) Bluetooth24802.001.772.380.00051.0 WLAN2.4GHz241218.501.77106.410.02121.0 Note: 1.AccordingtoKDB447498,MPEassessmentisbasedonsource-basedtime-averaged maximumconductedoutputpoweroftheRFchannelrequiringassessment,adjustedfor tune-uptolerance,andtheminimumtestseparationdistancerequiredfortheexposure conditions. 2.MPEcalculatemethod S=PG/4πR² Where:S=Powerdensity(inappropriateunits,e.g.mW/cm²) P=Time-averagemaximumtune-uppower(inappropriateunits,e.g.dBm) G=numericgainoftheantenna(inappropriateunits,e.g.dBi) R=Separationdistancetothecentreofradiationoftheantenna(20cm) SimultaneousTransmissionAssessment: Accordingtotheusermanual,boththeWLANandBluetoothtransmittersinthedevicecannot operatesimultaneously,thereforesimultaneoustransmissionanalysisisnotrequired.  Conclusion: Ac…

Text truncated - open the document above for the full version.

ReportNo.:18220WC302309Page2of22 AppendixTestData DutyCycleofTestSignal ConditionModeFrequency(MHz)AntennaDutyCycle(%)CorrectionFactor(dB)1/T(kHz) NVNTBLE1M2402Ant1840.760.48 NVNTBLE1M2440Ant1840.760.48 NVNTBLE1M2480Ant1840.760.48 ReportNo.:18220WC302309Page3of22 TestGraphs DutyCycleNVNTBLE1M2402MHzAnt1 DutyCycleNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC302309Page4of22 DutyCycleNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC302309Page5of22 MaximumPeakConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power(W) Limit Conducted (dBm) Verdict NVNT BLE 1M 2402Ant12.6402.640.0018430Pass NVNT BLE 1M 2440Ant13.0603.060.0020230Pass NVNT BLE 1M 2480Ant13.3103.310.0021430Pass ReportNo.:18220WC302309Page6of22 TestGraphs PeakPowerNVNTBLE1M2402MHzAnt1 PeakPowerNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC302309Page7of22 PeakPowerNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC302309Page8of22 MaximumAverageConductedOutputPower ConditionMode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Conducted Power (dBm) Total Conducted Power(W) Limit Conducted (dBm) Verdict NVNT BLE 1M 2402Ant10.230.760.990.0012630Pass NVNT BLE 1M 2440Ant10.790.761.550.0014330Pass NVNT BLE 1M 2480Ant10.950.761.710.0014830Pass ReportNo.:18220WC302309Page9of22 TestGraphs AveragePowerNVNTBLE1M2402MHzAnt1 AveragePowerNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC302309Page10of22 AveragePowerNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC302309Page11of22 6dBBandwidth ConditionMode Frequency (MHz) Antenna -6dBBandwidth (MHz) Limit-6dB Bandwidth(MHz) Verdict NVNTBLE1M2402Ant10.6270.5Pass NVNTBLE1M2440Ant10.6150.5Pass NVNTBLE1M2480Ant10.610.5Pass ReportNo.:18220WC302309Page12of22 TestGraphs -6dBBandwidthNVNTBLE1M2402MHzAnt1 -6dBBandwidthNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC302309Page13of22 -6dBBandwidthNVNTBLE1M2480MHzAnt1 ReportNo.:18220WC302309Page14of22 ConductedSpuriousEmissions ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-33.49-20Pass NVNTBLE1M2440Ant1-32.84-20Pass NVNTBLE1M2480Ant1-32.67-20Pass ReportNo.:18220WC302309Page15of22 TestGraphs Tx.SpuriousNVNTBLE1M2402MHzAnt1Ref Tx.SpuriousNVNTBLE1M2402MHzAnt1Emission ReportNo.:18220WC302309Page16of22 Tx.SpuriousNVNTBLE1M2440MHzAnt1Ref Tx.SpuriousNVNTBLE1M2440MHzAnt1Emission ReportNo.:18220WC302309Page17of22 Tx.SpuriousNVNTBLE1M2480MHzAnt1Ref Tx.SpuriousNVNTBLE1M2480MHzAnt1Emission ReportNo.:18220WC302309Page18of22 BandEdge ConditionModeFrequency(MHz)AntennaMaxValue(dBc)Limit(dBc)Verdict NVNTBLE1M2402Ant1-49.3-20Pass NVNTBLE1M2480Ant1-50.02-20Pass ReportNo.:18220WC302309Page19of22 TestGraphs BandEdgeNVNTBLE1M2402MHzAnt1Ref BandEdgeNVNTBLE1M2402MHzAnt1Emission ReportNo.:18220WC302309Page20of22 BandEdgeNVNTBLE1M2480MHzAnt1Ref BandEdgeNVNTBLE1M2480MHzAnt1Emission ReportNo.:18220WC302309Page21of22 PowerSpectralDensity ConditionMode Frequency (MHz) Antenna Conducted PSD (dBm/3kHz) Duty Factor (dB) TotalPSD (dBm/3kHz) Limit (dBm/3kHz) Verdict NVNTBLE1M2402Ant1-10.490-10.498Pass NVNTBLE1M2440Ant1-10.760-10.768Pass NVNTBLE1M2480Ant1-11.630-11.638Pass ReportNo.:18220WC302309Page22of22 TestGraphs PSDNVNTBLE1M2402MHzAnt1 PSDNVNTBLE1M2440MHzAnt1 ReportNo.:18220WC302309Page23of22 PSDNVNTBLE1M2480MHzAnt1 ENDOFREPORT

ReportNo.:18220WC30230901FCCID:2BAZT10024001Page1of31 Code:AB-RF-05-b FCCTestReport Applicant:SaviControls,LLC Address: 2520MarshLane,Carrollton,TX75006, UnitedStates ProductName:HVKeypad ReportDate:Nov.03,2023 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC30230901FCCID:2BAZT10024001Page2of31 Code:AB-RF-05-b Contents 1.GeneralInformation ............................................................................................................................................6 1.1.ClientInformation ....................................................................................................................................6 1.2.DescriptionofDevice(EUT) ..................................................................................................................6 1.3.AuxiliaryEquipmentUsedDuringTest .................................................................................................7 1.4.DescriptionofTestConfiguration ..........................................................................................................7 1.5.DescriptionOfTestSetup ......................................................................................................................8 1.6.TestEquipmentList .................................................................................................................................9 1.7.MeasurementUncertainty ....................................................................................................................10 1.8.DescriptionofTestFacility ...................................................................................................................10 1.9.Disclaimer ...............................................................................................................................................11 2.SummaryofTestResults .................................................................................................................................12 3.ConductedEmissionTest ................................................................................................................................13 3.1.TestStandardandLimit ........................................................................................................................13 3.2.TestSetup ...............................................................................................................................................13 3.3.TestProcedure .......................................................................................................................................13 3.4.TestData .................................................................................................................................................13 4.RadiationSpuriousEmissionandBandEdge .............................................................................................16 4.1.TestStandardandLimit ........................................................................................................................16 4.2.TestSetup ...............................................................................................................................................16 4.3.TestProcedure .......................................................................................................................................17 4.4.TestData .................................................................................................................................................18 5.MaximumPeakOutputPowerTest ...............................................................................................................26 5.1.TestStandardandLimit ........................................................................................................................26 5.2.TestSetup ...............................................................................................................................................26 5.3.TestProcedure .......................................................................................................................................26 5.4.TestData .................................................................................................................................................26 6.6dBEmissionBandwidthTest ........................................................................................................................27 6.1.TestStandardandLimit ........................................................................................................................27 6.2.TestSetup ...............................................................................................................................................27 6.3.TestProcedure .......................................................................................................................................27 6.4.TestData .................................................................................................................................................27 7.PowerSpectralDensityTest ...........................................................................................................................28 7.1.TestStandardandLimit ........................................................................................................................28 7.2.TestSetup ...............................................................................................................................................28 7.3.TestProcedure .......................................................................................................................................28 7.4.TestData .................................................................................................................................................28 ReportNo.:18220WC30230901FCCID:2BAZT10024001Page3of31 Code:AB-RF-05-b 8.100kHzBandwidthofFrequencyBandEdgeRequirement ...................................…
