2BB59-F3600-USRESIDENTIAL ESS & PORTABLE POWER STATION

RUNHOOD POWER INC. 1 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. F3600-US Product Manual V1.0 版本管理 Versions Date Change Check Approver Change Content V1.0 2024.1.22 Qinwei Alpha Version RUNHOOD POWER INC. 2 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 目录 1 Definition Of Product .....................................................................................................................................3 1.1 Application scenarios .........................................................................................................................3 1.2 System block diagram .......................................................................................................................3 1.3 F3600 Residential ESS & Portable Power Station .....................................................................4 1.3.1 Product appearance ..............................................................................................................5 1.3.2 Principle block diagram ........................................................................................................6 1.3.3 Specification parameters ......................................................................................................6 1.3.4 Function description ..............................................................................................................8 2 Appendix.......................................................................................................................................................... 20 RUNHOOD POWER INC. 3 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 1 Definition Of Product 1.1 Application scenarios Application scenario 1: Used as an outdoor mobile energy storage power source. Supports input methods such as AC charging, photovoltaic charging, and vehicle charging. Supports DC output such as USB, DC12V, DC24V, and AC output. Can be moved and stacked for use. Application scenario 2: As a backup application for UPS households. Home power grid connected to RUNHOOD system application: It serves as a UPS for the home power grid, with two sets of hosts and battery packs. Application scenario 3: Home energy storage grid connected application. The RUNHOOD battery in the home photovoltaic energy storage system can replace (or be newly installed) the battery part of the energy storage system: 1.2 System block diagram RUNHOOD POWER INC. 4 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 1.3 F3600 Residential ESS & Portable Power Station Composed of battery pack, inverter, DC interface, parallel interface, etc. RUNHOOD POWER INC. 5 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 1.3.1 Product appearance Note: The type of AC socket varies in each country and region, and the actual product shall prevail. RUNHOOD POWER INC. 6 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 1.3.2 Principle block diagram 1.3.3 Specification parameters F3600 Battery Cell LiFePO4（32140，15Ah） Burst mode 5P15S Quantity electricity 3600Wh（48V，75Ah） Current range 充电：55A Max；放电：140A Max Voltage range 38-53V Temperature range 充电：2°C~50°C；放电：-28°C~50°C Cycles 6000 cycles to 80%+ capacity LCD Screen LCD Support（Touch Screen） Lamp LED Support Wifi/Bluetooth Support Key Key1 Main Power switch on/off Key2 AC out on/off RUNHOOD POWER INC. 7 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. Key3 DC out on/off Key4 USB-A/C out on/off DC Input Ports 12–150V 25A Max, 2400W Max, Car Charger, 12/24V 8.5A Max Output Ports USB-A 12W Max * 2 USB-B 28W Max * 2 USB-C 100W Max * 2 Anderson 12/24V 30A Max Car Charger 12V 10A AC Input Ports F3600-US 110V~120Vac，60Hz，15A Max, 1800W Max F3600-JP 100Vac，50/60Hz，15A Max, 1500W Max F3600-EU、F3600-UK、F3600-AU 230Vac，50Hz，10A Max, 2300W Max Output Ports F3600-US 120VAC, 60Hz, 3600W (7200W Surge)， 20A Max * 4, 30A Max * 1 EV INPUT AC 3400W Max BACK -UP OUTPUT AC 3600W Max Extra Battery Port（*2） Power and Communications External communication RJ45 *3 Com1: Debug port Com2: Debug port Com3: Reserve Grounding point Earthing mark Dip switch Address coding & terminal resistance Weight 48kg Dimensions (LxWxD) 58.8cm*40cm*42.4cm Certification Europe： IEC62619、IEC62477、CE（RED）、IEC60730 North America： UL2743、UL1973、UL9540、UL9540A、FCC ID RUNHOOD POWER INC. 8 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. 1.3.4 Function description 1. LCD display screen Display product's battery level and usage status prompts. RUNHOOD POWER INC. 9 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. RUNHOOD POWER INC. 10 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. RUNHOOD POWER INC. 11 The copyright of this document belongs to RUNHOOD POWER INC. violation of rights will be prosecuted. Icon Information Prompt explanation current address The current ID of the host or battery product No. of system connections The system supports expansion, and this icon indicates the number of battery packs connected to the system for expansion No. of online work in the system After system expansion, parallel operation will be carried out based on the battery pack situation, and this icon indicates the current number of parallel operations voltage frequency Level voltage frequency External PCS indication The system supports the use of external grid connected inverters. At this time, the product can be used as a home storage battery pack. This icon prompts when the system is connected to an external PCS Charging gun When inserting the charging gun for charging, this icon prompts. RUNHOOD POWER …

Text truncated - open the document above for the full version.

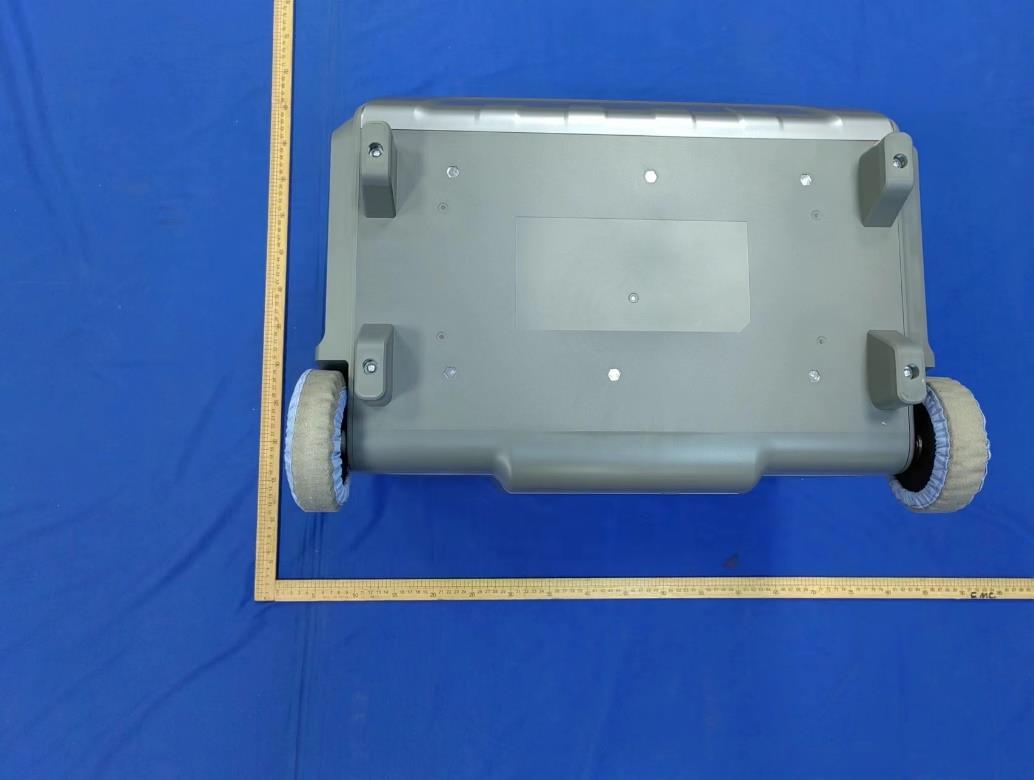

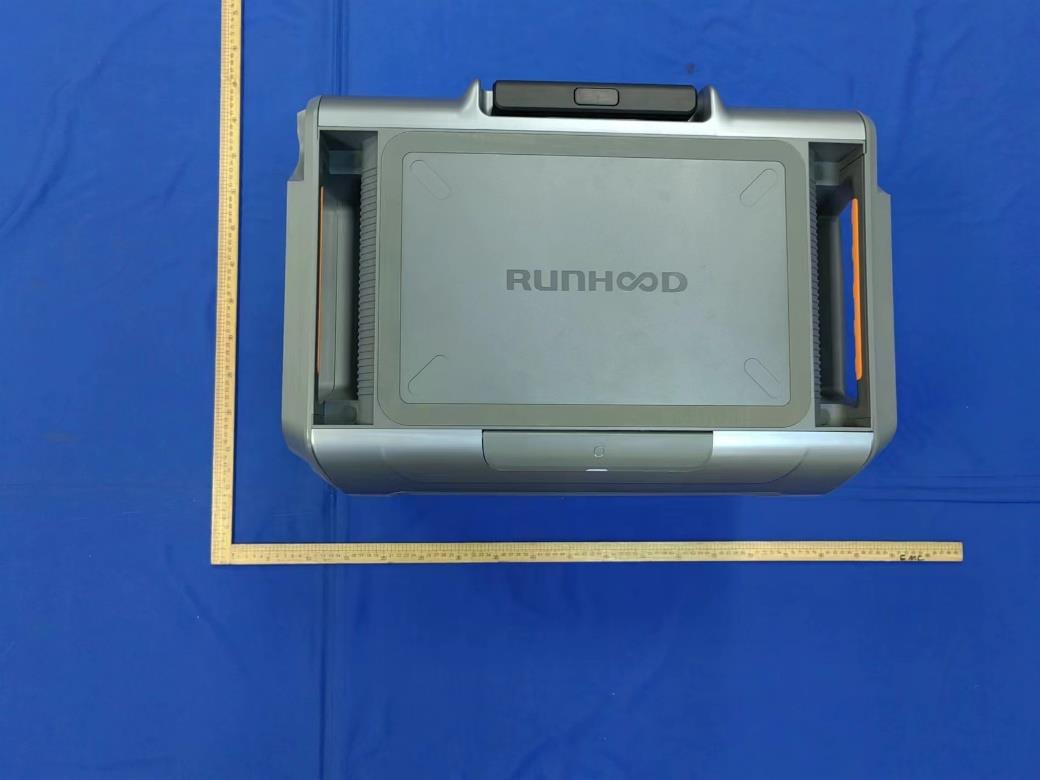

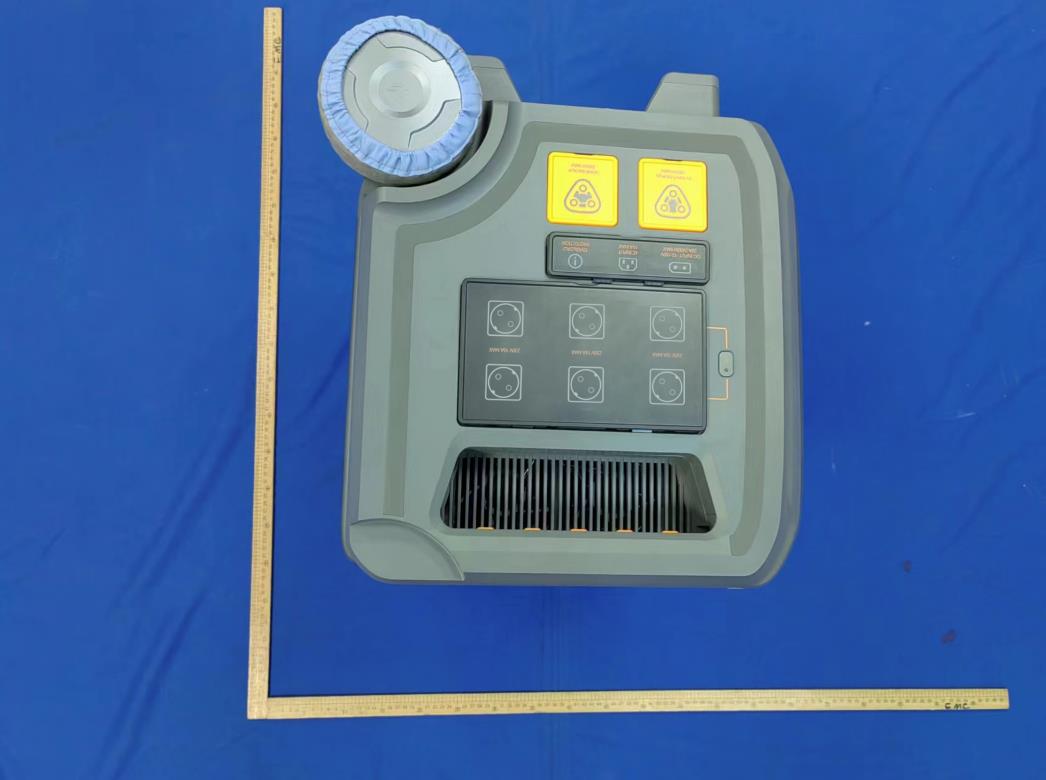

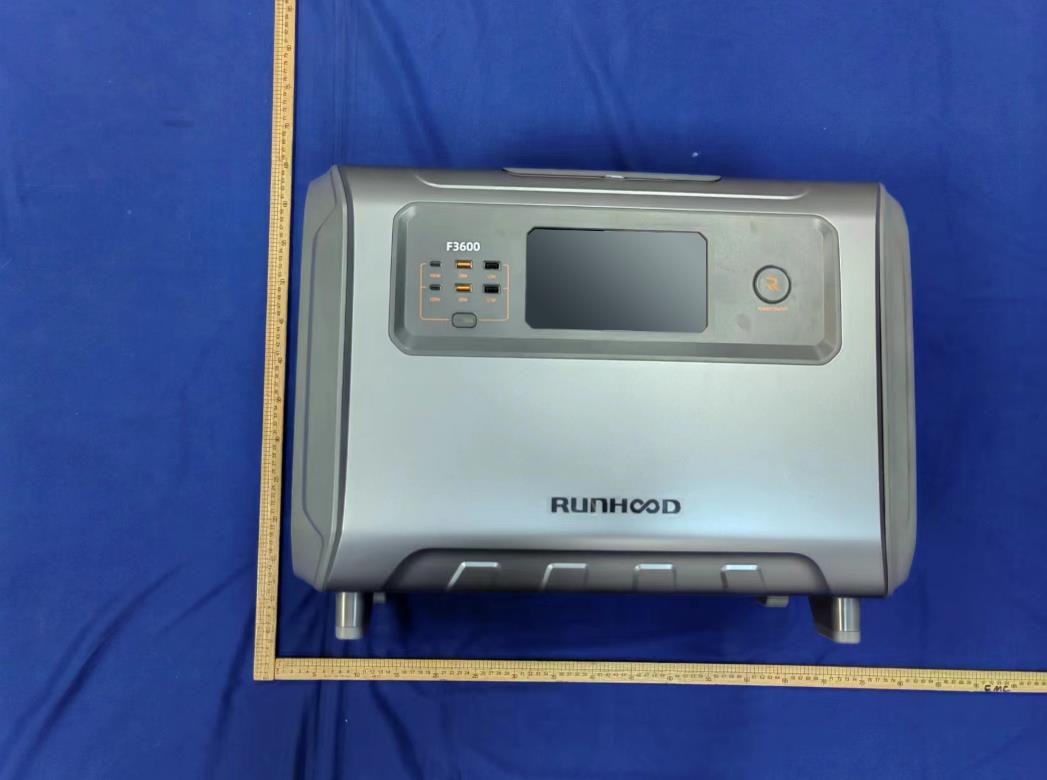

F3600-US view-1 F3600-US view-2 F3600-US view-3 F3600-US view-4 F3600-US view-5 F3600-US view-6

internal view internal view internal view BLE/2.4G WIFI： 2400-2483.5MHz PCB Antenna BMS view-1 BMS view-2 Cell view DC-DC Board DC-DC Board Main board Main board

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN24XE6B 001 Auftrags-Nr.: Order no.: 244546463 Seite 1 von 47 Page 1 of 47 Kunden-Referenz-Nr.: Client reference no.: 2419390 Auftragsdatum: Order date: 2023-09-21 Auftraggeber: Client: RUNHOOD POWER INC. 3980-D Valley Blvd, Walnut, California, United States Prüfgegenstand: Test item: RESIDENTIAL ESS & PORTABLE POWER STATION Bezeichnung / Typ-Nr.: Identification / Type no.: F3600-US Auftrags-Inhalt: Order content: TÜV Rheinland EMC service Prüfgrundlage: Test specification: FCC 47 CFR Part 15, Subpart B:2022 Class B ICES-003:2020 ICES-005:2018 Wareneingangsdatum: Date of sample receipt: 2024-01-11 Refer to the EUT photos file Prüfmuster-Nr.: Test sample no: A003661104-002 Prüfzeitraum: Testing period: Refer to test report Ort der Prüfung: Place of testing: Refer to clause 1.1 Prüflaboratorium: Testing laboratory: TÜV Rheinland (Suzhou) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2024-03-05 Ausstellungsdatum: Issue date: 2024-03-05 Stellung / Position: Project engineer Stellung / Position: Reviewer Sonstiges / Other: FCC ID: 2BB59-F3600-US Test Firm Name: TÜV Rheinland (Suzhou) Co., Ltd. Test Firm Registration Number: 251781 Designation Number: CN1370 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: P(ass) = passed a.m. test specification(s) F(ail) = failed a.m. test specification(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the above mentioned test sample. Without permission of the test center this test report is not permitted to be duplicated in extracts. This test report does not entitle to carry any test mark. TUV Rheinland (Suzhou) Co., Ltd. No.14 building and north half of No.10 workshop building, No.525, Yuewang Lingang South Road, Pingqian (Taicang) Modern Industrial Park, Shaxi Town, Taicang City, Jiangsu Province, China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: CN24XE6B 001 Test report no.: Seite 2 von 47 Page 2 of 47 Anmerkungen Remarks 1 Alle eingesetzten Prüfmittel waren zum angegebenen Prüfzeitraum gemäß eines festgelegten Kalibrierungsprogramms unseres Prüfhauses kalibriert. Sie entsprechen den in den Prüfprogrammen hinterlegten Anforderungen. Die Rückverfolgbarkeit der eingesetzten Prüfmittel ist durch die Einhaltung der Regelungen unseres Managementsystems gegeben. Detaillierte Informationen bezüglich Prüfkonditionen, Prüfequipment und Messunsicherheiten sind im Prüflabor vorhanden und können auf Wunsch bereitgestellt werden. The equipment used during the specified testing period was calibrated according to our test laboratory calibration program. The equipment fulfils the requirements included in the relevant standards. The traceability of the test equipment used is ensured by compliance with the regulations of our management system. Detailed information regarding test conditions, equipment and measurement uncertainty is available in the test laboratory and could be provided on request. 2 Wie vertraglich vereinbart, wurde dieses Dokument nur digital unterzeichnet. Der TÜV Rheinland hat nicht überprüft, welche rechtlichen oder sonstigen diesbezüglichen Anforderungen für dieses Dokument gelten. Diese Überprüfung liegt in der Verantwortung des Benutzers dieses Dokuments. Auf Verlangen des Kunden kann der TÜV Rheinland die Gültigkeit der digitalen Signatur durch ein gesondertes Dokument bestätigen. Diese Anfrage ist an unseren Vertrieb zu richten. Eine Umweltgebühr für einen solchen zusätzlichen Service wird erhoben. As contractually agreed, this document has been signed digitally only. TUV Rheinland has not verified and unable to verify which legal or other pertaining requirements are applicable for this document. Such verification is within the responsibility of the user of this document. Upon request by its client, TUV Rheinland can confirm the validity of the digital signature by a separate document. Such request shall be addressed to our Sales department. An environmental fee for such additional service will be charged. 3 Prüfklausel mit der Note * wurden an qualifizierte Unterauftragnehmer vergeben und sind unter der jeweiligen Prüfklausel des Berichts beschrieben. Abweichungen von Prüfspezifikation(en) oder Kundenanforderungen sind in der jeweiligen Prüfklausel im Bericht aufgeführt. Test clauses with remark of * are subcontracted to qualified subcontractors and descripted under the respective test clause in the report. Deviations of testing specification(s) or customer requirements are listed in specific test clause in the report. 4 Die Entscheidungsregel für Konformitätserklärungen basierend auf numerischen Messergebnisen in diesem Prüfbericht basiert auf der "Null-Grenzwert-Regel" und der "Einfachen Akzeptanz" gemäß ILAC G8:2019 und IEC Guide 115:2021, es sei denn, in der auf Seite 1 dieses Berichts genannten angewandten Norm ist etwas anderes festgelegt oder vom Kunden gewünscht. Dies bedeutet, dass die Messunsicherheit nicht berücksichtigt wird und daher auch nicht im Prüfbericht angegeben wird. Zu weiteren Informationen bezueglich des Risikos durch diese Entscheidungsregel siehe ILAC G8:2019. The decision rule for statements of conformity, based on numerical measurement results, in this test report is based on the “Zero Guard Band Rule” and “Simple Acceptance” in accordance with ILAC G8:2019 and IEC Guide 115:2021, unless otherwise specified in the applied sta…
