2BB8P-AM10ASmart watch

4. In the search list, select the AM10A with the strongest signal and confi rm the pairing by clicking the pairing button on the watch screen as prompted by your phone . The Bluetooth icon on the watch will be blue in color , indicating that you are connected to Bluetooth 5.3. 03:04am AM10A User Manual Version1.1 Introduction • AM10A smart watch x 1 • User manual x 1 • Charging dock x 1 Setting Up Your AM10A T h e f irst s t ep i s t o download and i n s t all t h e A P P SMARTTIME PRO indicated on the user manual and shown up on the watch. Enter the APP and create an account for info sync. The app allows you to check data analysis every day and to personalize some functionalities, such as setting Connect AM10A to your smartphone SMART-TIME PRO APP supports the operating system of IOS 11.0 and Android 5.3 or above, and BT 5.3&3.0. It is available for more than 150 mobile devices. 1. Turn on Bluetooth on the mobile; 2. Download APP: SMART-TIME PRO; Quick Fit Strap AM10A contains two parts(watch body and wristband), you can purchase separately strap and switch as your preference. Charging Instructions Change watch face Download more from APP, Open APP---Device---Watch Face, you can choose Online Dial or Custom Dial with your phone picture. Functions Wristband length Wristband width Weight Battery Waterproof 266mm 22mm 55.5 g 260 mAh Poly-Li IP67 Troubleshooting Heart-rate signal missing Other problems Exemption Clause Warranty Clause A. Accident or human damage B. Testing, repairing or disassembling without authorization C. Contamination due to human reasons D. Damage caused by connection with equipment which is not compatible E. Natural aging F. Damage caused by Force majeure Stopwatch: Electronic timer can record one time or record multiple times. Settings: dial switch, Currency, brightness, language, Theme ,shutdown, restore factory, reboot, About. Shortcut menu: Timer: The same way to calculate the remaining time. Weather: Weather forecast. Alarm: Set the alarms in APP and sync to watch, maximum 5 alarms. 3. How to pair the watch for iOS users: First step: Open APP>device>add new device> choose AM10A * Bluetooth 3.0 connection: iPhone users support Bluetooth 5.3 + 3.0 dual Bluetooth one-key link (match according to the system prompts box operation) Android users need to fi rst time in the Bluetooth pairing interface in the "call service pairing options" click "to bind" and then follow the interface operation prompts to complete the Bluetooth 5.3 + 3.0 pairing , subsequent links to the phone will be on the watch 3.0 Bluetooth memory, so as to achieve dual Bluetooth one-key link (if not automatically connected to Bluetooth 3.0, please manually search for Bluetooth watch model "AM10A" on the phone) AM10A AM10A AM10A IOS Android “AM10A” Sports AM10A watch supports up to 100+ sports modes, fitness, leisure, competition Classes, ball games, dance classes. including: running, walking, treadmill, mountaineering, cycling,Spinning bike, yoga, basketball, football, badminton and other sports. AM10A watch supports sports customization, which can be customized in more than 100 sports modes favorite sport. Basketball Yoga Badminton Football Run Walk Treadmill Cycling Climbing Free movement Sports customization:APP " sports " - "cu stom" - " add" to jump to s ports category page, click the sport name to add . Heart rate: Stress: After wearing the watch correctly, open the "stress" in the watch; check how much psychological pressure you are feeling. Activity: After wearing the watch correctly, open the "step counting" in the watch; display the number of steps, calories, distance and other parameters of the day's exercise. SpO2: After wearing the watch correctly, open the "SpO2" in the watch; manual blood oxygen measurement is required. Sleep: After wearing the watch correctly, open the "Sleep" in the watch; record the sleep status throughout the night. Music: Open the "Music" app in the watch app; you can control the music playback of your phone, and support operations such as previous track, play/pause, next track, and volume adjustment. 活动 09:30 pm 调整亮度 时钟 二维码 主题 Strees Activity Dial: You can view the text messages in the mobile phone and the real-time information pushed to the watch. Notice: Camera: Control the camera on the mobile phone to take pictures remotely. When using it, please click "Device-Take Picture" on the APP to turn on the camera. Find phone: When the watch is connected to the APP, the phone will make a sound after tapping it. Anti-lost reminder: When the watch is disconnected from the Bluetooth of the mobile phone, the watch will make a sound and vibrate to prevent loss. AI Voice: Wake up your phone's voice assistant. Breathing exercises: Blood pressure: Wear the watch in a right way, and open the menu--blood pressure, measure it manual. In the menu bar click on "breathing exercises" and, depending on your needs, Select different times. Stock market: APP "Device" - "Stock Market" - "Add" jump searchpage, click the search icon at the top right to enter the stock name to searchAdd to. World clock: APP "Device" - "World Time" - "Add", you can Scroll down to select or click the search icon at the top right to enter a region name Search to add. Sports Run Run 061218 02:49am BPM 106 Current Heart rate 09:30 95 95 65 06121823 29 59 79 99 Stress Recent Medi... 09:30 89% SpO2 02:49am 24 M05H 36M02H 00M01H 11:30 08:30 Deep sleep Light sleep Wide awake Sleep 02:49amMusic Bleeding Love HEST/Ni/Co 02:49am +641.47 30,530.25 -380.89 15,347.75 05:20 pm 09/25 Stock mar... 02:49am 09:30:00 09:30 12:00 02:49am 02:49am 12596 02:55am 1min 03:07am 09:30 02:49am 02:49am 05:20pmAdam 05:20pm ing to do something. Today I called my... Message ing to do something. Today I called my... Message Adam 00:00.00 03:03am 09:30 Alipay: Please open your mobile phone Alipay 10.0 and above, scan the QR code of the watch, complete the binding and follow the watch prompts Just carry out the operation. 09:30 Run Walk Climb…

Text truncated - open the document above for the full version.

CE BRANDS INTERNATIONAL INC. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: CE BRANDS INTERNATIONAL INC. Address: 1400, 350-7 Avenue SW Calgary,Alberta, T2P3N9, Canada Product Name: Smart watch FCCID: 2BB8P-AM10A Model(s): AM10A, VI1510-GB, VI1510-RG, VI1510-SS 2.911(d)(5)(i) EquipmentType We, [CE BRANDS INTERNATIONAL INC.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Kalvie Legat Date: Sept. 19, 2023 Title: Chief Executive Officer Company name: CE BRANDS INTERNATIONAL INC. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CE BRANDS INTERNATIONAL INC. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: CE BRANDS INTERNATIONAL INC. Address: 1400, 350-7 Avenue SW Calgary,Alberta, T2P3N9, Canada Product Name: Smart watch FCCID: 2BB8P-AM10A Model(s): AM10A, VI1510-GB, VI1510-RG, VI1510-SS 2.911(d)(5)(ii) Applicant filing We, [CE BRANDS INTERNATIONAL INC.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to §1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Kalvie Legat Date: Sept. 19, 2023 Title: Chief Executive Officer Company name: CE BRANDS INTERNATIONAL INC. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CE BRANDS INTERNATIONAL INC. Agent Authorization Company: CE BRANDS INTERNATIONAL INC. Address: 1400, 350-7 Avenue SW Calgary,Alberta, T2P3N9, Canada Product Name: Smart watch Model Number(s): AM10A, VI1510-GB, VI1510-RG, VI1510-SS Product Description: Smart watch We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Sept. 19, 2023 Name: Kalvie Legat Title: Chief Executive Officer Company: CE BRANDS INTERNATIONAL INC.

CE BRANDS INTERNATIONAL INC. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Sept. 19, 2023 Subject; Request for Confidentiality FCC ID: 2BB8P-AM10A To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Kalvie Legat Title: Chief Executive Officer

CE BRANDS INTERNATIONAL INC. Model Difference Declaration To Whom It May Concern, We, CE BRANDS INTERNATIONAL INC. (Smart watch); Trade Mark: Vitalist Health; Model Number: AM10A, VI1510-GB, VI1510-RG, VI1510-SS; All model’s the function, software and electric circuit are the same, only with product model named different. Test sample model: AM10A. Please contact me if you have any question. Signature: Date: Sept. 19, 2023 Name: Kalvie Legat Title: Chief Executive Officer

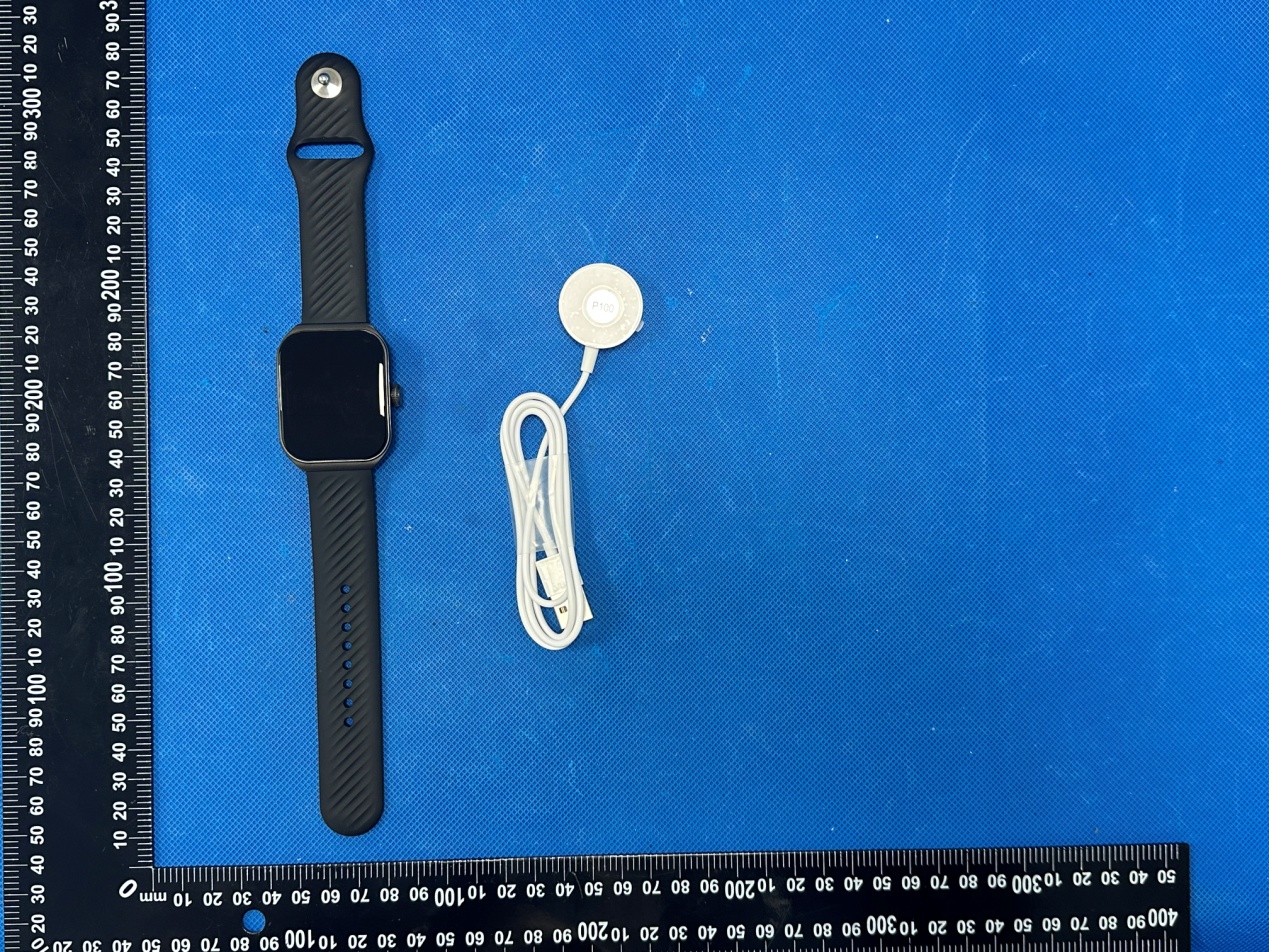

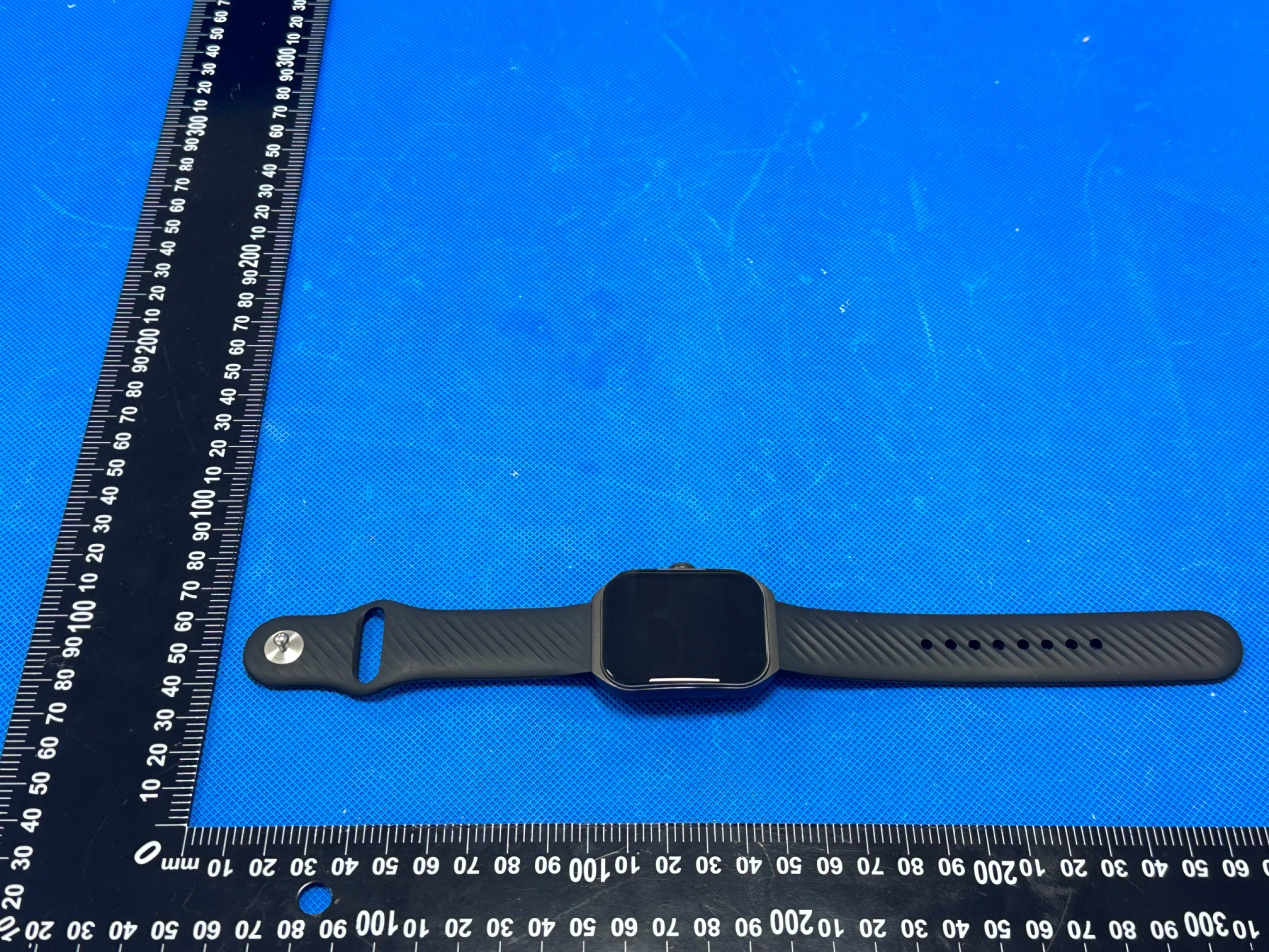

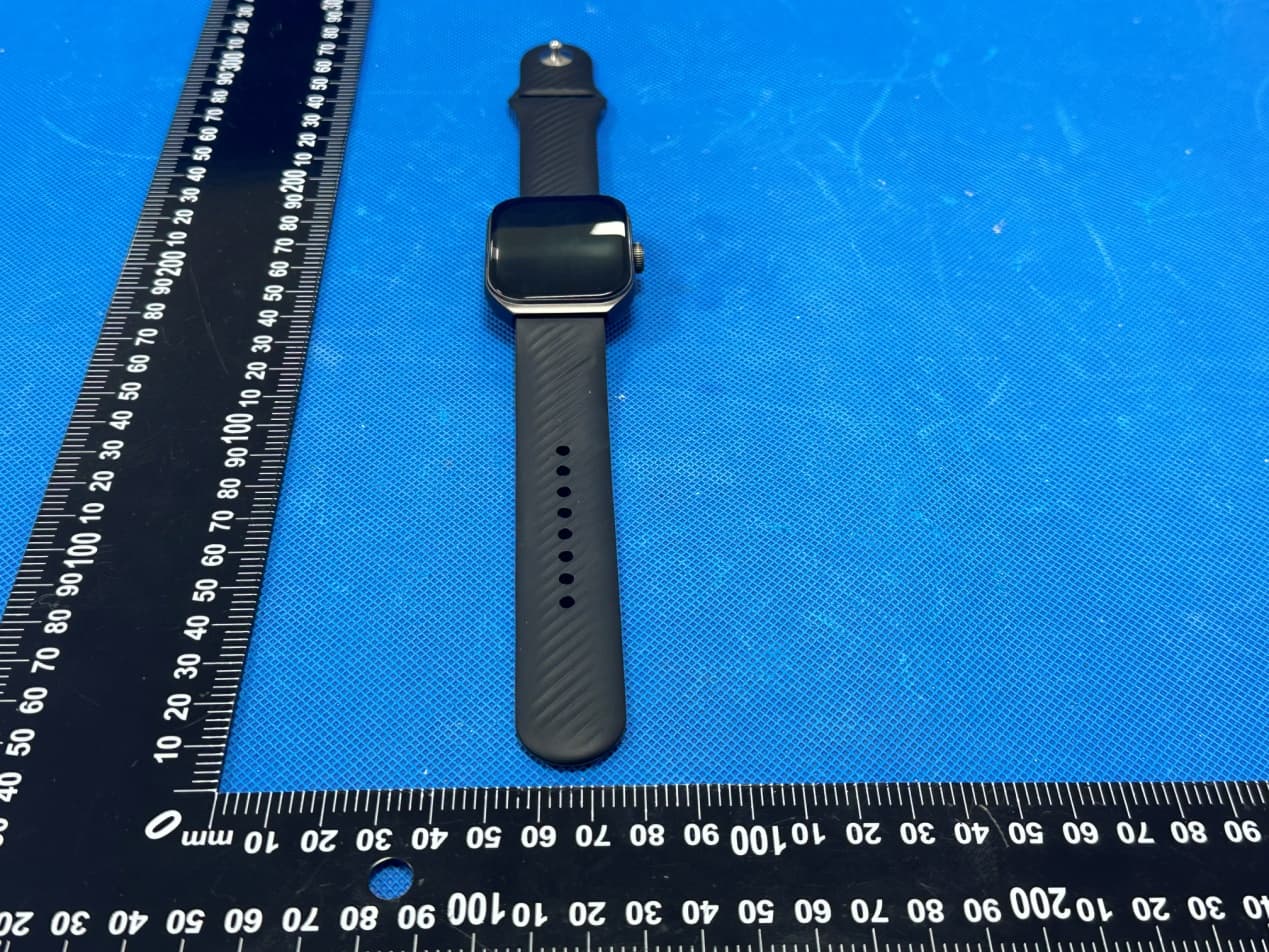

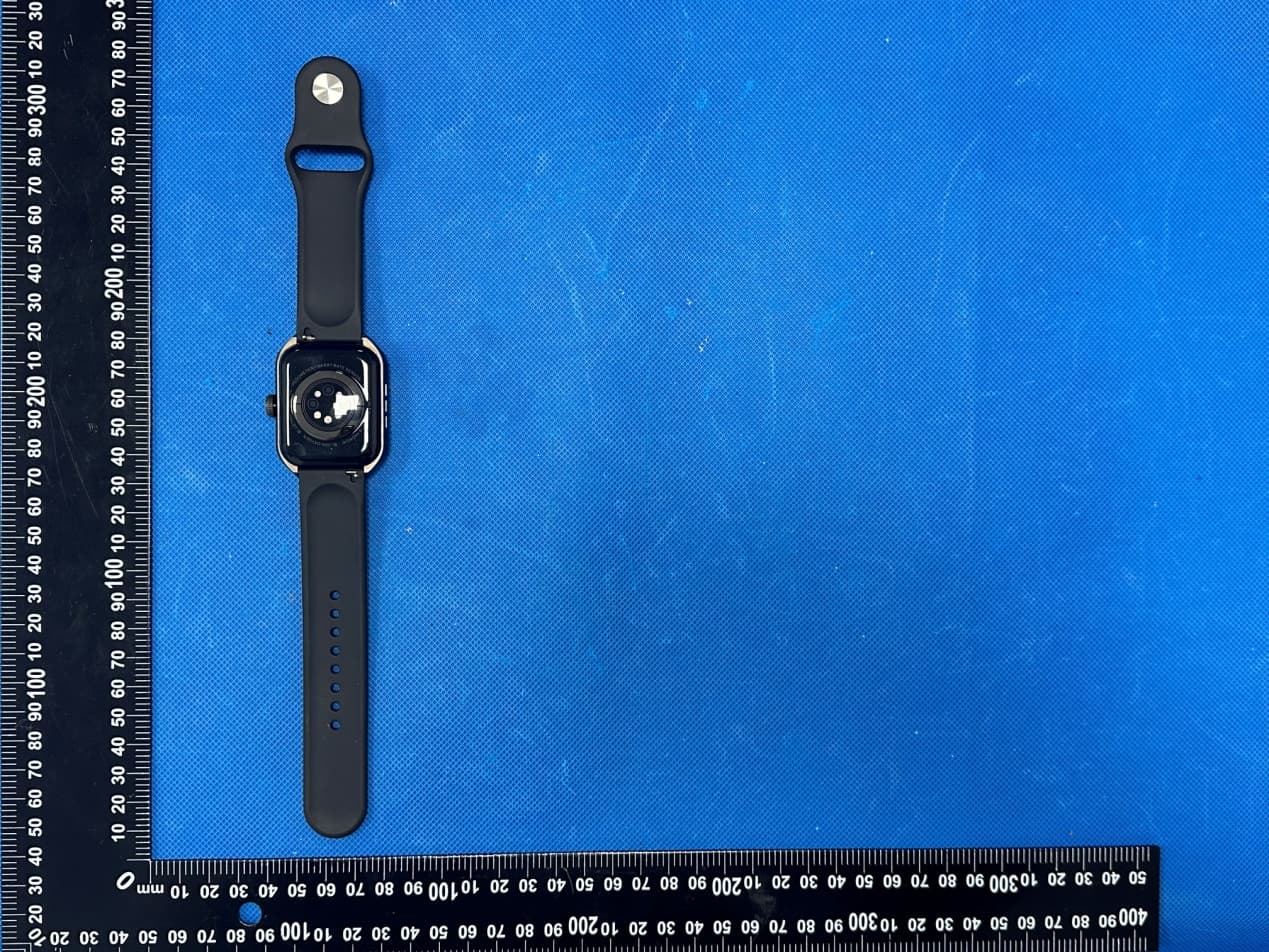

Annex A External Photos Report Number: HK2308233874-1E/2E Page 1 of 4 Report Number: HK2308233874-1E/2E Page 2 of 4 Report Number: HK2308233874-1E/2E Page 3 of 4 Report Number: HK2308233874-1E/2E Page 4 of 4

FCC ID LABEL: Ca. 20mm x 10mm Label Location FCC ID: 2BB8P-AM10A

Annex B Internal Photos Report Number: HK2308233874-1E/2E Page 1 of 3 Antenna Report Number: HK2308233874-1E/2E Page 2 of 3 Report Number: HK2308233874-1E/2E Page 3 of 3

FCC RF Exposure EUT Description: Smart watch Model No.: AM10A FCC ID: 2BB8P‐AM10A 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v06 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ·[√ f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation BLE: Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2480 3.87 3±1 4/2.512 5 0.791 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2308233874‐1E, antenna gain= ‐4.8dBi EDR: Frequency (MHz) Output power （dBm） Tune Up Power （dBm） Max Tune Up power dBm/mW Min test separati on distance mm Result Limit (mW/cm 2 ) SAR Test Exclusion 2441 0.72 0±1 1/1.259 5 0.393 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2308233874‐2E, antenna gain= ‐4.8dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.791 which is<= 3, RF Exposure testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

Page 1 of 46 Report No.: HK2308233874-2E FCC Test Report FCC PART 15 SUBPART C 15.247 Test Report On Behalf of CE BRANDS INTERNATIONAL INC. For Smart watch Model No.: AM10A, VI1510-GB, VI1510-RG, VI1510-SS FCC ID: 2BB8P-AM10A Prepared For: CE BRANDS INTERNATIONAL INC. 1400, 350-7 Avenue SW Calgary,Alberta, T2P3N9, Canada Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Aug. 22, 2023 ~ Aug. 29, 2023 Date of Report: Aug. 29, 2023 Report Number: HK2308233874-2E Page 2 of 46 Report No.: HK2308233874-2E Test Result Certification Applicant’s Name .................. : CE BRANDS INTERNATIONAL INC. Address .................................. : 1400, 350-7 Avenue SW Calgary,Alberta, T2P3N9, Canada Manufacture's Name ............. : SHENZHEN SMART CARE TECHNOLOGY LIMITED Address .................................. : Workshop 2601, Anda Electronic Industrial Park, Heping Community, Fuhai Sub-district, Bao'an District, Shenzhen, China Product Description Trade Mark ............................. : Vitalist Health Product Name ........................... : Smart watch Model and/or type reference...: AM10A, VI1510-GB, VI1510-RG, VI1510-SS Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Aug. 22, 2023 ~ Aug. 29, 2023 Date of Issue .................................... Aug. 29, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 46 Report No.: HK2308233874-2E Table of Contents Page 1. Summary .............................................................................................................................................................. 5 1.1. Test Standards ......................................................................................................................................................... 5 1.2. Test Description ....................................................................................................................................................... 5 1.3. Information of the Test Laboratory ......................................................................................................................... 6 1.4. Statement of the Measurement Uncertainty .......................................................................................................... 6 2. General Information ............................................................................................................................................. 7 2.1. Environmental Conditions ....................................................................................................................................... 7 2.2. General Description of EUT ..................................................................................................................................... 7 2.3. Description of Test Modes and Test Frequency ....................................................................................................... 8 2.4. Equipments Used during the Test ............................................................................................................................ 9 2.5. Related Submittal(s) / Grant (s) ............................................................................................................................. 10 2.6. Modifications ........................................................................................................................................................ 10 2.7. Description of Test Setup ....................................................................................................................................... 10 2.8. Description of Support Units ................................................................................................................................. 11 3. Test Conditions and Results ................................................................................................................................. 12 3.1. Conducted Emissions Test ..................................................................................................................................... 12 3.2. Radiated Emissions and Band Edge ....................................................................................................................... 15 3.3. Maximum Peak Conducted Output Power ............................................................................................................ 26 3.4. 20dB Bandwidth .................................................................................................................................................... 27 3.5. Frequency Separation ........................................................................................................................................... 30 3.6. Number of Hopping Frequency ............................................................................................................................. 32 3.7. Time of Occupancy (Dwell Time) .......................................................................................................................... 34 3.8. Out‐of‐Band Emissions .............................................................................................................................…

Text truncated - open the document above for the full version.

Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 1 of 6 深圳市一加一无线通讯技术有限公司 承认书 APPROVAL SHEET 客户 Customer SHENZHEN SMART CARE TECHNOLOGY LIMITED 项目名 Project AM10 料号 Part NO. 规格 Specification BT Antennas APPROVAL OnePlusOne: RF Check ME Check QC Check Confirm By Customer: EE Check PM Check QC Check Confirm By 承认鉴章后请寄回承认书一份 Please return to us one copy of “APPROVAL SHEET” with your approved signatures Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 2 of 6 Date: Revision: Updates and changes: Issued by: 2023.7.15 A Initial sheet Haiou.Zhu Contents 1 ANTENNA DESCRIPTION ................................................................................ 1-3 1.1 Part number .................................................................................... 1-3 1.2 Antenna pictures ............................................................................. 1-3 2 ELECTRICAL PERFORMANCE ........................................................................ 2-3 2.1 Specification .................................................................................... 2-3 2.2 Measurement Set-up ....................................................................... 2-3 2.2.1 VSWR and Return Loss ................................................................................................................... 2-3 2.2.2 Efficiency and Gain .......................................................................................................................... 2-3 3 REFERENCE MEASUREMENT DATA ............................................................. 3-4 3.1 Passive .............................................................................................. 3-4 3.2 Active ............................................................................................... 3-4 4 MECHANICAL DESCRIPTION .......................................................................... 4-6 4.1 Drawings .......................................................................................... 4-6 Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 3 of 6 1 Antenna description It summarize BT 5.0 antennas for project F7.BT 5.0 antenna’s frequency band is 2400-2500MHz. BT 5.0 antenna’s type is Monopole 1.1 Part number Part number of antenna：F7 1.2 Antenna pictures 2 Electrical Performance 2.1 Specification BT Frequency Range 2400MHz~2500MHz <-5 >25 Return Loss Efficiency 2.2 Measurement Set-up 2.2.1 VSWR and Return Loss VSWR measurements (S 11 ) were performed using an Agilent ENA series Network Analyzer and the previously described test fixture. Coaxial chokes were used to mitigate surface currents on the outside of the cabling. The testing was performed in free space. 2.2.2 Efficiency and Gain The gain of the antenna was measured in OPO’s 3D anechoic chamber in Shenzhen, China. The chamber is a ETS system capable of doing tests from 380MHz to 6GHz. Coaxial chokes on the feed cable were used to mitigate surface currents during passive tests. The measurement results are calibrated using dipole standards. For TRP and TIS the chamber uses a 8960 / MT8820C to establish the connection with the mobile device and read the power. Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 4 of 6 3 Reference measurement data 3.1 Passive Return SWR 3.2 Active Test Bluetooth TRP Application Information Result 039 78 O4Version 5.258.361 Frequency (MHz) 24022441 2480 TotalTime 3m 12s 535ms Txp Ave(dBm) -7.72-8.07 -8.14 AdditionalInfor B141EAA725E6 NHPRP(dBm) 45 NULL NULL NULL MAX(dBm) -4.8-5.76 -6.33 EIRP peak -4.8-5.76 -6.33 Min(dBm) -35.7-36.02 -31 Attenuation Horizontal 43.6743.01 43.4 Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 5 of 6 Project:AM10 Author: Haiou.Zhu File Name: AM10_APP_A.doc Date: 2023-7-15 Revision: A CONFIDENTIAL enzhen OnePlusOne Wireless Communication Technology Co.,Ltd. 深圳市宝安区航城街道航城锦驰产业 园B1栋7楼 Page 6 of 6 4 Mechanical description 4.1 Drawings

Report No.: HK2308233874-1E/2E Radiated Emissions Report No.: HK2308233874-1E/2E Conducted Emission
