Wuxi Auto-Link World Information Technology Co., LTD User manual Model: MTCA05 CONTENT Part 1 Style figure Part 2 Statement & Notice Part 3 Function List Part 4 Statement Manufacturer: Wuxi Auto-Link World Information Technology Co., LTD 制造商：无锡车联天下信息技术有限公司 Address:No.8, Huayun Road, Wuxi City, Jiangsu Province 地址：江苏省无锡市华运路8号 Wuxi Auto-Link World Information Technology Co., LTD Part 1 Style figure 第1部分样式图（立体外观图） Pin definition 1.1 引脚定义 order number Connector name Equipment end supplier Device-end connector part number 1 M1-primary connector (12 + 32pin) Molex 2005062012 2 M7-Eth _ Ethernet Amphenol VNTBR23A2001SR Coding A,Black 3 M5-USB_ user Amphenol HSDNBRPPCB7B 5 M4-USB_K song Amphenol HSCHD02AR00011R 6 M9-Instrument / HUD / C 2 / C 1 Amphenol FRNARPPCB04A Coding A,Black 7 M10-First-passenger screen/streaming media Amphenol FRNBRPPCB04A Coding B,White 8 M14-BT/WIFI External Aptiv 35667171 Wuxi Auto-Link World Information Technology Co., LTD order number Connector name Equipment end supplier Device-end connector part number antenna 9 M2-Signal connector (32pin) Amphenol 10153118-132KALF Coding A,Black 10 M15-The gateway OBD Amphenol 10153745-206KLF 11 M3-Camera PWR Sumitomo 60988549 12 M11-4 in 1, panoramic camera input TE (one supply priority) 2321775-5 Coding E Electricity connection (second supply) 818014016 13 M12-DMS/IMS/Streami ng media / OMS 1 input Amphenol FRNCRPPCB04A Coding C,Blue 14 M13-Twin camera input DVR/Face ID TE (one supply priority) 2314188-2 Coding B,CREAW WHITE 15 M6-4-1, antenna input FM1/AM,FM2/DAB,GPS, SXM Aptiv 35496218 Electricity connection (second supply) 818014330 5.10.1 M1-Main connector 5.10.1 M1-主接插件 5.10.1.1 Schematic diagram 5.10.1.1 示意图 Wuxi Auto-Link World Information Technology Co., LTD serial number The pin number Feet name Input/output Signal type rated current remarks Tang EV model pin demand 1 A1 RL+ OUT Analog Out 3A Built-in power amplifier RL + needless 2 A2 RR+ OUT Analog Out 3A Built-in power amplifier RR + 3 A3 FR+ OUT Analog Out 3A Built-in power amplifier FR + 4 A4 FL+ OUT Analog Out 3A Built-in power amplifier FL + 5 A5 RL- OUT Analog Out 3A Built-in power amplifier RL- 6 A6 RR- OUT Analog Out 3A Built-in power amplifier RR- 7 A7 FR- OUT Analog Out 3A Built-in power amplifier FR- Wuxi Auto-Link World Information Technology Co., LTD 8 A8 FL- OUT Analog Out 3A Built-in power amplifier FL- 9 A9 VBAT 2 IN Ground2 20A need 10 A10 GND 2 IN PWR2 20A 11 A11 VBAT 1 IN Ground1 20A 12 A12 GND 1 IN PWR1 20A 13 B1 Built-in power amplifier: two heavy bass channels (two channels in parallel) + OUT Analog Out 6A needless 14 B2 Built-in power amplifier with two heavy bass channels (two channels in parallel) - OUT Analog Out 6A 15 B3 Large screen power supply + OUT PWR 2.4A 12v power supply, IMax:2.88A 16 B4 Large Screen Power Supply- OUT Ground 2.4A 12v power supply, IMax:2.88A 17 B5 Built-in power amplifier _ central voice speaker + OUT Analog Out 3A 18 B6 Built-in power amplifier _ AVAS OUT Analog Out 3A Built-in power amplifier AVAS output Wuxi Auto-Link World Information Technology Co., LTD speaker + 19 B7 Built-in power amplifier _ Medium speaker- OUT Analog Out 3A 20 B8 Built-in power amplifier _ AVAS speaker- OUT Analog Out 3A Built-in power amplifier AVAS output 21 B9 AMP _ PWR enables control of signal output amplifier I/O High and effective 12v High level effectively enables Operating voltage: MAX 16V; normal 14.4V; MIN 6V Operating current: MAX 0.2 A; normal 0.05A; MIN 0.01 A need 22 B10 USB_DET1 I/O Low effective 0V Receiving the external USB user box enable signal, Normal condition: 3.3V. Less than 2V enabling 23 B11 NC 24 B12 Central control screen power supply + OUT PWR 2A 12v power supply, IMax:2.4A need 25 B13 Instrument screen power supply + OUT PWR 2.4A 12v power supply, IMax:2.88A 26 B14 Central OUT Ground 2A Wuxi Auto-Link World Information Technology Co., LTD Control Screen Power Supply- 27 B15 Instrument Screen Power Supply- OUT Ground 2.4A 28 B16 E-Call_MU TE E-Call mute signal input I/O Low effective 0V Normal: For the high resistance state Mute: 0V, less than 0.3V voltage is effective 29 B17 The T-BOX wakes up the host I High and effective ＞4V GPIO. High level is effective, the output level of T-BOX is> 4V, host mcu gets high level (3.3v); T-BOX _ GPIO output open circuit (suspended), ground or level <4V, host mcu gets low level needless 30 B18 The Host awakens the T-BOX O GPIO. High level is effective, the output level of the host is> 4V, T-BOX mcu gets high level (3.3v), the host GPIO output is open circuit (suspended), needless Wuxi Auto-Link World Information Technology Co., LTD grounding or level is <4V, T-BOX mcu gets low level 31 B19 CAN 0 _ FD _ HCAN bus intelligent into the network H vehicle intelligent into the network high I/O Databus 100mA 120 Ω terminal resistance, design reserved demand 32 B20 CAN 0 _ FD _ LCAN bus intelligent into network L vehicle intelligent into network low I/O Databus 100mA 120 Ω terminal resistance, design reserved 33 B21 ANT_ PWR AM /FM/DAB antenna for power supply OUT PWR 100mA 12V output, mos tube control Maximum current is 150 mA 34 B22 KEY _ POWER sound off / on signal I / O, long press for 3 seconds, multimedi a restart I/O Digital volume output, Low effective Less than 0.3V reference circuit needless 35 B23 KEY AD0 Steering I/O Analog IN Hardware reserved, Wuxi Auto-Link World Information Technology Co., LTD wheel key signal input reference circuit 36 B24 KEY AD1 Steering wheel key signal input I/O Analog IN Hardware reserved, reference circuit 37 B25 The GND steering wheel button is ground I/O Analog IN 38 B26 CAN 1 _ FD _ HCAN bus chassis network H vehicle chassis network height I/O Databus 100mA 120 Ω terminal resistance, design reserved demand 39 B27 CAN 1 _ FD _ L CAN bus chassis network L the vehicle chassis network is low I/O Databus 100mA 40 B28 CAN2_H CAN bus energy network H complete vehicle energy network is high I/O Databus 100mA 120 Ω terminal resistance, design reserved …

Text truncated - open the document above for the full version.

Rev 1/26/2023 Wuxi Auto-link World Information Technology Co., Ltd No. 8, Huayun Road Wuxi City,Jiangsu Province P.R.China Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-06-2023 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID or Grantee Code: 2BBDI20003502MTCA05 Wuxi Auto-link World Information Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, FCC US Agent, LLC is our designated U.S. agent for service of process for the above referenced FCC ID. Wuxi Auto-link World Information Technology Co., Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. FCC US Agent, LLC accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Tel.: 708-571-3148 Email: [email protected] Sincerely, Wuxi Auto-link World Information Technology Co., Ltd FCC US Agent, LLC Bing Wang Tim Payne Signature: Signature:

Rev 1/26/2023 Wuxi Auto-link World Information Technology Co., Ltd No. 8, Huayun Road Wuxi City,Jiangsu Province P.R.China. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-06-2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BBDI20003502MTCA05 Wuxi Auto-link World Information Technology Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature： Name: Bing Wang Rev 1/26/2023 Wuxi Auto-link World Information Technology Co., Ltd No. 8, Huayun Road Wuxi City,Jiangsu Province P.R.China. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 06-06-2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BBDI20003502MTCA05 Wuxi Auto-link World Information Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature： Name: Bing Wang

Rev 11/20/07 Wuxi Auto-link World Information Technology Co., Ltd No. 8, Huayun Road Wuxi City,Jiangsu Province P.R.China. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2BBDI20003502MTCA05. Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram.pdf Schematics.pdf Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: For 180 days pursuant to KDB 726920 D01 Exhibit Type File Name External Photos Internal Photos Test Setup Photos User Manual External Photos.pdf Internal Photos.pdf Test Setup Photos.pdf User Manual.pdf Sincerely, (signature) (Name:)Bing Wang

Wuxi Auto-link World Information Technology Co., Ltd No. 8, Huayun Road Wuxi City,Jiangsu Province P.R.China. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: 06/06/2023 SUBJECT: FCC Application for 2BBDI20003502MTCA05 To Whom It May Concern: We, Wuxi Auto-link World Information Technology Co., Ltd the undersigned, hereby authorize Frank Chen at GRG Metrology & Test Group Co., Ltd. on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by GRG Metrology & Test Group Co., Ltd on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Signature： Name: Bing Wang

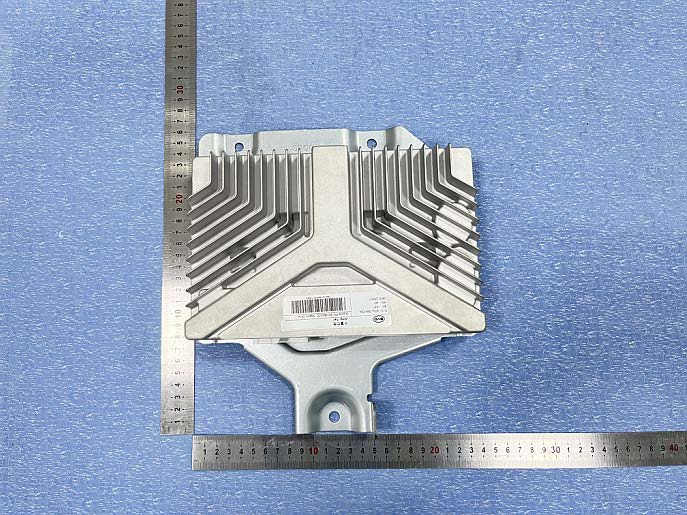

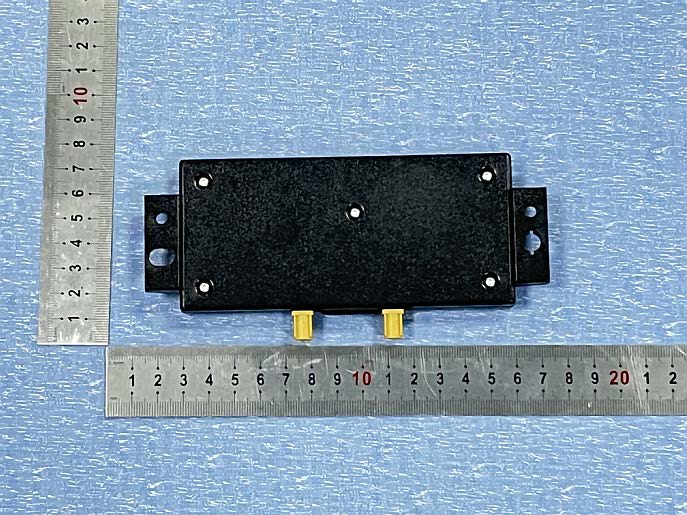

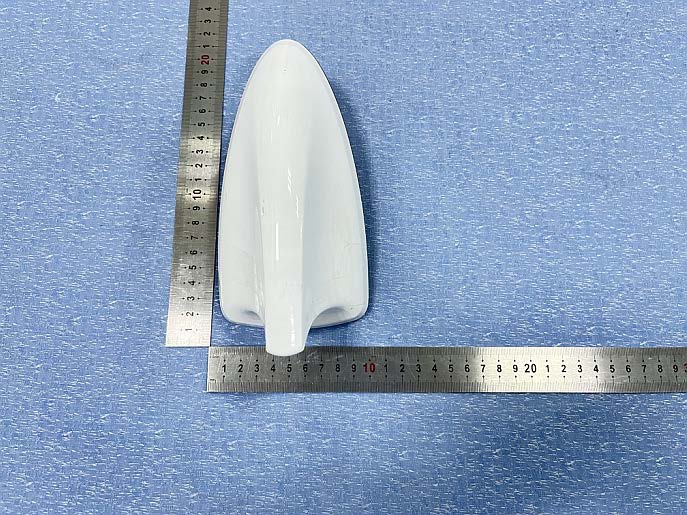

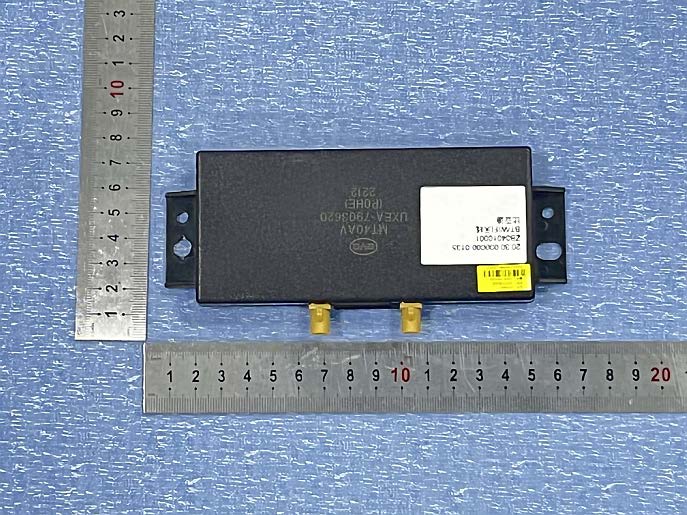

1. Appendix B. Photographs of EUT 1.1. External photos 1.1.1. Main device ------------ The following blanks ------------ 1.1.2. auxiliary equipment 1.1.2.1. External Amplifier 1.1.2.2. Instrument panel 1.1.2.3. Central Control Screen ------------ The following blanks ------------ 1.1.2.4. AM/FM /DAB Antenna 1.1.2.5. WIFI/BT Antenna ------------ The following blanks ------------ 1.1.2.6. USB 1.1.2.7. MIC ------------ The following blanks ------------ 1.1.2.8. Camera ------------ The following blanks ------------
