2BBNS-KLCP1PDQ series locks

SDSINSTALLATIONINSTRUCTION TS-9705Rev1–4-4-24 CHASSIS WIRE READER WIRE 4.INSTALLINSIDE MOUNTINGPLATE ▪Installinsidemountingplateand securewith(2)flatheadscrews. CYLINDRICALLOCK 1.CHECKHANDINGOFLOCK LH/LHRRH/RHR Ifhandingoflockisnotcorrectforopening,seenext pageforhandinginstructions. 3.INSTALLOUTSIDETRIM/ CHASSISASSEMBLY Installescutcheon/chassisassemblyfrom outsideofdoor–feedingwiresthrough chassisholeindoor. Verifywireissecuredonchassischannel undertape WIRE CHANNEL TAPE READER WIRE CHASSIS WIRE 2.PREPAREDOOR& INSTALLLATCH ▪Preparedooraccordingtotemplate. ▪Installlatch,radiustowarddoorframe ▪Securewith(2)smallcomboscrews. SDSINSTALLATIONINSTRUCTION TS-9705Rev1–4-4-24 5.CONNECTREADERAND INSTALLINSIDETRIM BATTERY COVER INSIDE LEVER ▪Plugreaderwireandchassiswireinto socketsoncontrolboardonbackof escutcheon,installescutcheononto door.Becarefulnottopinchwires. ▪Secureescutcheonwith(2)shortpan headscrews. ▪Installbatteriesandbatterycoverwith longpanheadscrew. ▪Installleverringandinsidelever–push untilleverretainingclipclicksintoplace. LEVER RING CHASSIS READER READER CONNECTOR TOPISBLANK StandardCylinder HANDINGINSTRUCTIONS LEVERPICK InterchangableCore REMOVECORE, PULLBACKCLIP WITHSCREWDRIVER HERE 1.Removeoutsidelever: StandardCylinder-Usesuppliedpickinholeon frontoflever.Levercannotberemovedwithpickuntil keyisinsertedandturned45degrees. InterchangableCore–Removecorefromoutside leverwithControlKey,Usingsmallscrewdriveror awl,pullbackleverclipfrominsideasshown. 2.Removetapeholdingwiretochassis. 3.Pullchassisoutofescutcheonandrotatechassis1/2 turn(180°)maximum. 4.Replacechassisandattachtape. 5.Re-installlever- Standard:Rotatekeywhileinstalling/IC:InsertCore REMOVE TAPE REMOVE AND ROTATE CHASSIS SDSINSTALLATIONINSTRUCTION TS-9705Rev1–4-4-24 CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe interferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalledandoperatedwith aminimumdistanceof15cmbetweentheradiatorandyourbody.

MRSINSTALLATIONINSTRUCTION MORTISELOCK CHASSISWIRE TURNPIECE OPTIONAL/ FUNCTION DEPENDENT 2.INSTALLCHASSIS,TRIM, TURNPIECE&CYLINDER ▪Preparedooraccordingtoincluded template. ▪Installmortisechassiswhilefeeding chassiswireintoholeoninsideofdoor. ▪Gentlypullwirethroughholeaschassis isinserted. ▪Installtrimusingincludedinstruction. 1.CHECKHANDINGOFLOCKBODY Ifhandingoflockbodyisnotcorrectforopening, consultfactoryforhandinginstruction. WIRE POCKET READER ASSEMBLY INSIDE MOUNTING PLATE READER WIRE CHASSIS WIRE READER CONNECTOR TOPISBLANK 3.INSTALLREADERAND INSIDEMOUNTINGPLATE Installreaderassemblyandinside mountingplate–feedreaderwirethrough holeindoorandthroughslotundercircuit board. oWireharnesswilllandintowirepocket FeedchassiswirethroughTslotin mountingplate. Securewith(3)M5x50panheadscrews (thrubolts). Makebothwireconnectionsafterreader issecure.Pushextrawireintodoor cavity. CHASSIS READER TS-9703Rev1–4-4-24 LH/LHR RH/RHR MRSINSTALLATIONINSTRUCTION MORTISELOCK TS-9703Rev1–4-4-24 BATTERY PACK BATTERY PLUG BATTERY RETAINERS 4.INSTALLBATTERYPACK ▪Pluginbatterywiretocontrolboard. ▪Installbatterypackovertwostudson mountingplate. ▪Snapbatterypackontoretainerson mountingplate. ▪Caution:wirepinchpoint–Verifyno pinchedwires 5.INSTALLBATTERIESAND BATTERYCOVER ▪Installbatteriesandbatterycoverwith (2)panheadscrews. BATTERY COVER MRSINSTALLATIONINSTRUCTION MORTISELOCK TS-9703Rev1–4-4-24 CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe interferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalledandoperatedwith aminimumdistanceof15cmbetweentheradiatorandyourbody.

INSTALLATIONINSTRUCTION MOTORIZEDDEADBOLT TS-9707Rev2–7-1-24 1.PREPAREDOOR& INSTALLLATCH Preparedooraccordingtotemplate. Retractdeadbolt Installadjustablelatchwithcrossslotfor tailpiecetowardbottom. Securewith(2)smallcomboscrews. 2.INSTALLOUTSIDETRIM ASSEMBLY Whilelookingatthebackofthechassis (Figure1) IflatchistotheLEFT:Rotatetailpiece clockwisetostopinverticalorientation IflatchistotheRIGHT:Rotatetailpiece counter-clockwisetostopinvertical orientation. Installchassis/escutcheonassemblyfrom outsideofdoor(Figure2)–feedingreader wirethroughdoorholeunderthelatch. Figure1 Figure2 3.INSTALLGASKET&INSIDE MOUNTINGPLATE Routewirethroughslotinbottomof gasketandmountingplate Installrubbergasketandinsidemounting plate.Ensurebothsidesarevertical Securewith(2)panheadscrews. INSTALLATIONINSTRUCTIONS MOTORIZEDDEADBOLT TS-9707Rev2–7-1-24 4.INSTALLINSIDETRIMAND BATTERIES Plugreaderwireintosocketoncontrol boardonbackofescutcheon,routewire throughhookinmountingplateasshown, installescutcheonontodoor. oTakecaretokeepfrompinchingwire. Verifythatthumbturnproperlyoperates deadboltlatchsmoothly. Secureescutcheonwith(2)panhead screws. Installbatteriesandbatterycoverwithpan headscrew. BATTERY COVER READER CONNECTOR TOPISBLANK CHASSIS READER WIREROUTING INSTALLATIONINSTRUCTIONS MOTORIZEDDEADBOLT TS-9707Rev2–7-1-24 CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipment generates,uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmful interferencetoradiocommunications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillbe requiredtocorrecttheinterferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However, thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe followingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnot expresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalled andoperatedwithaminimumdistanceof15cmbetweentheradiatorandyourbody.

GTSINSTALLATIONINSTRUCTION CYLINDRICALLOCK TS-9701Rev1–4-4-24 2.PREPAREDOOR&INSTALL LATCH Preparedooraccordingtotemplate. Installlatch,radiustowarddoorframe. o For2-3/4"Backset–uselonglatch. o For2-3/8"Backset–useshortlatch. Securewith(2)smallcomboscrews. 1.CHECKHANDINGOFLOCK Ifhandingoflockisnotcorrectforopening,seenext pageforhandinginstructions. 3.INSTALLCHASSISAND OUTSIDETRIM CHASSIS READER READER CONNECTOR TOPISBLANK Removeinsideescutcheonfrombackplate Installchassisassemblyfrominsideofdoor. Installoutsidetrimassembly–feedreader wirethroughholeanddoorandthroughslot undercircuitboard.Plugintoboard.Push extrawireintodoorcavity. oWireharnesswilllandintowirepocket. o Refertoimageforlocation. Securewith(2)flatheadscrews(thrubolts). 4.INSTALLINSIDE ESCUTCHEON Installinsideescutcheon. Securewith(2)panheadscrews. LH/LHRRH/RHR READER WIRE WIRE POCKET GTSINSTALLATIONINSTRUCTION CYLINDRICALLOCK TS-9701Rev1–4-4-24 MOTOR CHASE MOTOR CONNECTOR 5.INSTALLBATTERIESAND INSIDELEVER BATTERY COVER Installbatteriesandbatterycoverwith flatheadscrew. Installinsideleverandsecurewithdog pointsetscrew. CAUTION:DONOTCROSSTHREAD INSIDE LEVER LEFTWIRERIGHTWIRE HANDINGINSTRUCTIONS ASREQUIRED,ROTATEINSIDEROSEPLATEAND CHASSISTOMATCHHANDOFDOOR. TOROTATECHASSIS: 1.Removeroseplatemountingscrews,thenroseplate. 2.Unplugmotorconnector.Feedmotorconnectorand wirebackthroughwirechaseslot. 3.Rotatechassis1/2turn(180°)maximum. 4.Feedmotorconnectorandwireforward throughwirechaseslotonotherside. Re-connectmotorconnector. 5.Rotateroseplatetoindexwithchassis. (Arrowspointtolatchboltedgeofdoor.) 6.Installroseplate,securewithmountingscrews. LH/LHR RH/RHR CHASSIS ROSEPLATE ASSEMBLY CHASE CHASE L A T C H D I R E C T I O N L A T C H D I R E C T I O N GTSINSTALLATIONINSTRUCTION CYLINDRICALLOCK TS-9701Rev1–4-4-24 CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe interferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalledandoperatedwith aminimumdistanceof15cmbetweentheradiatorandyourbody.

CLSINSTALLATIONINSTRUCTION INTERCONNECTEDLOCK TS-9711Rev1–4-4-24 2.INSTALLLOCKASSEMBLY Installlockchassisintobottomhole makingsuretoproperlyengagelockbody intolatchbolt. Installinsidemountingplateandsecure with(2)screws. 1.PREPAREDOOR& INSTALLLATCHES Preparedooraccordingtotemplate. Installdeadboltlatchintopholewith crossslotfortailpiecetowardbottom. Installbeveledlatchonbottomwithbevel towarddoorframe. Securewith(4)smallcomboscrews. 3.INSTALLREADER ASSEMBLY Installreaderassemblyfromoutsideofdoor –feedingreaderwirethroughchassisholein doorandthroughsquareholeinmounting plate–wireroutesabovedeadboltlatch. Ensuredeadboltisretracted: LeftHandDoor–Rotatetailpiececlockwise untilitstopsintheverticalorientation. RightHandDoor–Rotatetailpiececounter- clockwiseuntilitstopsinthevertical orientation. READER ASSEMBLY WIREROUTING OrientTailpieceAs DescribedinText CLSINSTALLATIONINSTRUCTION INTERCONNECTEDLOCK TS-9711Rev1–4-4-24 4.PREPAREINSIDE ESCUTCHEON Rotateleverdrivertabtocorrect orientationasshown. Holdescutcheonuptodoorandconnect readerwiretocontrolboard. OUTSIDETRIM LH/LHR RH/RHR DRIVERTAB RotateDriverTab ForProperHanding READER CONNECTOR TOPISBLANK CHASSIS READER 5.INSTALLINSIDE ESCUTCHEONANDLEVER Rotatethumbturnawayfromleading edgeofdoor Installinsideescutcheon.Pushexcess wireintodoorcavity. Secureescutcheonusingtwoscrews. Installbatteriesandbatterycover. CLSINSTALLATIONINSTRUCTION INTERCONNECTEDLOCK CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe interferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalledandoperatedwith aminimumdistanceof15cmbetweentheradiatorandyourbody.

6EWSINSTALLATIONINSTRUCTION EXITDEVICETRIM TS-9709Rev1–4-4-24 1.PREPARETRIMFOR INSTALLATION LH/LHR RH/RHR Rotatelevertoproperorientationfordoor,install squaredrivespindleintobackoftrim. 2.INSTALLTRIMANDEXIT DEVICE Preparedooraccordingtoincluded template. Installescutcheontrimontodoorwhile feedingwiresthroughdoor. Installexitdeviceandsecurewith(4) includedpanheadscrews. RimDevice:Installchassis/headcover. SVRDevice:Skiptostep4 READERAND MOTOR WIRE READER CONNECTOR TOPISBLANK 3.RIMDEVICE-INSTALL CONTROLBOARD Installcontrolboardassembly–feed wiresthroughslotundercircuitboard. Secureassemblywith(4)includedwood/ metalscrews. Makewireconnectionaftercontrolboard isinstalled.Pushextrawireintodoor cavity. CHASSIS READER 6EWSINSTALLATIONINSTRUCTION EXITDEVICETRIM TS-9709Rev1–4-4-24 4.SVRDEVICE-INSTALL SPACER&CONTROLBOARD Installrodspacerblockwith(2)included wood/metalscrews–feedwiresthrough slotinblock. Installtoprodbeforecontrolboard. Installcontrolboardassembly–feedwires throughslotundercircuitboardandsecure assemblywith(4)wood/metalscrews. Makewireconnectionsaftercontrolboard installed.Pushextrawireintodoorcavity. InstallChassis/Headcover CHASSIS WIRE READER SOCKET SOCKET BATTERY RETAINERS BATTERY PLUG 5.INSTALLBATTERYPACK Plugbatterywireintocontrolboard. Installbatterypackovertwostudson mountingplateandsnapbatterypack ontoretainersoncontrolboard assembly. BATTERY PACK 6.INSTALLBATTERIESAND BATTERYCOVER Installbatteriesandbatterycoverwith (2)panheadscrews. BATTERY COVER 6EWSINSTALLATIONINSTRUCTION EXITDEVICETRIM TS-9709Rev1–4-4-24 CautionStatement: FCCID:2BBNS-KLCP1 ContainsFCCID:2AV6C-CRCM1101B1 NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassAdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferencewhentheequipmentisoperatedinacommercialenvironment.Thisequipmentgenerates, uses,andcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructionmanual,maycauseharmfulinterferencetoradio communications.Operationofthisequipmentinaresidentialareaislikelytocauseharmfulinterferenceinwhichcasetheuserwillberequiredtocorrectthe interferenceathisownexpense. NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,pursuanttopart15oftheFCCRules.Theselimitsare designedtoprovidereasonableprotectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereis noguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,which canbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthefollowingmeasures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and (2)Thisdevicemustacceptanyinterferencereceived,including,aninterferencethatmaycauseundesiredoperation.Anychangesormodificationsnotexpressly approvedbythepartyresponsibleforcompliancecouldvoidtheuser’sauthoritytooperatethisequipment.Thisequipmentshouldbeinstalledandoperatedwith aminimumdistanceof15cmbetweentheradiatorandyourbody.

Wireless Device Over the Air Performance Data Summary REPORT NO. : OQ1D0806 EQUIPMENT : ESP-ANT S-H BRAND NAME : ESPRESSIF MODEL NAME : ESP32-S3-MINI-1 DEVICE RECEIVING DATE : Nov. 16, 2021 TEST DATE(S) : Nov. 16, 2021 ~ Nov. 16, 2021 Reviewed by: Approved by: Feynman Liu / Vice Manager Kevin Chu / Manager Sporton International (Kunshan) Inc. No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China Sporton International (Kunshan) Inc. Page Number : 2 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 Table of Contents Revision History ---------------------------------------------------------------------------------------------------------------------- 3 1. Administration Data ----------------------------------------------------------------------------------------------------------- 4 1.1 Testing Laboratory ------------------------------------------------------------------------------------------------------- 4 1.2 Applicant ------------------------------------------------------------------------------------------------------------------- 4 2. Summary of Test Results ---------------------------------------------------------------------------------------------------- 5 3. FS Pattern ------------------------------------------------------------------------------------------------------------------------- 6 Sporton International (Kunshan) Inc. Page Number : 3 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 Revision History REPORT NO. VERSION DESCRIPTION ISSUED DATE OQ1D0806 1.0 Initial issue of report Dec. 14, 2021 Sporton International (Kunshan) Inc. Page Number : 4 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 1. Administration Data 1.1 Testing Laboratory Test Site Sporton International (Kunshan) Inc. Test Site Location No. 1098, Pengxi North Road, Kunshan Economic Development Zone Jiangsu Province 215300 People’s Republic of China TEL: +86-0512-5790-0158 FAX: +86-0512-5790-0958 Chamber □ OTA01-KS □ OTA02- KS □ OTA03-KS □ OTA04-KS ■ OTA05-KS ■: Indicates the chamber(s) used in this test report. 1.2 Applicant Company Name ESPRESSIF SYSTEMS (SHANGHAI) CO., LTD Address Suite 204, Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Sporton International (Kunshan) Inc. Page Number : 5 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 2. Summary of Test Results Test / Position Frequency (MHz) Avg Gain (dBi) Peak Gain (dBi) Directivity (dBi) Efficiency (dB) Efficiency (%) Free Space 2397 -1.79 3.72 5.51 -1.79 66.15 2402 -1.74 3.69 5.43 -1.74 66.94 2407 -1.53 3.86 5.39 -1.53 70.28 2412 -1.32 3.99 5.31 -1.32 73.85 2417 -1.25 3.99 5.24 -1.25 75.07 2422 -1.17 4.00 5.17 -1.17 76.35 2427 -1.15 3.94 5.09 -1.15 76.67 2432 -1.18 3.87 5.05 -1.18 76.21 2437 -1.22 3.79 5.01 -1.22 75.58 2442 -1.15 3.92 5.06 -1.15 76.82 2447 -1.07 3.99 5.06 -1.07 78.12 2452 -0.99 4.17 5.16 -0.99 79.65 2457 -0.88 4.31 5.19 -0.88 81.71 2462 -0.82 4.43 5.25 -0.82 82.72 2467 -0.82 4.49 5.31 -0.82 82.81 2472 -0.86 4.54 5.40 -0.86 82.07 2477 -0.95 4.47 5.42 -0.95 80.40 2482 -1.04 4.42 5.45 -1.04 78.77 2487 -1.12 4.40 5.51 -1.12 77.31 Sporton International (Kunshan) Inc. Page Number : 6 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 3. FS Pattern Cut1 Cut2 Total Power (dBm) Angle (? Scale: 1/div Min: -8 Max: 3 0 180 30 210 60 240 90270 120 300 150 330 2397 MHz 2402 MHz 2407 MHz 2412 MHz 2417 MHz 2422 MHz 2427 MHz 2432 MHz 2437 MHz 2442 MHz 2447 MHz 2452 MHz 2457 MHz 2462 MHz 2467 MHz 2472 MHz 2477 MHz 2482 MHz 2487 MHz Total Power (dBm) Angle (? Scale: 2/div Min: -10 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 2397 MHz 2402 MHz 2407 MHz 2412 MHz 2417 MHz 2422 MHz 2427 MHz 2432 MHz 2437 MHz 2442 MHz 2447 MHz 2452 MHz 2457 MHz 2462 MHz 2467 MHz 2472 MHz 2477 MHz 2482 MHz 2487 MHz Sporton International (Kunshan) Inc. Page Number : 7 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 Cut3 Free Space Gain Pattern Total Power (dBm) Angle (? Scale: 2/div Min: -8 Max: 6 0 180 30 210 60 240 90270 120 300 150 330 2397 MHz 2402 MHz 2407 MHz 2412 MHz 2417 MHz 2422 MHz 2427 MHz 2432 MHz 2437 MHz 2442 MHz 2447 MHz 2452 MHz 2457 MHz 2462 MHz 2467 MHz 2472 MHz 2477 MHz 2482 MHz 2487 MHz Total Response (dB) -12 4 -10 -8 -6 -4 -2 0 2 X Y Z Azimuth = 0.0 Elevation = 0.0 Roll = 0.0 Sporton International (Kunshan) Inc. Page Number : 8 of 8 TEL : +86-512-57900158 Report Issued Date : Dec. 14, 2021 FAX : +86-512-57900958 Report Version : 1.0 Wireless Device OTA RF Performance Data Summary Report No. : OQ1D0806 Free Space Gain Pattern --THE END-- Total Response (dB) -12 4 -10 -8 -6 -4 -2 0 2 Z Y X Azimuth = 88.6 Elevation = -1.7 Roll = -96.3 Total Response (dB) -12 4 -10 -8 -6 -4 -2 0 2 X Z Y Azimuth = -9.7 Elevation = -84.6 Roll = 79.4

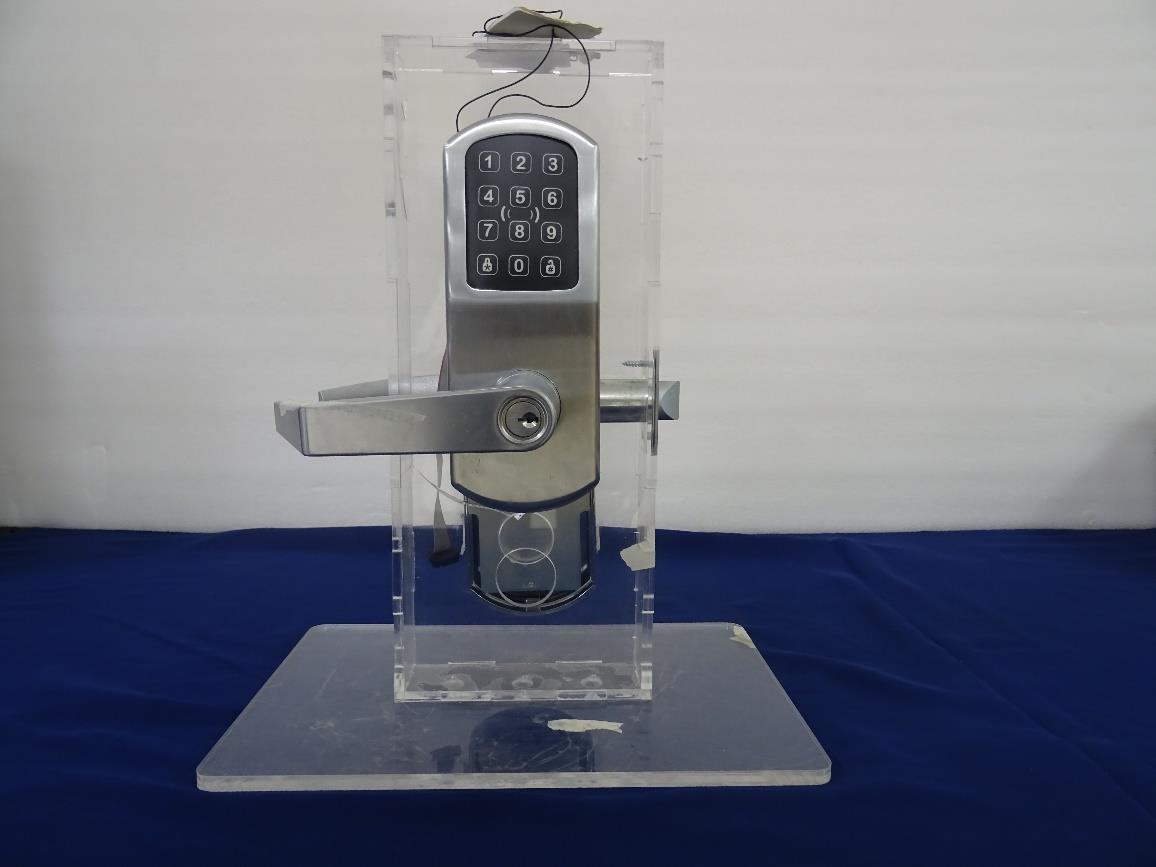

Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 1 von 6 Page 1 of 6 Test Setup Photos Frequency range :9KHz–30MHz Polarization : Parallel Frequency range :9KHz–30MHz Polarization : Perpendicular Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 2 von 6 Page 2 of 6 Frequency range :30MHz–200MHz Polarization : Vertical Frequency range : 30MHz–200MHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 3 von 6 Page 3 of 6 Frequency range :200MHz–1GHz Polarization : Vertical Frequency range :200MHz–1GHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 4 von 6 Page 4 of 6 Frequency range :1GHz-18GHz Polarization : Vertical Frequency range :1GHz-18GHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 5 von 6 Page 5 of 6 Frequency range :18GHz-26GHz Polarization : Vertical Frequency range :18GHz-26GHz Polarization : Horizontal Produkte Products www.tuv.com Setup Photos Reference Test Report No: IN24AN5K 001 Seite 6 von 6 Page 6 of 6 Device Under Test Antenna Port Measurement

Prüfbericht – Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: IN24V0BG 001 Auftrags-Nr.: Order no.: 146961665 010 Seite 1 von 31 Page 1 of 31 Kunden-Referenz-Nr.: Client reference no.: 2133653 Auftragsdatum: Order date: 2024-09-12 Auftraggeber: Client: KoreLock, Inc 7100 E. Bellevue Ave. Suite 203, Greenwood Village, CO, USA, 80111 Prüfgegenstand: Test item: Smart Lock Bezeichnung Identification PDQ series locks Serien -Nr.: Serial no.: Engineering Samples Auftrags-Inhalt: Order content: Testing and issue of Test Report with Grant Certificate Prüfgrundlage: Test specification: FCC Part 15 Subpart C 15.247,15.205, 15.207 & 15.209 Wareneingangsdatum: Date of sample receipt: 2024-09-16 Prüfmuster-Nr.: Test sample no: A003819001-002 & A003819001-012 Prüfzeitraum: Testing period: 2024-09-16 - 2024-09-20 Ort der Prüfung: Place of testing: Wireless laboratory, Bangalore Prüflaboratorium: Testing laboratory: TÜV Rheinland (India) Pvt. Ltd. 27/B,2nd cross road, Electronic city Phase1, Banglore-560100, India FCC Test Site Registration No: 496599 Prüfergebnis*: Test result*: Pass geprüft von: tested by: genehmigt von: authorized by: Datum: Date: 2025-01-06 Ausstellatum: Issue date: 2025-01-07 Stellung / Position: Likhithesh M D Senior Engineer Stellung / Position: Madhu K.N Assistant Manager Sonstiges / Other: FCC ID: 2BBNS-KLCP1 Contains FCC ID: 2AV6C-CRCM1101B1 Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhaft P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet * Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. …
