2BBOA-C11Wireless Earbuds

C11 尺寸：70*70mm 材质：105g铜版纸 印刷：四色 折叠方式：风琴十折页 R [S\M\L] R RL RL (L)(R) RL RL Bluetooth Blue toot h Availab Devleices C11 Bluetooth Blue toot h Availab Devleices C11 C11

Daximen (Shenzhen) Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Product Name: Wireless Earbuds FCCID: 2BBOA-C11 Model(s): C11 2.911(d)(5)(i) EquipmentType We, [Daximen (Shenzhen) Technology Co., Ltd.] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Mars Zhou Date: Jul. 13, 2023 Title: Manager Company name: Daximen (Shenzhen) Technology Co., Ltd. Signature: NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Daximen (Shenzhen) Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Product Name: Wireless Earbuds FCCID: 2BBOA-C11 Model(s): C11 2.911(d)(5)(ii) Applicant filing We, [Daximen (Shenzhen) Technology Co., Ltd.] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Mars Zhou Date: Jul. 13, 2023 Title: Manager Company name: Daximen (Shenzhen) Technology Co., Ltd. Signature: NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Daximen(Shenzhen)TechnologyCo.,Ltd. 2.911(d)(7)USAAgentv1.4 Section2.911(d)(7)USA Agent for Serviceof Process Company name: Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Product Name: Wireless Earbuds FCCID: 2BBOA-C11 Model(s): C11 2.911(d)(7)USADesignatedAgentforServiceof Process We, [Daximen(Shenzhen)TechnologyCo., Ltd.] (“the applicant”) designate[USA MEIHUATRADINGINC ] NOTE1 for the purposeof acceptingserviceof processon behalfof the applicant. Applicantconsent:We acknowledgeourconsentto acceptserviceof processin the UnitedStatesfor mattersrelatedto the applicableequipment,and at the physicalU.S. addressand emailaddressof the designatedagentand acknowledgeour acceptanceof our obligationto maintainan agent for serviceof processin the United Statesfor no less than one year after eitherwe the granteehave permanently terminatedall marketingand importationof the applicableequipmentwithin the U.S., or at the conclusionof any Commission-relatedadministrativeor judicialproceeding involvingthe equipment,whicheveris later. Agentobligation:We acknowledgeourobligationto acceptserviceof processin the UnitedStatesfor mattersrelatedto the applicableequipmentat our physicalU.S. addressand email addressforno less than one year after eitherthe granteehas permanentlyterminatedall marketingand importationof the applicableequipment withinthe U.S., or at the conclusionof any Commission-relatedadministrativeor judicialproceedinginvolvingthe equipment,whicheveris later. Daximen(Shenzhen)TechnologyCo.,Ltd. 2.911(d)(7)USAAgentv1.4 USAAgent Companyname:USAMEIHUATRADING INC USAAddress:5379PineValleyCtBoulder CO80301UnitedStates FRNNumber:0033406166 ContactName:HarleyQuinn TelephoneNo:1-312-363-9424 Email:[email protected] Applicant Companyname:Daximen(Shenzhen) TechnologyCo.,Ltd. Address:2002,ChuanghuiBuilding, WuheCommunity,BantianStreet, LonggangDistrict,Shenzhen,China FCCGranteeCode:2BBOA ContactName:MarsZhou TelephoneNo:13728630039 Email:[email protected] Signature: Title:Manager Signature: Title:Manager Date:Jul.12,2023Date:Jul.12,2023 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Daximen (Shenzhen) Technology Co., Ltd. Agent Authorization Company: Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Product Name: Wireless Earbuds Model Number(s): C11 Product Description: Wireless Earbuds We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Jul. 13, 2023 Name: Mars Zhou Title: Manager Company: Daximen (Shenzhen) Technology Co., Ltd.

Daximen (Shenzhen) Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: Jul. 13, 2023 Subject; Request for Confidentiality FCC ID: 2BBOA-C11 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mars Zhou Title: Manager

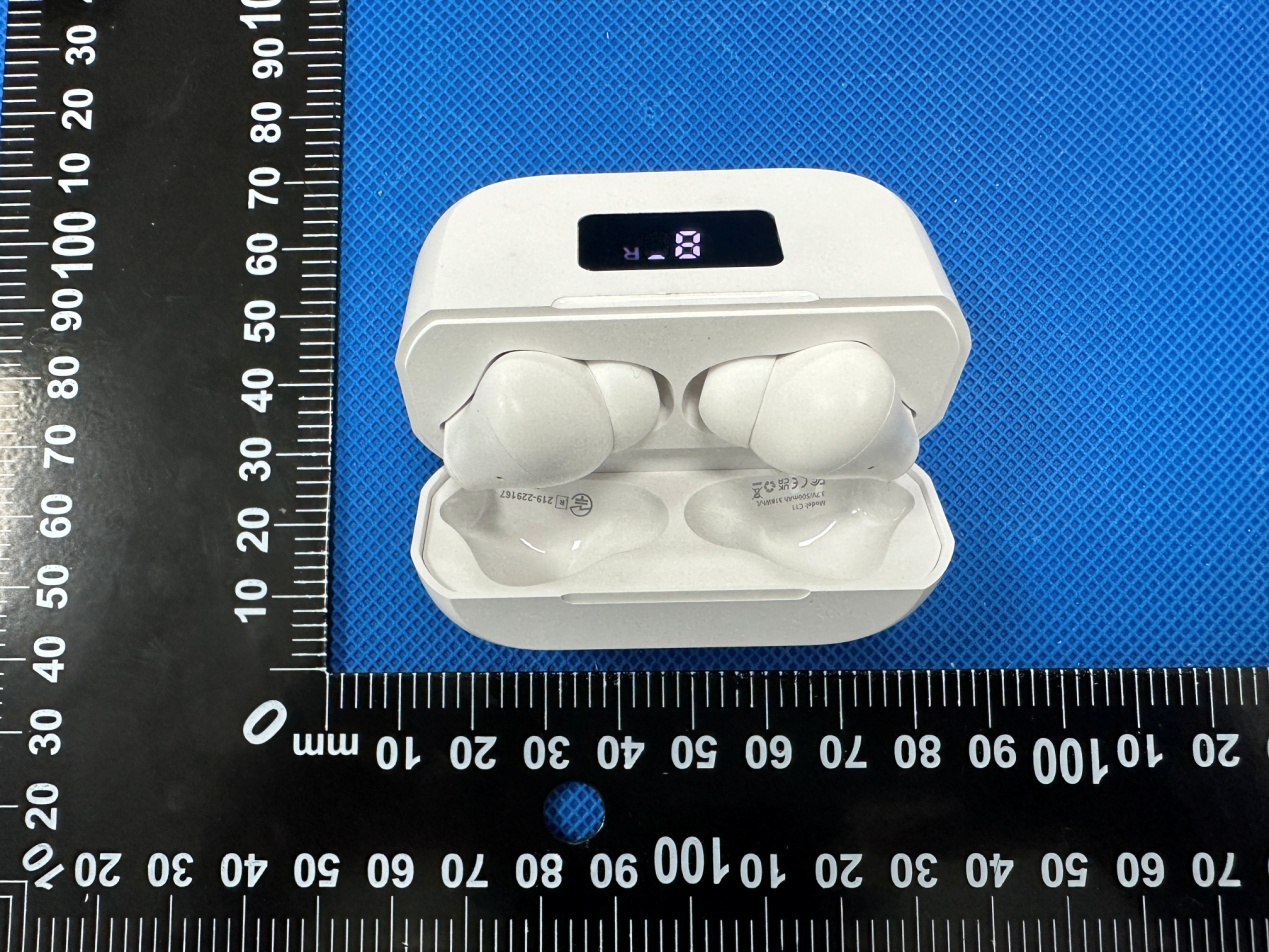

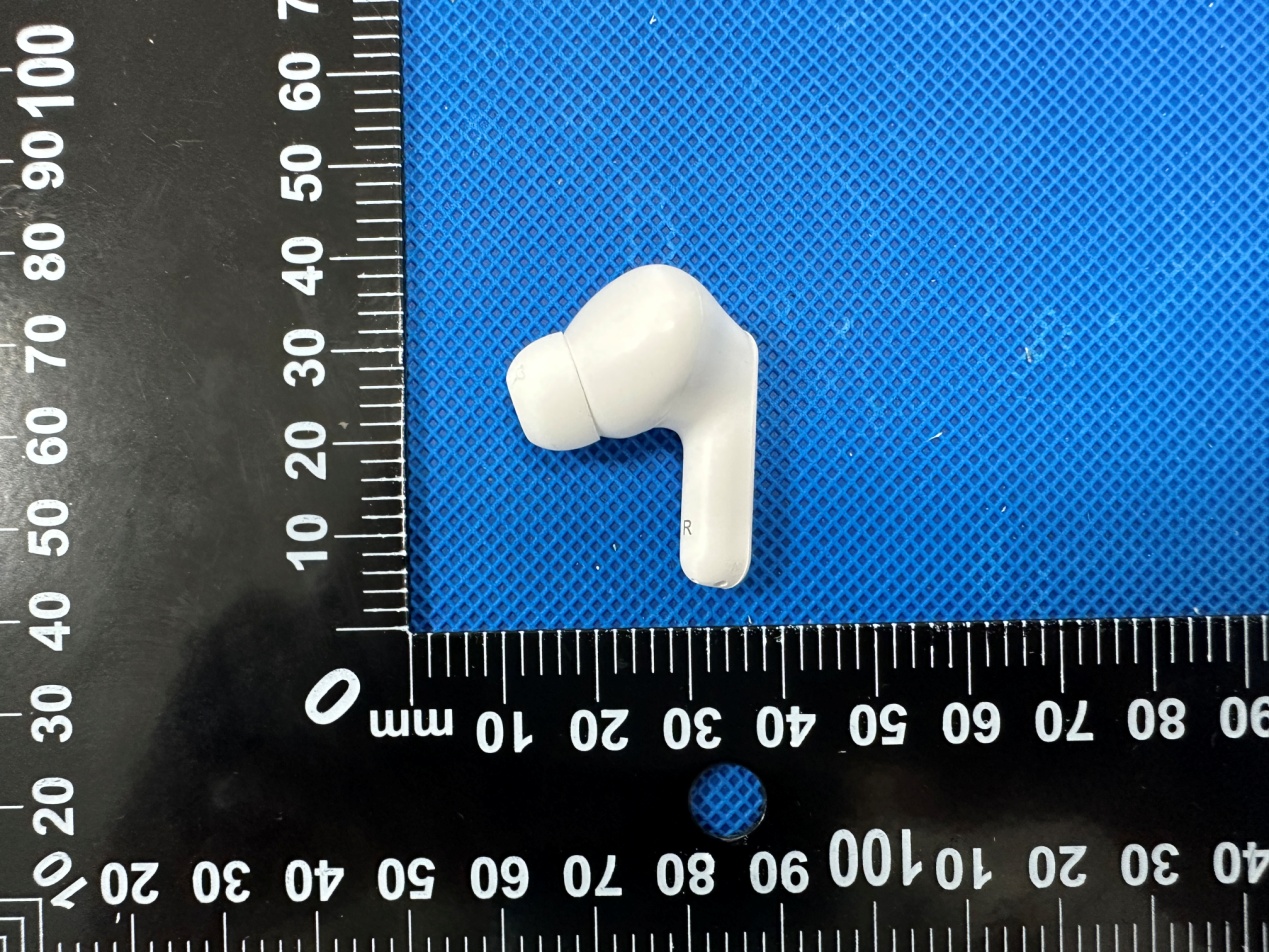

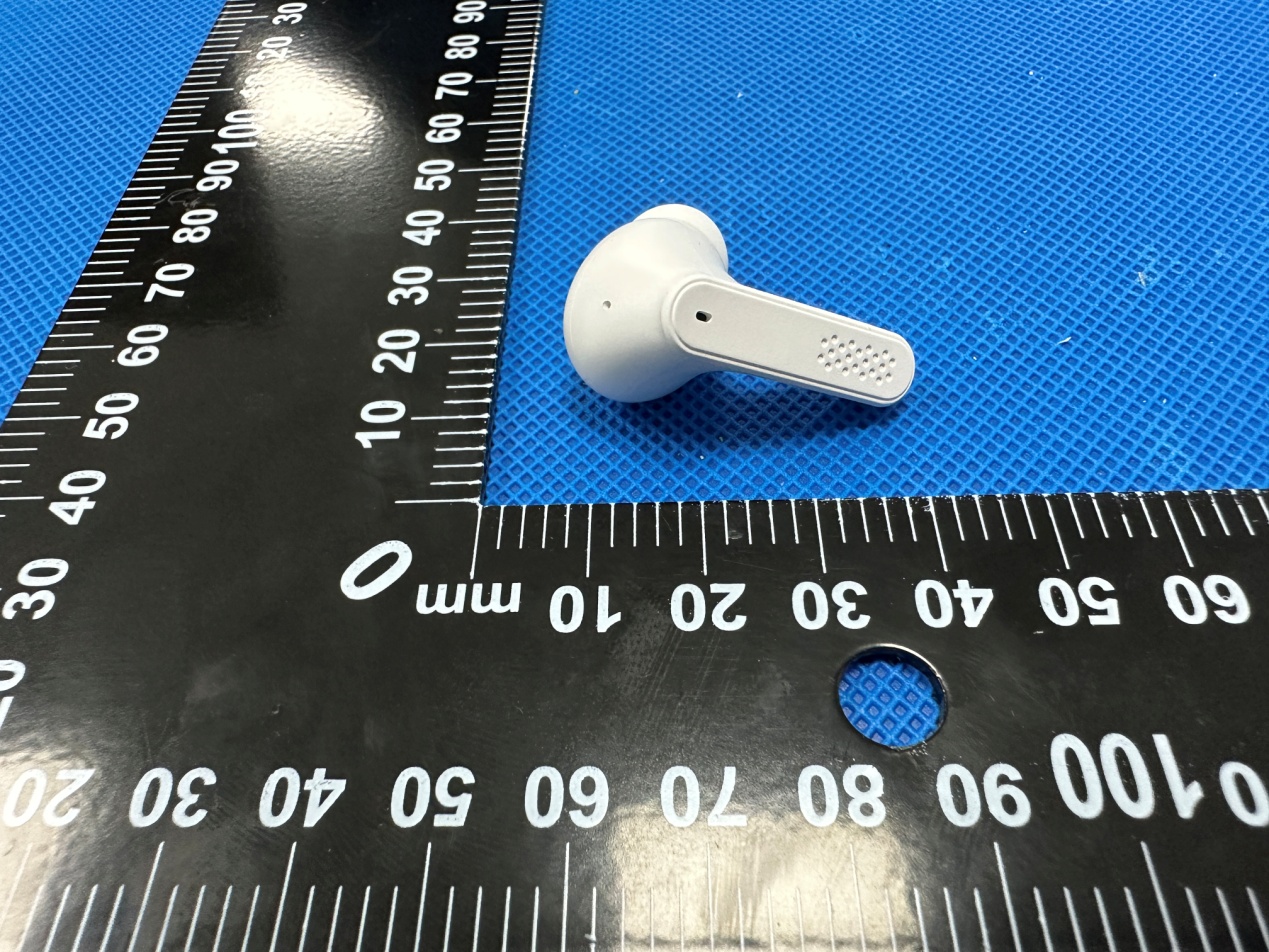

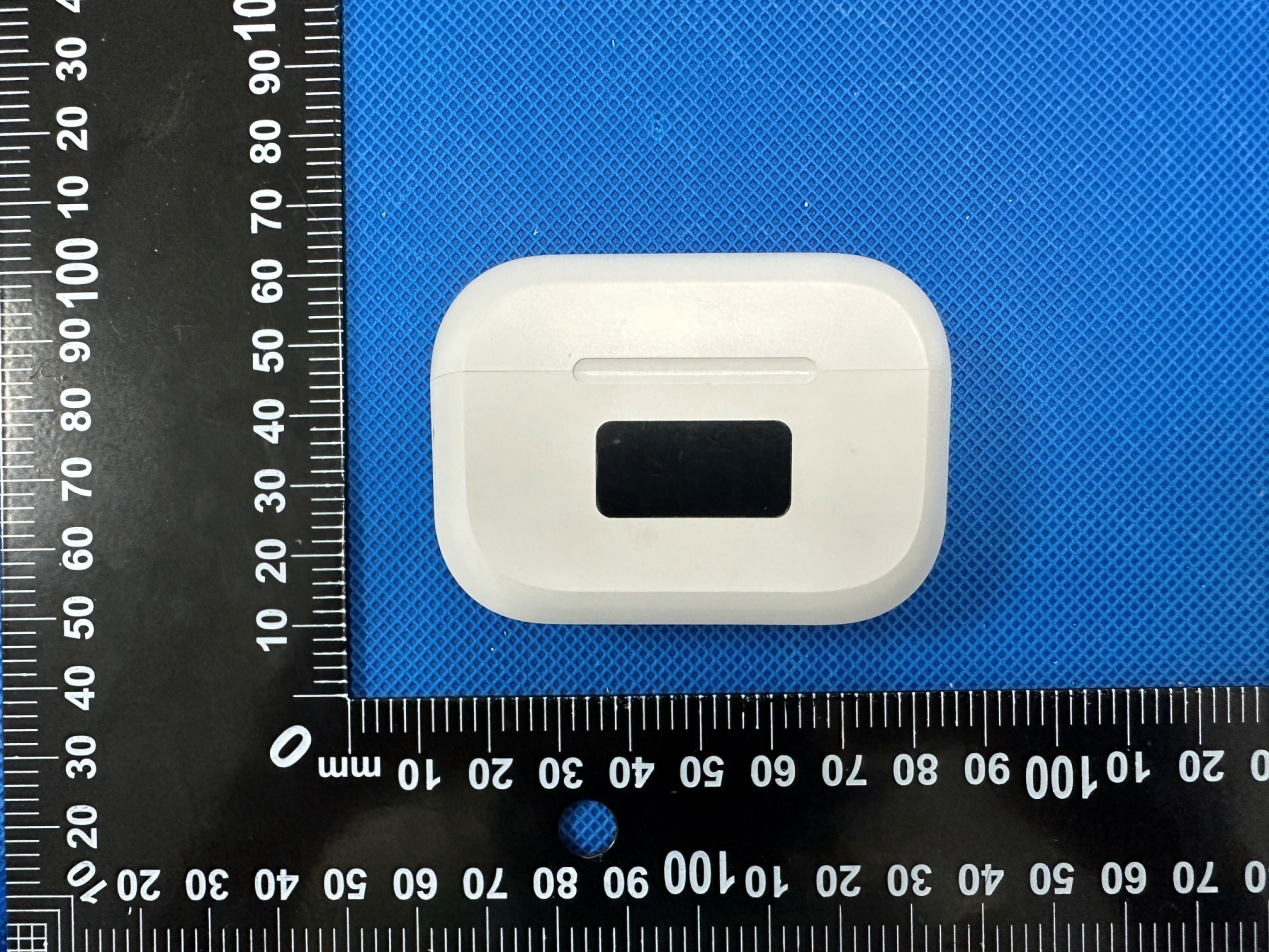

Annex A External Photos Report No.: HK2307042837-E Page 1 of 4 Report No.: HK2307042837-E Page 2 of 4 Report No.: HK2307042837-E Page 3 of 4 Report No.: HK2307042837-E Page 4 of 4

FCC ID LABEL: Ca. 2mm x 5mm label location FCC ID: 2BBOA‐C11

Annex B Internal Photo Report No.: HK2307042837-E Page 1 of 4 Report No.: HK2307042837-E Page 2 of 4 Antenna Report No.: HK2307042837-E Page 3 of 4 Report No.: HK2307042837-E Page 4 of 4

FCC RF Exposure EUT Description: Wireless Earbuds Model No.: C11 FCC ID: 2BBOA-C11 1. Limits According to KDB 447498 D01 General RF Exposure Guidance v01 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHz)]≤3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, Where: Result=P/D*√F F= the RF channel transmit frequency in GHz P=Maximum turn‐up power in mw D=Min. test separation distance in mm 2. Test Result of RF Exposure Evaluation Output power (dBm) Tune Up Power (dBm) Max Tune Up power dBm/mW Min test separati on distance mm Result Limit SAR Test Exclusion BT -13.48 -14±1(-13)0.05 5 0.01579 3.0 Pass Note: PK Output power= conducted power. Conducted power see the test report HK2307042837-E, antenna gain=2.25dBi Per KDB 447498 D01, when the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. The test exclusion threshold is 0.01579 which is<= 3, SAR testing is not required. Note: Exclusion Thresholds Results=[(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f (GHz)] f(GHz) is the RF channel transmit frequency in GHz Distance=5mm

2.4GHz3216ChipAntenna:RANT3216F245C03 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F245C03 (A)(B)(C)(D)(E)(F) ElectricalSpecification ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=03 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.25dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature(°C)-40~85°C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.45±0.20 咏成國際科技有限公司電話: RAINInternationalTechnologyCo.,Ltd.TEL: 2.4GHz3216ChipAntenna:RANT3216F245C03 _ 1 EvaluationBoardReference 长条板 PCB 推荐 Dimension 圆板 AntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 2.4GHz3216ChipAntenna:RANT3216F245C03 _ Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% PeakGain1.15dBi1.24dBi1.19dBi Directivity1.89dBi1.97dBi1.91dBi X Y Z 2400MHz 2450MHz 2500MHz 2.4GHz3216ChipAntenna:RANT3216F245C03 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.2 0 3.50±0.2 0 8.0±0.2 0 1.75±0.1 0 3.5±0.054.0±0.102.0±0.050.75±0.1 0 1.50±0.1 0 4.0±0.1 2.4GHz3216ChipAntenna:RANT3216F245C03 _ ReliabilityTable TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz3216ChipAntenna:RANT3216F245C01 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic

Page 1 of 47 Report No.: HK2307042837-E FCC Test Report FCC PART 15 SUBPART C 15.247 Test report On Behalf of Daximen (Shenzhen) Technology Co., Ltd. For Wireless Earbuds Model No.: C11 FCC ID: 2BBOA-C11 Prepared For : Daximen (Shenzhen) Technology Co., Ltd. 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Jul. 05, 2023 ~ Jul. 12, 2023 Date of Report: Jul. 12, 2023 Report Number: HK2307042837-E Page 2 of 47 Report No.: HK2307042837-E Test Result Certification Applicant’s Name .................. : Daximen (Shenzhen) Technology Co., Ltd. Address .................................. : 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Manufacture's Name ............. : Daximen (Shenzhen) Technology Co., Ltd. Address .................................. : 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Product Description Trade Mark ............................. : N/A Product Name ........................... : Wireless Earbuds Model and/or type reference...: C11 Standards .............................. : 47 CFR FCC Part 15 Subpart C 15.247 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test .................................... . Date (s) of Performance of Tests .... . Jul. 05, 2023 ~ Jul. 12, 2023 Date of Issue .................................... Jul. 12, 2023 Test Result ........................................ Pass Prepared by: Project Engineer Reviewed by: Project Supervisor Approved by: Technical Director Page 3 of 47 Report No.: HK2307042837-E Table of Contents Page 1. Summary ................................................................................................................................... 5 1.1. Test Standards ............................................................................................................................ 5 1.2. Test Description .......................................................................................................................... 5 1.3. Information of the Test Laboratory ............................................................................................ 6 1.4. Statement of the Measurement Uncertainty ............................................................................. 6 2. General Information .................................................................................................................. 7 2.1. Environmental Conditions .......................................................................................................... 7 2.2. General Description of EUT ........................................................................................................ 7 2.3. Description of Test Modes and Test Frequency .......................................................................... 8 2.4. Equipments Used during the Test ............................................................................................... 9 2.5. Related Submittal(s) / Grant (s) ................................................................................................ 10 2.6. Modifications ............................................................................................................................ 10 2.7. Description of Test Setup .......................................................................................................... 10 3. Test Conditions and Results ..................................................................................................... 11 3.1. Conducted Emissions Test ........................................................................................................ 11 3.2. Radiated Emissions and Band Edge .......................................................................................... 14 3.3. Maximum Peak Conducted Output Power ............................................................................... 25 3.4. 20dB Bandwidth ....................................................................................................................... 26 3.5. Frequency Separation ............................................................................................................... 29 3.6. Number of Hopping Frequency ................................................................................................ 31 3.7. Time of Occupancy (Dwell Time) ............................................................................................. 33 3.8. Out‐of‐Band Emissions ............................................................................................................. 36 3.9. Pseudorandom Frequency Hopping Sequence ........................................................................ 43 3.10. Antenna Requirement .............................................................................................................. 44 4. Test Setup Photos of the EUT ................................................................................................... 45 5. Photos of the EUT .................................................................................................................... 47 Page 4 of 47 Report No.: HK2307042837-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Jul. 12, 2023 Jason Zhou Page 5 of 47 Report No.: HK2307042837-E 1. Summary 1.1. Test Stan…

Text truncated - open the document above for the full version.

Model: C11 Radiated Emissions Conducted Emission
