2BBOA-T18Wireless Earphones

Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Date: 2024-08-01 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing SUBJECT: FCC Application for FCC ID: 2BBOA-T18 To Whom It May Concern: Daximen (Shenzhen) Technology Co., Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature: Date: 2024-08-01

Daximen (Shenzhen) Technology Co., Ltd. Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Date: 2024-08-01 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing SUBJECT: FCC Application for FCC ID: 2BBOA-T18 To Whom It May Concern: Daximen (Shenzhen) Technology Co., Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Date: 2024-08-01

Daximen (Shenzhen) Technology Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: August. 01, 2024 Signed by (Printed Name/Title): Kenneth Young/Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Daximen (Shenzhen) Technology Co., Ltd. Grantee Code: 2BBOA FCC ID: 2BBOA-T18 FRN: 0033889007 Contact Name: Mars Zhou Street Address: 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Telephone No: 13728630039 Email: [email protected] Applicant Signature: Date: 2024.08.01 Signed by (Printed Name/Title): Mars Zhou / Manager

2.4GHz 1608 Chip Antenna: RANT1608F245C01 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT1608F245C (A)(B)(C)(D)(E) ElectricalSpecificatio 01 (F) n DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 1.6x0.8mm( ± 0.1mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=01 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 1.60±0.10 W 0.80 ± 0.10 T 0.80 ± 0.10 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Chip Antenna: RANT1608F245C01 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ELECTRICALCHARACTERISTICSS11 Radiation ElectricalCharacteristics Freque ncy EfficPercenGain 2400-1.6472.27%2.38 2450-1.3375.34%2.7 2500-1.5972.98%2.59 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 1608 Chip Antenna: RANT1608F245C01 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 16087”4K/Reel 4.0±0.5 4.0±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType1608 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. _ 2.4GHz 1608 Chip Antenna: RANT1608F245C01 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. 2.4GHz 3216 Chip Antenna: RANT1608F245C01 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 22020/02/22Add2Dradiationcharacteristic Add:Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen.

Daximen (Shenzhen) Technology Co., Ltd. 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 1, 2024 Subject; Request for Confidentiality FCC ID: 2BBOA-T18 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Mars Zhou Title: Manager

Effective Date: April 2, 2020 QSF 7.6.4-8 – Agent Authorization Letter Template Page 1 of 1 Revision Date: Revision: 0 Daximen (Shenzhen) Technology Co., Ltd. 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Date：2024/08/01 Product Model Number: T18, T15, T16, T17, T19, T20 FCC ID：2BBOA-T18 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that Daximen (Shenzhen) Technology Co., Ltd. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by Daximen (Shenzhen) Technology Co., Ltd. on our behalf shall have the same effect as acts of our own. By: Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: 13728630039 On behalf of: Daximen (Shenzhen) Technology Co., Ltd.

Daximen (Shenzhen) Technology Co., Ltd. 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Series Models Description To whom it may concern: The device (Product Name: Wireless Earphones) Models Name: T18, T15, T16, T17, T19, T20 have same electrical, PCB and BOM, only the model’s name and colour are different for marketing requirements. Sincerely, Mars Zhou Phone: 13728630039 e-mail: [email protected] Dated: 08/01/2024

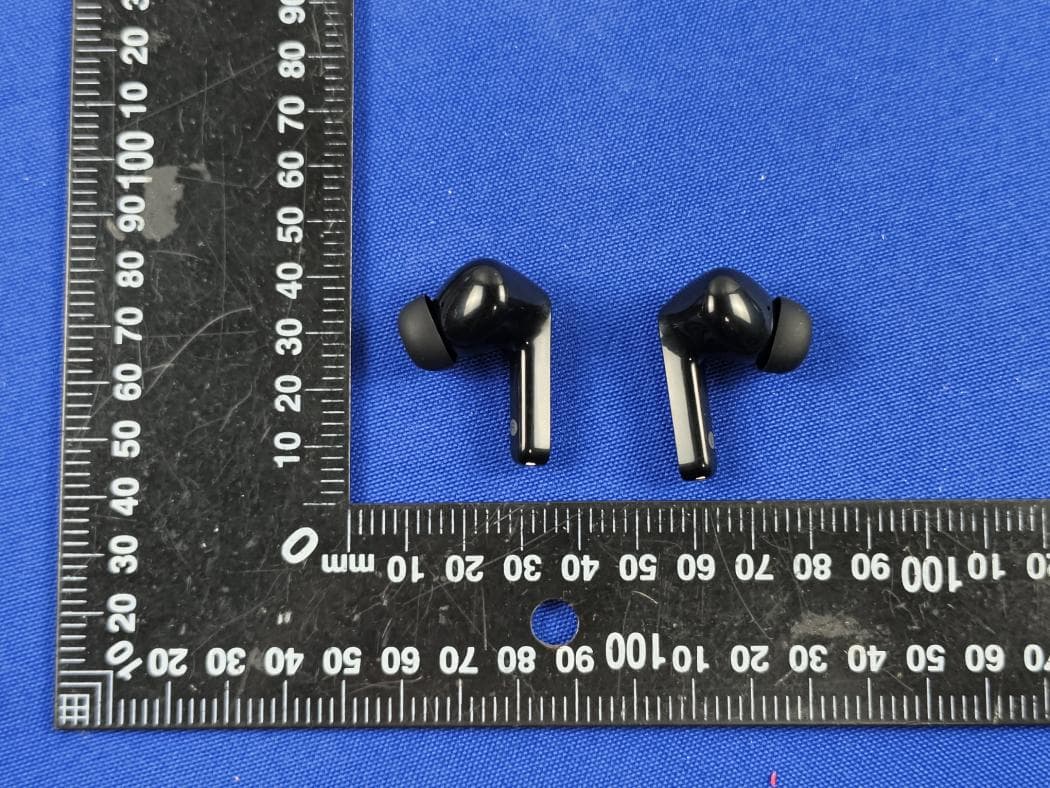

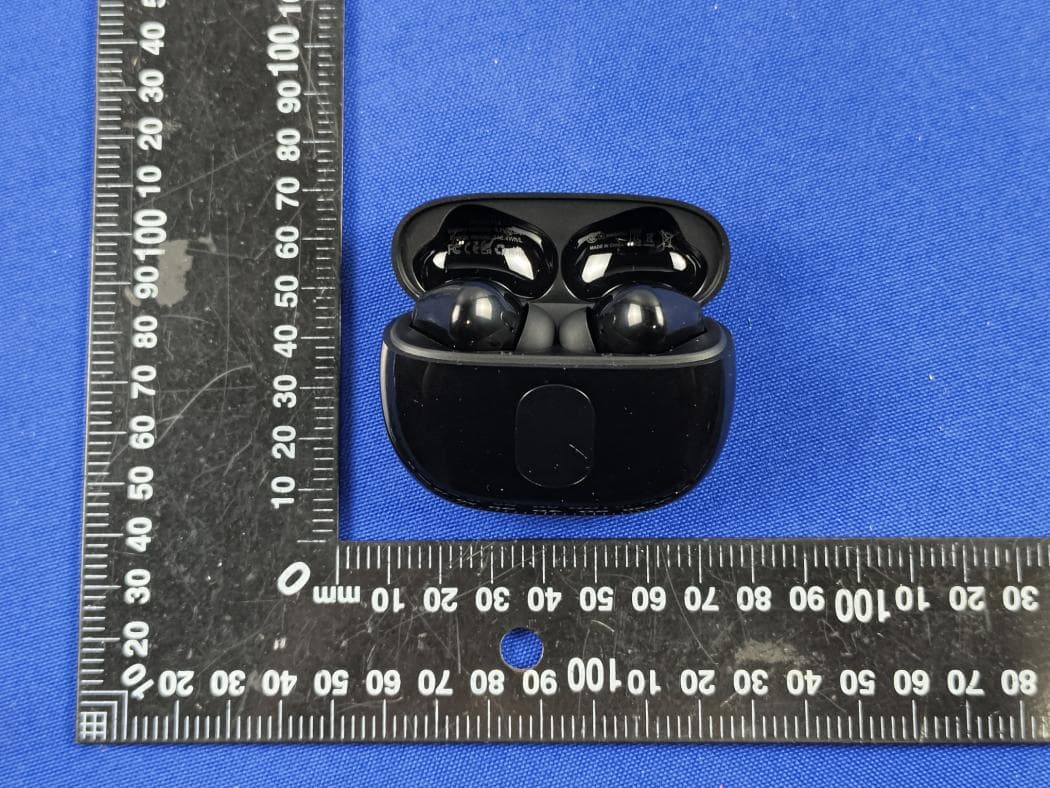

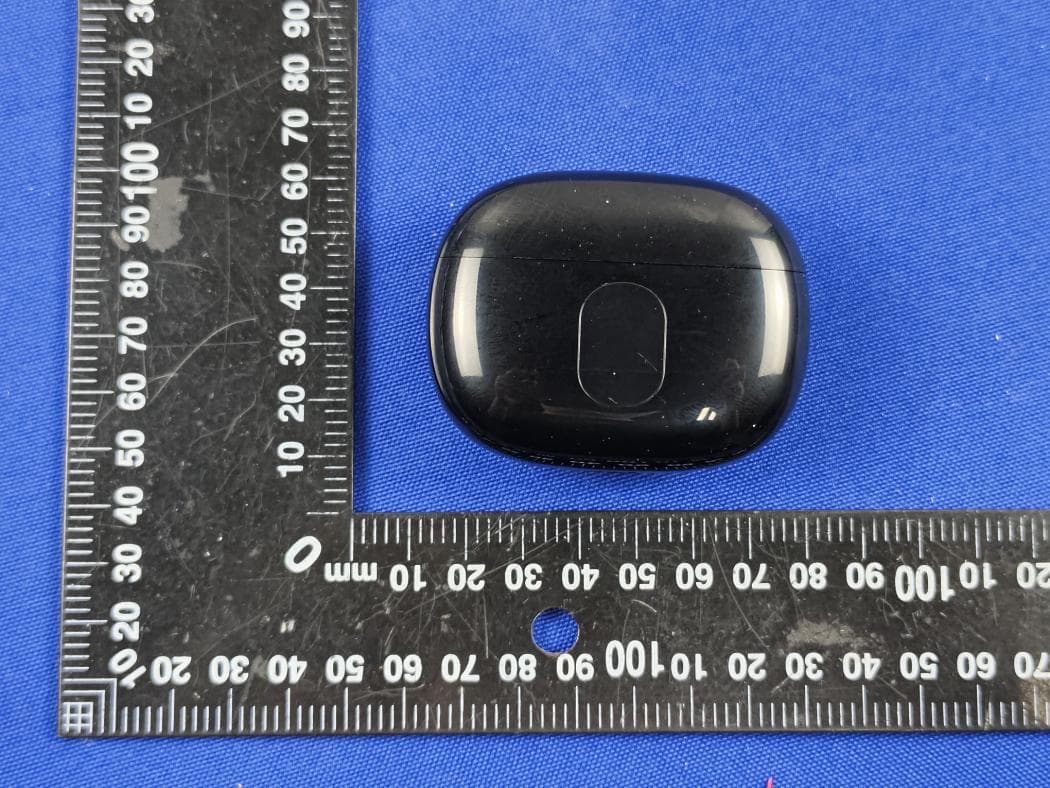

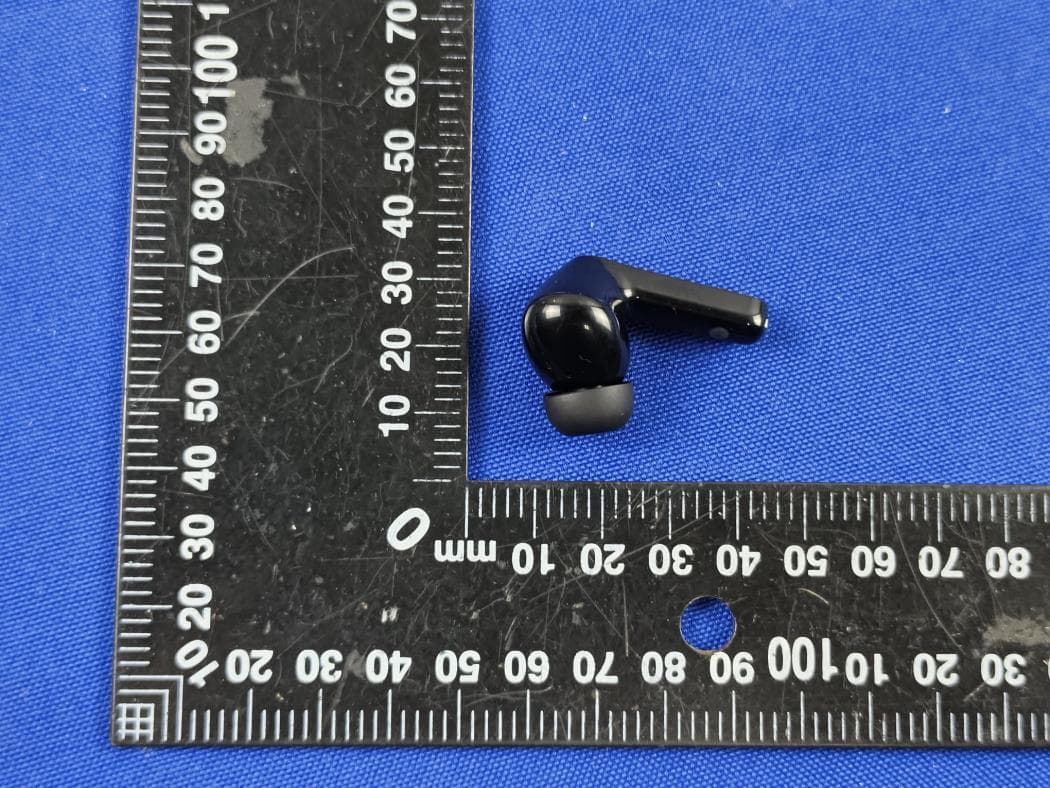

FCC ID: 2BBOA-T18 Page 1 of 5 Report No.: CTL2407153061-WF External Photos of EUT FCC ID: 2BBOA-T18 Page 2 of 5 Report No.: CTL2407153061-WF FCC ID: 2BBOA-T18 Page 3 of 5 Report No.: CTL2407153061-WF FCC ID: 2BBOA-T18 Page 4 of 5 Report No.: CTL2407153061-WF FCC ID: 2BBOA-T18 Page 5 of 5 Report No.: CTL2407153061-WF

FCC ID: 2BBOA-T18 Page 1 of 1 Report No.: CTL2407153061-WF FCC-ID Label Information 1. Label location: Size: L0.5cm*W0.5cm FCC ID: 2BBOA-T18

FCC ID: 2BBOA-T18 Page 1 of 3 Report No.: CTL2407153061-WF Internal Photos of EUT FCC ID: 2BBOA-T18 Page 2 of 3 Report No.: CTL2407153061-WF BT Antenna FCC ID: 2BBOA-T18 Page 3 of 3 Report No.: CTL2407153061-WF

FCC ID: 2BBOA-T18 Page 1 of 1 Report No.: CTL2407153061-WF RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤3.0 for 1-g SAR and ≤7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison For Bluetooth pt=-3.29dBm=0.4688mW at 2441MHz So (0.4688mW/5mm)x √2.441GHz = 0.1465<3 Then SAR evaluation is not required. For BLE pt=-3.59dBm=0.4375mW at 2440MHz So (0.4375mW/5mm)x √2.440GHz = 0.1367<3 Then SAR evaluation is not required.

FCC ID: 2BBOA-T18 Page 1 of 50 Report No.: CTL2407153061-WF01 Page 1 / 50 1. Bandwidth 1.1 Test Result 1.1.1 OBW Mode TX Type Frequency (MHz) Packet Type ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.849 / Pass 2441 DH5 1 0.849 / Pass 2480 DH5 1 0.851 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.174 / Pass 2441 2DH5 1 1.174 / Pass 2480 2DH5 1 1.175 / Pass 8DPSK SISO 2402 3DH5 1 1.171 / Pass 2441 3DH5 1 1.176 / Pass 2480 3DH5 1 1.173 / Pass 1.1.2 20dB BW Mode TX Type Frequency (MHz) Packet Type ANT 20dB Bandwidth (MHz) Verdict Result Limit GFSK SISO 2402 DH5 1 0.948 / Pass 2441 DH5 1 0.952 / Pass 2480 DH5 1 0.952 / Pass Pi/4DQPSK SISO 2402 2DH5 1 1.319 / Pass 2441 2DH5 1 1.322 / Pass 2480 2DH5 1 1.320 / Pass 8DPSK SISO 2402 3DH5 1 1.300 / Pass 2441 3DH5 1 1.316 / Pass 2480 3DH5 1 1.317 / Pass FCC ID: 2BBOA-T18 Page 2 of 50 Report No.: CTL2407153061-WF01 Page 2 / 50 1.2 Test Graph 1.2.1 OBW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 3 of 50 Report No.: CTL2407153061-WF01 Page 3 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 4 of 50 Report No.: CTL2407153061-WF01 Page 4 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 5 of 50 Report No.: CTL2407153061-WF01 Page 5 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 6 of 50 Report No.: CTL2407153061-WF01 Page 6 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 7 of 50 Report No.: CTL2407153061-WF01 Page 7 / 50 1.2.2 20dB BW GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 8 of 50 Report No.: CTL2407153061-WF01 Page 8 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 9 of 50 Report No.: CTL2407153061-WF01 Page 9 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 10 of 50 Report No.: CTL2407153061-WF01 Page 10 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 11 of 50 Report No.: CTL2407153061-WF01 Page 11 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 12 of 50 Report No.: CTL2407153061-WF01 Page 12 / 50 2. Maximum Conducted Output Power 2.1 Test Result 2.1.1 Power Mode TX Type Frequency (MHz) Packet Type Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit GFSK SISO 2402 DH5 -4.43 <=30 Pass 2441 DH5 -3.82 <=30 Pass 2480 DH5 -4.02 <=30 Pass Pi/4DQPSK SISO 2402 2DH5 -4.05 <=20.97 Pass 2441 2DH5 -3.45 <=20.97 Pass 2480 2DH5 -3.64 <=20.97 Pass 8DPSK SISO 2402 3DH5 -3.95 <=20.97 Pass 2441 3DH5 -3.29 <=20.97 Pass 2480 3DH5 -3.48 <=20.97 Pass Note1: Antenna Gain: Ant1: 2.70dBi; FCC ID: 2BBOA-T18 Page 13 of 50 Report No.: CTL2407153061-WF01 Page 13 / 50 2.2 Test Graph 2.2.1 Power GFSK_DH5_LCH_2402MHz_Ant1_NTNV GFSK_DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 14 of 50 Report No.: CTL2407153061-WF01 Page 14 / 50 GFSK_DH5_HCH_2480MHz_Ant1_NTNV Pi/4DQPSK_2DH5_LCH_2402MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 15 of 50 Report No.: CTL2407153061-WF01 Page 15 / 50 Pi/4DQPSK_2DH5_MCH_2441MHz_Ant1_NTNV Pi/4DQPSK_2DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 16 of 50 Report No.: CTL2407153061-WF01 Page 16 / 50 8DPSK_3DH5_LCH_2402MHz_Ant1_NTNV 8DPSK_3DH5_MCH_2441MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 17 of 50 Report No.: CTL2407153061-WF01 Page 17 / 50 8DPSK_3DH5_HCH_2480MHz_Ant1_NTNV FCC ID: 2BBOA-T18 Page 18 of 50 Report No.: CTL2407153061-WF01 Page 18 / 50 3. Carrier Frequency Separation 3.1 Test Result 3.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Channel Separation (MHz) 20dB Bandwidth (MHz) Limit (MHz) Verdict GFSK SISO HOPP DH5 0.990 0.952 >=0.952 Pass Pi/4DQPSK SISO HOPP 2DH5 1.001 1.322 >=0.881 Pass 8DPSK SISO HOPP 3DH5 0.991 1.317 >=0.878 Pass FCC ID: 2BBOA-T18 Page 19 of 50 Report No.: CTL2407153061-WF01 Page 19 / 50 3.2 Test Graph 3.2.1 Ant1 GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 20 of 50 Report No.: CTL2407153061-WF01 Page 20 / 50 8DPSK_3DH5_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 21 of 50 Report No.: CTL2407153061-WF01 Page 21 / 50 4. Number of Hopping Frequencies 4.1 Test Result 4.1.1 HoppNum Mode TX Type Frequency (MHz) Packet Type Num of Hopping Frequencies Verdict ANT1 Limit GFSK SISO HOPP DH5 79 >=15 Pass Pi/4DQPSK SISO HOPP 2DH5 79 >=15 Pass 8DPSK SISO HOPP 3DH5 79 >=15 Pass FCC ID: 2BBOA-T18 Page 22 of 50 Report No.: CTL2407153061-WF01 Page 22 / 50 4.2 Test Graph 4.2.1 HoppNum GFSK_DH5_HOPP_Ant1_NTNV Pi/4DQPSK_2DH5_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 23 of 50 Report No.: CTL2407153061-WF01 Page 23 / 50 8DPSK_3DH5_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 24 of 50 Report No.: CTL2407153061-WF01 Page 24 / 50 5. Time of Occupancy (Dwell Time) 5.1 Test Result 5.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) Packet Type Duration of Single Pulse (ms) Observation Period (s) Num of Pulse in Observation Period Dwell Time (ms) Limit (ms) Verdict GFSK SISO HOPP DH1 0.386 31.600 317 122.362 <=400 Pass DH3 1.642 31.600 161 264.362 <=400 Pass DH5 2.888 31.600 105 303.240 <=400 Pass Pi/4DQPSK SISO HOPP 2DH1 0.396 31.600 319 126.324 <=400 Pass 2DH3 1.648 31.600 159 262.032 <=400 Pass 2DH5 2.896 31.600 108 312.768 <=400 Pass 8DPSK SISO HOPP 3DH1 0.394 31.600 319 125.686 <=400 Pass 3DH3 1.648 31.600 161 265.328 <=400 Pass 3DH5 2.896 31.600 107 309.872 <=400 Pass FCC ID: 2BBOA-T18 Page 25 of 50 Report No.: CTL2407153061-WF01 Page 25 / 50 5.2 Test Graph 5.2.1 Ant1 GFSK_DH1_HOPP_Ant1_NTNV GFSK_DH1_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 26 of 50 Report No.: CTL2407153061-WF01 Page 26 / 50 GFSK_DH3_HOPP_Ant1_NTNV GFSK_DH3_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 27 of 50 Report No.: CTL2407153061-WF01 Page 27 / 50 GFSK_DH5_HOPP_Ant1_NTNV GFSK_DH5_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page 28 of 50 Report No.: CTL2407153061-WF01 Page 28 / 50 Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV Pi/4DQPSK_2DH1_HOPP_Ant1_NTNV FCC ID: 2BBOA-T18 Page…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No.: CTL2407153061-WF01 Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Jack Wang (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : Wireless Earphones Model/Type reference ................ : T18 List Model(s) ............................... : T15, T16, T17, T19, T20 Trade Mark .................................. : N/A FCC ID ......................................... : 2BBOA-T18 Applicant’s name ....................... : Daximen (Shenzhen) Technology Co., Ltd. Address of applicant ................. : 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Zone A, 1st Floor, Warehouse 2, Baisha Logistics Company, No. 3011 Shahe West Road, Nanshan District, Shenzhen Test specification ....................... : Standard ...................................... : FCC Part 15.247: Operation within the bands 902-928 MHz, 2400-2483.5 MHz and 5725-5850 MHz. TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : July. 16, 2024 Date of Test Date ........................ : July. 16, 2024- July. 24, 2024 Date of Issue .............................. : July. 25, 2024 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 37 Report No.: CTL2407153061-WF01 TEST REPORT Test Report No. : CTL2407153061-WF01 July. 25, 2024 Date of issue Equipment under Test : Wireless Earphones Sample No : CTL2407153061 Model /Type : T18 Listed Models : T15, T16, T17, T19, T20 Applicant : Daximen (Shenzhen) Technology Co., Ltd. Address : 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Manufacturer : Daximen (Shenzhen) Technology Co., Ltd. Address : 2002, Chuanghui Building, Wuhe Community, Bantian Street, Longgang District, Shenzhen, China Test result Pass * *In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 37 Report No.: CTL2407153061-WF01 ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2024-07-25 CTL2407153061-WF01 Tracy Qi V1.0 Page 4 of 37 Report No.: CTL2407153061-WF01 Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 1.5. AUXILIARY TEST EQUIPMENT INFORMATION ....................................................................................................................... 7 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 9 2.4. EQUIPMENTS USED DURING THE TEST ............................................................................................................................ 10 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE ......................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2BBOA-T18 Page 1 of 2 Report No.: CTL2407153061-WF Test Setup Photos of the EUT FCC ID: 2BBOA-T18 Page 2 of 2 Report No.: CTL2407153061-WF
