2BBPB-HK21SmartWatch

Smart• Watch Quick• guide Please• read• this• manual• carefully• before• use• and• keep• it• for• future• reference ※ If• it• fails• to• turn• on• after• long• pressing• the• power• button• for• 3• seconds,• please• charge• it• and• try• again. Touch• and• Button Scroll• down:• Control• Panel Swipe• up:• SMS• notification Swipe• right:• split• screen• function Swipe• left:• custom• card Short• press:• light• up• the• screen,• return• to• the• watch• face• interface,• and• enter• the• menu• interface Double-click:• switch• menu• mode Long• press:• enter• the• shutdown• interface• • • • • • • • • • • Button Short• press:• light• up• the• screen,• return• to• the• watch• face• interface,• and• enter• the• menu• interface Double-click:• switch• menu• mode Long• press:• enter• the• shutdown• interface• • • • • • • • • • • You• will• need• to• download• and• install• the• CO-FIT• program• on• your• phone.• CO-FIT• APP• supports• iOS• 11.0• and• Android• 5.0. 1.• Turn• on• Bluetooth• on• your• phone,• open• the• app,• register• and• log• in• to• the• homepage. 2.• Pair• the• watch• with• the• APP.• When• pairing,• please• make• sure• that• the• watch• and• the• APP• can• communicate• with• each• other• (synchronize• data);• open• APP• >• Devices• >• Add• New• Device• >• select• HK21 3.• In• the• searched• binding• list,• select• HK21• with• the• strongest• signal• and• click• Pair.• At• this• time,• the• color• of• the• Bluetooth• icon• on• the• watch• is• blue,• indicating• that• you• are• connected• to• Bluetooth• 5.0 Bluetooth• 3.0• connection• method: iPhone• users• support• Bluetooth• 5.0+3.0• dual• Bluetooth• one-click• link• (follow• the• system• prompt• box• when• matching) 1.• The• Android• user• system• will• pop• up• a• Bluetooth• pairing• request,• check• the• prompt• permission,• and• click• "Pair"• to• complete• the• pairing• of• Bluetooth• 5.0+3.0; 2.• If• the• Android• user• system• does• not• pop• up• a• Bluetooth• pairing• request,• you• need• to• click• "Unbind"• on• the• "Call• Service• Pairing• Options"• in• the• Bluetooth• pairing• prompt• interface• and• then• follow• the• interface• prompts• to• complete• the• Bluetooth.• Subsequent• connection• to• the• mobile• phone• will• cause• the• watch• 3.0• Bluetooth• memory• to• achieve• dual• Bluetooth• one-click• linking• (if• Bluetooth• 3.0• is• not• automatically• connected,• please• manually• search• for• the• Bluetooth• watch• model• "HK21"• on• your• phone) (CO-FIT• • • APP) Connect• to• phone Sport Activity Dial You• will• need• to• download• and• install• the• CO-FIT• program• on• your• phone.• CO-FIT• APP• supports• iOS• 11.0• and• Android• 5.0. 1.• Turn• on• Bluetooth• on• your• phone,• open• the• app,• register• and• log• in• to• the• homepage. 2.• Pair• the• watch• with• the• APP.• When• pairing,• please• make• sure• that• the• watch• and• the• APP• can• communicate• with• each• other• (synchronize• data);• open• APP• >• Devices• >• Add• New• Device• >• select• HK21 3.• In• the• searched• binding• list,• select• HK21• with• the• strongest• signal• and• click• Pair.• At• this• time,• the• color• of• the• Bluetooth• icon• on• the• watch• is• blue,• indicating• that• you• are• connected• to• Bluetooth• 5.0 Connect• the• mobile• phone• Bluetooth• to• dial• out,• and• you• can• realize• the• call• on• the• watch• side. Enter• the• exercise• mode• selection• interface,• click• again• to• start• the• corresponding• exercise,• you• can• record• exercise• time,• distance,• calories• and• heart• rate• and• other• data. Statistics• of• the• day's• activity• data.• In• the• APP,• you• can• set• the• standard• value• of• the• number• of• steps• in• a• day.• When• the• set• number• of• steps• is• reached,• the• watch• will• have• a• reminder• of• the• standard. Bluetooth• 3.0• connection• method: iPhone• users• support• Bluetooth• 5.0+3.0• dual• Bluetooth• one-click• link• (follow• the• system• prompt• box• when• matching) 1.• The• Android• user• system• will• pop• up• a• Bluetooth• pairing• request,• check• the• prompt• permission,• and• click• "Pair"• to• complete• the• pairing• of• Bluetooth• 5.0+3.0; 2.• If• the• Android• user• system• does• not• pop• up• a• Bluetooth• pairing• request,• you• need• to• click• "Unbind"• on• the• "Call• Service• Pairing• Options"• in• the• Bluetooth• pairing• prompt• interface• and• then• follow• the• interface• prompts• to• complete• the• Bluetooth.• Subsequent• connection• to• the• mobile• phone• will• cause• the• watch• 3.0• Bluetooth• memory• to• achieve• dual• Bluetooth• one-click• linking• (if• Bluetooth• 3.0• is• not• automatically• connected,• please• manually• search• for• the• Bluetooth• watch• model• "HK21"• on• your• phone) Smart• Watch• Features Heart rate Blood pressure Blood oxygen Put• the• watch• close• to• your• wrist.• The• best• wearing• position• is• above• the• wrist• bone• and• arm.• You• can• measure• the• real-time• heart• rate• value.• The• normal• value• for• ordinary• people• is• 60-100• beats/minute.• You• can• also• check• the• heart• rate• record. Put• the• watch• close• to• the• wrist,• and• the• best• place• to• wear• it• is• above• the• wrist• bone• and• above• the• arm.• The• real-time• blood• pressure• value• can• be• measured.• Adult• diastolic• blood• pressure:• 60~80• (mmHg),• adult• systolic• blood• pressure:• 100~120• (mmHg). Put• the• watch• close• to• the• wrist,• and• the• best• wearing• position• is• above• the• wrist• bone• and• above• the• arm.• The• real-time• blood• oxygen• value• can• be• measured.• The• normal• range• of• the• value• is• generally• 95%• to• 100%. Smart• Watch• Features It• can• display• message• push• content,• such• as:• SMS,• QQ,• WeChat,• etc.• (IOS12• and• above• systems• will• block• SMS• reminders• by• default). If• the• app• is• not• connected,• enter• the• weather• to• display• prompts,• and• the• current• weather• temperature• will• be• displayed• after• connecting• to• the• app. Turning• on• sleep• detection• can• det…

Text truncated - open the document above for the full version.

Shenzhen Hongbo Intelligent Electronics Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product Name: SmartWatch FCC ID: 2BBPB-HK21 Model(s): HK21,HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 2.911(d)(5)(i) Equipment Type We, [Shenzhen Hongbo Intelligent Electronics Co., Ltd.] certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Fang Lizhong Date: Nov.22, 2023 Title and Company name: General Manager / Shenzhen Hongbo Intelligent Electronics Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Hongbo Intelligent Electronics Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product Name: SmartWatch FCC ID: 2BBPB-HK21 Model(s): HK21,HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Hongbo Intelligent Electronics Co., Ltd.] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Fang Lizhong Date: Nov.22, 2023 Title and Company name: chairman / Shenzhen Hongbo Intelligent Electronics Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Hongbo Intelligent Electronics Co., Ltd. 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product Name: SmartWatch FCC ID: 2BBPB-HK21 Model(s): HK21,HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 2.911(d)(7) USA Designated Agent for Service of Process We, [Shenzhen Hongbo Intelligent Electronics Co., Ltd.] (“the applicant”) designate [Electronic Mac, Inc.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: Electronic Mac, Inc. USA Address: 6525 Crown Blvd, # 20805, San Jose, CA 95120 FRN Number: 0033414541 Contact Name: Ray Sia Telephone No: 408-332-2399 Email: [email protected] Applicant Company name: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Grantee FRN Number: 0033897554 FCC Grantee Code: 2BBPB Contact Name: Fang Lizhong Telephone No: 13760189420 Email: [email protected] Shenzhen Hongbo Intelligent Electronics Co., Ltd. 2.911 (d)(7)USA Agent v1.5 Signature: Title: General Manager Signature: Title: General Manager Date: Nov.22, 2023 Date: Nov.22, 2023 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Shenzhen Hongbo Intelligent Electronics Co., Ltd. Agent Authorization Company: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product Name: SmartWatch Model Number(s): HK21,HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 Product Description: SmartWatch We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Nov.22, 2023 Name: Fang Lizhong Title: General Manager Company: Shenzhen Hongbo Intelligent Electronics Co., Ltd.

Shenzhen Hongbo Intelligent Electronics Co., Ltd. Family models declaration letter. Date: November 28, 2023 We Shenzhen Hongbo Intelligent Electronics Co., Ltd. Of 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product: SmartWatch Model Name: HK21 Serial Model: HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 Difference description of series models: All the model are the same circuit and RF module, except the model names and colors Thanks Sincerely Signature Name: Fang Lizhong Date: Nov.28, 2023 Title: General Manager

Shenzhen Hongbo Intelligent Electronics Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: November 28, 2023 Subject; Request for Confidentiality FCC ID: 2BBPB-HK21 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Software Security Requirements for UNII devices In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Fang Lizhong Title: General Manager

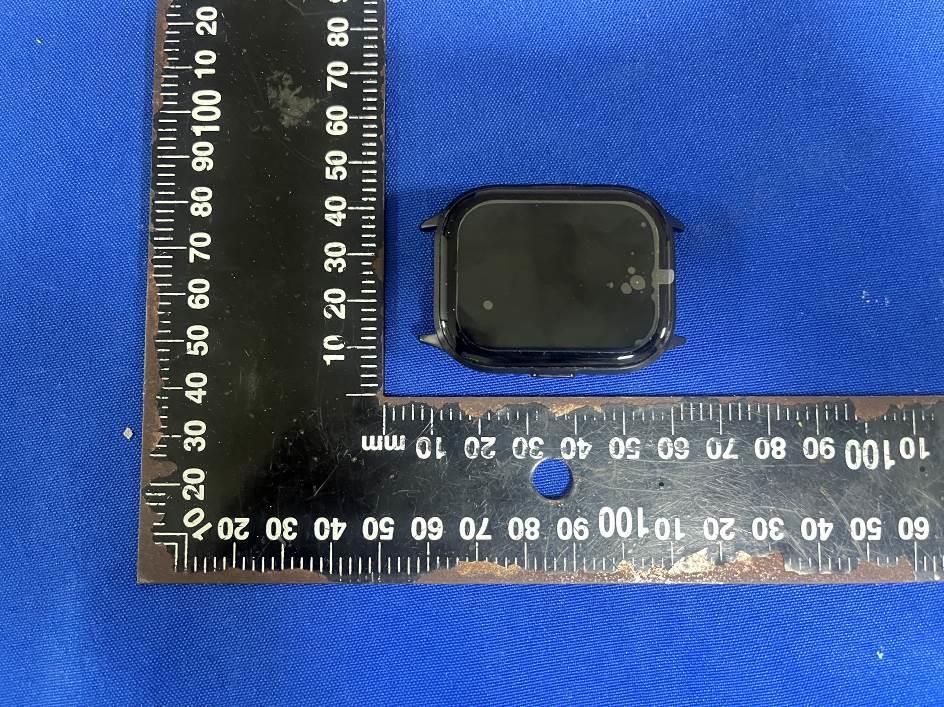

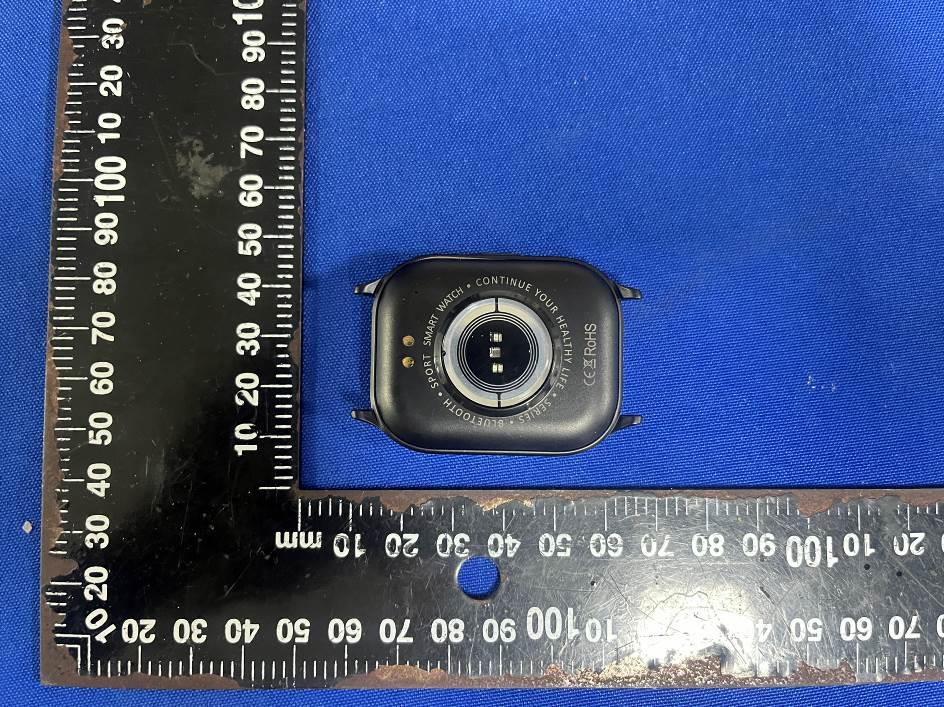

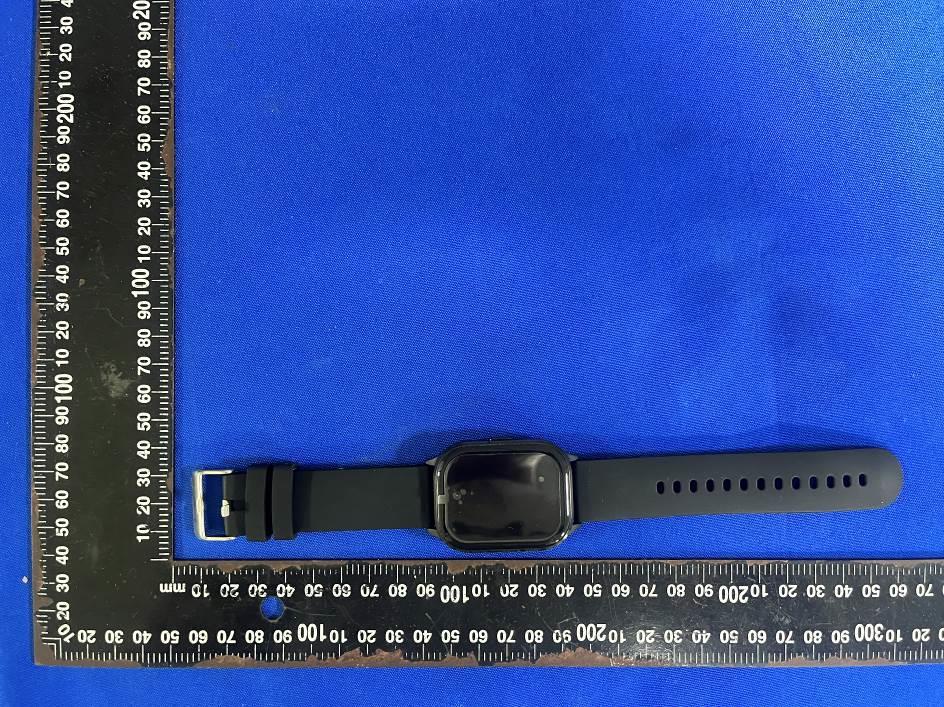

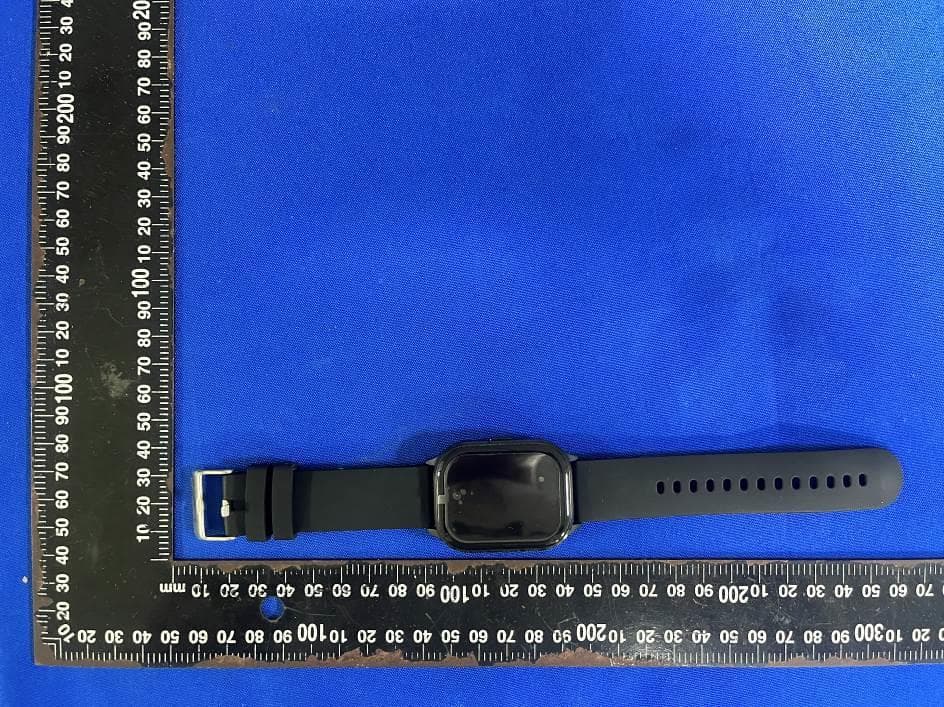

- Page 1 of 4 - ET-23111303 Product Name: SmartWatch Test Model No.: HK21 Ext Photos - Page 2 of 4 - ET-23111303 - Page 3 of 4 - ET-23111303 - Page 4 of 4 - ET-23111303 -----END-----

label size: 5mm*2mm Label location FCC ID：2BBPB-HK21

FCC ID: 2BBPB-HK21 RF Exposure Evaluation TEST STANDARDS Follow the maximum permissible exposure (MPE) limits specified in 447498 D04 Interim General Radio Frequency Exposure Guidelines v01. The gain of the antenna used in the product was extracted from the supplied antenna data sheet and the maximum total power input to the antenna was also measured. Calculate the distance from the product to the MPE limit by the formula. LIMIT For single RF sources (i.e., any single fixed RF source, mobile device, or portable device, as defined in paragraph (b)(2) of this section): A single RF source is exempt if: (A) The available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption may not be used in conjunction with other exemption criteria other than those in paragraph (b)(3)(ii)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(ii)(A); (B) Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold Pth (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by: (C) Or using below table and the minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. For the exemption in Table 1 to apply, R must be at least λ/2π, where λ is the free-space operating wavelength in meters. If the ERP of a single RF source is not easily obtained, then the available maximum time-averaged power may be used in lieu of ERP if the physical dimensions of the radiating structure(s) do not exceed the electrical length of λ/4 or if the antenna gain is less than that of a half-wave dipole (1.64 linear value). FCC ID: 2BBPB-HK21 For multiple RF sources: Multiple RF sources are exempt if: (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). This exemption may not be used in conjunction with other exemption criteria other than those is paragraph (b)(3)(i)(A) of Part 1.1307. Medical implant devices may only use this exemption and that in paragraph (b)(3)(i)(A). (B) in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. Where: a = number of fixed, mobile, or portable RF sources claiming exemption using paragraph (b)(3)(i)(B) of Part 1.1307 for Pth, including existing exempt transmitters and those being added. b = number of fixed, mobile, or portable RF sources claiming exemption using paragraph (b)(3)(i)(C) of Part 1.1307 for Threshold ERP, including existing exempt transmitters and those being added. c = number of existing fixed, mobile, or portable RF sources with known evaluation for the specified minimum distance including existing evaluated transmitters. Pi = the available maximum time-averaged power or the ERP, whichever is greater, for fixed, mobile, or portable RF source i at a distance between 0.5 cm and 40 cm (inclusive). Pth,i = the exemption threshold power (Pth) according to paragraph (b)(3)(i)(B) of this section for fixed, mobile, or portable RF source i. FCC ID: 2BBPB-HK21 ERPj = the ERP of fixed, mobile, or portable RF source j. ERPth,j = exemption threshold ERP for fixed, mobile, or portable RF source j, at a distance of at least λ/2π according to the applicable formula of paragraph (b)(3)(i)(C) of Part 1.1307. Evaluatedk = the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limitk = either the general population/uncontrolled maximum permissible exposure (MPE) or specific absorption rate (SAR) limit for each fixed, mobile, or portable RF source k, as applicable from § 1.1310. Test Result of RF Exposure Evaluation Protocol Fre. (GHz) Output power (dBm) Tune-up power (dBm) Max tune-up power (dBm) ANT Gain ( dBi) Max EIRP (dBm) Max EIRP (mW) Separation distance (cm) Limit (mW) Result BT 2.402 -2.79 -2±1 -1 1.5 0.5 1.12 0.5 2.76 PASS BLE 2.402 -4.04 -4±1 -3 1.5 -1.5 0.71 0.5 2.76 PASS Note: 1. This device is portable device. 2. The source of the evaluation data results is based on the test report ET-23111303E01/02 3. The Maxinum power is less than the limit, complies with the exemption requirements.

Report No.: ET-23111303E02 This test report is valid for the tested samples only. It cannot be reproduced except in full without prior written consent of Shenzhen ETR Standard Technology Co., Ltd. TEST REPORT Applicant: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address of Applicant: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Manufacturer/Factory: Shenzhen Hongbo Intelligent Electronics Co., Ltd. Address of Manufacturer/Factory: 2 / F, No. 10-5, Minsheng 1st Road, Baoyuan Community, Shiyan Street, Baoan District, Shenzhen Product Name: SmartWatch Model No.: HK21,HK24,HK4,HK9Pro,HK41,HK42,HK47,HK49,HK69,HK96 Trade Mark: N/A FCC ID: 2BBPB-HK21 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Test: Nov.07, 2023-Nov.21, 2023 Date of report issued: Nov.27, 2023 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Remark: The results shown in this test report refer only to the sample(s) tested , this test report cannot be reproduced, except in full without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver Prepared By Shenzhen ETR Standard Technology Co., Ltd. Address: No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Compiled by: Reviewed by: Approved by: Project Engineer Project Manager Authorized Signature - Page 2 of 47 - Report No.: ET-23111303E02 Report Revision History Report No. Description Issue Date ET-23111303E02 Original Nov.27, 2023 - Page 3 of 47 - Report No.: ET-23111303E02 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Contents Page 1 TEST SUMMARY ......................................................................................................................................4 2 GENERAL INFORMATION .......................................................................................................................5 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 2.2 TEST MODE .........................................................................................................................................7 2.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................7 2.4 DEVIATION FROM STANDARDS ..............................................................................................................7 2.5 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................7 2.6 TEST FACILITY.....................................................................................................................................7 2.7 TEST LOCATION...................................................................................................................................7 2.8 ADDITIONAL INSTRUCTIONS ..................................................................................................................7 3 TEST INSTRUMENTS LIST ......................................................................................................................8 4 TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 4.1 ANTENNA REQUIREMENT ......................................................................................................................9 4.2 CONDUCTED EMISSIONS ....................................................................................................................10 4.3 CONDUCTED PEAK OUTPUT POWER ...................................................................................................13 4.4 20DB EMISSION BANDWIDTH ..............................................................................................................14 4.5 CARRIER FREQUENCIES SEPARATION .................................................................................................18 4.6 HOPPING CHANNEL NUMBER .............................................................................................................22 4.7 DWELL TIME ......................................................................................................................................24 4.8 BAND EDGE.......................................................................................................................................29 4.8.1 Conducted Emission Method ......................................................................................................29 4.8.2 Radiated Emission Method .........................................................................................................33 4.9 SPURIOUS EMISSION .........................................................................................................................35 4.9.1 Conducted Emission Method ......................................................................................................35 4.9.2 Radiated Emission Method .........................................................................................................39 5 TEST SETUP PHOTO .............................................................................................................................47 6 EUT CONSTRUCTIONAL DETAILS .......................................................................................................47 - Page 4 of 47 - Report No.: ET-23111303E02 Tel:(86-755) 85259392 Email:[email protected] Web: www.etrlab.cn No.103, No.10, Phase I, Zone 3, Xinxing Industrial Park, Xinhe, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China 1 Test Summary…

Text truncated - open the document above for the full version.

SHENZHEN QXTD Technology Co., Ltd onfidential documents Antenna report Customer Name Shenzhen Haikang Sheng intelligent Electronics Co., LTD project Bluetooth antenna Material name wireway Material color black black Requested date five Reference drawing： Figure 2 0.8*20mmBT Product name ANTENNA Type name LT13 frequency band 2402MHz~2480MHz input impedance 50Ω Allowable power 5W Operating temperature range -25 ~ +65 °C Storage temperature range -40 ~ +85 °C Antenna gain 1.5 dBi SHENZHEN QXTD Technology Co., Ltd Page 1 Confidential documents 3. Field pattern diagram SHENZHEN QXTD Technology Co., Ltd Page 2 Confidential documents 4. Gain and Efficiency Frequency(MHz) Gain( dBi) Efficiency(%) 2400 1.01 45.8 2410 1.36 51.6 2420 1.27 42.9 2430 1.19 48.0 2440 1.30 49.6 2450 1.14 51.4 2460 1.25 44.9 2470 1.47 48.4 2480 1.50 43.8 2490 1.38 49.1 2500 1.29 51.6

ET-23111303 Page 1 of 2 Product Name: SmartWatch Test Model No.: HK21 Test Setup Photo Conducted Emission Radiated emissions 30MHz to 1GHz ET-23111303 Page 2 of 2 Above 1GHz ------End------
