2BBQT-INHP1447HEADPHONE

1J 厄 ° s, INNOVATIONS What's in the box? WIRELESS HEADPHONES USER GUIDE INHP1447GR 。 已 ＠ 。 丿 A. 1 pair wireless headphones B. 1 micro USB charging cable C. 1 quick start quide & warranty card Initial Setup 1. Use the included micro USB charging cable to connect your headphones to a power source and charge your device for 1-2 hours. 心卢 胃D- ＿ / ＿ 二 勹 5 2. Once your headphones are fully charged, press and hold the POWER button for 2 seconds until the indicator light blinks red and blue. Your headphones are now in pairing mode. 3. On your smartphone or tablet, search for the Bluetooth '" device named "INHP1447" and tap to connect. A blinking blue indicator light will confirm successful pairing. Button Functions O PREVlOUS/VOLUME· ` Pressonce to p|ay the prevlOUS track. Press and hold for 2 seconds to decrease volume. E i Press and hold for 2 seconds to turn on your device. Press and hold for 2 seconds to turn off your device. Press once to PLAY. Press again to PAUSE. NEXT/VOLUME+ Press once to play the next track. Press and hold for 2 seconds to increase volume. Answering Phone Calls @ii PREVIOUS/VOLUME会 Press once to play the previous track. POWER Press once to answer a call. Press again to hang up Press and hold to reject a call. Press 2X to call back the last call NEXT/VOLUME+ Press once to play the next track. Port 今 Micro USB Charging Port ®3.5mm AUX IN Press & Hold to Power On Bluetooth ® Pairing After initial Bluetooth" pairing, your headphones will automatically connect to the previously paired device when turned on. Press & hold for Bluetooth• Pairing To pair your headphones to a new device: 1. Disable Bluetooth ® on your previously connected device. 2. Press the POWER button on your headphones for 2 seconds to enter Bluetooth ® pairing mode. The LED light on your headphones will blink red and blue, indicating that pairing mode is active. 3. On the new device you wish to pair,search for the Bluetooth ® device named"INHP1447" and tap to connect. A blinking blue light will confirm successful pairing. The Specs Model Bluetooth" INHP1447GR Bluetooth ® 5.3 Speaker Rated Output Power 15 mW Impedance Sensitivity Frequency Response Play Time Power Charge 16 ohms 100 d B+/-3 dB 20 Hz-20 kHz 10 hours {50% volume) 2 hours Battery Rechargeable Lithium-ion 3. 7 V, 200 mAh Microphone Transmission Distance Built-in 32.8 ft (10 meters) WARNING: Listening to loud audio for extended periods of time may damage your hearing permanently. Warranty Information 90-day L而tedWarranty Territory: United States/Canada LIMITED WARRANTY TO ORIGINAL CONSUMER This product (including any accessories included in the original packaging) as supplied and distributed new by an authorized retailer is warranted by MCG Innovation Inc. to the original consumer purchaser against defects in materials and workmanship ("Wa「ranty")as follows: To obtain warranty service • Visit OU「websiteat WWW.MCG/NNOVATIONS.COM • Click on Product Support • Select the Brand of your device • Select Service Request and fill out the form to begin your inquiry Your product will be repaired or replaced, at ou「 option,to「 the same 0「 simila「modelof equa value if examination by the se「vicecente「 dete「minesthis p「oductis defective. Products received damaged as a 「esultof shipping will requi「eyou to file a claim with the carrie「. Warranty service not provided This war「antydoes not cove「damageresulting from accident, misuse, abuse, imprope「installationor operation, lack of reasonable ca「e,unauthorized mod巾cationincluding software modifications such as the installation of custom firmware This warranty is voided in the even any unauthorized pe「sonopens, alte「SO「 「epai「sthis p「oduct All products being returned to the authorized service center for repair must be suitably packaged FCC Information This device complies with Part 15 of the FCC Rules Caution: Any changes or mod巾cationsnot expressly approved could void the use「'sauthority to ope「atethe equipment Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or telev1s1on reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and「ece1ve「 - Connect the equipment into an outlet on a ci「cuitdifferent from that to which the receiver is connected - Consult the dealer or an experienced radio厅Vtechnician for help This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi廿ons:(1) This device may not cause harmful interfe「ence,and (2) this device must accept any interference received, including interference that may cause undesired operation Radiation Exposure Information This device has been evaluated to meet gene「alRF exposure「equi「ements The device can be used in portable exposure conditions without restriction 8厄 ® INNOVATIONS BRILLIANT INNOVATIONS® NAME AND LOGO ARE REGISTERED TRADEMARKS OF MCG INNOVATIONS INC. MANUFACTURED AND MARKETED UNDER LICENSE ©2023 ALL RIGHTS RESERVED. WWW.MCGINNOVATIONS.COM MADE IN CHINA 心WARNING:CANCER AND REPRODUCTIVE HARM - WWW.P65WARNINGS.CA.GOV

MCG Innovations Inc 246 Monmouth Rd. Oakhurst New Jersey United States Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023-7-5 U.S. Agent Designation MCG Innovations Inc acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BBQT-INHP1447): Name and company of U.S. agent: MCG Innovations Inc Physical U.S. address of agent: 246 Monmouth Rd. Oakhurst New Jersey United States FRN of U.S. agent: 0033904673 Email address of U.S. agent: [email protected] MCG Innovations Inc acknowledges their obligation to accept service of process on behalf of MCG Innovations Inc . MCG Innovations Inc with the FRN [0033904673] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Bao Qier Manager MCG Innovations Inc Signature Bao Qier Manager MCG Innovations Inc 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Bao Qier /Manager Company: MCG Innovations Inc Address: 246 Monmouth Rd. Oakhurst New Jersey United States Phone: 15920020358 Fax: N/A E-Mail: [email protected]

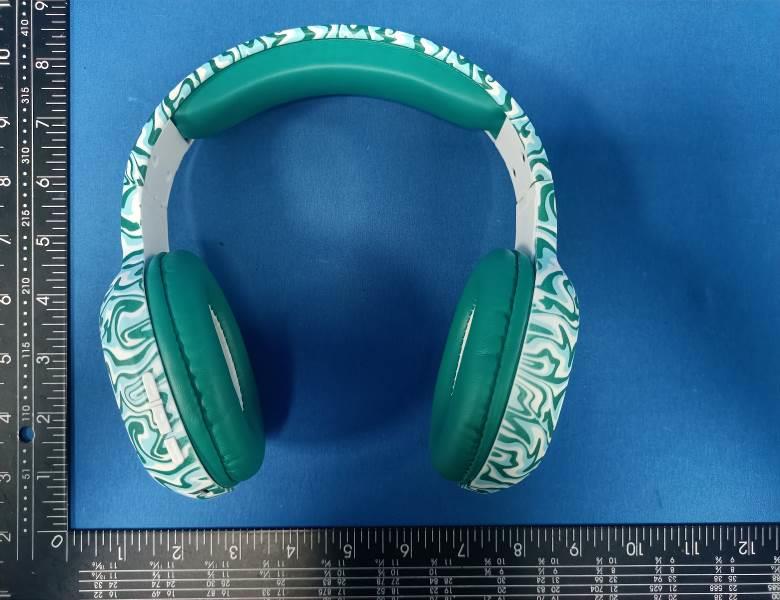

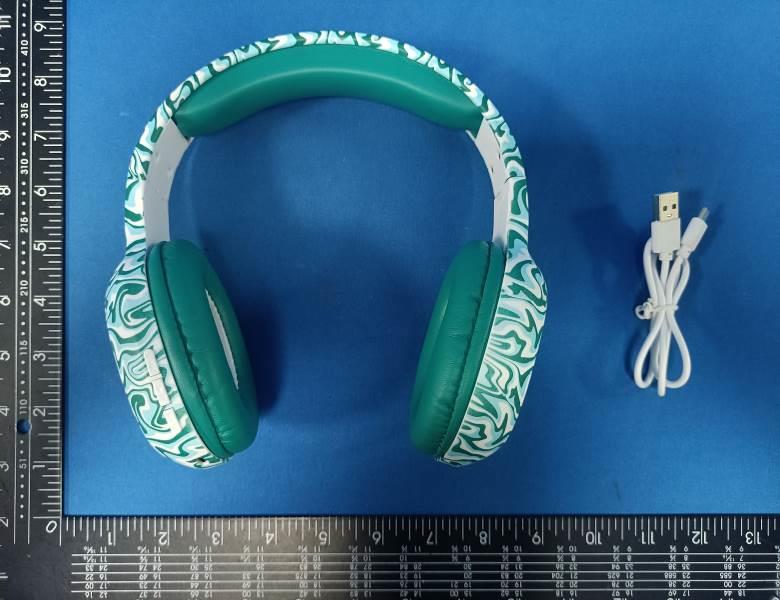

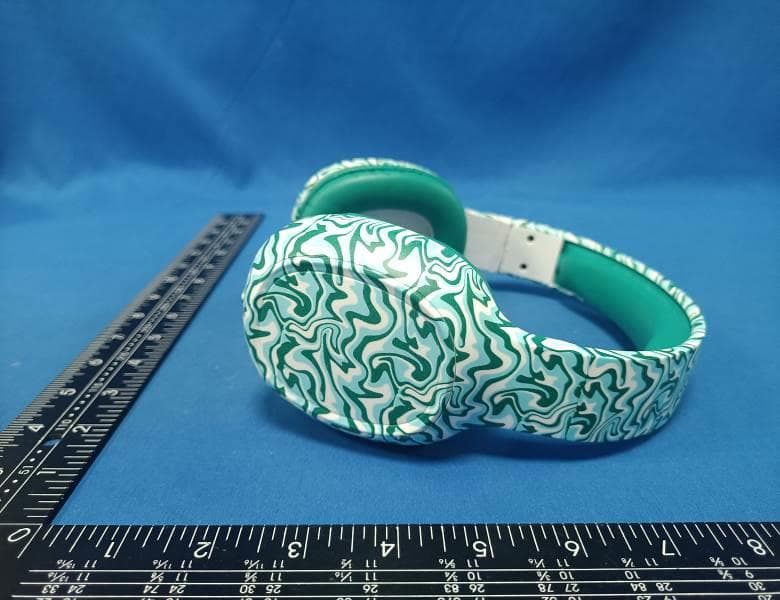

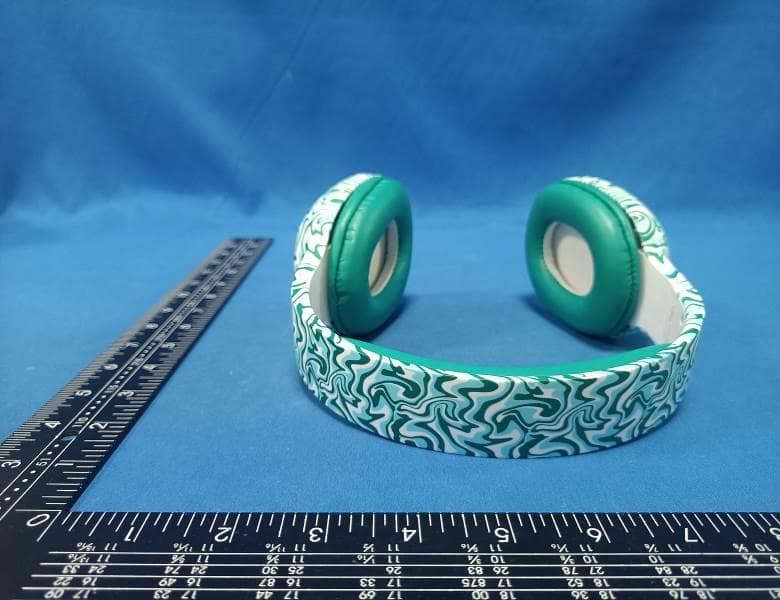

FCC ID: 2BBQT-INHP1447 External Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBQT-INHP1447 Photo 4 Photo 5 Photo 6 FCC ID: 2BBQT-INHP1447 Photo 7

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BBQT-INHP1447

FCC ID: 2BBQT-INHP1447 Internal Photos of the EUT Photo 1 Photo 2 Photo 3 FCC ID: 2BBQT-INHP1447 Photo 4 Photo 5 Photo 6 BT PCB Antenna FCC ID: 2BBQT-INHP1447 Photo 7

RF Exposure evaluation FCC ID: 2BBQT-INHP1447 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure requirement KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -2.0 -2.0 -2.0 Tolerance ±(dB) 1.0 1.0 1.0 Page 2 of 2 2. E v a l u a t i o n R e s u l t Evaluation Results Band/Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT 2.450 5 -1.0 0.7943 0.2487<3.0 Yes 3. C o n c l u s i o n The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06 .....................End of Report.........................

V . S .W . R < 1.4 Polarization Type V ertical & Horizontal Frequenc Range 2400 ~ 2500GHz Input Impendence(ohm) 50 Efficiency (dB) 6 0.2 % 6 0.2 %-3.61.91.2 1.7 (XY-plane)Maximum Power (dBm) 1.9 (Avg Gain XY-plane) Gain (dBi) 1.9 Peak EIRP(dBm) -1.2 (Input pwr – loss pwr)Tot. Rad. Pwr. (dBm) Product specification Quick Reference Date Antenna module on the system board 0 (Typ. BT class 2 output power)Ant. Port Input Pwr. (dBm) 1Directivity (dBi) (all direction antenna) -4(XY-plane)Minimum Power (dBm) -0.5(XY-plane)Avg. Power (dBm) All the technical data and information contained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain Gain Table XY-planeUnit in dBi @2.44GHzEfficiencyYZ-planeXZ-plane Avg.PeakAvg.PeakAvg.Peak Module Board -0.51.1-3.0 Return Loss The Environment of Antenna Radiation Pattern 3D radiation pattern diagram XY-planeXZ-planeYZ-plane

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID. ........................................... : CTA23062001501 2BBQT-INHP1447 Compiled by ( position+printed name+signature) .. : File administrators Zoey Cao Supervised by ( position+printed name+signature) .. : Project Engineer Amy Wen Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : Jun. 26, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : MCG Innovations Inc Address ............................................ : 246 Monmouth Rd. Oakhurst, NJ 07755 Test specification ...........................: Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : HEADPHONE Trade Mark ....................................... : N/A Manufacturer .................................... : Ningbo Haishu Wade Crafts Co., Ltd Model/Type reference....................... : INHP1447 Listed Models .................................. : INHP1447GR,INHP1447PP,BIHP1662,BIHP1663,BIHP1664, IVHP1665,IVHP1666,IVHP1667,IVHP1668,IVHP1669,IVHP1670, IVHP1671 Modulation ....................................... : GFSK, Π/4DQPSK Frequency .......................................... From 2402MHz to 2480MHz Rating ............................................... : DC 3.7V From Battery and DC 5.0V From external circuit Result................................................ : PASS Report No.: CTA23062001501 Page 2 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : HEADPHONE Model /Type : INHP1447 Listed Models : INHP1447GR,INHP1447PP,BIHP1662,BIHP1663,BIHP1664, IVHP1665,IVHP1666,IVHP1667,IVHP1668,IVHP1669,IVHP1670, IVHP1671 Applicant : MCG Innovations Inc Address : 246 Monmouth Rd. Oakhurst, NJ 07755 Manufacturer : Ningbo Haishu Wade Crafts Co., Ltd Address : No. 82-102 Gongmao 4th Road Jishigang Town, Ningbo, Zhejiang, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23062001501 Page 3 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Output Power 19 4.4 20dB Bandwidth 20 4.5 Frequency Separation 23 4.6 Number of hopping frequency 25 4.7 Time of Occupancy (Dwell Time) 27 4.8 Out-of-band Emissions 30 4.9 Antenna Requirement 37 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 38 6 P H O T O S O F T H E E U T ............................................................. 39 Report No.: CTA23062001501 Page 4 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices Report No.: CTA23062001501 Page 5 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 2 S U M M A R Y 2.1 General Remarks Date of rece…

Text truncated - open the document above for the full version.

Report No.: CTA23062001501 Page 32 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn GFSK(CH78) π/4DQPSK (CH00) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA23062001501 Page 33 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK (CH39) π/4DQPSK (CH78) reference reference 30MHz-1G 30MHz-1G 1G-25G 1G-25G Report No.: CTA23062001501 Page 34 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: GFSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23062001501 Page 35 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn π/4DQPSK Left Band edge hoping off Right Band edge hoping off Left Band edge hoping on Right Band edge hoping on Report No.: CTA23062001501 Page 36 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Pseudorandom Frequency Hopping Sequence TEST APPLICABLE For 47 CFR Part 15C section 15.247 (a) (1) requirement: Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hop-ping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400–2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125 mW. The system shall hop to channel frequencies that are selected at the system hopping rate from a pseudo randomly ordered list of hopping frequencies. Each frequency must be used equally on the average by each transmitter. The system receivers shall have input bandwidths that match the hop-ping channel bandwidths of their corresponding transmitters and shall shift frequencies in synchronization with the transmitted signals. EUT Pseudorandom Frequency Hopping Sequence Requirement The pseudorandom frequency hopping sequence may be generated in a nice-stage shift register whose 5 th and 9 th stage outputs are added in a modulo-two addition stage. And the result is fed back to the input of the first stage. The sequence begins with the first one of 9 consecutive ones, for example: the shift register is initialized with nine ones. ● Number of shift register stages:9 ● Length of pseudo-random sequence:29-1=511 bits ● Longest sequence of zeros:8(non-inverted signal) An example of pseudorandom frequency hopping sequence as follows: Each frequency used equally one the average by each transmitter. The system receiver have input bandwidths that match the hopping channel bandwidths of their corresponding transmitter and shift frequencies in synchronization with the transmitted signals. Report No.: CTA23062001501 Page 37 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.9 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. And according to FCC 47 CFR Section 15.247 (c), if transmitting antennas of directional gain greater than 6dBi are used, the power shall be reduced by the amount in dB that the directional gain of the antenna exceeds 6dBi. Refer to statement below for compliance The manufacturer may design the unit so that the user can replace a broken antenna, but the use of a standard antenna jack or electrical connector is prohibited. Further, this requirement does not apply to intentional radiators that must be professionally installed. Antenna Connected Construction The maximum gain of antenna was 1.90 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23062001501 Page 38 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23062001501 Page 39 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23062001501 Page 40 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23062001501 Page 41 of 43 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Par…

Text truncated - open the document above for the full version.

FCC ID: 2BBQT-INHP1447 Test Setup Photos of the EUT
