Telly, Inc. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/22/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BBQXTY55-1 FRN of applicant: 0033811662 Per section 2.911(d)(7) of the FCC rules, Telly, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: Telly, Inc. FCC Registration Number (FRN): 0033811662 Physical U.S. Company Address: 2901 Florida Avenue, Suite 840, Miami, FL 33133, United States Contact Person: Jared Mellin Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Jared Mellin Printed name: Title: Head of Logistics and Manufacturing Title: Company Name: Telly, Inc. Company Name: Date: 7/22/2023 Date:

Telly, Inc. Covered Equipment Certification Attestation Letter 7/22/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BBQXTY55-1 Telly, Inc. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Jared Mellin Title: Head of Logistics and Manufacturing Company Name: Telly, Inc. Date: 7/22/2023

Telly, Inc. Covered Equipment Certification Attestation Letter 7/22/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BBQXTY55-1 Telly, Inc. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Printed name: Jared Mellin Title: Head of Logistics and Manufacturing Company Name: Telly, Inc. Date: 7/22/2023

Telly, Inc. DATE : 2023.07.21 Equipment Authorization Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BBQXTY55-1 Product Name: LED TV Request for Confidentiality LONG TERM CONFIDENTIALITY Pursuant to Sections 0.457 and 0.459 of the Commission’s rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Name: Jared Mellin Title: Head of Logistics and Manufacturing Company: Telly, Inc.

Telly, Inc. DATE : 7/21/2023 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Telly, Inc. Address: 2901 Florida Avenue Suite 840, Miami, FL 33133, United States Name: Jared Mellin Title: Head of Logistics and Manufacturing Company: Telly, Inc.

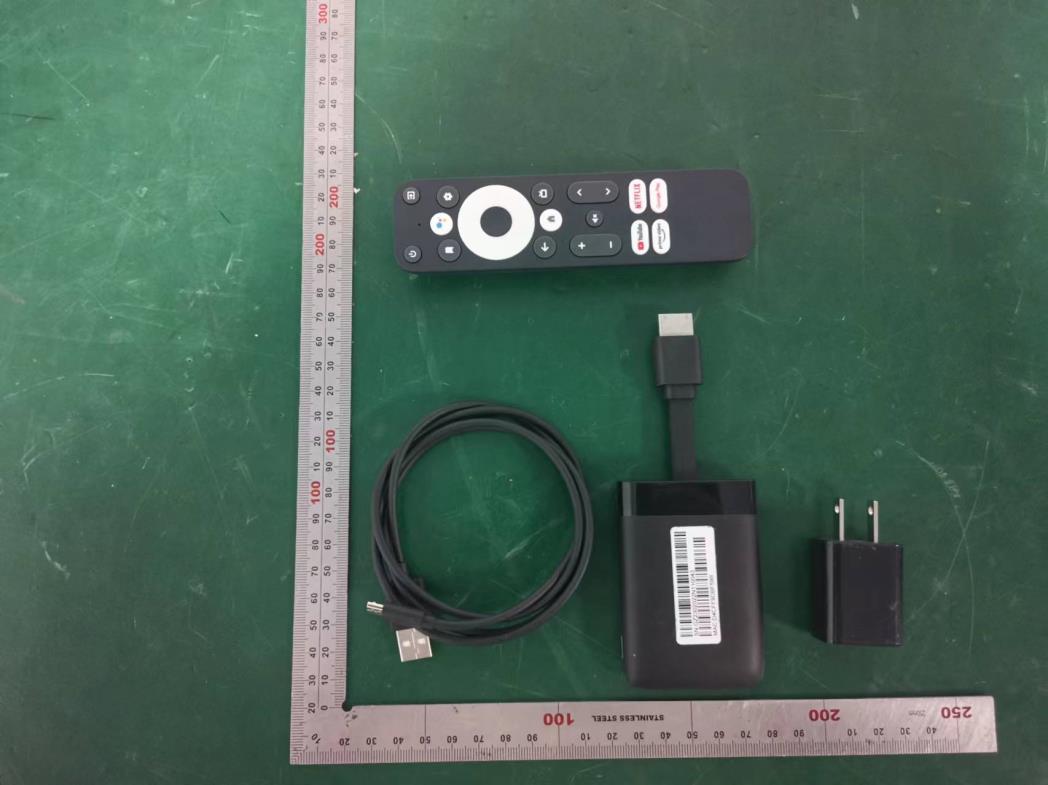

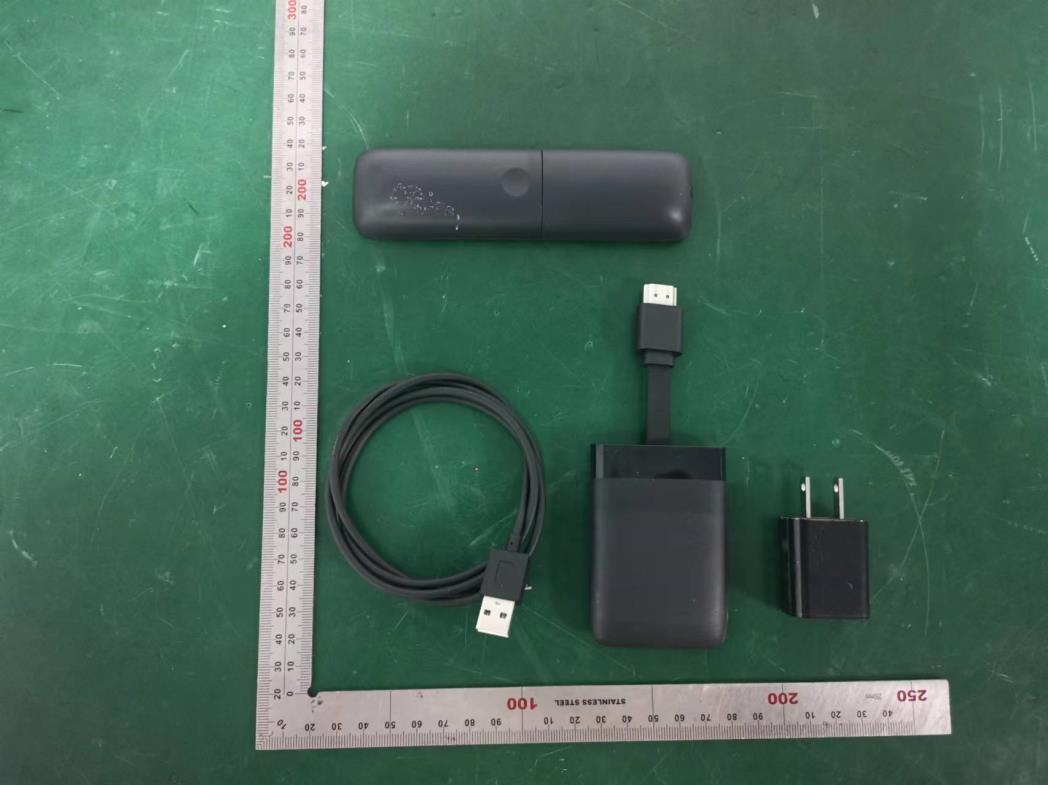

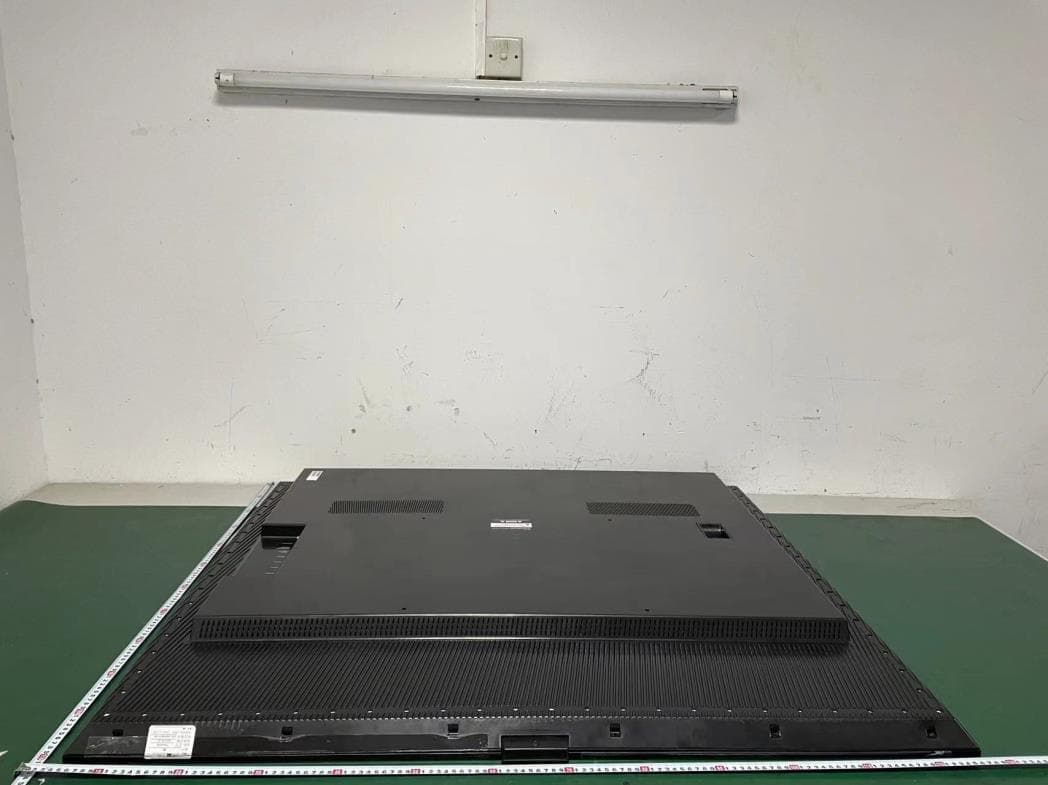

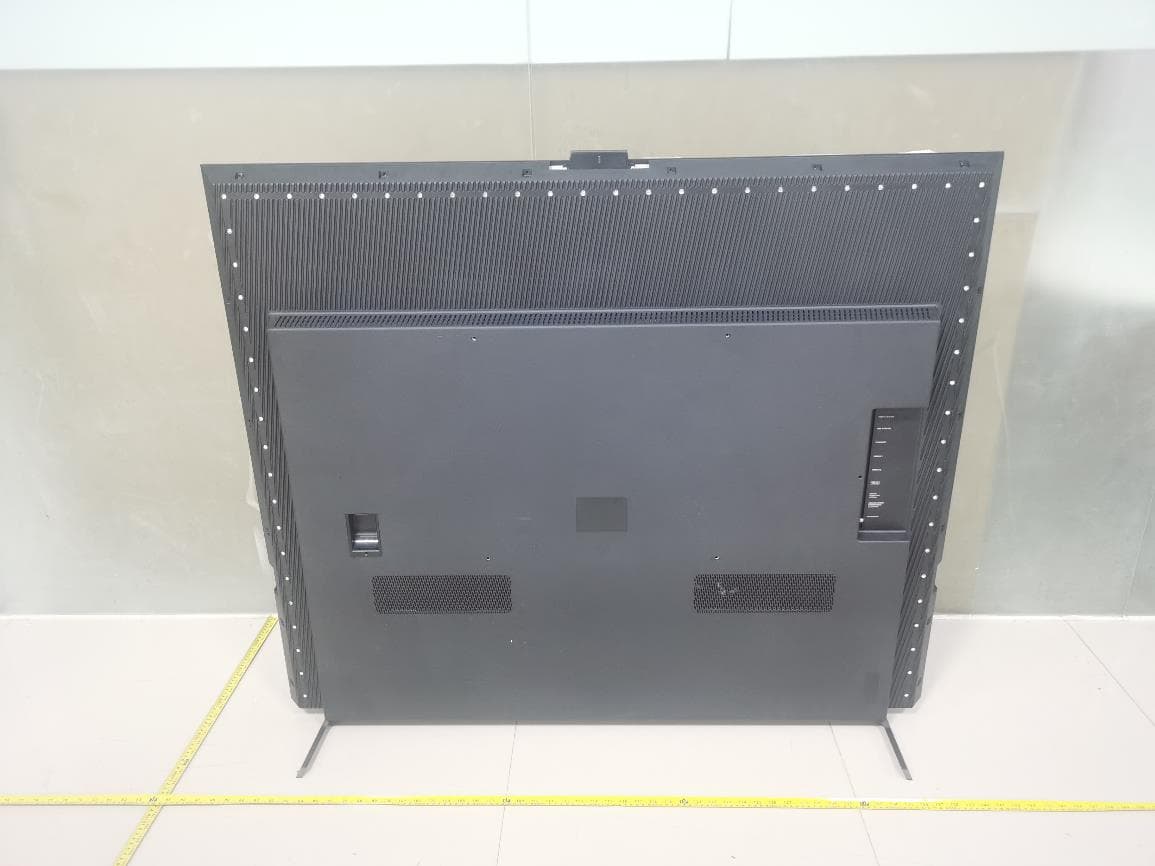

External photos M/N: TY55-1 External photos M/N: TY55-1 External photos M/N: TY55-1 External photos M/N: TY55-1 External photos M/N: TY55-1 External photos M/N: TY55-1

Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 WIFI ANT 1 WIFI ANT 2 BT ANT Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1 Internal photos M/N: TY55-1

FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 1 of 11 FCC 47 CFR MPE REPORT Telly,Inc. LED TV Model Number: TY55-1 FCC ID: 2BBQXTY55-1 Applicant: Telly,Inc. Address: 2901 Florida Avenue Suite 840 Miami, FL 33133 United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306006 Date of Test: Apr. 21, ~ May. 31, 2023 Date of Report: Jun. 01, 2023 FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 2 of 11 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 3 of 11 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d×377 G×P×30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 4 of 11 2. Conducted Power Result Mode Frequency (MHz) Antenna Peak output power (dBm) Peak output power (mW) GFSK 2402 10.97 12.503 2441 10.13 10.304 2480 10.22 10.520 π/4-DQPSK 2402 9.99 9.977 2441 9.18 8.279 2480 8.71 7.430 8-DPSK 2402 10.19 10.447 2441 9.56 9.036 2480 9.1 8.128 BLE 1M 2402 11 12.589 2440 10.18 10.423 2480 10.15 10.351 BLE 2M 2402 11.23 13.274 2440 10.47 11.143 2480 10.49 11.194 IEEE 802.11b 2412 ant 1 13.81 24.044 ant 2 14.85 30.549 2437 ant 1 13.6 22.909 ant 2 15.67 36.898 2462 ant 1 13.16 20.701 ant 2 15.14 32.659 IEEE 802.11g 2412 ant 1 20.32 107.647 ant 2 22.13 163.305 2437 ant 1 20.42 110.154 ant 2 22.75 188.365 2462 ant 1 19.32 85.507 ant 2 22.25 167.880 IEEE 802.11n HT20 2412 ant 1 20.23 105.439 ant 2 22.04 159.956 2437 ant 1 20.2 104.713 ant 2 22.61 182.390 2462 ant 1 19.24 83.946 ant 2 22.12 162.930 FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 5 of 11 IEEE 802.11ax HE20 2412 ant 1 21.68 147.231 ant 2 21.66 146.555 2437 ant 1 21.7 147.911 ant 2 22.08 161.436 2462 ant 1 20.56 113.763 ant 2 21.52 141.906 IEEE 802.11a 5180 ant 1 9.32 8.551 ant 2 11.43 13.900 5200 ant 1 9.42 8.750 ant 2 11.88 15.417 5240 ant 1 10.16 10.375 ant 2 11.78 15.066 5745 ant 1 11.21 13.213 ant 2 10.89 12.274 5785 ant 1 10.73 11.830 ant 2 9.99 9.977 5825 ant 1 11.11 12.912 ant 2 9.44 8.790 IEEE 802.11n20 5180 ant 1 9.17 8.260 ant 2 11.63 14.555 5200 ant 1 9.57 9.057 ant 2 12.12 16.293 5240 ant 1 10.49 11.194 ant 2 12.5 17.783 5745 ant 1 11.11 12.912 ant 2 10.9 12.303 5785 ant 1 10.93 12.388 ant 2 9.92 9.817 5825 ant 1 11.07 12.794 ant 2 9.38 8.670 FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 6 of 11 Mode Frequency Antena Peak output power (dBm) Peak output power (mW) (MHz) IEEE 802.11ac VHT20 5180 ant 1 9 7.943 ant 2 11.69 14.757 5200 ant 1 9.41 8.730 ant 2 12.11 16.255 5240 ant 1 10.32 10.765 ant 2 12.39 17.338 5745 ant 1 11.11 12.912 ant 2 10.88 12.246 5785 ant 1 10.72 11.803 ant 2 9.72 9.376 5825 ant 1 10.98 12.531 ant 2 9.33 8.570 IEEE 802.11ax HE20 5180 ant 1 9.24 8.395 ant 2 11.96 15.704 5200 ant 1 9.61 9.141 ant 2 12.31 17.022 5240 ant 1 10.51 11.246 ant 2 12.76 18.880 5745 ant 1 11.23 13.274 ant 2 10.98 12.531 5785 ant 1 10.73 11.830 ant 2 9.93 9.840 5825 ant 1 11 12.589 ant 2 9.48 8.872 IEEE 802.11n HT40 5190 ant 1 9.73 9.397 ant 2 12.18 16.520 5230 ant 1 10.63 11.561 ant 2 12.92 19.588 5755 ant 1 11.66 14.655 ant 2 11.25 13.335 5795 ant 1 11.44 13.932 ant 2 10.25 10.593 FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 7 of 11 Mode Frequency (MHz) Frequenc y (MHz) Peak output power (dBm) Peak output power (mW) IEEE 802.11ac VHT40 5190 ant 1 9.76 9.462 ant 2 12.47 17.660 5230 ant 1 10.59 11.455 ant 2 14.15 26.002 5755 ant 1 11.76 14.997 ant 2 11.31 13.521 5795 ant 1 11.82 15.205 ant 2 10.41 10.990 IEEE 802.11ax HE40 5190 ant 1 9.94 9.863 ant 2 12.79 19.011 5230 ant 1 10.72 11.803 ant 2 13.15 20.654 5755 ant 1 11.81 15.171 ant 2 11.35 13.646 5795 ant 1 11.83 15.241 ant 2 10.41 10.990 IEEE 802.11ac VHT80 5210 ant 1 9.66 9.247 ant 2 12.32 17.061 5775 ant 1 11.43 13.900 ant 2 10.77 11.940 IEEE 802.11ax HE80 5210 ant 1 10.08 10.186 ant 2 12.82 19.143 5775 ant 1 11.76 14.997 ant 2 10.96 12.474 FCC ID: 2BBQXTY55-1 EST Technology Co. ,Ltd Report No. ESTE-R2306006 Page 8 of 11 3. Calculated Result and Limit 1. SISO The Worst Mode Antenn a Peak output power (dBm) Target power （ dBm ） MAX Target power （ dBm ） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear ) 2.4G Band GFSK 10.97 10 …

Text truncated - open the document above for the full version.

FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 1 of 93 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of Telly,Inc. LED TV Model Number: TY55-1 FCC ID: 2BBQXTY55-1 Applicant : Telly,Inc. Address: 2901 Florida Avenue Suite 840 Miami, FL 33133 United States Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2306001 Date of Test: Apr. 21, ~ May. 31, 2023 Date of Report: Jun. 01, 2023 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 2 of 93 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION......................................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................. 5 1.1. Description of Device (EUT) ........................................................................................................... 5 1.2. Antenna Information ........................................................................................................................ 5 1.3. Information of RF Cable .................................................................................................................. 5 2. SUMMARY OF TEST ......................................................................................................................... 6 2.1. Summary of test result ...................................................................................................................... 6 2.2. Test Facilities ................................................................................................................................... 7 2.3. Measurement uncertainty ................................................................................................................. 8 2.4. Assistant equipment used for test ..................................................................................................... 8 2.5. Block Diagram ................................................................................................................................. 8 2.6. Test mode ......................................................................................................................................... 9 2.7. Channel List ................................................................................................................................... 10 2.8. Power Setting of Test Software ...................................................................................................... 10 2.9. Test Equipment ............................................................................................................................... 11 3. MAXIMUM PEAK OUTPUT POWER ................................................................................................. 13 3.1. Limit ............................................................................................................................................... 13 3.2. Test Setup ....................................................................................................................................... 13 3.3. Spectrum Analyzer Setting ............................................................................................................. 13 3.4. Test Procedure ................................................................................................................................ 13 3.5. Test Result ...................................................................................................................................... 13 4. 20 DB BANDWIDTH ....................................................................................................................... 14 4.1. Limit ............................................................................................................................................... 14 4.2. Test Setup ....................................................................................................................................... 14 4.3. Spectrum Analyzer Setting ............................................................................................................. 14 4.4. Test Procedure ................................................................................................................................ 14 4.5. Test Result ...................................................................................................................................... 14 5. CARRIER FREQUENCY SEPARATION .............................................................................................. 15 5.1. Limit ............................................................................................................................................... 15 5.2. Test Setup ....................................................................................................................................... 15 5.3. Spectrum Analyzer Setting ............................................................................................................. 15 5.4. Test Procedure ................................................................................................................................ 15 5.5. Test Result ...................................................................................................................................... 15 6. NUMBER OF HOPPING CHANNEL .................................................................................................. 16 6.1. Limit ............................................................................................................................................... 16 6.2. Test Setup ....................................................................................................................................... 16 6.3. Spectrum An…

Text truncated - open the document above for the full version.

FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 60 of 93 Appendix F: Reference level measurement Test Result Test Mode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2402.02 10.19 2441 2441.01 9.33 2480 2480.11 9.87 2DH5 Ant1 2402 2401.82 7.08 2441 2440.97 6.86 2480 2480.11 6.25 3DH5 Ant1 2402 2401.96 7.76 2441 2441.12 6.94 2480 2480.11 6.28 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 61 of 93 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 62 of 93 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 63 of 93 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 64 of 93 Appendix G: Band edge measurements Test Result Test Mode Antenna Ch Name Freq(MHz) Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 10.19 -49.81 ≤-9.81 PASS High 2480 9.87 -50.98 ≤-10.13 PASS Low Hop_2402 9.69 -50.33 ≤-10.31 PASS High Hop_2480 9.99 -49.85 ≤-10.01 PASS 2DH5 Ant1 Low 2402 7.08 -39.89 ≤-12.92 PASS High 2480 6.25 -51.06 ≤-13.75 PASS Low Hop_2402 5.44 -49.92 ≤-14.56 PASS High Hop_2480 6.34 -49.3 ≤-13.66 PASS 3DH5 Ant1 Low 2402 7.76 -40.01 ≤-12.24 PASS High 2480 6.28 -51.1 ≤-13.72 PASS Low Hop_2402 5.95 -50.1 ≤-14.05 PASS High Hop_2480 6.16 -49.54 ≤-13.84 PASS FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 65 of 93 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 66 of 93 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 67 of 93 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 68 of 93 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 69 of 93 Appendix H: Conducted Spurious Emission Test Result Test Mode Antenna Freq(MHz) Freq Range [MHz] Ref Level [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~26500 10.19 -39.01 ≤-9.81 PASS 2441 30~26500 9.33 -41.3 ≤-10.67 PASS 2480 30~26500 9.87 -42.37 ≤-10.13 PASS 2DH5 Ant1 2402 30~26500 7.08 -40.68 ≤-12.92 PASS 2441 30~26500 6.86 -42.89 ≤-13.14 PASS 2480 30~26500 6.25 -42.57 ≤-13.75 PASS 3DH5 Ant1 2402 30~26500 7.76 -42.14 ≤-12.24 PASS 2441 30~26500 6.94 -42.05 ≤-13.06 PASS 2480 30~26500 6.28 -42.51 ≤-13.72 PASS FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 70 of 93 Test Graphs DH5_Ant1_2402_30~26500 DH5_Ant1_2441_30~26500 DH5_Ant1_2480_30~26500 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 71 of 93 2DH5_Ant1_2402_30~26500 2DH5_Ant1_2441_30~26500 2DH5_Ant1_2480_30~26500 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 72 of 93 3DH5_Ant1_2402_30~26500 3DH5_Ant1_2441_30~26500 3DH5_Ant1_2480_30~26500 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 73 of 93 14. TEST SETUP PHOTO Conducted Test FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 74 of 93 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 75 of 93 15. EUT PHOTO External Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 76 of 93 External Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 77 of 93 External Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 78 of 93 External Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 79 of 93 External Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 80 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 81 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 82 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 83 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 84 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 85 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 86 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 87 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 88 of 93 Internal Photos M/N: TY55-1 Bluetooth Antenna Wi-Fi 1 Antenna Wi-Fi 2 Antenna FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 89 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 90 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 91 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 92 of 93 Internal Photos M/N: TY55-1 FCC ID: 2BBQXTY55-1 EST Technology Co., Ltd Report No. ESTE-R2306001 Page 93 of 93 Internal Photos M/N: TY55-1 End of Test Report

Shenzhen ZTX Communication Technology Co., Ltd 魔镜项目天线测试报告 Shenzhen ZTX Communication Technology Co., Ltd q天线位置 q测试环境 q天线无源测试数据 目录 Shenzhen ZTX Communication Technology Co., Ltd 天线位置 Shenzhen ZTX Communication Technology Co., Ltd 测试环境 Shenzhen ZTX Communication Technology Co., Ltd 无源数据（驻波比） Shenzhen ZTX Communication Technology Co., Ltd 无源数据（效率/增益） FrequencyEfficiencyPeak Gain Mhz%dBdB 5150 44.43 -3.52 6.16 5200 41.66 -3.80 4.63 5250 37.18 -4.30 4.63 5300 40.70 -3.90 5.40 5350 41.40 -3.83 5.62 5400 41.62 -3.81 6.32 5450 46.32 -3.34 7.23 5500 42.90 -3.68 7.15 5550 42.73 -3.69 6.78 5600 47.62 -3.22 6.54 5650 46.17 -3.36 6.32 5700 46.57 -3.32 5.65 5750 50.94 -2.93 6.59 5800 47.55 -3.23 6.68 5850 43.04 -3.66 6.71 FrequencyEfficiencyPeak Gain Mhz%dBdB 2400 50.47 -2.97 7.98 2410 47.98 -3.19 7.62 2420 47.87 -3.20 7.76 2430 48.14 -3.17 7.91 2440 47.97 -3.19 7.83 2450 46.43 -3.33 7.46 2460 46.62 -3.31 7.25 2470 42.20 -3.75 6.87 2480 43.39 -3.63 6.55 2490 42.08 -3.76 5.96 2500 43.71 -3.59 5.68 Shenzhen ZTX Communication Technology Co., Ltd 无源数据（2.4G方向图） XOY面XOZ面 YOZ面 Z XY 2450MHz 3D…
