2BBVM-ALK1Smart Watch

Shenzhen Yuanhuan Technology Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 22, 2024 FCC ID: 2BBVM-ALK1 Ref. #1: Attestation Statements Part 2.911(d)(5)(i) Filing Shenzhen Yuanhuan Technology Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Ref. #2: Attestation Statements Part 2.911(d)(5)(ii) Filing Shenzhen Yuanhuan Technology Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Applicant: Shenzhen Yuanhuan Technology Co., Ltd Address: Room 1307, East Block, Building 6, Tianan Yungu Phase II, Bantian Street, Longgang District, Shenzhen, China Contact Person: Liang Jiang Tel.: +86-18682037205 Email: [email protected] Sincerely, Signature:

Shenzhen Yuanhuan Technology Co., Ltd U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: August 22, 2024 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BBVM-ALK1 Shenzhen Yuanhuan Technology Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, CLF Import and Export Limited (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. CLF Import and Export Limited ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: CLF Import and Export Limited FRN: 0033489683 Address: 1312 17th Street #692, Denver, CO 80202, United States Signature: Contact Person: David Chen Tel: +1 949 254 2565 Email: [email protected] Applicant Shenzhen Yuanhuan Technology Co., Ltd FRN: 0033951724 Address: Room 1307, East Block, Building 6, Tianan Yungu Phase II, Bantian Street, Longgang District, Shenzhen, China Signature: Contact Person: Liang Jiang Tel: +86-18682037205 Email: [email protected]

深圳市麒鑫通达科技有限公司 SHENZHEN QXTD Technology Co., Ltd Floor 1, Building 1, Sha-North Yongfa Science Park, Xinhe Road, Gonghe Community, Shajing Street, Baoan District, Shenzhen Part Approval Sheet Version： V1.0 Customer： Shenzhen Haikangsheng Intelligent Co., Ltd Project： Bluetooth antenna Part Name： Conducting wire Part Color： Black Part Number： Sample Delivery Date： April 3, 2021 Sample Quantity： 5PCS Antenna type： Integral antenna Reason for Sample Delivery： ○New tooling ○New supplier ○Tooling change ○Engineering change ○Other: Remark： Supplier sample production confirmation: (stamp required) Formulate Confirm Approve Quality Stamp 代庆蓉 龙超群 傅梁成 曹光平 Customer approval: Project confirmation Project approval Quality confirmation Quality approval Confirmation date 深圳市麒鑫通达科技有限公司 SHENZHEN QXTD Technology Co., Ltd Floor 1, Building 1, Sha-North Yongfa Science Park, Xinhe Road, Gonghe Community, Shajing Street, Baoan District, Shenzhen Page 1 Confidential documents 机 密 文 件 1.Graphic for reference Figure 2 0.8*20mmBT 2.OTA(Free Space) Channel TRP（dBm） TIS（dBm） 0 6.3 -91.1 39 6.5 -91.3 78 6.6 -91.2 Name ANTENNA Model ALK1 Frequency 2402-2480MHz Input impedance 50Ω Allowed power 5mW Working temp. -25 ~ +65 °C Storage temp. -40 ~ +85 °C Weight 0.25g Antenna gain天线 增益 -1dBi 深圳市麒鑫通达科技有限公司 SHENZHEN QXTD Technology Co., Ltd Floor 1, Building 1, Sha-North Yongfa Science Park, Xinhe Road, Gonghe Community, Shajing Street, Baoan District, Shenzhen Page 2 Confidential documents 机 密 文 件 3.Field 4. BT Test Test term Environment Max pairing distance BT Call distance BT Office 16-18m 10-12m 深圳市麒鑫通达科技有限公司 SHENZHEN QXTD Technology Co., Ltd Floor 1, Building 1, Sha-North Yongfa Science Park, Xinhe Road, Gonghe Community, Shajing Street, Baoan District, Shenzhen Page 3 Confidential documents 机 密 文 件 5.Blueprint 深圳市麒鑫通达科技有限公司 SHENZHEN QXTD Technology Co., Ltd Floor 1, Building 1, Sha-North Yongfa Science Park, Xinhe Road, Gonghe Community, Shajing Street, Baoan District, Shenzhen Page 4 Confidential documents 机 密 文 件

Shenzhen Yuanhuan Technology Co., Ltd Date: August 22, 2024 Product Model Number: ALK1 FCC ID: 2BBVM-ALK1 To whom it may concern, Re: Product Certification Representative Authorization Letter We authorize QAI Laboratories Ltd. 3980 North Fraser Way, Burnaby B.C. Canada V5J 5K5 to act on our behalf on all matters concerning the above named equipment. This shall include the following:  Testing  Approval applications and procedures We declare that ORGANIZATION. is allowed to forward all information related to the approval project to the applied certification body and to the notification entities and to discuss any issues concerning the approval application. Any and all acts carried out by ORGANIZATION. on our behalf shall have the same effect as acts of our own. By: Liang Jiang Contact Listed on FCC Wesbite Title: Manager Email: [email protected] Telephone: +86-18682037205 On behalf of: Shenzhen Yuanhuan Technology Co., Ltd

Shenzhen Yuanhuan Technology Co., Ltd Date: August 22, 2024 Product Model Number: ALK1 FCC ID: 2BBVM-ALK1 To whom it may concern, Re: Product Certification Representative Authorization Letter I, the undersigned, hereby authorize, Shenzhen CCUT Quality Technology Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Shenzhen CCUT Quality Technology Co., Ltd. on our behalf shall have the same effects as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C 853(a). This authorization is valid until further written notice from the applicant. Signature： By: Liang Jiang Title: Manager Email: [email protected] Telephone: +86-18682037205 On behalf of: Shenzhen Yuanhuan Technology Co., Ltd

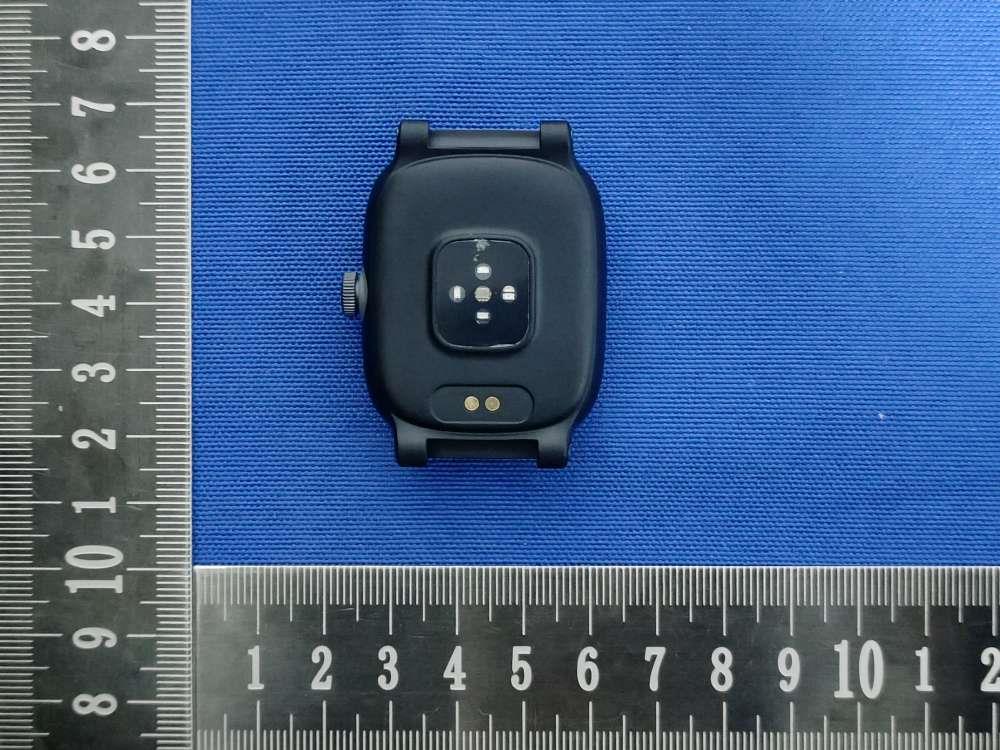

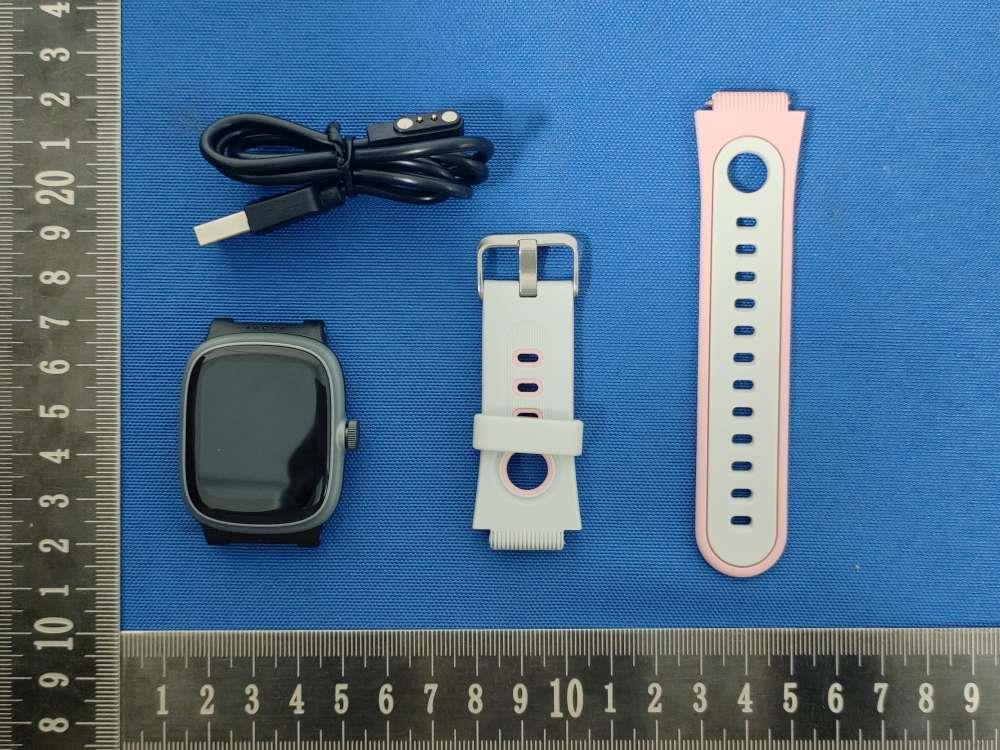

Report No: SSP24070241-1E FCC ID: 2BBVM-ALK1 Annex of Test Report Annex A. EUT External Photos EUT View 1 EUT View 2 Report No: SSP24070241-1E FCC ID: 2BBVM-ALK1 Annex of Test Report EUT View 3 EUT View 4 Report No: SSP24070241-1E FCC ID: 2BBVM-ALK1 Annex of Test Report EUT View 5 EUT View 6 Report No: SSP24070241-1E FCC ID: 2BBVM-ALK1 Annex of Test Report EUT View 7

Report No: SSP24070241-1E FCC ID: 2BBVM-ALK1 Annex of Test Report Annex D. Label and Inf ormation FCC Label Sample FCC Label Specifications Text is Black in color and is justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Where the EUT is constructed in two or more sections connected by wires and marketed together, the above statement is required to be affixed only to the main control unit. When the EUT is so small or for such use that it is not practicable to place the statement on it, the above information shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. FCC Label Location

FCC ID: 2BBVM-ALK1 RF Exposure Evaluation According to KDB 447498 D01 General RF Exposure Guidance v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Here, The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. For BLE Max Conducted Power(dBm) Tune-up Power(dBm) Max Tune-up Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 3.29 3(±1) 4 2.512 2480 5 0.79118 3.0 So a SAR test is not required

CCUT Testing & Certification Report No: SSP24070241-1E FCC Test Report Page 1 of 37 FCC TEST REPORT FCC ID: 2BBVM-ALK1 Report No. : SSP24070241-1E Applicant : Shenzhen Yuanhuan Technology Co., Ltd Product Name : Smart Watch Model Name : ALK1 Test Standard : FCC Part 15.247 Date of Issue : 2024-07-30 Shenzhen CCUT Quality Technology Co., Ltd. 1F, Building 35, Changxing Technology Industrial Park, Yutang Street, Guangming District, Shenzhen, Guangdong, China; (Tel.:+86-755-23406590 website: www.ccuttest.com) This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd. CCUT Testing & Certification Report No: SSP24070241-1E FCC Test Report Page 2 of 37 Test Report Basic Information Applicant..................................: Shenzhen Yuanhuan Technology Co., Ltd Address of Applicant...............: Room 1307, East Block, Building 6, Tianan Yungu Phase II, Bantian Street, Longgang District, Shenzhen, China Manufacturer..........................: Shenzhen Yuanhuan Technology Co., Ltd Address of Manufacturer........: Room 1307, East Block, Building 6, Tianan Yungu Phase II, Bantian Street, Longgang District, Shenzhen, China Product Name.........................: Smart Watch Brand Name.............................: - Main Model..............................: ALK1 Series Models..........................: - Test Standard..........................: FCC Part 15 Subpart C KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.4-2014 ANSI C63.10-2013 Date of Test .............................: 2024-07-22 to 2024-07-26 Test Result...............................: PASS Tested By ................................: (Walker Wu) Reviewed By............................: (Lieber Ouyang) Authorized Signatory............: (Lahm Peng) Note : This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by Shenzhen CCUT Quality Technology Co., Ltd.. All test data presented in this test report is only applicable to presented test sample. CCUT Testing & Certification Report No: SSP24070241-1E FCC Test Report Page 3 of 37 CONTENTS 1. General Information ....................................................................................................................................................5 1.1 Product Information .............................................................................................................................................5 1.2 Test Setup Information..........................................................................................................................................6 1.3 Compliance Standards ...........................................................................................................................................7 1.4 Test Facilities ........................................................................................................................................................7 1.5 List of Measurement Instruments ..........................................................................................................................8 1.6 Measurement Uncertainty .....................................................................................................................................8 2. Summary of Test Results .............................................................................................................................................9 3. Antenna Requirement ............................................................................................................................................... 10 3.1 Standard and Limit.............................................................................................................................................. 10 3.2 Test Result .......................................................................................................................................................... 10 4. Conducted Emissions ................................................................................................................................................ 11 4.1 Standard and Limit.............................................................................................................................................. 11 4.2 Test Procedure.................................................................................................................................................... 11 4.3 Test Data and Results .......................................................................................................................................... 12 5. Radiated Emissions ................................................................................................................................................... 15 5.1 Standard and Limit.............................................................................................................................................. 15 5.2 Test Procedure.................................................................................................................................................... 15 5.3 Test Data and Results .......................................................................................................................................... 17 6. Band-edge Emissions(Radiated) ............................................................................................................................... 21 6.1 Standard and Limit.............................................................................................................................................. 21 6.2 Test Procedure.................................................................................................................................................... 21 6.3 Test Data and Results ..........................................…
