2BBVM-ALW1Smart Watch

Instruction Manual Smart watch charging and Activating Align the magnetic cable with the metal charging port until the watch screen shows the charging indication. When the watch prompts low battery, please charge it in time. Please note the device belongs to all-in-one machine, the back shell and battery are not removable. Mobile client download Use the mobile phone to scan the QR code below to download and install the APP. Function Introduction 1. Dial Switching Long press home screen 2 seconds to enter the dial switching interface, slide left and right to switch the dial, and click the selected dial. 2. Control Center Function overview: Not Disturb, Brightness, Settings, Find Phone, Battery Saver Mode, System Information 3. Motion Recording The interface saves your last 10 exercise history, and you can view the exercise duration, heart rate, calories and etc. 4. Heart Rate When entering the heart rate measurement interface, the bottom green light lights up to start measuring, and there will be a vibration reminder when the measurement is completed in about 45 seconds. If it says "watch is not worn", you need to wear the watch again. The user's current heart rate zone and 24-hour heart rate curve can be displayed. 5. Blood Oxygen When entering the blood oxygen measurement interface, the red light at the bottom lights up to startmeasuring, and there will be a vibration reminder when the measurement is completed in about 45 seconds. This measurement is based on PPG technology. It can display the user's current blood oxygen interval and the last seven blood oxygen values. 6. Sleep Display the sleep monitoring status of the day &the last seven days. It is updated every day, the data can be saved synchronously when the APP is connected, and the device will recalculate the data information of the new day. Sleep monitoring time period is from 21:30 to 12:00. 7. Women's Health After the watch is connected to the APP, the women's health reminder is turned on the APP. You can view the women's health reminder information on the watch. 8. Music After the watch is connected to the APP, it can control the pause and start, volume adjustment and song switching of the mobile phone music player. 9. Weather After the watch is connected to the APP, this weather interface displays the real-time weather temperature and weather type. 10. Information After the watch and the APP are connected, open the relevant information push on the APP, and the watch can receive the corresponding message, and the last 15 messages can be saved. 11. Alarm clock After the watch and APP are connected, you can set a single alarm and cycle alarmup to 5 alarms. 12. Stopwatch Click the start button to start the time, click the pause button to pause the timer, and click the reset button to reset the timer to zero. Up to 99 pieces of data can be saved. 13. Timer The system presets the common timing time, and the user can click the corresponding time to time quickly, or click the custom button to set the time. Click the start button to start the time, click the pause button to pause the time, and click the reset button to reset the timer to zero. 14. Find your phone After the watch and APP are connected, click “Find Mobile Phone”, the mobile phone will ring to prompt, and the watch side will show that the search is successful. If the watch is not connected to the APP, the watch will indicate that it is not connected. 15. Settings The setting function includes screen display (Dialswitching, Screen duration, Brightness adjustment, Wrist brightness adjustment), language, vibration intensity, menu style, battery, QR code, system. 16. Motion There are 8+1 kinds of sports mode options, (walking, running, climbing, cycling, skipping, basketball, badminton, football, yoga (as push alternative sports)), click the icon to start sports, it supports 110+ sports push on the APP. 17. Drinking water reminder It can be opened in the App [Device > Drinking Water Reminder]. After openingyou can set the start time, end time, and reminder interval. 18. Sedentary reminders It can be opened in the APP [Device >Sedentary Reminder]. After openingyou can set the start time, end timeand not disturb period. FAQ The smart watch does not turn on. Please long press the power button more than 3 seconds. Or the battery may be too low, please charge it in time . Bluetooth is not connected or cannot be connected. 1. Try restarting your watch and reconnecting it. 2. Please try restarting the Bluetooth of the phone and connecting again. 3. Do not connect other Bluetooth devices to the mobile phone at the same time. Inaccurate measurement of heart rate/blood pressure/blood oxygen/ECG 1. Generally, the sensor of the watch is in poor contact with the human body during measuring. 2. Please pay attention to the full contact between the sensor and the wrist during measuring. 3. For people with darker skin and more arm hair, please turn on enhancement measurement in the App [Device > Enhancement Measurement]. Sleep data is not accurate enough 1. Sleep monitoring is to simulate the natural state of falling asleep and getting up. It needs to be worn normally. 2. Wear it too late or fall asleep, there may be errors. 3. Do not monitor sleep data during the day, and the default sleep monitoring is from 9:30 p.m. to 12:00 noon of the next day Maximum working temperature From 0 to 60 degrees For more frequently asked questions, please refer to the App [My > FAQ] FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital…

Text truncated - open the document above for the full version.

Shenzhen Yuanhuan Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – EquipmentType Company name: Shenzhen Yuanhuan Technology Co., Ltd Address: Room 1307, East Block, Building 6, TiananYungu Phase II, Bantian Street, Longgang District, Shenzhen Product Name: Smart Watch FCC ID: 2BBVM-ALW1 Model(s): ALW1 2.911(d)(5)(i) EquipmentType We, [Shenzhen Yuanhuan Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Liang Jiang Date: 8/4/2023 Title and Company name: Manager / Shenzhen Yuanhuan Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Yuanhuan Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Yuanhuan Technology Co., Ltd Address: Room 1307, East Block, Building 6, TiananYungu Phase II, Bantian Street, Longgang District, Shenzhen Product Name: Smart Watch FCC ID: 2BBVM-ALW1 Model(s): ALW1 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Yuanhuan Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Liang Jiang Date: 8/2/2023 Title and Company name: Manager / Shenzhen Yuanhuan Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

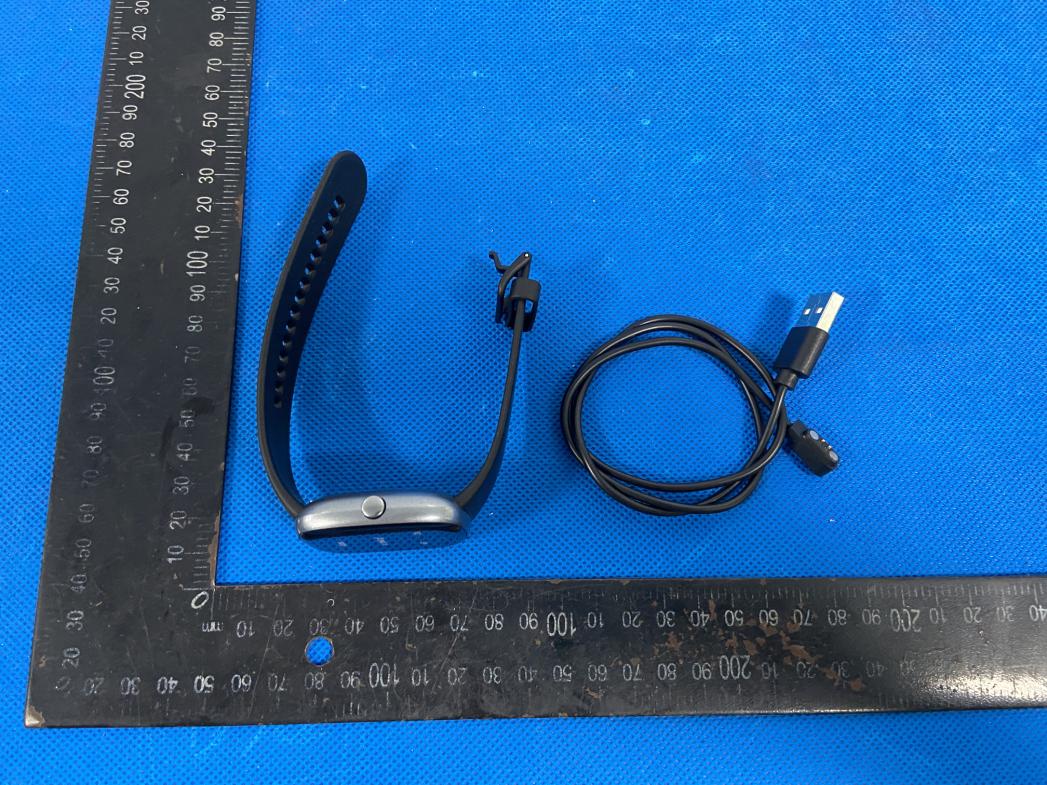

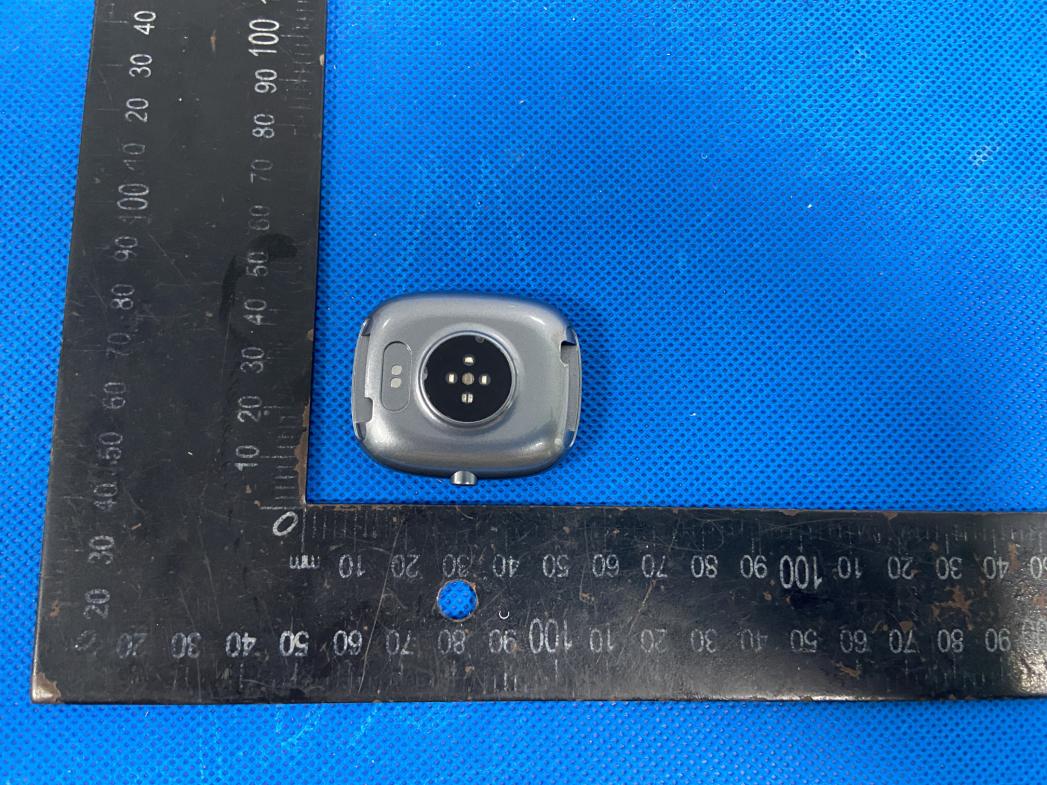

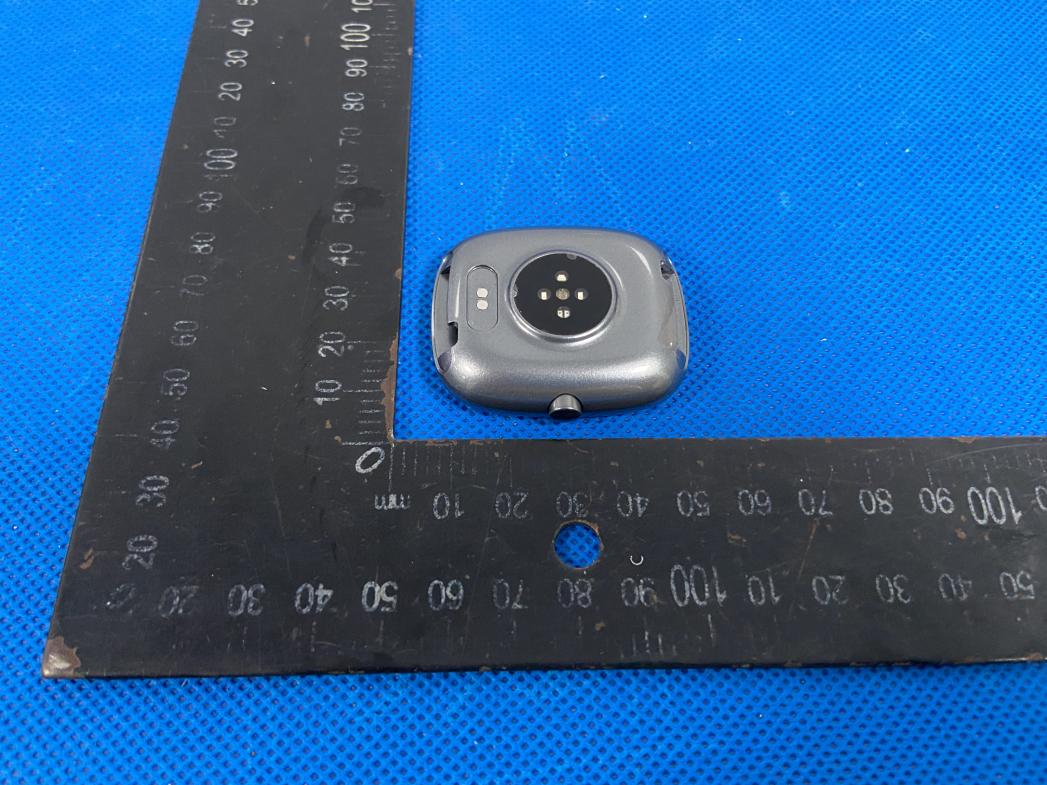

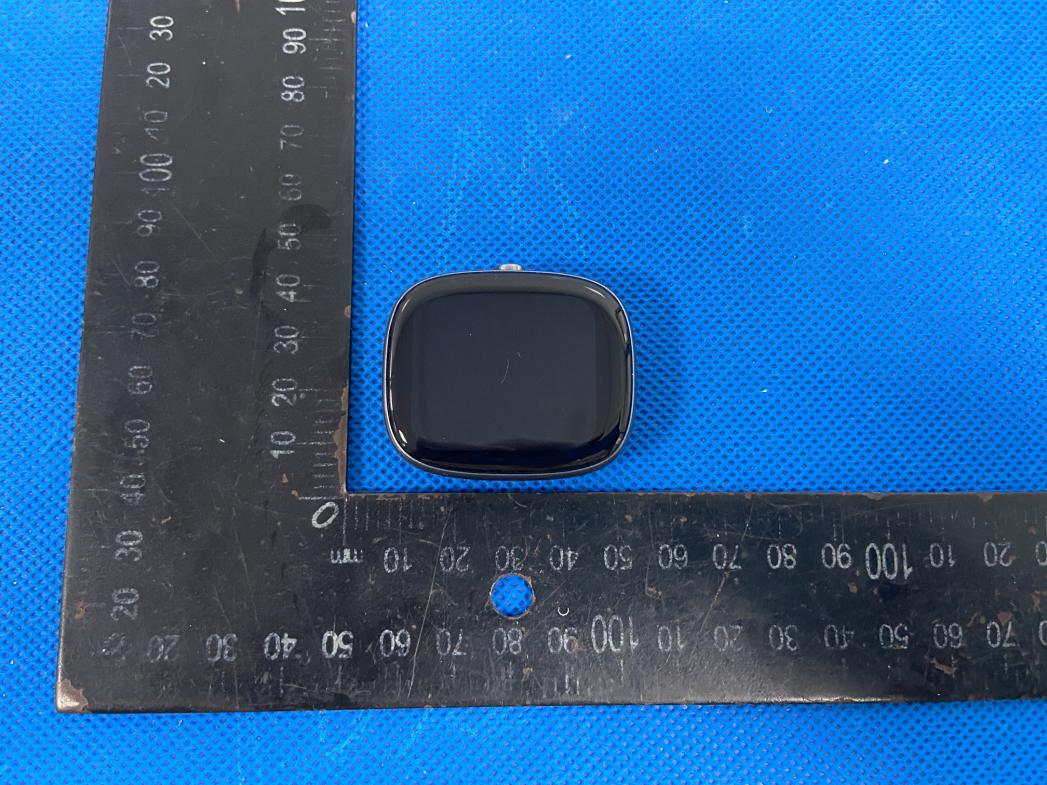

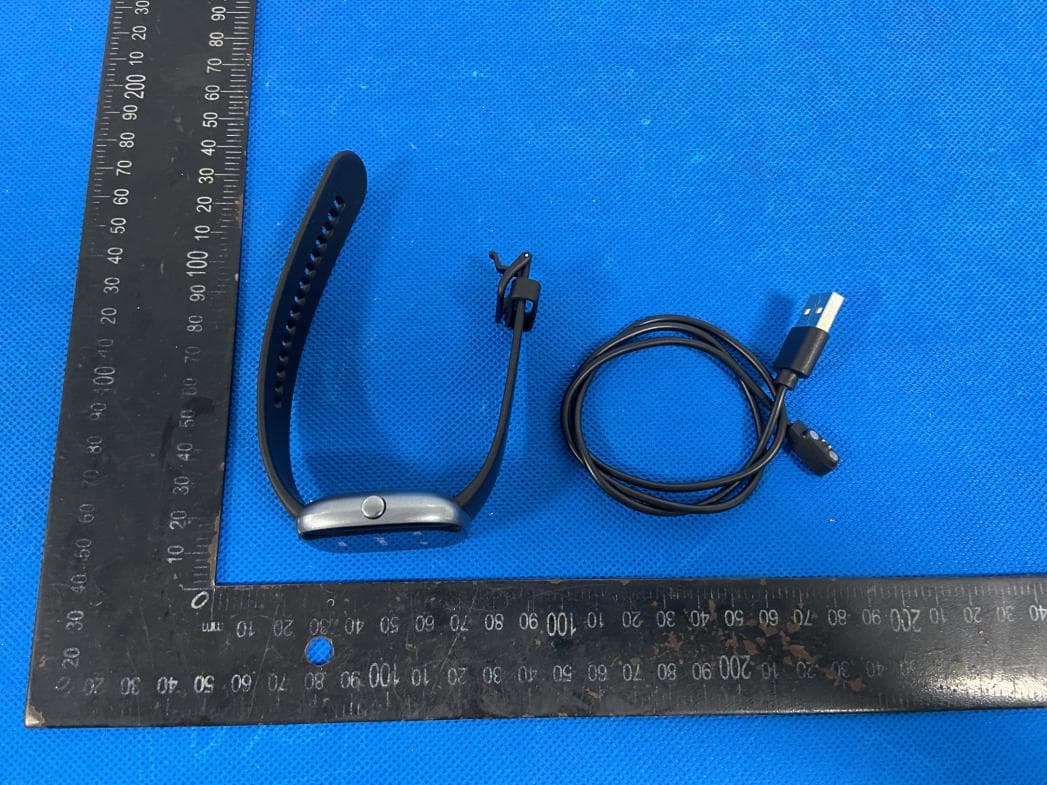

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

Smart Watch Model: ALW1 Input: 5V 0.2A Battery: 300mAh FCC ID:2BBVM-ALW1 Made in China EN62133

Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14 Photo 15 Photo 16 ANT

FCC ID: 2BBVM-ALW1 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion 2.402 4.74 2.985±163.98<51.234003.00YES 2.440 4.94 3.125±163.98<51.243733.00YES 2.480 5.34 3.425±163.98<51.253883.00YES 2.402 4.76 2.995±163.98<51.234003.00YES 2.440 4.96 3.135±163.98<51.243733.00YES 2.480 5.34 3.425±163.98<51.253883.00YES BLE-1M BLE-2M Conclusion: For the max result : 1.25388 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2023-07-24 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page1of7 Index 1.GeneralDescription 1 2.ElectricalSpecifications 2 2-1Set-up 2 2-1-1 FrequencyBand 2 2-1-2 Impedance 2 2-1-3 MatchingRequirements 2 2-1-4 VSWR 2 2-2TestData 3to4 2-2-1 VSWR 3 2-2-2 TRP&TIS 4 3.MechanicalSpecification 5to7 3-1MechanicalConfiguration 5 3-1-1MechanicalConfiguration 5 3-1-2MechanicalConfiguration 6 3-2MeasurementData 7 3-3Salt-SprayTest 7 4.EnvironmentCharacteristics 7 ANTENNASPECIFICATION0 CUS P/N ： T2970 ApplicationDate: 20 22-12-9Rev: R:A0 CREDITSP/N :Editor:Page 2 of 7 1. GeneralDescription This report summarizesthe electricalperformanceresultsof the proposed Internalantennato supporttheF12（BT）program.The antennais an assemblyBT 2.4G. 2. ElectricalSpecifications 2-1 Set-up 2-1-1FrequencyBand FrequencyBandTx(MHz)Rx(MHz) WIFI2400-2450-2500 2-1-2Impedance NominalImpedance(includingmatchingcircuit): 50 ohms 2-1-3MatchingRequirements The matchingcircuiton the PCB of the handsetis accordingto Figure1 Optimummatchingcircuitis highlydependenton the handset and thus. Final matchingcircuitlayoutand valueswill be definedwhen handsetis available. 客供 2-1-4VSWRAnd GAIN VSWRGAIN Freq. BandOPENSPECBandFreq.OPENSPEC ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page3of7 2400MHz ≦ 2.5 2400MHz ≧-1.0dBi 2450MHz ≦ 2.0 2450MHz ≧0.5dBi 2500MHz ≦2.0 2500MHz ≧-1.0dBi ※Measuringa50Ωtestjigisconnectedtoanetworkanalyzertomeasure theVSWR ※※Alltestvalueisdoneincustomerapprovalfixture. 2-2TestData 2-2-1BTVSWR ModelNo:File: CREDITSNO: Note: BT-VSWR SampleNo: TestCondition:FreeSpaceMatching:客供 Confirmation:Engineer: ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page4of7 2-2-2BTGAIN&EFF ANTENNASPECIFICATION0 CUS P/N ： T2970 ApplicationDate: 20 22-12-9Rev: R:A0 CREDITSP/N :Editor:Page 5 of 7 ANTENNASPECIFICATION0 CUS P/N ： T2970 ApplicationDate: 20 22-12-9Rev: R:A0 CREDITSP/N :Editor:Page 7 of 7 3. MechanicalSpecification 3-1 -1MechanicalConfiguration(组装图) 3-2MeasurementData 3-3Salt-Sprayte st 35 °C, 85%RH, 48Hours(Accordingto MIL-STD-810E)The salt-sprayis generatedfrom a 5% salt solution.,The VSWR, Gain, RadiationPatternmust be met specificationsafter the salt-spraytest. 4. EnvironmentCharacteristic NO.ITEMTEST CONDITIONSPECIFICATION 4-1 High Temperature/Humidity StorageTest(nonoperating) 1.Temperature:+7 0 ±2°C 2.Humidity:90~95%RH 3.Time:48 hrs No materialdeformationis allowed. ANTENNASPECIFICATION0 CUSP/N ： T2970 ApplicationDate:2022-12-9Rev:R:A0 CREDITSP/N:Editor:Page8of7 TheVSWR,Gain,Radiation Patternmustbemet specificationsafterthesetest. 4-2 LowTemperature/Humidity StorageTest(nonoperating) 1.Temperature:-30±2°C 2.Humidity:0%RH 3.Time:48hrs

Report No.: S23062702607001 Version.1.3 Page 1 of 72 RADIO TEST REPORT FCC ID: 2BBVM-ALW1 Product: Smart Watch Trade Mark: anyloop Model No.: ALW1 Family Model: N/A Report No.: S23062702607001 Issue Date: Jul 19, 2023 Prepared for Shenzhen Yuanhuan Technology Co., Ltd Room 1307, East Block, Building 6, TiananYungu Phase II, Bantian Street, Longgang District, Shenzhen Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23062702607001 Version.1.3 Page 2 of 72 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 4 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 5 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 6 3.1 FACILITIES..................................................................................................................................................... 6 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 6 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 6 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 7 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 9 6 SETUP OF EQUIPMENT UNDER TEST ......................................................................................................... 10 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ..................................................................... 10 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 11 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 12 7 TEST REQUIREMENTS .................................................................................................................................... 14 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 14 7.1.1 Applicable Standard .................................................................................................................................. 14 7.1.2 Conformance Limit ................................................................................................................................... 14 7.1.3 Measuring Instruments ............................................................................................................................. 14 7.1.4 Test Configuration .................................................................................................................................... 14 7.1.5 Test Procedure ........................................................................................................................................... 14 7.1.6 Test Results ................................................................................................................................................ 15 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 17 7.2.1 Applicable Standard .................................................................................................................................. 17 7.2.2 Conformance Limit ................................................................................................................................... 17 7.2.3 Measuring Instruments ............................................................................................................................. 18 7.2.4 Test Configuration .................................................................................................................................... 18 7.2.5 Test Procedure ........................................................................................................................................... 19 7.2.6 Test Results ................................................................................................................................................ 20 7.3 6DB BANDWIDTH ....................................................................................................................................... 26 7.3.1 Applicable Standard .................................................................................................................................. 26 7.3.2 Conformance Limit ................................................................................................................................... 26 7.3.3 Measuring Instruments ............................................................................................................................. 26 7.3.4 Test Setup .................................................................................................................................................. 26 7.3.5 Test Procedure ........................................................................................................................................... 26 7.3.6 Test Results ................................................................................................................................................ 26 7.4 DUTY CYCLE ............................................................…

Text truncated - open the document above for the full version.

Radiated Measurement Photos Conducted Measurement Photos
