2BBYQPCWL-0500WiFi 6 (802.11ax) 4 MU-MIMO Tri Band Access point

0 PCWL-0500 PCWL-0510 Version 1.03 [USERS MANUAL ] PicoCELA Corporation 1 1 Introduction. ........................................................................................................................ 4 1.1 precautions .................................................................................................................... 4 1.2 Warning. ....................................................................................................................... 5 1.3 Prohibitions .................................................................................................................... 5 1.4 Precautions Regarding Radio Waves .................................................................................. 6 1.5 Security precautions........................................................................................................ 7 1.6 Definition of Terms ......................................................................................................... 7 2 Packaging and product appearance and name .......................................................................... 9 2.1 PCWL-0500 Package Contents .......................................................................................... 9 2.2 PCWL-0500 Product appearance and name ........................................................................ 9 2.3 PCWL-0510 Package Contents .........................................................................................15 2.4 PCWL-0510 Product appearance and name .......................................................................16 3 Mounting method ................................................................................................................21 3.1 PCWL-0500 installation method .......................................................................................21 3.2 Antenna mounting direction for PCWL-0500 ......................................................................24 3.3 How to remove PCWL-0500 ............................................................................................27 3.4 How to install PCWL-0510 ..............................................................................................28 Mounting on a pole ...............................................................................................................29 Wall Mounting Method ..........................................................................................................29 3.5 How to remove PCWL-0510 ............................................................................................29 4 Installation method ..............................................................................................................30 ステップ 1 : Prepare the necessary equipment..............................................................................30 ステップ 2 : Check the Internet connection. .................................................................................30 ステップ 3 : Temporarily install PCWL (parent unit/core) to connect to the Internet ..........................31 ステップ 4 : Temporarily install PCWL( child/branch) .....................................................................37 ステップ 5 : Check the link (connection) between parent and child ..................................................38 ステップ 6 : Connect to the Internet with a Wi-Fi device ................................................................39 ステップ 7 : Perform the main installation ....................................................................................40 ステップ 8 : If you want to extend the area ..................................................................................40 5 About setting changes ..........................................................................................................41 6 How to operate PCWL's management screen ..........................................................................43 6.1 Screen header and footer icon operation ..........................................................................43 6.2 Help Screen Operation....................................................................................................44 7 Detailed settings of the monitoring system .............................................................................45 7.1 Backhaul (relay line) settings ..........................................................................................45 Operation mode setting ........................................................................................................45 Wireless Setup .....................................................................................................................46 Backhaul route update setting: at core setting .........................................................................48 Restoration settings in case of backhaul route failure: when core is configured ............................48 Backhaul special settings .......................................................................................................49 7.2 Network configuration: in router mode (parent unit/core only) ............................................53 WAN-side network configuration: Eth-up port connection ..........................................................53 WAN-side network settings: PPPoE connection .........................................................................54 LAN-side network settings .....................................................................................................55 2 DHCP Server Settings ...........................................................................................................55 7.3 Network settings: in bridge mode, in branch mode ............................................................57 LAN-side IP address setting ...................................................................................................57 7.4 VLAN Settings ...........................…

Text truncated - open the document above for the full version.

PicoCELA Inc. 050523-17 rev 8 Certification Application Attestation Statements Date: July 11, 2023 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: FCC ID:2BBYQPCWL-0500 Statement for 47 CFR section 2.911(d)(5)(i) ______PicoCELA Inc. ______ certifies that as of the date of the application the equipment for which authorization is sought is not “covered” equipment 1 prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, including affiliates or subsidiaries of the named companies, the applicant must include an explanation on why the equipment is not “covered” equipment. Additional Explanation: <N/A> Statement for 47 CFR section 2.911(d)(5)(ii) ______PicoCELA Inc. ______ (“the applicant”) certifies that, as of the date of the filing of this application, the applicant ☐ - is / ☐ - is not identified on the Covered List as an entity producing “covered” equipment. Thank you, By: __________________________ _____ Ryoji Kuribayashi _____ (Signature 2 ) (Print name) Title: ____ Manager ______ Company: ____ PicoCELA Inc.____ Telephone: __+81 3 6661 2780__ 1 - The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist . 2 - Letters must be placed on appropriate letterhead.

PicoCELA Inc Declaration of Authorization We Name: PicoCELA Inc Address: 2-34-5 Nihonbashi Ningyo-cho Chuo-ku Tokyo 103-0013 JAPAN Declare that: Name Representative of agent: Marlin Chen Agent Company name: MRT Technology (Suzhou) Co., Ltd Address: D8 Building, Youxin Industrial Park, No.2 Tian'edang Rd., Wuzhong Economic Development Zone City: Suzhou Country: China is authorized to apply for Certification of the following product(s): Product: WiFi 6 (802.11ax) 4×4 MU-MIMO Tri Band Access point FCC ID: 2BBYQPCWL-0500 Model No.: PCWL-0500 Sincerely, _ ________________ Name: Ryoji Kuribayashi Title: Manager Email: [email protected] Date:2023-06-12

PicoCELA Inc Date: June 12, 2023 Federal Communications Commission Authorization and Evaluation Division FCC ID: 2BBYQPCWL-0500 To Whom It May Concerm: This letter is to ascertain that the following information of applicant, product with model(s) have been the units used for conducting FCC compliance testing, the sDoC part will be tested by FCC recognized test lab. Product: WiFi 6 (802.11ax) 4×4 MU-MIMO Tri Band Access point Model: PCWL-0500 If you have any question or concerns, pls. contact us. Signature: Name: Ryoji Kuribayashi Position: Manager

PicoCELA Inc. 050222-17 Request for Confidentiality Date: August 22, 2023 Subject: Confidentiality Request for: ______ 2BBYQPCWL-0500 _____ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and/or IC RSP-100, Section 12.4, the applicant requests that a part of the subject application(s) be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term --------------------------- External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term Operation Description/Theory of Operation ☐ Short Term Parts List & Placement/BOM ☐ Short Term Tune-Up Procedure ☐ Short Term Schematics ☐ Short Term --------------------------- Test Setup Photos ☐ Short Term ☐ Permanent * 1 User’s Manual ______PicoCELA Inc. ______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality for FCC Applications: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __ (specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. Short Term Confidentiality for Industry Canada Applications: Starting May 2022, ISED will recognize short term confidentiality on certain exhibits until the intended date of marketing. The applicant requests the exhibits selected above as short term confidential be withheld from public view until: (specify ISED expiration date / date of marketing) . Sincerely, By: __________________________ ____ Ryoji Kuribayashi ___ (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead. Manager ☒Permanent ☐ Permanent ☐Permanent ☒Permanent

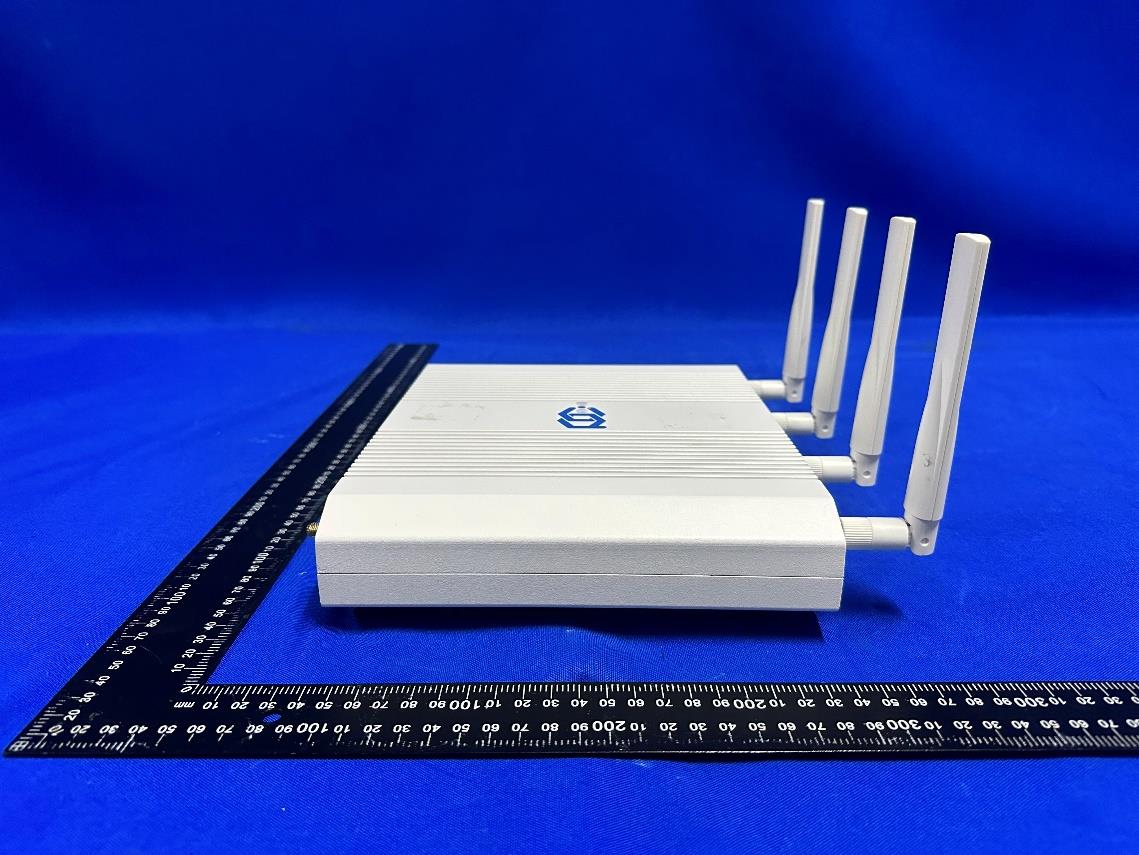

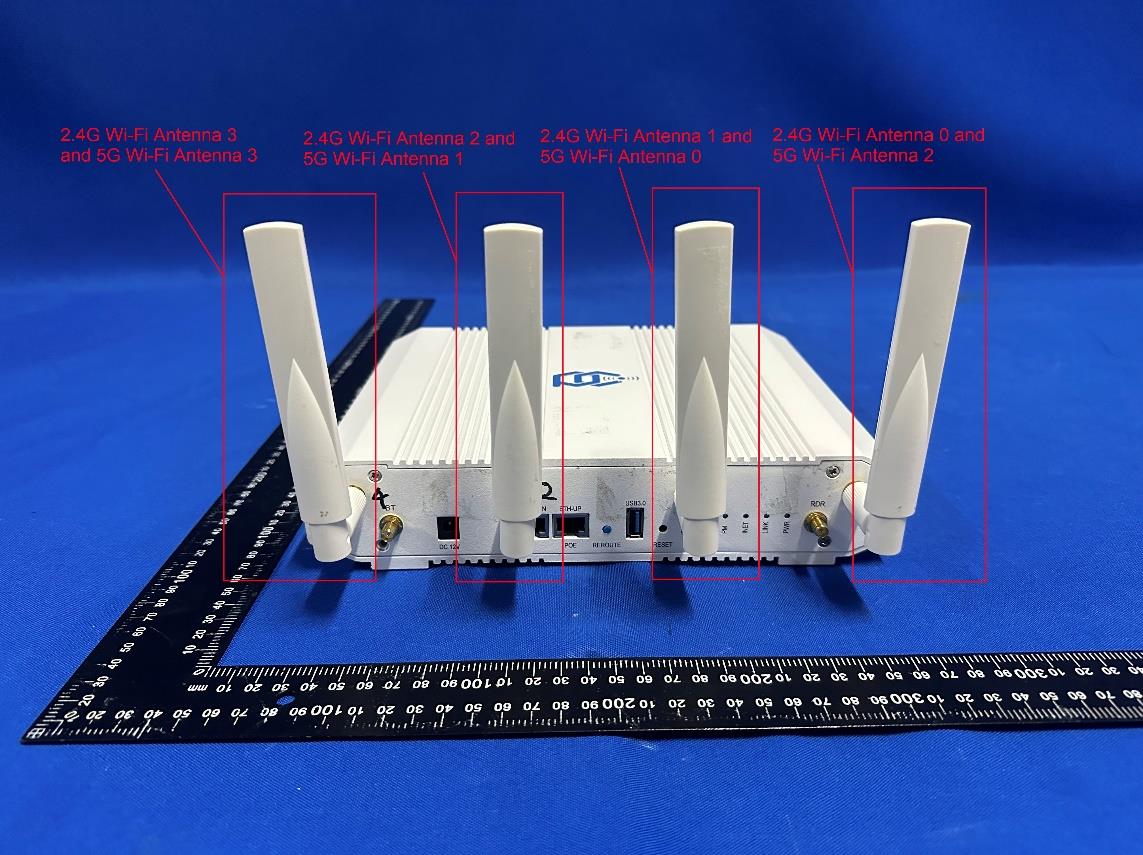

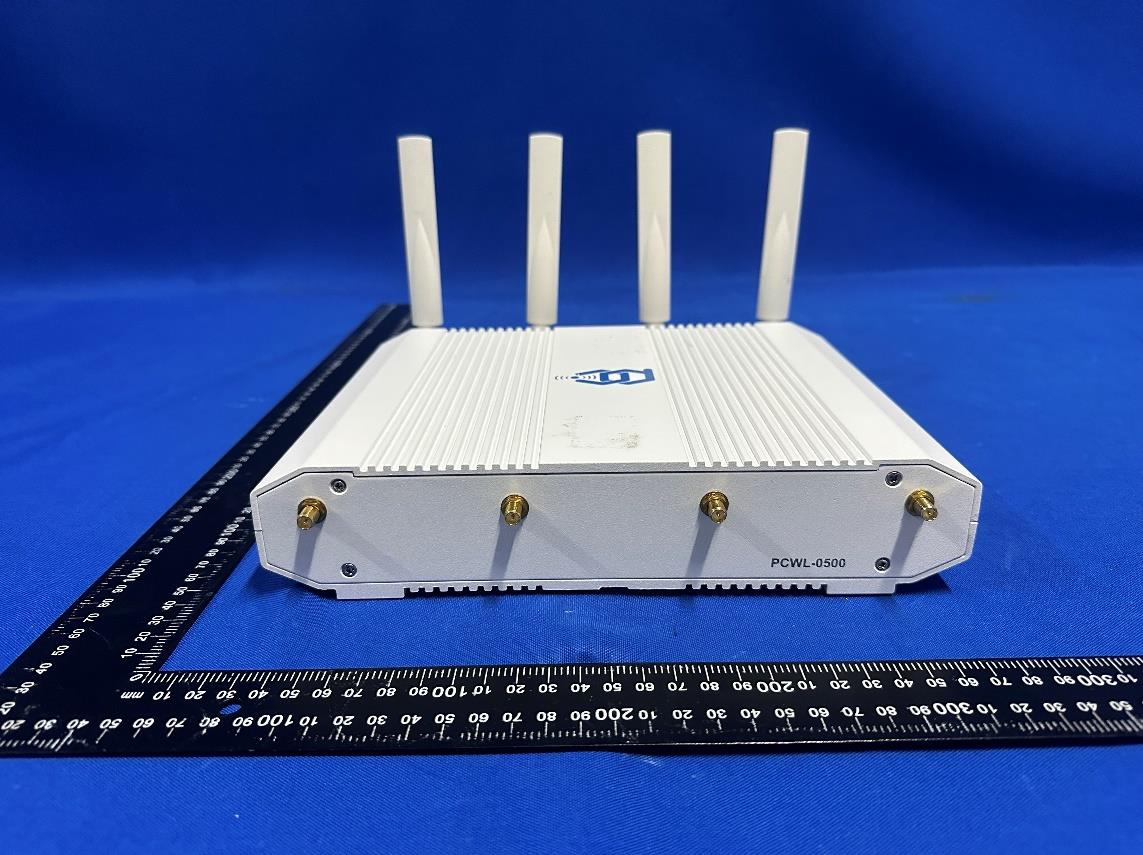

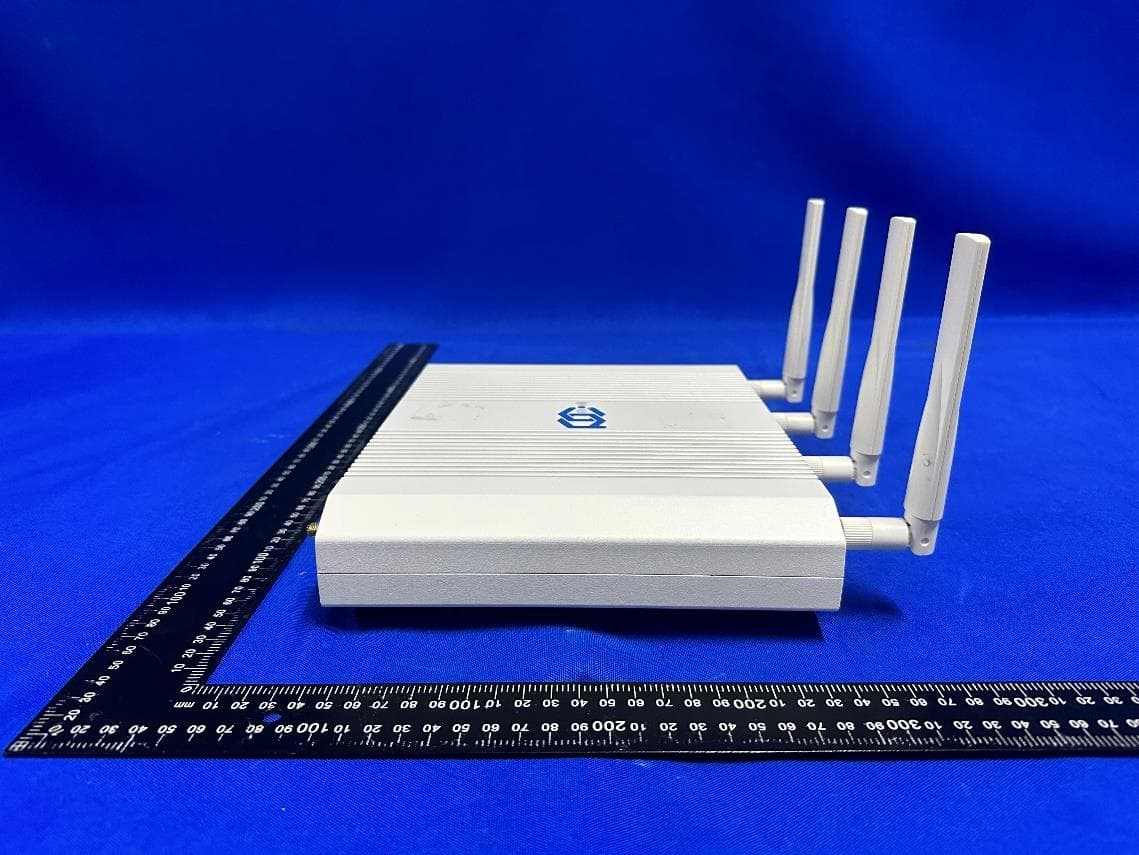

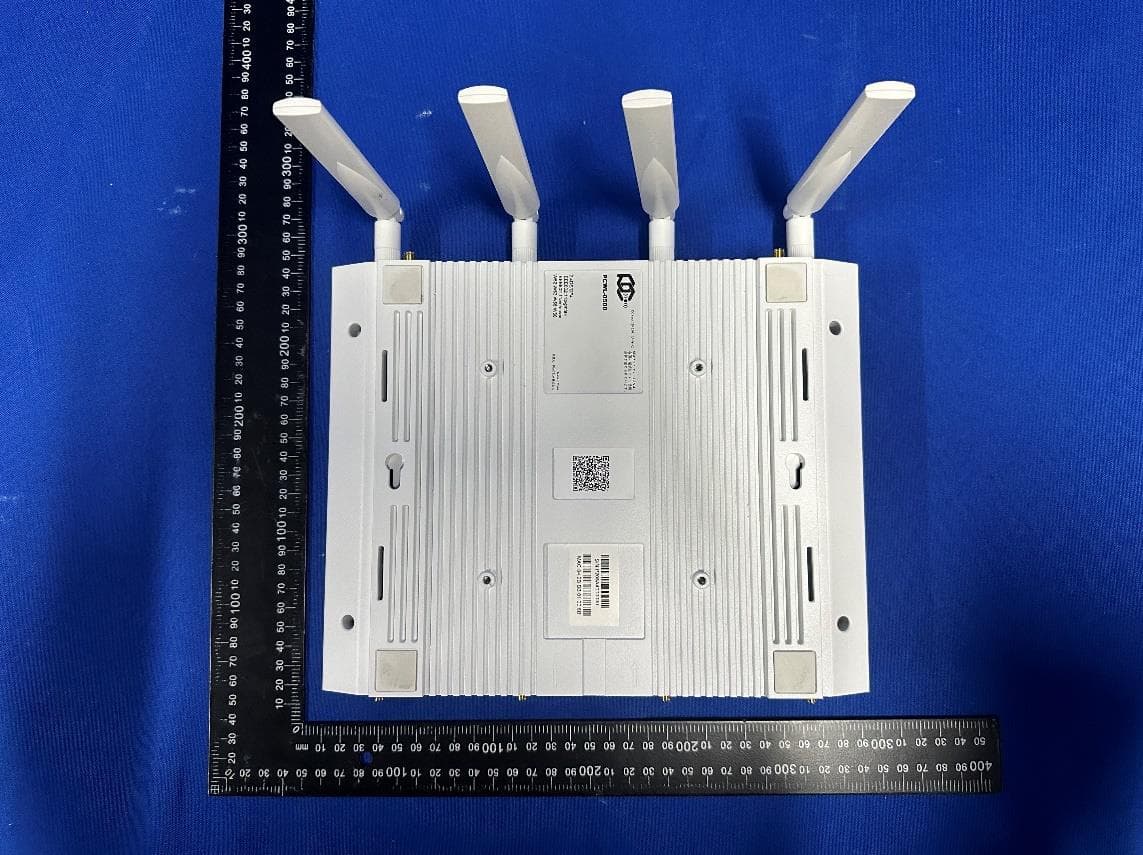

Report No.: 2305RSU017-UE 1 of 4 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2305RSU017-UE 2 of 4 (3) EUT Photo (4) EUT Photo Report No.: 2305RSU017-UE 3 of 4 (5) EUT Photo (6) EUT Photo Report No.: 2305RSU017-UE 4 of 4 (7) EUT Photo (8) EUT Photo

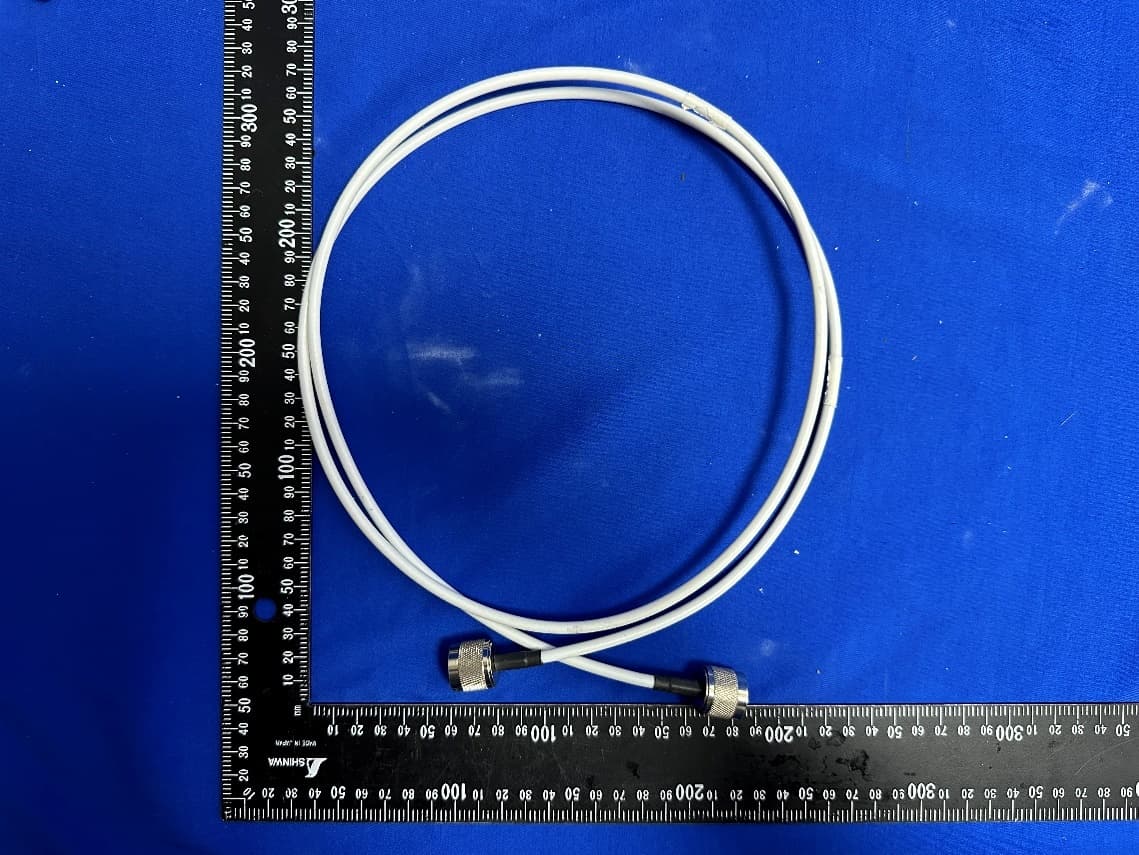

Report No.: 2305RSU017-UE 1 of 5 EUT Photograph (1) EUT Photo (2) EUT Photo Report No.: 2305RSU017-UE 2 of 5 (3) EUT Photo (4) EUT Photo Report No.: 2305RSU017-UE 3 of 5 (5) EUT Photo (6) EUT Photo Report No.: 2305RSU017-UE 4 of 5 (7) EUT Photo (8) EUT Photo Report No.: 2305RSU017-UE 5 of 5 (9) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU017-U5 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-07-25 Template Version:0.0 1 of 10 RF Exposure Evaluation Declaration FCC ID: 2BBYQPCWL-0500 Applicant: PicoCELA Inc Product: WiFi 6 (802.11ax) 4×4 MU-MIMO Tri Band Access point Model No.: PCWL-0500 Brand Name: PicoCELA FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): FCC Part 2.1091 Received Date: 2023-05-08 Result: Complies Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. The test results shown in the test report are traceable to the national/international standards through the calibration of the equipment and evaluated measurement uncertainty herein. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU017-U5 2 of 10 Revision History Report No. Version Description Issue Date Note 2305RSU017-U5 V01 Initial Report 2023-07-25 Valid Report No.: 2305RSU017-U5 3 of 10 CONTENTS Description Page 1. General Information ................................................................................................................................ 4 1.1. Applicant ........................................................................................................................................ 4 1.2. Manufacturer ................................................................................................................................. 4 1.3. Testing Facility ............................................................................................................................... 4 1.4. Product Information ....................................................................................................................... 5 1.5. Antenna Details ............................................................................................................................. 5 1.6. Applied Standards ......................................................................................................................... 6 2. RF Exposure Evaluation ......................................................................................................................... 7 2.1. Test Limits ..................................................................................................................................... 7 2.1. MPE Exemptions ........................................................................................................................... 8 2.2. Calculated Result ......................................................................................................................... 11 Report No.: 2305RSU017-U5 4 of 10 1. General Information 1.1. Applicant PicoCELA Inc 2-34-5 Nihonbashi Ningyo-cho Chuo-ku Tokyo 103-0013 JAPAN 1.2. Manufacturer PicoCELA Inc 2-34-5 Nihonbashi Ningyo-cho Chuo-ku Tokyo 103-0013 JAPAN 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025 G-20034 C-20020 T-20020 R-20141 G-20134 C-20103 T-20104 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations TAF: L3261-190725 FCC: 291082, TW3261 ISED: TW3261 Report No.: 2305RSU017-U5 5 of 10 1.4. Product Information Product Name WiFi 6 (802.11ax) 4×4 MU-MIMO Tri Band Access point Model No. PCWL-0500 EUT Identification No P208A4000071 Wi-Fi Specification 802.11a/b/g/n/ac/ax Antenna Information Refer to clause 1.7 Power Supply DC 12V or By PoE Accessories Adapter Model: PSAC60W-120 AC Input: 100 - 240V ~ 50 - 60Hz, 1.6A DC Output: 12V, 5A PoE Injector Model: POE60U-1BT-X Input: 100 - 240V ~ 50 - 60Hz, 1.5A Output: 56V, 0.535A, 30W, PIN 3, 6+, PIN 7, 2 Return Output: 56V, 0.535A, 30W, PIN 4, 5+, PIN 7, 8 Return Note 1: The information of EUT was provided by the manufacturer, and the accuracy of the information shall be the responsibility of the manufacturer. Note 2: DC Adapter and PoE are not sold with the product. 1.5. Antenna Details Antenna Type Frequency Band (GHz) Max Peak Gain (dBi) CDD Directional Gain (dBi) For Power For PSD Wi-Fi Antenna (4*4 MIMO) Omni Antenna 2.4 ~ 2.5 3.00 3.00 9.02 5.15 ~ 5.85 6.00 6.00 12.02 Note: The EUT supports Cyclic Delay Diversity (CDD) mode, and CDD signals are correlated. For CDD transmissions, directional gain is calculated as follows, N ANT = 4, N SS = 1. If all antennas have the same gain, G ANT , Directional gain = G ANT + Array Gain, where Array Gain is as follows. • For power spectral density (PSD) measurements on all devices, Array Gain = 10 log (N ANT / N SS ) dB = 6.02; • For power measurements on IEEE 802.11 devices, Array Gain = 0 dB for N ANT ≤ 4; Report No.: 2305RSU017-U5 6 of 10 1.6. Device Classification According to the user manual, the antenna of this device is at least 20cm away from the body of the user, this device is classified as a Mobile Device. So, the RF exposure evaluation requirements of § 2.1091 for mobile device exposure conditions subject to MPE limits. 1.7. Applied Standards According to the specifications of the manufacturer, the EUT must comply with the requirements of the following standards: ⚫ FCC Part 2.1091 & KDB 447498 D04 Interim General RF Exposure Guidance v01 Report No.: 2305RSU017-U5 7 of 10 2. RF Exposure Evaluation 2.1. Test Limits According to F…

Text truncated - open the document above for the full version.

MRT Technology (Suzhou) Co., Ltd Report No.: 2305RSU017-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 2023-07-25 Template Version:0.0 1 of 343 RF MEASUREMENT REPORT FCC ID: 2BBYQPCWL-0500 Applicant: PicoCELA Inc Product: WiFi 6 (802.11ax) 4×4 MU-MIMO Tri Band Access point Model No.: PCWL-0500 Brand Name: PicoCELA FCC Classification: Unlicensed National Information Infrastructure (NII) FCC Rule Part(s): Part 15 Subpart E (Section 15.407) Result: Complies Received Date: 2023-05-08 Test Date: 2023-05-13 ~ 2023-06-10 Reviewed By: Jame Yuan Approved By: Robin Wu The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in KDB789033. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2305RSU017-U3 2 of 343 Revision History Report No. Version Description Issue Date Note 2305RSU017-U3 V01 Initial Report 2023-07-25 Valid Report No.: 2305RSU017-U3 3 of 343 CONTENTS Description Page 1. General Information ................................................................................................................................ 6 1.1. Applicant ..................................................................................................................................... 6 1.2. Manufacturer............................................................................................................................... 6 1.3. Testing Facility ............................................................................................................................ 6 1.4. Product Information .................................................................................................................... 7 1.5. Radio Specification under Test ................................................................................................... 7 1.6. Working Frequencies .................................................................................................................. 8 1.7. Antenna Details .......................................................................................................................... 9 2. Test Configuration ................................................................................................................................. 10 2.1. Test Mode ................................................................................................................................. 10 2.2. Test System Connection Diagram ............................................................................................. 11 2.3. Test System Details ................................................................................................................... 11 2.4. Test Software ............................................................................................................................. 11 2.5. Applied Standards .................................................................................................................... 12 2.6. Test Environment Condition ...................................................................................................... 12 3. Antenna Requirements ......................................................................................................................... 13 4. Measuring Instrument ........................................................................................................................... 14 5. Decision Rules and Measurement Uncertainty .................................................................................. 16 5.1. Decision Rules .......................................................................................................................... 16 5.2. Measurement Uncertainty ........................................................................................................ 16 6. Test Result .............................................................................................................................................. 17 6.1. Summary .................................................................................................................................. 17 6.2. 26dB & 99% Bandwidth Measurement ..................................................................................... 18 6.2.1. Test Limit ................................................................................................................................... 18 6.2.2. Test Procedure ......................................................................................................................... 18 6.2.3. Test Setting ............................................................................................................................... 18 6.2.4. Test Setup ................................................................................................................................. 19 6.2.5. Test Result ................................................................................................................................ 19 6.3. 6dB Bandwidth Measurement .................................................................................................. 20 6.3.1. Test Limit ................................................................................................................................... 20 6.3.2. Test Procedure ......................................................................................................................... 20 6.3.3. Test Setting ............................................................................................................................... 20 6.3.4. Test Setup ...............................................…

Text truncated - open the document above for the full version.

Report No.: 2305RSU017-U3 53 of 343 802.11ax-HE80 26dB & 99% Bandwidth Channel 42 (5210MHz) Channel 58 (5290MHz) Channel 106 (5530MHz) Channel 122 (5610MHz) Channel 138 (5690MHz) Channel 155 (5775MHz) Report No.: 2305RSU017-U3 54 of 343 802.11ax-HE80+80 26dB & 99% Bandwidth Channel 42+58 (5210+5290MHz) Channel 106+122 (5530+5610MHz) Report No.: 2305RSU017-U3 55 of 343 A.3 6dB Bandwidth Test Result Test Site SIP-TR1 Test Engineer Alisa Deng Test Date 2023-05-30 Test Mode Data Rate/ MCS Channel No. Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) 11a 6Mbps 149 5745 16.34 ≥0.5 11a 6Mbps 157 5785 16.36 ≥0.5 11a 6Mbps 165 5825 16.35 ≥0.5 11ac-VHT20 MCS4 149 5745 17.76 ≥0.5 11ac-VHT20 MCS4 157 5785 17.75 ≥0.5 11ac-VHT20 MCS4 165 5825 17.76 ≥0.5 11ac-VHT40 MCS4 151 5755 36.54 ≥0.5 11ac-VHT40 MCS4 159 5795 36.55 ≥0.5 11ac-VHT80 MCS4 155 5775 76.56 ≥0.5 11ax-HE20 MCS4 149 5745 19.10 ≥0.5 11ax-HE20 MCS4 157 5785 19.12 ≥0.5 11ax-HE20 MCS4 165 5825 19.11 ≥0.5 11ax-HE40 MCS4 151 5755 38.22 ≥0.5 11ax-HE40 MCS4 159 5795 38.19 ≥0.5 11ax-HE80 MCS4 155 5775 78.19 ≥0.5 Report No.: 2305RSU017-U3 56 of 343 802.11a 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) Report No.: 2305RSU017-U3 57 of 343 802.11ac-VHT20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU017-U3 58 of 343 802.11ac-VHT80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU017-U3 59 of 343 802.11ax-HE20 6dB Bandwidth Channel 149 (5745MHz) Channel 157 (5785MHz) Channel 165 (5825MHz) 802.11ac-VHT40 6dB Bandwidth Channel 151 (5755MHz) Channel 159 (5795MHz) Report No.: 2305RSU017-U3 60 of 343 802.11ax-HE80 6dB Bandwidth Channel 155 (5775MHz) Report No.: 2305RSU017-U3 61 of 343 A.4 Output Power Test Result Test Site SIP-TR1 Test Engineer Alisa Deng Test Date 2023-05-15 Test Mode Master Mode Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 Ant 2 Ant 3 11a 6Mbps 36 5180 16.31 16.08 16.25 16.25 22.24 ≤ 30.00 11a 6Mbps 44 5220 16.67 16.48 16.63 16.97 22.71 ≤ 30.00 11a 6Mbps 48 5240 16.37 16.27 16.52 16.77 22.51 ≤ 30.00 11a 6Mbps 52 5260 10.44 10.07 9.92 10.31 16.21 ≤ 23.82 11a 6Mbps 60 5300 10.42 9.95 9.46 10.21 16.05 ≤ 23.82 11a 6Mbps 64 5320 10.43 9.95 9.79 10.02 16.07 ≤ 23.82 11a 6Mbps 100 5500 10.71 10.07 9.73 10.45 16.28 ≤ 23.82 11a 6Mbps 116 5580 10.76 10.16 10.36 10.17 16.39 ≤ 23.82 11a 6Mbps 140 5700 10.06 10.01 9.45 10.29 15.98 ≤ 23.82 11a 6Mbps 144 5720 10.61 10.09 10.01 10.17 16.25 ≤ 22.70 11a 6Mbps 149 5745 16.82 17.06 17.55 17.72 23.32 ≤ 30.00 11a 6Mbps 157 5785 20.59 20.98 20.79 21.24 26.93 ≤ 30.00 11a 6Mbps 165 5825 21.02 21.41 20.72 21.07 27.08 ≤ 30.00 11ac-VHT20 MCS4 36 5180 16.72 16.83 17.05 17.45 23.04 ≤ 30.00 11ac-VHT20 MCS4 44 5220 16.75 16.51 16.49 16.92 22.69 ≤ 30.00 11ac-VHT20 MCS4 48 5240 16.56 16.61 16.42 16.91 22.65 ≤ 30.00 11ac-VHT20 MCS4 52 5260 10.38 10.21 9.78 10.43 16.23 ≤ 23.98 11ac-VHT20 MCS4 60 5300 10.66 10.35 10.23 10.71 16.51 ≤ 23.98 11ac-VHT20 MCS4 64 5320 10.57 10.09 9.60 10.01 16.10 ≤ 23.98 11ac-VHT20 MCS4 100 5500 10.42 10.03 9.71 10.14 16.10 ≤ 23.98 11ac-VHT20 MCS4 116 5580 10.42 10.11 10.25 10.45 16.33 ≤ 23.98 11ac-VHT20 MCS4 140 5700 10.45 10.53 10.01 10.69 16.45 ≤ 23.98 11ac-VHT20 MCS4 144 5720 10.58 10.35 10.33 10.75 16.53 ≤ 23.13 11ac-VHT20 MCS4 149 5745 17.14 17.18 17.55 17.78 23.44 ≤ 30.00 11ac-VHT20 MCS4 157 5785 20.47 20.94 21.02 21.28 26.96 ≤ 30.00 11ac-VHT20 MCS4 165 5825 21.15 21.42 20.45 21.47 27.16 ≤ 30.00 Report No.: 2305RSU017-U3 62 of 343 Test Mode Data Rate MCS Channel No. Freq. (MHz) Average Power (dBm) Total Average Power (dBm) Average Power Limit (dBm) Ant 0 Ant 1 Ant 2 Ant 3 11ac-VHT40 MCS4 38 5190 13.30 13.20 13.18 13.54 19.33 ≤ 30.00 11ac-VHT40 MCS4 46 5230 19.12 18.62 18.70 19.10 24.91 ≤ 30.00 11ac-VHT40 MCS4 54 5270 13.43 13.14 13.06 13.28 19.25 ≤ 23.98 11ac-VHT40 MCS4 62 5310 13.20 13.03 12.76 13.27 19.09 ≤ 23.98 11ac-VHT40 MCS4 102 5510 13.43 12.70 12.73 13.50 19.13 ≤ 23.98 11ac-VHT40 MCS4 110 5550 13.62 12.97 13.04 13.53 19.32 ≤ 23.98 11ac-VHT40 MCS4 134 5670 13.49 13.43 13.13 13.66 19.45 ≤ 23.98 11ac-VHT40 MCS4 142 5710 13.52 13.51 13.37 13.80 19.57 ≤ 23.98 11ac-VHT40 MCS4 151 5755 17.89 17.61 18.19 18.20 24.00 ≤ 30.00 11ac-VHT40 MCS4 159 5795 20.95 21.27 20.70 21.34 27.09 ≤ 30.00 11ac-VHT80 MCS4 42 5210 13.08 12.89 13.07 13.27 19.10 ≤ 30.00 11ac-VHT80 MCS4 58 5290 14.14 13.74 13.52 13.81 19.83 ≤ 23.98 11ac-VHT80 MCS4 106 5530 13.86 13.47 13.33 13.90 19.67 ≤ 23.98 11ac-VHT80 MCS4 122 5610 15.48 14.95 15.56 15.70 21.45 ≤ 23.98 11ac-VHT80 MCS4 138 5690 16.18 16.32 15.95 16.31 22.21 ≤ 23.98 11ac-VHT80 MCS4 155 5775 18.72 18.85 18.61 19.02 24.82 ≤ 30.00 11ac-VHT80+80 MCS4 42 5210 13.29 13.00 -- -- 16.16 ≤ 30.00 58 5290 -- -- 13.13 13.51 16.33 ≤ 23.98 11ac-VHT80+80 MCS4 106 5530 8.98 8.43 -- -- 14.81 ≤ 23.98 122 5610 -- -- 8.81 8.91 11ax-HE20 MCS4 36 5180 16.75 16.92 16.98 17.10 22.96 ≤ 30.00 11ax-HE20 MCS4 44 5220 17.31 17.01 17.14 17.81 23.35 ≤ 30.00 11ax-HE20 MCS4 48 5240 17.07 17.22 17.16 17.57 23.28 ≤ 30.00 11ax-HE20 MCS4 52 5260 10.96 10.84 10.56 11.21 16…

Text truncated - open the document above for the full version.
