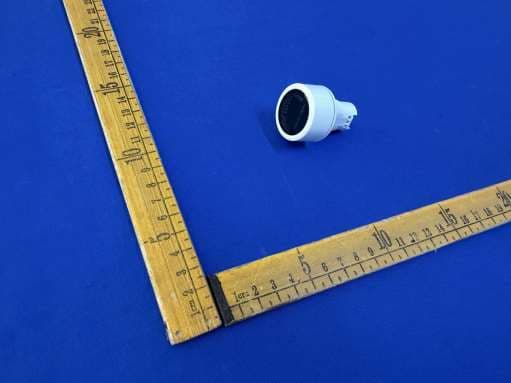

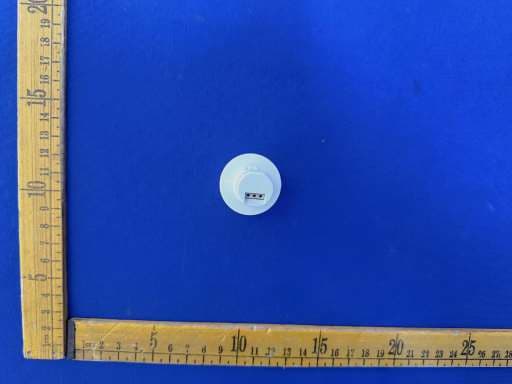

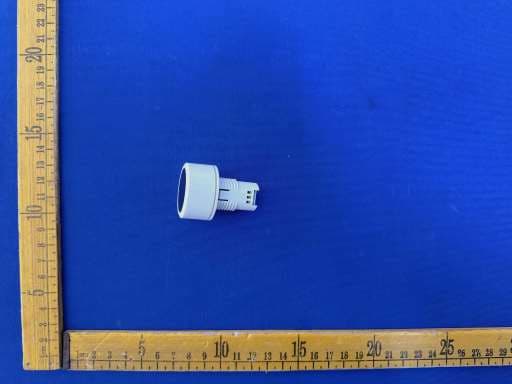

2BBZW-SM8H-AMicrowave Motion Sensor

Page 1 of 4 FEATURES • Specially designed tiny microwave. • Easy remote control. • 12VDC input, Bi-level dimmable. • With Daylight Harvesting and Photocell Function. • Suitable for Dim-to-Off applications TECHNICAL DATA Sensor Parameter Input Range10.5 -15VDC (Supply Current>50mA) Operating Current 30mA Function Performance DIM 0-10V Working Temp-30°C~+60°C Microwave Power 0.3mW Installation Height 8M/26ft 5.8GHz±75MHz Connec ti on 2AWG/24AW Frequency Detection Distance 3-8M/9.84-26.24ft Radius. Detection Angle 30-150° DIMENSIONS Standby Dim Level10%/20%/30%/50% Warming-up Peri odAbout 10S Control Devi ceRemote control HD06R (Separately) Hold Time5s/30s/1min/3min/5min/10min/20min/30min Dayl ight Threshold 2Lux/10Lux/30Lux/50Lux/80Lux/120Lux/ 200Lux/250Lux/300Lux/350Lux/400Lux/Disa ble Detec tion Area25%/50%/75%/100% Manually Dimming Play Standby Peri od 0s/10s/30s/1min/5min/10min/30min/60min/+ Function supported, 10-100% in manual mode, 60 %-100% in sensor mode. IP65 On/Off Control Detec tion Area Stand-by dimming level Hold Time IP Rating SM8H-A 1.31" 33.5mm 0.09" 0.74" 0.66" 20.3mm 1.85" 2.3mm 19mm 17mm 47mm Automatically Dimming (Daylight Harvesting) Automatically ON/OFF (Photocell) 1. Stay in SENSOR MODE 2. STANDBY PERIOD as 0S 3. DAYLIGHT as any of 50LUX, 80LUX, 120LUX, 200LUX, 250LUX, 300LUX, 350LUX, 400LUX. 4. Press DAYLIGHT HARVESTING button to ON 1. STANDBY DIM LEVEL as any of 10% 20% 30% 2. STANDBY PERIOD as infinite 3. DAYLIGHT as any of 30LUX, 50LUX, 80LUX, 120LUX, 200LUX, 250LUX, 300LUX, 350LUX, 400LUX. 0.66" 1.1" 28mm G1/2 V : VCC 12V D: DIM+/0-10V Qui ck Connector DETECTION COVERAG 8m/26ft E PERFORMANCE Page 2 of 4 CONNECTION Ceiling Mounted Mounting Height 33 3 3 77 7 7 1010 10 10 13 13 131316160 0.5-1.0M/S 3 3 13 13 6.5 6.5 20 20 unit: ft S Wall Mounted Mounting Height 0 unit: ft 26 26 33 33 This figure indicates the maximum distance at the highest mounting height with 100% sensitivity. Well Detected Area Possibly Detected Area SM8H-A Natural Light Brightness Artificial Light Brightness Daylight Harvesting phase Light ON Light OFF Preset Lux Value 1.Daylight Harvesting 1. Stay in SENSOR MODE 2. STANDBY PERIOD as 0S 3. DAYLIGHT as any of 50LUX, 80LUX, 120LUX, 200LUX, 250LUX, 300LUX, 350LUX, 400LUX. 4. Press DAYLIGHT HARVESTING button to ON When ambient brightness is lower than preset lux level, sensor will turn on light automatically and keep dimming according to the change of the ambient brightness; when outside is getting darker, the inside will be brighter, and brighter darker. Light OFF when ambient brightness becomes higher than the preset lux level. Please follow below setting steps to perform this function: V G D Page 3 of 4 SM8H-A 4. Without daylight disabled Sensor turns ON light when motion is detected. Sensor keeps for a hold time period after motion leaves Sensor dims light to sta ndby dimming level after hold time if there is still no motion Hold time Sensor turns OFF light after sta ndby period Stand-by period With sufficient daylight, even when motion detected, light remains OFF. With insufficient daylight, the sensor turns light ON when motion gets detected. The sensor turns OFF light automati- cally after the holdtime when there's no motion detected. Hold time 5. With Daylight Threshold sensor keeps light OFF even motion gets detected sensor turns light ON when motion gets detected After there’s no motion light ON 100% for holdtime. light to sta ndby dimming level for standby period. if the sta ndby period has been OFF automatically after holdtime. The sensor turns OFF light automatically after the sta ndby period when there’s no motion detected. Stand-by period Hold time 2.Dusk/Dawn function Lux off Lux on Natural Light Light off automatically light on automatically 1. STANDBY DIM LEVEL as any of 10% 20% 30% 2. STANDBY PERIOD as infinite 3. DAYLIGHT as any of 30LUX, 50LUX, 80LUX, 120LUX, 200LUX, 250LUX, 300LUX, 350LUX, 400LUX. This product is able to differentiate artificial light brightness from natural light after installed inside the fixture, and automatically turn off light when ambient brightness exceeds preset lux level. Please follow below setting steps to perform this function: 3. 1. The sensor should be installed by a qualified electrician, Make sure the power is OFF before installation. 2. Please read the instruction carefully before using the product and save it for future refer- ence. 3. We reserve the right to modify any incorrect text, image and technical parameters. 4. Any unauthorized modification is forbidden. Otherwise all guarantees will be immediately invali d. 5. Product could be optimized without prior notice. APPLICATION NOTES 1. Suitable for indoor application, half/completely outdoor environment conditions might be captured as moving signals to trigger the sensor. 2. Suitable for installations where the sensor is facing to the ground. There will be increased sensitivity if installed in a side wall or perpendicular to the ground. Adjust the sensitivity accordingly. 3. Adjust sensitivity properly when the sensor is applied in small/narrow/metal-built/ with metal spaces. 4. Microwave sensor cannot be placed under/inside metal shell; Microwave module must directly face the detection area with edge lower than light fixture. 1. Detection Area - 100 % 2. Hold Time - 20min 3. Daylight Threshold - disable 4. Standby Period - 60S 5 6. Max Dim Level: 80% . Standby Dimming Level - 20% FACTORY SETTING Page 4 of 4 5. Keep the sensor away from vibration equipments, air-conditioning outlets, smoke extractors alike conditions to avoid unwanted trigger. 6. Keep the sensor module away from AC input and DC output to avoid high/low frequen cy signal interference. 7. At least 2m/6.5ft distance between microwave sensors; 1.5m/4.9ft between the sensor a nd other wireless devices such as routers to avoid possible r adio interference. 8. Daylight testing delivered in bright day without shadow or specially designed lampshade or lens. 9. Dimming performance…

Text truncated - open the document above for the full version.

Dongguan Haiyue Intelligent Technology Co., LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter August 25, 2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BBZW-SM8H-A Per section 2.911(d)(7) of the FCC rules, Dongguan Haiyue Intelligent Technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: TTS MARKET INC. Physical U.S. Company Address: 1178 Broadway Ste 324, New York, NY 10001, UAS. Agent name: Maverick Lim Agent Email Address: [email protected] FRN: 0036806057 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Keqin Luo Printed name: Maverick Lim Title: General Manager Title: Manager Company Name: Dongguan Haiyue Intelligent Technology Co., LTD Company Name: TTS MARKET INC. Date: June 26, 2026 Date: June 26, 2026 FRN Code: 0033989583 FRN Code: 0036806057

Dongguan Haiyue intelligent technology Co., LTD Covered Equipment Certification Attestation Letter 8/25/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BBZW-SM8H-A Dongguan Haiyue intelligent technology Co., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Dongguan Haiyue intelligent technology Co., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Dongguan Haiyue intelligent technology Co., LTD (“the applicant”) certifies that the equipment for which authorization issought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity oranti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Keqin Luo Title: General Manager Company Name: Dongguan Haiyue Intelligent Technology Co., LTD Date: 8/25/2026

COMPANY LETTERHEAD August 25, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2BBZW-SM8H-A Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of insert number of days (cannot exceed 180 days) days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒ Permanent ☐ Short Term External Photos ------------------ ☐ Short Term Internal Photos ☐ Permanent* ☐ Short Term Operation Description ☒ Permanent ☐ Short Term Parts List & Placement/BOM ☐ Permanent ☐ Short Term Tune-Up Procedure ☐ Permanent ☐ Short Term Schematic Diagrams ☒ Permanent ☐ Short Term Test Setup Photos ------------------ ☐ Short Term User’s Manual ☐ Permanent* ☐ Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Keqin Luo Title: General Manager Company Name: Dongguan Haiyue Intelligent Technology Co., LTD

Label and Label Locaion Model:SM8H-A FCC ID:2BBZW-SM8H-A

Internal Photos Antenna

Page 1 of 2 FCC-ID: 2BBZS-SM8H-A RF Exposure evaluation FCC ID: 2BBZW-SM8H-A Reference According to §1.1307(b)(1), systems operating under the provis ions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commiss ion’s guide lines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Polic ies 1. Li mit Lim its for Maximum Permiss ib le Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 2 of 2 FCC-ID: 2BBZS-SM8H-A 2.MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 3. Result As declared by the Applicant, the EUT is a wire less device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 5.42dBi for 5.8GHz , the RF power density can be obtained. Mode E (dBuV/m) EIRP (dBm) EIRP (mW) Power Density At 20 cm (mW/cm 2 ) Power Density (mW/cm 2 ) Test Results FMCW 91.73-3.430.450.0007 1.0000 PASS 4.Conclusion The SAR evaluation is not required.

1) 1.Model: 74963888_Y1696_268311 2.Frequency: 5.8G±75MHz 3. Cross-Polarization Ratio: 15 4. Horizontal Beamwidth:60 5. Vertical Beamwidth: 14 6.Antenna Type: Integrated antenna 7.Antenna Gain:5.42 dBi 8.Modulation Type: FMCW 9.Antenna Dimensions: 20.3*14.8*0.8 Manufacturer: Dongguan Haiyue intelligent technology Co., LTD Room1305, Building1, Songhu Zhigu Industrial Building, No. 9 Liaobu Dongguan， Guangdong， China
