2BC2U-LQSGM1Wireless Remote Controller

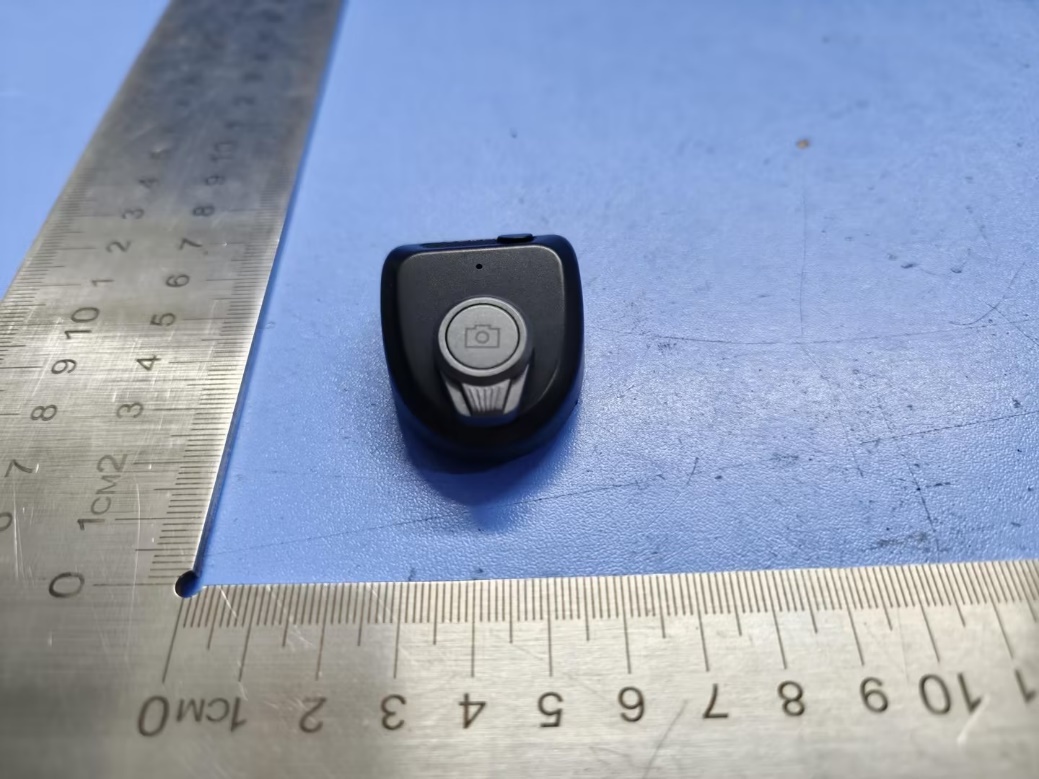

FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Appendix I Label Appendix II Label Location FCC ID:2BC2U-LQSGM1 Model:SGM1

FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Photo 9 Appearance of PCB Photo 10 Appearance of PCB BLE Ant. FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Photo 11 Battery Appearance

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202605-0437-3 Page: 1 of 8 TB-RF-073-3.1 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Email: [email protected] www.cotecna-toby.com Maximum Permissible Exposure Evaluation FCC ID: 2BC2U-LQSGM1 Report No. : TBR-C-202605-0437-3 Applicant : Shenzhen LC Co., Ltd Equipment Under Test (EUT) EUT Name : Wireless Remote Controller Model No. : SGM1 Series Model No. : N/A Brand Name : SmallRig Sample ID : HC-C-202605-0437-01-01 Receipt Date : 2026-06-03 Test Date : 2026-06-03 to 2026-06-16 Issue Date : 2026-06-16 Standards : FCC Part 2.1093 Test Method : KDB 447498 D01 General RF Exposure Guidance v06 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Test By : Lily zhang Reviewed By : Henry huang Approved By : Ivan Su This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202605-0437-3 Page: 2 of 8 www.cotecna-toby.com TB-RF-073-3.1 CONTENTS CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT.............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 2. MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. TEST FACILITY.......................................................................................................................... 6 4. SAR TEST EXCLUSION CALCULATIONS .......................................................................... 7 Report No.: TBR-C-202605-0437-3 Page: 3 of 8 www.cotecna-toby.com TB-RF-073-3.1 Revision History Report No. Version Description Issued Date TBR-C-202605-0437-3 Rev.01 Initial issue of report 2026-06-16 Report No.: TBR-C-202605-0437-3 Page: 4 of 8 www.cotecna-toby.com TB-RF-073-3.1 1. General Information about EUT 1.1 Client Information Applicant : Shenzhen LC Co., Ltd Address : Room 201, Building 4,Gonglianfuji Innovation Park, No. 58, Ping'an Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen, China Manufacturer : Shenzhen Leqi Innovation Co., Ltd. Address : Rooms 101, 701, 901, Building 4, Gonglianfuji Innovation Park, No. 58, Ping'an Road, Dafu Community, Guanlan Street, Longhua District, Shenzhen, China 1.2 General Description of EUT (Equipment Under Test) EUT Name : Wireless Remote Controller Models No. : SGM1 Model Different : N/A Product Description : Operation Frequency: Bluetooth LE: 2402MHz~2480MHz Modulation Type: Bluetooth LE: GFSK Antenna Gain: -0.58dBi PCB Antenna Power Rating : DC 3V Software Version : V0.02 Hardware Version : V3.0 Remark: The above antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. Report No.: TBR-C-202605-0437-3 Page: 5 of 8 www.cotecna-toby.com TB-RF-073-3.1 2. Measurement Uncertainty The reported uncertainty of measurement y±U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %. Test Item Parameters Expanded Uncertainty (ULab) Conducted Emission Level Accuracy: 9kHz~150kHz 150kHz to 30MHz ±3.50 dB ±3.10 dB Radiated Emission Level Accuracy: 9kHz to 30 MHz ±4.60 dB Radiated Emission Level Accuracy: 30MHz to 1000 MHz ±4.50 dB Radiated Emission Level Accuracy: Above 1000MHz ±4.20 dB Temperature / ±0.6°C Humidity / ±4% Supply voltages / ±2% Time / ±4% Report No.: TBR-C-202605-0437-3 Page: 6 of 8 www.cotecna-toby.com TB-RF-073-3.1 3. Test Facility The testing report were performed by the Shenzhen Toby Technology Co., Ltd., in their facilities located at 1/F., Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. At the time of testing, the following bodies accredited the Laboratory: CNAS (L5813) The Laboratory has been accredited by CNAS to ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories for the competence in the field of testing. And the Registration No.: CNAS L5813. A2LA Certificate No.: 4750.01 The laboratory has been accredited by American Association for Laboratory Accreditation(A2LA) to ISO/IEC 17025：2017 General Requirements for the Competence of Testing and Calibration Laboratories for the technical competence in the field of Electrical Testing. And the A2LA Certificate No.: 4750.01.FCC Accredited Test Site Number: 854351. Designation Number: CN1223. IC Registration No.: (11950A) The Laboratory has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing. The site registration: Site# 11950A. CAB identifier: CN0056. Report No.: TBR-C-202605-0437-3 Page: 7 of 8 www.cotecna-toby.com TB-RF-073-3.1 4. SAR Test Exclusion Calculations 4.1 FCC: According to KDB 447498 D01 v06 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies v06. (1) Clause 4.3: General SAR test reduction and exclusion guidance Sub clause 4.31: Standalone SAR test exclusion considerations 1) The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6GHz at test separation distance≤5 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation, mm)]*[√ f (GHz) ] ≤3.0 for 1…

Text truncated - open the document above for the full version.

深圳聚源胜智能科技有限公司 ShenzhenJuyuanshengIntelligentTechnologyCo., Ltd. 深圳市龙华区布龙路安丰工业园B2栋2F 2nd Floor,BuildingB2, AnfengIndustrialPark, BulongRoad, LonghuaDistrict,Shenzhen Summary Inverted FAntenna Specification ITEMANT SPEC ModelName2.4G ANT Center Frequency HorizontalVertical 2400MHz 2450MHz 2500MHz2400MHz 2450MHz 2500MHz -1.26-0.76-0.58-5.25-2.46-1.86 MAX.Gain -0.58dBi PolarizationHorizontaland Vertical AzimuthBeam Pattern Omni-directional Impedance50 Ohm AntennaLength38.20mm AntennaPhoto & Length(mm) 深圳聚源胜智能科技有限公司 ShenzhenJuyuanshengIntelligentTechnologyCo.,Ltd. 深圳市龙华区布龙路安丰工业园B2栋2F 2ndFloor,BuildingB2,AnfengIndustrialPark, BulongRoad,LonghuaDistrict,Shenzhen Horizontal: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-40Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-1.26174-30.0801-7.18716 2450-0.765802-36.5604-7.48023 2500-0.585582-22.0315-6.59127 深圳聚源胜智能科技有限公司 ShenzhenJuyuanshengIntelligentTechnologyCo.,Ltd. 深圳市龙华区布龙路安丰工业园B2栋2F 2ndFloor,BuildingB2,AnfengIndustrialPark, BulongRoad,LonghuaDistrict,Shenzhen Vertical: 2400MHz2450MHz2500MHz Power(dBm) Max:0Min:-30Scale:5/div Frequency (MHz) Gain(dBi) MaxMinAvg 2400-5.2537-22.1424-12.4294 2450-2.4652-24.5837-10.4702 2500-1.86120-29.5214-9.20432 深圳聚源胜智能科技有限公司 ShenzhenJuyuanshengIntelligentTechnologyCo.,Ltd. 深圳市龙华区布龙路安丰工业园B2栋2F 2ndFloor,BuildingB2,AnfengIndustrialPark, BulongRoad,LonghuaDistrict,Shenzhen 3DRadiationPattern ANTTestLabs ： AttestationofGlobalComplianceCo.,Ltd.

Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 1 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: Wireless Remote Controller Test Model: SGM1 Sample ID: HC-C-202605-0437-01-01 Environmental Conditions Temperature: 24.6°C Relative Humidity: 52.1% Test Voltage: DC 3V Test Engineer: Lily zhang Note: For a more detailed features description, please refer to the report TBR-C-202605-0437-4 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 2 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Contents 1. Duty Cycle ..................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ............................................................................................................................................ 7 3. -6dB Bandwidth ........................................................................................................................................................................... 11 4. Occupied Channel Bandwidth .................................................................................................................................................... 15 5. Maximum Power Spectral Density Level ................................................................................................................................... 19 6. Band Edge ................................................................................................................................................................................... 23 7. Conducted RF Spurious Emission ............................................................................................................................................. 28 8. Restrict Band ............................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 3 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 85.32 0.69 0.47 NVNT BLE 1Mbps 2440 Ant1 85.36 0.69 0.47 NVNT BLE 1Mbps 2480 Ant1 85.36 0.69 0.47 NVNT BLE 2Mbps 2402 Ant1 43.28 3.64 0.92 NVNT BLE 2Mbps 2440 Ant1 43.24 3.64 0.93 NVNT BLE 2Mbps 2480 Ant1 43.24 3.64 0.93 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 4 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 5 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 6 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 7 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Total Power (dBm) Limit (dBm) Verdict NVNT BLE 1Mbps 2402 Ant1 -2.656 30 Pass NVNT BLE 1Mbps 2440 Ant1 -2.124 30 Pass NVNT BLE 1Mbps 2480 Ant1 -2.109 30 Pass NVNT BLE 2Mbps 2402 Ant1 -2.508 30 Pass NVNT BLE 2Mbps 2440 Ant1 -2.04 30 Pass NVNT BLE 2Mbps 2480 Ant1 -2.357 30 Pass Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 8 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 9 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 10 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.cotecna-toby.com Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202605-0437-4 Page: 11 of 39 FCC ID: 2BC2U-LQSGM1 TB-RF-073-3.1 3. -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwi…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202605-0437-4 Page: 1 of 30 TB-RF-073-3.1 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Email: [email protected] www.cotecna-toby.com Radio Test Report FCC ID: 2BC2U-LQSGM1 Report No. : TBR-C-202605-0437-4 Applicant : Shenzhen LC Co., Ltd Equipment Under Test (EUT) EUT Name : Wireless Remote Controller Model No. : SGM1 Series Model No. : N/A Brand Name : SmallRig Sample ID : HC-C-202605-0437-01-01&HC-C-202605-0437-02-01 Receipt Date : 2026-06-03 Test Date : 2026-06-03 to 2026-06-16 Issue Date : 2026-06-16 Standards : FCC Part 15 Subpart C 15.247 Test Method : KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10: 2020+Cor.1:2023+C63.10a: 2024+Errata to C63.10a: 2024 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Test By : Lily zhang Reviewed By : Henry huang Approved By : Ivan Su This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202605-0437-4 Page: 2 of 30 www.cotecna-toby.com TB-RF-073-3.1 Contents CONTENTS ............................................................................................................................................ 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................ 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode ................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 9 1.8 Test Facility......................................................................................................................... 10 2. TEST SUMMARY..................................................................................................................... 11 3. TEST SOFTWARE .................................................................................................................. 11 4. TEST EQUIPMENT AND TEST SITE .................................................................................. 12 5. CONDUCTED EMISSION ...................................................................................................... 13 5.1 Test Standard and Limit ................................................................................................... 13 5.2 Test Setup........................................................................................................................... 13 5.3 Test Procedure .................................................................................................................. 13 5.4 Deviation From Test Standard......................................................................................... 14 5.5 EUT Operating Mode ........................................................................................................ 14 5.6 Test Data............................................................................................................................. 14 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 15 6.1 Test Standard and Limit ................................................................................................... 15 6.2 Test Setup........................................................................................................................... 16 6.3 Test Procedure .................................................................................................................. 17 6.4 Deviation From Test Standard......................................................................................... 18 6.5 EUT Operating Mode ........................................................................................................ 18 6.6 Test Data............................................................................................................................. 18 7. RESTRICTED BANDS AND BAND EDGE REQUIREMENT .......................................... 19 7.1 Test Standard and Limit ................................................................................................... 19 7.2 Test Setup........................................................................................................................... 19 7.3 Test Procedure .................................................................................................................. 20 7.4 Deviation From Test Standard......................................................................................... 20 7.5 EUT Operating Mode ........................................................................................................ 20 7.6 Test Data............................................................................................................................. 20 8. BANDWIDTH TEST................................................................................................................. 21 8.1 Test Standard and Limit .......................................................................…

Text truncated - open the document above for the full version.

FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Appendix V EUT Test Photographs Photo of Setup for Radiated Emission (30MHz~1GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID:2BC2U-LQSGM1 www.cotecna-toby.com TB-RF-073-3.1 Conducted Measurements Test Conducted Measurements Test -----END OF REPORT-----
