2BC2U-RC100BCOB LED Video Light

/封面 RC 100B COB LED Video Light – User Manual HVIN:RC100B Part 1 前言 感谢您购买使用SmallRig摄影补光灯，在使用前请认真阅读本手册。 Foreward Thank you for purchasing the SmallRig COB LED video light. Please read the user manual carefully before using it. 重要提示 Important Prompt 1. 请妥善保管该手册。为了您和他人的安全，在将设备交给他人使用时，请务必附带本手册。 Please keep the user manual properly. For your safety and the safety of others, please ensure that this user manual is enclosed with the gear when it is borrowed by someone. 2. 请注意所有警告提示，并遵循本手册的设备使用规范。 Please read all warnings carefully and adhere to the gear usage specifications outlined in this manual. 3. 儿童使用设备时，应由成人监督和陪同。请勿将设备置于无人看管状态。 Children should only operate this equipment under adult supervision. Please do not leave the gear unattended without continuous supervision. 4. 使用前请取下COB灯珠的硅胶保护罩。 Please remove the silicone cover in front of the COB chip board before use. 5. 设备使用后，COB灯珠及面板区域、设备顶部与底部均为高温区域。给设备降温前，请避免接触高温区域。出于您的安全 与健康考虑，使用本设备时请勿遮挡散热孔，设备工作时，也不要长时间直视COB灯珠。 After using the gear, the COB chip board, top, and bottom of the gear will become extremely hot. Please avoid touching these areas until the gear has cooled down. For your safety and well-being, do not block the cooling holes and avoid directly exposing your eyes to the COB LED chip. 6. 如需使用电源延长线，请确保使用的延长线的额定电流标号大于或等于设备的额定电流标号。额定电流标号较低的电线可 能会导致线缆或机身过热。 If you need to use a longer power cable, please make sure that the rated amp mark on the power cable is larger or equal to the rated amp on the gear. 7. 使用后请妥善归置电源线，以避免设备被电源线绊倒或拉扯电源线导致设备断电。请记住，电源线不可接触灼热表面。 To avoid stumbling over the power cable or accidentally pulling it, which may cause the gear to lose power, please properly secure the power cable after use. Also, be cautious and make sure not to place the power cable near heat sources or interfaces. 8. 请勿操作损坏的设备或电源线损坏的附件。一旦设备或附件损坏或故障，请寻找合格的维修人员检查。 Please do not operate the gear or power cable if they are damaged. In the event that the gear or accessories are damaged or experiencing a fault, please seek assistance from a qualified repairing engineer. 9. 在存放和收纳之前，请确保设备完全冷却。待设备冷却后，请将其放置在收纳包的相应位置。 Please make sure that the gear has completely cooling down before storage. Place it in the appropriate compartment in the carry bag. 10. 为了保证设备正常运作，建议将其存放在阴凉、干燥、整洁的环境中。请勿将本设备存放在潮湿、有液体或其他易燃、易 挥发溶剂附近，以避免损坏设备。 To ensure proper operation of the gear, it is recommended to store it in a cool, dry, and clean environment. Do not store the gear near damp areas or in the vicinity of liquids, flammable substances, or volatile solvents to avoid damaging the gear. 11. 工作温度：-10~45°C (14~113°F) Working temperature: -10~45°C (14~113°F) 12. 参考储存温度/ 湿度：20°C ± 5°C (59~77°F) / 60±15% Reference storage temperature/ humidity: 20°C ± 5°C (59~77°F) / 60±15% 13. 如果需要清洁本设备表面，请使用干燥的软布进行清洁。在清洁和维修之前，请务必拔下电源适配器和机身连接线。 If you need to clean the surface of this gear, please use a dry, soft cloth for cleaning. Before cleaning and performing maintenance, make sure to disconnect the power adapter and body connection cable. 14. 为降低电击风险，严禁将本设备浸入水中或其他液体中。 To reduce the risk of electric shock, it is strictly prohibited to immerse this gear in water or any other liquids. 15. 为降低电击风险，严禁私自拆卸本设备。如果设备出现故障需要维修，请咨询相关购买渠道并交由专业维修人员处理。非 规范的组装和维修可能存在安全隐患，未经授权禁止私自拆卸，一经核实，SmallRig将执行保修无效操作。 To reduce the risk of electric shock, it is strictly prohibited to dismantle this gear without authorization. If the gear malfunctions and requires repairs, please consult the relevant purchase channel and submit it to professional repair personnel. Non-standard assembly and repairs may cause safety hazards. Unauthorized dismantling is strictly prohibited and, once verified, SmallRig will consider the warranty void. 16. 使用非SmallRig推荐的配件可能会引起火灾或电击等危险。请参考SmallRig提供的配件，或根据SmallRig提供的规格 信息，使用经过合格制造商认证的配件。如果经核实，使用不合格的配件导致设备故障，SmallRig将执行保修无效操作。 Using non-SmallRig recommended accessories may cause hazards such as fire or electric shock. Please refer to the accessories provided by SmallRig or use certified accessories from qualified manufacturers based on the specifications provided by SmallRig. If it is verified that the use of non-compliant accessories leads to gear malfunction, SmallRig will consider the warranty void. 17. 本设备已通过CE、RoHS、FCC、ISED、RCM等认证。请参考相关国家标准进行使用和操作。因操作不当导致的设备故 障，SmallRig会核实并执行保修无效操作。此用户手册根据SmallRig严格测试制定，设计和规格如有变更，恕不另行通 知。 This gear has been certified with CE, RoHS, FCC, ISED, RCM, and other certifications. Please refer to the relevant national standards for use and operation. SmallRig will verify and consider the warranty void for gear malfunctions caused by improper operation. This user manual is created based on rigorous testing by SmallRig, and in the event of any changes in design and specifications, no separate notification will be provided. 注意：请勿触摸COB LED灯珠及前盖玻璃。（加警示图标） Attention: Do not touch the COB LED chip and front cover glass. FCC Warning This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in aresidential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will notoccur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to tryto correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. …

Text truncated - open the document above for the full version.

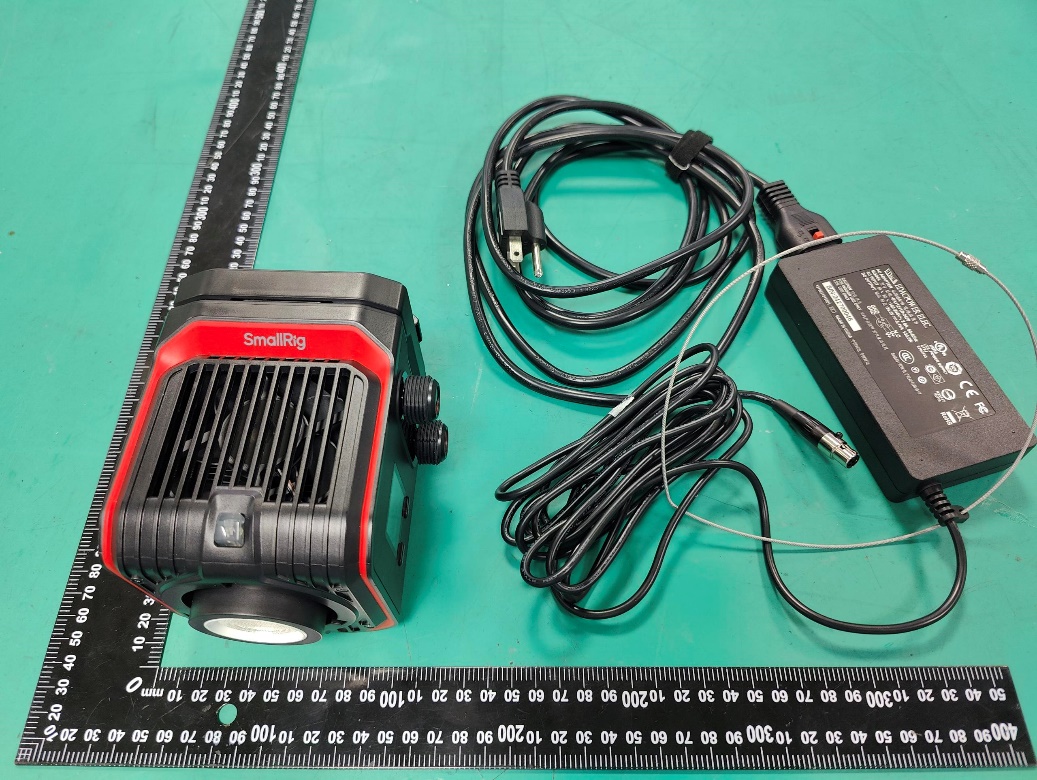

FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Photo 7 Adapter Appearance

FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Appendix I Label Appendix II Label Location

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202407-0137-3 Page: 1 of 7 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2BC2U-RC100B&IC:31675-RC100B 1. General Information about EUT 1. 1 Client Information Applicant : Shenzhen LC Co., Ltd Address : Rooms 602, Building 5, Fenghe Industrial Park, No. 1301-50 Guanguang Road, Xinlan Community, Guanlan Street, Longhua District, Shenzhen,China Manufacturer : Shenzhen Leqi Innovation Co., Ltd. Address : Rooms 103, 501 and 601, Building 5, Fenghe Industrial Park, Nos. 1301-50 Guanguang Road, Longhua District, Shenzhen, Guangdong, China. 1.2 General Description of EUT (Equipment Under Test) EUT Name : COB LED Video Light Models No. : RC 100B, RC 100C HVIN : RC100B Model Different : All these models are identical in the same PCB, layout and electrical circuit, The only difference is model name, brand name and product name. Brand Name : SmallRig Sample ID : HC-C-202407-0137-01-01 Product Description : Operation Frequency: BLE: 2402MHz~2480MHz Power Rating : Adapter (Model: EA11211R-2400): Input: 100-240V~50/60Hz 2.0A Output: 24.0V⎓5.41A 130.0W Software Version : V1.0 Hardware Version : V1.0 Report No.: TBR-C-202407-0137-3 Page: 2 of 7 TB-RF-074-1.0 1. 3 Antenna Information Band Antenna Type Antenna Gain(dBi) 2.3 Bluetooth LE Airgain Embedded Antenna Remark: The above antenna information is declared by manufacturer and for more detailed features description, please refer to the manufacturer's specifications, the laboratory shall not be held responsible. Report No.: TBR-C-202407-0137-3 Page: 3 of 7 TB-RF-074-1.0 2. Method of Measurement for FCC 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1. Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TBR-C-202407-0137-3 Page: 4 of 7 TB-RF-074-1.0 3. Test Result: Worst MPE Result Test Mode Antenna Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] Max. ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Bluetooth LE / 3.053 3±1 4 2.3 20 0.00085 Note: The antenna gain used max. antenna gain 4. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For: 2402~2480MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.00085mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Report No.: TBR-C-202407-0137-3 Page: 5 of 7 TB-RF-074-1.0 3. Method Of Measurement for IC 3.1. Applicable Standard Radio Standards Specification 102, Radio Frequency (RF) Exposure Compliance of Radio communication Apparatus (All Frequency Bands), sets out the requirements and measurement techniques used to evaluate radio frequency (RF) exposure compliance of radio communication apparatus designed to be used within the vicinity of the human body. ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 3.2. Evaluation Method and Limit According to RSS-102 §4 Table 4, RF Filed Strength Limits for Devices Used by the General Public (Uncontrolled Environment) Frequency Band ƒ (MHz) Limit of Power Density (W/m 2 ) Bluetooth LE 2402 5.35 Note: Limit=0.02619ƒ 0.6834 (where ƒ is in MHz). The ƒ in the limit is the frequency of the lowest Channel. Report No.: TBR-C-202407-0137-3 Page: 6 of 7 TB-RF-074-1.0 3.3. Calculation Formula Prediction of power density at the distance of the applicable MPE limit: S=PG/4πR 2 =Power density(in appropriate units, e.g W/m 2 ） P=power input to antenna (in appropriate units, e.g W） G=power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R=distance to the center of radiation of the antenna(in appropriate units, e.g m） Simultaneous transmission MPE Considerations According to KDB447498: All transmitters and antennas in the host must be either evaluated for MPE compliance, by measurement or computational modeling, or qualify for the standalone MPE test exclusion in section 7.1.Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modeled or measured field strengths or power density, is ≤ 1.0. This means that: ∑ of MPE ratios ≤ 1.0 Report No.: TBR-C-202407-0137-3 Page: 7 …

Text truncated - open the document above for the full version.

Airgain Embedded Antenna Engineering Data Sheet Profile Series N03SGABA 3611 Valley Centre Drive, Suite 150 San Diego, CA 92130 USA Tel: +1 760 579 0200 Fax: +1 760 579 0892 Information: [email protected] Sales: [email protected] Support: [email protected] Page 2 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet Revision History (Required) Revision DateNote 3629-02-00-001-1 Rev 1.0 October 13,2021 Preliminary Datasheet 1.0 Disclaimers The information in this document is provided in connection with Airgain Antenna products and is proprietary and confidential. Airgain may make changes at any time, without notice. Please verify with Airgain before finalizing a product design. Page 3 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet Contents 1.Airgain N03SGABA Embedded Antenna ....................................................................................................... 4 2.Features ............................................................................................................................................................ 4 3.Specifications and Interface ............................................................................................................................. 5 4.Radiation Patterns ............................................................................................................................................ 5 5.Dimensions ...................................................................................................................................................... 8 6.ROHS............................................................................................................................................................... 8 7.Feature and Options Information ..................................................................................................................... 8 7.1 Part Number Conventions ............................................................................................................................... 9 7.2 Part Number Example ..................................................................................................................................... 9 8.Cable Data Sheet ........................................................................................................................................... 10 Figures Figure 1: Model N03SGABA Embedded Antenna ............................................................................................................. 4 Figure 2: Model N03SGABA Measurement axes ............................................................................................................... 5 Figure 3: Model N03SGABA Radiation Patterns at 2.44 GHz ..................................................................................... 6 Figure 4: Model N03SGABA Radiation Patterns at 5.2 GHz ....................................................................................... 6 Figure 5: Model N03SGABA Radiation Patterns at 5.8 GHz ....................................................................................... 7 Figure 6: Model N03SGABA Pre-applied Tape Dimensions ........................................................................................ 8 Figure 7: N03SGABA with connector or stripped cable .................................................................................................. 9 Page 4 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet 1.Airgain N03SGABA Embedded Antenna The Model N03SGABA Embedded Antenna provides a high efficiency, dual band embedded antenna solution for Wi-Fi and ISM band applications, such as WLAN products. As embedded antenna solutions become the focus of next generation wireless product design, the Model N03SGABA provides the flexibility of an embedded antenna with top performance. The Model N03SGABA Embedded Antenna is a center fed version of its predecessor, the N03SGABA, allowing it to fit in spaces where center feeding is better suited. It is designed to accommodate most WLAN access point applications, such as routers and gateways and can be easily integrated into an ID package design. 2.Features The Airgain N03SGABA embedded antenna includes the following features: •IEEE 802.11 a/b/g/n/ac standards •dual Band operation •Case mount •2. 3 dBi peak gain @2.44 GHz; 3.05 dBi peak gain @ 5.2GHz; •High efficiency •Quick integration Figure 1: Model N03SGABA Embedded Antenna Page 5 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet 3.Specifications and Interface Standard IEEE 802.11 a/b/g/n/ac Frequency range 2.4 to 2.49 GHz, 5.15 to 5.85 GHz Peak gain 2.3 dBi @2.44 GHz; 3.05 dBi @ 5.2GHz; VSWR < 2:1 Feed impedance 50 ohms Power handling 30 dBm Interface 50 ohms, 1.13 mm diameter, micro coax cable (available with optional U.FL-compatible cable connector and/or cable-mounted EMI ferrites) Antenna dimensions 40 x 6.5 x 1.0 mm Weight TBD g Temperature range Operating: -40° C to +75° C (-40° F to +167° F) Storage: -40° C to +85° C (-40° F to +185° F) Humidity range 0% to 95% non-condensing 4.Radiation Patterns Radiation patterns for the Model N2420DG were taken with the antenna mounted on a 90 x 90x 2.2 mm thick ABS Plastic Sheet and covered with a 90 x 90 x 2.2 mm thick ABS Plastic Sheet spaced 3mm above the element, using 1.6mm thick double sided tape. Figure 2: Model N03SGABA Measurement axes X -Y Z Page 6 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet Figure 3: Model N03SGABA Radiation Patterns at 2.44 GHz Figure 4: Model N03SGABA Radiation Patterns at 5.2 GHz Page 7 Proprietary and Confidential Doc. # 3629-02-00-001-1 Rev 1.0 Airgain N03SGABA Engineering Data Sheet Figure 5: Model N03SGABA Radiation Patterns at 5.8 GHz Page 8 Proprietary and Confidential Do…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 1 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 RF Test Data for Bluetooth LE (Conducted Measurements) General Description of EUT Product Name: COB LED Video Light Test Model: RC 100B Sample ID: HC-C-202407-0137-02-01 Environmental Conditions Temperature: 24.6°C Relative Humidity: 52.6% Test Voltage: DC 5V Test Engineer: Mike Yan Note: For a more detailed features description, please refer to the report TBR-C-202407-0137-18 The report only show the worst case data. Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 2 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Contents 1. Duty Cycle ........................................................................................................................................................................................... 3 2. Maximum Conducted Output Power ................................................................................................................................................. 7 3. -6dB Bandwidth ................................................................................................................................................................................ 11 4. Occupied Channel Bandwidth ......................................................................................................................................................... 15 5. Maximum Power Spectral Density Level ......................................................................................................................................... 19 6. Band Edge ........................................................................................................................................................................................ 23 7. Conducted RF Spurious Emission .................................................................................................................................................. 28 8. Restrict Band .................................................................................................................................................................................... 35 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 3 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 1. Duty Cycle Condition Mode Frequency (MHz) Antenna Duty Cycle (%) Correction Factor (dB) 1/T (kHz) NVNT BLE 1Mbps 2402 Ant1 44.44 3.52 3.57 NVNT BLE 1Mbps 2440 Ant1 45.16 3.45 3.57 NVNT BLE 1Mbps 2480 Ant1 44.44 3.52 3.57 NVNT BLE 2Mbps 2402 Ant1 25.81 5.88 6.25 NVNT BLE 2Mbps 2440 Ant1 25.81 5.88 6.25 NVNT BLE 2Mbps 2480 Ant1 25.81 5.88 6.25 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 4 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Test Graphs Duty Cycle NVNT BLE 1Mbps 2402MHz Ant1 Duty Cycle NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 5 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Duty Cycle NVNT BLE 1Mbps 2480MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 6 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Duty Cycle NVNT BLE 2Mbps 2440MHz Ant1 Duty Cycle NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 7 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 2. Maximum Conducted Output Power Condition Mode Frequency (MHz) Total Power (dBm) Limit (dBm) Gain (dBm) EIRP (dBm) EIRP Limit (dBm) Verdict NVNT BLE 1Mbps 2402 0.961 30 2.3 3.261 36 Pass NVNT BLE 1Mbps 2440 2.865 30 2.3 5.165 36 Pass NVNT BLE 1Mbps 2480 3.043 30 2.3 5.343 36 Pass NVNT BLE 2Mbps 2402 0.971 30 2.3 3.271 36 Pass NVNT BLE 2Mbps 2440 2.862 30 2.3 5.162 36 Pass NVNT BLE 2Mbps 2480 3.053 30 2.3 5.353 36 Pass Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 8 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Test Graphs Power NVNT BLE 1Mbps 2402MHz Ant1 Power NVNT BLE 1Mbps 2440MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 9 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Power NVNT BLE 1Mbps 2480MHz Ant1 Power NVNT BLE 2Mbps 2402MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China. Report No.: TBR-C-202407-0137-18 Page: 10 of 39 FCC ID: 2BC2U-RC100B&IC:31675-RC100B TB-RF-074-1.0 Power NVNT BLE 2Mbps 2440MHz Ant1 Power NVNT BLE 2Mbps 2480MHz Ant1 Shenzhen Toby Technology Co., Ltd. Http://www.tobylab.cn Add：1/F.,Building 6, Rundongsheng Industrial Zone,…

Text truncated - open the document above for the full version.

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202407-0137-18 Page: 1 of 34 TB-RF-074-1.0 1/F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2BC2U-RC100B&IC:31675-RC100B Report No. : TBR-C-202407-0137-18 Applicant : Shenzhen LC Co., Ltd Equipment Under Test (EUT) EUT Name : COB LED Video Light Model No. : RC 100B Series Model No. : RC 100C Brand Name : SmallRig Sample ID : HC-C-202407-0137-01-01&HC-C-202407-0137-02-01 Receipt Date : 2024-07-16 Test Date : 2024-07-16 to 2024-08-08 Issue Date : 2024-08-08 Standards : RSS-247 Issue 3 August 2023 RSS-Gen Issue 5 April 2018+Amendment 1 (March 2019)+Amendment 2 (February 2021) Test Method : ANSI C63.10: 2013 KDB 558074 D01 15.247 Meas Guidance v05r02 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above. Test By : MikeYan Reviewed By : Henry Huang Approved By : Ivan Su This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202407-0137-18 Page: 2 of 34 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................ 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................ 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode ................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility........................................................................................................................... 9 2. TEST SUMMARY..................................................................................................................... 10 3. TEST SOFTWARE .................................................................................................................. 10 4. TEST EQUIPMENT AND TEST SITE .................................................................................. 11 5. CONDUCTED EMISSION ...................................................................................................... 12 5.1 Test Standard and Limit ................................................................................................... 12 5.2 Test Setup........................................................................................................................... 12 5.3 Test Procedure .................................................................................................................. 12 5.4 Deviation From Test Standard......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data............................................................................................................................. 13 6. RADIATED AND CONDUCTED UNWANTED EMISSIONS ............................................ 14 6.1 Test Standard and Limit ................................................................................................... 14 6.2 Test Setup........................................................................................................................... 15 6.3 Test Procedure .................................................................................................................. 16 6.4 Deviation From Test Standard......................................................................................... 17 6.5 EUT Operating Mode ........................................................................................................ 17 6.6 Test Data............................................................................................................................. 17 7. RESTRICTED BANDS AND BAND EDGE REQUIREMENT .......................................... 18 7.1 Test Standard and Limit ................................................................................................... 18 7.2 Test Setup........................................................................................................................... 18 7.3 Test Procedure .................................................................................................................. 19 7.4 Deviation From Test Standard..............................................................................…
