ORB User Guide Release Read the Docs, Inc \& contributors Sep 18, 2023 Table of Contents List of Figures iii 1 Introduction 1 1.1 What is the Senquip ORB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.2 Who can use the Senquip ORB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.3 You can rely on the Senquip ORB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.4 What is included with your Senquip ORB . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.5 Regulatory Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 2 Getting Started 9 2.1 Opening the Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 2.2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 2.3 User Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.4 Anti Tamper Screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 2.5 AA Battery Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.6 SIM Card Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.7 Wiring guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 2.8 Initial setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 3 Power Supply 31 3.1 Permanent power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 3.2 Replaceable AA batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.3 Internal rechargeable battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 3.4 Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 3.5 Battery life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3.6 Freight Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35 4 General Setup 37 4.1 Measurement and Transmit Intervals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37 4.2 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 4.3 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 5 Internal Sensors 43 5.1 Light Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 5.2 Accelerometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 5.3 Pressure Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 5.4 Magnetic switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 5.5 Temperature sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47 5.6 GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48 5.7 Bluetooth Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 5.8 Internal Sensor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51 i 6 External Sensors 55 6.1 Current Source 1 and 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55 6.2 Serial Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58 6.3 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62 6.4 Thermocouple Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68 6.5 CAN Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 6.6 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71 6.7 External Sensor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72 7 Network Connection 81 7.1 Wi-Fi Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 7.2 4G LTE Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 7.3 Connecting to a Wi-Fi Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81 7.4 Connecting to a 4G LTE Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84 7.5 Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85 8 Endpoint Setup 87 8.1 Data Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 8.2 Data Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87 8.3 Data Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88 8.4 UDP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 8.5 HTTP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 8.6 HTTPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 8.7 MQTT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 8.8 MQTT over TLS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89 8.9 Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90 9 Senquip Portal 93 9.1 Using the Senquip Portal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 9.2 Management and hosting on the Senquip Portal . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

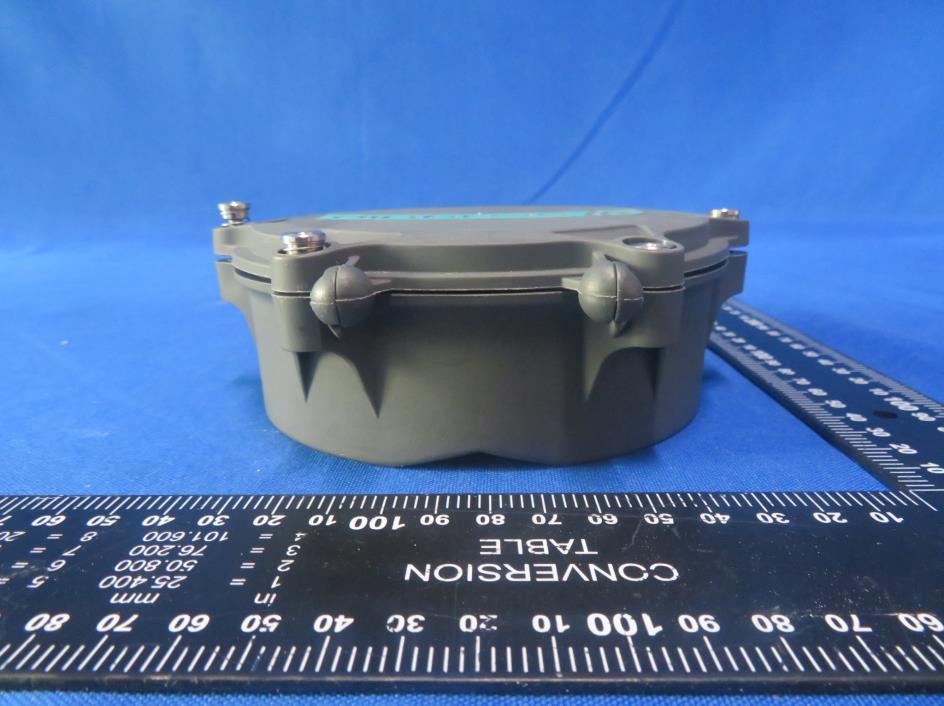

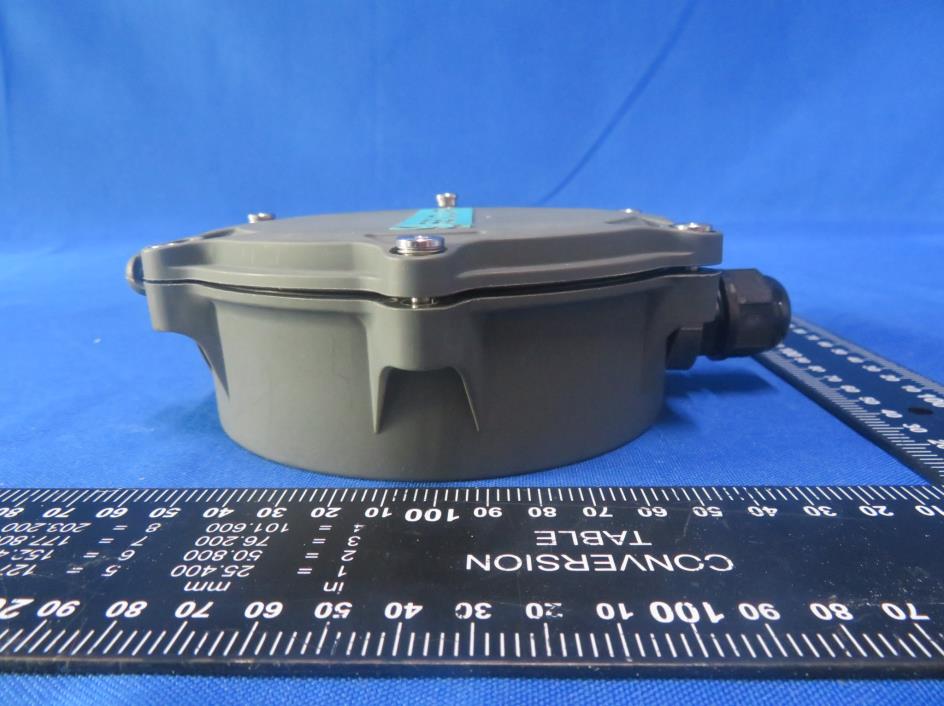

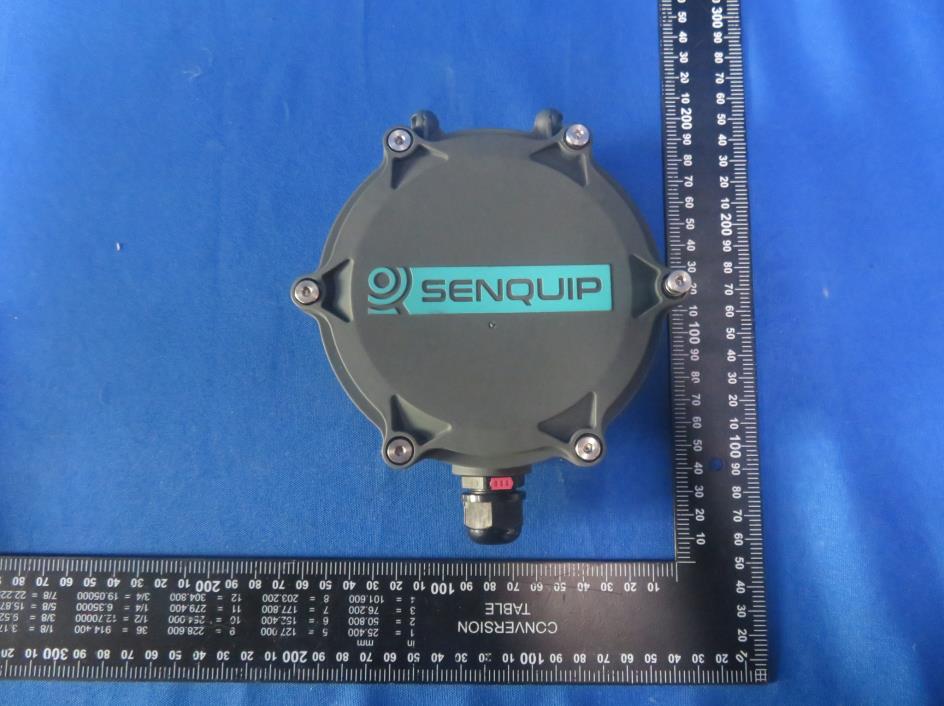

sensors and has the most versatile power requirements of any telemetry unit in its class. Flexibility, the user interface is simple to use and yet allows enough flexibility to ensure compatibility with most industrial sensors and systems. User written scripts offer infinite opportunity for customi- sation. Security, all data collected is encrypted and is transmitted using secure authenticated connections. Ownership, at Senquip, we believe that the customer owns their data. We deliver your data to your servers in a private, secure manner. We will not access, use or resell your data - it is yours. 1.4 What is included with your Senquip ORB When you open your ORB box, the following are included: Figure 1.1. 1 x ORB Figure 1.2. 2 x Wall and pole mounting brackets ORB User Guide, Release 1.4. What is included with your Senquip ORB 3 Figure 1.3. 1 x 2-hole and 1 x 3-hole gland insert Figure 1.4. 4 x M5x8mm mounting screws Figure 1.5. 1 x 3mm Allen key Figure 1.6. 1 x Getting started guide 1.5 Regulatory Information USA: Federal Communications Commission (FCC) statement This device complies with FCC part 15 FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interfer- ence and 2. This device must accept any interference, including interference that may cause undesired operation of the device. FCC Warning Changes or modifications not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference ORB User Guide, Release 4 Chapter 1. Introduction will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. This device meets the FCC and IC requirements for RF exposure in public or uncontrolled environ- ments. 1.5.1 Accessing Regulatory Information You can view the device FCC ID on the Senquip Portal. To view the FCC ID 1.Launch the Senquip Portal. 2.Browse to the device page ORB User Guide, Release 1.5. Regulatory Information 5

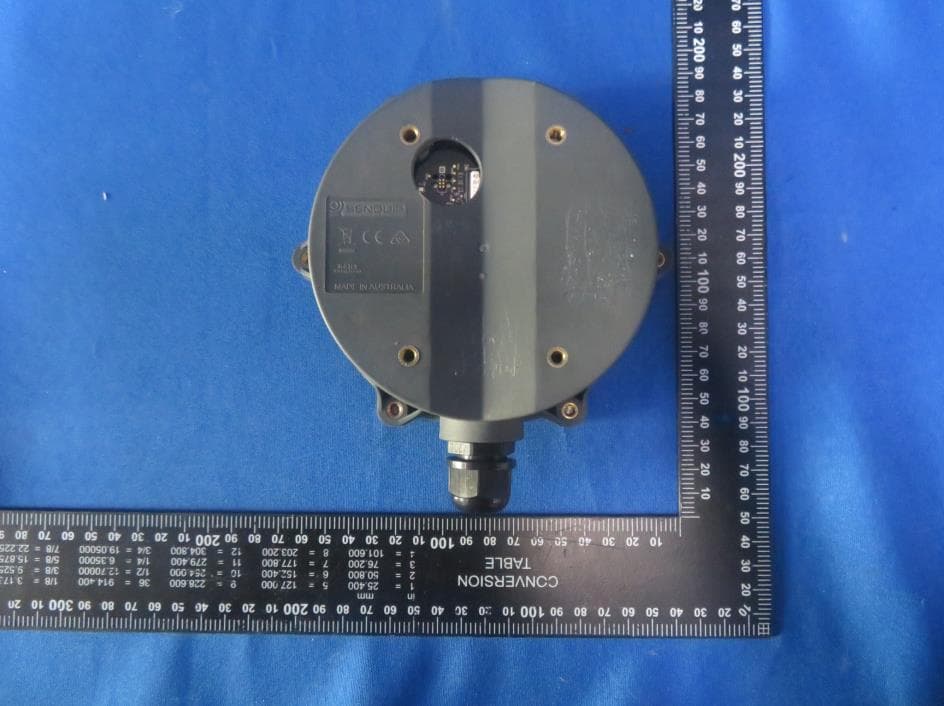

3.On the Device Info widget, select Regulatory Information The following regulatory information will be shown. ORB User Guide, Release 6 Chapter 1. Introduction Figure 1.7. Regulatory information including FCC ID ORB User Guide, Release 1.5. Regulatory Information 7 ORB User Guide, Release 8 Chapter 1. Introduction Chapter 2 Getting Started 2.1 Opening the Box The ORB is shipped in a box with a security seal that ensures that the packaging has not been opened. If this seal is compromised, the box may have been opened, in which case, a non-authorised party could have had access to the ORB password. If the device is to be used in a critical application, please ensure that the seal is intact upon receipt and remember to change your password as soon as possible. Figure 2.1. ORB packaging with intact security seal 9 2.2 Mounting The ORB can be mounted directly on a flat surface or can be attached to a pole or wall using the appropriate mounts that are included when you purchase your ORB. Figure 2.2. ORB mounting points circled in red When attaching the ORB to a panel, use the four M5 bolts that are included and screw directly into the tapped holes on the rear of the ORB enclosure. Warning The depth of the tapped holes in the rear of the ORB enclosure is limited to 5mm; attempting to fasten to a depth exceeding 5mm may damage the enclosure. Two multipurpose brackets that allow mounting to a pole or a wall are included with your ORB. ORB User Guide, Release 10 Chapter 2. Getting Started Figure 2.3. ORB mounting brackets If attaching to a pole, use the four M5 bolts provided to attach the brackets as shown below. The pole mounting plate is designed to be used with commonly available jubilee-clips. Thread the strap end of a jubilee-clip through the slots in the top of the bracket. Repeat for the bottom bracket with a second jubilee-clip. Pass the straps around the pole and into the clamps. Tighten to secure the ORB to the pole. ORB User Guide, Release 2.2. Mounting 11 Figure 2.4. Attaching the pole mount bracket The same mounting brackets can be used to attached the ORB to a wall. Attach the brackets to the rear of the ORB as shown below using the four supplied M5 bolts; note that the brackets are rotated 180 degrees when compared with how they are used for pole mounting. ORB User Guide, Release 12 Chapter 2. Getting Started Figure 2.5. Attaching the wall mount bracket Note Jubilee-clips and wall mounting bolts are application specific and are not provided as part of the ORB kit. The ORB should be mounted with the cable entry gland facing the ground. Mounting the ORB with the gland in another orientation may result in water ingress via the cable entry gland. The ORB contains GPS, Wi-Fi and 4G LTE4 antennas that may not function optimally if the monitor is mounted in the incorrect orientation. In-field orientation checks can be performed using the built-in accelerom- eter and associated tilt measurements. 2.3 User Access The user access panel is accessed by removing the hinged front cover. From the user access panel, batteries can be replaced, a SIM card can be inserted, wiring functions can be performed, diagnostics can be performed and the device can be reset or placed in setup mode. ORB User Guide, Release 2.3. User Access 13

Figure 2.6. User access for the ORB To open the cover: 1.Un-fasten the 6 hex-head screws that secure the cover using the 3mm Allen key provided. The screws are captive and will not fall out when loose. Do not attempt to remove the screws from the lid. ORB User Guide, Release 14 Chapter 2. Getting Started Figure 2.7. Six cover screws 2.Open the hinged lid by lifting the bottom of the lid toward yourself and up. When the lid is opened, an internal light detector will recognise the increase in brightness and will enable the LEDs and configuration switches. Note When closing the ORB, please ensure that the seal is correctly seated and is clean. A poorly seated or dirty seal may result in water ingress. 2.4 Anti Tamper Screw In some installations, evidence needs to be provided where unauthorised access to the Senquip ORB has occurred. All devices include a tamper feature that can be configured to raise an alert when the lid is opened. In some instances however, a physical tamper indication is required. Senquip can provide tamper evident screws for the lid of the Senquip ORB. Once a tamper evident screw is in place, opening the device will require breaking the seal on the tamper evident screw. ORB User Guide, Release 2.4. Anti Tamper Screw 15 Figure 2.8. Tamper evident screw To fit a tamper evident screw, remove one of the lid screws closest to the cable gland using the 3mm Allen key provided. Replace the lid screw with the tamper evident version. The tamper screw is compatible with most available seals. Note The tamper evident screw should be inserted last and removed first. The tamper evident screw should be inserted and removed with a 4mm Allen key. Figure 2.9. Tamper evident screw in place on an ORB ORB User Guide, Release 16 Chapter 2. Getting Started 2.5 AA Battery Install The Senquip ORB can be operated on four AA batteries. If this is an application where there will be no power source, the batteries should be installed at this point. Figure 2.10. Correct battery placement The AA batteries are to be placed in a battery holder which is exposed when the front cover is opened. Please insert the batteries, noting the correct polarity which is indicated on the base of the battery holder. 2.6 SIM Card Install The ORB uses a micro-SIM card with dimensions as shown in the figure below. Both 1.8V and 3.3V SIM Cards are supported. If 4G LTE is the chosen communications method, then a SIM card should be installed now. In most instances, the ORB is shipped with an internal SIM card included. An internal SIM card provides for the most reliable communications in high-vibration environments. Note If your ORB has an internal SIM card, you do not need to install an additional card. ORB User Guide, Release 2.5. AA Battery Install 17 Figure 2.11. SIM Card sizes To access the SIM card holder, the ORB lid must be opened. The SIM card holder is located at posi- tion 1 in the diagram below. The holder is a "push-push" type, meaning that the SIM card is pushed in to install and is then pushed and released to eject. Figure 2.12. Identifying the SIM card slot To insert a micro-SIM card into the holder, place it in the recess to the left of the SIM card slot and apply a gentle pressure to the right. The SIM card should be orientated with contacts facing up and the removed corner on the bottom right as in the diagram below. ORB User Guide, Release 18 Chapter 2. Getting Started Figure 2.13. Correct insertion of a SIM card Because the ORB is expected to be used in harsh environments, there is a plastic sprung locking mechanism moulded into the plastics. Once the SIM card is inserted, the plastic lock will lift, securing the SIM card in the holder. Figure 2.14. Insert SIM to the right It is recommended that the ORB be reset, by pressing the reset button, after inserting a SIM card. To remove the SIM card, hold the locking mechanism down; press the edge of the SIM card gently and let go. The SIM card will be ejected. ORB User Guide, Release 2.7. Wiring guide 19 2.7 Wiring guide The ORB is fitted with a 12 way 3.5mm pitch terminal block that can be used to provide power and for connection to external sensors and systems. With the cable gland facing down, pin 1 is on the left hand side of the header and pin 12 on the right. All references to pin numbers in this document will assume this definition. Figure 2.15. Interface pin numbers The following pinout applies to the 12 way terminal block: Pin number Name Terminal block marking Application 1Positive voltage inPWR+ Positive system power; either permanent or intermittent such as from a solar panel 2 Negative voltage in (ground) GNDNegative system power or ground 3Source 1SRC1 Switchable output with current measure- ment for powering sensors such as 4-20mA devices 4GroundGNDSpare ground for sensor connection 5Source 2SRC2 Switchable output with current measure- ment for powering sensors such as 4-20mA devices 6Serial inB / RX RS485B in RS485 mode and receive in RS232 mode 7Serial outA / TX RS485A in RS485 mode and transmit in RS232 mode 8Input 1IN1 Analog or digital input with edge detect capability ORB User Guide, Release 20 Chapter 2. Getting Started 9Input 2IN2Analog or digital input 10OutputOUT1Open collector output ORB-X1 11ThermocoupleTC-Thermocouple negative pin 12ThermocoupleTC+Thermocouple positive pin ORB-C1 11CAN HighCAN HCAN bus CAN high input 12CAN LowCAN LCAN bus CAN low input The terminal block allows for push-in connection, meaning that no tools are required. A defined contact force ensures that the contact remains stable over the long term and is high vibration environ- ments. A finger operated release button for each terminal allows for convenient, tool-free operation. Wire Specification: Wire stripping length8 mm Conductor cross section solid min.0.2 mm Conductor cross section solid max.1.5 mm Conductor cross section flexible min.0.2 mm Conductor cross section flexible max.1.5 mm Conductor cross section AWG min.24 Conductor cross section AWG max.16 Plea…

Text truncated - open the document above for the full version.

Figure 2.16. Wiring example with a sheathed cable To ensure IP rating is retained, a sheathed cable with diameter suitable for use with the cable gland insert should be used. Three cable gland seals are supplied as specified in the table below. The gland with the single hole should be used when a single cable is required; the gland with two holes should be used where two cables are required etc. Cable seals are manufactured using NBR (Nitrile Buta- diene Rubber) and are resistant to oils and biological oils, solvents and most industrial chemicals. Always check the suitability of the cable gland insert with all chemicals found in the operating envi- ronment. Part NoNo. holesHole diameterCable A111mm6-11mm B25mm3-5mm C34mm2-4mm 2.8 Initial setup Initial setup can be performed using the integrated web-server using any Wi-Fi enabled phone, tablet or computer. Once the device is connected to a network, configuration can be performed remotely using the in-built webserver or via the Senquip Portal. ORB User Guide, Release 22 Chapter 2. Getting Started Note For volume opportunities, devices can be pre-configured to connect immediately to a network; please contact Senquip to discuss this option. With the cover open, two push-button switches, setup and reset, and two LEDs network (orange) and status (green) are available. The switches and LEDs are used to configure the device. Figure 2.17. Buttons and LEDs for setup The green status LED and orange network LED indicate the current state of the ORB. These LEDs are only active if the lid is open. When the lid is closed, the LEDs will remain off to conserve energy. A summary of LED function is given in the table below. Note During normal operation, the LEDs will be off when the device is sleeping or hibernating and will not turn on when the lid is opened until the next measurement interval. Status LEDNetwork LEDMeaning (Green)(Orange) OffOffDevice is sleeping or lid is closed Flash (1Hz)OffSetup Mode OnFlash (1Hz)Device has been configured, but no network connection OnOnNetwork connection via Wi-Fi or 4G LTE Fast FlashFast FlashFactory reset in progress OffFast FlashFirmware update in progress Slow FlashOffPre-charge mode Note The LEDs turn on when the lid is opened because an internal sensor detects light. If the lid is opened in dark conditions, the LEDs will not turn on. ORB User Guide, Release 2.8. Initial setup 23 Firmware Updates The latest firmware version and a description of changes to firmware can be found in the Senquip Device Firmware Changelist. Updating to the latest firmware can be performed from the Senquip Portal by selecting Settings and Update and then pressing the Update Firmware button. To update to a specific firmware version, enter the firmware number as shown in the figure below and press Update Firmware. During the firmware update, the orange network LED will flash fast. After a firmware update, the LEDs may freeze or remain off for a few minutes. This is normal behaviour and occurs shortly after firmware update when the ORB is encrypting the memory. The firmware update can be seen in the command queue and has been received by the device when the status shows as success. Receipt of the firmware update by the device does not always mean that the update is correctly applied. To ensure that the update has occured, check the firmware number in the Device Info widget on the device Portal page. You may need to refresh the browser window. Factory Reset To perform a factory reset, press and hold the Setup button. While holding the Setup button, press and release the Reset button. The green status LED and orange network LED will begin to flash fast. Continue to hold the Setup button down for 10 seconds. After 10 seconds, the LEDs will stop flashing at which point the Setup button can be released. All settings will be changed back to the factory state and the ORB will restart. Any firmware updates made to the ORB will be preserved. Warning Returning the ORB to factory defaults will remove all network settings, rendering remote updates impossible. Passwords The ORB is shipped, pre-loaded, with a random password that prevent unauthorised connection to the ORB's Wi-Fi hotspot and prevent access to the ORB's built in webserver. The default passwords are printed on a label that can be found under the ORB cover. ORB User Guide, Release 24 Chapter 2. Getting Started Figure 2.18. The default passwords can be found under the lid The label contains two sections: •General information about the ORB such as the part number, ORB identification number, Wi-Fi SSID and the IP address of the webserver •A removable section that contains the part number, ORB identification number, webserver pass- word (setup password), Wi-Fi SSID and Wi-Fi password. This section should be removed and stored securely. It is recommended that the passwords be changed as soon as possible using the ORB's webserver or the Senquip portal. ORB User Guide, Release 2.8. Initial setup 25 Figure 2.19. Label with general information and passwords Take note of the Wi-Fi and setup passwords as you will need them to continue with the setup. In the example above, the ORB identifier is DE9032030, the Wi-Fi password is hjg3iplg and the setup password is QvjSF3jk. Setup Mode Setup Mode allows initial customer configuration via the integrated web-server. This mode is enabled when the Setup button is pressed for more than 2 seconds. In setup mode, an integrated Wi-Fi Access Point (AP) is enabled through which the installer can access the ORB's built in web-server. The web-server allows for initial setup using a web based inter- face, similar to setting up a home router. In this mode, a user can connect to the ORB using any computer, tablet or mobile phone that has Wi-Fi and is loaded with a browser. After the ORB is connected to a network, changes can be made remotely using the Senquip Portal. Note The Senquip ORB Wi-Fi Access Point is 2.4GHz only If connected to external power, the ORB will re…

Text truncated - open the document above for the full version.

•An image associated with the machine or system being monitored can be added. •A company logo can be added. Only sensor interfaces that are enabled and have transmitted data recently will be displayed on widgets. Any exceptions currently being experienced will be shown in the Events widget. Informa- tion associated with the selected device such as the model number and firmware version will be shown in the Device Info widget. Note Any alerts, warnings or alarms currently present on the selected device will be shown in the Events widget on the dashboard. Figure 9.3. Senquip device dashboard Click on the icon at the top right of each widget to show the data on a graph. Data on the graph can be selected for time periods of an hour, day, week, or custom. Click on a point on the chart to show values at that point. ORB User Guide, Release 96 Chapter 9. Senquip Portal Figure 9.4. Example chart showing the days temperature Data measured by Senquip devices can be visualised in various formats. To change the format in which data is visualised, press the eye icon on the bottom right of the tile. Formats available are: •Hidden - Hide the data if it is not relevant to the application •Trendline - The default graph that facilitates recognition of change. Allows the user to view longer term trends between date ranges. •Gauge - Useful when representing measurements that must exist within a range. Can be scaled so that the pointer is vertical under normal conditions. Warning and alarm levels can be set. •Digital - A simple ON or OFF display that shows the status of a measurement. The threshold at which the display switches from ON to OFF can be set. Figure 9.5. Data visualisation in different formats Buttons can be added to a dashboard that allow user to trigger events on remote devices. When the buttons are pressed, next time the remote device makes contact with the Portal, a user script is triggered to run on the remote device. ORB User Guide, Release 9.1. Using the Senquip Portal 97 Figure 9.6. Buttons to trigger remote operations From the device dashboard, the user can navigate to the settings, raw data, display settings and other pages. Figure 9.7. Navigate to device configuration pages Asset notes allows the user to add an image of the system being monitored, add install images, other notes, and a company logo. Display settings allows the user to turn widgets on and off and re-order the widgets. The scripting icon passes the user to the JavaScript editor to enable scripts to be written for Senquip devices. Raw data allows the user to display and then download historic data in csv format. The settings icon takes the user to the device settings pages. Not all of the icons will be avail- able to all users. For instance, the scripting icon will not show up for users who do not have access to scripting. ORB User Guide, Release 98 Chapter 9. Senquip Portal Figure 9.8. Dashboard with an image showing the system being monitored 9.1.4 Historical data To view or download historical data, press the Raw Data button on the top right of the dashboard. A table showing all the data associated with the selected device will be shown. To download the data, press the Export to CSV button. The data will be saved to your downloads folder. The downloaded file can be opened and manipulated with any spreadsheet tool. ORB User Guide, Release 9.1. Using the Senquip Portal 99 Figure 9.9. Data associated with the selected device shown in a table Note The timestamp in the timestamp column is in Unix Time; if you would like a GMT date and time field, enable the timestamp setting in endpoint settings. 9.1.5 User administration Use the Admin button to manage the users of each Senquip device. When a device is added to an account using the device ID and password, the user that added the device automatically becomes an admin for that device. Admin users can manage other user rights and have full permissions for the device. The different user types are detailed in the table below: Allowed PermissionAdminUserOperatorView View dataYesYesYesYes ORB User Guide, Release 100 Chapter 9. Senquip Portal Trigger device actionsYesYesYes View usersYesYes Change device settingsYesYes Add/remove usersYes Warning Anyone who has the device ID and setup password can add the device to their account with Admin permissions. 9.1.6 Configuration via Senquip Portal Settings associated with a Senquip device can be updated remotely via the Senquip Portal. To change the settings for a selected device, press the Settings button on the top right of the dashboard. The selected device settings will be shown and can be changed by clicking in the relevant fields. Once a setting has been changed, press the Save Settings button at the bottom of the page. Senquip devices check for settings changes each time they make a connection to the Senquip Portal. If a device is set to transmit data once an hour, then the settings will be changed up to an hour after the changes have been made on the portal. If quicker changes are required, the device will need to be visited and the changes made via the integrated webserver in setup mode. ORB User Guide, Release 9.1. Using the Senquip Portal 101 Figure 9.10. Remote update of device settings via the Senquip Portal ORB User Guide, Release 102 Chapter 9. Senquip Portal Note In applications where power is available, a quicker transmit interval will mean that settings changes can be made more quickly. 9.1.7 Remote firmware updates Senquip will routinely make firmware updates to enable new features, enhance security and fix bugs. Device firmware can be updated via the Senquip Portal. To update the firmware, press the Update button on the settings page. You will be directed to a page asking for the firm…
