2BCLP-ESP-12F

Shenzhen Siinst Technology Co., Ltd

WiFi module

Click to zoom

Application Details

Equipment Class: DTS - Digital Transmission System
Date of Grant: Sep 02, 2023
Application Purpose: Original Equipment
Date of Application: Sep 02, 2023
Equipment Note: WiFi module
Frequency Range: 2412.00000000 - 2462.00000000
Company: Shenzhen Siinst Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

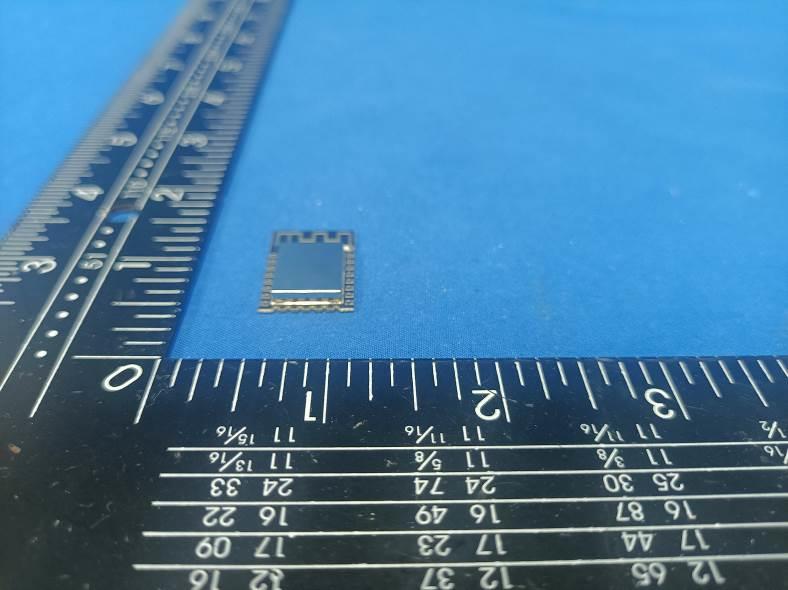

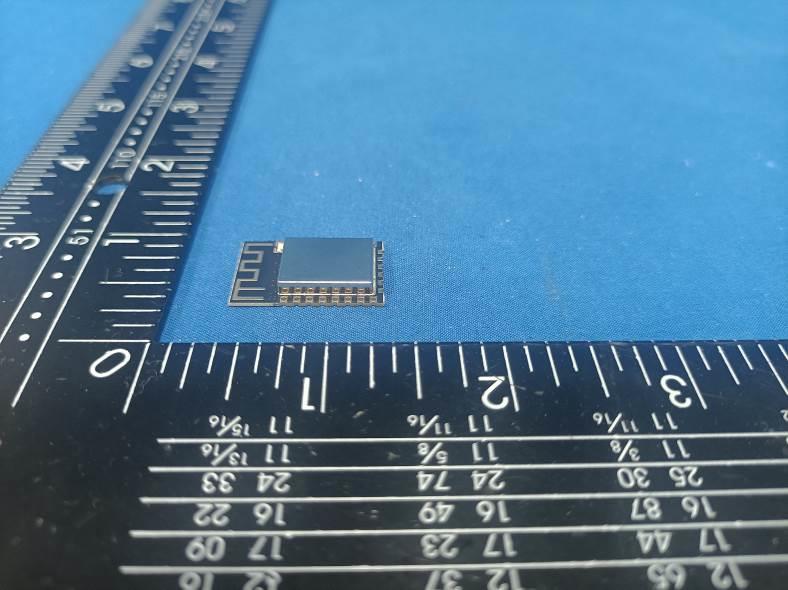

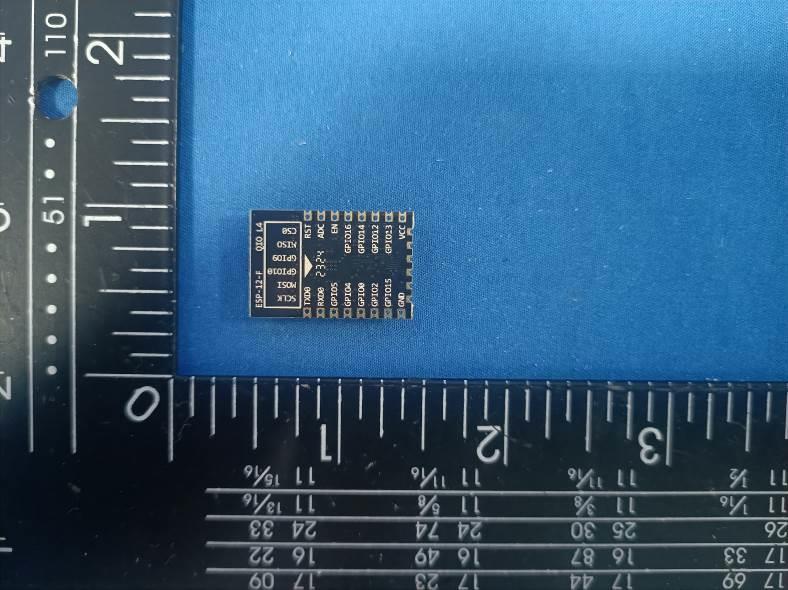

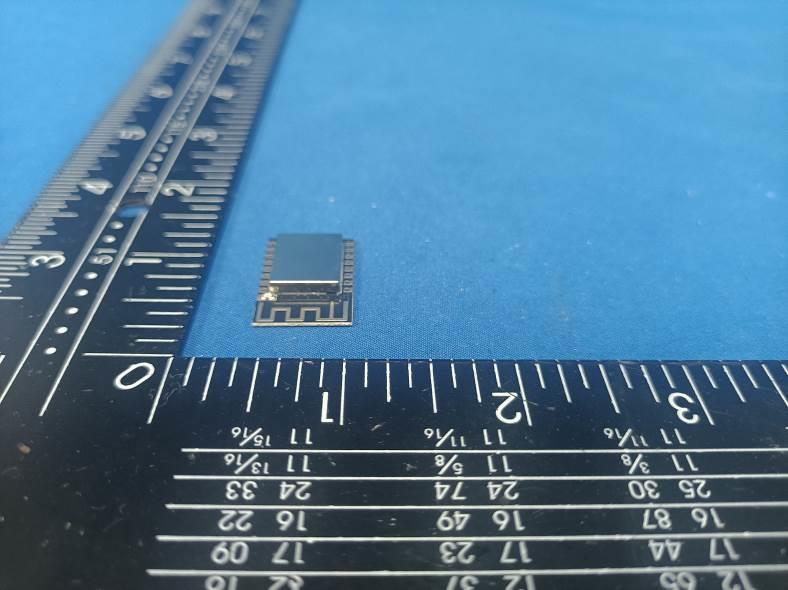

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
1	15C	2.41 GHz - 2.46 GHz	23.70 mW

Modular Type

Single Modular Approval

Confidentiality

Long Term

Grant Notes

Single Modular Approval. Output power listed is peak conducted. This device supports 802.11b, 802.11g and 802.11n with a 20 MHz bandwidth mode. RF exposure compliance is addressed for 1.1310 and 2.1091 MPE limits. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons. The maximum antenna gain is 0.80dBi. Only those antenna(s) tested with the device or similar antenna(s) with equal or lesser gain may be used with this transmitter. The host integrator installing this module into their product must ensure that the final composite product complies with the FCC requirements by a technical assessment or evaluation to the FCC rules, including the transmitter operation and should refer to guidance in KDB 996369.
