2BCLP-ESP-32SWiFi module

User Mannual SPARKLEIOT ® Sparkleiot Technology Co. LTD ESP-32S VER:V1.1 2018-3-18 NUM：ESP32SCN Sparkleiot of Intelligence & Technology (www.sparkleiot.com) Copyright@2016-2021 Features ◼ SOC features ⚫ Built-in Tensilica L106 ultra-low power consumption 32-bit cpu, the main frequency can be 80MHz and 160MHz, also support RTOS; ⚫ Built-in TCP/IP protocol stack; ⚫ Built-in 1 channel 10-bit high precision ADC; ⚫ Interfaces include HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO; ⚫ 20uA deep-sleep current, less than 5uA cut- off current; ⚫ 2ms wake-up time; ⚫ 1.0mW consume power (DTIM3 and standby state); ◼ Wi-Fi features ⚫ Support 802.11 b/g/n/e/i ⚫ Support three modes: Station, SoftAP, and SoftAP+STA; ⚫ Support Wi-Fi Direct (P2P); ⚫ Support hardware acceleration for CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI(SMS4), WEP(RC4), CRC; ⚫ P2P detection, P2P GO mode/GC mode and P2P power management; ⚫ WPA/PA2 PSK and WPS; ⚫ Support 802.11 i security: pre-certification and TSN; ⚫ Support 802.11n (2.4 GHz); ⚫ 802.1h/RFC1042 frame encapsulation; ⚫ Support seamless roam; ⚫ Support AT remote upgrade and cloud OTA upgrade; ⚫ Support SmartConfig function for Android and iOS device. Module Interface ⚫ 2xUART ⚫ 1xADC ⚫ 1xEn ⚫ 1xWakeup pin ⚫ 1xHSPI ⚫ 1xI2C ⚫ 1xI2S ⚫ 11xGPIOs ⚫ 4M SPI Flash ◼ Working temperature：-40°C-105°C ◼ Module size：16mm×24mm Applications ● Serial transparent transmission; ● WiFi prober; ● Smart power plug/Smart LED light; ● Mesh networks; ● Sensor networks; ● Wireless location recognition;● Wireless location system beacon; ● Industrial wireless control. Module Type Name Antenna Type ESP-32S PCB Antenna Module Structure SPARKLEIOT ® Sparkleiot of Intelligence & Technology (www.sparleiot.com) Copyright@2016-2021 Update Record Date Version Update 2017-3-14 V1.0 Initial version 2017-3-18 V1.1 Add system design SPARKLEIOT ® Sparkleiot of Intelligence & Technology (www.sparleiot.com) Copyright@2016-2021 Table of Contents 1. Introduction .............................................................................................................................................. 4 2. Interface Definition................................................................................................................................... 6 3. Shape and Size .......................................................................................................................................... 7 4. Electronical Characteristics .................................................................................................................... 10 5. Power Consumption ............................................................................................................................... 10 6. Wi-Fi RF Characteristics ........................................................................................................................ 11 8. Module Schematic .................................................................................................................................. 13 9. The Recommended PCB Design (Take XH-C2F as an example) .......................................................... 14 10. Peripheral Design Suggestion ............................................................................................................... 15 SPARKLEIOT ® User Mannual Sparkleiot of Intelligence & Technology (www.sparkleiot.com) Copyright@2016-2021 Page 4 1. Introduction The WiFi module ESP-32S is manufactured by using a high-performance chip named ESP8266. This small chip is encapsulated an enhanced Tensilica’s L106 diamond series 32-bit kennel CPU with a SRAM. Thus, ESP8266 has the complete function Wi-Fi function; it can be applied independently, and also can be used as a slaver working with other host CPU. When ESP8266 is applied as a slaver, it can start from the onboard flash. The built-in high-speed buffer is not only benefit to improve the system performance, but optimize the store system. In addition, ESP-32S WiFi module can be used as Wi-Fi adapter by SPI/SDIO or I2C/UART interface, when it is applied to other MCU design. The ESP-32S WiFi module supports the standard IEEE802.11 b/g/n/e/i protocol and the complete TCP/IP protocol stack. User can use it to add the WiFi function for the installed devices, and also can be viewed as a independent network controller. Anyway, ESP-32S module provides many probabilities with the best price. Fig. 1.1 ESP-32S Module Structure SPARKLEIOT ® User Mannual Sparkleiot of Intelligence & Technology (www.sparkleiot.com) Copyright@2016-2021 Page 5 Technical parameters for ESP-32S are listed as follows. Table 1.1 ESP-32S Parameters Types Items Parameters Wi-Fi Frequency 2.4G~2.5G(2400M~2483.5M) Transmit power 802.11b: +15 dBm 802.11g: +14 dBm 802.11n: +14 dBm Receiver sensitivity 802.11b: -91 dbm (11Mbps) 802.11g: -75 dbm（54Mbps） 802.11n: -72 dbm（MCS7） Antenna PCB antenna / U.F.L antenna Hardware CPU Tensilica L106 32 bit MCU Interface UART/SDIO/SPI/I2C/I2S/IR control GPIO/ADC/PWM/SPI/I2C/I2S Working voltage 2.5V ~ 3.6V Working current Average current: 80 mA,Peak current: >200mA Working temperature -40°C ~105°C Environment temperature -40°C ~ 105°C Shape 16*24*3mm Software Types Wi-Fi working mode Station/SoftAP/SoftAP+Station Security mode WPA/WPA2 Encryption type WEP/TKIP/AES Update firmware UART Download/OTA Software develop Non-RTOS/RTOS/Arduino IDE etc. Network protocol IPv4, TCP/UDP/HTTP/FTP/MQTT SPARKLEIOT ® User Mannual Sparkleiot of Intelligence & Technology (www.sparkleiot.com) Copyright@2016-2021 Page 6 2. Interface Definition ESP-32S module interface definition is shown as below。 Fig. 2.1 ESP-32S Pin Definition Working mode and pin function is shown in Table 2.1. Table 2.1 Working mode Table 2.2 Pin Function Definition 模式 GPIO UART Download Mode 低 Flash Boot Mode 高 SPARKLEIOT ® User Mannual Sparkleiot of Intelligence & Technology (www.sparkleiot.com) Copyright@2016-2021 Page 7 name Serial number Feature GND 1 Ground co…

Text truncated - open the document above for the full version.

Shenzhen Siinst Technology Co., Ltd Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2023/08/23 U.S. Agent Designation Shenzhen Siinst Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCLP-ESP-32S): Name and company of U.S. agent: Digi-Key Electronics Physical U.S. address of agent: 701 Brooks Avenue South Thief River Falls, MN 56701 United States FRN of U.S. agent: 0034158378 Email address of U.S. agent: [email protected] Digi-Key Electronics acknowledges their obligation to accept service of process on behalf of Shenzhen Siinst Technology Co., Ltd Shenzhen Siinst Technology Co., Ltd with the FRN [0034158006] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Jahwin jiang Manager Shenzhen Siinst Technology Co., Ltd Signature Jahwin chen Manager Digi-Key Electronics 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

Sincerely, Name/Title： Jahwin jiang/Manager Company: Shenzhen Siinst Technology Co., Ltd Address: Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen China Phone: 18300040755 Fax: N/A E-Mail: [email protected]

(f) The module shall comply with the Category I equipment labeling requirements and CFR § 15.212(a)(1)(vi). The modular has its own FCC ID number. (g) The module shall comply with any applicable FCC RF exposure requirement which are based on the intended use/configurations. Yes, RF cexposure evaluation performed at 20cm. (h) The modular transmitter complies with all applicable FCC rules. Instructions for maintaining compliance are given in the user instructions. Yes If you have any questions, please feel free to contact us at the address shown below Sincerely Name/Title： Jahwin jiang/Manager Company: Shenzhen Siinst Technology Co., Ltd Address: Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen China Phone: 18300040755 Fax: N/A E-Mail: [email protected]

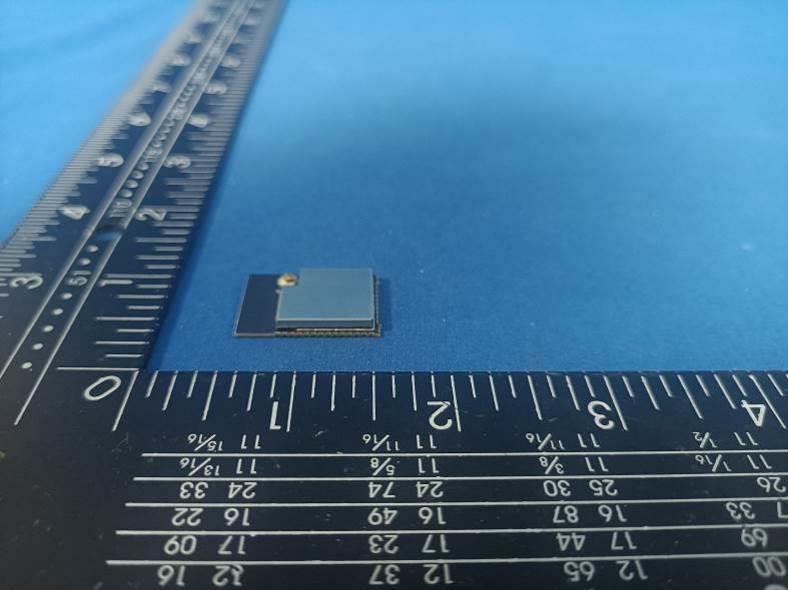

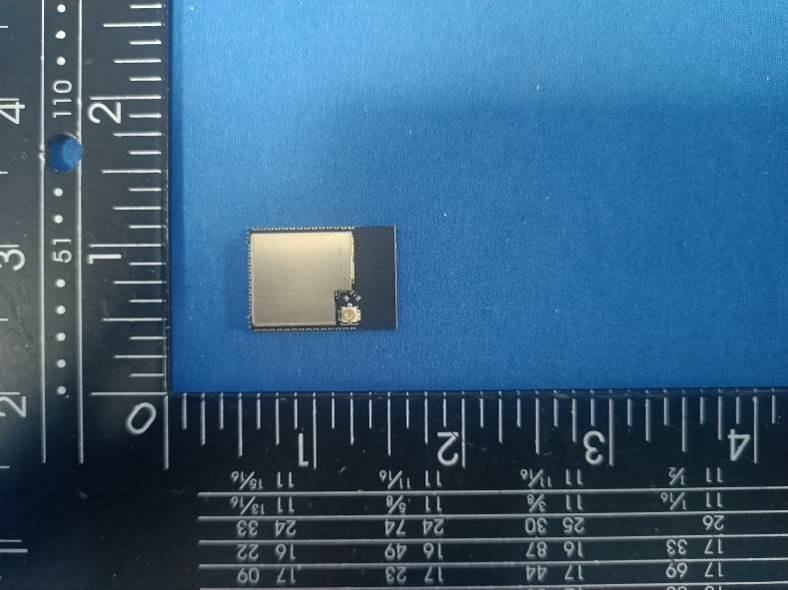

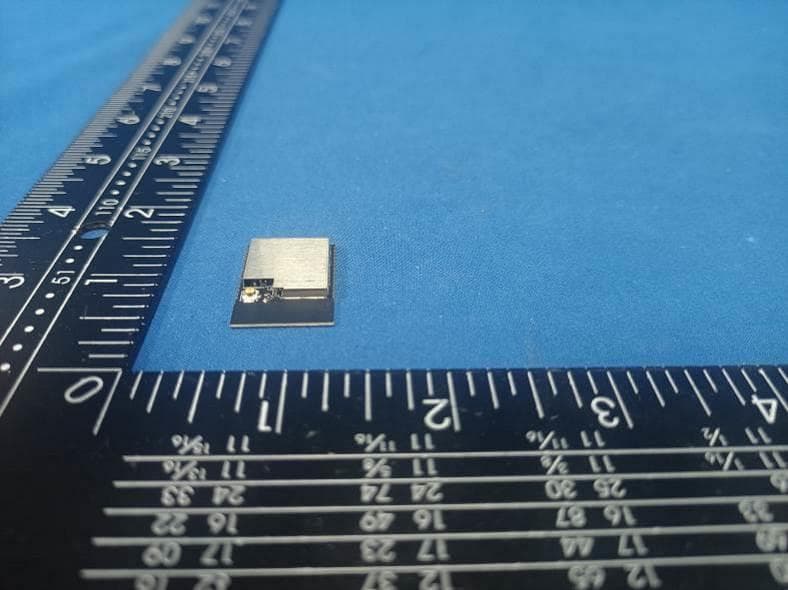

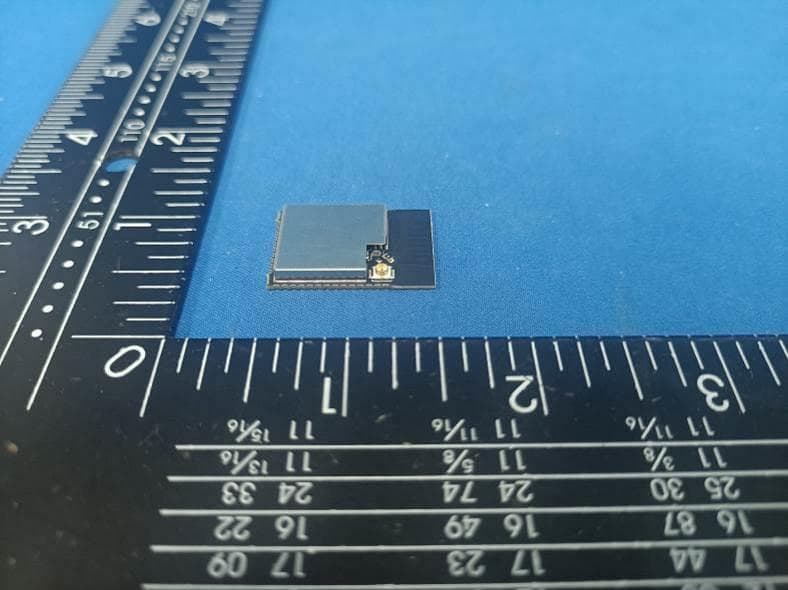

FCC ID: 2BCLP-ESP-32S External Photos of the EUT Photo 1 Photo 2 Photo 3 2.4G WIFI PCB Antenna APEX antenna port only use for conducted test FCC ID: 2BCLP-ESP-32S Photo 4 Photo 5 Photo 6

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BCLP-ESP-32S

FCC ID: 2BCLP-ESP-32S Internal Photos of the EUT Photo 1 Photo 2 Photo 3

RF Exposure evaluation FCC ID: 2BCLP-ESP-32S Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information Device can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: 2.4GWIFI / PCB antenna 0.75dBi for 2400-2500MHz 5. Manufacturing Tolerance WIFI(Peak) Frequency (MHz) 11b 2412 2437 2462 Target (dBm) 14.0 14.0 14.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11g 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 Frequency (MHz) 11n(HT20) 2412 2437 2462 Target (dBm) 13.0 13.0 13.0 Tolerance ± (dB) 1.0 1.0 1.0 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.75dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW 2.4GWIFI 15.0 31.6228 0.75 1.1885 0.0075 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

1. Antenna Description: Antenna type PCB antenna Model ESP-32S Frequency range 2400-2500MHz Manufacturer Shenzhen Siinst Technology Co., Ltd ANT Peak Gain 0.75 dBi 2. Antenna Photo: Length :10.64mm Width:4.00mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. ..................... : FCC ID............................................. : CTA23081800601 2BCLP-ESP-32S Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Amy Wen Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Aug. 23, 2023 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shenzhen Siinst Technology Co., Ltd Address ............................................ : Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 TRF Originator .................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : WiFi module Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen Siinst Technology Co., Ltd Model/Type reference ...................... : ESP-32S Listed Models .................................. : XH-32S, ESP-WROOM-32, ESP-WROOM-32U, ESP-WROOM-32E, ESP-WROOM-32D Modulation Type ............................... : CCK/DSSS/OFDM Operation Frequency ........................ : From 2412 - 2462MHz Rating ............................................... : DC 5V From PC Result ............................................... : PASS Report No.: CTA23081800601 Page 2 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : WiFi module Model /Type : ESP-32S Listed Models. XH-32S, ESP-WROOM-32, ESP-WROOM-32U, ESP-WROOM-32E, ESP-WROOM-32D Applicant : Shenzhen Siinst Technology Co., Ltd Address : Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen Siinst Technology Co., Ltd Address : Room D1002 Yongjinghaocheng, No. 104 Yongfu Road, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA23081800601 Page 3 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 EUT operation mode 6 2.6 Block Diagram of Test Setup 6 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Test Description 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 13 4.3 Maximum Peak Conducted Output Power 19 4.4 Power Spectral Density 20 4.5 6dB Bandwidth 23 4.6 Out-of-band Emissions 26 4.7 Antenna Requirement 33 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 34 6 P H O T O S O F T H E E U T ........................................................... 35 Report No.: CTA23081800601 Page 4 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2013: American National Standard for Testing Unlicensed Wireless Devices KDB558074 D01 v05r02: Guidance for Compliance Measurements on Digital Transmission Systems (DTS) ,Frequency Hopping Spread Spectrum System(HFSS), and Hybrid System Devices Operating Under §15.247 of The FCC rules. Repo…

Text truncated - open the document above for the full version.

Report No.: CTA23081800601 Page 29 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11g Reference Reference CH06 CH11 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23081800601 Page 30 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference Reference CH01 CH06 30MHz-3GHz 30MHz-3GHz 3GHz -25GHz 3GHz -25GHz Report No.: CTA23081800601 Page 31 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 802.11n20 Reference CH11 30MHz-3GHz 3GHz -25GHz Report No.: CTA23081800601 Page 32 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Band-edge Measurements for RF Conducted Emissions: 802.11b Left bandedge Right bandedge 802.11g Left bandedge Right bandedge 802.11n(HT20) Left bandedge Right bandedge Report No.: CTA23081800601 Page 33 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 4.7 Antenna Requirement Standard Applicable For intentional device, according to FCC 47 CFR Section 15.203: An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator, the manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited FCC CFR Title 47 Part 15 Subpart C Section 15.247(c) (1) (I): (i) Systems operating in the 2400-2483.5 MHz band that is used exclusively for fixed. Point-to-point operations may employ transmitting antennas with directional gain greater than 6dBi provided the maximum conducted output power of the intentional radiator is reduced by 1 dB for every 3 dB that the directional gain of the antenna exceeds 6dBi. Test Result: The maximum gain of antenna was 0.75 dBi. Remark:The antenna gain is provided by the customer , if the data provided by the customer is not accurate, Shenzhen CTA Testing Technology Co., Ltd. does not assume any responsibility. Report No.: CTA23081800601 Page 34 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 5 T e s t S e t u p P h o t o s o f t h e E U T Report No.: CTA23081800601 Page 35 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn 6 P h o t o s o f t h e E U T Report No.: CTA23081800601 Page 36 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Report No.: CTA23081800601 Page 37 of 37 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn ********************** End of Report **********************

FCC ID: 2BCLP-ESP-32S Test Setup Photos of the EUT
