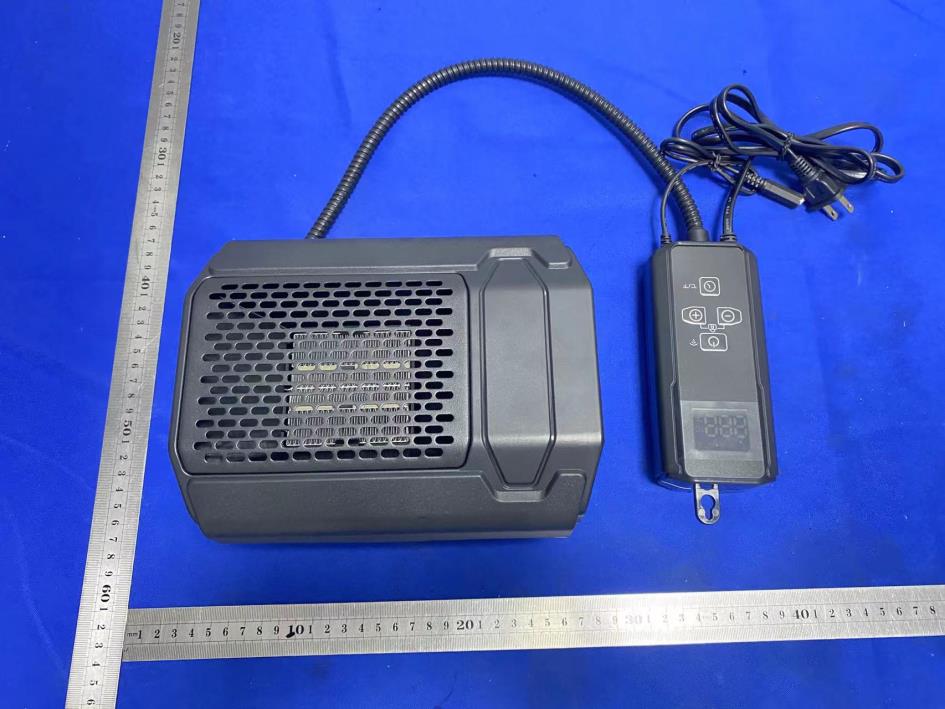

2BCLX-D2509DOG HOUSE HEATER

FCC ID LABEL: Ca. 2cm x 6cm Label Location FCC ID: 2BCLX-D2509

MPE ESTIMATION FCC ID: 2BCLX-D2509 1, According to §1.1310, Limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (numerical) MPE (mW/cm²) Limit (mW/cm²) 2.4GWiFi 2437 14.94 14±1(15) 31.62 2.54 1.79 0.0113 1.0 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power in mW. G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna in cm Conducted power see the test report HK2511266344-E, antenna gain=2.54dBi. When the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0113mW/cm 2 which is< 1.0 mW/cm 2 , RF Exposure testing is not required. -------The End-------

AntennaSpecification Manufacture：TUYA ProductName：WBR3Antenna AntennaType：PCB TestDate：2021.05.20 Testedby：LongWang Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameWBR3Antenna Productmodel WBR3 AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400 1.6252.29 2410 1.7152.17 2420 1.9353.14 2430 1.9854.16 2440 2.0057.62 2450 2.1759.64 2460 2.4561.55 2470 2.3860.64 2480 2.5462.86 2490 2.3059.85 2500 2.4960.41 4 3.2RadiationPattern Phi02D Phi902D 5 Theta902D 2480MHz3D 6 4.AntennaDimensions 5.EUTPhoto 7 6.TestSetupPhoto

Page 1 of 63 Report No.: HK2511266344-E FCC Test Report Test Report On Behalf of LesoRocity (Shenzhen) Industrial Co., Ltd For DOG HOUSE HEATER Model No.: D2509 FCC ID: 2BCLX-D2509 Prepared For: LesoRocity (Shenzhen) Industrial Co., Ltd Rm A5-02, LiJia Rd 108th, Hengang Str, Longgang, Shenzhen, China Prepared By: Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Nov. 26, 2025 ~ Dec. 11, 2025 Date of Report: Dec. 11, 2025 Report Number: HK2511266344-E Page 2 of 63 Report No.: HK2511266344-E Test Result Certification Applicant’s Name .................. : LesoRocity (Shenzhen) Industrial Co., Ltd Address .................................. : Rm A5-02, LiJia Rd 108th, Hengang Str, Longgang, Shenzhen, China Manufacturer's Name ........... : LesoRocity (Shenzhen) Industrial Co., Ltd Address .................................. : Rm A5-02, LiJia Rd 108th, Hengang Str, Longgang, Shenzhen, China Product Description Trade Mark ............................. : N/A Product Name ......................... : DOG HOUSE HEATER Model and/or Type Reference : D2509 Standards ............................... : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2020 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HUAK Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HUAK Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ............................................ : Date (s) of Performance of Tests ............ : Nov. 26, 2025 ~ Dec. 11, 2025 Date of Issue ........................................... : Dec. 11, 2025 Test Result ............................................... : Pass Testing Engineer Len Liao Technical Manager Sliver Wan Authorized Signatory Jason Zhou Page 3 of 63 Report No.: HK2511266344-E Table of Contents 1. Summary ................................................................................................... 5 1.1 Test Procedures and Results ........................................................................................................... 5 1.2 Information of the Test Laboratory ................................................................................................. 5 1.3 Measurement Uncertainty ................................................................................................................ 6 2. EUT Description ........................................................................................ 7 2.1 General Description of EUT ............................................................................................................. 7 2.2 Carrier Frequency of Channels ........................................................................................................ 8 2.3 Operation of EUT during Testing ..................................................................................................... 8 2.4 Description of Test Setup ................................................................................................................. 9 2.5 Description of Support Units ......................................................................................................... 10 3. General Information ................................................................................ 11 3.1 Test Environment and Mode .......................................................................................................... 11 4. Test Results and Measurement Data .................................................... 13 4.1 AC Conducted Emission ................................................................................................................ 13 4.2 Maximum Peak Conducted Output Power .................................................................................... 17 4.3 Emission Bandwidth ....................................................................................................................... 20 4.4 Power Spectral Density .................................................................................................................. 25 4.5 Conducted Band Edge and Spurious Emission Measurement .................................................. 31 4.6 Radiated Spurious Emission Measurement ................................................................................. 39 4.7 Antenna Requirement ..................................................................................................................... 60 5. Test Setup Photos of the EUT ............................................................... 61 6. Photos of the EUT ................................................................................... 63 Page 4 of 63 Report No.: HK2511266344-E ** Issued history ** Revision Description Issued Date Remark Revision 1.0 Initial Test Report Release Dec. 11, 2025 Jason Zhou Page 5 of 63 Report No.: HK2511266344-E 1. Summary 1.1 Test Procedures and Results Requirement CFR 47 Section Result Antenna Requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge §15.247(d) PASS Spurious Emission §15.205/§15.209 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. 1.2 Information of the Test Laboratory Shenzhen HUAK Testing Technology Co., Ltd. Add.: 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenz…

Text truncated - open the document above for the full version.

Page 39 of 63 Report No.: HK2511266344-E 4.6 Radiated Spurious Emission Measurement Test Specification Test Requirement: FCC Part15 C Section 15.209 Test Method: ANSI C63.10: 2020 Frequency Range: 9 kHz to 25 GHz Measurement Distance: 3 m Antenna Polarization: Horizontal & Vertical Operation Mode: Transmitting mode with modulation Receiver Setup: Frequency Detector RBW VBW Remark 9kHz- 150kHzQuasi-peak200Hz 1kHz Quasi-peak Value 150kHz- 30MHz Quasi-peak9kHz 30kHz Quasi-peak Value 30MHz-1GHzQuasi-peak120KHz300KHz Quasi-peak Value Above 1GHz Peak 1MHz 3MHz Peak Value Peak 1MHz 10Hz Average Value Limit: Frequency Field Strength (microvolts/meter) Measurement Distance (meters) 0.009-0.490 2400/F(KHz) 300 0.490-1.705 24000/F(KHz) 30 1.705-30 30 30 30-88 100 3 88-216 150 3 216-960 200 3 Above 960 500 3 Frequency Field Strength (microvolts/meter) Measurement Distance (meters) Detector Above 1GHz 500 3 Average 5000 3 Peak Test Setup: For radiated emissions below 30MHz Page 40 of 63 Report No.: HK2511266344-E 30MHz to 1GHz Above 1GHz Test Procedure: 1. For the radiated emission test below 1GHz: The EUT was placed on a turntable with 0.8 meter above ground. The EUT was set 3 meters from the interference receiving antenna, which was mounted on the top of a variable height antenna tower. The EUT was arranged to its worst case and then tune the antenna tower (from 1 m to 4 m) and turntable (from 0 degree to 360 degrees) to find the maximum reading. A pre-amp and a high PASS filter are used for the test in order to get better signal level. 2. For the radiated emission test above 1GHz: Place the measurement antenna on a turntable with 1.5 meter above ground, which is away from each area of the EUT determined to be a source of emissions at the specified measurement distance, while keeping the measurement antenna aimed at the source of emissions at each frequency of significant emissions, with polarization oriented for maximum response. The measurement antenna may have to be higher or lower than the EUT, depending on the radiation pattern of the emission and staying aimed at the emission source for receiving the maximum signal. Page 41 of 63 Report No.: HK2511266344-E The final measurement antenna elevation shall be that which maximizes the emissions. The measurement antenna elevation for maximum emissions shall be restricted to a range of heights of from 1 m to 4 m above the ground or reference ground plane. 3. Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level 4. For measurement below 1GHz, If the emission level of the EUT measured by the peak detector is 3 dB lower than the applicable limit, the peak emission level will be reported. Otherwise, the emission measurement will be repeated using the quasi-peak detector and reported. 5. Use the following spectrum analyzer settings: (1) Span shall wide enough to fully capture the emission being measured; (2) Set RBW=120 kHz for f < 1 GHz; VBW ≥RBW; Sweep = auto; Detector function = peak; Trace = max hold; (3) Set RBW = 1 MHz, VBW= 3MHz for f 1 GHz for peak measurement. 6.For average measurement: VBW = 10 Hz, when duty cycle is no less than 98 percent.VBW ≥ 1/T, when duty cycle is less than 98 percent where T is the minimum transmission duration over which the transmitter is on and is transmitting at its maximum power control level for the tested mode of operation. Test Results: PASS Page 42 of 63 Report No.: HK2511266344-E Test Instruments Radiated Emission Test Site (966) Name of Equipment Manufacturer Model Serial Number Calibration Date Calibration Due Spectrum analyzer Agilent N9020A HKE-025 Feb. 19, 2025 Feb. 18, 2026 Spectrum analyzer Agilent N9020A HKE-117 Feb. 19, 2025 Feb. 18, 2026 Spectrum analyzer R&S FSV3044 HKE-126 Feb. 19, 2025 Feb. 18, 2026 Preamplifier EMCI EMC051845SHKE-006 Feb. 19, 2025 Feb. 18, 2026 Preamplifier Schwarzbeck BBV 9743 HKE-016 Feb. 19, 2025 Feb. 18, 2026 Preamplifier A.H. Systems SAS-574 HKE-182 Feb. 19, 2025 Feb. 18, 2026 6dB Attenuator Pasternack 6db HKE-184 Feb. 19, 2025 Feb. 18, 2026 EMI Test Receiver Rohde & Schwarz ESR-7 HKE-010 Feb. 19, 2025 Feb. 18, 2026 Broadband Antenna Schwarzbeck VULB9168 HKE-167 Feb. 21, 2024 Feb. 20, 2026 Loop Antenna COM-POWER AL-130R HKE-014 Feb. 21, 2024 Feb. 20, 2026 Horn Antenna Schewarzbeck 9120D HKE-013 Feb. 21, 2024 Feb. 20, 2026 EMI Test Software Tonscend JS32-RE 5.0.0HKE-082 / / RSE Test Software Tonscend JS36-RSE 5.0.0 HKE-184 / / Page 43 of 63 Report No.: HK2511266344-E Test Data All the test modes completed for test. Only the worst result was reported as below: Below 1GHz Test Results: Antenna polarity: Horizontal Remark: Factor = Cable loss + Antenna factor + Attenuator – Preamplifier; Level = Reading + Factor; Margin = Limit – Level Page 44 of 63 Report No.: HK2511266344-E Antenna polarity: Vertical Remark: Factor = Cable loss + Antenna factor + Attenuator – Preamplifier; Level = Reading + Factor; Margin = Limit – Level Harmonics and Spurious Emissions Frequency Range (9kHz-30MHz) Frequency (MHz) Level@3m (dBμV/m) Limit@3m (dBμV/m) -- -- -- -- -- -- -- -- -- -- -- -- Note:1. Emission Level=Reading+ Cable loss-Antenna factor-Amp factor. 2. The emission levels are 20 dB below the limit value, which are not reported. It is deemed to comply with the requirement. Page 45 of 63 Report No.: HK2511266344-E Above 1GHz Radiated Emission Test Operation Mode: 802.11b Mode with 2.4G TX CH Low Horizontal: FrequencyReading ResultFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 482451.05-3.6447.417426.59peak 482444.84-3.6441.25412.8AVG 723650.22-0.9549.277424.73peak 723642.04-0.9541.095412.91AVG Remark: Factor = Cable loss + Antenna factor + Attenuator - Preamplifier; Level = Reading + Factor; Margin = Limit - Level. Detector Type Vertical: FrequencyReading ResultFactorEmission LevelLimitsMargin (MHz)(dBμV)(dB)(dBμV/m)(dBμV/m)(dB) 482451.24-3.6447.67426.4peak 482443.04-3.6439.45414.6AVG 723650.41-0.9549.467424.54peak 723642.6-0.9541.655412.35AV…

Text truncated - open the document above for the full version.

Test Model: D2509 Radiated Emission AC Conducted Emission RF Conducted Emission
