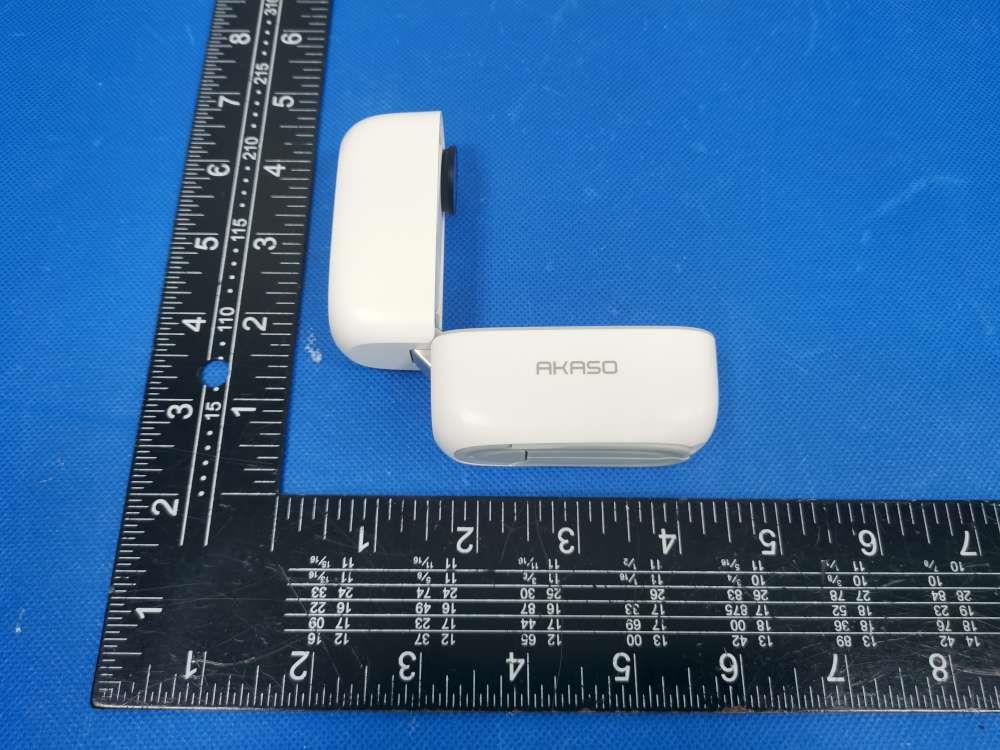

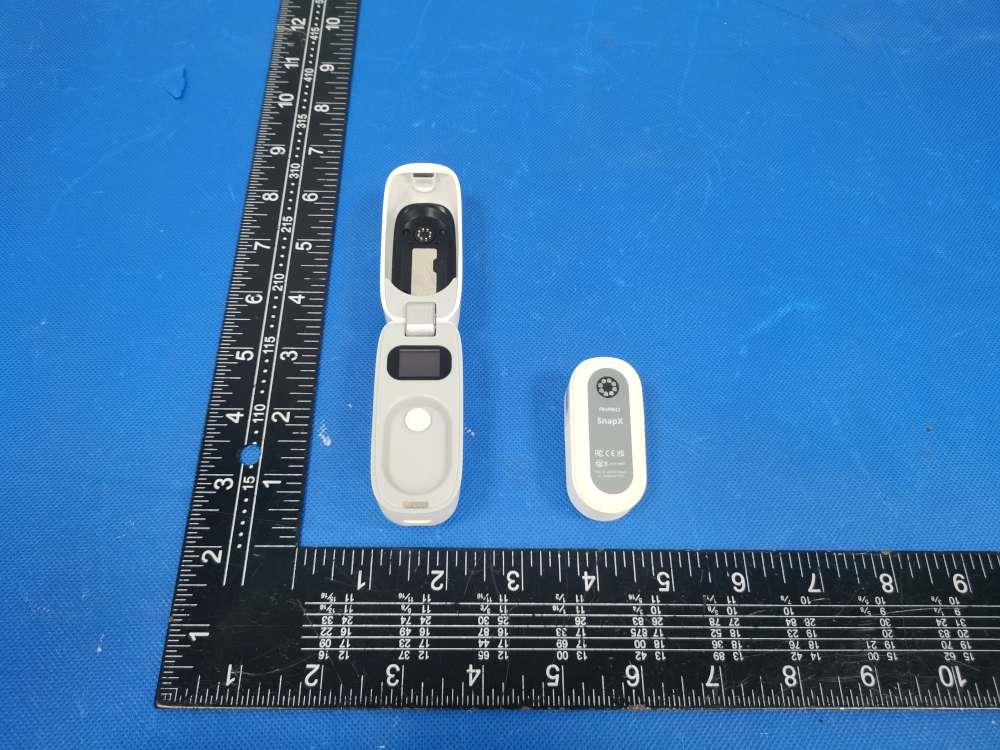

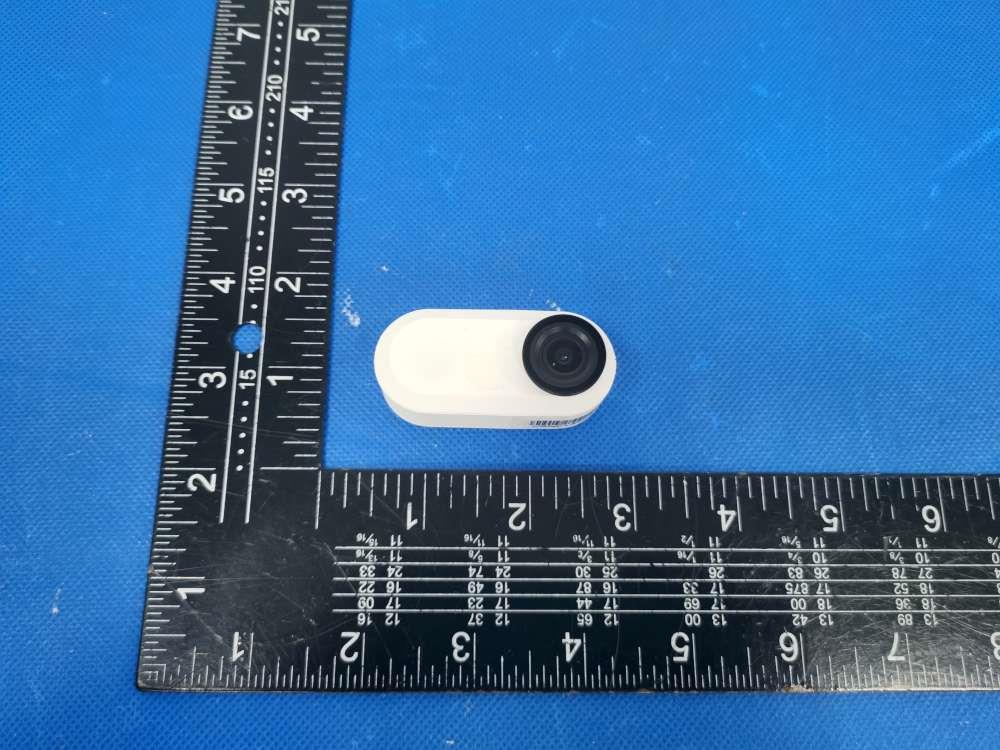

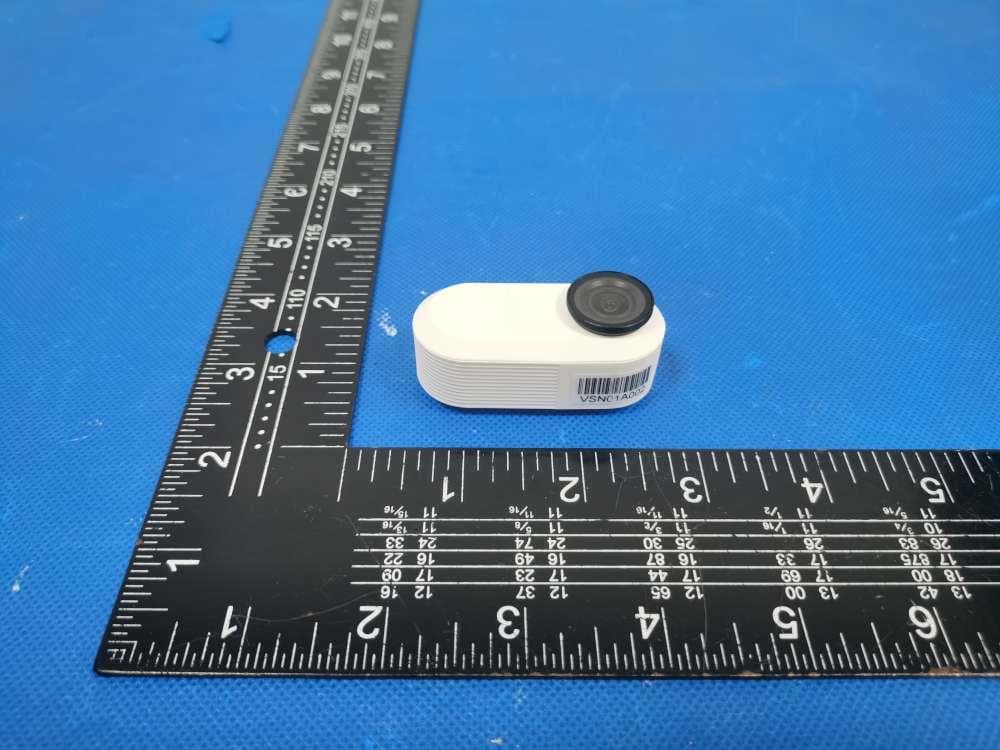

2BCMG-SNAPXAction camera

SnapX CONTENTS Important Notes 1. Specifications 2. First Use 3. What’s in the Box 4. Your SnapX Action Camera 5. Getting Started 6. Video 7. Photo 8. System Settings 9. Data Transmission 10. APP Download & Wifi Connection 11. Mount Your SnapX Action Camera 12. Troubleshooting 13. Battery Maintenance 14. Precautions 15. Contact Us Important Notes Congratulations on your new AKASO SnapX Action Camera! You must be excited to use your SnapX, however, please spend time reading this manual before using it. You need to get to know all its features now so as to get the most out of it. It’s of great importance to regularly update the camera’s firmware. To do this, you can connect your camera to the AKASO GO app via the camera’s Wifi, and then download and install the newest firmware. 1. This camera is a precise product. Please protect it from falling or colliding in case it’s badly damaged. 2.Please place this camera away from machines or matters rich in strong magnetic fields or power, such as motors or magnets. 3.Please make sure the camera works at its operating temperature. Do not leave it exposed to high or low-temperature areas for a long period of time in case its service life is shortened. 4. The SnapX action camera is waterproof, though, please make sure all its covers are tightly closed before diving and there is no foreign matter around the camera lens. 5.After each use underwater, please ensure to dry the camera with a soft cloth. And allow it to air dry completely before putting it back into the charge case. 6.Please do not charge the battery for a long period of time. Keep it away from kids and pets in case of any incident. 7. Please store this camera away from any sharp metals and wet compartments. Precautions for Using Accessories 1.This camera and its accessories contain small objects, please be cautious of children accidentally swallowing or inhaling them. 2.Accessories come with a strap, keep them out of reach of children. 3.It is not recommended to use any accessories in high-intensity sports scenes as there may be a risk of detachment for the camera or the accessories. 4. People wearing pacemakers should not use magnetic pendant attachments. 1. Specifications B rand: AKASO Name: Action camera Model: SnapX Size: 74*56*30mm Net weight: 112g Memory: Built-in 32GB Material: Plastic, silicone, glass Battery Capacity (Camera): 450mAh Battery Capacity ( Charge Case) : 1400mAh Battery Lif e (Camera): 60mins of 4K video recording B attery Life (Charge Case): 120mins of 2.2K video recording W ireless network: BT2.4G+Wifi 2.4GHz Waterproof grade of the camera: IPX8 Working Temperature: -5°C~45°C (23°F~113°F） External Microphone: Not Support Extended Memory: Support 2. First Use Please fully charge the SnapX camera before first use as it may come low battery. Charge the Charging Case To charge the charging case, connect it to a USB adapter or a computer with the Type-C charging cable. When it’s fully charged, please unplug the cable. Charge the Camera To charge the camera, just put it into the charging case. Remove the Camera To take camera out of the charging case, please place your fingers on the top of the camera lens ring and push outward to remove the camera. When removing the camera, please handle it with care and be cautious of dropping it. Power on There are two ways to turn on the SnapX action camera. Method 1: After opening the charging case, simply press the OK button on the case. The camera will be turned on. Method 2: Simply press and hold the button on the camera for 2 seconds. The camera will be turned on. 3. What’s in the Box 4. Your SnapX Action Camera The SnapX action camera comes with the camera and the charging case. Camera Charging Case 5. Getting Started 5.1. Button Operation Instructions You can push the five-way button towards left and right, or push it upwards and downwards to access different settings menus. ※When prompt indicating “Press the key to connect” pops up on the screen of the charging case, you can push the five-way button in any direction to connect the camera. Buttons Operation Functions Button of the Charging Case Push the button upwards When the camera is on the settings screen, push this button upwards to access the previous settings option. Button of the Charging Case Push the button downwards When the camera is on the settings screen, push this button downwards to access the next settings option. Button of the Charging Case Push the button towards left When the camera is on the main menu screen, push this button towards left to switch modes. Options: High-Resolution Video, Night Vision, High-Resolution Photo, Photo, Video, Settings, Loop Recording When the camera is on the settings screen under the mode menu, p ush this button towards left to return to the main menu screen. When the camera is on the settings screen, push this button towards left to switch settings options. Button of the Charging Case Push the button towards right When the camera is on the main menu screen, push this button towards right to switch modes. Options: High-Resolution Video, Night Vision, High-Resolution Photo, Photo Settings, Customized Video Modes, Settings, Loop Recording When the camera is on the settings screen under the mode menu, push this button towards right to return to the main menu screen. When the camera is on the settings menu screen, push this button towards right to switch settings options. Button of the Charging Case Push the button vertically When the camera is on the main menu screen, push this button vertically to take a photo or record video. When the camera is on the main menu screen, push this button vertically to access the system settings screen. When the camera is on the settings screen under the mode menu, push this button vertically to confirm the change and return to the upper menu. Button of the Camera Push and hold Turn the camera on or off. Push Take a photo or record video. 5.2. Power on / off Power on or off by using the charging cas…

Text truncated - open the document above for the full version.

1/1 US Agent for Service of Process LETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: AKASO TECH LLC FRN: 0028240877 Contact Name: Sindy Chan Address: 4907 INTERNATIONAL BLVD, STE 108, FREDERICK, MD 21703 Telephone No: 301-670-7335 Email: [email protected] Applicant: Company name: Shenzhen CNEST Electronic technology Co., Ltd. Grantee code: 2BCMG FCC ID: 2BCMG-SNAPX FRN: 0034161513 Contact Name: lijunfu Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China Telephone: 18718699710 Fax: 18718699710 E-mail: [email protected] [Shenzhen CNEST Electronic technology Co., Ltd. ] certifies that, as of the date of this filing of the application with the TCB, [AKASO TECH LLC] is our designated US agent for service of process for the above referenced FCC ID. [Shenzhen CNEST Electronic technology Co., Ltd. ] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [AKASO TECH LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicant is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. Date: 2023/11/06 Applicant’s Name: lijunfu US Agent’s Name: Sindy Chan Title: Manager Title: Manager Signature Signature

C5266091_X24_Ed.2 1/1 “Attestation Statements” TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 The Commission adopted rules that prohibit equipment authorization for “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List 1 , which is periodically updated. See the Covered List for more details. This Attestation Statement is to confirm that we follow the Section 2.911(d)(5)(i)-(ii) Applicant Company name: Shenzhen CNEST Electronic technology Co., Ltd. Grantee code: 2BCMG FCC ID: 2BCMG-SNAPX FRN: 0034161513 Contact Name: lijunfu Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China Telephone: 18718699710 Fax: 18718699710 E-mail: [email protected] i. [Shenzhen CNEST Electronic technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. The applicant must sign this certification. ii. [Shenzhen CNEST Electronic technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] (as a specifically named entity or any of its subsidiaries or affiliates) identified on the Covered List as an entity producing “covered” equipment. The applicant must sign this certification. [Shenzhen CNEST Electronic technology Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [ is not] identified on the Covered List as an entity producing “covered”equipment . Date: 2023/11/06 Applicant’s Name: lijunfu Title: Manager Signature 1 The Commission’s Covered List is published by the Public Safety and Homeland Security Bureau and posted on the Commission’s website. This Covered List, which is periodically updated, identifies particular equipment, produced by particular entities, that constitutes “covered” equipment. https://www.fcc.gov/supplychain/coveredlist

Shenzhen CNEST Electronic technology Co., Ltd. Product Similarity Declaration Company: Shenzhen CNEST Electronic technology Co., Ltd. Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China Model Number: SnapX V50 Pro SE, SNH8, SnapX-2, Keychain3, Sight-100, Seemor-200, Sight-300, Seemor-400 FCC Identifier: 2BCMG-SNAPX We (Shenzhen CNEST Electronic technology Co., Ltd.) hereby state that all the models are electrical identical including the same software parameter and hardware design (i.e., circuit design, PCB Layout, RF module/circuit, antenna type(s) and antenna location, components on PCB, etc.,), same mechanical structure and design (including product enclosure, materials, etc.,), the only difference is the model name and appearance color. Client’s signature Name: lijunfu Date: 2023-11-06 Title: Manager Signature of applicant:

Shenzhen CNEST Electronic technology Co., Ltd. 1/1 Letter of Authorization Company: Shenzhen CNEST Electronic technology Co., Ltd. Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China Model Number: SnapX V50 Pro SE, SNH8, SnapX-2, Keychain3, Sight-100, Seemor-200, Sight-300, Seemor-400 FCC Identifier: 2BCMG-SNAPX We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: lijunfu Date: 2023-11-06 Title: Manager Signature of applicant:

Shenzhen CNEST Electronic technology Co., Ltd. 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-11-06 Subject: Request for Confidentiality FCC ID: 2BCMG-SNAPX To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: lijunfu Title: Manager

Size: 20*16mm M/N: SnapX FCC ID: 2BCMG-SNAPX IC: 25759-SNAPX Label location

Wifi ANT BT ANT

FCC ID: 2BCMG-SNAPX RF Exposure Evaluation According to KDB 447498 D01v06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, For wifi Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit 5.87 3.9 2412 5 1.2 3.0 For BT Field strength (dBuV/m) EIRP (dBm) Max tune-up (mW) Frequency (MHz) Min. distance(mm) Calc. thresholds limit 84.63 -10.53 0.09 2480 5 0.028 3.0 For Simultaneous transmitting, 1): The sum of the ratios of the spatially averaged results to the applicable frequency dependent MPE limits = 1.2/3+0.028/3 = 0.409< 1 Since the sum of the MPE ratios for all simultaneously transmitting antennas incorporated in the device is ≤ 1.0, the EUT is considered to satisfy MPE compliance for simultaneous transmission operations. So a SAR test is not required

UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Model Name: 2.4GANT SHENZHEN BOBANGZHINENG CO.,LIMTIED UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Tested Products.• Antenna 1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Coordinate System Reference: Antenna 1 (mm) . UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz Co-cross polarization field (dBi) Solid line: vertical polarizationDash line: horizontal polarization Total field (dBi) 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30 -35 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Return Loss: Antenna 1 BW(-10dB) ¡ 13.48% 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) -16-14-12-10 -8-6-4-2 R e t u r n L o s s ( d B ) UCI CENTER FOR RF DESI GN AND CHARACTERIZATION Measurements summary Frequency (GHz) Plane Return Loss (dB) Polarization Gain max. (dBi) θ for Gain max. φ for Gain max. Antenna 1 2.402 XZ -10.90 Vertical -7.8 290 2.402 XZ -10.90 Horizontal 0.786 182 2.402 YZ -10.90 Vertical 1.21 226 2.402 YZ -10.90 Horizontal -7.75 10 2.402 XY -10.90 Vertical -15.4 20 2.402 XY -10.90 Horizontal 0.93 180 2.441 XZ -12.20 Vertical -7.36 318 2.441 XZ -12.20 Horizontal 1.32 180 2.441 YZ -12.20 Vertical 0.981 204 2.441 YZ -12.20 Horizontal -8.23 24 2.441 XY -12.20 Vertical -14.1 -14 2.441 XY -12.20 Horizontal 1.74 180 2.48 XZ -13.80 Vertical -7.95 312 2.48 XZ -13.80 Horizontal 1.81 186 2.48 YZ -13.80 Vertical 0.204 214 2.48 YZ -13.80 Horizontal -8.38 8 2.48 XY -13.80 Vertical -15.8 12 2.48 XY -13.80 Horizontal 1.87 180

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 56 FCC Part 15C Test Report FCC ID: 2BCMG-SNAPX Applicant: Shenzhen CNEST Electronic technology Co., Ltd. Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China Manufacturer: Shenzhen CNEST Electronic technology Co., Ltd. Address: Room 701, Building 3, Shenzhen New Generation Industrial Park, No. 136, Zhongkang Road, Meidu Community, Meilin Street, Futian District, Shenzhen, China EUT: Action camera Trade Mark: AKASO Model Number: SnapX V50 Pro SE, SNH8, SnapX-2, Keychain3, Sight-100, Seemor-200, Sight-300, Seemor-400 Date of Receipt: Sep. 22, 2023 Test Date: Sep. 22, 2023 - Oct. 11, 2023 Date of Report: Oct. 11, 2023 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2013 Test Result: Pass Report Number: DL-20231011039E Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 56 Table of Contents Page 1 . SUMMARY OF TEST RESULTS 4 1.1 MEASUREMENT UNCERTAINTY 4 2 . GENERAL INFORMATION 5 2.1 GENERAL DESCRIPTION OF EUT 5 2.2 DESCRIPTION OF TEST MODES 6 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6 EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3 . EMC EMISSION TEST 9 3.1 CONDUCTED EMISSION MEASUREMENT 9 3.1.1 POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2 TEST PROCEDURE 9 3.1.3 DEVIATION FROM TEST STANDARD 9 3.1.4 TEST SETUP 10 3.1.5 EUT OPERATING CONDITIONS 10 3.1.6 TEST RESULTS 10 3.2 RADIATED EMISSION MEASUREMENT 13 3.2.1 RADIATED EMISSION LIMITS 13 3.2.2 TEST PROCEDURE 14 3.2.3 DEVIATION FROM TEST STANDARD 14 3.2.4 TEST SETUP 14 3.2.5 EUT OPERATING CONDITIONS 15 3.2.6 TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7 TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8 TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 23 3.3.1 TEST REQUIREMENT: 23 3.3.2 TEST PROCEDURE 23 3.3.3 DEVIATION FROM TEST STANDARD 23 3.3.4 TEST SETUP 24 3.3.5 EUT OPERATING CONDITIONS 24 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 29 3.4.1 APPLICABLE STANDARD 29 3.4.2 TEST PROCEDURE 29 3.4.3 DEVIATION FROM STANDARD 29 3.4.4 TEST SETUP 29 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 56 Table of Contents Page 3.4.5 EUT OPERATION CONDITIONS 29 3.4.6 TEST RESULTS 29 4 . AVERAGE OUTPUT POWER 33 4.1 APPLIED PROCEDURES / LIMIT 33 4.1.1 TEST PROCEDURE 33 4.1.2 DEVIATION FROM STANDARD 33 4.1.3 TEST SETUP 33 4.1.4 EUT OPERATION CONDITIONS 33 4.1.5 TEST RESULTS 34 5 . POWER SPECTRAL DENSITY TEST 37 5.1 APPLIED PROCEDURES / LIMIT 37 5.1.1 TEST PROCEDURE 37 5.1.2 DEVIATION FROM STANDARD 37 5.1.3 TEST SETUP 37 5.1.4 EUT OPERATION CONDITIONS 37 5.1.5 TEST RESULTS 38 6 . 6DB BANDWIDTH TEST 41 6.1 APPLIED PROCEDURES / LIMIT 41 6.1.1 TEST PROCEDURE 41 6.1.2 DEVIATION FROM STANDARD 41 6.1.3 TEST SETUP 41 6.1.4 EUT OPERATION CONDITIONS 41 6.1.5 TEST RESULTS 42 7 . ANTENNA REQUIREMENT 45 7.1 STANDARD REQUIREMENT 45 7.2 EUT ANTENNA 45 8 . TEST SEUUP PHOTO 46 9 . EUT PHOTO 48 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 56 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.205, 15.209, 15.247(d) Radiated Spurious Emission PASS 15.205, 15.247(d) Band Edge Emission& Conducted Spurious Emissions PASS 15.247(b) Average Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report (2) Test Facility: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Building C, Shuanghuan, No.8, Baoqing Road, Baolong Industrial Zone, Baolong Street, Longgang District, Shenzhen, Guangdong, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 56 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Action camera Trademark AKASO Model No.: SnapX V50 Pro SE, SNH8, SnapX-2, Keychain3, Sight-100, Seemor-200, Sight-300, Seemor-400 Model Difference The product's different for model number and appearance color. Operation Frequency: 2412~2462 MHz for 802.11b/g/nHT20 2422~2452 MHz for 802.11nHT40 Channel numbers: 11 Channels for 802.11b/g/n(HT20) 7 channels for 802.11n…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 41 of 56 6. 6DB BANDWIDTH TEST 6.1 APPLIED PROCEDURES / LIMIT FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range(MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (6dB bandwidth) 2400-2483.5 PASS 6.1.1 TEST PROCEDURE 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 20 dB relative to the maximum level measured in the fundamental emission. 6.1.2 DEVIATION FROM STANDARD No deviation. 6.1.3 TEST SETUP 6.1.4 EUT OPERATION CONDITIONS The EUT tested system was configured as the statements of 2.3 Unless otherwise a special operating condition is specified in the follows during the testing. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 42 of 56 6.1.5 TEST RESULTS Test Channel 6dB Bandwidth (MHz) Limit (MHz) Result 802.11b Low 8.06 0.5 Pass Middle 7.38 0.5 Pass High 7.24 0.5 Pass 802.11g Low 15.77 0.5 Pass Middle 15.07 0.5 Pass High 15.02 0.5 Pass 802.11n HT20 Low 12.53 0.5 Pass Middle 15.01 0.5 Pass High 12.64 0.5 Pass 802.11n HT40 Low 30.03 0.5 Pass Middle 33.83 0.5 Pass High 35.04 0.5 Pass Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 43 of 56 802.11b 802.11g 2412MHz 2412MHz 2437MHz 2437MHz 2462MHz 2462MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 44 of 56 802.11n HT20 802.11n HT40 2412MHz 2422MHz 2437MHz 2437MHz 2462MHz 2452MHz Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 45 of 56 7. ANTENNA REQUIREMENT 7.1 STANDARD REQUIREMENT 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. 7.2 EUT ANTENNA The EUT antenna is Internal Antenna, It comply with the standard requirement. Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 46 of 56 8. TEST SEUUP PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 47 of 56 Conducted Measurement Photos Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 48 of 56 9. EUT PHOTO Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 49 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 50 of 56 Shenzhen DL Testing Technology Co., Ltd. Report No.: DL-20231011039E Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: ser…

Text truncated - open the document above for the full version.
