2BCMY-TVE1327XCreator tablet

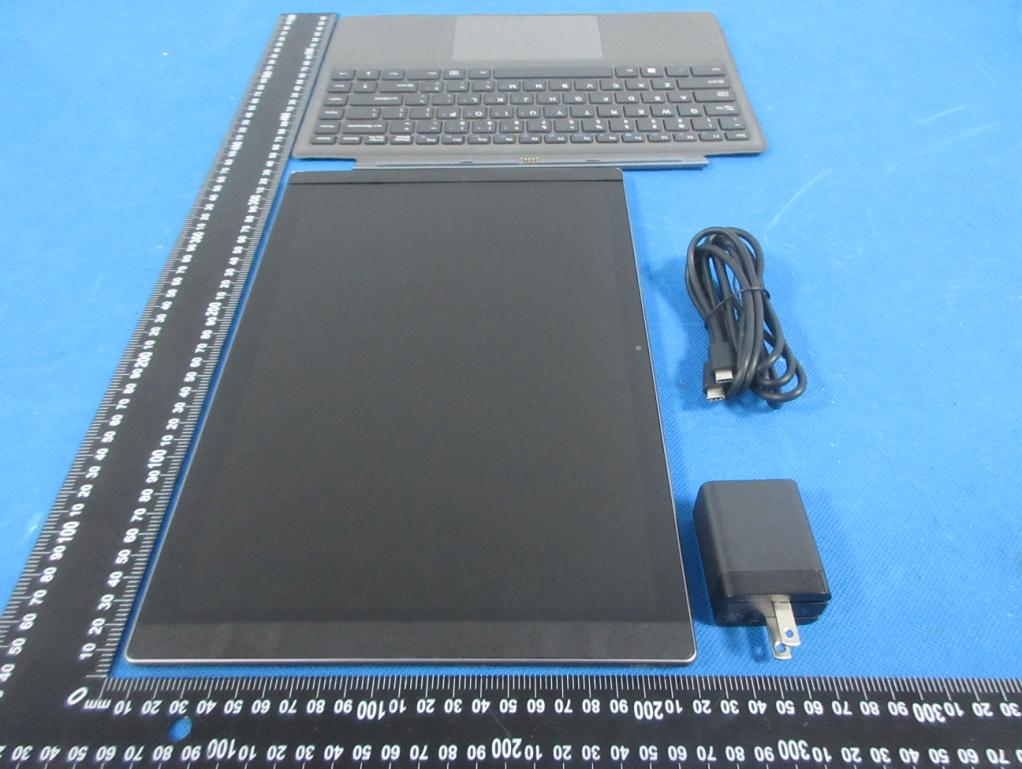

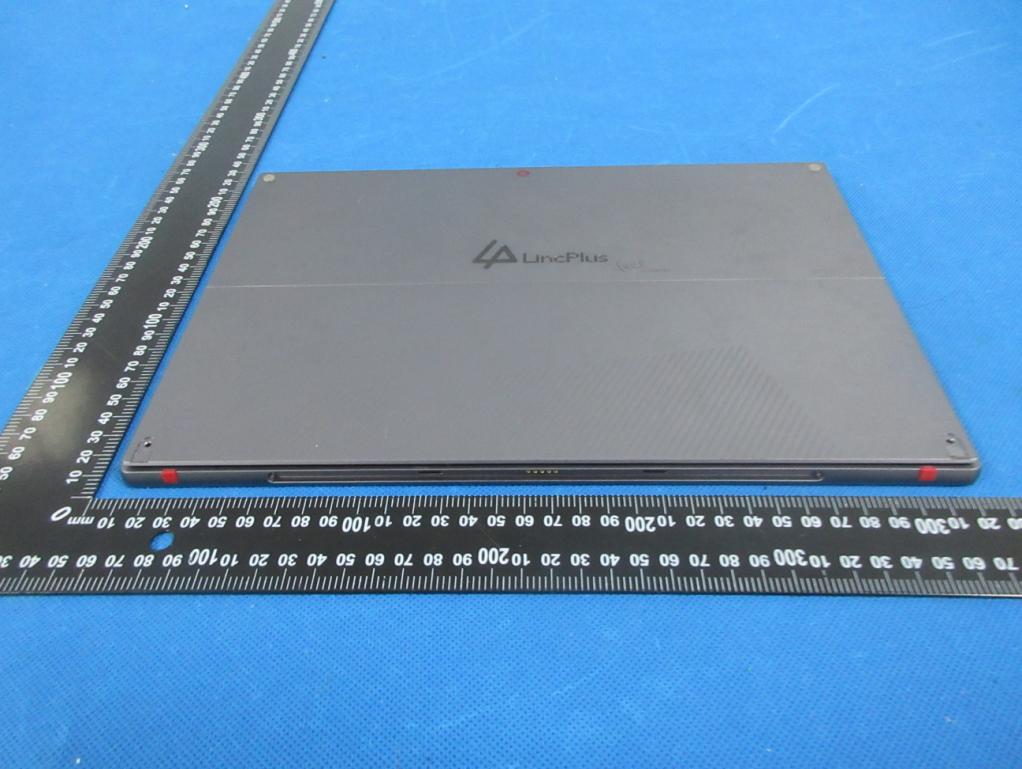

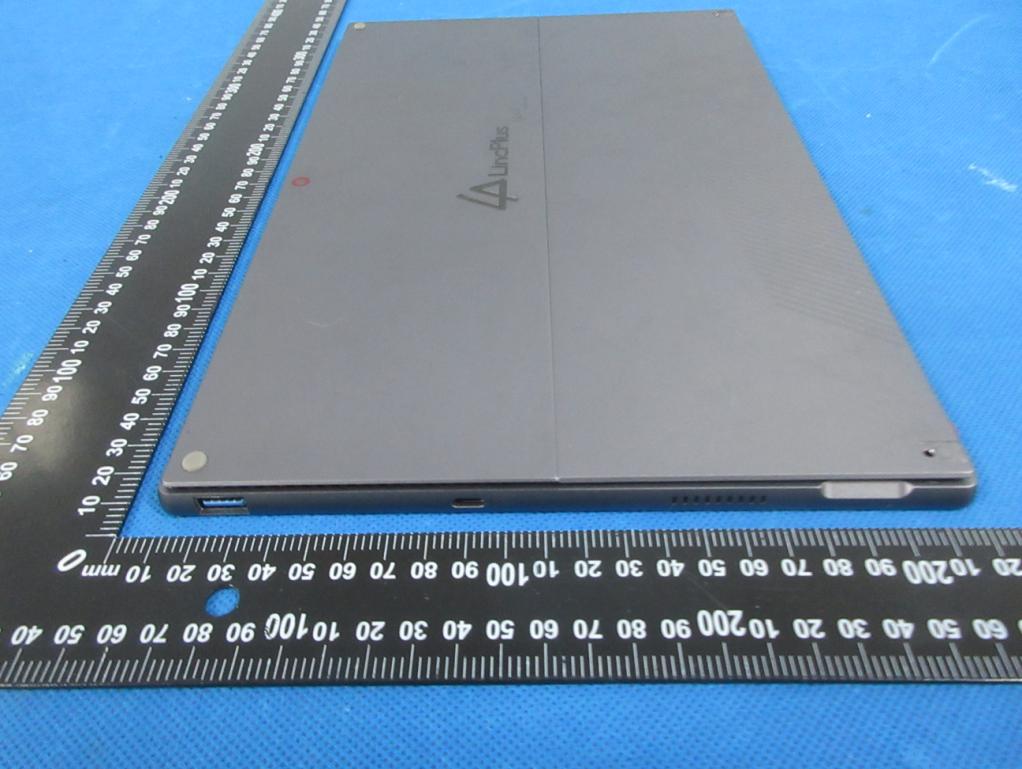

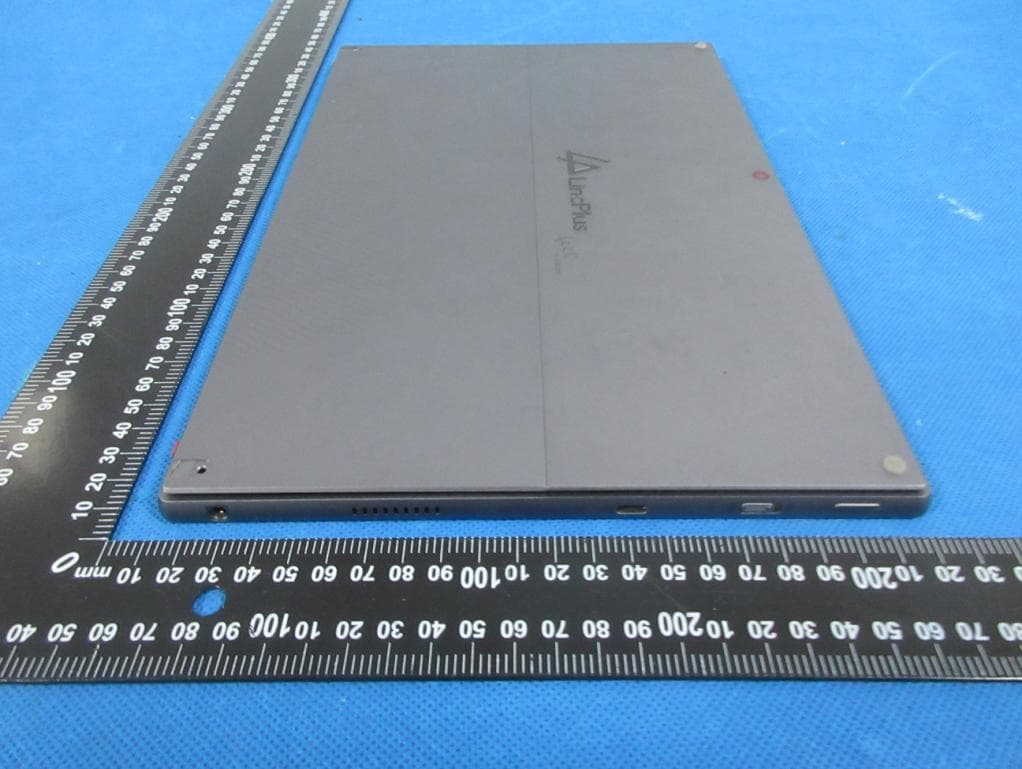

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10

丝印PT C 丝印苹果灰 （Apple iPad Pro） 1 0 . 1 0 m m 26.00 mm 5 . 7 8 m m 94.60 mm 189.00 mm 8 6 . 0 0 m m 218.32 mm 6 0 . 5 6 m m 45.64 mm 45.64 mm 所有侧面功能字符 镭雕 PT C 条纹镭雕 PT C 字符镭雕 PT C 字符镭雕 PT C 字符镭雕 PT C 所有侧面功能字符 镭雕 PT C 所有侧面功能字符 镭雕 项目 制图 审核 日期 TVE1327U 杨云峰秦振宇 2023.10.19 版本号 20231019-1 图纸类别 丝印 PT 7635C 摄像头镜片 C:透明 M:亚克力 F:底面丝印 131.01 mm 131.01 mm 147.29 mm 147.29 mm 149.33 mm 149.33 mm 148.30 mm 148.30 mm 152.04 mm 152.04 mm 12.47 mm 19.96 mm 54.54 mm 21.98 mm 17.90 mm 1 0 . 5 8 m m 1 . 5 7 m m 1 7 . 0 5 m m 4 . 0 0 m m 1 . 5 1 m m 25.00 mm 8 . 0 0 m m 1 2 . 4 8 m m 65.57 mm FCC ID2BCMY-TVE1327X This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: ( 1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15.21 Information to the user.

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12 WIFI ANT2 Photo 13 Photo 14 BT / WIFI ANT1

Page 1 of 90 Report No.: S23100800101001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Creator tablet Trademark： Model Name： LincStudioS1 Family Model： N/A FCC ID： 2BCMY-TVE1327X Report No.： S23100800101001 Prepared for Techvision Intelligent Technology Co., Ltd. 12/F, A4, Nanshan Zhiyuan, 1001 Xueyuan Avenue, Nanshan Dist., Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 90 Report No.: S23100800101001 TEST RESULT CERTIFICATION Applicant’s name .................. : Techvision Intelligent Technology Co., Ltd. Address .................................. : 12/F, A4, Nanshan Zhiyuan, 1001 Xueyuan Avenue, Nanshan Dist., Shenzhen, China Manufacturer's Name ........... : Techvision Intelligent Technology Co., Ltd Address .................................. : 12/F, A4, Nanshan Zhiyuan, 1001 Xueyuan Avenue, Nanshan Dist., Shenzhen, China Product description Product name ......................... : Creator tablet Trademark ............................ : Model Name ......................... : LincStudioS1 Family Model .......................... : N/A Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. S231008001001 Date of Test Date (s) of performance of tests ............. : Oct. 28, 2023 ~ Nov. 03, 2023 Date of Issue .......................................... : Dec. 05, 2023 Test Result .............................................. : Pass Prepared By : Reviewed By : Approved By : Jack Li (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 90 Report No.: S23100800101001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Dec. 05, 2023 Jack Li Page 4 of 90 Report No.: S23100800101001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 9 1.5. Ambient Condition ................................................................................... 9 2. SAR Measurement System ................................................................................. 10 2.1. SATIMO SAR Measurement Set-up Diagram .......................................... 10 2.2. Robot ..................................................................................................... 11 2.3. E-Field Probe .......................................................................................... 12 2.3.1. E-Field Probe Calibration ................................................................. 12 2.4. SAM phantoms ...................................................................................... 13 2.4.1. Technical Data .................................................................................. 14 2.5. Device Holder ........................................................................................ 15 2.6. Test Equipment List ................................................................................ 16 3. SAR Measurement Procedures .......................................................................... 18 3.1. Power Reference ................................................................................... 18 3.2. Area scan & Zoom scan .......................................................................... 18 3.3. Description of interpolation/extrapolation scheme .............................. 20 3.4. Volumetric Scan ..................................................................................... 20 3.5. Power Drift ............................................................................................ 20 4. System Verification Procedure .......................................................................... 21 4.1. Tissue Verification ................................................................................. 21 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 22 4.2. System Verification Procedure .............................................................. 23 4.2.1. System Verification Results .............................................................. 24 5. SAR Measurement variability and uncertainty .................................................. 25 5.1. SAR measurement variability ................................................................. 25 5.2. SAR measurement uncertainty ....…

Text truncated - open the document above for the full version.

Page 80 of 90 Report No.: S23100800101001 Page 81 of 90 Report No.: S23100800101001 Page 82 of 90 Report No.: S23100800101001 Page 83 of 90 Report No.: S23100800101001 Page 84 of 90 Report No.: S23100800101001 Page 85 of 90 Report No.: S23100800101001 Page 86 of 90 Report No.: S23100800101001 Page 87 of 90 Report No.: S23100800101001 Page 88 of 90 Report No.: S23100800101001 <Justification of the extended calibration> If dipoles are verified in return loss (<-20dB, within 20% of prior calibration for below 3GHz, and <-8dB, within 20% of prior calibration for 5GHz to 6GHz), and in impedance (within 5 ohm of prior calibration), the annual calibration is not necessary and the calibration interval can be extended. <Head 2450MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -23.18 - 56.30 - Mar. 01, 2021 -23.39 0.91 56.342 0.042 Feb. 28, 2022 -26.296 13.44 54.99 1.310 Feb. 20, 2023 The return loss is <-20dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 89 of 90 Report No.: S23100800101001 <Head 5200MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -9.15 - 21.17 - Mar. 01, 2021 -9.1819 0.35 21.191 0.021 Feb. 28, 2022 -8.317 9.10 25.673 4.503 Feb. 20, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data Page 90 of 90 Report No.: S23100800101001 <Head 5800MHz> Return Loss (dB) Delta (%) Impedance Delta(ohm) Date of Measurement -14.30 - 54.74 - Mar. 01, 2021 -14.349 0.34 55.115 0.375 Feb. 28, 2022 -12.808 10.43 55.289 0.549 Feb. 27, 2023 The return loss is <-8dB, within 20% of prior calibration; the impedance is within 5 ohm of prior calibration. Therefore the verification result should support extended calibration. Dipole Verification Data _______________________________________END _____________________________________

Report No.: S23092105805001 Version.1.3 Page 1 of 95 RADIO TEST REPORT FCC ID: 2BCMY-TVE1327X Product: Creator tablet Trade Mark: Model No.: LincStudioS1 Family Model: N/A Report No.: S23092105805001 Issue Date: Nov 25. 2023 Prepared for Techvision Intelligent Technology Co., Ltd. 12/F, A4, Nanshan Zhiyuan, 1001 Xueyuan Avenue, Nanshan Dist., Shenzhen, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23092105805001 Version.1.3 Page 2 of 95 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 16 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 25 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 26 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 27 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 29 7.7 PEAK OUTPUT POWER .............................................................................................................................. 30 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 31 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 32 7.10 ANTENNA APPLICATION .......................................................................................................................... 33 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 34 8 TEST RESULTS ................................................................................................................................................... 35 8.1 DWELL TIME ................................................................................................................................................... 35 8.2 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 45 8.3 -20DB BANDWIDTH ........................................................................................................................................ 51 8.4 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 57 8.5 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 63 8.6 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 69 8.7 BAND EDGE .................................................................................................................................................... 72 8.8 BAND EDGE(HOPPING) ................................................................................................................................... 79 8.9 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 86 Report No.: S23092105805001 Version.1.3 Page 3 of 95 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : Techvision Intelligent Technology Co., Ltd. Address ....................................... : 12/F, A4, Nanshan Zhiyuan, 1001 Xueyuan Avenue, Nanshan Dist., Shenzhen, China Manufacturer's Name ................. : Techvision Intellige…

Text truncated - open the document above for the full version.

Report No.: S23092105805001 Version.1.3 Page 76 of 95 Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 2-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23092105805001 Version.1.3 Page 77 of 95 Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2402MHz Ant1 No-Hopping Emission Report No.: S23092105805001 Version.1.3 Page 78 of 95 Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Ref Band Edge NVNT 3-DH5 2480MHz Ant1 No-Hopping Emission Report No.: S23092105805001 Version.1.3 Page 79 of 95 8.8 BAND EDGE(HOPPING) Condition Mode Frequency (MHz) Antenna Hopping Mode Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 Hopping -53.87 -20 Pass NVNT 1-DH5 2480 Ant1 Hopping -55.03 -20 Pass NVNT 2-DH5 2402 Ant1 Hopping -52.14 -20 Pass NVNT 2-DH5 2480 Ant1 Hopping -54.11 -20 Pass NVNT 3-DH5 2402 Ant1 Hopping -53.4 -20 Pass NVNT 3-DH5 2480 Ant1 Hopping -55.38 -20 Pass Report No.: S23092105805001 Version.1.3 Page 80 of 95 Test Graphs Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2402MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 81 of 95 Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 1-DH5 2480MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 82 of 95 Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2402MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 83 of 95 Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 2-DH5 2480MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 84 of 95 Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2402MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 85 of 95 Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Ref Band Edge(Hopping) NVNT 3-DH5 2480MHz Ant1 Hopping Emission Report No.: S23092105805001 Version.1.3 Page 86 of 95 8.9 CONDUCTED RF SPURIOUS EMISSION Condition Mode Frequency (MHz) Antenna Max Value (dBc) Limit (dBc) Verdict NVNT 1-DH5 2402 Ant1 -57.92 -20 Pass NVNT 1-DH5 2441 Ant1 -56 -20 Pass NVNT 1-DH5 2480 Ant1 -57.52 -20 Pass NVNT 2-DH5 2402 Ant1 -52.56 -20 Pass NVNT 2-DH5 2441 Ant1 -54.65 -20 Pass NVNT 2-DH5 2480 Ant1 -54.58 -20 Pass NVNT 3-DH5 2402 Ant1 -54.08 -20 Pass NVNT 3-DH5 2441 Ant1 -53.43 -20 Pass NVNT 3-DH5 2480 Ant1 -53.41 -20 Pass Report No.: S23092105805001 Version.1.3 Page 87 of 95 Test Graphs Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2402MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 88 of 95 Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2441MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 89 of 95 Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 1-DH5 2480MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 90 of 95 Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2402MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 91 of 95 Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2441MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 92 of 95 Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 2-DH5 2480MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 93 of 95 Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2402MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 94 of 95 Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2441MHz Ant1 Emission Report No.: S23092105805001 Version.1.3 Page 95 of 95 Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Ref Tx. Spurious NVNT 3-DH5 2480MHz Ant1 Emission END OF REPORT

Radiated Measurement Photos Conducted Measurement Photos
