FCC ID: 2BCP5KB-223 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.408 -5.69 0.27-5±1 -4 0.40<50.123553.00YES 2.44 -4.8 0.33-5±1 -4 0.40<50.124373.00YES 2.474 -4.78 0.33-5±1 -4 0.40<50.125243.00YES GFSK Conclusion: For the max result : 0.12539 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2023-11-03 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

ANTENNA SPECIFICATION Specifications Summary ITEMSPEC. Model Name Center HorizontalVertical 2408MHz 2440MHz 2478MHz 2408MHz 2440MHz 2478MHz Frequency -1.64-0.82-0.62-6.17 - 3 .64- 2 .23 MAX. Gain-0.62 PolarizationHorizontal and Vertical Azimuth Beam Omni-directional Pattern Impedance 50 Ohm Antenna Length 29.2mm Manufacture Mosart Semiconductor Corp Antenna Photo & Length (mm) Horizontal: 2408MHz2440MHz 2478MHz FrequencyGain(dBi) (MHz) Max.Min.Avg. 2408 -1.66181-30.2813-8.78713 2440 -0.847911-38.7595-7.87912 2478 -0.615608-23.64129-6.99219 (unit: dBi) Vertical: 2408MHz2440MHz 2478MHz FrequencyGain(dBi) (MHz) Max.Min.Avg. 2408 -6.1633-23.1325-12.5205 2440 -3.6601-26.2856-10.6689 2478 -2.21201-29.4281-9.58536 (unit: dBi)

Report No.: S22122601901001 Version.1.3 Page 1 of 59 RADIO TEST REPORT FCC ID: 2BCP5KB-223 Product: Wireless Keyboard Trade Mark: CHENZO Model No.: KB-223 Family Model: KB-223 (W) Report No.: S22122601901001 Issue Date: Feb 13, 2023 Prepared for CHENZO TECH LIMITED FLAT B5, 1/F MANNING IND, BLDG 116-118 HOW MING STREETKWUN TONG KL HK, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S22122601901001 Version.1.3 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 24 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 25 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 26 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 28 7.7 PEAK OUTPUT POWER .............................................................................................................................. 29 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 31 7.10 ANTENNA APPLICATION .......................................................................................................................... 32 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 34 8.2 -20DB BANDWIDTH ........................................................................................................................................ 37 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 40 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 43 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 46 8.6 BAND EDGE .................................................................................................................................................... 48 8.7 BAND EDGE(HOPPING) ................................................................................................................................... 51 8.8 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 54 8.9 DWELL TIME ................................................................................................................................................... 58 Report No.: S22122601901001 Version.1.3 Page 3 of 59 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : CHENZO TECH LIMITED Address ....................................... : FLAT B5, 1/F MANNING IND, BLDG 116-118 HOW MING STREETKWUN TONG KL HK, China Manufacturer's Name ................. : SHENZHEN CHENZO TECH LIMITED Address ....................................... : 208E, 2F…

Text truncated - open the document above for the full version.

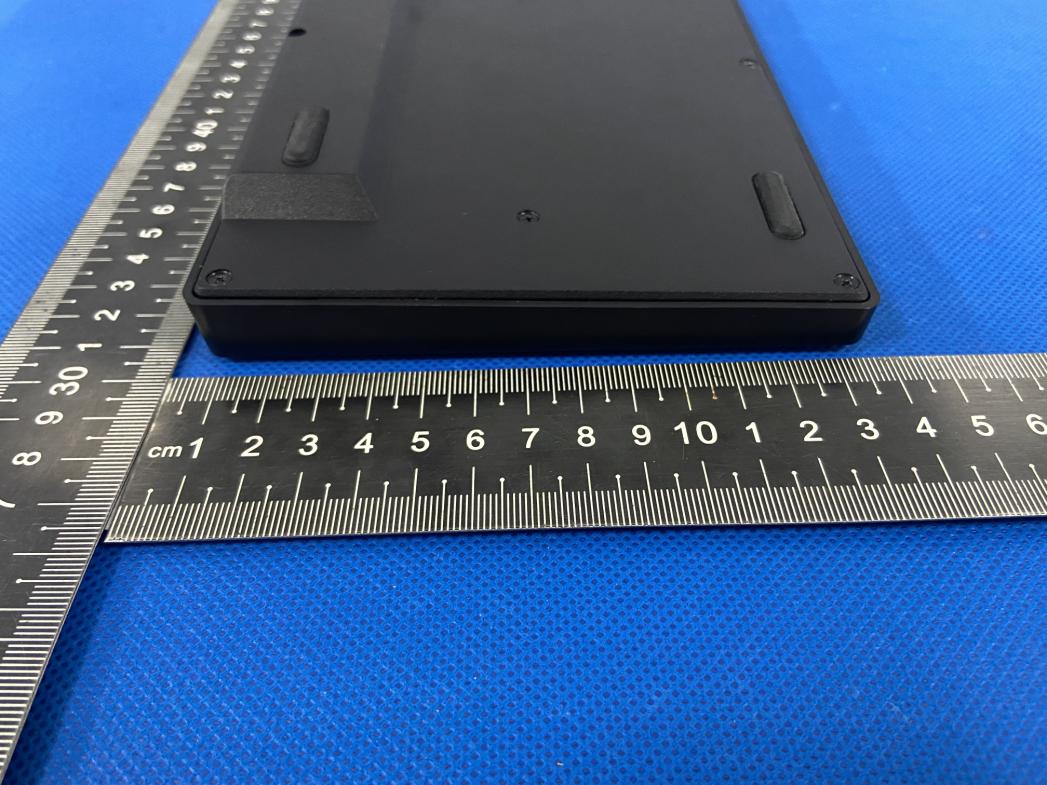

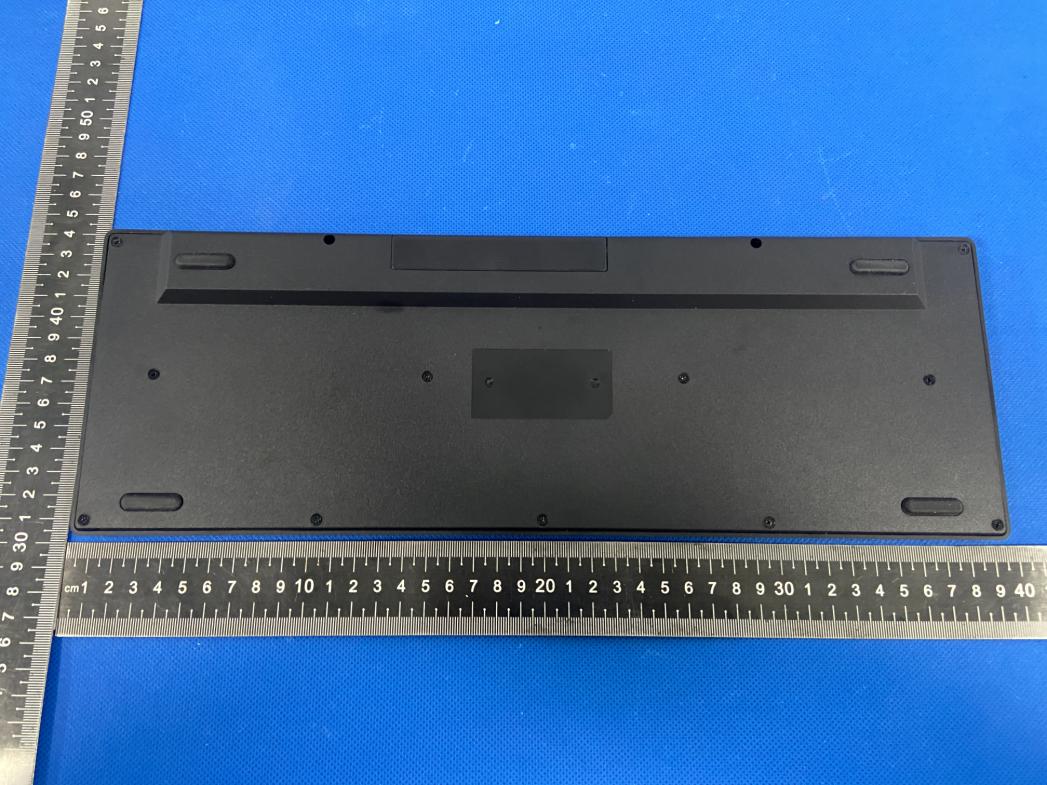

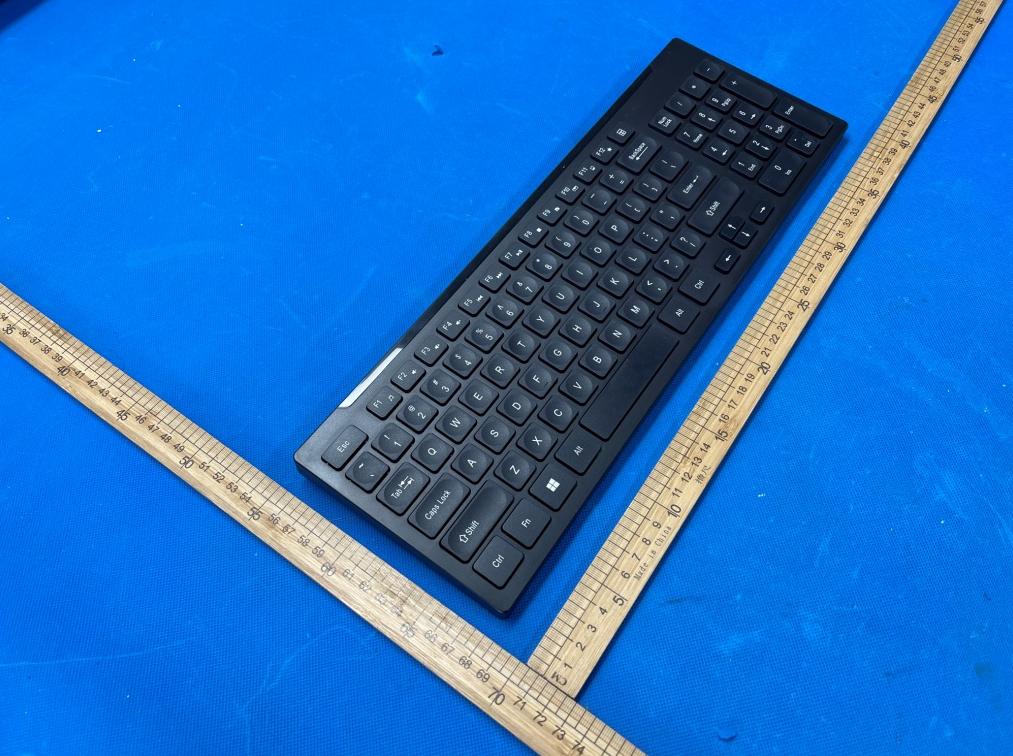

Radiated Measurement Photos
