2BCP5RC-012.4G Dongle

CHENZO TECH LIMITED User Manual Trade Name：CHENZO Welcome: Thank you for choosing this wireless product.To ensure optimum performance and safety, please read these instructions carefully before operating this product.It is strongly recommended you keep this manual for future reference. CHENZO TECH LIMITED Note: The multimedia keys are for Win 8 and Win 10,for other systems,there may be no function for some combined keys. 1 x Wireless Keyboard：KB-223 1 x Wireless Mouse： MS-910 1 x2.4GDongle： RC-01 1 x User Manual Wireless Keyboard Product Specifications: 1.Key Type:Scissor keys 2.Battery Type:2 AAA batteries 3.Multimedia functions 4.USB 2.0 interface,plug&play,no driver required. 5.Compatible with Windows OS(Windows 2000,XP,Vista,WIN7,WIN8,Win10), Mac. 6.Operating Voltage:2.0-3.OV 7.Operating Current:≦10mA 8.Sleeping Current:≦ 50uA 9.Keystroke Force:100+20gf 10.Key Path:0.9+0.2 mm 11.Longest Key Path:1.3+0.2 mm 12.Key Life:10 million key strokes 13.Dimension:409.7*119.5*20.3 mm 14. support Windows operating system version: 982000XP Vista Win7/8/10/11 15.operating frequency: 2408 ~ 2474MHZ Wireless MouseInstructions: CHENZO TECH LIMITED Battery Installation The wireless keyboard uses two AAA batteries(not included).Open the battery compartment cover.Install the batteries into the compartment,and make sure the polarity of the batteries is correct.The positive(+)and negative(-)ends of each battery must match the positive(+)and negative(-)markings in the battery housing. Pairing Method Make sure the distance between the keyboard and the PC is within 20cm.Take out the Nano receiver from the mouse and Plug it into USB port of the PC,then turn on the power switch and it would pair automatically.The LED will flash then turn off.Now the pairing is successful Note:If the Keyboard pairing is unsuccessful.Press and holding"Esc"+"K"to re-connect.If the Mouse pairing is unsuccessful.Press and holding"right key+center key"to re-connect. LED Indicator: Num Indicator:It will show Yellow color when the numeric zone is on and the functional zone is off. Low Power Indicator:The three LED will flash together for 8 seconds when the voltage is lower than 2.2V. This will happen when you wake up the keyboard after sleeping or when you turn it on again until you change the battery. Wireless Mouse: Product Specifications: 1.Working Frequency:2.4GHz 2.Operation Voltage:1.5V 3.Battery Type:1 AA battery 4.Current Dissipation:1.5V-20mA 5.Standby Current:0.5~2.0mA 6.Sleeping Current:50uA 7.DPI Resolution:800/1200/1600 8.Working Distance:≦10M 9.Key Life:5 million 10.Dimensions:66.5*117.5*36 mm 2.4GDongle Product Specifications: The main control chip MA641BJ-3 and 12MHZ crystal oscillator make up RF module operating frequency: 2408 ~ 2474MHZ CHENZO TECH LIMITED FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction

1/1 US Agent for Service of ProcessLETTER OF ATTESTATION TO: Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 US Agent for Service of Process: Company Name: THREE STONES MEDIA LLC FRN: 0033401761 Contact Name: Sijie Zhang Address: 1200 Broadway St. APT 329, Los Angeles, CA90015 Telephone No: +1 267 909 3692 Email: [email protected] Applicant: Company name: CHENZO TECH LIMITED Product Description: 2.4G Dongle Grantee code: FCC ID: 2BCP5 2BCP5RC-01 FRN: 0034188649 Contact Name: Address: Nikita Zhang FLAT B5, 1/F MANNING IND, BLDG 116-118 HOW MING STREETKWUN TONG KL HK, China Telephone No: +8618682006127 Email: [email protected] [CHENZO TECH LIMITED] certifies that, as of the date of this filing of the application with the TCB, [THREE STONES MEDIA LLC] is our designated US agent for service of process for the above referenced FCC ID. [CHENZO TECH LIMITED] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission related proceeding involving equipment. [THREE STONES MEDIA LLC] accepts, as of the date of the filing of the application, the obligation of the designated US agent for service of process for the above reference FCC ID. The US Agent for Service of Process is aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. The Applicantis aware of and agrees to comply with the requirements outlined in the FCC Equipment Authorization Program, Report and Order FCC 22-84, and clause § 2.911. 1/1 Date: 02/11/2023 Applicant’s Name: Nikita Zhang US Agent’s Name: Sijie Zhang Title: Manager Title: President Signature Signature

C5266091_X24_Ed.2 1/1 “AttestationStatements” TO: Officeof EngineeringTechnology FederalCommunicationsCommission 7435 OaklandMills Road Columbia,MD 21046 The Commissionadoptedrulesthatprohibitequipmentauthorizationfor “covered” telecommunicationsequipmentand videosurveillanceequipmentproducedby entitiesidentified on the Commission’s CoveredList 1 , whichis periodicallyupdated.See the CoveredList for more details.This AttestationStatementis to confirmthat we followthe Section2.911(d)(5)(i)-(ii) Applicant Company name: CHENZO TECH LIMITED Grantee code: 2BCP5 FCC ID: 2BCP5RC-01 Contact Name: Nikita Zhang Address:FLAT B5, 1/F MANNINGIND, BLDG116-118HOW MINGSTREETKWUN TONGKL HK, China TelephoneNo:+8618682006127 Fax No:N/A Email:[email protected] i.[CHENZOTECHLIMITED] (“theapplicant”) certifiesthattheequipmentfor whichauthorizationissoughtisnot“covered” equipmentprohibitedfrom receivinganequipmentauthorizationpursuanttosection2.903oftheFCC rules.Theapplicantmustsignthiscertification. ii.[CHENZOTECHLIMITED] (“theapplicant”) certifiesthat,asof thedateof the filingoftheapplication,theapplicantis not(asa specificallynamedentityor anyof itssubsidiariesoraffiliates)identifiedontheCoveredListasanentity producing“covered” equipment.Theapplicantmustsignthiscertification. CHENZOTECH LIMITEDcertifiesthat, as of the date of the filing of theapplication, the applicantis notidentifiedon the CoveredList as an entityproducing “covered”equipment. Date: 21/10/2023 Applicant’s Name: Nikita Zhang Title: Manager Signature 1 The Commission’s CoveredListis publishedby the PublicSafetyand HomelandSecurityBureauand postedon the Commission’s website.This CoveredList, whichis periodicallyupdated,identifiesparticularequipment,producedby particularentities,that constitutes“covered”equipment.https://www.fcc.gov/supplychain/coveredlist

CHENZOTECHLIMITED Familymodelsdeclarationletter. 10/21/2023 We Company:CHENZOTECH LIMITED Address:FLAT B5, 1/F MANNINGIND, BLDG116-118HOW MINGSTREETKWUNTONG KL HK, China Product:2.4G Dongle Model Name:RC-01 FamilyModel:RC-01(W) All modelsare the same circuitand RF module,exceptthe Color. We (CHENZOTECHLIMITED) herebystate that all the modelsare electricalidenticalincluding the same softwareparameterand hardwaredesign(i.e., circuitdesign,PCB Layout,RF module/circuit,antennatype(s)and antennalocation,componentson PCB, etc.), same mechanical structureand design (includingproductenclosure,materials,etc.), the only differenceis the Color . Thanks Sincerely, Signature [Name] Nikita Zhang [Title] Manager [email protected]

C5266091_X8_Ed.1 1/1 Letterof Authorization < CHENZOTECHLIMITED> Company:CHENZOTECH LIMITED Address:FLAT B5, 1/F MANNINGIND, BLDG 116-118HOW MING STREETKWUNTONGKL HK, China ProductName:2.4G Dongle ModelNumber:RC-01,RC-01(W) FCC Identifier:2BCP5RC-01 WeauthorizeLGAITechnologicalCenterS.A.,Rondadela FontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.is authorizedto actonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,Rondadela Fontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedto theapprovalprojectto theFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsof ourown. Name: Nikita ZhangDate: 21/10/2023 Title: Manager Signatureof applicant:

C5266091_X8_Ed.1 1/1 Letterof Authorization < CHENZOTECHLIMITED> Company:CHENZOTECH LIMITED Address:FLAT B5, 1/F MANNINGIND, BLDG 116-118HOW MING STREETKWUNTONGKL HK, China ProductName:2.4G Dongle ModelNumber:RC-01,RC-01(W) FCC Identifier:2BCP5RC-01 WeauthorizeLGAITechnologicalCenterS.A.,Rondadela FontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.is authorizedto actonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,Rondadela Fontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedto theapprovalprojectto theFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsof ourown. Name: Nikita ZhangDate: 21/10/2023 Title: Manager Signatureof applicant:

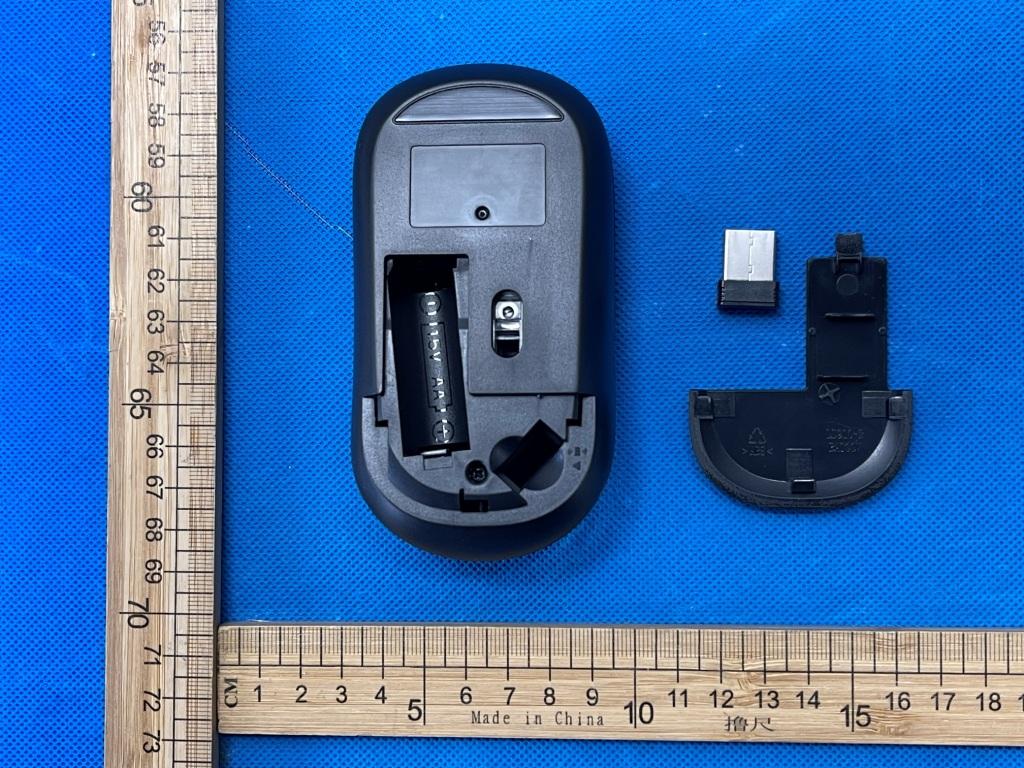

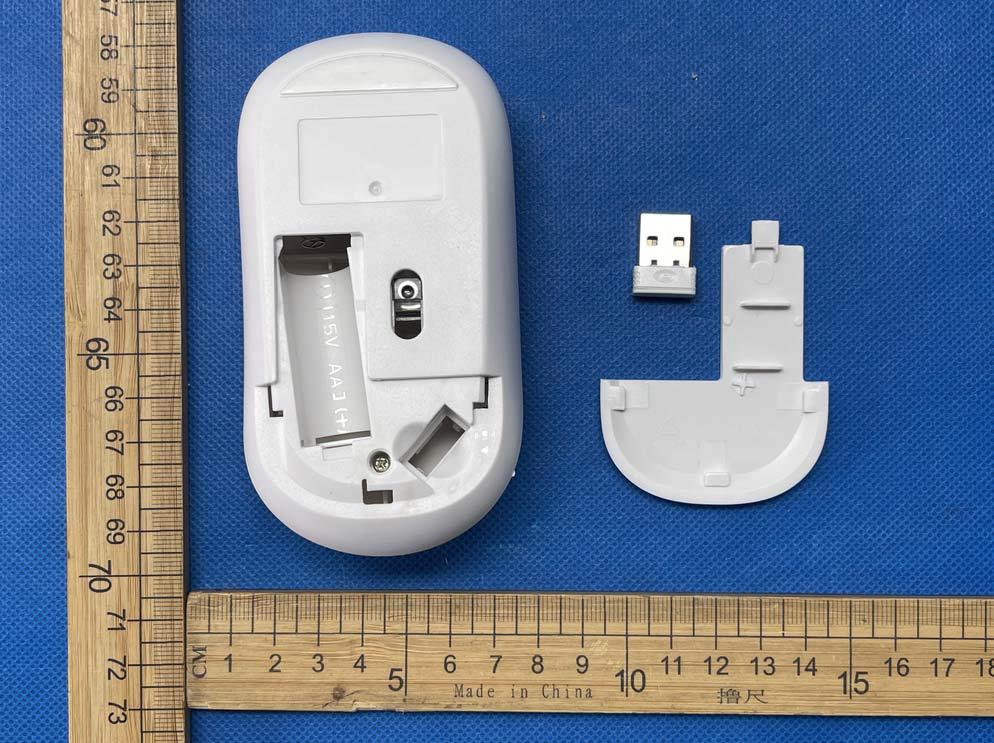

ATTACHMENT PHOTOGRAPHS OF EUT Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8

FCC ID: 2BCP5RC-01

Photo 9 Photo 10 Photo 11 Photo 12 ANT Photo 13 ANT

FCC ID: 2BCP5RC-01 Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Channel Freq. (GHz) Conduct ed power (dBm) Conducte d power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculatio n SAR Exclusion threshold SAR test exclusion 2.408 -5 0.32-5±1 -4 0.40<50.123553.00YES 2.44 -4.62 0.35-5±1 -4 0.40<50.124373.00YES 2.474 -4.57 0.35-5±1 -4 0.40<50.125243.00YES GFSK Conclusion: For the max result : 0.12539 ≤ 3.0 for 1g SAR, SAR is not required. Signature: Date: 2023-11-03 NAME AND TITLE (Please print or type): Alex li /Manager COMPANY (Please print or type): Shenzhen NTEK Testing Technology Co., Ltd./ 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen P.R. China.

ANTENNA SPECIFICATION Specifications Summary ITEMSPEC. Model Name HorizontalVertical 2408MHz 2440MHz 2478MHz 2408MHz 2440MHz 2478MHz Center Frequency -2.64-1.89 -1.67 -7.09 -4.70-3.15 MAX. Gain -1.67 Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 27mm Manufacture Mosart Semiconductor Corp Antenna Photo & Length (mm) 10mm ￠0.4 7.0mm Horizontal: 2408MHz 2440M Hz 2478MHz Gain(dBi) Frequency (MHz) Max. Min. Avg. 2408 -2.64776 -30.6718 -9.77028 2440 -1.89964 -35.918 -8.87095 2478 -1.66516 -24.7457 -7.99065 (unit: dBi) Vertical: 2408MHz 2440MHz 2478 MHz Gain(dBi) Frequency (MHz) Max. Min. Avg. 2408 -7.09317 -24.1891 -13.5194 2440 -4.7048-27.8246-11.666 2478 -3.1576-29.4867-10.5684 (unit: dBi)

Report No.: S23011000702001 Version.1.3 Page 1 of 59 RADIO TEST REPORT FCC ID: 2BCP5RC-01 Product: 2.4G Dongle Trade Mark: CHENZO Model No.: RC-01 Family Model: RC-01(W) Report No.: S23011000702001 Issue Date: Feb 13, 2023 Prepared for CHENZO TECH LIMITED FLAT B5, 1/F MANNING IND, BLDG 116-118 HOW MING STREETKWUN TONG KL HK, China Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street Bao’an District, Shenzhen 518126 P.R. China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Report No.: S23011000702001 Version.1.3 Page 2 of 59 TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION ...................................................................................................................... 3 2 SUMMARY OF TEST RESULTS ......................................................................................................................... 4 3 FACILITIES AND ACCREDITATIONS ............................................................................................................. 5 3.1 FACILITIES..................................................................................................................................................... 5 3.2 LABORATORY ACCREDITATIONS AND LISTINGS ................................................................................. 5 3.3 MEASUREMENT UNCERTAINTY ............................................................................................................... 5 4 GENERAL DESCRIPTION OF EUT .................................................................................................................. 6 5 DESCRIPTION OF TEST MODES ..................................................................................................................... 8 6 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................... 9 6.1 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ....................................................................... 9 6.2 SUPPORT EQUIPMENT ............................................................................................................................... 10 6.3 EQUIPMENTS LIST FOR ALL TEST ITEMS .............................................................................................. 11 7 TEST REQUIREMENTS .................................................................................................................................... 13 7.1 CONDUCTED EMISSIONS TEST ............................................................................................................... 13 7.2 RADIATED SPURIOUS EMISSION ............................................................................................................ 15 7.3 NUMBER OF HOPPING CHANNEL ........................................................................................................... 24 7.4 HOPPING CHANNEL SEPARATION MEASUREMENT ........................................................................... 25 7.5 AVERAGE TIME OF OCCUPANCY (DWELL TIME) ................................................................................ 26 7.6 20DB BANDWIDTH TEST .......................................................................................................................... 28 7.7 PEAK OUTPUT POWER .............................................................................................................................. 29 7.8 CONDUCTED BAND EDGE MEASUREMENT......................................................................................... 30 7.9 SPURIOUS RF CONDUCTED EMISSION .................................................................................................. 31 7.10 ANTENNA APPLICATION .......................................................................................................................... 32 7.11 FREQUENCY HOPPING SYSTEM (FHSS) EQUIPMENT REQUIREMENTS ......................................... 33 8 TEST RESULTS ................................................................................................................................................... 34 8.1 MAXIMUM CONDUCTED OUTPUT POWER ....................................................................................................... 34 8.2 -20DB BANDWIDTH ........................................................................................................................................ 37 8.3 OCCUPIED CHANNEL BANDWIDTH .................................................................................................................. 40 8.4 CARRIER FREQUENCIES SEPARATION .............................................................................................................. 43 8.5 NUMBER OF HOPPING CHANNEL ..................................................................................................................... 46 8.6 BAND EDGE .................................................................................................................................................... 48 8.7 BAND EDGE(HOPPING) ................................................................................................................................... 51 8.8 CONDUCTED RF SPURIOUS EMISSION ............................................................................................................. 54 8.9 DWELL TIME ................................................................................................................................................... 58 Report No.: S23011000702001 Version.1.3 Page 3 of 59 1 TEST RESULT CERTIFICATION Applicant’s name ........................ : CHENZO TECH LIMITED Address ....................................... : FLAT B5, 1/F MANNING IND, BLDG 116-118 HOW MING STREETKWUN TONG KL HK, China Manufacturer's Name ................. : SHENZHEN CHENZO TECH LIMITED Address ....................................... : 208E, 2F Tower B, …

Text truncated - open the document above for the full version.

Radiated Measurement Photos
