2BCYP-IT7080BDA27DA

innertron

0.5W Public Safety Signal Booster

Click to zoom

Application Details

Equipment Class: B2I - Part 20 Industrial Booster (CMRS)
Date of Grant: Oct 08, 2023
Application Purpose: Original Equipment
Date of Application: Oct 08, 2023
Equipment Note: 0.5W Public Safety Signal Booster
Frequency Range: 817.00000000 - 824.00000000
Company: innertron
Country: South Korea

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

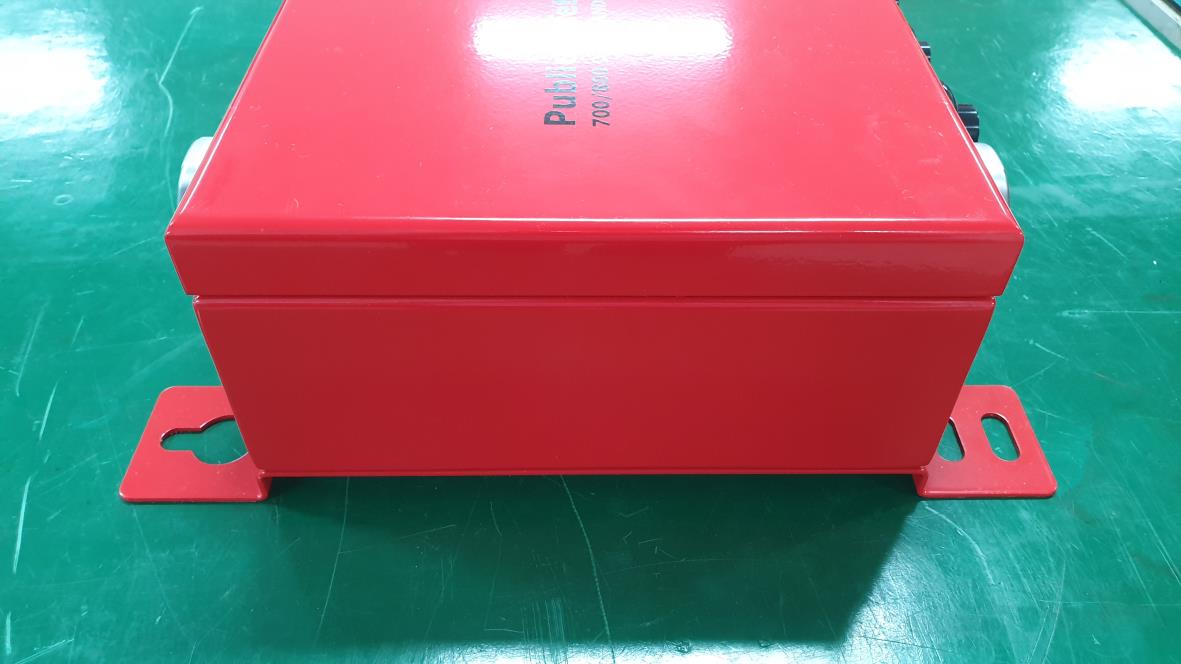

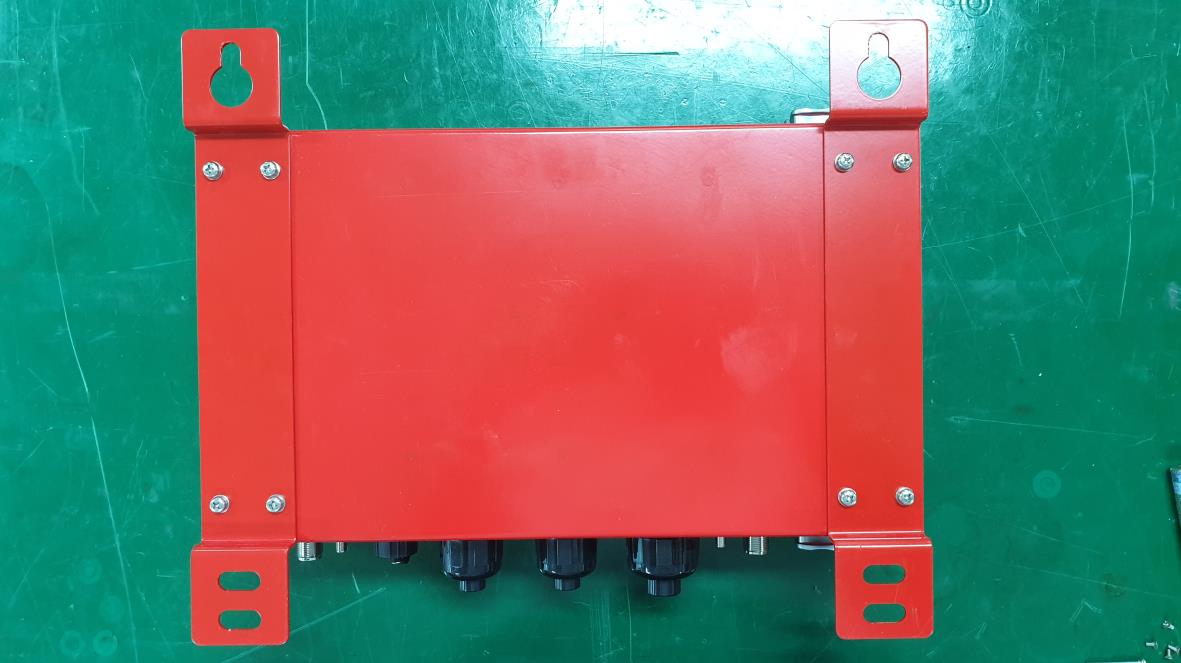

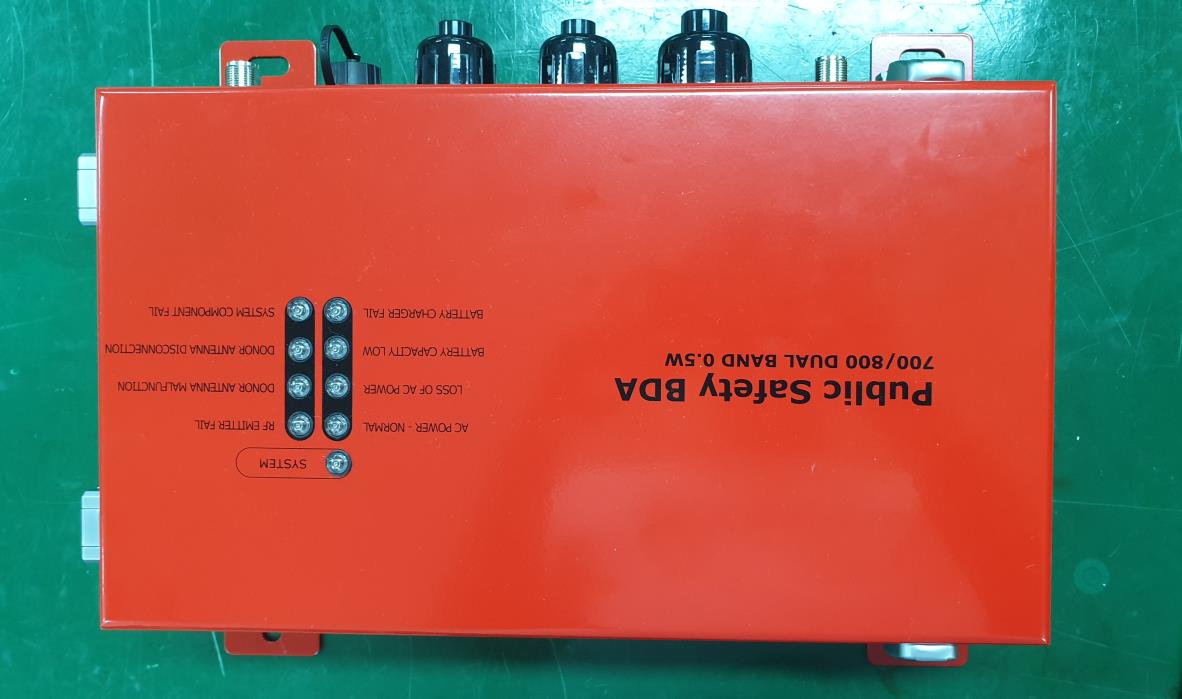

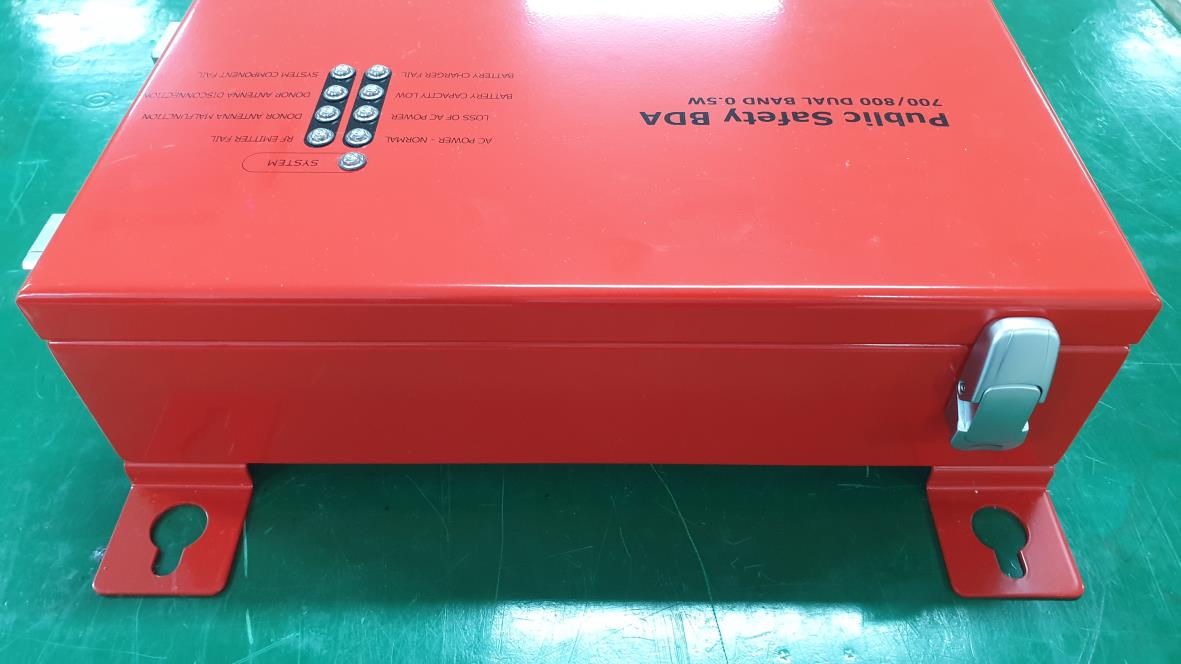

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Contact Information

Applicant

Seunghee Yoo(Chief Engineer)

[email protected]+82-32-320-2556Fax: +82-32-816-1457

Test Firm

HCT Co., Ltd.Lee MyoungLim

[email protected]82-31-645-6918Fax: 82-31-645-6401

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	90S	817 MHz - 824 MHz	255.00 mW	G7W	Amp

Confidentiality

Long Term

Grant Notes

Repeater. Power output listed is conducted. This Class A Booster is deployed with 5 Watt maximum ERP according to §90.219(d)(3). Users and installers must be provided with appropriate antenna installation instructions and transmitter operating conditions, including antenna co-location requirements for satisfying RF exposure compliance. The antenna used for this transmitter is to be fixed-mounted on indoor/outdoor structures. The single unit RF Exposure compliance for the device was based on maximum antenna gain 12 dBi for Uplink and 7dBi for Downlink with minimum separation distance 70 cm. RF exposure compliance must need to be addressed at the time of licensing as required by the responsible FCC Bureau(s), including antenna co-location requirements of §1.1307(b) (3) of the rules.
