2BD3N-S5Dash camera

USERMANUAL ProductOverview: Thisproductuseshighperformancechipstoprovidehighdefinition videoandseamlessdynamiclens.Pleasereadthismanualcarefully beforeusingitandkeepitforfuturereference.Wehopethis productcanmeetyourneedsandprovideyouwithlastingservice. 1.Rearcameraport2.Powerport3.TFcardslot4.Interiorcamera5. Infraredlight6.Indicatorlight7.Screen8.Frontcamera1. Rearcameraport2.Powerport3.TFcardslot4.Interiorcamera5. Infraredlight6.Indicatorlight7.Screen8.Frontcamera ProductParameter： Product Features HDcamera,HDvideo G-sensorBuilt-in(automaticallysavedincaseof unexpectedvehicleloss) LCDscreensize3.16inch cameralenswide-anglelens LanguageSupportsmultiplelanguages fileformatTS Video resolution 4K\2.5K\1080P Videoencoding format H.264 Turnonandoff thecar Supportscarignitionanddelayedshutdown MonthDay Year support memorycardTF(Supportsupto256GB) PhotoMode8million PhotoformatJPEG microphonesupport WIFIfunctionSupportsmobileconnection Rearcamerasupport GPSSupport(optional) Powerinterface5V/2A InstallationGuide: Aftercheckingthatthepackageiscorrect,removeallaccessoriesfrom thepackageandprepareforinstallation. 1.Turnoffthecarengine. 2.Alignthe3Madhesivebracketwiththebodybracketinterface,thenpushitinto theleftuntilfullyinstalled. 3.InserttheTFcardintotherecorder'scardslot.[Note]Usea high-speedTFcard(U3orhigher). [Note]Topreventcrashesorscreenflickeringduringrecordingcaused byabnormalfilesorvirusesontheTFcard,formattheTFcardwiththis devicebeforefirstuse. 4.Beforeinstallingtherecorder,poweronthedeviceandobservethescreentosimulate thedrivingsituation.Determinethebestinstallationpositionandcleantheglasswith wateroralcohol. 5.Next,removetheprotectivefilmfromthe3Mbracket,securethe dashcamtothefrontwindshield,andadjustittothedesiredtiltangle. 6.Insertthecarchargerintothecigarettelighter.Connectthecharging extensioncabletotheGPSviaitsType-Cport,thenlinkittothedevice. Peeloffthe3MtapefromtheGPSandapplyittothewindshield.[Note] Whenwiring,runthechargingcablealongthewindshieldedgeas showninthefigurebelow. 7.Howtoinstallarearviewcamera: Therearviewcameraiswaterproof.Itisrecommendedtoinstallitinthe rearofthevehicle.Payattentiontothedirectionwheninstalling. Insertthecameracableintothecableconnector,passitthroughthegap intheroof,connectittothemountingpositionoftherearviewcamera, andfinallyconnecttherearviewcamera. 8.Adjustthelenspositiontoensureitislevelwiththeground. 9.Starttheengineandcheckthatthemachineisinstalledcorrectly. [Note]Whenthemachineisinstalledcorrectly,itwillenterthe recordingstateafterstartup.Checkwhetherthedisplayscreenis normal. Buttonfunctiondescription: 1.Resetbutton:Theholeforthecrashresetbutton. 2.Powerbutton:Pressandholdtoturnthepoweron/off. 3.OK:Pressandholdthiskeytostart/stoprecordingandconfirm itemsinotherinterfaces. 4.Menukey:Pressthiskeybrieflytoenterthemaininterface.Press thiskeybrieflywhilerecordingtolockthecurrentvideo. 5.Upkey:Shortpressthiskeyonthepreviewinterfacetoswitch tofront,inner,orrearrecordingofvideosandpictures.Pressthis keyinthemenuandpreviewinterfacetomovetheinterface upward.Youcanturnonorofftherecordingfunctionwhile recording. 6.Downkey:Inrecordingmode,itcapturesaframewithone click.Inthepreviewinterface,ashortpressswitchesthecamera view.Inthemenuandplaybackinterface,pressingthiskey movestheinterfacedownward. Previewinterfaceintroduction: Thedashcamentersthisinterfacebydefaultandstartsrecordingwhen thecarstarts 1.Recordingstatusicon:blinkingindicatesnormalrecording,hidden whennotrecording 2.Recordingduration:Displaystherecordingdurationduringnormal recording.Thedefaultis1minute.Youcanadjustitbyselectingloop recordinginthesettingsinterface.Itishiddenwhennotrecording. 3.Resolution:4K 4.SystemTime:DisplaysthecurrentRTCtime,whichcanbesetinthe settingsmenu. 5.GPSicon:AredGPSiconappearswheninsertingtheGPSmodule.If notconnected,theiconwillturnoff.OnceGPSsignalisreceived,the iconwillturngreen. 6.Recording:Showrecordingstatus 7.Gravitysensorstatus:indicateswhetherthegravitysensorisofforon 8.TFcardstatus:Checkifthecardispresentorabsent,andverifyits identification. 9.WiFiicon: WhenWi-Fiison,awhiteWi-Fiiconappearsonthescreen.Youcan turnWi-FionoroffinSettings.Ifyouareconnectedtoamobileapp, theiconturnsgreen. 10.WiFiNameandpassword: SSIDistheWi-Finame. PSDstandsforWi-Fipassword. 11.GPSSpeed: WhenGPSreceivesasignal,theiconturnsgreenandshowsGPS speedinkm/handmph.Notethedifferencebetweenunits. Homescreenintroduction: Inthepreviewinterface,pressandholdthemenukeytoenterthemain interface,whichincludes:dashcam,systemsettings,filemanagement. Smartdriving SystemSettingsOverview: Fromthepreviewhomescreen,pressandholdthemenukeytoaccess systemsettings. 1.Videoresolution: Changethevideoresolution.Theavailableoptionsare4K,2.5Kand 1080P,whichcorrespondto3840x2160and2560x1440and1920x 1080resolutionsrespectively.Thedefaultvalueis4K. 2.Looprecording: Entertherecordingdurationandfilesegmentduration.Setthe recordingcycleto1,2,or3minutes,with1minuteasthedefault.Note: WhentheSDcardisfull,therecorderwilloverwritetheearliest recordedvideoclips. 3.Frequency: Setto50Hzor60Hztosuppressflickercausedbydifferentlighting conditions.Thedefaultvalueis50Hz. 4.Gravitationalsensitivity: Options:Off,Low,Medium,High.Default:Medium 5.Parkingmonitoring: Options:Off,Low,Medium,High.DefaultisOff.Whenactivated,if thecarstallsandacollisionoccurs,therecorderwillstartandrecorda video,thenturnoff. 6.Time-lapsevideo: Options:Off,1FPS/S,2FPS/S,5FPS/S."Off"meansdelayedrecording isdisabled.Otheroptionsindicatetherecordingspeed.Note: Time-lapserecordingandparkingsurveillancerequirea voltage-loweringlinepowerconnection. 7.Durationoftime-lapserecording: Options:12hours,24hours,48hours,72hours.Thisindicatesthe durationofdelayedrecordingafterthevehicleisturnedoff. 8.Recording: Options:Off,On.Whenon,theenvironmentsoundswillberecorded withthevideo;otherwise,nosoundwillberecorded. 9.Videowatermark: Options:On,Off.WhenOn,timestampswillbeaddedtotherecorded video.WhenOff,timestampswillnotbedisplayed. 10.HDR： Select:OnorOff.Turnonforbetterexpos…

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BD3N-S5 S5, S5N, S5Q We, Applicant Company Name: Shenzhen Jusheng Times Technology Co., Ltd Address: 201, Building 12, Hesheng Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China Phone: +86-755-23571364 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-04-01 Signature Date Name / Title: Candice Zhou / Manager Company: Shenzhen Jusheng Times Technology Co., Ltd Address: 201, Building 12, Hesheng Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China Phone: +86-755-23571364 Fax: +86-755-23571364 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BD3N-S5 S5, S5N, S5Q Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-02-11

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BD3N-S5 S5, S5N, S5Q For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-04-01 Signature Date Name / Title: Candice Zhou / Manager Company: Shenzhen Jusheng Times Technology Co., Ltd Address: 201, Building 12, Hesheng Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China Phone: +86-755-23571364 Fax: +86-755-23571364 E-Mail: [email protected]

Shenzhen Jusheng Times Technology Co., Ltd 201, Building 12, Hesheng Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China Date: April 1, 2026 FCC ID: 2BD3N-S5 Model Number: S5, S5N, S5Q To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Jusheng Times Technology Co., Ltd. hereby declare that our product (Dash camera) Model Number: S5, S5N, S5Q board, Schematic, Hardware version, Software version, structure and internal photos are same, Model named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name / Title: Candice Zhou / Manager Company: Shenzhen Jusheng Times Technology Co., Ltd Address: 201, Building 12, Hesheng Industrial Zone, Tangwei Community, Fuhai Street, Bao'an District, Shenzhen, China Phone: +86-755-23571364 Fax: +86-755-23571364 E-Mail: [email protected]

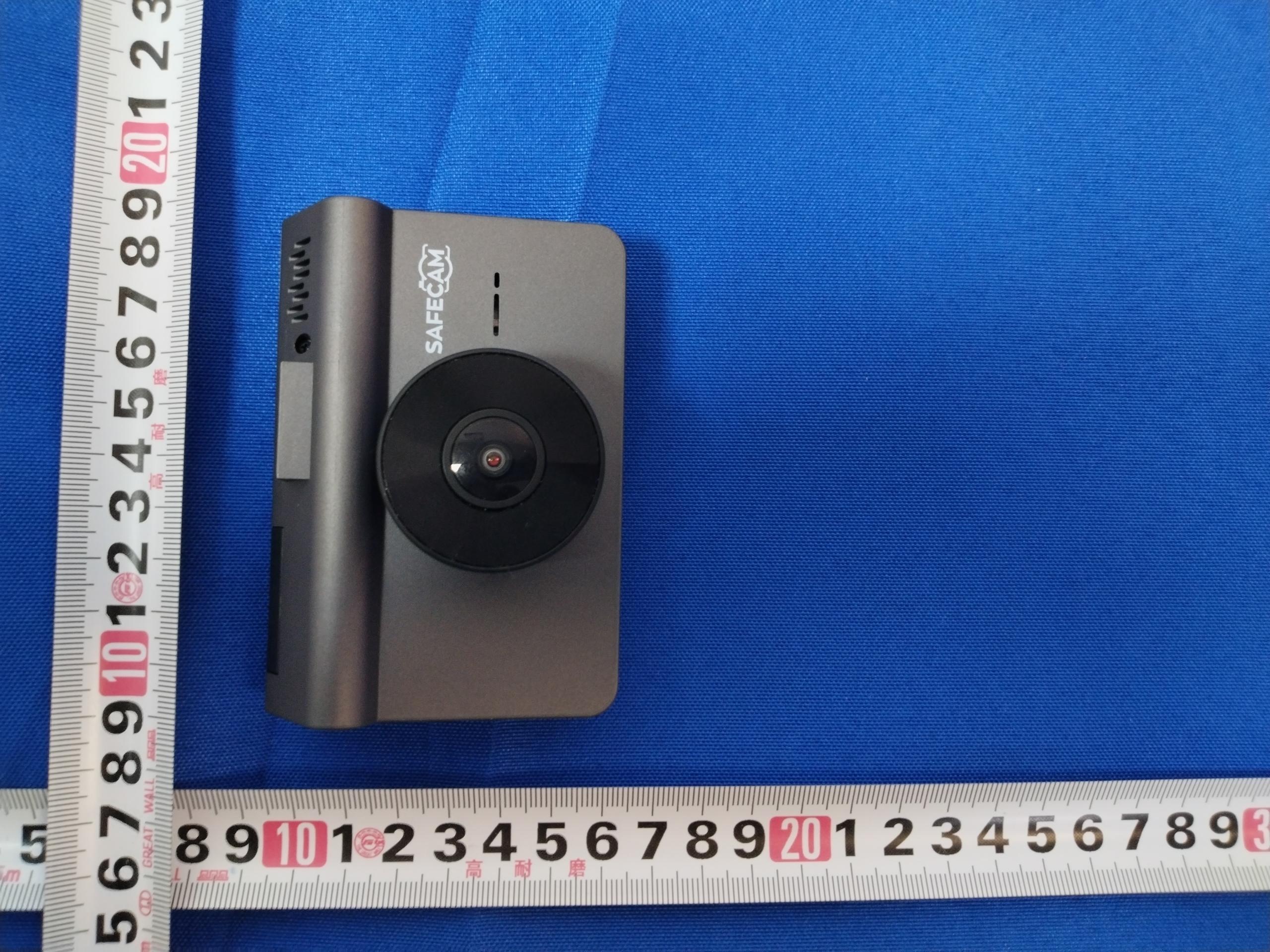

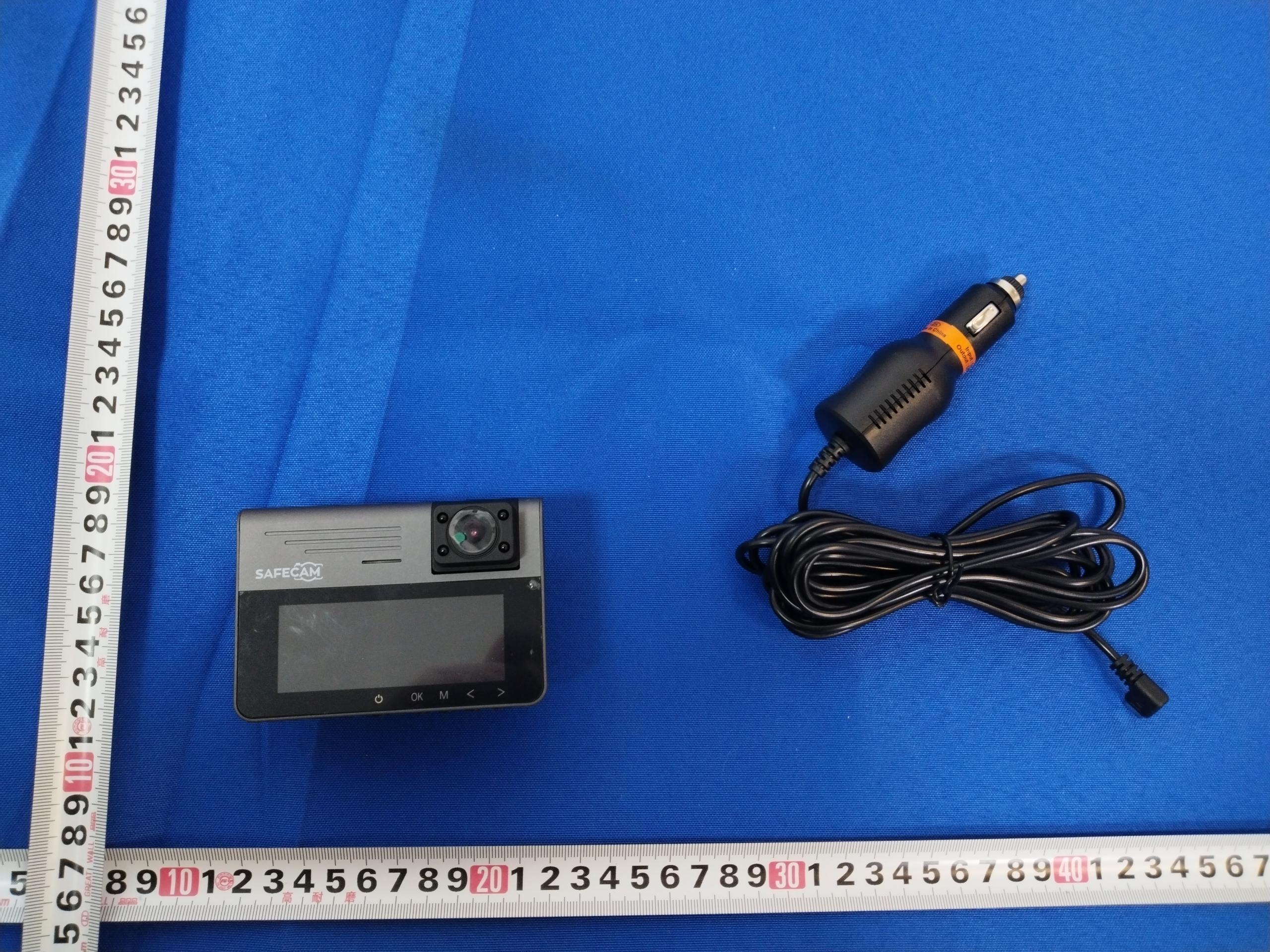

Page1of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6

Page1of1FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LABELANDLOCATION (Size:L53.8mmxW22.8mm) LabelLocation Dashcamera Model:S5 FCCID:2BD3N-S5

Page1of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com InternalPhotosoftheEUT Fig.1 Fig.2 Page2of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of3FCCID:2BD3N-S5 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,City,GuangdongChina Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 WIFIAntenna

Page1of10FCCID:2BD3N-S5ReportNo.:LCSC09225022EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation For ShenzhenJushengTimesTechnologyCo.,Ltd. Dashcamera TestModel:S5 AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:ShenzhenJushengTimesTechnologyCo.,Ltd. Address:201,Building12,HeshengIndustrialZone,TangweiCommunity, FuhaiStreet,Bao'anDistrict,ShenzhenChina Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:October16,2025 Numberoftestedsamples:2 SampleNo.:A250822013-1,A250822013-2 Serialnumber:Prototype DateofTest:October16,2025~October29,2025 DateofReport:October30,2025 Page2of10FCCID:2BD3N-S5ReportNo.:LCSC09225022EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC09225022EC DateofIssue.......................................:October30,2025 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenzhenJushengTimesTechnologyCo.,Ltd. Address................................................:201,Building12,HeshengIndustrialZone,TangweiCommunity, FuhaiStreet,Bao'anDistrict,ShenzhenChina TestSpecification Standard..............................................:FCCKDBpublication447498D01General1RFExposure Guidancev06 FCCCFR47part11.1310 FCCCFR47part22.1091 TestReportFormNo......................: TRF-4-E-214A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:Dashcamera TradeMark..........................................:N/A TestModel...........................................:S5 Ratings.................................................: PleaseRefertoPage6 Result...................................................:PASS Compiledby:Supervisedby:Approvedby: LifengLe/AdministratorJustinZhu/TechniqueprincipalGavinLiang/Manager Page3of10FCCID:2BD3N-S5ReportNo.:LCSC09225022EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation TestModel...............................:S5 EUT.........................................:Dashcamera Applicant...............................:ShenzhenJushengTimesTechnologyCo.,Ltd. Address..................................:201,Building12,HeshengIndustrialZone,TangweiCommunity, FuhaiStreet,Bao'anDistrict,ShenzhenChina Telephone...............................:/ Fax..........................................:/ Manufacturer........................: ShenzhenJushengTimesTechnologyCo.,Ltd. Address...................................: 201,Building12,HeshengIndustrialZone,TangweiCommunity, FuhaiStreet,Bao'anDistrict,ShenzhenChina Telephone...............................: / Fax..........................................: / Factory...................................: ShenzhenJushengTimesTechnologyCo.,Ltd. Address...................................: 201,Building12,HeshengIndustrialZone,TangweiCommunity, FuhaiStreet,Bao'anDistrict,ShenzhenChina Telephone...............................:/ Fax..........................................:/ TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC09225022EC October30,2025 Dateofissue Page4of10FCCID:2BD3N-S5ReportNo.:LCSC09225022EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000October30,2025InitialIssue--- Page5of10FCCID:2BD3N-S5ReportNo.:LCSC09225022EC GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.ProductInformation.........................................................................................................................................6 2.EvaluationMethod............................................................................................................................................7 3.Limit......................................................................................................................................................................7 4.MPECalculationMethod................................................................................................................................8 5.AntennaInformation...................................................................…

Text truncated - open the document above for the full version.

0 /6 1. Application 2.4GHz 5 221 Chip Antenna: RANT5221F550M02 s WLAN ,80 2.11 b/g, Bl uetoot h , WLAN ,etc ... 2. F eatu r es S MD , hi g hr e li ab ili ty,u l t r a Im pact,O mni- d ir ect i o n a l... 3. PartNumberInformation RANT5221F02 (A)(B)(C) 550 (D)(F M (E)) (A)Produc t Ty p eChi p An t enna (B)SizeCode 5 .1x2.0mm (±0 .2mm ) (C)MaterialHighKmaterial (D)Frequency5.15 ~ 5.85GHz (E)FeedingmodePIFA& S ingl e F eed ing (F)AntennatypeType=02 咏成國際科技有限公司 RAINInternationalTechnologyCo.,Ltd. Room 707, BuildingF, TonganZhichuang Park, Xixiang Street, Baoan District, Shenzhen, China 1 /6 4. 00 2.3000 4.产品尺寸 5020单极天线 5.ElectricalSpecification Specification PartNumber RANT5221F245M02 CentralFrequency MH5.15 ~ 5.85GHzz Bandwidth120(Min.) MHz ReturnLoss -10(Max) dB PeakGaindB 2.62 i Impedance 50Ohm OperatingTemperature - 40～+85 °C MaximumPower4W ResistancetoSolderingHeats 10(@260°C) sec. PolarizationLinear AzimuthBeamwidth Omni-directional TerminationSn(Leadless) 6. 推荐PCB FootPrint(Unit:mm) W Figure SymbolDimension(mm) L W A L（长） 5.10±0.20 W（宽） 2.00±0.30 T（厚度） 1.0±0.30 A （电极宽度） 0.50±0.20 4.0 2 /6 RecommendedPCBPattern EvaluationBoardDimension LayoutDimensionsinClearancearea (Size=7.0*5.0mm) 50ohmtransmissionLine MatchingCircuit 3 /6 7.MeasurementResults ReturnLoss 7.2RadiationPattern 4 /6 260 °C 20-40s 217°C 150-200°C Pre-heating 60-150s 60-180s Time(s) 8.ReliabilityandTestCondictions Testitem Testcondition/Testmethod Specification Solderability JISC0050-4.6 JESD22-B102D *Solderbathtemperature：2355C *Immersiontime：20.5sec Solder：Sn3Ag0.5Cuforlead-free Atleast95%ofasurfaceofeachterminal electrodemustbecoveredbyfreshsolder. Leaching (Resistanceto dissolutionof metallization) IEC60068-2-58 *Solderbathtemperature：2605C *Leachingimmersiontime：30 0.5sec Solder:SN63A Lossofmetallizationontheedgesofeach electrodeshallnotexceed25%. Bendingtest JISC0051-7.4.1 Themiddlepartofsubstrateshallbe pressurizedbymeansofthepressurizingrod atarateofabout1mm/sperseconduntilthe deflectionbecomes1mm/sandthenpressure shallbemaintainedfor51sec. Measurementtobemadeafterkeepingat roomtemperaturefor242hours Nomechanicaldamage. Electricalspecificationshallsatisfythe descriptionsinelectricalcharacteristicsunder theoperationaltemperaturerangewithin-40 ~85°C. Resistancetosoldering heat JISC0050-5.4 *Preheatingtemperature：120~150 °C , 1minute. *Soldertemperature：2705C *Immersiontime：101sec Solder：Sn3Ag0.5Cuforlead-free Measurementtobemadeafterkeepingat roomtemperaturefor242hrs Nomechanicaldamage. Electricalspecificationshallsatisfythe descriptionsinelectricalcharacteristicsunder theoperationaltemperaturerangewithin-40 ~85°C. Lossofmetallizationontheedgesofeach electrodeshallnotexceed25%. 9.SolderingandMounting T e m p e r a t u r e ( ° C ) 10.天线应用注意事 5 /6 项 如果空间允许，最好不要选择太小尺寸的天线。  最好天线与附近物体之间有较大的净空区；否则匹配调节将会变得困难，辐射模式会受到严重扭曲。 天线的下方不应出现线路布局、接地层。  天线不应和金属物体放置太近，比如电池、芯片等，不应与电池等金属物有重叠。  注意内部缆线（如电池电源线）最好不要太靠近天线。  单极天线需要有合理的接地面才能发挥最好效果。  在最终产品方案上进行天线匹配，可以减短调节周期；而在光板上往往需要反复调节。  如果没有经过匹配，相同的天线放置完全不一样的布局板上可能无法正常工作。 不要使用金属外壳或带金属的塑料外壳盖在天线周围。  不要使用很细的天线馈电线，馈线应有一定的宽度，不应小于 0.1mm 。  根据PCB 的厚度和介电常数计算馈线阻抗， 50 欧姆会使天线调节较为容易  片式天线装配应尽可能远离电池、EMI防护材料、折叠扬声器、金属镙钉、 LCD 显示屏等。 11.StorageandTransportationInformation StorageConditions Tomaintainthesolderabilityofterminalelectrodes: 1.Temperatureandhumidityconditions:-10~40 °C and30~70%RH. 2.Recommendedproductsshouldbeusedwithin6monthsfromthetimeof delivery. 3.Thepackagingmaterialshouldbekeptwherenochlorineorsulfurexists intheair. TransportationConditions 1.Productsshouldbehandledwithcaretoavoiddamageorcontamination fromperspirationandskinoils. 2.Theuseoftweezersorvacuumpickupisstronglyrecommendedfor individualcomponents. 3.Bulkhandlingshouldensurethatabrasionandmechanicalshockare minimized. Featur 6 /6 eSpecificationsTolerances W12.00±0.30 P4.00±0.10 E1.75±0.10 F 5.50±0.10 P2 2.00±0.10 D 1.50 +0.10 -0.00 Po4.00±0.10 10Po40.00±0.20 12.Packing (1)Quantity/Reel:2000pcs/Reel (2)Plastictape: a.TapeDrawingb.TapeDimensions(unit:mm)

Page 1 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for 5.2GWIFI (Conducted Measurement) Product Name: Dash camera Test Model: S5 Environmental Conditions Temperature: 23.2C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Suichao Lai Supervised by: Yan Chen Page 2 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 -26dB Bandwidth Condition Mode Frequency (MHz) Antenna -26 dB Bandwidth (MHz) Limit -26 dB Bandwidth (MHz) Verdict NVNT a 5180 Ant1 25.72 --- Pass NVNT a 5200 Ant1 28.863 --- Pass NVNT a 5240 Ant1 25.489 --- Pass NVNT n20 5180 Ant1 28.714 --- Pass NVNT n20 5200 Ant1 28.5 --- Pass NVNT n20 5240 Ant1 28.951 --- Pass NVNT n40 5190 Ant1 44.974 --- Pass NVNT n40 5230 Ant1 45.535 --- Pass Page 3 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs -26dB Bandwidth NVNT a 5180MHz Ant1 -26dB Bandwidth NVNT a 5200MHz Ant1 Page 4 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -26dB Bandwidth NVNT a 5240MHz Ant1 -26dB Bandwidth NVNT n20 5180MHz Ant1 Page 5 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -26dB Bandwidth NVNT n20 5200MHz Ant1 -26dB Bandwidth NVNT n20 5240MHz Ant1 Page 6 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com -26dB Bandwidth NVNT n40 5190MHz Ant1 -26dB Bandwidth NVNT n40 5230MHz Ant1 Page 7 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Conducted Output Power Condition Mode Frequency (MHz) Antenna Conducted Power (dBm) Duty Factor (dB) Total Power (dBm) Limit (dBm) Verdict NVNT a 5180 Ant1 13.24 0.24 13.48 24 Pass NVNT a 5200 Ant1 13.47 0.24 13.71 24 Pass NVNT a 5240 Ant1 11.15 0.24 11.39 24 Pass NVNT n20 5180 Ant1 12.05 0.12 12.17 24 Pass NVNT n20 5200 Ant1 11.95 0.12 12.07 24 Pass NVNT n20 5240 Ant1 11.98 0.12 12.1 24 Pass NVNT n40 5190 Ant1 11.89 0.24 12.13 24 Pass NVNT n40 5230 Ant1 10.34 0.24 10.58 24 Pass Page 8 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.3 Maximum Power Spectral Density Level Condition Mode Frequency (MHz) Antenna Conducted PSD (dBm/MHz) Duty Factor (dB) Total PSD (dBm/MHz) Limit (dBm/MHz) Verdict NVNT a 5180 Ant1 3.3 0.24 3.54 11 Pass NVNT a 5200 Ant1 3.07 0.24 3.31 11 Pass NVNT a 5240 Ant1 0.75 0.24 0.99 11 Pass NVNT n20 5180 Ant1 1.21 0.12 1.33 11 Pass NVNT n20 5200 Ant1 1.31 0.12 1.43 11 Pass NVNT n20 5240 Ant1 1.29 0.12 1.41 11 Pass NVNT n40 5190 Ant1 -1.81 0.24 -1.57 11 Pass NVNT n40 5230 Ant1 -2.96 0.24 -2.72 11 Pass Page 9 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs PSD NVNT a 5180MHz Ant1 PSD NVNT a 5200MHz Ant1 Page 10 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT a 5240MHz Ant1 PSD NVNT n20 5180MHz Ant1 Page 11 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT n20 5200MHz Ant1 PSD NVNT n20 5240MHz Ant1 Page 12 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com PSD NVNT n40 5190MHz Ant1 PSD NVNT n40 5230MHz Ant1 Page 13 of 29 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.4 Restrict Band Condition Mode Frequency (MHz) Antenna Spur Freq (MHz) Power (dBm) Gain (dBi) Duty Factor (dB) E (dBuV/m) Detector Limit (dBuV/m) Verdict NVNT a 5180 Ant1 4500 -50.33 2.62 - 47.52 Peak 68.2 Pass NVNT a 5180 Ant1 4500 -57.78 2.62 0.24 40.31 Average 54 Pass NVNT a 5180 Ant1 5…

Text truncated - open the document above for the full version.

Page 1 of 30 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix B RF Test Data for 5.8GWIFI (Conducted Measurement) Product Name: Dash camera Test Model: S5 Environmental Conditions Temperature: 23.2C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: Suichao Lai Supervised by: Yan Chen Page 2 of 30 FCC ID: 2BD3N-S5 Report No.: LCSC09225022EB Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com B.1 -6dB Bandwidth Condition Mode Frequency (MHz) Antenna -6 dB Bandwidth (MHz) Limit -6 dB Bandwidth (MHz) Verdict NVNT a 5745 Ant1 16.312 >=0.5 Pass NVNT a 5785 Ant1 16.342 >=0.5 …

Text truncated - open the document above for the full version.
