2BDD5-V6MAXSmart Glasses

               ! "            "                  "#       "$                      %!  " %$    " %      &'(( )&*)+, -.'(/01**2)+)31)4'43()56)47)(&)+43+7'89:*)&2(7&73(;'42)16, .30*7'(<=(>&23(?)/'4@'+7A&3*7'(/*'*27/+)B7&)('*)5617&7*1>3664'B)+C>@3(0;3&*04)4     "      ! "D E     FG    FHG         "    I     "      J   "

Shenzhen SHOCII Technology Co, Ltd Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street, Bao 'an District, Shenzhen China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2026/01/22 U.S. Agent Designation Shenzhen SHOCII Technology Co, Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDD5-V6MAX): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shenzhen SHOCII Technology Co, Ltd Shenzhen SHOCII Technology Co, Ltd with the FRN [0034419499] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. An expiration date for this letter does not exist. Sincerely, Signature MIAOMIAO XIAO Manager Shenzhen SHOCII Technology Co, Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

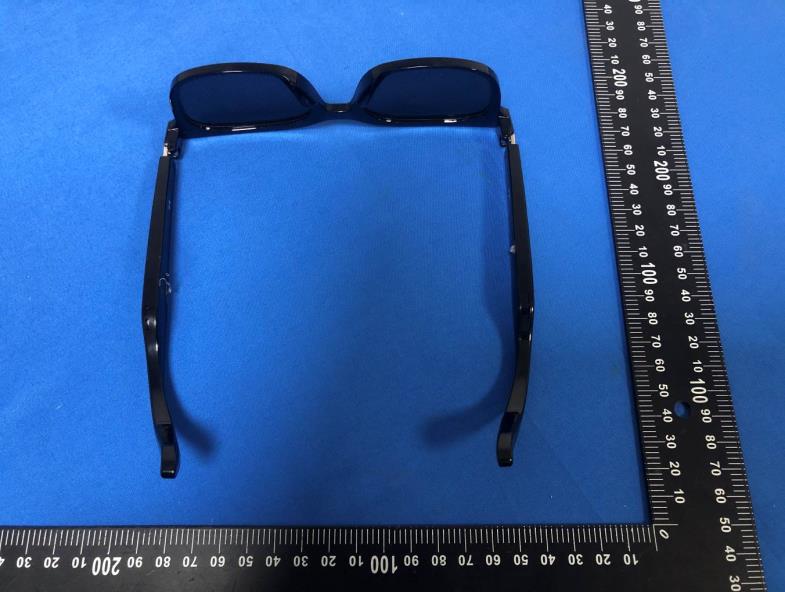

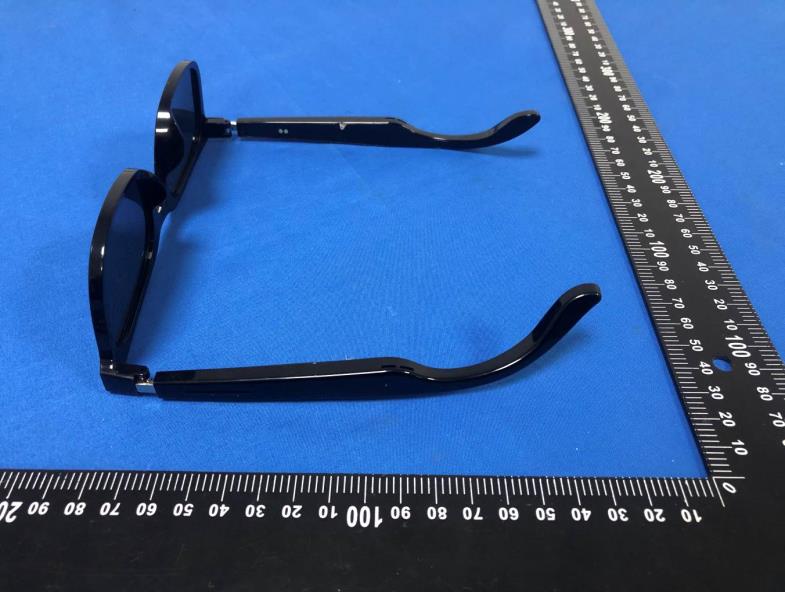

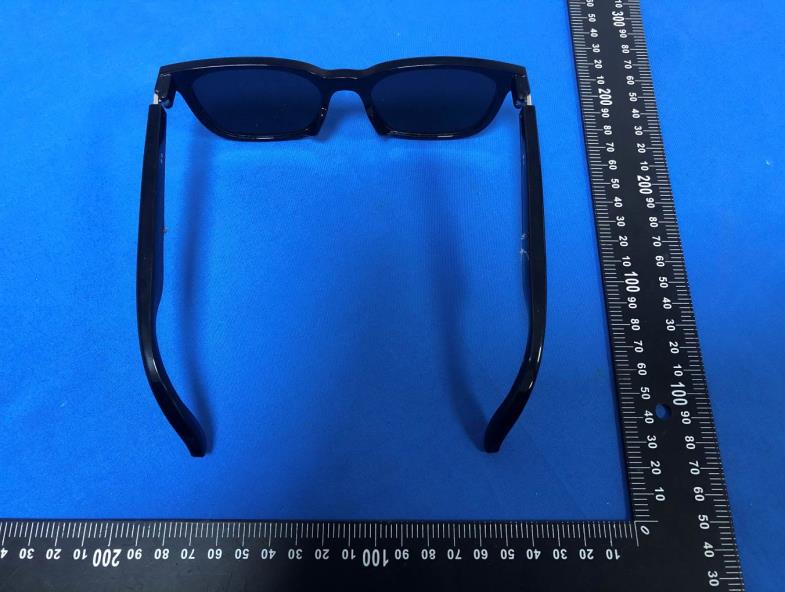

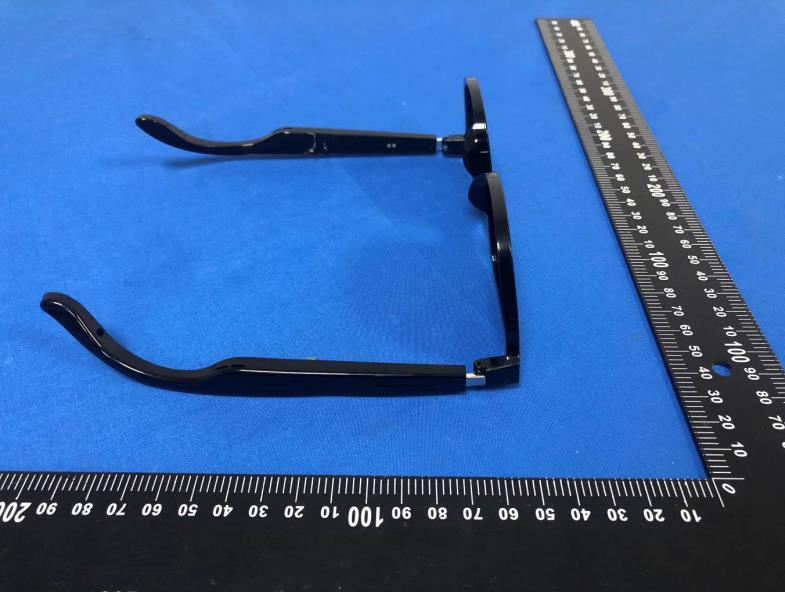

FCC ID:2BDD5-V6MAX External Photos of the EUT FCC ID:2BDD5-V6MAX FCC ID:2BDD5-V6MAX

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BDD5-V6MAX

FCC ID:2BDD5-V6MAX Internal Photos of the EUT BT ANT FCC ID:2BDD5-V6MAX FCC ID:2BDD5-V6MAX FCC ID:2BDD5-V6MAX FCC ID:2BDD5-V6MAX

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. .................... : FCC ID. ........................................... : CTA26010800102 2BDD5-V6MAX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ........................................... : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen SHOCII Technology Co, Ltd Address ........................................... : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart Glasses Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen SHOCII Technology Co, Ltd Model/Type reference ...................... : V6 Max Listed Models ................................... : Refer to page 2 Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26010800102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Glasses Model /Type : V6 Max Listed Models : V5 Pro, V7 Ultra, V8 Max, V9 Pro, V10 Ultra, V11Pro, V12 Max, V13 Ultra, V15 Max Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen SHOCII Technology Co, Ltd Address : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Manufacturer : Shenzhen SHOCII Technology Co, Ltd Address : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010800102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 8 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA26010800102 Page 4 of 8 S…

Text truncated - open the document above for the full version.

Manufacturer:Shenzhen Huaxinchen Technology Co., Ltd Address:3rd Floor, Building 2, Sojia Technology Park, No. 7 Hanghang Road, Hangcheng Street, Bao'an District, Shenzhen, China

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA26010800101 2BDD5-V6MAX Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Jan. 15, 2026 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shenzhen SHOCII Technology Co, Ltd Address ............................................ : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Smart Glasses Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen SHOCII Technology Co, Ltd Model/Type reference ...................... : V6 Max Listed Models ................................... : Refer to page 2 Modulation ....................................... : GFSK, Π/4DQPSK, 8DPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : DC 3.7V From battery and DC 5.0V From external circuit Result ............................................... : PASS Report No.: CTA26010800101 Page 2 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Smart Glasses Model /Type : V6 Max Listed Models : V5 Pro, V7 Ultra, V8 Max, V9 Pro, V10 Ultra, V11Pro, V12 Max, V13 Ultra, V15 Max Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen SHOCII Technology Co, Ltd Address : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Manufacturer : Shenzhen SHOCII Technology Co, Ltd Address : Floor 2, Building B, Suojia Science park, Sanwei Community, Hangcheng Street,Bao 'an District, Shenzhen China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA26010800101 Page 3 of 44 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility.................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BDD5-V6MAX Company : Shenzhen SHOCII Technology Co, Ltd EUT : Smart Glasses Model Number : V6 Max Report No. : CTA26010800101 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.951 2401.550 2402.501 --- --- 2441 0.960 2440.547 2441.507 --- --- 2480 0.969 2479.541 2480.510 --- --- 2DH5 Ant1 2402 1.320 2401.352 2402.672 --- --- 2441 1.347 2440.337 2441.684 --- --- 2480 1.365 2479.331 2480.696 --- --- 3DH5 Ant1 2402 1.347 2401.337 2402.684 --- --- 2441 1.335 2440.340 2441.675 --- --- 2480 1.287 2479.379 2480.666 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 6 3DH5_Ant1_2480 7 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86633 2401.5750 2402.4413 --- --- 2441 0.86025 2440.5796 2441.4399 --- --- 2480 0.85859 2479.5818 2480.4404 --- --- 2DH5 Ant1 2402 1.1842 2401.4165 2402.6007 --- --- 2441 1.1946 2440.4134 2441.6080 --- --- 2480 1.1864 2479.4186 2480.6050 --- --- 3DH5 Ant1 2402 1.1882 2401.4170 2402.6052 --- --- 2441 1.1810 2440.4245 2441.6055 --- --- 2480 1.1828 2479.4207 2480.6035 --- --- 8 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 9 2DH5_Ant1_2402 2DH5_Ant1_2441 10 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 11 3DH5_Ant1_2480 12 Appendix C: Maximum conducted output power Test Result Peak Left: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.11 ≤20.97 PASS 2441 -0.18 ≤20.97 PASS 2480 -0.16 ≤20.97 PASS 2DH5 Ant1 2402 -0.77 ≤20.97 PASS 2441 -1.05 ≤20.97 PASS 2480 -1.00 ≤20.97 PASS 3DH5 Ant1 2402 -0.74 ≤20.97 PASS 2441 -1.04 ≤20.97 PASS 2480 -1.01 ≤20.97 PASS Right: Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.27 ≤20.97 PASS 2441 -0.24 ≤20.97 PASS 2480 -0.38 ≤20.97 PASS 2DH5 Ant1 2402 -0.59 ≤20.97 PASS 2441 -1.34 ≤20.97 PASS 2480 -1.27 ≤20.97 PASS 3DH5 Ant1 2402 -0.59 ≤20.97 PASS 2441 -1.16 ≤20.97 PASS 2480 -1.21 ≤20.97 PASS 13 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.002 ≥0.969 PASS 2DH5 Ant1 Hop 0.99 ≥0.910 PASS 3DH5 Ant1 Hop 1.126 ≥0.898 PASS 14 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 15 16 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.407 318 0.129 ≤0.4 PASS DH3 Ant1 Hop 1.662 154 0.256 ≤0.4 PASS DH5 Ant1 Hop 2.910 111 0.323 ≤0.4 PASS 2DH1 Ant1 Hop 0.405 319 0.129 ≤0.4 PASS 2DH3 Ant1 Hop 1.662 165 0.274 ≤0.4 PASS 2DH5 Ant1 Hop 2.916 105 0.306 ≤0.4 PASS 3DH1 Ant1 Hop 0.407 319 0.13 ≤0.4 PASS 3DH3 Ant1 Hop 1.661 159 0.264 ≤0.4 PASS 3DH5 Ant1 Hop 2.916 109 0.318 ≤0.4 PASS 17 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 18 DH5_Ant1_Hop 19 2DH1_Ant1_Hop 2DH3_Ant1_Hop 20 2DH5_Ant1_Hop 21 3DH1_Ant1_Hop 3DH3_Ant1_Hop 22 3DH5_Ant1_Hop 23 24 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 3DH5 Ant1 Hop 79 ≥15 PASS 25 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 3DH5_Ant1_Hop 26 27 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.57 -57.28 ≤-20.57 PASS High 2480 -0.84 -52.71 ≤-20.84 PASS Low Hop_2402 -4.44 -57.94 ≤-24.44 PASS High Hop_2480 -3.68 -56.31 ≤-23.68 PASS 2DH5 Ant1 Low 2402 -3.51 -56.45 ≤-23.51 PASS High 2480 -3.83 -57.78 ≤-23.83 PASS Low Hop_2402 -5.44 -57.16 ≤-25.44 PASS High Hop_2480 -4.77 -54.17 ≤-24.77 PASS 3DH5 Ant1 Low 2402 -3.46 -57.58 ≤-23.46 PASS High 2480 -3.71 -57.44 ≤-23.71 PASS Low Hop_2402 -4.95 -57.9 ≤-24.95 PASS High Hop_2480 -4.29 -57.63 ≤-24.29 PASS 28 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 29 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 30 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 31 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 32 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 33 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -1.02 -1.02 --- PASS 30~1000 -1.02 -68.63 ≤-21.02 PASS 1000~26500 -1.02 -45.28 ≤-21.02 PASS 2441 Reference -1.30 -1.30 --- PASS 30~1000 -1.30 -68.49 ≤-21.3 PASS 1000~26500 -1.30 -44.31 ≤-21.3 PASS 2480 Reference -0.85 -0.85 --- PASS 30~1000 -0.85 -68.17 ≤-20.85 PASS 1000~26500 -0.85 -44.68 ≤-20.85 PASS 2DH5 Ant1 2402 Reference -3.94 -3.94 --- PASS 30~1000 -3.94 -63.5 ≤-23.94 PASS 1000~26500 -3.94 -52.82 ≤-23.94 PASS 2441 Reference -6.19 -6.19 --- PASS 30~1000 -6.19 -67.74 ≤-26.19 PASS 1000~26500 -6.19 -51.29 ≤-26.19 PASS 2480 Reference -6.52 -6.52 --- PASS 30~1000 -6.52 -68.5 ≤-26.52 PASS 1000~26500 -6.52 -49.61 ≤-26.52 PASS 3DH5 Ant1 2402 Reference -4.63 -4.63 --- PASS 30~1000 -4.63 -63.18 ≤-24.63 PASS 1000~26500 -4.63 -51.14 ≤-24.63 PASS 2441 Reference -5.86 -5.86 --- PASS 30~1000 -5.86 -68.2 ≤-25.86 PASS 1000~26500 -5.86 -47.53 ≤-25.86 PASS 2480 Reference -7.23 -7.23 --- PASS 30~1000 -7.23 -67.42 ≤-27.23 PASS 1000~26500 -7.23 -48.88 ≤-27.23 PASS 34 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 35 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 36 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 37 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 38 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference

39 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 40 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 41 3DH5_Ant1_2402_0~Reference 3DH5_Ant1_2402_30~1000 42 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_0~Reference 3DH5_Ant1_2441_30~1000 43 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_0~Reference 44 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 45 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 2DH5 Ant1 2402 2.92 3.74 78.07 1.08 --- --- 2441 2.91 3.74 77.81 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 3DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 46 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 47 2DH5_Ant1_2402 2DH5_Ant1_2441 48 2DH5_Ant1_2480 3DH5_Ant1_2402 3DH5_Ant1_2441 49 3DH5_Ant1_2480 50 Appendix J: Emissions in Restricted Bands Test Result TestMod e Antenn a ChNam e Freq(MH z) Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict DH5 Ant1 Low 2402 AV 2310.000 -60.26 2.00 1.10 38.04 ≤54 PASS AV 2372.555 -58.58 2.00 1.10 39.72 ≤54 PASS AV 2390.000 -59.58 2.00 1.10 38.72 ≤54 PASS Peak 2310.000 -52.77 2.00 0.00 44.43 ≤74 PASS Peak 2380.115 -47.96 2.00 0.00 49.24 ≤74 PASS Peak 2390.000 -51.88 2.00 0.00 45.32 ≤74 PASS High 2480 AV 2483.500 -58.06 2.00 1.10 40.24 ≤54 PASS AV 2483.760 -57.93 2.00 1.10 40.37 ≤54 PASS AV 2500.000 -59.02 2.00 1.10 39.28 ≤54 PASS Peak 2483.500 -50.24 2.00 0.00 46.96 ≤74 PASS Peak 2489.200 -48.96 2.00 0.00 48.24 ≤74 PASS Peak 2500.000 -51.08 2.00 0.00 46.12 ≤74 PASS 2DH5 Ant1 Low 2402 AV 2310.000 -60.32 2.00 1.08 37.96 ≤54 PASS AV 2387.885 -58.72 2.00 1.08 39.56 ≤54 PASS AV 2390.000 -59.86 2.00 1.08 38.42 ≤54 PASS Peak 2310.000 -51.47 2.00 0.00 45.73 ≤74 PASS Peak 2361.845 -48.55 2.00 0.00 48.65 ≤74 PASS Peak 2390.000 -50.89 2.00 0.00 46.31 ≤74 PASS High 2480 AV 2483.500 -58.54 2.00 1.09 39.75 ≤54 PASS AV 2483.760 -58.17 2.00 1.09 40.12 ≤54 PASS AV 2500.000 -60.02 2.00 1.09 38.27 ≤54 PASS Peak 2483.500 -51.96 2.00 0.00 45.24 ≤74 PASS Peak 2497.200 -48.9 2.00 0.00 48.30 ≤74 PASS Peak 2500.000 -50.26 2.00 0.00 46.94 ≤74 PASS 3DH5 Ant1 Low 2402 AV 2310.000 -60.14 2.00 1.09 38.15 ≤54 PASS AV 2385.680 -58.84 2.00 1.09 39.45 ≤54 PASS AV 2390.000 -59.91 2.00 1.09 38.38 ≤54 PASS Peak 2310.000 -50.82 2.00 0.00 46.38 ≤74 PASS Peak 2357.225 -48.62 2.00 0.00 48.58 ≤74 PASS Peak 2390.000 -50.67 2.00 0.00 46.53 ≤74 PASS High 2480 AV 2483.500 -58.63 2.00 1.09 39.66 ≤54 PASS AV 2484.080 -58.45 2.00 1.09 39.84 ≤54 PASS AV 2500.000 -59.56 2.00 1.09 38.73 ≤54 PASS Peak 2483.500 -50.36 2.00 0.00 46.84 ≤74 PASS Peak 2496.000 -48.6 2.00 0.00 48.60 ≤74 PASS Peak 2500.000 -51.2 2.00 0.00 46.00 ≤74 PASS 51 Note：The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 52 Test Graphs DH5_Ant1_Low_2402_AV DH5_Ant1_Low_2402_Peak DH5_Ant1_High_2480_AV 53 DH5_Ant1_High_2480_Peak 2DH5_Ant1_Low_2402_AV 54 2DH5_Ant1_Low_2402_Peak 2DH5_Ant1_High_2480_AV 2DH5_Ant1_High_2480_Peak 55 3DH5_Ant1_Low_2402_AV 3DH5_Ant1_Low_2402_Peak 56 3DH5_Ant1_High_2480_AV 3DH5_Ant1_High_2480_Peak

FCC ID:2BDD5-V6MAX Test Setup Photos of the EUT FCC ID:2BDD5-V6MAX
