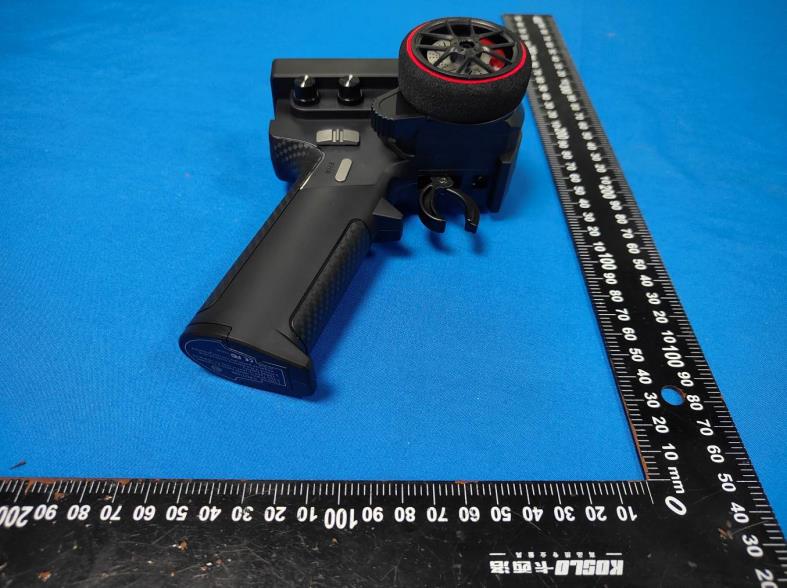

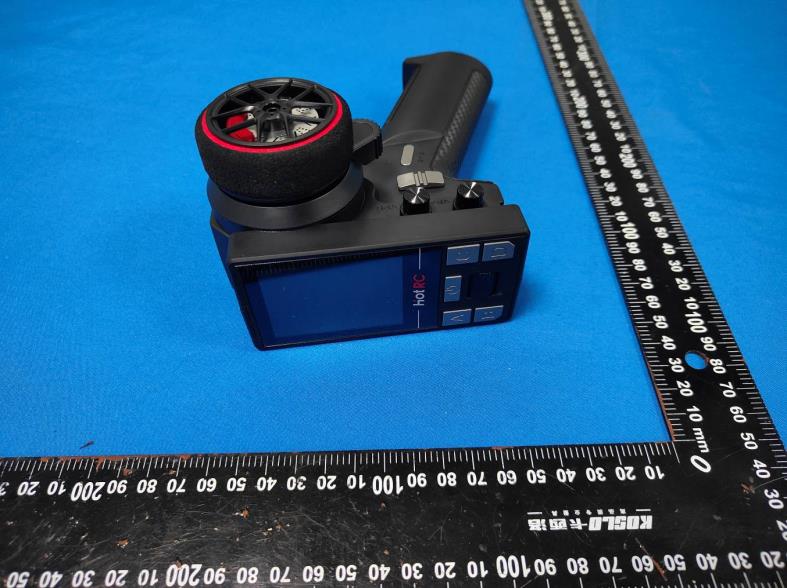

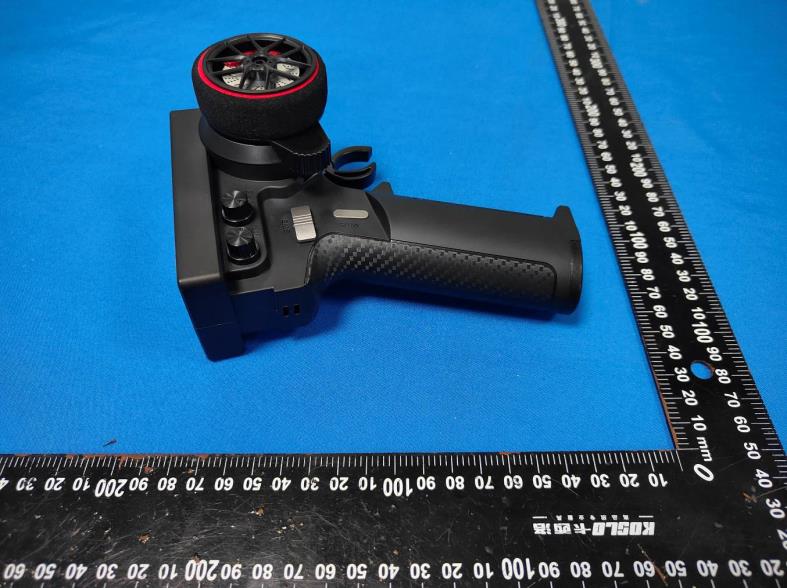

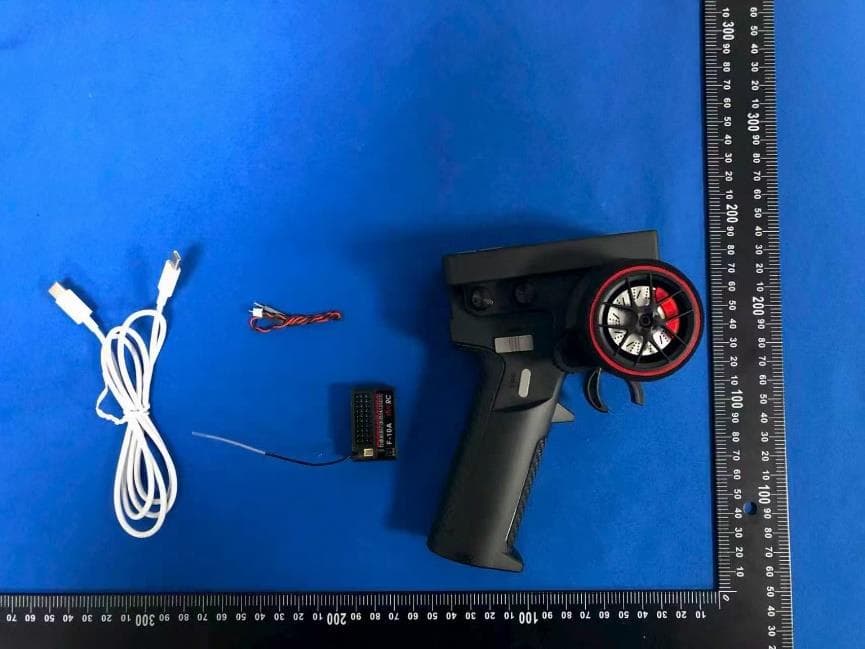

FCC ID:2BDLE-CT-10B External Photos of the EUT FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2BDLE-CT-10B

FCC ID:2BDLE-CT-10B Internal Photos of the EUT FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B ANT FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B FCC ID:2BDLE-CT-10B

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25052302702 2BDLE-CT-10B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 03, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : Shenzhen HOTRC Technology Co., Ltd Address............................................ : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 2.4G radio remote control Trade Mark ........................................ N/A Manufacturer .................................... : Shenzhen HOTRC Technology Co., Ltd Model/Type reference ...................... : CT-10B Listed Models ................................... : F-10A Rating ............................................... : Input: 5V 1.0A Battery: 3.7V, 1500mAh, 5.55Wh Result ............................................... : PASS Report No.: CTA25052302702 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 2.4G radio remote control Model /Type : CT-10B Listed Models : F-10A Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen HOTRC Technology Co., Ltd Address : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen HOTRC Technology Co., Ltd Address : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25052302702 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25052302702 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Bu…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type Internal antenna Model CT-10B Frequency range 2400-2500MHz Manufacturer Shenzhen HOTRC Technology Co., Ltd Address 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China ANT Peak Gain 0.78 dBi 2. Antenna Photo: 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

1 Appendix RF Test Data for 2.4G FCC ID : 2BDLE-CT-10B Company : Shenzhen HOTRC Technology Co., Ltd EUT : 2.4G radio remote control Model Number : CT-10B Report No. : CTA25052302701 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.957 2401.538 2402.495 --- --- 2441 0.960 2440.544 2441.504 --- --- 2480 0.948 2479.547 2480.495 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 5 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.86642 2401.5757 2402.4422 --- --- 2441 0.87447 2440.5696 2441.4441 --- --- 2480 0.87175 2479.5717 2480.4435 --- --- 6 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 7 8 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 14.73 ≤20.97 PASS 2441 14.44 ≤20.97 PASS 2480 14.40 ≤20.97 PASS 9 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.152 ≥0.960 PASS 10 Test Graphs DH5_Ant1_Hop 11 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH5 Ant1 Hop 2.890 112 0.324 ≤0.4 PASS 12 Test Graphs DH5_Ant1_Hop 13 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 14 Test Graphs DH5_Ant1_Hop 15 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 14.66 -45.31 ≤-5.34 PASS High 2480 13.90 -47.94 ≤-6.1 PASS Low Hop_2402 13.95 -37.49 ≤-6.06 PASS High Hop_2480 14.00 -50.09 ≤-6 PASS 16 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 17 DH5_Ant1_High_Hop_2480 18 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference 14.00 14.00 --- PASS 30~1000 14.00 -56.42 ≤-6 PASS 1000~26500 14.00 -27.72 ≤-6 PASS 2441 Reference 13.56 13.56 --- PASS 30~1000 13.56 -56.73 ≤-6.44 PASS 1000~26500 13.56 -29.74 ≤-6.44 PASS 2480 Reference 13.05 13.05 --- PASS 30~1000 13.05 -56.09 ≤-6.95 PASS 1000~26500 13.05 -28.16 ≤-6.95 PASS 19 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 20 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 21 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 22 DH5_Ant1_2480_1000~26500 23 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.91 3.75 77.60 1.10 --- --- 24 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 25

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25052302701 2BDLE-CT-10B Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Sep. 03, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ........................... : Shenzhen HOTRC Technology Co., Ltd Address ............................................ : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : 2.4G radio remote control Trade Mark ....................................... : N/A Manufacturer .................................... : Shenzhen HOTRC Technology Co., Ltd Model/Type reference ...................... : CT-10B Listed Models ................................... : F-10A Modulation ....................................... : GFSK Frequency ......................................... From 2402MHz to 2480MHz Ratings ............................................. : Input: 5V 1.0A Battery: 3.7V, 1500mAh, 5.55Wh Result ............................................... : PASS Report No.: CTA25052302701 Page 2 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : 2.4G radio remote control Model /Type : CT-10B Listed Models : F-10A Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shenzhen HOTRC Technology Co., Ltd Address : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Manufacturer : Shenzhen HOTRC Technology Co., Ltd Address : 2nd Floor, Building 3, Yibaolai Industrial City, Qiaotou Community, Fuhai Street, Bao'an District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25052302701 Page 3 of 30 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS .......................................................................................................................................... 4 2 SUMMARY ........................................................................................................................................................ 5 2.1 General Remarks .................................................................................................................................... 5 2.2 Product Description ................................................................................................................................. 5 2.3 Equipment Under Test ............................................................................................................................ 5 2.4 Short description of the Equipment under Test (EUT) ............................................................................ 5 2.5 EUT configuration .................................................................................................................................... 5 2.6 EUT operation mode ............................................................................................................................... 6 2.7 Block Diagram of Test Setup .................................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) .............................................................................................................. 6 2.9 Modifications ........................................................................................................................................... 6 3 TEST ENVIRONMENT ...................................................................................................................................... 7 3.1 Address of the test laboratory ................................................................................................................. 7 3.2 Test Facility ...................................................…

Text truncated - open the document above for the full version.

FCC ID:2BDLE-CT-10B Test Setup Photos of the EUT FCC ID:2BDLE-CT-10B
