2BDQO-HNBMD14HPersonal Computer

Model: USER MANUAL The design and specifications are subject to change without prior notice. All the images shown in this user manual are for illustrative purposes only and may differ from the actual product based on the model, itel reserves the right of final explanation. English 1 2 3 3 4 Contents Contents Views Set up your computer Keyboard shortcuts Specifications Trouble Shooting Views 1. Power-adapter port Connect a power.Connect to laptop security lock. 7. Power LED Power on:White; S3:white twinkle; S4:LED off. 3. HDMI port Connect a TV or another HDMI-in enabled device. Provide video and audio output. 4. USB 3.0 port Connect peripherals such as external storage devices and printers. 5. Type-C(data only) 6. Earphone port Connect headphones or a headset (headphone and microphone combo). Battery charging:red; full charged: green 2. Charging LED Only supports data transfer Left Right 2. Left-click area Press to left-click. 3. Right-click area Press to right-click. Click on the capslock, light on means uppercase, and light off means lowercase. 4. Caps Lock lighton the keyboard 1. Kensington Connect to laptop security lock. Connect peripherals such as external storage devices and printers. 2. USB 3.0 port 3. Micro-SD Slot Reads from and writes to the SD card. 4. Clear cmos Clear setting function. Base Back 1. Left speaker Provides audio output. 2. Right speaker Provides audio output. Cold air inlet. 3.Heat emission hole 1. Power button Press to turn on the laptop if it is turned off, in sleep state, or in hibernate state. Press to put the laptop in sleep state if it is turned on. Press and hold for 3 seconds to force shut-down the computer. Display 1. Camera Enables you to video calls, capture photos, and record videos. 2. Camera-status indicator Turns on when the camera is in use. 3/4. Microphone Provides digital sound input for audio recording, voice calls, and so on. White White suspend White Power on Charging Laptop is of full charge 1 1 3 42 4 32 1 3 2 567 1342 2413 1 Set up Your Laptop 1. Connect the power adapter and press the power button. Windows user account If you use Windows for the first time, a Windows user account is required to be created. The first account created is of the “Administrator” type. With an Administrator account, you can create additional user accounts or change account types by the following steps: (1) Click the Start menu and select Settings Accounts Family&other people. (2) Follow the on-screen instructions. How to Access Control Panel 1) Click the Start menu and select Windows System Control Panel 2) Use Windows Search NOTE: For first-time usage or unused after long time, the battery might enter power saving mode to conserve battery power. It is recommended to connect the power adapter and press the power button to start up under these conditions. Windows account User account is required to use the Windows operating system. Either a Windows user account or a Microsoft account is accessable to log in. Microsoft account You can also sign in to the Windows operating system with a Microsoft account. To create a Microsoft account, go to the Microsoft sign-up page at https://signup.live.com and follow the on- screen instructions. Windows user interface 2. Get started with Windows 11 1. Start button 2. Search 3. Virtual Desktop 4. Widgets 5. Chat 6. Documents 7. Microsoft Edge 8. Microsoft Store Access to Start menu. Type to search contents in your computer and from the Web. Handle multiple tasks. Get the information you care about faster. Quickly connect with people you care about. Access to Document folder. Browse the internet. Your favorite applications and entertainment items are all here. 2 Keyboard Shortcuts NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys used for shortcuts remain the same across all language configurations. 3. Connect to Networks Your computer helps you connect to the world through a wireless network. 1. Click the network icon in the Windows notification area. A list of available wireless networks is displayed. 2. Select a network to connect to. Provide required information if needed. NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted. Specifications NOTE: The weight of your laptop varies depending on the configuration ordered and the manufacturing variability. How to Launch an APP 1) Open the start menu and select the APP your want to launch 2) Use Windows Search List of keyboard shortcuts Keys DescriptionKeys DescriptionKeys Description Search Null Decrease Brightness Increase Brightness Lock/Unlock Touchpad Play the last song Play /Pause Play the next song Mute Audio Decrease Volume Increase Volume Lock the computer 3 VersionWindows 11 Pro/Home Processor CPU OS SSD128GB/256GB/512GB/1TB(optional) Micro card readerSupport SD/SDHC/SDXC, USB 2.0 interface Storage MICInternal Microphone support,DMIC Speaker Audio Height18.9mm 14.0'' Width 234.6mm Depth 323 mm Weight (maximum) NOTE: The weight of your computer varies depending on the configuration ordered and the manufacturing variability. 1.6 kg Dimensions and weight Computer model SPIRIT 2 Computer model TypeBuild in Camera module with D-Mic Pixel2M webcam LEDWhite LED Camera 14.0'' LanguageUS 80 keys KB support,option with backlight Keyboard Speed3200MT/s TypeDDR4 4GB(8GB/16GB optional) CapacityUp to 32GB system memory total Memory I2C click pad with 2 buttons,Multi-gesture support Touchpad USB•Two USB 3.0 ports Type-C•One Type-C ports full fuction •One HDMI1.4 port •One headset (headphone and microphone combo) port Card reader•One TF card port Ports and connectors Operating time varies depending on operating conditions and can significantly reduce under certain power-intensive conditions. Type3-cell lithium-ion battery (49.5WHr) Normal voltage 11.4V Typical capacity 4350mAh (3s1p) Life span (approximate)500 discharge/charge cycles TemperatureOperating/Charge: 0~45 RangeDischarg…

Text truncated - open the document above for the full version.

ATTESTATION STATEMENT QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Add: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China Tel: 0532-58826666 Fax: 0532-58826666 Email: [email protected] D ate: 2024-06-27 FEDE RAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements Part 2.911(d)(5)(i), (ii) Filing FCC ID: 2BDQO-HNBMD14H Q INGDAO HAINERGY TECHNOLOGY CORP., LIMITED, certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. And QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, P rinted name: ASHLEY DUAN Title: Manager S ignature:

U.S. AGENT LETTER OF ATTESTATION Date: 2024-06-27 FE DERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 R ef: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2BDQO-HNBMD14H Q INGDAO HAINERGY TECHNOLOGY CORP.,LIMITED, certifies that, as of the date of the filing of the application, GEEKOM INC. is our designated U.S. agent for service of process for the above referenced FCC ID. QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED, accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. GE EKOM INC. accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. U .S. Agent Information: Company Name: GEEKOM INC. Add: 21068 COMMERCE POINTE DR. WALNUT,CA 91789,United Sates FRN: 0035270644 Tel.: (909) 480-0188 Email: [email protected] Signed by (printed name): CHANGE HUANG Title: Manager Signature: Q INGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Add: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China FRN: 0034524512 Tel: 0532-58826666 Email: [email protected] Printed name: ASHLEY DUAN Title: Manager Signature:

QA-FR-170-B QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Add: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China Tel: 0532-58826666 Fax: 0532-58826666 Email: [email protected] FCC Authorization Date: 2024-06-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization T o whom it may concern: We , QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED, Hereby authorizes China Certification ICT Co., Ltd (Dongguan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by China Certification ICT Co., Ltd (Dongguan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. T his authorization is valid until further written notice from the applicant. S incerely Yours, Client’s signature: P rinted name: ASHLEY DUAN Title: Manager

QA-FR-171 -A QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Add: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China Tel: 0532-58826666 Fax: 0532-58826666 Email: [email protected] FCC Confidential Authorization Date: 2024-06-27 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2BDQO-HNBMD14H In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, QINGDAO HAINERGY TEC HNOLOGY CORP.,LIMITED hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Bl ock Diagram •Schematics •Operation Description •SOFTWARE SECURITY DECLARATION FOR U-NII DEVICES The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Pr inted name: ASHLEY DUAN Title: Manager

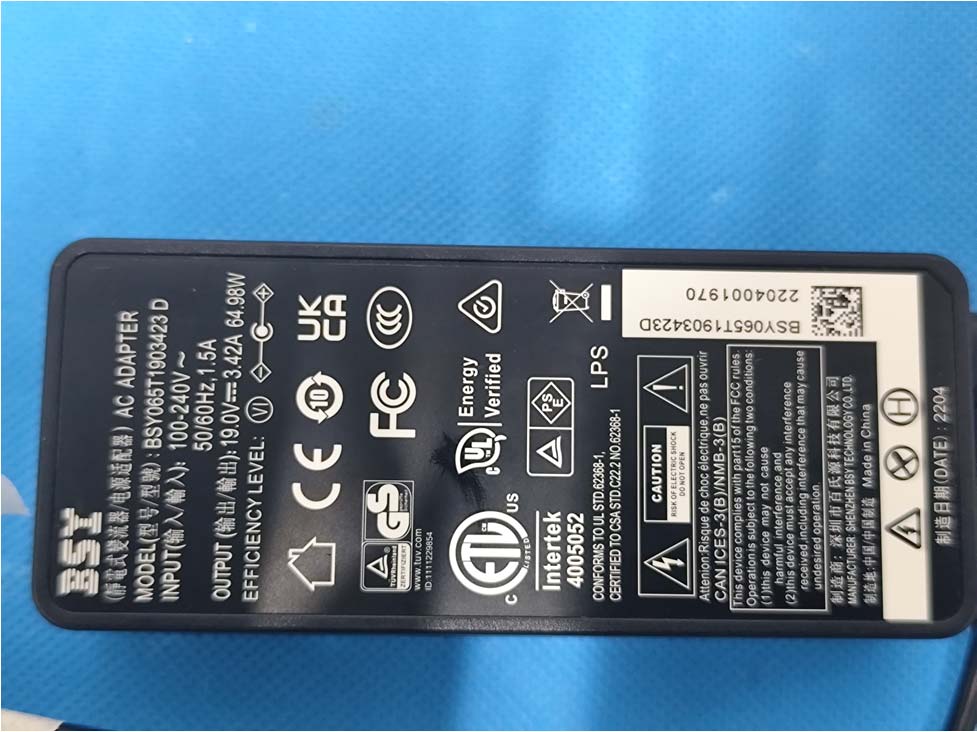

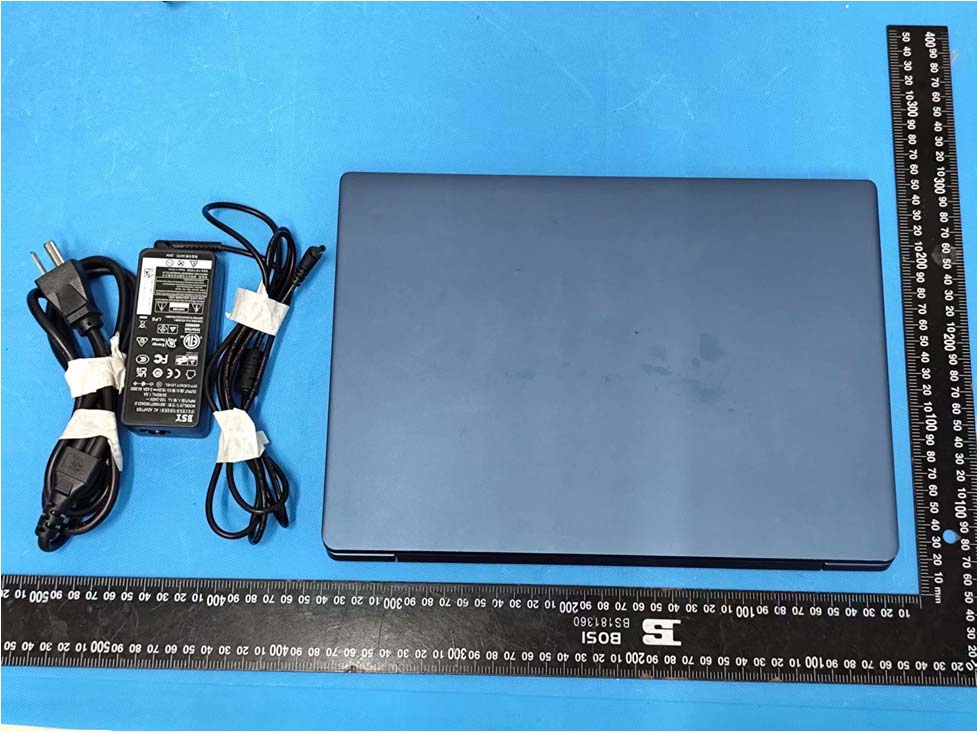

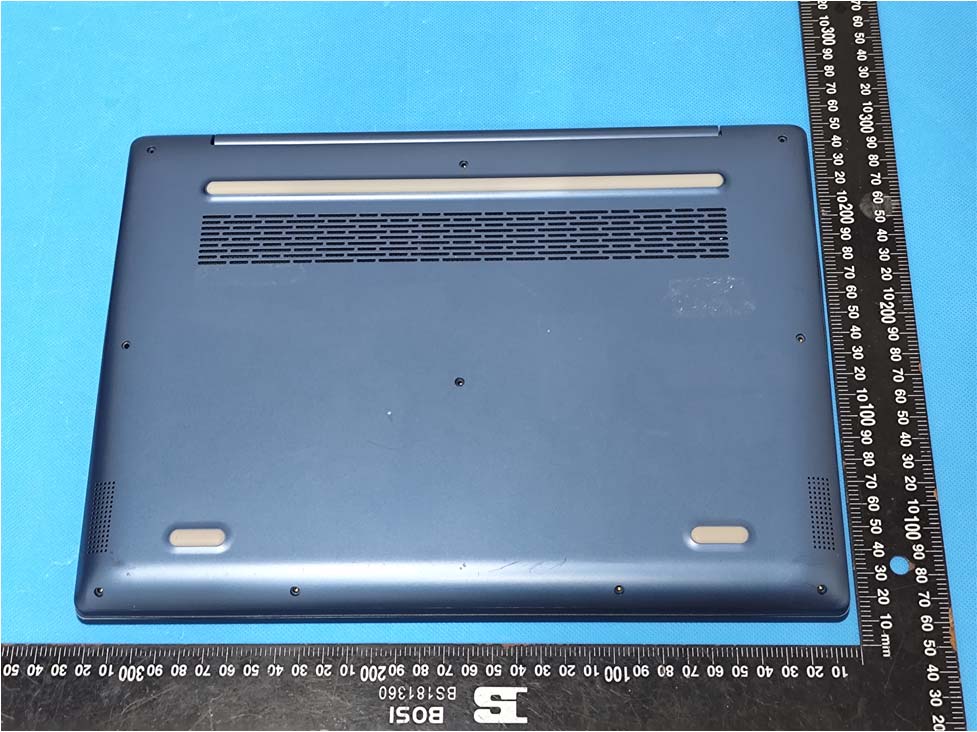

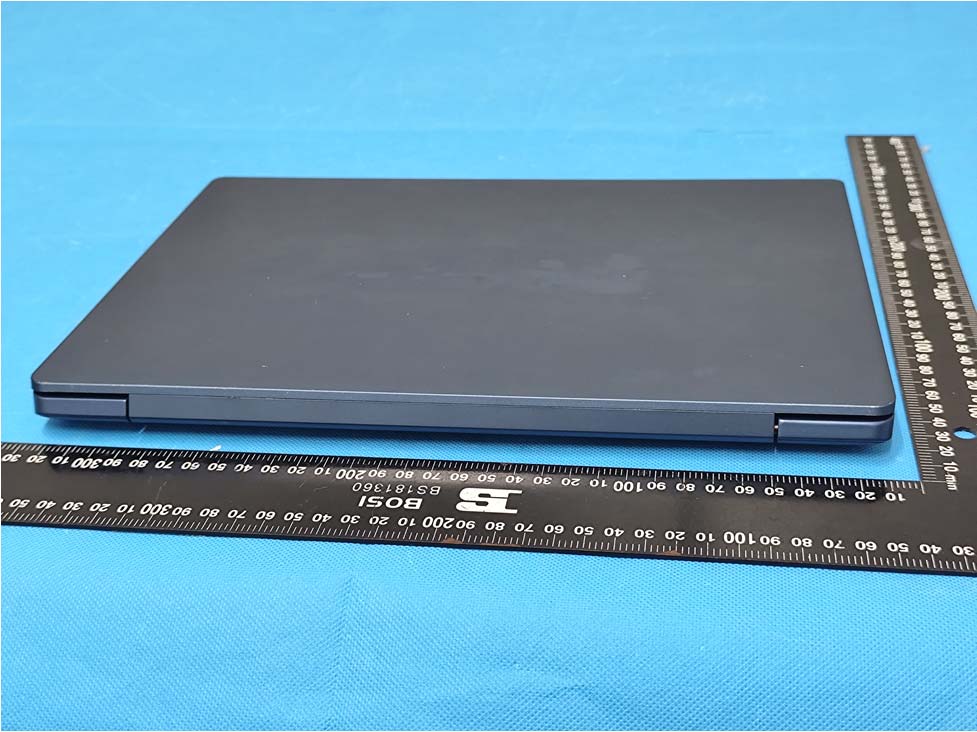

China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 1 of 6 EUT EXTERNAL PHOTOGRAPHS port China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 2 of 6 port China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 3 of 6 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 4 of 6 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 5 of 6 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐EXP Page 6 of 6

23 234.6 148mm 7mm 1:1 3 34.6 SN: HNBMD14H2024060001 Ceibal Modelo: HNBMD14HAWREG Input: 19V 3.42A Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. QINGDAO HAINERGY TECHNOLOGY CORP.,LIMTEDMade in China FCC ID: 2BDQO-HNBMD14H Personal Computer

China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 1 of 18 EUT INTERNAL PHOTOGRAPHS China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 2 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 3 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 4 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 5 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 6 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 7 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 8 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 9 of 18 RF Module Chain 1 Chain 0 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 10 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 11 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 12 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 13 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 14 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 15 of 18 China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 16 of 18 MAIN Antenna(Wi-Fi Chain 0) China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 17 of 18 AUX Antenna(BT, WiFi Chain 1) China Certification ICT Co., Ltd (DongGuan) No.:2403T78885E‐RF‐INP Page 18 of 18

China Certification ICT Co., Ltd (Dongguan) Report No.:2403T78885E-RF-00A Page 58 of 60 5. RF EXPOSURE EVALUATION 5.1 Applicable Standard According to§15.247(i) and §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB447498 D01 General RF Exposure Guidance v06: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 5.2 Measurement Result The max conducted power including tune-up tolerance is 6 dBm (3.98mW). [(max. power of channel, mW)/(min. test separation distance, mm)][√f(GHz)] =3.98/5*(√2.480) = 1.3< 3.0 Result: Compliant. The stand-alone SAR test is not necessary.

SAR TEST REPORT Applicant: QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China FCC ID: 2BDQO-HNBMD14H Product Name: Personal Computer Standard(s): 47 CFR Part 2(2.1093) The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: 2403T78885E-20 Date Of Issue: 2024/06/17 Reviewed By: Ken Zong Title: SAR Engineer Approved By: Karl Gong Title:SAR Engineer Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.: 2403T78885E-20 Page 2 of 98 SAR TEST RESULTS SUMMARY Operation Frequency Bands Highest Reported 1g SAR (W/kg) Limits (W/kg) Body-Supported (0mm) WLAN 2.4G Chain 0 0.64 1.6 WLAN 2.4G Chain 1 0.41 WLAN 5.2G Chain 0 0.32 WLAN 5.2G Chain 1 0.22 WLAN 5.3G Chain 0 0.30 WLAN 5.3G Chain 1 0.23 WLAN 5.6G Chain 0 0.42 WLAN 5.6G Chain 1 0.46 WLAN 5.8G Chain 0 0.24 WLAN 5.8G Chain 1 0.31 Bluetooth 0.14 Maximum Simultaneous Transmission SAR Items Body-Supported (0mm) Limits Sum SAR(W/kg) 1.05 1.6 SPLSR N/A 0.04 EUT Received Date: 2024/05/30 Tested Date: 2024/06/08 Tested Result: Pass China Certification ICT Co., Ltd (Dongguan) Report No.: 2403T78885E-20 Page 3 of 98 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.: 2403T78885E-20 Page 4 of 98 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 6 1. GENERAL INFORMATION .................................................................................................... 7 1.1 PRODUCT DESCRIPTION FOR DEVICE UNDER TEST (EUT) ............................................................... 7 1.2 TEST SPECIFICATION, METHODS AND PROCEDURES ........................................................................ 8 1.3 SAR LIMITS .......................................................................................................................................... 9 1.4 FACILITIES ...................................................................................................................................... 10 2. SAR MEASUREMENT SYSTEM .......................................................................................... 11 3. EQUIPMENT LIST AND CALIBRATION .......................................................................... 18 3.1 EQUIPMENTS LIST & CALIBRATION INFORMATION ....................................................................... 18 4. SAR MEASUREMENT SYSTEM VERIFICATION ........................................................... 19 4.1 LIQUID VERIFICATION ...................................................................................................................... 19 4.2 SYSTEM ACCURACY VERIFICATION ................................................................................................. 22 4.3 SAR SYSTEM VALIDATION DATA ............................................................................................. 23 5. EUT TEST STRATEGY AND METHODOLOGY .............................................................. 27 5.1 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS ................................................ 27 5.2 TEST DISTANCE FOR SAR EVALUATION .......................................................................................... 27 5.3 SAR EVALUATION PROCEDURE ....................................................................................................... 28 6. CONDUCTED OUTPUT POWER MEASUREMENT ........................................................ 29 6.1 TEST PROCEDURE .............................................................................................................................. 29 6.2 MAXIMUM TARGET OUTPUT POWER ............................................................................................... 29 6.3 TEST RESULTS: .................................................................................................................................. 31 7. Standalone SAR test exclusion considerations ....................................................................... 36 7.1 ANTENNA DISTANCE TO EDGE ......................................................................................................... 36 7.2 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS ................................................................. 36 7.3 STANDALONE SAR TEST EXCLUSION CONSIDERATIONS: ................................................................ 37 7.4 SAR TEST EXCLUSION FOR THE EUT EDGE CONSIDERATIONS RESULT ........................................ 38 8. SAR MEASUREMENT RESULTS ...................…

Text truncated - open the document above for the full version.

Manufacturer:Shenzhen Yishengbang Technology Co., Ltd Add:No.13, 16th Floor, Wanjunhui Business Apartment, 56 District, Xixiang Street, Baoan District, Shenzhen Project: N140NAL01 Product: WIFI Antenna—FPC Report date: 2023.3.15 1 Antenna Test Report Content 1. Product Overview 2.Test Result 2.1 VSWR/S11 2.2 Antenna Parameters 2.3 WIFI Antenna Gain/Efficiency/3D DATA 2.4 WIFI Antenna Throughput 2.5 BT Throughput 3. Conclusions 2 1. Product Overview 3 2. Test Result 2.1 VSWR/S11 4 MAIN 2. Test Result 2.1 VSWR/S11 5 AUX 2. Test Result 2.2 Antenna Parameters 6 MAINAUX 7 2. Test Result 2.3 WIFI Antenna Gain/Efficiency/3D DATA MAIN Frequency (MHz) 2400. 0 2450. 0 2500. 0 5150. 0 5250. 0 5350. 0 5500. 0 5750. 0 5850. 0 Efficiency (dBi)-3.80-3.87-3.98-4.03-3.86-3.90-3.91-4.41-4.61 Gain (dBi)2.862.342.461.812.372.054.602.11.78 Efficiency (%)41.6540.9840.0339.5641.0740.7840.6336.2534.58 8 2. Test Result 2.3 WIFI Antenna Gain/Efficiency/3D DATA AUX Frequency (MHz) 2400. 0 2450. 0 2500. 0 5150. 0 5250. 0 5350. 0 5500. 0 5750. 0 5850. 0 Efficiency (dBi)-4.41-4.26-4.93-4.92-4.65-4.54-4.54-4.70-4.85 Gain (dBi)3.223.231.631.561.842.013.113.573.79 Efficiency (%)36.2237.5132.1032.1934.2735.1635.1533.8732.75 9 2. Test Result 2.4 WIFI Antenna Throughput 2.4upload 2.4download 5.8upload5.8download 106M153M446M452M 10 2. Test Result 2.5 BT Throughput BTupload BTdownload 1.34M1.36M

TEST REPORT Applicant: QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China FCC ID: 2BDQO-HNBMD14H Product Name: Personal Computer Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: 2403T78885E-RF-00C Date Of Issue: 2024/6/18 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan,Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.:2403T78885E-RF-00C Page 2 of 71 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked with an asterisk “★”. China Certification ICT Co., Ltd (Dongguan) Report No.:2403T78885E-RF-00C Page 3 of 71 CONTENTS DOCUMENT REVISION HISTORY .......................................................................................... 5 1. GENERAL INFORMATION .................................................................................................... 6 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................... 6 1.2 DESCRIPTION OF TEST CONFIGURATION ........................................................................................... 8 1.2.1 EUT Operation Condition: ............................................................................................................................. 8 1.2.2 Support Equipment List and Details .............................................................................................................. 8 1.2.3 Support Cable List and Details ...................................................................................................................... 9 1.2.4 Block Diagram of Test Setup ....................................................................................................................... 10 1.3 MEASUREMENT UNCERTAINTY ........................................................................................................ 11 2. SUMMARY OF TEST RESULTS .......................................................................................... 12 3. REQUIREMENTS AND TEST PROCEDURES .................................................................. 13 3.1 AC LINE CONDUCTED EMISSIONS .................................................................................................... 13 3.1.1 Applicable Standard ..................................................................................................................................... 13 3.1.2 EUT Setup.................................................................................................................................................... 14 3.1.3 EMI Test Receiver Setup ............................................................................................................................. 14 3.1.4 Test Procedure ............................................................................................................................................. 15 3.1.5 Corrected Amplitude & Margin Calculation ................................................................................................ 15 3.2 RADIATION SPURIOUS EMISSIONS .................................................................................................... 16 3.2.1 Applicable Standard ..................................................................................................................................... 16 3.2.2 EUT Setup.................................................................................................................................................... 16 3.2.2 EMI Test Receiver & Spectrum Analyzer Setup ......................................................................................... 17 3.2.3 Test Procedure ............................................................................................................................................. 18 3.2.4 Corrected Amplitude & Margin Calculation ................................................................................................ 18 3.3 MINIMUM 6 DB EMISSION BANDWIDTH ........................................................................................... 19 3.3.1 Applicable Standard ..................................................................................................................................... 19 3.3.2 EUT Setup.................................................................................................................................................... 19 3.3.3 Test Procedure ....................................................…

Text truncated - open the document above for the full version.

TEST REPORT Applicant: QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area, Qingdao, SHANDONG, China FCC ID: 2BDQO-HNBMD14H Product Name: Personal Computer Standard(s): 47 CFR Part 15, Subpart C(15.247) ANSI C63.10-2013 KDB 558074 D01 15.247 Meas Guidance v05r02 The above device has been tested and found compliant with the requirement of the relative standards by China Certification ICT Co., Ltd (Dongguan) Report Number: 2403T78885E-RF-00A Date Of Issue: 2024/6/18 Reviewed By: Calvin Chen Title: RF Engineer Approved By: Sun Zhong Title: Manager Test Laboratory: China Certification ICT Co., Ltd (Dongguan) No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China Tel: +86-769-82016888 China Certification ICT Co., Ltd (Dongguan) Report No.:2403T78885E-RF-00A Page 2 of 60 Test Facility The Test site used by China Certification ICT Co., Ltd (Dongguan) to collect test data is located on the No. 113, Pingkang Road, Dalang Town, Dongguan, Guangdong, China. The lab has been recognized as the FCC accredited lab under the KDB 974614 D01 and is listed in the FCC Public Access Link (PAL) database, FCC Registration No. : 442868, the FCC Designation No. : CN1314. Declarations China Certification ICT Co., Ltd (Dongguan) is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with a triangle symbol “▲”. Customer model name, addresses, names, trademarks etc. are not considered data. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report cannot be reproduced except in full, without prior written approval of the Company. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report may contain data that are not covered by the accreditation scope and shall be marked wi…
