2BDQO-HTB-CCT616Tablet PC

In The Box 25 User Manual Cable TYPE-C Charger Input: 100-240V/~ 50/60Hz, 0.5A Max. Output: 9.0V 2.0A SIM/micro SD card eject pin Tablet PRODUCT GUIDE We 'd love to hear from you, Scan with your Walmart app and let us know what you think. Starting Your Tablet 27 1. Press and hold the Power button for 3~4 seconds. (If your tablet does not turn on, or instructs you to "Connect your charger", connect the AC adapter and charge the device.) 7RSRZHURǖWKHWDEOHWSOVSUHVV3RZHUEXWWRQYROXPHXSEXWWRQDWWKHVDPHWLPH ,QWKH6WDUWXSVFUHHQLQWHUIDFHVOLGHXSE\\RXUǓQJHUWRXQORFN 3. Once you' ve entered the Home interface, you can start to use your tablet. Tu eMay 8 11 32 28 Home Screen At-a-Glance 1. Status Bar 2. Search Box 1 2 Using the Cameras 29 Tap on the Camera lcon 1. Flip lens 2. Flash light 3. HDR 4. Grid view 5. Time lapse shooting 6. Shoot 56 4 3 1 2 30 Updating O. S. Software 6\VWHPXSGDWHVKHOSSURWHFW\RXUGHYLFHZKLOHSURYLGLQJQHZIHDWXUHVZHWKLQN\RXZLOOORYH 1. Connect the device to the internet. (see Connecting to WiFi) 6HOHFW6HWWLQJVVHOHFW6\VWHPWKHQVHOHFW6\VWHPXSGDWHWKHQWDSRQWKH&KHFNIRUXSGDWHEXWWRQ 3. After you've searched for new updates, the system will download any available system updates. 4. After the download is complete, tap the "Restart now" button to restart the tablet and install the update. (Step 2)(Step 2)(Step 4) System update Your system is up to date System update available Check for updateRestart now Log in or Change Your Google Account 31 1.Select "Settings" and select the "Passwords & accounts" menu. 2.Select "Add account". 3.Select "Google"RUDQRWKHUDSSDFFRXQWV\RXƦGOLNHWRDGG 4. Enter your Google Account and password accordingly in the sign in interface and tap "Next". &KRRVHWRWXUQRQRURǖ "%DFNXSWR*RRJOH'ULYH" and then tap "Accept". (Step 1) (Step 4)(Step 4)(Step 5) Passwords & Accounts Google Sign in Your Google Account (Step 2) + Add account Accounts (Step 3) Google Accounts Next Google Welcome ··············· Next Google Services Back up to Google Drive ACCEPT 32 Navigating Apps & Getting New Apps Navigating Apps 1. Swipe up in the middle of the screen to enter app list. 2. Find your app manually from the app list. 3. Swipe down to exit your app list and back to Home interface. Getting New Apps 1. Connect the device to the internet.(see Connecting to the Internet) 2. Go to Google Play Store and log in your Google account. 3. Type the desired App’s name in the search bar, tap the install button to start the download. 4. After the download is complete, install the app, then the new app will appear in the app list. G Sesrch for apps & games Sign in 6LJQLQWRǓQGWKHODWHVW$QGURLGDSSVJDPHVPRYLHVPXVLF PRUH Google Play Z (Navigating Apps Step 2)(Navigating Apps Step 3) Google Play Updates 7KHǓUVWWLPH\RXVLJQLQ*RRJOH3OD\XSGDWHVZLOODXWRPDWLFDOO\VWDUWWRGRZQORDG The download icon will appear in the status bar at the top left of screen. Installing a new application while downloading multiple apps will slow down the speed and performance of the device. After all downloads and updates have been installed, the tablet will recover normal operating performance. To check the progress of downloads in the background, slide down from the top edge of WKHVFUHHQE\\RXUǓQJHU 33 34 Touching and Typing To select an icon or menu on the screen, tap LWE\\RXUǓQJHU6RPHLFRQVPHQXVPD\UHTXLUH you to "double-tap". 7RW\SHLQDWH[WǓHOG LHZKHQLQSXWWLQJ\RXUQDPH RUDZHEVLWH WDSWKHWH[WǓHOG 7KHYLUWXDONH\ERDUGZLOODSSHDUDQGDOORZ \RXWRW\SHWKHLQIRUPDWLRQ\RXZRXOGOLNHWRLQSXW Need in formation Need in formation 7RXFKDQG+ROG.HHS\RXUǓQJHURQ an icon or menu until it glows or activates an alternate option. Drag: Move an App or menu by touching and holding it, then sliding it to the destination. Slide: When there are another interfaces or positions for the icon or menu, drag it and slide to new interface or position. Connecting to the Internet 35 1. Select "Settings" and select the "1HWZRUN& internet" menu. 2. Select "Internet" and turn on Wi-Fi switch. $YDLODEOH:L)LQHWZRUNVZLOOEHOLVWHGKHUHVHOHFW\RXUSUHIHUUHGQHWZRUN 4. Enter the Wi-Fi password in the pop-up interface and tap "CONNECT" to start the connection. 5. Wi-Fi will be connected automatically next time. (Step 1)(Step 2) Wi-Fi Internet Network & internet (Step 3)(Step 4) Wi-Fi AAAAA BBBBB CCCC Internet Password CANCELCONNECT ................. 36 Connecting Bluetooth <RXUWDEOHWLVFRPSDWLEOHZLWK%OXHWRRWKGHYLFHV2QFH\RXUWDEOHWVHDUFKHVDQGǓQGVWKH Bluetooth device, follow pop-up interface instructions to initiate the pairing of the device with the tablet. Add or "PAIR"a Bluetooth compatible device with your tablet as follows: (Step 1)(Step 2) + Pair new device Connected devices Cnnected devices Pair new device (Step 3)(Step 4) Available devices AAAAA BBBBB CCCC Pair with XXXXXX? Buletooth pairing code xxxxx CANCELPAIR Charging Your Tablet 37 ,WLVUHFRPPHQGHGWRIXOO\FKDUJHWKHWDEOHWEHIRUHǓUVWXVH To charge the tablet, (1) Plug the USB cable into the adapter, (2) Connect the other end to the TYPE-C port of the tablet, (3) Plug the AC adapter into a wall outlet. lt is normal for the tablet to get warm while charging, playing high in tensity games, or streaming video. Battery life will vary depending on usage. Note: Leave tablet in well ventilated area while charging. 1 2 3 38 6HWXSWKH.LGV6SDFH )ROORZWKHVWHSVEHORZWRVHWXS*RRJOH.LGV6SDFH 1. When asked who is going to use the device, tap A child.  OI\RX YHSUHYLRXVO\VHWXSDQDFFRXQWWDSRQWKH*RRJOH.LGV6SDFHLFRQ 2. Sign into your child's existing Google Account or follow the prompts to create a new Google Account for your child under 13 (or the applicable age in your country). :KHQSURPSWHGWRVHWXS*RRJOH.LGV6SDFHWDS6HW8S 4. Edit your child's settings and interests. 39 5HPRYHWKH.LGV6SDFH…

Text truncated - open the document above for the full version.

QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area Qingdao, SHANDONG China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-18 To whom it may concern: We, QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED, hereby certify that the equipment for which authorization is sought (FCC ID: 2BDQO-HTB-CCT616) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature ASHLEY DUAN Manager QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Room 309(A), Baotai Office Building, No.45, Beijing Road, Bonded Port Area, Qingdao, Shandong Province, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024/06/19 U.S. Agent Designation QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED.acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDQO-HTB-CCT616): Name and company of U.S. agent: GSS SERVICE INC Physical U.S. address of agent: 6547 N Academy Blvd #2266 Colorado Springs COLORADO 80918 United States FRN of U.S. agent: 0033402082 Email address of U.S. agent: [email protected] GSS SERVICE INC acknowledges their obligation to accept service of process on behalf of QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED with the FRN [0034524512] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature ASHLEY DUAN General Manager QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Signature Michoux Logan PM GSS SERVICE INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-6-18> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2BDQO-HTB-CCT616 HTB-CCT616 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： ASHLEY DUAN/Manager Company: QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area Qingdao, SHANDONG China Phone: 0532-58826666 Fax: N/A E-Mail: [email protected]

QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area Qingdao, SHANDONG China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-6-18 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2BDQO-HTB-CCT616 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： ASHLEY DUAN/Manager Company: QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address: Room 309 (A), Baotai Office Building, No. 45 Beijing Road, Bonded Port Area Qingdao, SHANDONG China Phone: 0532-58826666 Fax: N/A E-Mail: [email protected]

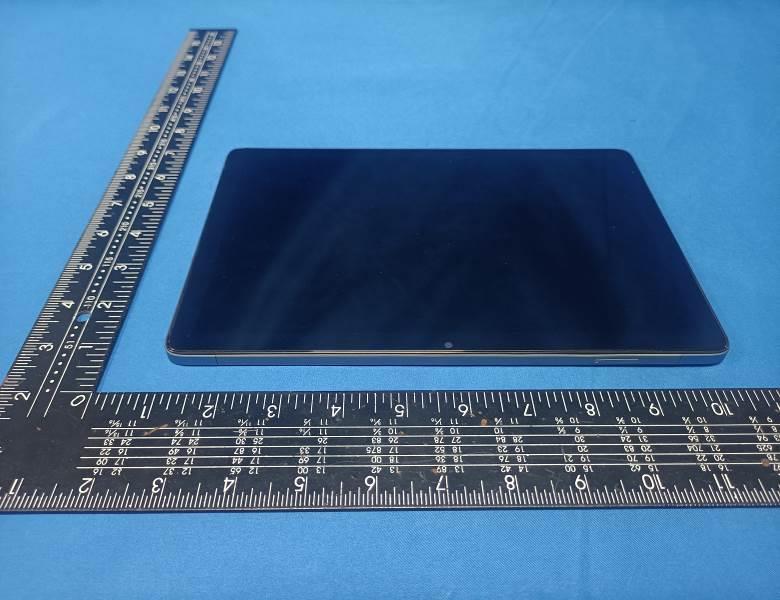

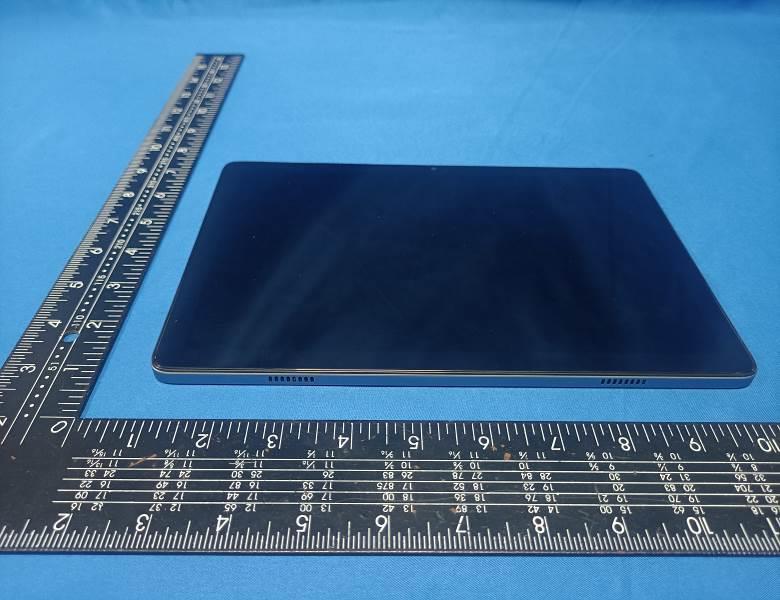

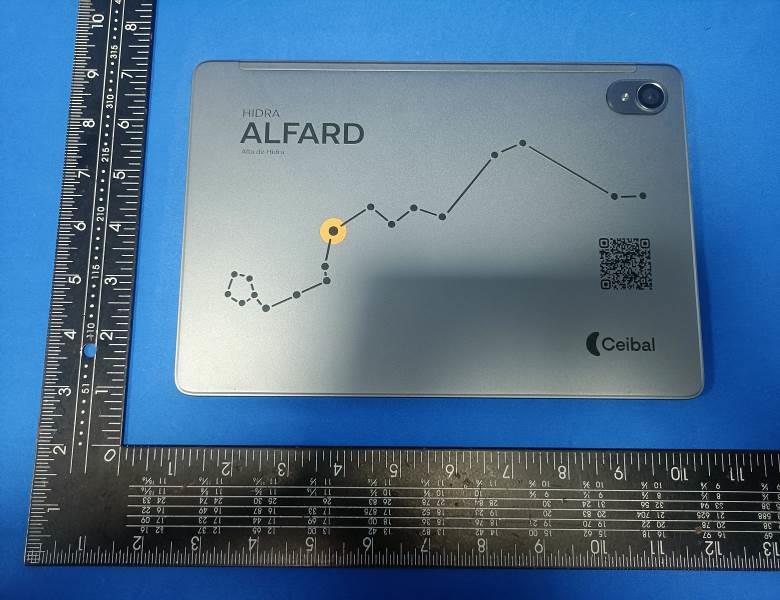

FCC ID: 2BDQO-HTB-CCT616 External Photos of the EUT FCC ID: 2BDQO-HTB-CCT616

Label and Location Size: L: 2.0cm*W: 1.0cm Label and Location FCC ID : 2BDQO-HTB-CCT616

FCC ID: 2BDQO-HTB-CCT616 Internal Photos of the EUT LTE ANT BT/WIFI ANT LTE DIV ANT FCC ID: 2BDQO-HTB-CCT616 FCC ID: 2BDQO-HTB-CCT616 FCC ID: 2BDQO-HTB-CCT616

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China TEST REPORT Report Reference No. ..................... : FCC ID ........................................... : CTA24052201909 2BDQO-HTB-CCT616 Compiled by ( position+printed name+signature) .. : File administrators Jinghua Xiao Supervised by ( position+printed name+signature) .. : Project Engineer Lushan Kong Approved by ( position+printed name+signature) .. : RF Manager Eric Wang Date of issue ..................................... : June 11, 2024 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................. : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao‘an District, Shenzhen, China Applicant’s name ............................ : QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address ............................................. : Room 309(A), Baotai Office Building, No.45, Beijing Road, Bonded Port Area, Qingdao, Shandong Province, China Test specification ........................... : Standard ........................................... : IEC 62209-2:2010; IEEE 1528:2013; FCC 47 CFR Part 2.1093; ANSI/IEEE C95.1:2005; Reference FCC KDB 447498; KDB 865664; KDB 248227; KDB 941225; KDB 616217 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : TabletPC Trade Mark ....................................... : Haitech Manufacturer ..................................... : QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Model/Type reference ....................... : HTB-CCT616 Listed Models .................................. : N/A Rating ............................................... : DC 3.7V From battery and DC 5.0V From external circuit Result ................................................ : PASS Report No.: CTA24052201909 Page 2 of 109 T E S T R E P O R T Equipment under Test : TabletPC Model /Type : HTB-CCT616 Listed Models : N/A Applicant : QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address : Room 309(A), Baotai Office Building, No.45, Beijing Road, Bonded Port Area, Qingdao, Shandong Province, China Manufacturer : QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED Address : Room 309(A), Baotai Office Building, No.45, Beijing Road, Bonded Port Area, Qingdao, Shandong Province, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA24052201909 Page 3 of 109 ※ ※ Revision History ※ ※ REV. ISSUED DATE DESCRIPTION Rev.1.0 June 11, 2024 Initial Test Report Release Report No.: CTA24052201909 Page 4 of 109 Contents 1 Statement of Compliance ............................................................................................... 6 2 General Information ........................................................................................................ 7 General Remarks ............................................................................................................................................. 7 Description of Equipment Under Test (EUT) ..................................................................................................... 7 Device Category and SAR Limits ..................................................................................................................... 8 Applied Standard .............................................................................................................................................. 8 Test Facility ....................................................................................................................................................... 8 Environment of Test Site ................................................................................................................................... 9 Test Configuration ............................................................................................................................................. 9 3 Specific Absorption Rate (SAR) ................................................................................... 10 Introduction ..................................................................................................................................................... 10 SAR Definition ................................................................................................................................................ 10 4 SAR Measurement System .......................................................................................... 11 E-Field Probe ................................................................................................................................................... 11 Data Acquisition Electronics (DAE) ................................................................................................................. 12 Robot .............................................................................................................................................................. 13 Measurement Server ...................................................................................................................................... 13 Phantom ......................................................................................................................................................... 14 Device Holder .........................…

Text truncated - open the document above for the full version.

Report No.: CTA24052201909 Page 76 of 109 Report No.: CTA24052201909 Page 77 of 109 Report No.: CTA24052201909 Page 78 of 109 Report No.: CTA24052201909 Page 79 of 109 Report No.: CTA24052201909 Page 80 of 109 Report No.: CTA24052201909 Page 81 of 109 Report No.: CTA24052201909 Page 82 of 109 Report No.: CTA24052201909 Page 83 of 109 Report No.: CTA24052201909 Page 84 of 109 Report No.: CTA24052201909 Page 85 of 109 Report No.: CTA24052201909 Page 86 of 109 Report No.: CTA24052201909 Page 87 of 109 Report No.: CTA24052201909 Page 88 of 109 Report No.: CTA24052201909 Page 89 of 109 Report No.: CTA24052201909 Page 90 of 109 Report No.: CTA24052201909 Page 91 of 109 Report No.: CTA24052201909 Page 92 of 109 Report No.: CTA24052201909 Page 93 of 109 Report No.: CTA24052201909 Page 94 of 109 Report No.: CTA24052201909 Page 95 of 109 Report No.: CTA24052201909 Page 96 of 109 Report No.: CTA24052201909 Page 97 of 109 Report No.: CTA24052201909 Page 98 of 109 Report No.: CTA24052201909 Page 99 of 109 Report No.: CTA24052201909 Page 100 of 109 Report No.: CTA24052201909 Page 101 of 109 Report No.: CTA24052201909 Page 102 of 109

Report No.: CTA24052201909 Page 103 of 109 Report No.: CTA24052201909 Page 104 of 109 Report No.: CTA24052201909 Page 105 of 109 Report No.: CTA24052201909 Page 106 of 109 Report No.: CTA24052201909 Page 107 of 109 Report No.: CTA24052201909 Page 108 of 109 Report No.: CTA24052201909 Page 109 of 109 *****END OF REPORT*****

1. Antenna Description: Antenna type PIFA ANT Model HTB-CCT616-WWLAN Manufacturer QINGDAO HAINERGY TECHONOLY CORP.,LIMITED ANT Peak Gain GSM850(824-849MHz)/WCDMA Band 5):0.92 dbi, DCS1900(1850-1910MHz)WCDMA Band 2/LTE Band 2: 1.20dbi LTE Band 4(1710-1755):1.07 dbi, 2. Antenna Photo:

1 FCC LTE Band Test Data FCC ID : 2BDQO-HTB-CCT616 Company: : QINGDAO HAINERGY TECHNOLOGY CORP.,LIMITED EUT : Tablet PC Model Number : G232 Reviewed By : HTB-CCT616 2 Appendix B: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band2 1.4MHz QPSK 18607 6RB#0 4.24 13 PASS Band2 1.4MHz QPSK 18900 6RB#0 4.13 13 PASS Band2 1.4MHz QPSK 19193 6RB#0 4.08 13 PASS Band2 1.4MHz 16QAM 18607 6RB#0 5.02 13 PASS Band2 1.4MHz 16QAM 18900 6RB#0 4.99 13 PASS Band2 1.4MHz 16QAM 19193 6RB#0 4.90 13 PASS Band2 3MHz QPSK 18615 15RB#0 4.27 13 PASS Band2 3MHz QPSK 18900 15RB#0 4.21 13 PASS Band2 3MHz QPSK 19185 15RB#0 4.16 13 PASS Band2 3MHz 16QAM 18615 15RB#0 5.06 13 PASS Band2 3MHz 16QAM 18900 15RB#0 4.96 13 PASS Band2 3MHz 16QAM 19185 15RB#0 4.94 13 PASS Band2 5MHz QPSK 18625 25RB#0 4.30 13 PASS Band2 5MHz QPSK 18900 25RB#0 4.24 13 PASS Band2 5MHz QPSK 19175 25RB#0 4.30 13 PASS Band2 5MHz 16QAM 18625 25RB#0 5.01 13 PASS Band2 5MHz 16QAM 18900 25RB#0 4.93 13 PASS Band2 5MHz 16QAM 19175 25RB#0 5.04 13 PASS Band2 10MHz QPSK 18650 50RB#0 4.48 13 PASS Band2 10MHz QPSK 18900 50RB#0 4.32 13 PASS Band2 10MHz QPSK 19150 50RB#0 4.66 13 PASS Band2 10MHz 16QAM 18650 50RB#0 5.20 13 PASS Band2 10MHz 16QAM 18900 50RB#0 4.99 13 PASS Band2 10MHz 16QAM 19150 50RB#0 5.42 13 PASS Band2 15MHz QPSK 18675 75RB#0 5.03 13 PASS Band2 15MHz QPSK 18900 75RB#0 4.79 13 PASS Band2 15MHz QPSK 19125 75RB#0 5.14 13 PASS Band2 15MHz 16QAM 18675 75RB#0 5.58 13 PASS Band2 15MHz 16QAM 18900 75RB#0 5.32 13 PASS Band2 15MHz 16QAM 19125 75RB#0 5.70 13 PASS Band2 20MHz QPSK 18700 100RB#0 5.18 13 PASS Band2 20MHz QPSK 18900 100RB#0 4.95 13 PASS Band2 20MHz QPSK 19100 100RB#0 5.09 13 PASS Band2 20MHz 16QAM 18700 100RB#0 5.85 13 PASS Band2 20MHz 16QAM 18900 100RB#0 5.59 13 PASS Band2 20MHz 16QAM 19100 100RB#0 5.77 13 PASS 3 Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0-PASS Band2-1.4MHz-QPSK-18900-6RB#0-PASS Band2-1.4MHz-QPSK-19193-6RB#0-PASS Band2-1.4MHz-16QAM-18607-6RB#0-PASS 4 Band2-1.4MHz-16QAM-18900-6RB#0-PASS Band2-1.4MHz-16QAM-19193-6RB#0-PASS Band2-3MHz-QPSK-18615-15RB#0-PASS Band2-3MHz-QPSK-18900-15RB#0-PASS 5 Band2-3MHz-QPSK-19185-15RB#0-PASS Band2-3MHz-16QAM-18615-15RB#0-PASS Band2-3MHz-16QAM-18900-15RB#0-PASS Band2-3MHz-16QAM-19185-15RB#0-PASS 6 Band2-5MHz-QPSK-18625-25RB#0-PASS Band2-5MHz-QPSK-18900-25RB#0-PASS Band2-5MHz-QPSK-19175-25RB#0-PASS Band2-5MHz-16QAM-18625-25RB#0-PASS 7 Band2-5MHz-16QAM-18900-25RB#0-PASS Band2-5MHz-16QAM-19175-25RB#0-PASS Band2-10MHz-QPSK-18650-50RB#0-PASS Band2-10MHz-QPSK-18900-50RB#0-PASS 8 Band2-10MHz-QPSK-19150-50RB#0-PASS Band2-10MHz-16QAM-18650-50RB#0-PASS Band2-10MHz-16QAM-18900-50RB#0-PASS Band2-10MHz-16QAM-19150-50RB#0-PASS 9 Band2-15MHz-QPSK-18675-75RB#0-PASS Band2-15MHz-QPSK-18900-75RB#0-PASS Band2-15MHz-QPSK-19125-75RB#0-PASS Band2-15MHz-16QAM-18675-75RB#0-PASS 10 Band2-15MHz-16QAM-18900-75RB#0-PASS Band2-15MHz-16QAM-19125-75RB#0-PASS Band2-20MHz-QPSK-18700-100RB#0-PASS Band2-20MHz-QPSK-18900-100RB#0-PASS 11 Band2-20MHz-QPSK-19100-100RB#0-PASS Band2-20MHz-16QAM-18700-100RB#0-PASS Band2-20MHz-16QAM-18900-100RB#0-PASS Band2-20MHz-16QAM-19100-100RB#0-PASS 12 Appendix C: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band2 1.4MHz QPSK 18607 6RB#0 1.0934 1.245 PASS Band2 1.4MHz QPSK 18900 6RB#0 1.0937 1.250 PASS Band2 1.4MHz QPSK 19193 6RB#0 1.0926 1.246 PASS Band2 1.4MHz 16QAM 18607 6RB#0 1.1049 1.260 PASS Band2 1.4MHz 16QAM 18900 6RB#0 1.1045 1.254 PASS Band2 1.4MHz 16QAM 19193 6RB#0 1.1061 1.256 PASS Band2 3MHz QPSK 18615 15RB#0 2.7106 3.019 PASS Band2 3MHz QPSK 18900 15RB#0 2.7150 3.026 PASS Band2 3MHz QPSK 19185 15RB#0 2.7189 3.038 PASS Band2 3MHz 16QAM 18615 15RB#0 2.7036 3.024 PASS Band2 3MHz 16QAM 18900 15RB#0 2.7098 3.045 PASS Band2 3MHz 16QAM 19185 15RB#0 2.6999 3.045 PASS Band2 5MHz QPSK 18625 25RB#0 4.5074 5.001 PASS Band2 5MHz QPSK 18900 25RB#0 4.5170 4.990 PASS Band2 5MHz QPSK 19175 25RB#0 4.5099 4.995 PASS Band2 5MHz 16QAM 18625 25RB#0 4.5101 4.979 PASS Band2 5MHz 16QAM 18900 25RB#0 4.5088 4.999 PASS Band2 5MHz 16QAM 19175 25RB#0 4.5076 4.970 PASS Band2 10MHz QPSK 18650 50RB#0 8.9964 9.920 PASS Band2 10MHz QPSK 18900 50RB#0 9.0050 9.946 PASS Band2 10MHz QPSK 19150 50RB#0 8.9758 9.864 PASS Band2 10MHz 16QAM 18650 50RB#0 8.9883 9.968 PASS Band2 10MHz 16QAM 18900 50RB#0 9.0156 9.945 PASS Band2 10MHz 16QAM 19150 50RB#0 8.9796 9.901 PASS Band2 15MHz QPSK 18675 75RB#0 13.504 14.97 PASS Band2 15MHz QPSK 18900 75RB#0 13.523 15.02 PASS Band2 15MHz QPSK 19125 75RB#0 13.493 14.94 PASS Band2 15MHz 16QAM 18675 75RB#0 13.472 14.93 PASS Band2 15MHz 16QAM 18900 75RB#0 13.491 14.94 PASS Band2 15MHz 16QAM 19125 75RB#0 13.493 14.93 PASS Band2 20MHz QPSK 18700 100RB#0 17.968 19.73 PASS Band2 20MHz QPSK 18900 100RB#0 18.014 19.71 PASS Band2 20MHz QPSK 19100 100RB#0 17.994 19.78 PASS Band2 20MHz 16QAM 18700 100RB#0 17.998 19.63 PASS 13 Band2 20MHz 16QAM 18900 100RB#0 17.999 19.77 PASS Band2 20MHz 16QAM 19100 100RB#0 18.048 19.79 PASS 14 Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0-PASS Band2-1.4MHz-QPSK-18900-6RB#0-PASS Band2-1.4MHz-QPSK-19193-6RB#0-PASS Band2-1.4MHz-16QAM-18607-6RB#0-PASS 15 Band2-1.4MHz-16QAM-18900-6RB#0-PASS Band2-1.4MHz-16QAM-19193-6RB#0-PASS Band2-3MHz-QPSK-18615-15RB#0-PASS Band2-3MHz-QPSK-18900-15RB#0-PASS 16 Band2-3MHz-QPSK-19185-15RB#0-PASS Band2-3MHz-16QAM-18615-15RB#0-PASS Band2-3MHz-16QAM-18900-15RB#0-PASS Band2-3MHz-16QAM-19185-15RB#0-PASS 17 Band2-5MHz-QPSK-18625-25RB#0-PASS Band2-5MHz-QPSK-18900-25RB#0-PASS Band2-5MHz-QPSK-19175-25RB#0-PASS Band2-5MHz-16QAM-18625-25RB#0-PASS 18 Band2-5MHz-16QAM-18900-25RB#0-PASS Band2-5MHz-16QAM-19175-25RB#0-PASS Band2-10MHz-QPSK-18650-50RB#0-PASS Band2-10MHz-QPSK-18900-50RB#0-PASS 19 Band2-10MHz-QPSK-19150-50RB#0-PASS Band2-10MHz-16QAM-18650-50RB#0-PASS Band2-10MHz-16QAM-18900-50RB#0-PASS Band2-10MHz-16QAM-19150-50RB#0-PASS 20 Band2-15MHz-QPSK-18675-75RB#0-PASS Band2-15MHz-QPSK…

Text truncated - open the document above for the full version.

26 Band2_5MHz_QPSK_18625_25RB#0 Band2_5MHz_QPSK_19175_25RB#0 Band2_5MHz_16QAM_18625_25RB#0 Band2_5MHz_16QAM_19175_25RB#0 27 Band2_10MHz_QPSK_18650_50RB#0 Band2_10MHz_QPSK_19150_50RB#0 Band2_10MHz_16QAM_18650_50RB#0 Band2_10MHz_16QAM_19150_50RB#0 28 Band2_15MHz_QPSK_18675_75RB#0 Band2_15MHz_QPSK_19125_75RB#0 Band2_15MHz_16QAM_18675_75RB#0 Band2_15MHz_16QAM_19125_75RB#0 29 Band2_20MHz_QPSK_18700_100RB#0 Band2_20MHz_QPSK_19100_100RB#0 Band2_20MHz_16QAM_18700_100RB#0 Band2_20MHz_16QAM_19100_100RB#0 30 Appendix E: Conducted Spurious Emission Test Result Band Bandwidth Modulation Channel RB Configuration Frequency Range Result (dBm) Verdict Band2 1.4MHz QPSK 18607 6RB#0 0.009~0.15 -45.55 PASS Band2 1.4MHz QPSK 18607 6RB#0 0.15~30 -59.14 PASS Band2 1.4MHz QPSK 18607 6RB#0 30~1000 -66.72 PASS Band2 1.4MHz QPSK 18607 6RB#0 1000~3000 -45.59 PASS Band2 1.4MHz QPSK 18607 6RB#0 3000~20000 -45.84 PASS Band2 1.4MHz QPSK 18900 6RB#0 0.009~0.15 -48.00 PASS Band2 1.4MHz QPSK 18900 6RB#0 0.15~30 -59.46 PASS Band2 1.4MHz QPSK 18900 6RB#0 30~1000 -66.43 PASS Band2 1.4MHz QPSK 18900 6RB#0 1000~3000 -44.24 PASS Band2 1.4MHz QPSK 18900 6RB#0 3000~20000 -46.01 PASS Band2 1.4MHz QPSK 19193 6RB#0 0.009~0.15 -46.44 PASS Band2 1.4MHz QPSK 19193 6RB#0 0.15~30 -59.25 PASS Band2 1.4MHz QPSK 19193 6RB#0 30~1000 -66.77 PASS Band2 1.4MHz QPSK 19193 6RB#0 1000~3000 -41.03 PASS Band2 1.4MHz QPSK 19193 6RB#0 3000~20000 -45.92 PASS Band2 1.4MHz 16QAM 18607 6RB#0 0.009~0.15 -45.70 PASS Band2 1.4MHz 16QAM 18607 6RB#0 0.15~30 -59.78 PASS Band2 1.4MHz 16QAM 18607 6RB#0 30~1000 -66.69 PASS Band2 1.4MHz 16QAM 18607 6RB#0 1000~3000 -44.05 PASS Band2 1.4MHz 16QAM 18607 6RB#0 3000~20000 -46.00 PASS Band2 1.4MHz 16QAM 18900 6RB#0 0.009~0.15 -47.59 PASS Band2 1.4MHz 16QAM 18900 6RB#0 0.15~30 -56.92 PASS Band2 1.4MHz 16QAM 18900 6RB#0 30~1000 -66.48 PASS Band2 1.4MHz 16QAM 18900 6RB#0 1000~3000 -43.43 PASS Band2 1.4MHz 16QAM 18900 6RB#0 3000~20000 -45.61 PASS Band2 1.4MHz 16QAM 19193 6RB#0 0.009~0.15 -46.40 PASS Band2 1.4MHz 16QAM 19193 6RB#0 0.15~30 -58.68 PASS Band2 1.4MHz 16QAM 19193 6RB#0 30~1000 -66.92 PASS Band2 1.4MHz 16QAM 19193 6RB#0 1000~3000 -46.46 PASS Band2 1.4MHz 16QAM 19193 6RB#0 3000~20000 -46.15 PASS Band2 3MHz QPSK 18615 15RB#0 0.009~0.15 -47.75 PASS Band2 3MHz QPSK 18615 15RB#0 0.15~30 -57.39 PASS Band2 3MHz QPSK 18615 15RB#0 30~1000 -66.80 PASS Band2 3MHz QPSK 18615 15RB#0 1000~3000 -46.58 PASS Band2 3MHz QPSK 18615 15RB#0 3000~20000 -46.01 PASS Band2 3MHz QPSK 18900 15RB#0 0.009~0.15 -47.71 PASS 31 Band2 3MHz QPSK 18900 15RB#0 0.15~30 -59.08 PASS Band2 3MHz QPSK 18900 15RB#0 30~1000 -66.87 PASS Band2 3MHz QPSK 18900 15RB#0 1000~3000 -45.06 PASS Band2 3MHz QPSK 18900 15RB#0 3000~20000 -46.36 PASS Band2 3MHz QPSK 19185 15RB#0 0.009~0.15 -45.20 PASS Band2 3MHz QPSK 19185 15RB#0 0.15~30 -56.45 PASS Band2 3MHz QPSK 19185 15RB#0 30~1000 -66.60 PASS Band2 3MHz QPSK 19185 15RB#0 1000~3000 -42.98 PASS Band2 3MHz QPSK 19185 15RB#0 3000~20000 -45.84 PASS Band2 3MHz 16QAM 18615 15RB#0 0.009~0.15 -46.88 PASS Band2 3MHz 16QAM 18615 15RB#0 0.15~30 -58.48 PASS Band2 3MHz 16QAM 18615 15RB#0 30~1000 -66.82 PASS Band2 3MHz 16QAM 18615 15RB#0 1000~3000 -48.15 PASS Band2 3MHz 16QAM 18615 15RB#0 3000~20000 -46.03 PASS Band2 3MHz 16QAM 18900 15RB#0 0.009~0.15 -45.64 PASS Band2 3MHz 16QAM 18900 15RB#0 0.15~30 -59.16 PASS Band2 3MHz 16QAM 18900 15RB#0 30~1000 -66.69 PASS Band2 3MHz 16QAM 18900 15RB#0 1000~3000 -44.52 PASS Band2 3MHz 16QAM 18900 15RB#0 3000~20000 -46.07 PASS Band2 3MHz 16QAM 19185 15RB#0 0.009~0.15 -45.51 PASS Band2 3MHz 16QAM 19185 15RB#0 0.15~30 -58.85 PASS Band2 3MHz 16QAM 19185 15RB#0 30~1000 -66.67 PASS Band2 3MHz 16QAM 19185 15RB#0 1000~3000 -43.16 PASS Band2 3MHz 16QAM 19185 15RB#0 3000~20000 -46.10 PASS Band2 5MHz QPSK 18625 25RB#0 0.009~0.15 -46.89 PASS Band2 5MHz QPSK 18625 25RB#0 0.15~30 -59.89 PASS Band2 5MHz QPSK 18625 25RB#0 30~1000 -66.81 PASS Band2 5MHz QPSK 18625 25RB#0 1000~3000 -49.89 PASS Band2 5MHz QPSK 18625 25RB#0 3000~2000…

Text truncated - open the document above for the full version.
