2BDUL-SZ-4015BPS4 Bluetooth Controller

User's Manual Before using this product, please read this manual carefully to understand the compatible hardware and operating instructions. Be careful to keep this instruction for future reference. safety: Please place this product out of young children. Young children may swallow widgets, causing injury or product damage. This product contains a lithium battery, and improper use of the product can lead to a fire or explosion. Do not heat, open, puncture, destroy, or place the product or battery on fire. Do not touch the product with wet hand to prevent damage. Do not remove, repair or change the product without authorization to prevent further damage to the product, which may cause battery explosion or fire hazard risk. When connecting this product to the host machine, please confirm that the interface is free of dust or foreign matter. Liquid or small particles are not allowed to enter this product. The product shall not be exposed to the dust, smoke or steam environment. Do not expose the product to high temperature, high humidity or direct sunlight, which may cause damage or melting of the battery. Use and maintenance: The interface shall not make any contact with any other metal articles. Place no items on the top of this product. Do not stand above this product. Do not throw or throw this product or otherwise apply huge external force. This product shall not be placed on unstable, tilted or shaking surfaces. Follow the following instructions to help avoid aging or fading of the product surface. Wipe it with a soft, dry fabric. No rubber or vinyl material is placed on the surface of this product to extend the product life. No solvents or other chemicals shall be used. Do not use chemically treated rags to wipe them off. matters need attention debugging: Q1: Handle cannot be connected to the host machine? A1: Ensure that your PS4 host is powered on and whether it has been paired with the host. If not, please pair with the host first. A2: verify that the USB cable is correctly connected to the PS4 / PS3 host. A3: verify that the USB cable is correctly connected to this PS4 / PS3 handle. Q2: Handle is connected to PS4 / PS3 host but not functional? A1: When connecting the two handles, confirm that the Player # 1 handle is being used. This product is suitable for PS4 / PS3 series host compatible with Switch, Android, IOS, PC Windows 10 and above operating system platform, support audio, support microphone, support vibration function. Note: the picture is for reference only, specific to the real object. * Built-in lithium battery power supply, support TYPE C USB data cable. Product characteristics product appearance Product introduction and application scope * Supports PS4 / PS3 series host / Steam Deck host / Switch / Android, IOS, PC (above Windows 10 above). * Built-in speaker, 3.5mm headphone jack, support for 3.5mm TRRS stereo headphones. * Support for Bluetooth wireless and wired connection mode. * Individual channel light indication, individual RGB light effect regulation. * Support double-point capacitive induction touch pad, macro programming key expansion function. * 3 Six-axis function of D-Sensor and G-Sensor composition. * The key operation distance is 10M and the sound distance is 6M. * The controller has the function of vibration horse, making the vibration experience more realistic when using weapons, impact and other scenes in the game. * The handle can be upgraded through PC USB cable. When the handle is not connected to the current PS4 / PS3 host or has been connected to other hosts, and needs to connect to the current host, you first need to communicate with the PS4 / PS3 host with a USB cable. In the process of communication, the program automatically code, press the HOME key, the handle can be wireless communication connection with Bluetooth. When connecting USB, press the HOME key handle LED channel light shows a color always bright, that is, the connected host. After multiple gamepads are connected to the console at the same time, the gamepad LED channel lights display different colors to distinguish different users and players. The general PS4 / PS3 console supports multiple Bluetooth devices, and the controller perfectly supports the PS4 / PS3 series of games. Wired connection: first, you need to use a USB cable to communicate with the Switch host wired first. During the communication process, the program will automatically code. After pressing any button to vibrate once, the controller Switch Host connection The PS4 / PS3 host connection can be connected to the host for game operation. The wired mode supports the headset audio. Bluetooth connection: When the handle is connected to the host, pull out the USB cable and enter the connection state for 2-3 seconds; When the handle is not connected to the host, press the OPTIONS key, then press the HOME key combination (OPTIONS + HOME) for 3 seconds, and the channel light flash handle enters the pairing. Open the host pairing interface to the host for 2-3 seconds, and the handle will vibrate once. When the handle is shut down, first hold the SHARE key, then press the HOME key combination (SHARE + HOME), long press for 3 seconds, the handle enters the matching state, the white LED channel light flashes, open the Android device to search the Bluetooth name "Wireless Controller", click the connection to connect the handle, the channel light shows blue, if the handle is not available on the device, the handle is off and sleeps for about 60 seconds. (1) First confirm that the iPhone & iPad equipment has been upgraded to IOS13 and above systems. (2) When the handle is off, hold the Share key first, and then press the HOME key combination (SHARE + HOME) for 3 seconds, the handle enters the matching state, and the white light flashes. (3) Open the Settings of iPhone & iPad device, click the "Bluetooth" option, turn on the Bluetooth function, find the device name of "DUAL SHOCK 4 Wireless Controller", and then click the devi…

Text truncated - open the document above for the full version.

ShenZhen Senze Electronics Co., Ltd Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 12/7/2023 U.S. Agent Designation ShenZhen Senze Electronics Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BDUL-SZ-4015B): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of ShenZhen Senze Electronics Co., Ltd. ShenZhen Senze Electronics Co., Ltd with the FRN 0034548735 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Guihua Zhou CEO ShenZhen Senze Electronics Co., Ltd Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

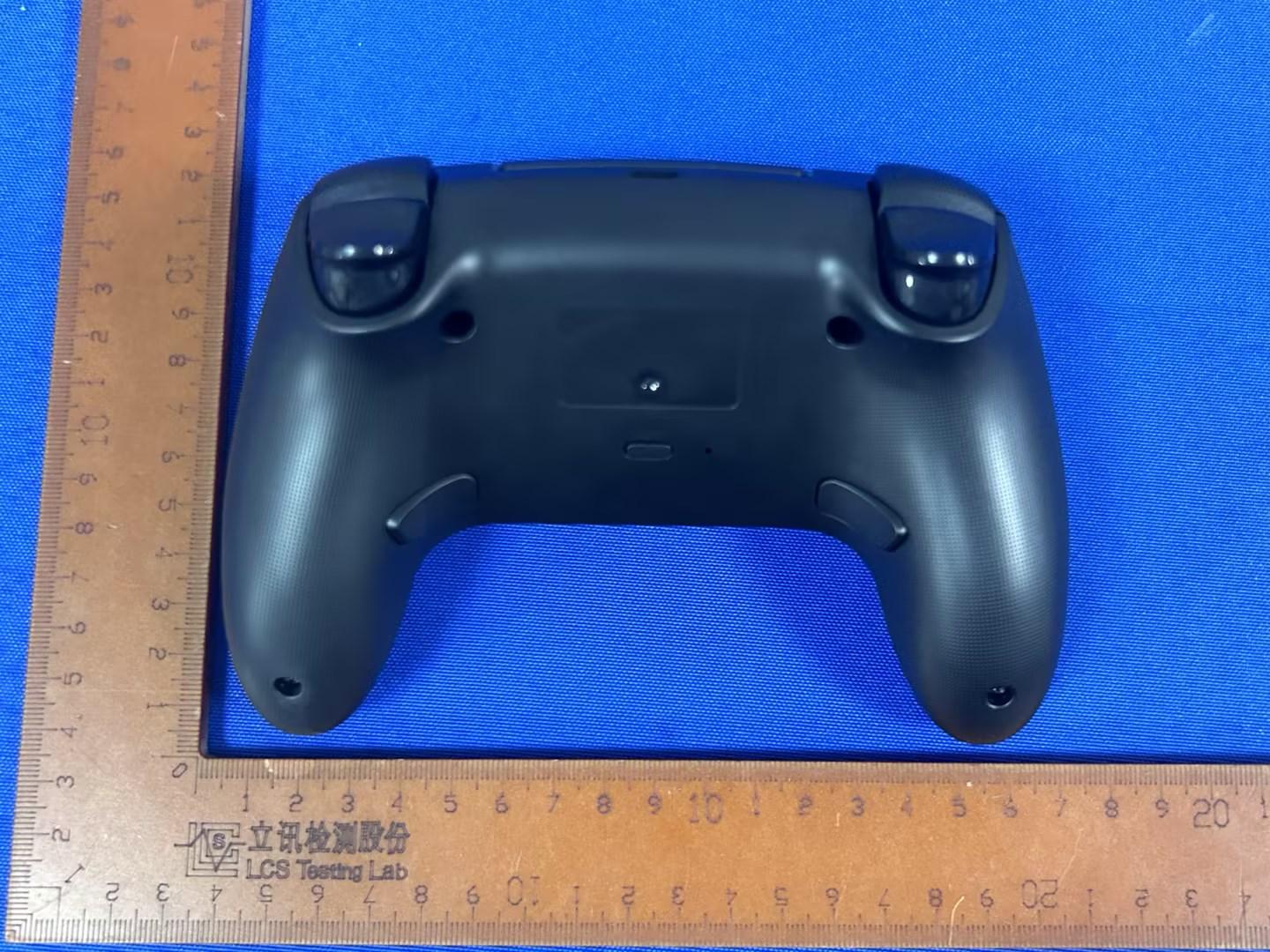

Page 1 of 4 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8

Page 1 of 1 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L 4.0cm x W 2.0cm) Label Location PS4 Bluetooth Controller Model: SZ-4015B FCC ID: 2BDUL-SZ-4015B

Page 1 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 BT Antenna Page 4 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Page 5 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 Page 6 of 6 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11 Fig. 12

Page 1 of 3 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name : PS4 Bluetooth Controller Test Model : SZ-4015B Additional Model No. : SZ-4013B Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: 5V1A Battery:3.7V1000mAh Hardware Version : V1.4 Software Version : V1.0 Bluetooth : 2402MHz ~ 2480MHz Channel Number : 79 channels for Bluetooth V5.3(DSS) Channel Spacing : 1MHz for Bluetooth V5.3(DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.3(DSS) Bluetooth Version : V5.3 Antenna Type : PCB Antenna Antenna Gain : 0dBi Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: Page 2 of 3 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -0.31 39 2441 2.28 78 2480 0.97 π/4-DQPSK 0 2402 1.6 39 2441 3.84 78 2480 2.39 8-DPSK 0 2402 1.56 39 2441 3.82 78 2480 2.39 Page 3 of 3 FCC ID: 2BDUL-SZ-4015B Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity 5. Manufacturing Tolerance <BT> G…
