2BDUL-SZ-932SWITCH Bluetooth Controller

1 User Manual Dear User: Thank you very much for choosing this Switch game Controller. Please read this Manual in detail before use in order to operate and use it correctly, and bring the superior performance of the product into full play. The descriptions in this Manual are based on the default settings of the device, all the pictures, statements and text information are for reference only, please refer to the actual product. The content is subject to update without further notice. The update will be included in the new version of the Manual, and the Company reserves the right of final interpretation. Available functions and additional services may vary by device, software or service provider. Please charge the Controller before use. If there are typographical errors or translation errors, we sincerely hope for all users understanding! Controller Photo 1. Mode and Connection operation instruction Bluetooth Switch mode (1) Turn the Switch console on, click the System Setting Menu button on the home screen, after enter to the next level of the Menu option and click the Airplane Mode option, then click the Controller Connection (Bluetooth) option to turn the Bluetooth function ON, and then turn the Airplane Mode option off. 2 (1) (2) (3) (4) (2) Enter the Switch console Bluetooth Pairing with Controller mode，click the Controllers Menu button on the Console home screen, after entering the next level of Menu options, click the Change Grip/Orde option and the Console will automatically search for the matching Controller. (5) (6) (3) In the shutdown state, press the Y+HOME button of Controller or long press the HOME button 3S to enter Bluetooth pairing mode, LED1-LED4 light flashing quickly, after the successful connection, the Switch Console will automatic distribution Controller channel and the corresponding channel indicator light will always be on; Synchronous state or pairing with the Console: LED1-LED4 light flashing quickly. (4) In the shutdown state, directly insert the USB data cable into the USB port of the Switch console, if the console and the original charging base are integrated, insert the USB into charging base (Remark: need to open the wired controller connection option in the Console Setting), pair the console through the USB cable connection, and the Controller will automatically connect back to the console through Bluetooth wireless mode after unplug the USB cable. 3 (7) (8) Bluetooth Android Mode In the shutdown state, press and hold the Controller Ａ+HOME button to enter Bluetooth pairing mode, LED2+LED3 flashing quickly，then open the Android device Bluetooth for search, find and click the “Gamepad” device name in the list of available devices to pair，the LED2+LED3 are light on after pairing successful. Remark: In Android mode, the Controller has not vibration, axis functions. Bluetooth IOS Mode In the shutdown state, press the X+HOME button to enter pairing mode, LED1+LED4 flashing, then open IOS device Bluetooth for search, find and click the “Xbox Wireless Controller”device name in the list of available devices to pair. After the pairing succeeds, the corresponding LED1+LED4 is steady on. Remark: The IOS device system need be 13.0 or above, the Controller has not vibration, axis functions in this mode. Bluetooth PC (X-INPUT) Mode In the shutdown state, press the X+HOME button to enter pairing mode, LED1+LED4 flashing, then open the PC Bluetooth for search, find and click the “Xbox Wireless Controller”device name in the list of available devices to pair. After the pairing succeeds, the corresponding LED1+LED4 is steady on, the Controller enter X-INPUT mode, can be used directly in Windows 10 system and above. USB Mode In the Controller power-off state, insert it into the PC USB port through the data cable, it is automatically recognized as X-INPUT mode (default mode) and LED1+LED4 is light on. In PC X- INPUT mode, long press the ”-”+”+”button 3S to switch to D-INPUT controller mode, and LED2+LED3 is light on. MACRO Function Macro programming function setting mode 1： Programmable key：Cross arrow key (Up, Down, Left, Right)、A、B、X、Y、ZL、ZR、L、R、L3、 R3. 4 M1 power-on default as A key function, M2 power-on default as B key function. （1）Press together the M1/M2 +“+”key to enter MACRO function setting , the motor vibrates prompt, the current channel mode indicator blinks slowly. （2） Press the action keys that need to be programmed in sequence, the channel light will blink quickly after the key input, indicating that the key has been recorded. （3）Press the program key when you are finished editing, and the channel indicator will be on. (Each set of Macro programming can be programmed with 21 action keys, when the action keys exceed 21, the channel light will no longer flash quickly to prompt key input) .This programming mode can record the sequence of key input, as well as the time. Macro programming function setting mode 2: Programmable key：A、B、X、Y、ZL、ZR、L、R、L3、R3. （1）Press together the M1/M2 +“-”key to enter MACRO function setting , the current channel mode indicator blinks slowly. （2 ）Press the action keys that need to be programmed in sequence，such as input the Cross key、 A、B、X、Y、ZL、ZR、L、R、L3、R3, the channel light will blink quickly after the key input, indicating that the key has been recorded. （3） Press the program key when you are finished editing, and the channel indicator will be on. This programming mode can realize the function of M1/M2 key to achieve multiple keys are pressed at the same time （4） Action press down: If the Macro key has been programmed with a set of action keys, click the Macro programming key to achieve the action key can be pressed at the same time. Macro programming function Cleared： （1）Press any of the M1/M2 programming keys at the same time, and then press and hold the + key (or - key), then the channel light slowly flashes into the programming state. （2）Press the programming key again to clear the programming of the Macro key and restore the defau…

Text truncated - open the document above for the full version.

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BDUL-SZ-932 SZ-932B We, Applicant Company Name: ShenZhen Senze Electronics Co., Ltd Address: No.26, Rifu Road, Baishixia East, Fuyong Town, BaoanZone Shenzhen, Guangdong, China Phone: +86-13823379516 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. This includes the cybersecurity and anti-virus software produced or provided by Kaspersky Lab, Inc. or any of ist successors and assignees. We certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-20 Signature Date Name / Title: Guihua Zhou / CEO Company: ShenZhen Senze Electronics Co., Ltd Address: No.26, Rifu Road, Baishixia East, Fuyong Town, BaoanZone Shenzhen, Guangdong, China Phone: +86-13823379516 Fax: +86-13823379516 E-Mail: [email protected]

Due Diligence Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern FCC ID Model name 2BDUL-SZ-932 SZ-932B Pursuant to KDB 986446 D01 Covered Equipment Guidance the evaluation of the product above shows compliance for the following reasons: Compliance Evaluation process Results Inherent compliance The chipset(s) used is not capable of running the cybersecurity and/or anti-virus software Compliance The memory used does not allow the running the cybersecurity and/or anti-virus software Compliance The storage capacity does not allow the running the cybersecurity and/or anti-virus software Compliance The operating system used is not capable of running the cybersecurity and/or anti-virus software Compliance No inherent compliance Based on software bill of material Based on scan for running software on the device Based on filesystem scan for cybersecurity and/or anti-virus software The equipment for which authorization is sought complies with the rules and fulfils the requirements as detailed in the above mentioned KDB. Evaluation performed by Company Name: Shenzhen LCS Compliance Testing Laboratory Ltd. Contact Name: Martion Lee Address: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Phone: +86-755-82591330 Email: [email protected] Signature: Date: 2026-01-16

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2BDUL-SZ-932 SZ-932B For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics • the Part List • the Tune up Information The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, 2026-01-20 Signature Date Name / Title: Guihua Zhou / CEO Company: ShenZhen Senze Electronics Co., Ltd Address: No.26, Rifu Road, Baishixia East, Fuyong Town, BaoanZone Shenzhen, Guangdong, China Phone: +86-13823379516 Fax: +86-13823379516 E-Mail: [email protected]

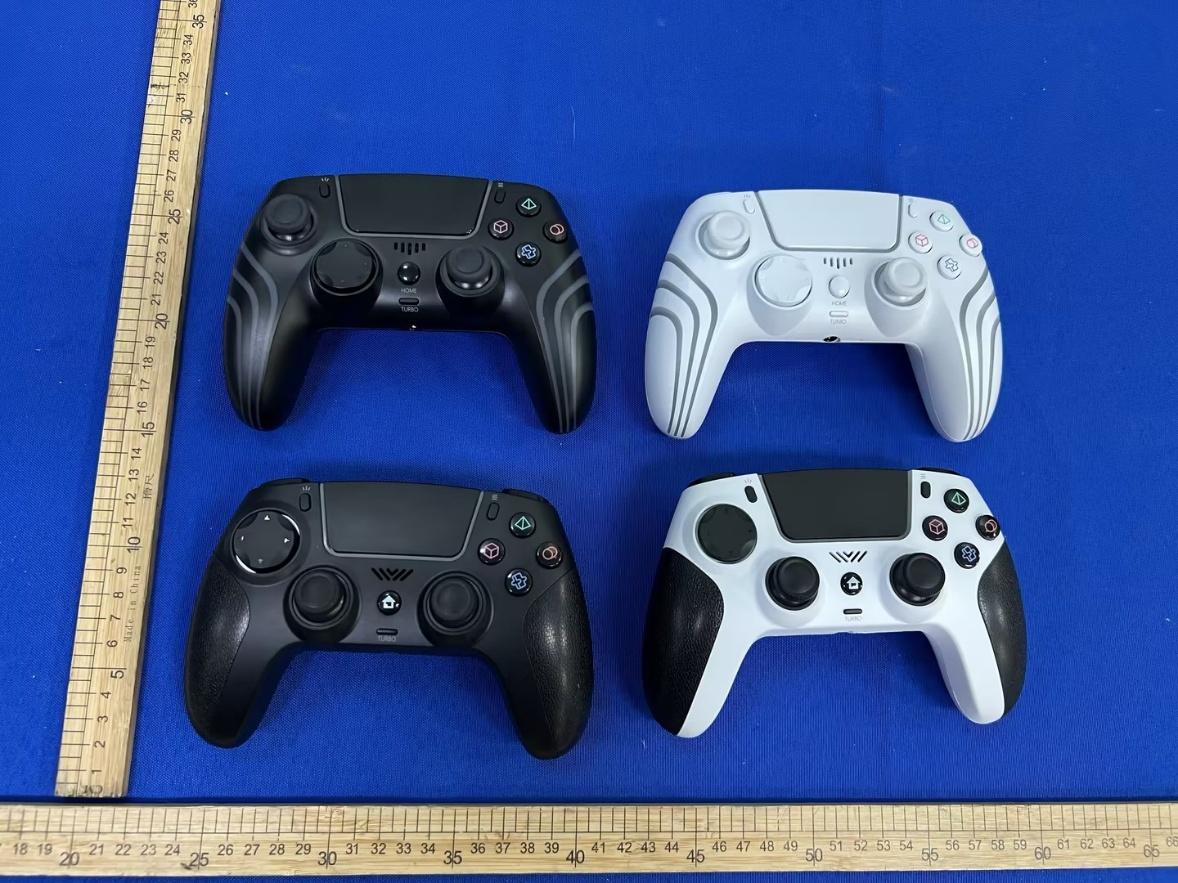

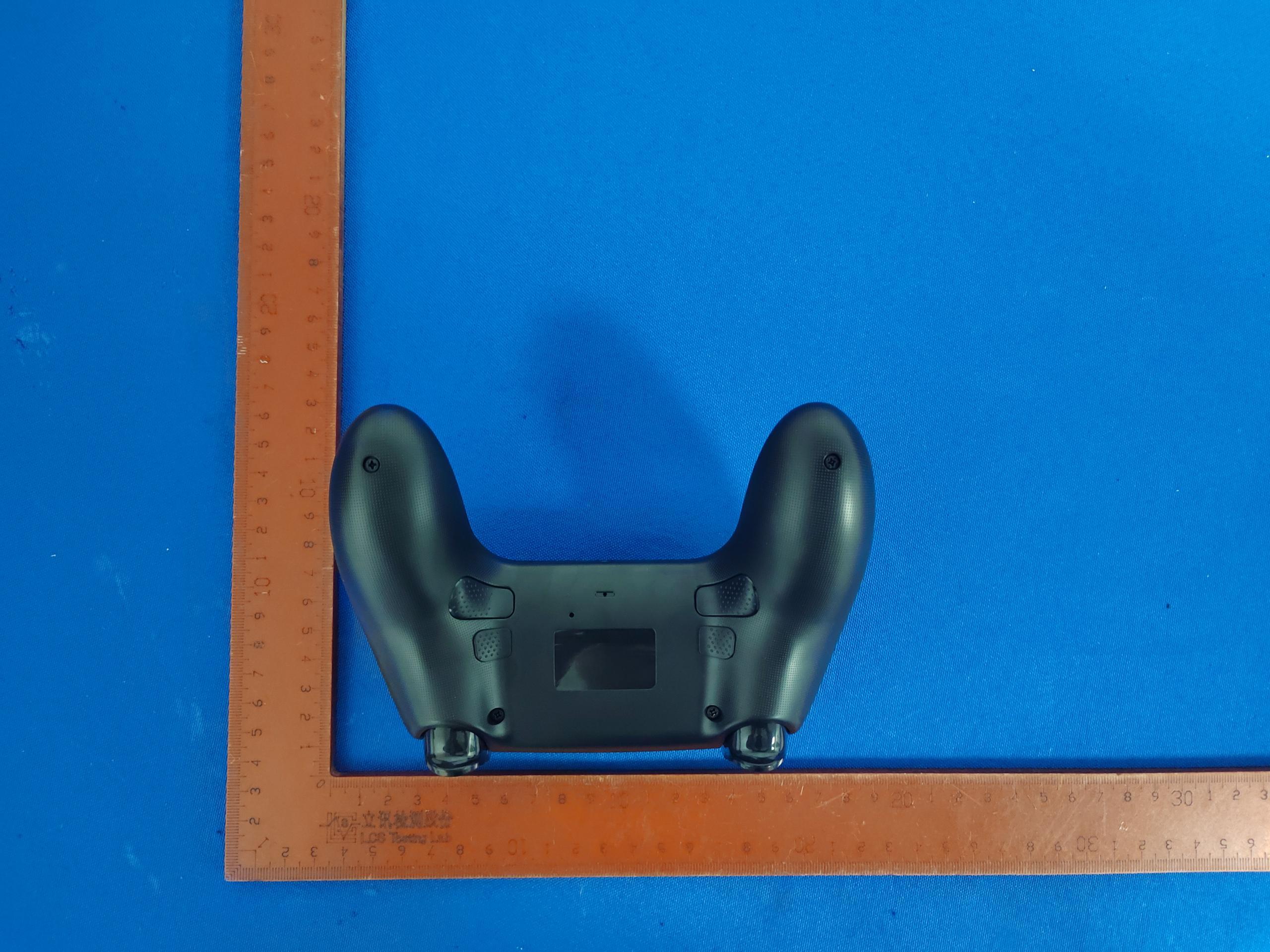

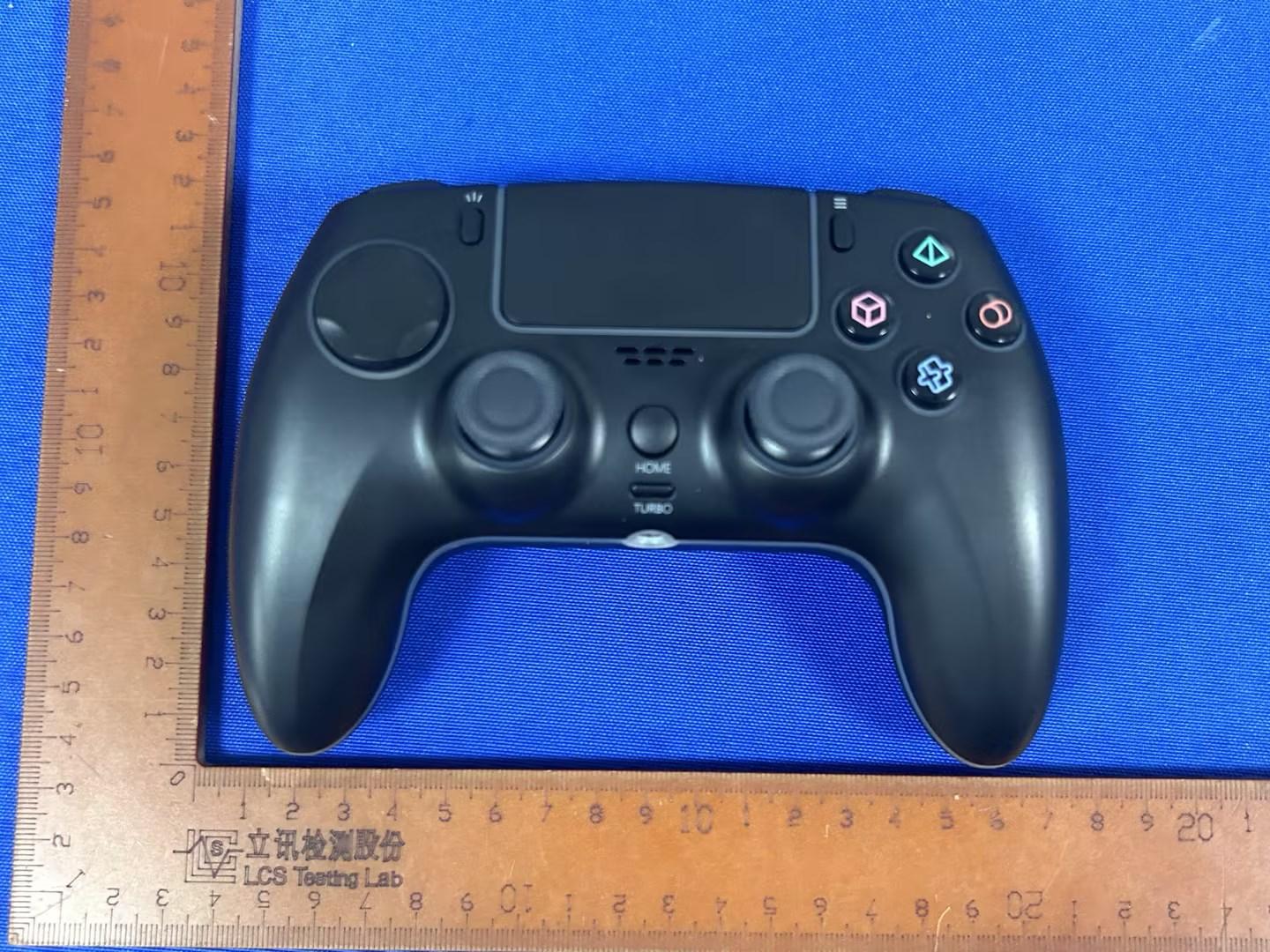

Page1of4FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of4FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of4FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8

Page1of1FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com LABELANDLOCATION (Size:L4.0cmxW2.0cm) LabelLocation SWITCHBluetoothController Model:SZ-932B FCCID:2BDUL-SZ-932

Page1of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com InternalPhotosoftheEUT Fig.1 Fig.2 Page2of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.3 Fig.4 Page3of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.5 Fig.6 Page4of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.7 Fig.8 Page5of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.9 Fig.10 Antenna Page6of6FCCID:2BDUL-SZ-932 GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com Fig.11

Page 1 of 9 FCCID:2BDUL-SZ-932ReportNo.:LCSC12225001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation FOR ShenZhenSenzeElectronicsCo.,Ltd SWITCHBluetoothController TestModel:SZ-932B Preparedfor:ShenZhenSenzeElectronicsCo.,Ltd Address: No.26,RifuRoad,BaishixiaEast,FuyongTown,BaoanZone, ShenzhenCity,China. Preparedby:GuangzhouLCSComplianceTestingLaboratoryLtd. Address: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China Tel:(+86)020-39166689 Fax:(+86)020-39166619 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:December23,2025 Numberoftestedsamples:2 SampleNo.:C251208018-1,C251208018-2 Serialnumber:Prototype DateofTest:December23,2025~January15,2026 DateofReport:January16,2026 Page 2 of 9 FCCID:2BDUL-SZ-932ReportNo.:LCSC12225001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation ReportReferenceNo......................:LCSC12225001EB DateofIssue.......................................:January16,2026 TestingLaboratoryName..............:GuangzhouLCSComplianceTestingLaboratoryLtd. Address................................................: No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou, Guangdong,China TestingLocation/Procedure.............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ShenZhenSenzeElectronicsCo.,Ltd Address................................................:No.26,RifuRoad,BaishixiaEast,FuyongTown,BaoanZone, ShenzhenCity,China. TestSpecification Standard..............................................:FCCKDBpublication447498D01GeneralRFExposureGuidance v06 FCCCFR47part11.1310 FCCCFR47part22.1093 TestReportFormNo.........................:TRF-4-E-215A/0 TRFOriginator....................................:GuangzhouLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 GuangzhouLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe GuangzhouLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceof thematerial.GuangzhouLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. TestItemDescription......................:SWITCHBluetoothController TradeMark..........................................:N/A TestModel...........................................:SZ-932B Ratings.................................................:PleaseRefertoPage6 Result..................................................:PASS Compiledby:Supervisedby:Approvedby: LifengLe/FileadministratorsJustinZhu/TechniqueDirectorGavinLiang/Manager Page 3 of 9 FCCID:2BDUL-SZ-932ReportNo.:LCSC12225001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RFExposureEvaluation TestResultPASS Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSC12225001EB January16,2026 Dateofissue TestModel.............................. : SZ-932B EUT......................................... : SWITCHBluetoothController Applicant...............................:ShenZhenSenzeElectronicsCo.,Ltd Address...................................:No.26,RifuRoad,BaishixiaEast,FuyongTown,BaoanZone, ShenzhenCity,China. Telephone...............................:/ Fax..........................................:/ Manufacturer.........................:ShenZhenSenzeElectronicsCo.,Ltd Address...................................:No.26,RifuRoad,BaishixiaEast,FuyongTown,BaoanZone, ShenzhenCity,China. Telephone...............................:/ Fax..........................................:/ Factory...................................:ShenZhenSenzeElectronicsCo.,Ltd Address...................................:No.26,RifuRoad,BaishixiaEast,FuyongTown,BaoanZone, ShenzhenCity,China. Telephone...............................:/ Fax..........................................:/ Page 4 of 9 FCCID:2BDUL-SZ-932ReportNo.:LCSC12225001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com RevisionHistory ReportVersionIssueDateRevisionContentRevisedBy 000January16,2026InitialIssue--- Page 5 of 9 FCCID:2BDUL-SZ-932ReportNo.:LCSC12225001EB GuangzhouLCSComplianceTestingLaboratoryLtd. Add:No.44-1,QianfengNorthRoad,Shiqi,PanyuDistrict,Guangzhou,Guangdong,China Tel:+(86)020-39166689|E-mail:[email protected]|Web:www.lcs-cert.com TABLEOFCONTENTS DescriptionPage 1.PRODUCTINFORMATION....................................................................................................................................6 2.EVALUATIONMETHODANDLIMIT....................................................................................................................7 3.REFEREVALUATIONMETHOD..........................................................................................................................7 4.CONDUCTEDPOWERRESULTS........................................................................................................................8 5.MANUFACTURINGTOLERANCE........................................................................................................................8 6.EVALUATIONRESULTS....................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:BL-SZ2290748-901 TESTREPORT Applicant:ShenzhenZhixuTechnologyCo.,LTD Address: 1101,BuildingA,GuorenBuilding,KejiZhongsan Road,GaoxinPark,NanshanDistrict,Shenzhen City,China. EquipmentType:PCBOnboardAntenna ModelName:ZXD1888 BrandName:Kashimura TestStandard:ANSI/IEEEStd149-1979 TestDate:Sep.23,2022 DateofIssue:Sep.27,2022 ISSUEDBY: ShenzhenBALUNTechn Testedby:MaiJintianTuApprovedby:WeiYanquan (ChiefEngineer) _____________________________________________ Tel:+86-755-66850100E-mail:[email protected]/13 Web:www.titcgroup.comTemplateNo.:TRP-Passive-EN(2022-09-07) Add:BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXiRoad,NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China ReportNo.:BL-SZ2290748-901 RevisionHistory VersionIssueDateRevisions Rev.01Sep.27,2022InitialIssue TABLEOFCONTENTS 1GENERALINFORMATION........................................................................................................3 1.1TestLaboratory...................................................................................................................3 1.2TestLocation.......................................................................................................................3 2PRODUCTINFORMATION.......................................................................................................4 2.1ApplicantInformation...........................................................................................................4 2.2ManufacturerInformation....................................................................................................4 2.3GeneralDescriptionforEquipmentunderTest(EUT).........................................................4 2.4AncillaryEquipment.............................................................................................................4 2.5TechnicalInformation..........................................................................................................4 3SUMMARYOFTESTRESULTS...............................................................................................5 3.1TestStandards....................................................................................................................5 3.2TestVerdict.........................................................................................................................5 3.3TestUncertainty..................................................................................................................5 4GENERALTESTCONFIGURATIONS......................................................................................6 4.1TestCondition.....................................................................................................................6 4.2TestEquipmentList.............................................................................................................6 4.3TestSetup...........................................................................................................................7 ANNEXATESTRESULTS...........................................................................................................8 A.1GainandEfficiency.............................................................................................................8 ANNEXBRADIATIONPATTERN................................................................................................9 ANNEXCTESTSETUPPHOTOS.............................................................................................12 ANNEXDEUTPHOTO..............................................................................................................12 Tel:+86-755-66850100E-mail:[email protected]/13 Web:www.titcgroup.comTemplateNo.:TRP-Passive-EN(2022-09-07) Add:BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXiRoad,NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China ReportNo.:BL-SZ2290748-901 1GENERALINFORMATION 1.1TestLaboratory NameShenzhenBALUNTechnologyCo.,Ltd. Address BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXiRoad, NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China PhoneNumber+8675566850100 1.2TestLocation NameShenzhenBALUNTechnologyCo.,Ltd. BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXi Road,NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China Location1/F,BuildingB,GanghongjiHigh-techIntelligentIndustrialPark, No.1008,SongbaiRoad,YangguangCommunity,XiliSub-district, NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China Tel:+86-755-66850100E-mail:[email protected]/13 Web:www.titcgroup.comTemplateNo.:TRP-Passive-EN(2022-09-07) Add:BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXiRoad,NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China ReportNo.:BL-SZ2290748-901 2PRODUCTINFORMATION 2.1ApplicantInformation ApplicantShenzhenZhixuTechnologyCo.,LTD Address 1101,BuildingA,GuorenBuilding,KejiZhongsanRoad,GaoxinPark, NanshanDistrict,ShenzhenCity,China. 2.2ManufacturerInformation ManufacturerShenzhenZhixuTechnologyCo.,LTD Address 1101,BuildingA,GuorenBuilding,KejiZhongsanRoad,GaoxinPark, NanshanDistrict,ShenzhenCity,China. 2.3GeneralDescriptionforEquipmentunderTest(EUT) EUTNamePCBOnboardAntenna ModelNameUnderTestZXD1888 AntennaTypePCBAntenna Dimensions11.8*5.4mm 2.4AncillaryEquipment Note:Notapplicable. 2.5TechnicalInformation TestFrequencies 2400MHz,2410MHz,2420MHz,2430MHz,2440MHz,2450MHz, 2460MHz,2470MHz,2480MHz,2490MHz,2500MHz Tel:+86-755-66850100E-mail:[email protected]/13 Web:www.titcgroup.comTemplateNo.:TRP-Passive-EN(2022-09-07) Add:BlockB,1/F,BaishaScienceandTechnologyPark,ShaheXiRoad,NanshanDistrict,Shenzhen,GuangdongProvince,P.R.China ReportNo.:BL-SZ2290748-901 3SUMMARYOFTESTRESULTS 3.1TestStandards No.IdentityDocumentTitle 1ANSI/IEEEStd149-1979IEEEStandardTestProceduresforAntennas 3.2TestVerdict ReportSectionDescriptionRemark ANNEXA.1GainandEfficiency-- ANNEXBRadiationPattern-- 3.3TestUncertainty Theuncertaintyiscalculatedusingthemethodssuggestedinthe"GuidetotheExpressionof UncertaintyinMeasurement"(GUM)publishedbyISO. ItemUncertainty Gain ± 1.92dB Tel:+…

Text truncated - open the document above for the full version.

Page 1 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Appendix A RF Test Data for BT (Conducted Measurement) Product Name: SWITCH Bluetooth Controller Test Model: SZ-932B Environmental Conditions Temperature: 23.8 C Relative Humidity: 52.1% ATM Pressure: 100.0 kPa Test Engineer: zhao xing hai Supervised by: Fengliu Tang Page 2 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.1 20dB Emission Bandwidth Test Result TestMode Antenna Frequency [MHz] 20db EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 1.002 2401.487 2402.489 --- --- DH5 Ant1 2441 0.921 2440.544 2441.465 --- --- DH5 Ant1 2480 0.945 2479.541 2480.486 --- --- 2DH5 Ant1 2402 1.290 2401.364 2402.654 --- --- 2DH5 Ant1 2441 1.290 2440.361 2441.651 --- --- 2DH5 Ant1 2480 1.290 2479.364 2480.654 --- --- 3DH5 Ant1 2402 1.305 2401.349 2402.654 --- --- 3DH5 Ant1 2441 1.308 2440.346 2441.654 --- --- 3DH5 Ant1 2480 1.308 2479.343 2480.651 --- --- Page 3 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5-Ant1-2402 DH5-Ant1-2441 Page 4 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com DH5-Ant1-2480 2DH5-Ant1-2402 Page 5 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5-Ant1-2441 2DH5-Ant1-2480 Page 6 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5-Ant1-2402 3DH5-Ant1-2441 Page 7 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5-Ant1-2480 Page 8 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com A.2 Maximum Peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 -0.39 ≤30 PASS DH5 Ant1 2441 2.60 ≤20.97 PASS DH5 Ant1 2480 2.86 ≤20.97 PASS 2DH5 Ant1 2402 0.06 ≤30 PASS 2DH5 Ant1 2441 3.38 ≤20.97 PASS 2DH5 Ant1 2480 3.89 ≤20.97 PASS 3DH5 Ant1 2402 1.13 ≤30 PASS 3DH5 Ant1 2441 3.79 ≤20.97 PASS 3DH5 Ant1 2480 3.76 ≤20.97 PASS Page 9 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com Test Graphs DH5-Ant1-2402-PASS DH5-Ant1-2441-PASS Page 10 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com DH5-Ant1-2480-PASS 2DH5-Ant1-2402-PASS Page 11 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 2DH5-Ant1-2441-PASS 2DH5-Ant1-2480-PASS Page 12 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5-Ant1-2402-PASS 3DH5-Ant1-2441-PASS Page 13 of 62 FCC ID: 2BDUL-SZ-932 Report No.: LCSC12225001EA Guangzhou LCS Compliance Testing Laboratory Ltd. Add: No.44-1, Qianfeng North Road, Shiqi, Panyu District, Guangzhou, Guangdong, China Tel: +(86) 020-39166689 | E-mail: [email protected] | Web: www.lcs-cert.com 3DH5-Ant1-2480-PASS Pag…

Text truncated - open the document above for the full version.
