2BDWS-RU17G09B03UHF RFID INTEGRATED READER

1 / 2 UHF RFID INTEGRATED READER Model: SR-RU17G09B03 Application： It can be widely used in logistics tracking, commodity inventory, cargo sorting, vehicle management, personnel management, asset management, medical systems, cold chain management, temperature monitoring, power monitoring, anti-counterfeiting systems and production process control and many other applications. Features ⚫ Full series of products developed with independent intellectual property rights. ⚫ Full series of modules based on UHF chip development, with the ability to provide personalized product support. ⚫ The whole series of products are modularized to meet the combination of product functions required by the project, while reducing product cost and production efficiency. ⚫ The whole series of products are supported by the same SDK regardless of product solution and product form, simplifying the development of multi-product applications for customer projects. ⚫ Modules and core control boards have rock-solid stability based on nearly 10 years of R&D and production iterations. ⚫ UHF reading TID/EPC various operation combinations, provide data format personalization. ⚫ Desktop card issuer supports keyboard mode, seamless switching in the industrial field. ⚫ With European CE / U.S. FCC / Korea KC / Canada ID and other multi-regional product certification. ⚫ Provide multi-OS, such as Windows, Android, Linux, server, Raspberry Pi, cloud. ⚫ Provide multi-language, such as C++, C#, PYTHON, JAVA etc. ⚫ Provide multi-protocol, such as SysIoT standard protocol, TCP, HTTP, UDP, Wiegand (26/27/32/34), ⚫ Provide OS, language, protocol custom development and OEM&ODM services. 2 / 2 Reader Specifications Parameter Model SR-RU17G09B03 RF Antenna Frequency 902～928MHz RF Frequency 902～928MHz Protocol ISO 18000-6C/6B RSSI Support Reading distance ≥35m Under 9.52dBi circularly polarized antenna, full power setting, standard E41 test card Reading speed ≥1000/S Reader Interface Standard: RS232, RS485/Weigand, RJ45(TCP/IP, UDP Baud rate 115200bps Read value TID+EPC/USER Mode Command, polling or trigger Operating Voltage DC 12.0V (+9~24V) Operating Current ≤900mA / DC12V Standby Current ≤260mA / DC12V Operating Temperature -20~55°C Storage Temperature -40~85°C Operating Humidity <95%RH (+25°C) Performance Best (Impinj E710) Support SDK Support IAP firmware Update Support Custom Development Support Antenna Specification Electrical Specifications Mechanical Specifications Freq Range 902-928MHz Dimension 290*290*82mm Gain 9.52dBi Weight 2.2kg Polarization Circular Reflector material Aluminum Beam width (H/V) Hor:60±2°/ Ver:60±2° Radome material ABS/ASA (Ensure no discoloration for 1 year) VSWR ≤1.5 Radome Color Black/White Impedance 50Ω IP Class IP65 F/B Ratio ≥25 Operating Temperature -20~60°C Lightning Protection DC Ground Storage Temperature -40~85°C Holding rod diameter φ40-50mm FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the follow ing two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, inc luding interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residentia l installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televis ion reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technic ian for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be insta lled and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna.

SHENZHEN SYSIOT CO., LTD. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (AOCE Corporation Inc.) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024-08-15 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: SHENZHEN SYSIOT CO., LTD. FRN: 0034573758 FCC ID: 2BDWS-RU17G09B03 Contact Name: Kelly Lu Address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China Telephone No: 13510109936 Email: [email protected] Applicant Signature: Date: 2024-08-15 Signed by (Printed Name/Title): Kelly Lu / Manager

SHENZHEN SYSIOT CO., LTD. 2024.08.26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2BDWS-RU17G09B03 [SHENZHEN SYSIOT CO., LTD.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Kelly Lu SHENZHEN SYSIOT CO., LTD. 2024.08.26 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2BDWS-RU17G09B03 [SHENZHEN SYSIOT CO., LTD.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Kelly Lu

SHENZHEN SYSIOT CO., LTD. 2024.08.26 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: UHF RFID INTEGRATED READER Trademark: SysIoT MODEL : SR-RU17G09B03, SR-RU17G03B01, SR-RU17G05B01, SR- RU17G06A01, SR-RU17G07B02, SR-RU17G08B02, SR-RU17G09B02, SR- RU17G08A01, SR-RU17G08B01, SR-RU17G08B03, SR-RU17G09A01, SR- RU17G09B01, SR-RU17G12A01, SR-RU17G12B01 FCC ID : 2BDWS-RU17G09B03 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Kelly Lu / Manager Contact information / address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China

SHENZHEN SYSIOT CO., LTD. 2024.08.26 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Kelly Lu / Manager Contact information / address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China

SHENZHEN SYSIOT CO., LTD. Model Difference 2024-08-26 EUT NAME: UHF RFID INTEGRATED READER FCC ID: 2BDWS-RU17G09B03 MODEL : SR-RU17G09B03, SR-RU17G03B01, SR-RU17G05B01, SR- RU17G06A01, SR-RU17G07B02, SR-RU17G08B02, SR-RU17G09B02, SR- RU17G08A01, SR-RU17G08B01, SR-RU17G08B03, SR-RU17G09A01, SR- RU17G09B01, SR-RU17G12A01, SR-RU17G12B01 All the model are the same circuit and RF module, except model names and appearance of the color.. Regards Sincerely Client’s signature: Client’s name / title : Kelly Lu / Manager Contact information / address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China

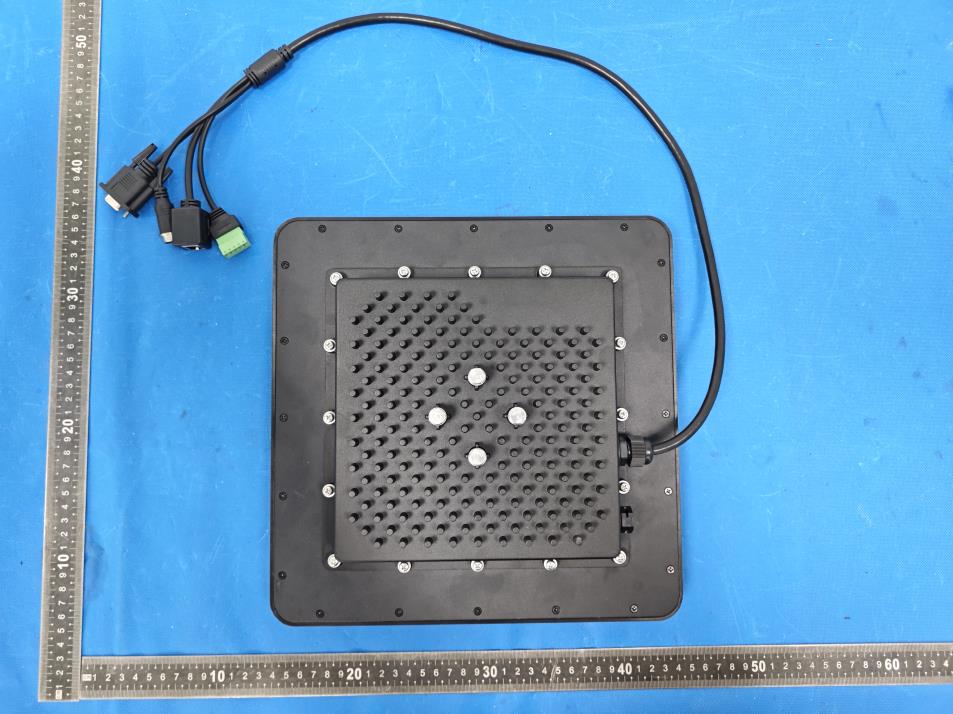

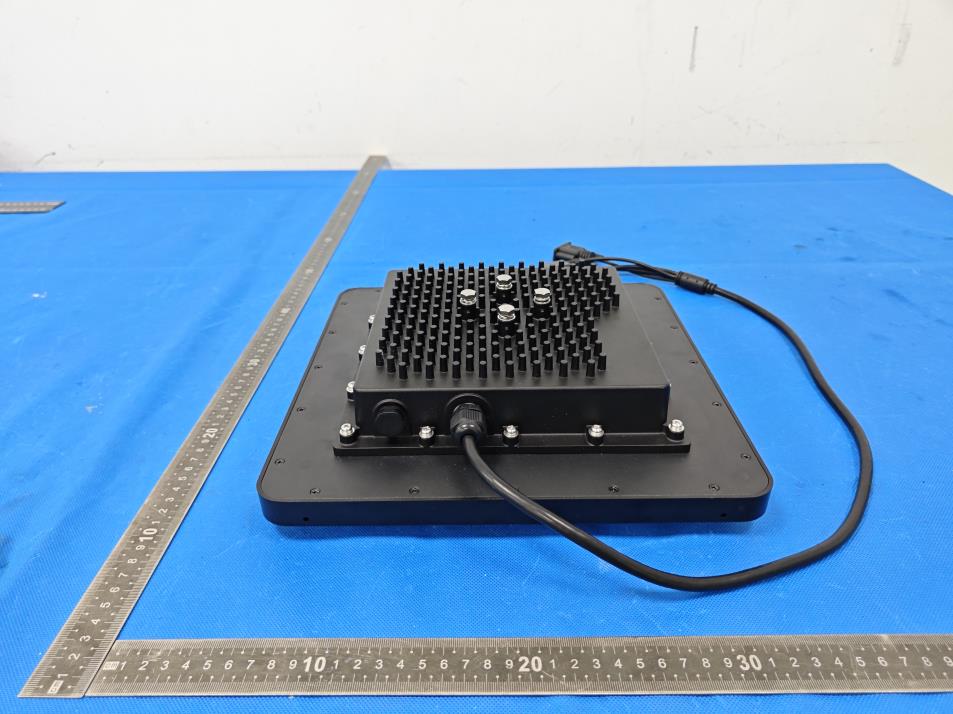

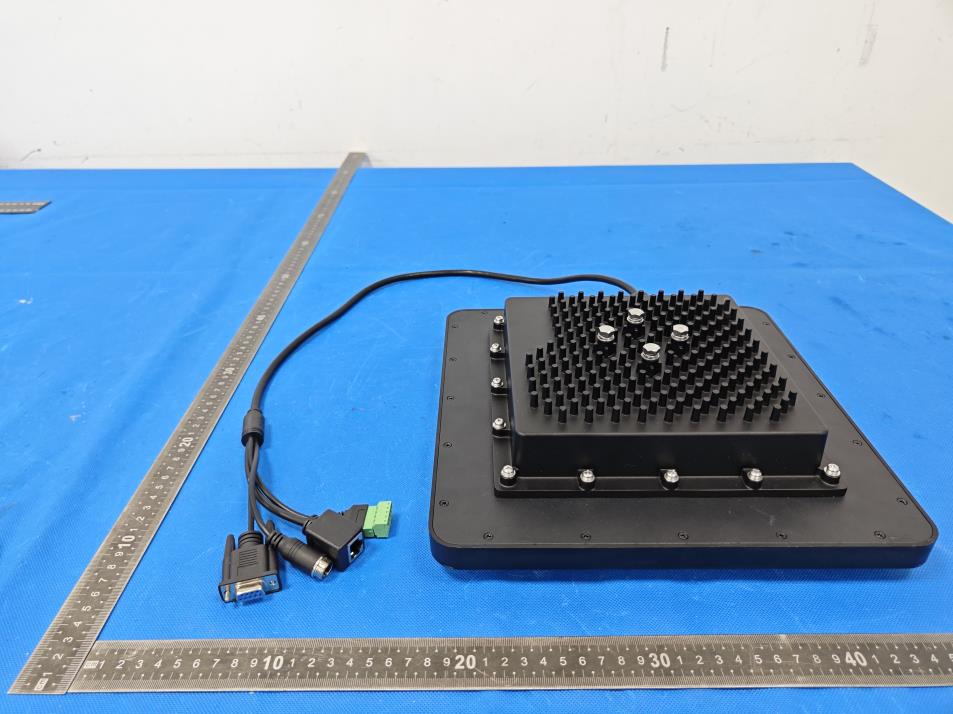

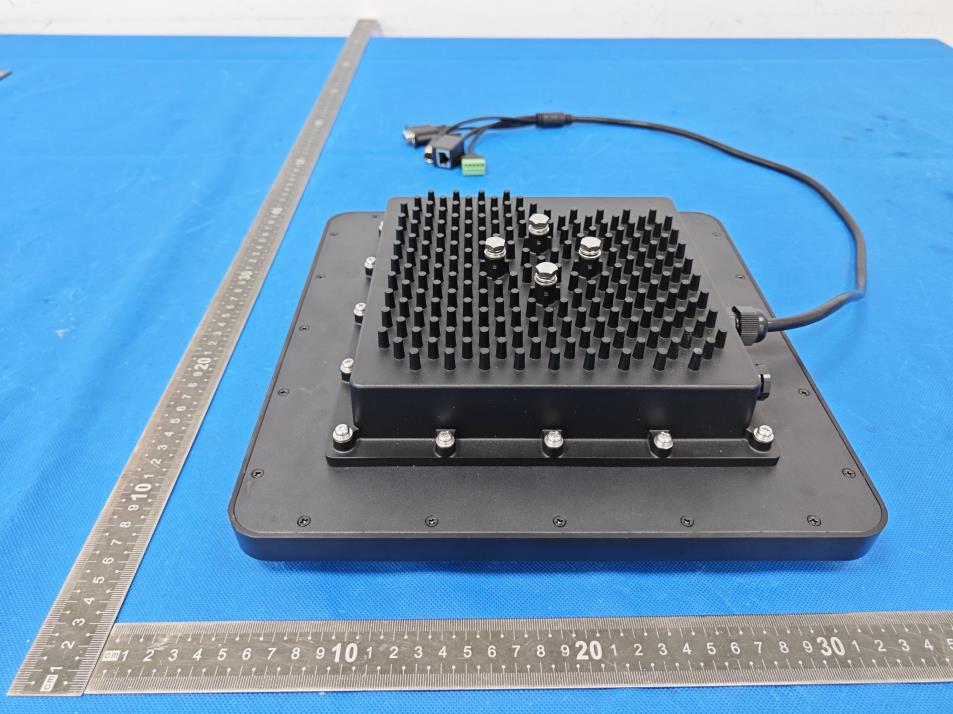

Report No.: BCTC2407448455E External Photos Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E

Size:40*20mm UHF RFID INTEGRATED READER FCC ID: 2BDWS-RU17G09B03 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label location

Report No.: BCTC2407448455E Internal Photos Antenna Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E Report No.: BCTC2407448455E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BDWS-RU17G09B03 Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Conclusion: For the max result: 0.56308≤ 0.6, compliance with FCC's RF Exposure Tune up Produce power Maximu m peak output power (dBm) Output power to antenn a (mW) Antenna Gain (numeric) Power Density (S) (mW/ cm2) Limit (mW / cm2 ) Result RF ID 24±1 25 316.23 8.95 (9.52dBi) 0.56308 0.6 Pass

SHENZHEN SYS IoT CO., LTD. 1 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 Testing Report Sample: RFID Antenna Bands: 902-928MHz Written by: Research & Development SHENZHEN SYS IoT CO., LTD. SHENZHEN SYS IoT CO., LTD. 2 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 Announcement ⚫ The result of this report will be invalid without examining and verifying by our company. ⚫ Self-correction of the report is not accepted. Address: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China Email: [email protected] Website: Http://www.sysiot.cn SHENZHEN SYS IoT CO., LTD. 3 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 Testing Result Name RFID Antenna Serial Number #1 Model Quantity 1 Inspection date 2023-09-18 Stage Good Examination date 2023-09-18 Contact Authorized by R&D Address Foshan City, Guangdong, China Result OK Remark / SHENZHEN SYS IoT CO., LTD. 4 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 1、Antenna Technical Specification Electrical Specifications Frequency Range(MHz) 902-928 Gain(dBi) 9.52 Polarization Circular Beam Width(°) Hor:60±3° Ver: 60±3° VSWR ≤1.5 Impedance(Ω) 50 MAX.Power(W) 50 Lightning protection DC Grounding Mechanical Spefications Connector SMA-K Dimension(mm) 210*210*80 mm Antenna weight(kg) TBD Reflector material Aluminum Radome material ABS Radome color Black Mounting hardware(mm) φ40～φ50 SHENZHEN SYS IoT CO., LTD. 5 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 2、Product pictures 3、Engineering Drawing SHENZHEN SYS IoT CO., LTD. 6 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 4、Antenna VSWR 860-940MHz 865-868/902-928 ≦1.3 SHENZHEN SYS IoT CO., LTD. 7 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 5、Antenna Radiation Pattern 1、902MHz 9dBi SHENZHEN SYS IoT CO., LTD. 8 / 8 Tel: 0086-755-82706913 Fax: 0086-755-82706900 E-mail: [email protected] Http://www.sysiot.cn Add: Room 261, Yiben E-Commerce and Industrial Park, Chaguang Road Nanshan District, Shenzhen, China Post Code：518055 1、915MHz 1、928MHz

No.：BCTC/RF-EMC-005 Page: 1 of 47 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2407448455E Applicant: SHENZHEN SYSIOT CO., LTD. Product Name: UHF RFID INTEGRATED READER Test Model: SR-RU17G09B03 Tested Date: 2024-07-22 to 2024-08-12 Issued Date: 2024-08-12 Report No.: BCTC2407448455E No.：BCTC/RF-EMC-005 Page: 2 of 47 Edition：B.2 FCC ID: 2BDWS-RU17G09B03 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: UHF RFID INTEGRATED READER Trademark: SysIoT Model/Type Reference: SR-RU17G09B03 SR-RU17G03B01, SR-RU17G05B01, SR-RU17G06A01, SR-RU17G07B02, SR-RU17G08B02, SR-RU17G09B02, SR-RU17G08A01, SR-RU17G08B01, SR-RU17G08B03, SR-RU17G09A01, SR-RU17G09B01, SR-RU17G12A01, SR-RU17G12B01 Prepared For: SHENZHEN SYSIOT CO., LTD. Address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China Manufacturer: SHENZHEN SYSIOT CO., LTD. Address: Room 263, Yiben E-Commerce and Industrial Park, Chaguang Road, Nanshan District, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-07-22 Sample tested Date: 2024-07-22 to 2024-08-12 Issue Date: 2024-08-12 Report No.: BCTC2407448455E Test Standards FCC CFR Title 47 Part 15 Subpart C Section 15.247 FCC KDB 558074 D01 15.247 Meas Guidance v05r02 ANSI C63.10:2013 Test Results PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2407448455E No.：BCTC/RF-EMC-005 Page: 3 of 47 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test procedure .................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Conducted Spurious Emission Measurement...................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Tes…

Text truncated - open the document above for the full version.

Report No.: BCTC2407448455E No.：BCTC/RF-EMC-005 Page: 45 of 47 Edition：B.2 17. EUT Test Setup Photographs Conducted emissions Radiated Measurement Photos Report No.: BCTC2407448455E No.：BCTC/RF-EMC-005 Page: 46 of 47 Edition：B.2
