2BE3V-WP05BSpeaker

USER MANUAL SPEAKER 1 Type C Port 2 MicroSD card Slot 3 3.5mm audio input 4 5 Volume down 6 Volume Up 7 Play / Pause Power ON / OFF 8 Built-in microphone (it is recommended to open the rubbe plug when calling） Power on/off: Press and hold the power button for 3 seconds. Select lights/Turn off: Short press to select lights or turn off lights. Call back: Double click call back. Play/Pause: Press the button briefly. Next song: Double-click the button. Previous song: Triple-click the button. Mode switch:Press and hold for 2 seconds to switch the BT/MicroSD/FM/AUX mode in sequence. Answer or hang up: Press the button briefly. Operation Instructions Volume +：Long Press /Short Press the button. TWS connection/disconnection： Double-click the button. Volume -：Long Press /Short Press the button. TWS connection/disconnection： Double-click the button. Instructions for Use External connection MicroSD card Slot: Insert MicroSD card (MP3, WAV audio only). Type-C port（DC-5V/2A): Charging. Connect the USB cable to the PC/ power bank/adapter to obtain power. When the indicator light shows red, it indicates that charging is in progress. The light going out indicates that it is full. Audio Input Interface: Insert a 3.5mm audio cable and connect an external audio source input. Power On/Off Power On: Press and hold the power button for 3 seconds. Power Off：Press and hold the power button for 3 seconds. FM Plug the power cable into the Type-C port to use it as an external FM antenna. * In FM mode, briefly press the  button to search for channels. * Double-click  button to go to the next channel. * Triple-click  button to go to the previous channel. Mobile phone BT mode Set the speaker to BT mode, turn on the BT function of the mobile phone, click Search Device for the first connection, then find WP-05B(host model name) in the available devices and pair and connect. When you hear that BT is connected, the mobile phone and the host BT are successfully paired, and you can use the mobile phone to play music. Note: Before wireless connection, the blue light blinks, and once paired, it will automatically connect when used again. TWS settings 1. Turn on two speakers of the same model and do not connect them to your phone for the time being. Product parameters Model BT Micro SD card TWS BT receiving distance Charging Voltage Battery life Charging time Battery Capacity Output Power Channel system Frequency AUX Waterproof performance WP-05B BT5.3 Support MP3, WAV Support Straight line accessibility ≥ 10 meters DC 5V/2A Up to 10 hours(affected by volume and playback content) About 3 hours 4000mAH 20W Stereo 20Hz-20KHz Audio input IPX5 2.Double click the "+"or"-" button on one of the speakers and release it when you hear the "du du" sound. After 3-4 seconds, you will hear a "ding ding" prompt sound, indicating a successful TWS connection. Connect your phone BT to the "WP-05B" device. Two speakers will play music synchronously to achieve a surround sound effect. 3. In TWS connection mode, the left and right channel devices can synchronize operations: play/pause, next song/previous song, volume up/ volume down, etc. 4. When restarting, the TWS will reconnect automatically. 5. TWS disconnection: Double click the "+" or "-" button, and when you hear a "din" sound, it will disconnect. 6.When the main speaker is turned off, the secondary speaker will also be turned off at the same time. To restart, you need to turn on both speakers separately. Warnings and precautions when using the product Do not use corrosive cleaning agents to clean the product. Do not allow this product to be heated or close to fire. Do not allow this product to be exposed to direct sunlight for a long time. Do not dispose of this product in the fire to avoid explosion. Do not attempt to remove this product for any modification. If you do not use this product for a long time, please store it in a dry environment, and charge the speaker at least once every 2 months to extend the life and avoid extreme temperature and dust. Note: This device complies with part 15 of the FCC Ruies. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure statement The device has been evaluatec to meel general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Shenzhen Peicheng Technology Co.,Ltd 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: Dec. 4, 25 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2BE3V-WP05B Shenzhen Peicheng Technology Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Shaobin Chen Title: Manager Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Tel.: 15818750927 Email: [email protected]

1 | P a g e Shenzhen Peicheng Technology Co.,Ltd 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Attestation Statements To: Federal Communications Commission Date: Dec. 4, 25 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: [2BE3V-WP05B] Product Name: [Speaker] This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1. Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2. Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Shaobin Chen Title: Manager Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Tel.: 15818750927 Email: [email protected] 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. The MCU “ AC6966B“, The RF chip “ AC6966B“ don’t support the mentioned function. ☐ The Memory used is limited to run the Cybersecurity or anti-virus software. The memory size is XXX, so don’t support the mentioned function. ☐ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. The storage capacity is XXX, so don’t support the mentioned function. ☐ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. The Operating system “XXX“ don’t support the mentioned function. Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

Shenzhen Peicheng Technology Co.,Ltd 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China U.S. Agent Letter of Attestation To: Federal Communications Commission 7435 Oakland Mills Road, Columbia, MD 21046, USA Date: Dec. 8, 25 Ref: Attestation Statement – Part 2.911(d)(7) filing FCC ID: 2BE3V-WP05B Shenzhen Peicheng Technology Co.,Ltd (“the applicant”) certifies that, as of the date of the filing of the application, [Herland International Trading Inc] (“the agent”) is our designated U.S. agent for service of process for the above reference FCC ID. The applicant accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges it is our responsibility to inform the FCC whenever the agent information changes. [Herland International Trading Inc] ("the agent) understand it is the agent's obligation to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address. Designated U.S. Agent Company Name: Herland International Trading Inc FRN: 0036324101 Address: 1370 Valley Vista Dr Ste 200 Diamond Bar, CA 91765 Signature: Contact Person: Jianfeng Gao Tel: 001-909-772-1888 Email: jianfenggao@hyunturlee- commerce.com Applicant Company Name: Shenzhen Peicheng Technology Co.,Ltd FRN: 0034963744 Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Signature: Contact Person: Shaobin Chen Tel: 15818750927 Email: [email protected]

Shenzhen Peicheng Technology Co.,Ltd 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China 12/4/2025 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request for: FCC ID: 2BE3V-WP05B Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request permanent confidential treatment of the exhibits accompanying this certification application as outlined below : ⎯ Block Diagram ⎯ Schematics ⎯ Operational Description The above exhibits contain trade secrets and/or proprietary information that are not publicly available and materials that the Applicant has spent considerable efforts in developing. Public disclosure of these may be harmful to the Applicant and give an unfair advantage to competitors on the market. Sincerely, (Signature) Printed Name: Shaobin Chen Title:Manager Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Tel.: 15818750927 Email:[email protected]

Shenzhen Peicheng Technology Co.,Ltd 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Date: Dec. 4, 25 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization for FCC ID: 2BE3V-WP05B I, the undersigned, hereby authorize (Shenzhen DL Testing Technology Co., Ltd.) to act on our behalf in all matters relating to this application for equipment certification. Any act carried out by (Shenzhen DL Testing Technology Co., Ltd.) shall have the same effect as our own and I acknowledge that all responsibility for complying with the terms and conditions of certification, as specified by DERYCOM CERTIFICATION SERVICES, INC., still resides with (Shenzhen Peicheng Technology Co.,Ltd). We certify that we are not subject to a denial of federal benefits that includes FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862, and that no party to the application, as defined in 47 CFR §1.2002(b), is subject to a denial of federal benefits that includes FCC benefits pursuant to that section. Sincerely, Applicant Signature: Printed Name: Shaobin Chen Title: Manager Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Tel.: 15818750927 Email:[email protected]

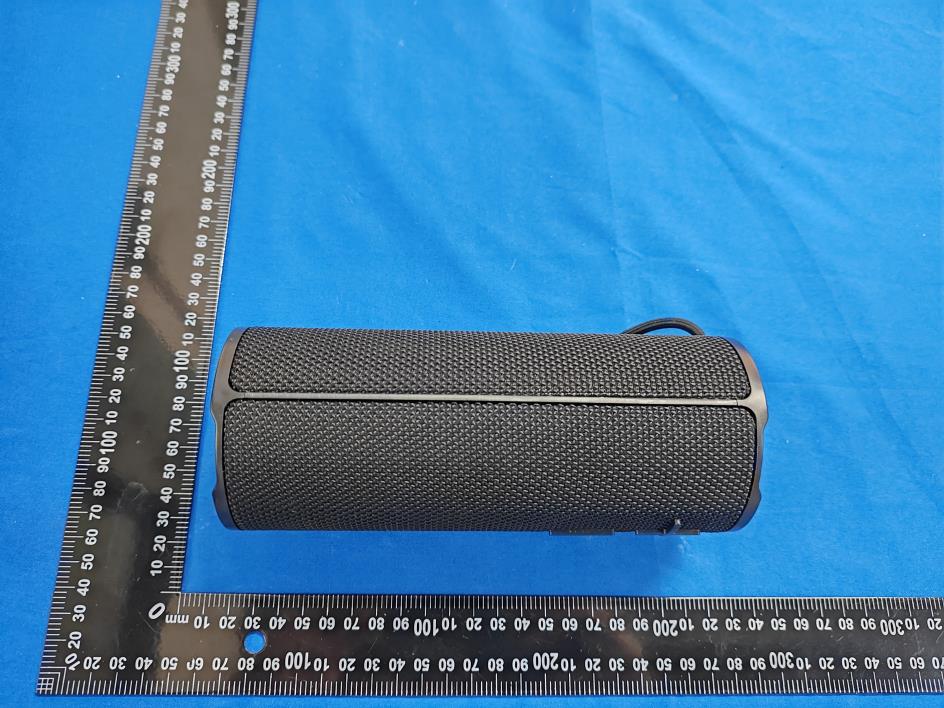

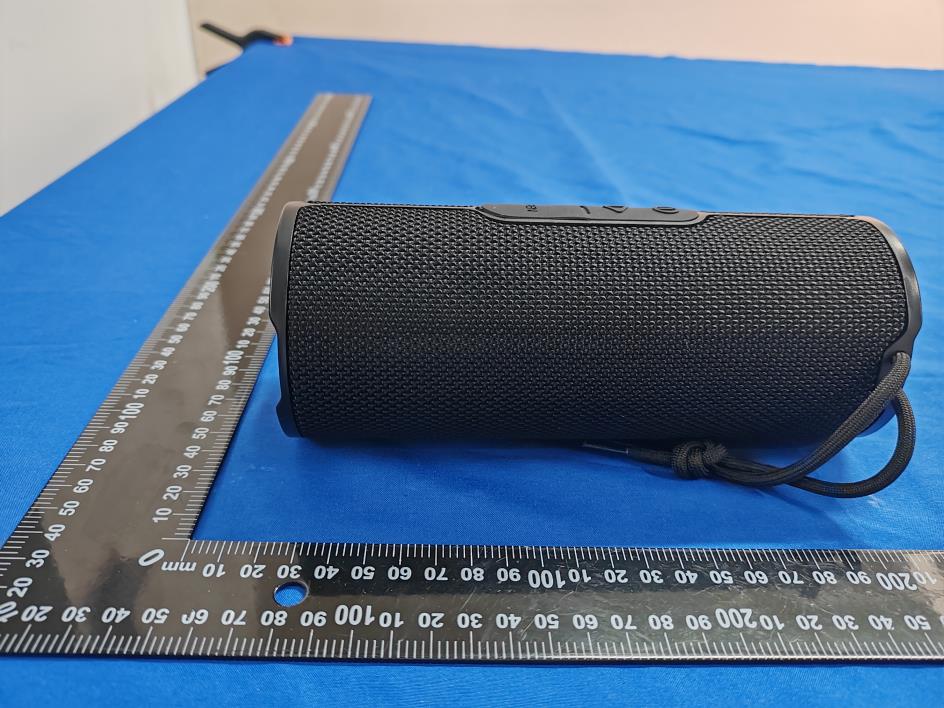

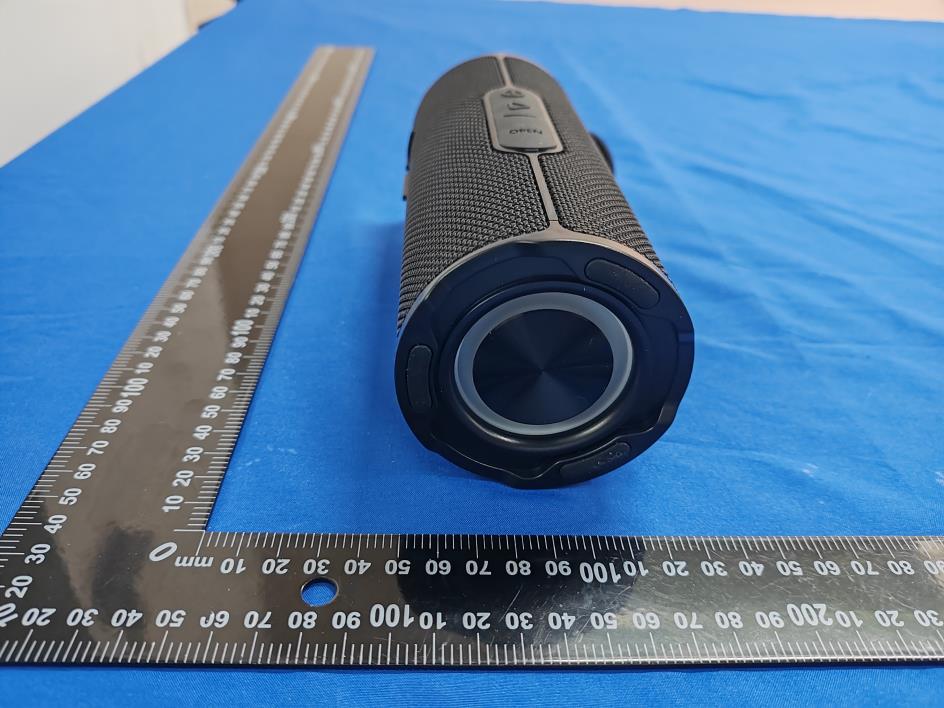

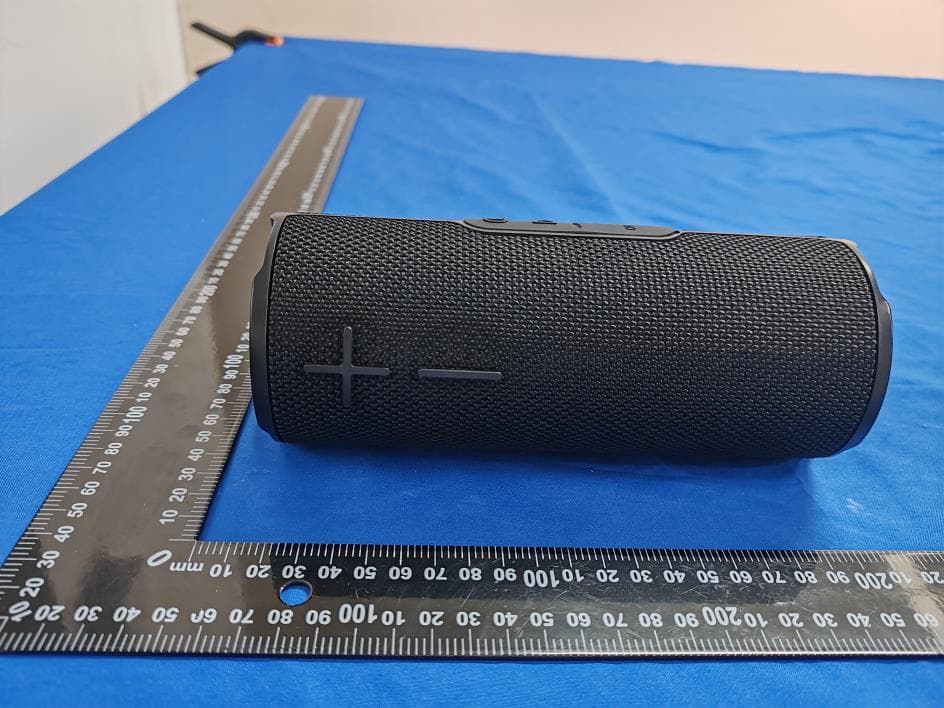

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B EUT PHOTO(External Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B ※※※※※ END OF REPORT ※※※※※

Size: 12*6mm Model: WP-05B FCC ID: 2BE3V-WP05B Label location

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B EUT PHOTO(Internal Photos) Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B ANT Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B ※※※※※ END OF REPORT ※※※※※

FCC ID: 2BE3V-WP05B RF Exposure Evaluation According to KDB 447498 D01 V06 and part 2.1093，Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition(s), listed below, is (are) satisfied. For 100 MHz to 6 GHz and test separation distances ≤ 50 mm, the 1-g and 10-g SAR test exclusion thresholds are determined by the following: [(max. power of channel, including tune-up tolerance, Mw) / (min. test separation distance, mm)] · [√f (GHz) ] ≤ 3.0 for 1-g SAR, and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest Mw and mm before calculation The result is rounded to one decimal place for comparison EIRP=E Meas +20log(d Meas )-104.7 EIRP is the equivalent isotropically radiated power, in dBm E Meas is the field strength of the emission at the measurement distance, in dBμV/m d Meas is the measurement distance, in m Here, Test Mode Conducted power (dBm) Max tune-up (Mw) Frequency (MHz) Min. distance(mm) Calc. thresholds limit BLE -2.70 0.537 2480 5 0.169 3.0 EDR -5.14 0.306 2480 5 0.096 3.0 So a SAR test is not required

V . S .W . R < 1.4 Polarization Type V ertical & Horizontal Frequenc Range 2400 ~ 2500GHz Input Impendence(ohm) 50 E fficiency (dB) 6 0.2 % 6 0.2 % Maximum Power (dBm) 1.6 8(XZ-plane) Gain (dBi) 1.6 8 Peak EIRP(dBm)1.2 Tot. Rad. Pwr. (dBm)-1.2 (Input pwr – loss pwr) Produ ct specification Q uick Reference Date Ante nna module on the system board Ant. Port Input Pwr. (dBm)0 (Typ. BT class 2 output power) Directivity (dBi)1 (a ll direction antenna) Minimum Power (dBm ) -3.83(XZ-plane) Avg. Power (dBm) -0.48(XY-plane) All the technical data and information c ontained herein are subject to change without prior notice Antenna Layout & module on the system board Antenna Gain G ain Table Unit in dBi @2.44GH zXY-planeXZ-planeYZ-plane Efficiency Peak Avg. Peak Avg. Peak Avg. Module Board 1.68 1.35 -0.48 -3.83 1.11 -2.99 spce:ANT_XZR01 Return Loss The Environment of Antenna Radiation Pattern

Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251112040R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 1 of 34 FCC Part 15C Test Report FCC ID: 2BE3V-WP05B Applicant: Shenzhen Peicheng Technology Co.,Ltd Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Manufacturer: Shenzhen Peicheng Technology Co.,Ltd Address: 5th Floor, Building 64, Baotian Industrial Zone, Chentian Community, Xixiang Street, Baoan District, Shenzhen City, China Product Name: Speaker Trade Mark: N/A Model Number: WP-05B Date of Receipt: Nov. 12, 2025 Test Date: Nov. 12, 2025 - Nov. 25, 2025 Date of Report: Nov. 25, 2025 Prepared By: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China Applicable Standards: FCC PART 15 C 15.247 ANSI C63.10:2020 Test Result: Pass Report Number: DLE-251112040R Prepared (Test Engineer): Alisa Song Reviewer (Supervisor): Jack Bu Approved (Manager): Jade Yang This test report is based on a single evaluation of one sample of above mentioned products. It is not permitted to be duplicated in extracts without written approval of Shenzhen DL Testing Technology Co., Ltd. Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251112040R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 2 of 34 Table of Contents Page 1. . SUMMARY OF TEST RESULTS 4 1.1. MEASUREMENT UNCERTAINTY 4 2. . GENERAL INFORMATION 5 2.1. GENERAL DESCRIPTION OF EUT 5 2.2. DESCRIPTION OF TEST MODES 6 2.3. BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 6 2.4. DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 7 2.5. TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 7 2.6. EQUIPMENTS LIST FOR ALL TEST ITEMS 8 3. . EMC EMISSION TEST 9 3.1. CONDUCTED EMISSION MEASUREMENT 9 3.1.1. POWER LINE CONDUCTED EMISSION LIMITS 9 3.1.2. TEST PROCEDURE 9 3.1.3. DEVIATION FROM TEST STANDARD 9 3.1.4. TEST SETUP 10 3.1.5. EUT OPERATING CONDITIONS 10 3.1.6. TEST RESULTS 11 3.2. RADIATED EMISSION MEASUREMENT 13 3.2.1. RADIATED EMISSION LIMITS 13 3.2.2. TEST PROCEDURE 14 3.2.3. DEVIATION FROM TEST STANDARD 14 3.2.4. TEST SETUP 14 3.2.5. EUT OPERATING CONDITIONS 15 3.2.6. TEST RESULTS (BETWEEN 9KHZ – 30 MHZ) 16 3.2.7. TEST RESULTS (BETWEEN 30MHZ – 1GHZ) 17 3.2.8. TEST RESULTS (1GHZ~25GHZ) 19 3.3 RADIATED BAND EMISSION MEASUREMENT 20 3.3.1 TEST REQUIREMENT: 20 3.3.2 TEST PROCEDURE 20 3.3.3 DEVIATION FROM TEST STANDARD 20 3.3.4 TEST SETUP 21 3.3.5 EUT OPERATING CONDITIONS 21 3.4 CONDUCTED BAND EDGE EMISSION&CONDUCTED SPURIOUS EMISSIONS MEASUREMENT 23 3.4.1 APPLICABLE STANDARD 23 3.4.2 TEST PROCEDURE 23 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251112040R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 3 of 34 Table of Contents Page 3.4.3 DEVIATION FROM STANDARD 23 3.4.4 TEST SETUP 23 3.4.5 EUT OPERATION CONDITIONS 24 3.4.6 TEST RESULTS 24 4. . PEAK OUTPUT POWER 27 4.1. APPLIED PROCEDURES / LIMIT 27 4.1.1. TEST PROCEDURE 27 4.1.2. DEVIATION FROM STANDARD 27 4.1.3. TEST SETUP 27 4.1.4. EUT OPERATION CONDITIONS 27 4.1.5. TEST RESULTS 28 5. . POWER SPECTRAL DENSITY TEST 30 5.1. APPLIED PROCEDURES / LIMIT 30 5.1.1. TEST PROCEDURE 30 5.1.2. DEVIATION FROM STANDARD 30 5.1.3. TEST SETUP 30 5.1.4. EUT OPERATION CONDITIONS 30 5.1.5. TEST RESULTS 30 6. . 6DB BANDWIDTH TEST 32 6.1. APPLIED PROCEDURES / LIMIT 32 6.1.1. TEST PROCEDURE 32 6.1.2. DEVIATION FROM STANDARD 32 6.1.3. TEST SETUP 32 6.1.4. EUT OPERATION CONDITIONS 32 6.1.5. TEST RESULTS 32 7. . ANTENNA REQUIREMENT 34 7.1. STANDARD REQUIREMENT 34 7.2. EUT ANTENNA 34 8. . TEST SEUUP PHOTO 34 9. . EUT PHOTO 34 Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251112040R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 4 of 34 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: FCC Part15 (15.247) , Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS 15.247(c) Radiated Spurious Emission PASS 15.205 Band Edge Emission PASS 15.247(b) Peak Output Power PASS 15.247(a)(2) 6dB Bandwidth PASS 15.247(e) Power Spectral Density PASS 15.203 Antenna Requirement PASS NOTE: (1)” N/A” denotes test is not applicable in this Test Report Test lab: Shenzhen DL Testing Technology Co., Ltd. Address: 101-201, Comprehensive Building, Tongzhou Electronics Longgang Factory Area, No.1 Baolong Fifth Road, Baolong Community, Baolong Street, Longgang District, Shenzhen, China FCC Test Firm Registration Number: 854456 Designation Number: CN1307 IC Registered No.: 27485 CAB ID.: CN0118 1.1 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±2.56dB 2 RF power,conducted ±0.42dB 3 Spurious emissions,conducted ±2.76dB 4 All emissions,radiated(<1G) ±3.65dB 5 All emissions,radiated(>1G) ±4.89dB 6 Temperature ±0.5°C 7 Humidity ±2% 8 6dB Bandwidth ±0.2MHz 9 Power Spectral Density ±0.3dBm Shenzhen DL Testing Technology Co., Ltd. Report No.: DLE-251112040R Test Report Tel: 400-688-3552 Web:www.dl-cert.com Email: [email protected] Page 5 of 34 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Product Name: Speaker Trade Mark: N/A Model Number: WP-05B Difference N/A Operation Frequency: 2402~2480MHz Channel numbers: 40 Channels Data Rate: 1 Mbps Channel separation: 2MHz Modulation technology: GFSK Antenna Type: Internal Antenna Antenna gain: 1.68 dBi Power supply: Input: DC 5V Battery: DC 3.7V Note: 1.For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. 2.The EUT’s all information provided by client…

Text truncated - open the document above for the full version.

Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B EUT TEST PHOTO Radiated Measurement Photos Shenzhen DL Testing Technology Co., Ltd. FCC ID: 2BE3V-WP05B Conducted Measurement Photos ※※※※※ END OF REPORT ※※※※※
