2BE7Z-SC398-WBC2Two-Way Video Camera

User Manual Appearance Call button MIC 2.8 inch screen Infrared light Lens Call button(2) 85.70mm 162.23mm 79.87mm speaker TypeC power 1. Power on User Manual xxx-xxxx-xxxx STEP 1. Enter your mobile phone number or email address. STEP 2. Enter the verification code and create a password. 2. Register an account on your Smart Life app 3. Plug in Press the Reset Button (as Pic 1) for several seconds until camera starts to Optional: Insert Micro SD card as shown in Pic 1. How do I reset my device? Pic 1 4. Add device a) After entering the home page, click the "+" button or "Add" button to enter the add device page. b) According to the prompts on the page, make sure the device is in the network pairing state, and then select the pairing method (Please select bluetooth mode) to proceed with the network binding in accordance with the steps. c) After the binding is successful, return to the device list. You will be able to see the device that was just bound. 5. Start video call a) Click on the device image to enter the live video page for the device. b) After clicking "Video Call", you can start making video calls with the device. c) You can also call the phone by pressing the call button above the device. 1. How to fix it on the wall? a) Drill holes and fix the base on the wall with screws, buckle the camera to the base. b) Stick the base to glass, tiles or other smooth things with double-side tap or 3M glue. FAQ 2. What is the lowest bandwidth when viewing the real-time video? To ensure the fluency of video, it is advised that bandwidth isn’t lower than 512kbps. 3. Why can’t I store videos and read videos properly when I insert the Micro SD(TF) card? To ensure normal operation of the camera, please insert the following recommended Micro SD(TF) card: Kingston 16G/32G/64G/128G SanDisk 16G/32G/64G/128G PNY 16G/32G/64G/128G This product must not be disposed of as normal household waste,in accordance with EU directive for waste electrical and electronic equipment (WEEE-2012/19/EU).Instead,it should be disposed of by returning it to the point of sale,or to a municipal recycling collection point. The device could be used with a separation distance of 20cm to the human body. What’s in the Box *: Different products have different accessories, please refer to physical packing. Smart Camera ×1 USB Cable ×1 User Manual ×1 Adapter ×1 * warning Federal Communications Commission (FCC) Declaration of Conformity FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules.Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. English Warning Statement: This device complies with Industry Canada license-exempt RSS standard(s).Operation is subject to the following two conditions:(1)this device may not cause interference,and (2)this device must accept any nterference,including interference that may cause undesired operation of the device." French Warning Statement: Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.L'exploitation est autorisee aux deux conditions suivantes:(1)Tappareil ne doit pas oroduire de brouillage,et (2)Tutilisateur de Iappareil doit accepter toutorouillage radioelectrique subi,meme si le brouillage est susceptible d'en compromettre le fonctionnement." Radiation Exposure Statement: This equipment complies with Canada RF exposure limits set forth for ar uncontrolled environment.This equipment should be instaled and pperated with minimum distance 20cm between the radiator &your body. Cet appareil est conforme aux limites d'exposition aux rayonnements de IC établies pour un incontrole environnement.L'appareil doit etre instale et utilise avec une distance minimale de 20cm entre le radiateuet votre corps. Declaration Of Conformity European Notice Hereby, Ningbo Lingzhu Technology CO., Ltd. declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU,2011/65/EU. Please read the instruction manual carefully before using the product

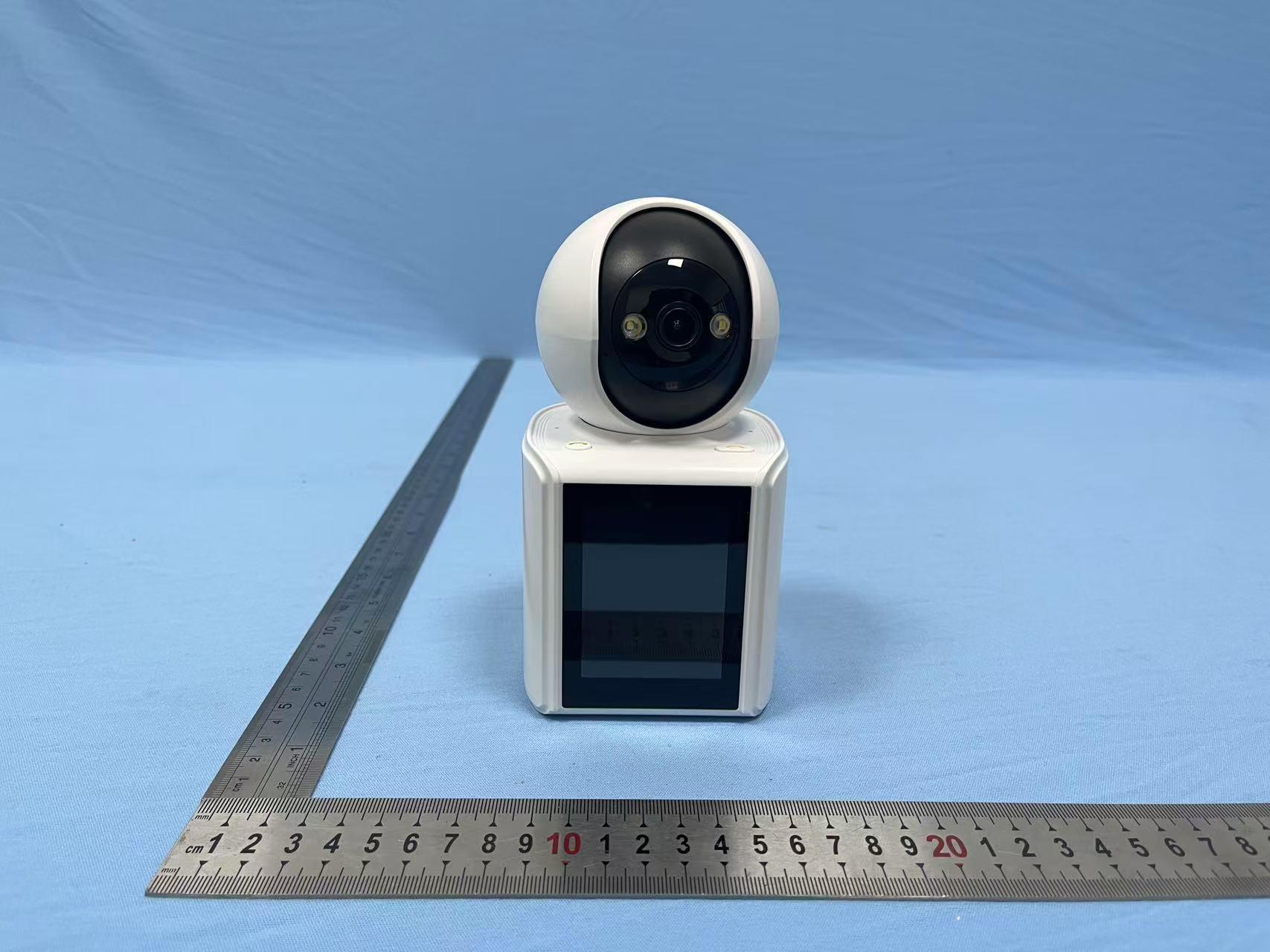

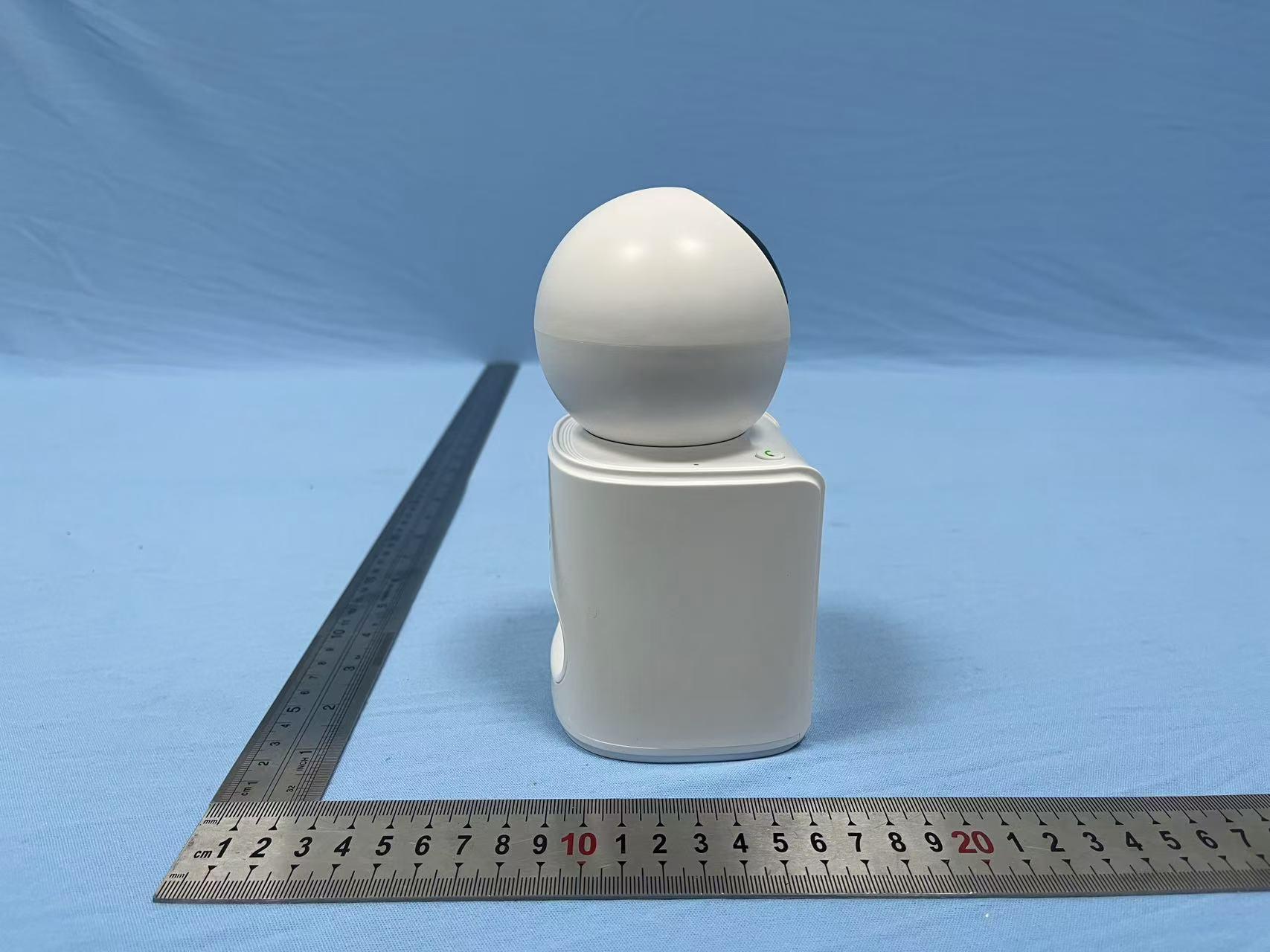

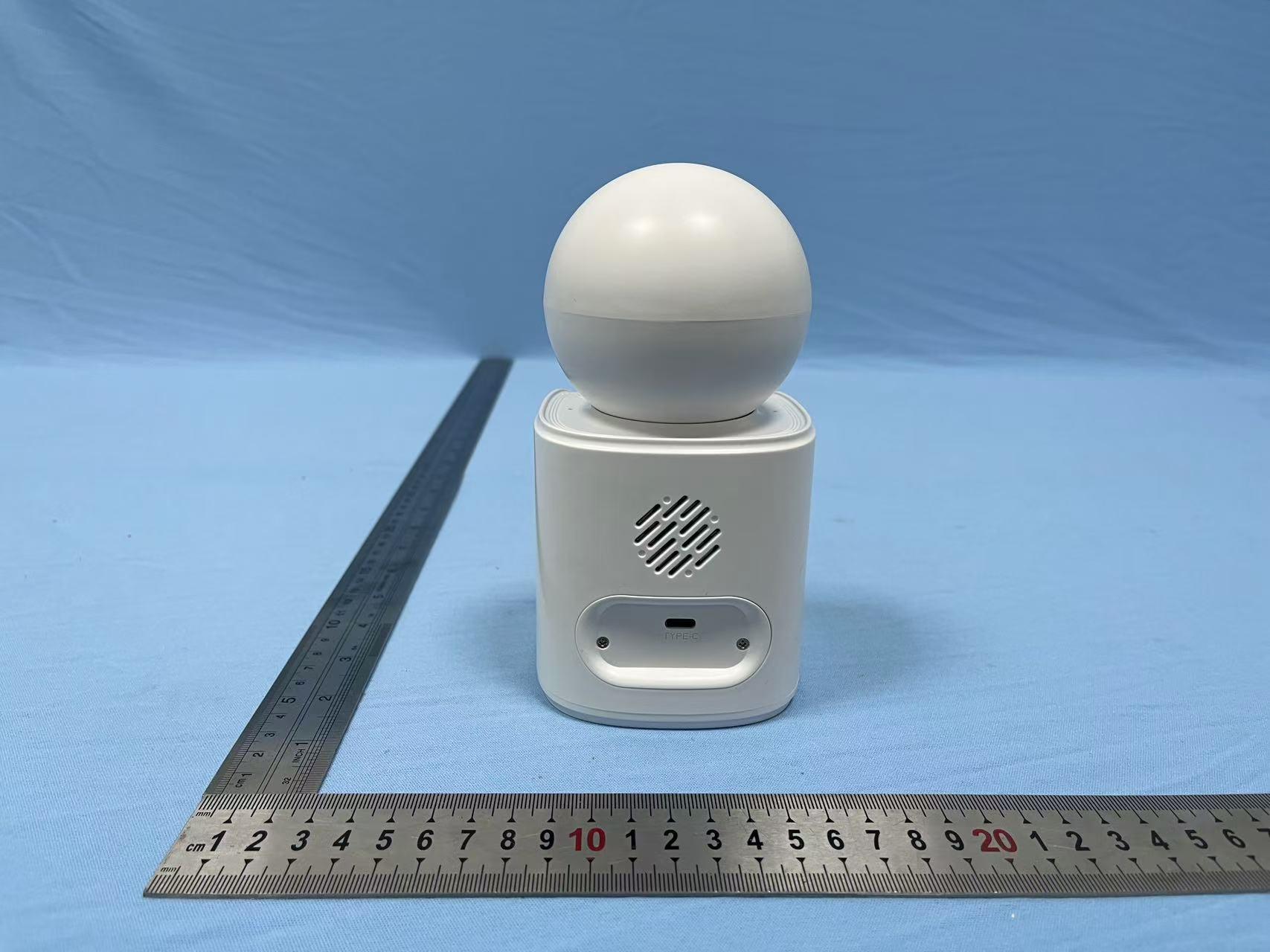

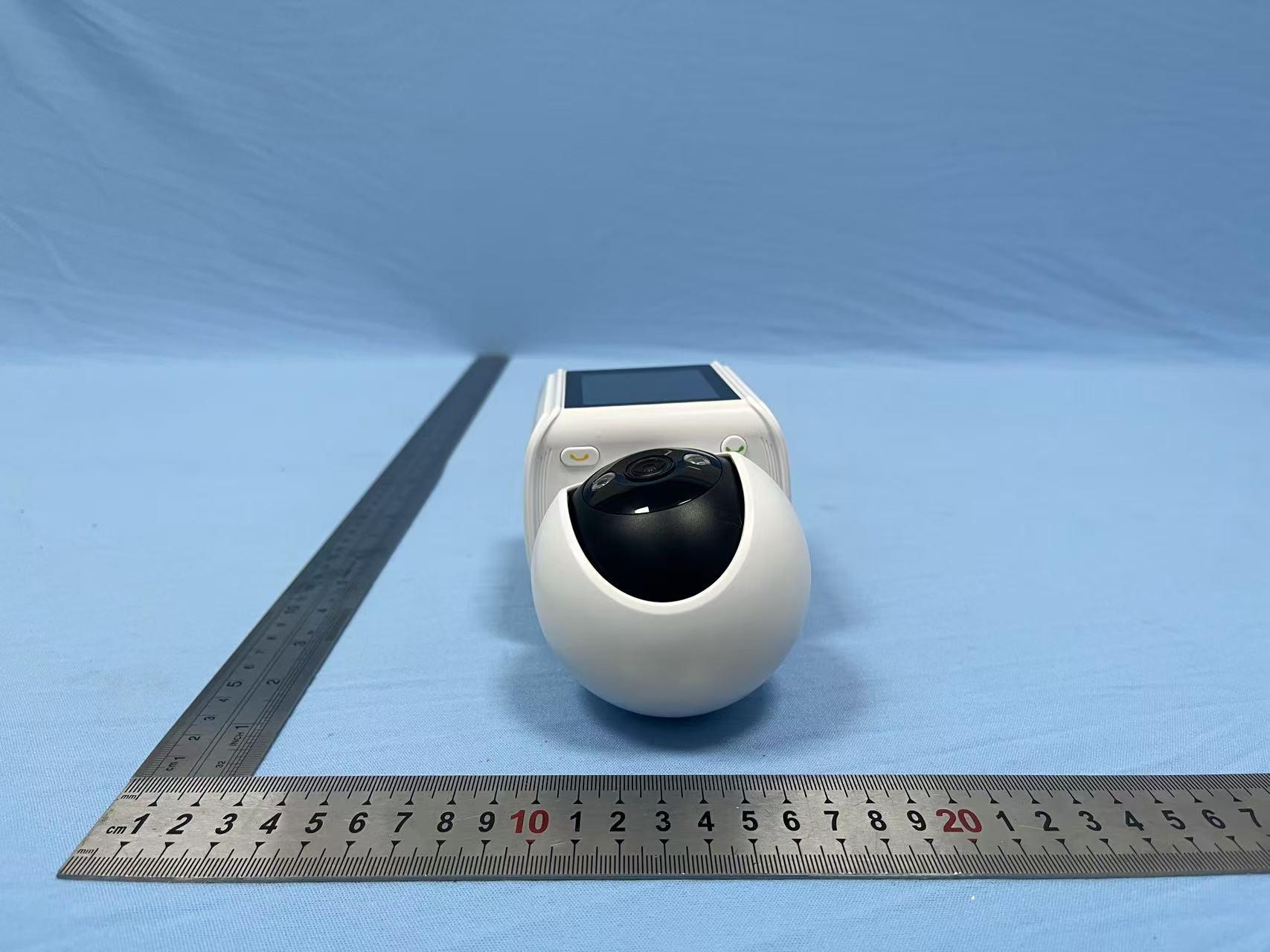

Page: 1 of 3 PHOTOGRAPHSOFEUT FCC ID:2BE7Z-SC398-WBC2 Page: 2 of 3 Page: 3 of 3

FCCID:2BE7Z-SC398-WBC2

Page: 1 of 6 PHOTOGRAPHSOFEUT FCC ID:2BE7Z-SC398-WBC2 Page: 2 of 6 Page: 3 of 6 Page: 4 of 6 Page: 5 of 6 Page: 6 of 6

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.:DNT2412020555R4898-07472 Applicant:ShenzhenCylanTechnologyCo.,Ltd. AddressofApplicant: Rm1B16-1B17-1B18,FolkCultureIndustrialArea,Qunli2ndRd,Dongxing, Baoan,Shenzhen,China EUTDescription:Two-WayVideoCamera ModelNo.: SC398-WBC2,SC398-WBC3,SC398-WBC4,A40,A40L,A40LM, A40M,C40,C30,C40L,C40M,C40LM FCCID: 2BE7Z-SC398-WBC2 PowersupplyDC5VFromAdapterInputAC100-240V,50/60Hz TradeMark:N/A Standards: 47CFRPart2.1091 FCCKDB447498D01v06 DateofReceipt:2024/12/02 DateofTest:2024/12/03to2024/12/22 DateofIssue:2024/12/23 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2412020555R4898-07472Date：December23,2024Page： 2 / 6 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/Dec.23,2024ValidOriginalReport ReportNo.:DNT2412020555R4898-07472Date：December23,2024Page： 3 / 6 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents 1GENERALINFORMATION.......................................................................................................................4 1.1TESTLOCATION..................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.........................................................................................................4 2RFEXPOSUREEVALUATION.................................................................................................................5 2.1RFEXPOSURECOMPLIANCEREQUIREMENT........................................................................................5 2.1.1Limits.............................................................................................................................................5 2.1.2TestProcedure.............................................................................................................................6 2.1.3EUTRFExposureEvaluation.......................................................................................................6 ReportNo.:DNT2412020555R4898-07472Date：December23,2024Page： 4 / 6 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang＇anTown, DongguanCity,GuangdongP.R.China Testengineer:WayneLin 1.2GeneralDescriptionofEUT Manufacturer: ShenzhenCylanTechnologyCo.,Ltd. AddressofManufacturer: Rm1B16-1B17-1B18,FolkCultureIndustrialArea,Qunli2ndRd,Dongxing, Baoan,Shenzhen,China EUTDescription:: Two-WayVideoCamera TestModelNo.: SC398-WBC2 AdditionalModel(s): SC398-WBC3,SC398-WBC4,A40,A40L,A40LM,A40M,C40,C30, C40L,C40M,C40LM ChipType: SV6158M SerialNumber PR2412020555R4898 PowerSupply DC5VFromAdapterInputAC100-240V,50/60Hz TradeMark: N/A HardwareVersion: V1.0 SoftwareVersion: V1.0 SampleType: PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaGain: Providedbyapplicant 2.78dBi Remark: *Sincetheabovedataand/orinformationisprovidedbytheapplicantrelevantresultsorconclusionsofthisreport areonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrityandresultsofthe dataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2412020555R4898-07472Date：December23,2024Page： 5 / 6 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 2RFExposureEvaluation 2.1RFExposureComplianceRequirement 2.1.1Limits Frequencyrange (MHz) Electricfieldstrength (V/m) Magneticfieldstrength (A/m) Powerdensity (mW/cm2) Averagingtime (minutes) (A)LimitsforOccupational/ControlledExposures 0.3-3.06141.63*(100)6 3.0-301842/f4.89/f*(900/f2)6 30-30061.40.1631.06 300-1500//f/3006 1500-100,000//56 (B)LimitsforGeneralPopulation/UncontrolledExposure 0.3-1.346141.63*(100)30 1.34-30824/f2.19/f*(180/f2)30 30-30027.50.0730.230 300-1500//f/150030 1500-100,000//1.030 F=frequencyinMHz *=Plane-waveequivalentpowerdensity RFexposurecompliancewillneedtobedeterminedwithrespectto1.1307(c)and(d)oftheFCCrules.The emissionsshouldbewithinthelimitsat300kHzinTable1of1.1310(usethe300kHzlimitsfor 150kHz:614V/m,1.63A/m). FriisFormula Friistransmissionformula:Pd=(Pout*G)/(4*Pi*R2) Where Pd=powerdensityinmW/cm2 Pout=outputpowertoantennainmW G=gainofantennainlinearscale Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorincm PdidthelimitofMPE,1mW/cm2.Ifweknowthemaximumgainoftheantennaandthetotalpowerinputtothe antenna,throughthecalculation,wewillknowthedistancerwheretheMPElimitisreached. ReportNo.:DNT2412020555R4898-07472Date：December23,2024Page： 6 / 6 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,Dongguan…

Text truncated - open the document above for the full version.

TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE1OF7 KC.DA.00265 AntennaSpecification 1.Application: Thisapplicationshallapplyforantennaunitwhichshallbeusedsuchasautomotive, conventionalcommunications,smarthome,etc.. 2 .ElectricalSpecification: Thosespecificationswerespeciallydefinedfor customer’s model,andall characteristicsweremeasuredunderthemodel’shandsettestingjig. 2-1.FrequencyBand: FrequencyBandMHz WiFi2400-2500/5150-5850MHz 2-2.Impedance 50ohmnominal 2-3.VSWR 2-3-1.MeasurementfrequencypointsandVSWRvalue FrequencyBand(MHz) 2400250051505850 TypicalValue:（VSWR） 1.81.51.11.7 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE2OF7 2-3-4Measuring Method 1.A50Ωcoaxialcableisconnectedtotheantenna.Thenthiscableis connectedtoanetworkanalyzertomeasuretheVSWR. 2.Keepingthisjigawayfrommetalatleast20cm 2-3-5Picture TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE3OF7 2-4.EfficiencyandGain 4-5.1Measuremethod 1.Usingalowlosscoaxialcabletolinkastandardhandsetjig 2.Fixedthishandsetjigonchamber’srotatorplane 3.Linkingjigintonetworkanalyzerportandusingaprobinghornantennato collectdata. 4.Usinganotherstandardgainhornantennatocalibratedthosedata 4-5.2Chamberdefinition 1.Ananechoicchamber(7mx4mx3m)whichsatisfiedfar-fieldconditionwasappliedto avoidmulti-patheffect 2.Thequiteroomregionis40cmx40cmx40cmatthecenterofrotator 3.ThedistancebetweenDUTandstandardantennais4.38m 4.Probingantenna(9120Dhornantenna)andstandardgainhornantenna(BBHA9120LPF 700MHz~6GHz) 4.38 m Rotatory controller Vector Network Aanlyzer Port 2Port 1 DUT Far-Field Chamber Std. Ant. TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE4OF7 2-4-1EfficiencyandGainand3DDate Frequency/MhzMaxGain/dBiEfficiency/%Frequency/MhzMaxGain/dBiEfficiency/% 24002.0948.4553601.9269.98 24102.4449.3253901.6668.55 24202.5952.3654201.6767.92 24302.6555.0854501.3868.08 244057.92.78454801.1462.95 24502.3960.9555101.4569.5 24602.6463.2455401.5669.66 24702.5164.5755701.1165.16 24802.7368.5556000.764.12 24902.9473.1156300.8464.27 25002.7774.8256600.8759.84 56900.4456.75 51502.1157.545720055.21 51802.0261.3857500.0852.48 52101.6662.5257800.3454.2 52401.4561.858100.1952.48 52701.6461.858401.1557.28 53001.6264.71 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE5OF7 TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE1OF7 3.MechanicalSpecification: 3-1.MechanicalConfiguration(Unit:mm) Theappearanceoftheantennaisaccordingtodrawing TOXUTECHNOLOGYCO.,LTD. UNLESSOTHERSPECIFIEDTOLERANCESON： TOXUTECHNOLOGYCO.,LTD. X＝±X.X＝±X.XX＝± ANGLES＝±HOLEDIA＝± SCALE：UNIT：mm THISDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFTOXU TECHNOLOGYCO.,LTD.ANDSHALLNOTBEREPRODUCEDORUSEDAS THEBASISFORTHEMANUFACTUREORSALEOFAPPARATUSOR DEVICESWITHOUTPERMISSION DRAWNBY：LICHECKEDBY:YS DESIGNEDBY:D ewen APPROVEDBY:YS TITLE：KC.DA.00265AntennaSpecification SPECREV. P0 PAGE2OF7 4.Packagingspecification： Productnumber ： xxxxx Productmodel：xxxxx 一、Labelrequirements： Customerxxx supplierxxxxx Materialcodingxx Productmodelxx NumberXXXPCSFactorydateXXX Remarks 二、Boxing： Jobdescription ： 1.Innerpackaging： XXpcsAbag 2.Externalpackaging ： XxPCS ； 3.Mattersneedingattention： a．Whethertoaddpartitionandpearlcotton； b ． Labelattachments,suchasROHS,etc. ； PE袋

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.:DNT2412020555R4898-07473 Applicant:Shenzhen Cylan Technology Co., Ltd. Address of Applicant: Rm 1B16-1B17-1B18, Folk Culture Industrial Area, Qunli 2nd Rd, Dongxing, Baoan, Shenzhen, China EUT Description:Two-Way Video Camera Model No.: SC398-WBC2,SC398-WBC3,SC398-WBC4,A40,A40L, A40LM,A40M,C40,C30,C40L,C40M,C40LM FCC ID:2BE7Z-SC398-WBC2 Power SupplyDC 5V From Adapter Input AC 100-240V, 50/60Hz Trade Mark:N/A Standards: 47 CFR FCC Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2013 Date of Receipt:2024/12/02 Date of Test:2024/12/03 to 2024/12/22 Date of Issue:2024/12/23 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page： 2 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V2.0/ Dec.23, 2024 ValidOriginal Report Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：3 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement 15.203/247(b)--Clause 3.1 PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2013 Clause 3.2 PASS Duty Cycle----Clause 3.3PASS DTS (6 dB) Bandwidth15.247 (a)(2)ANSI C63.10: 2013Clause 3.4PASS Conducted Output Power15.247 (b)(3)ANSI C63.10: 2013 Clause 3.5 PASS Power Spectral Density15.247 (e)ANSI C63.10: 2013Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2013 Clause 3.7 PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2013 Clause 3.8 PASS Radiated Spurious Emissions15.247(d);15.205/15.209ANSI C63.10: 2013Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d);15.205/15.209 ANSI C63.10: 2013 Clause 3.10 PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：4 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2. 2 General Description of EUT...................................................................................................................................6 2.3 Channel List........................................................................................................................................................... 7 2. 4 Test Environment and Mode..................................................................................................................................7 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Description of Support Units.................................................................................................................................. 7 2. 7 Test Facility............................................................................................................................................................8 2.8 Measurement Uncertainty (95% confidence levels, k=2)...................................................................................... 8 2. 9 Equipment List....................................................................................................................................................... 9 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3. 2 AC Power Line Conducted Emissions.................................................................................................................12 3.3 Duty Cycle............................................................................................................................................................16 3. 4 DTS (6 dB) Bandwidth...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：47 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：48 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：49 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：50 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix E: Band edge measurements Test Result TestModeAntennaChNameFrequency[MHz]RefLevel[dBm]Result[dBm]Limit[dBm]Verdict 11BAnt1 Low24122.72-29.5≤-17.28PASS High24624.13-44.67≤-15.87PASS 11GAnt1 Low24121.33-22.02≤-18.67PASS High24623.00-34.49≤-17PASS 11N20SISOAnt1 Low24121.52-22.09≤-18.48PASS High24622.58-33.08≤-17.42PASS 11N40SISOAnt1 Low2422-1.96-26.09≤-21.96PASS High24520.85-31.05≤-19.15PASS Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：51 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：52 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：53 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：54 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Conducted Spurious Emission Test Result TestModeAntennaFrequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11BAnt1 2412 Reference0.810.81---PASS 30~10000.81-57.24≤-19.19PASS 1000~265000.81-37.03≤-19.19PASS 2437 Reference3.363.36---PASS 30~10003.36-57.33≤-16.64PASS 1000~265003.36-39.56≤-16.64PASS 2462 Reference2.762.76---PASS 30~10002.76-57.29≤-17.24PASS 1000~265002.76-44.53≤-17.24PASS 11GAnt1 2412 Reference0.240.24---PASS 30~10000.24-56.68≤-19.76PASS 1000~265000.24-47.98≤-19.76PASS 2437 Reference0.750.75---PASS 30~10000.75-57.56≤-19.25PASS 1000~265000.75-47.91≤-19.25PASS 2462 Reference2.822.82---PASS 30~10002.82-57.39≤-17.18PASS 1000~265002.82-46.9≤-17.18PASS 11N20SISOAnt1 2412 Reference-3.59-3.59---PASS 30~1000-3.59-57.25≤-23.59PASS 1000~26500-3.59-44.72≤-23.59PASS 2437 Reference-2.13-2.13---PASS 30~1000-2.13-57.88≤-22.13PASS 1000~26500-2.13-47.37≤-22.13PASS 2462 Reference-0.96-0.96---PASS 30~1000-0.96-57.7≤-20.96PASS 1000~26500-0.96-47.56≤-20.96PASS 11N40SISOAnt1 2422 Reference-6.04-6.04---PASS 30~1000-6.04-57.35≤-26.04PASS 1000~26500-6.04-48≤-26.04PASS 2437 Reference-1.10-1.10---PASS 30~1000-1.10-57.35≤-21.1PASS 1000~26500-1.10-48.17≤-21.1PASS 2452 Reference-4.02-4.02---PASS 30~1000-4.02-57.88≤-24.02PASS 1000~26500-4.02-47.59≤-24.02PASS Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：55 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 11B_Ant1_2437_0~Reference Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：56 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11B_Ant1_2437_30~1000 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：57 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：58 / 66 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference Report No.: DNT2412020555R4898-07473Date：December 23, 2024Page：59 / 66 Dongguan DN Testing Co., …

Text truncated - open the document above for the full version.

Page: 1 of 2 ConducedEmissionVie Test Setup Of EUT FCC ID:2BE7Z-SC398-WBC2 w RadiatedEmissionTestView|(Below1G) Page: 2 of 2 RadiatedEmissionTestView|(Above1G)
