2BEES-S6Three axis stabilizer

S6 Three axis stabilizer 八、基本参数 充电电压 sv 充电电流 =lOOOmA 工作电流 200-2000mA 工作电压 3.7V 工作温度 o- 40 ° c 工作时间 4七小时 产品净重 380克 适用机型 7寸以下机型 负戴重量7 5 g--2 5 0g 锤寓子电池 2 6 00mAh 仰俯轴活动范围 -165'-165' 横滚轴活动范国 -165'~165' 航向轴活动范围 3 6 0 ° 附件接口 1/4英寸螺纹接口 A安全操作指引 1. 三轴稳定器为非防水产品，请勿在雨中或潮湿的环境中使用，也不要将 产品放入水中或弄湿。产品内部接触到液体后可能会发生腐蚀反应，从而 引发电池自燃，甚至爆炸。 2若产品发生起火，请立即灭火，以免造成严重损失。 3. 请在温度为0-40 ° C之间的环境中使用产品。温度过高或过低可能会缩 短产品使用寿命。 4请注意产品使用安全。严禁机械撞击、碌压或者抛掷产品，也不要在产 品上放置重物。 5. 严禁以任何方式拆解产品。若拆解过程中剌破电池，将会导致电池内部 液体泄漏，甚至引发起火和爆炸。 6. 长时间不使用时，请将电池放电至4 0 %-65%电呈存放。请勿将产品彻 底放电后长时间储存，以免电池过放、损害电芯而无法使用。每隔三个月 左右重新放电 一 次以保持电池活性。 Specification Charging Voltage 5\/ Charging Current =lOOOmA Working Current 200-2000mA Working Voltage 3.7v Working Temperature 0-40'C Working Time 4-6hrs Net Product Weight 380g Applicable Models .. 1· Load Weight 75g-250g Lithium-ion Battery 2600mAh Roll应isRange of Motion - 1 65 ° -1 65 ° Pitch Axis Range of Motion - 1 65 ° ~1 65 ° Yaw Axis Range of Motion 360' 比ssoryInterface 1 /4" A safety Op eration Guidelines 1 . The three-axis stabilizer is not waterproof. Do not use it in the rain or in a humid environment, and do not put it in water or get it wet. If the product comes into contact with liquid, a corrosion reaction may occur, causing the battery to self-ignite or even explode. 2. If the product catches fire, please extinguish the fire immediately to avoid serious losses. 3. Please use the product in an environment with a temperature between 0-40 ° C Too high or too low temperature may shorten the product life. 4. Please pay attention to the safety of product use. It is strictly forbidden to mechanically impact, crush or throw the product, and do not place heavyobje屯 on the product. 5. It is strictly forbidden to disassemble the product in any way. If the battery is punctured during disassembly, it will cause the liquid inside the battery to leak, and even cause fire and explosion 6. When not in use for a long time, please discharge the battery to 40%-65% of the power for storage. Do not store the product for a long time after it is completely discharged, so as to avoid over-discharging the battery and damaging the battery cell and making it unusable. Re-discharge it every three months or so to keep the battery active Warning· This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for c ompliance could void the user's authority to operate the equipment NOTE: This equipment has been tested and found to comply with the limes for a C lass B digttal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a r esidential installation This equipment generates, uses and can radiate radio frequencye nergy and, if not i nstalled and used in accordance with the instructions, may cause harm扣1 int erference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver IS connect式 - Consult the dealer or an experienced radiof[V technician for help NO「E: This device and its antenna(s) must not be co-located oroperation ,n con」unctionwith any other antenna or transmitter The device has been evaluated to meet general RF exposurerequirement. The device can be used in portable exposure condition without restriction

(Shenzhen Huisheng Technology Co., Ltd) (2025/11/3) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BEES-S6) [Shenzhen Huisheng Technology Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) LI JINSHUN (Shenzhen Huisheng Technology Co., Ltd) (2025/11/3) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BEES-S6) [Shenzhen Huisheng Technology Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) LI JINSHUN

Shenzhen Huisheng Technology Co., Ltd 2025/11/3 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : LI JINSHUN / Manager Contact information / address: Floor 3, jianan Road 25, Fuhai Street, Baoan District, shenzhen City, China

Shenzhen Huisheng Technology Co., Ltd 2025/11/3 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Three axis stabilizer Trademark: N/A MODEL: S6 S6 Pro, S6 SE, S6 Ultra FCC ID: 2BEES-S6 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : LI JINSHUN / Manager Contact information / address: Floor 3, jianan Road 25, Fuhai Street, Baoan District, shenzhen City, China

Shenzhen Huisheng Technology Co., Ltd Model Difference 2025/11/3 EUT NAME: Three axis stabilizer Trademark: N/A MODEL: S6 S6 Pro, S6 SE, S6 Ultra FCC ID: 2BEES-S6 All the models are the same circuit and RF module, except model names. Regards Sincerely Client’s signature: Client’s name / title : LI JINSHUN / Manager Contact information / address: Floor 3, jianan Road 25, Fuhai Street, Baoan District, shenzhen City, China

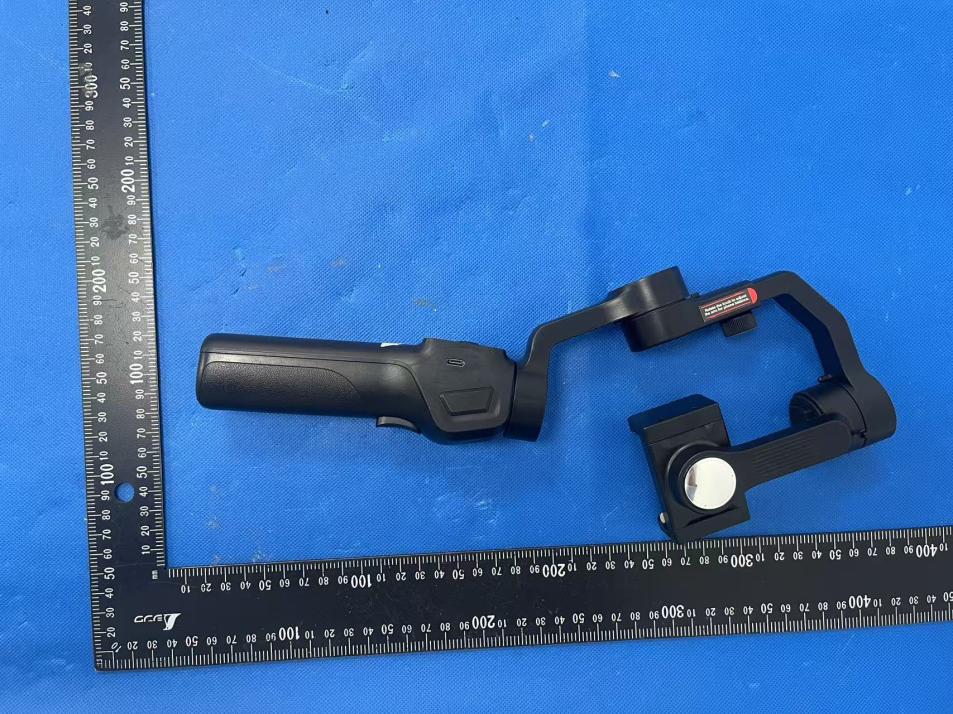

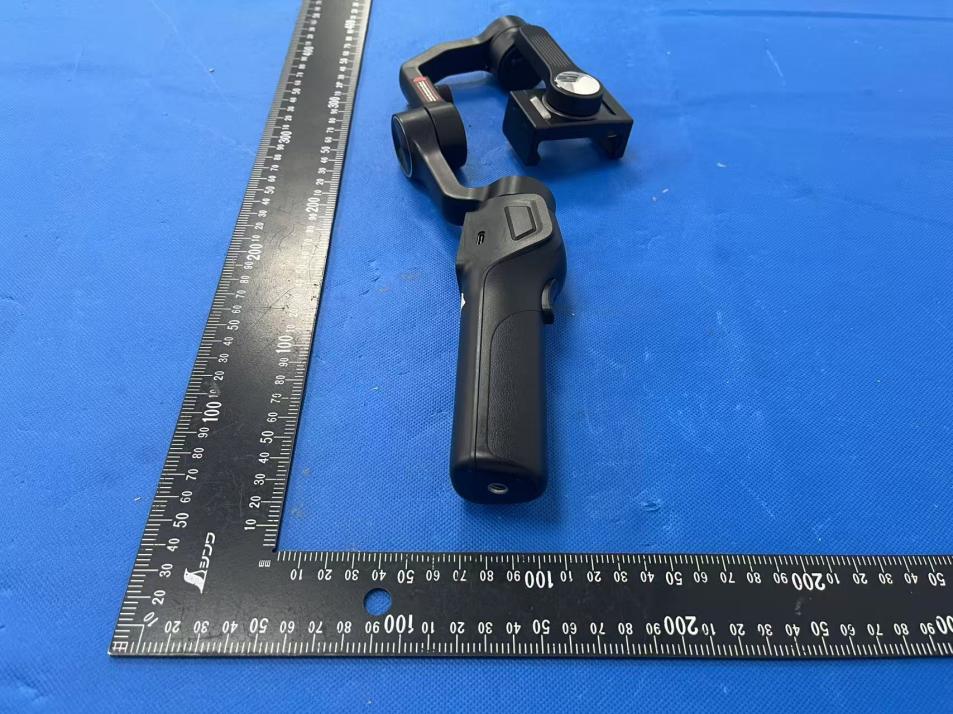

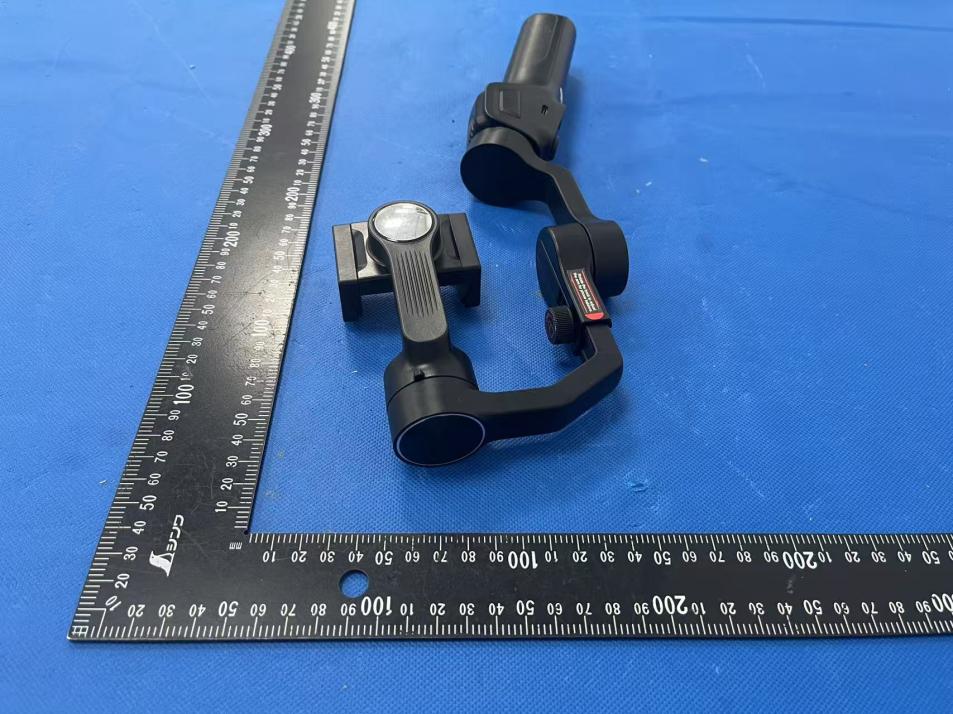

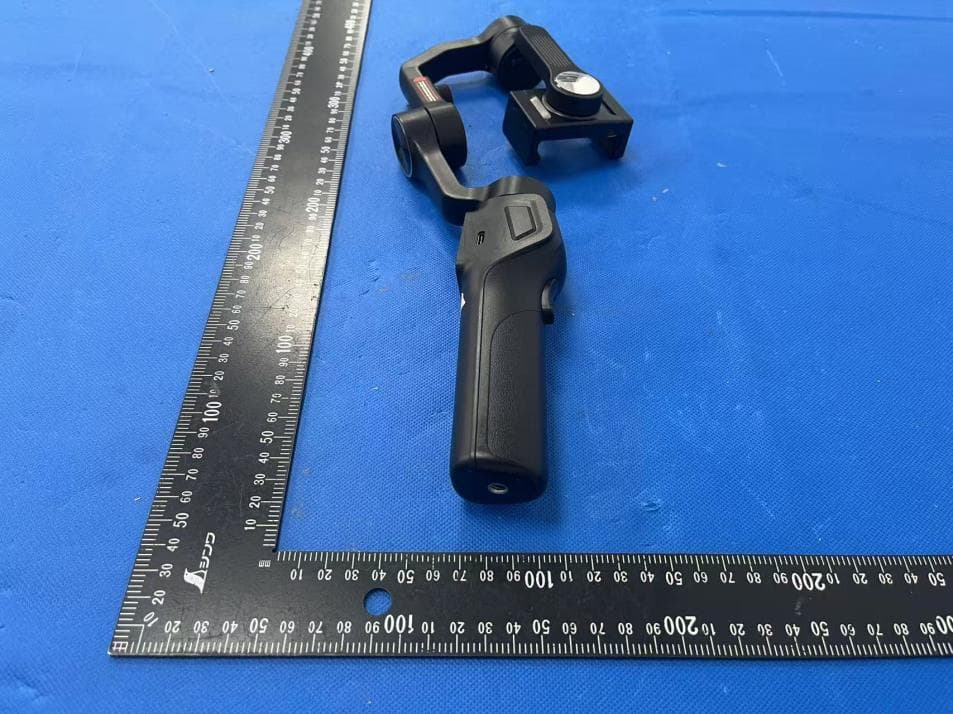

Report No.: BCTC2510906944E External Photos Report No.: BCTC2510906944E Report No.: BCTC2510906944E Report No.: BCTC2510906944E

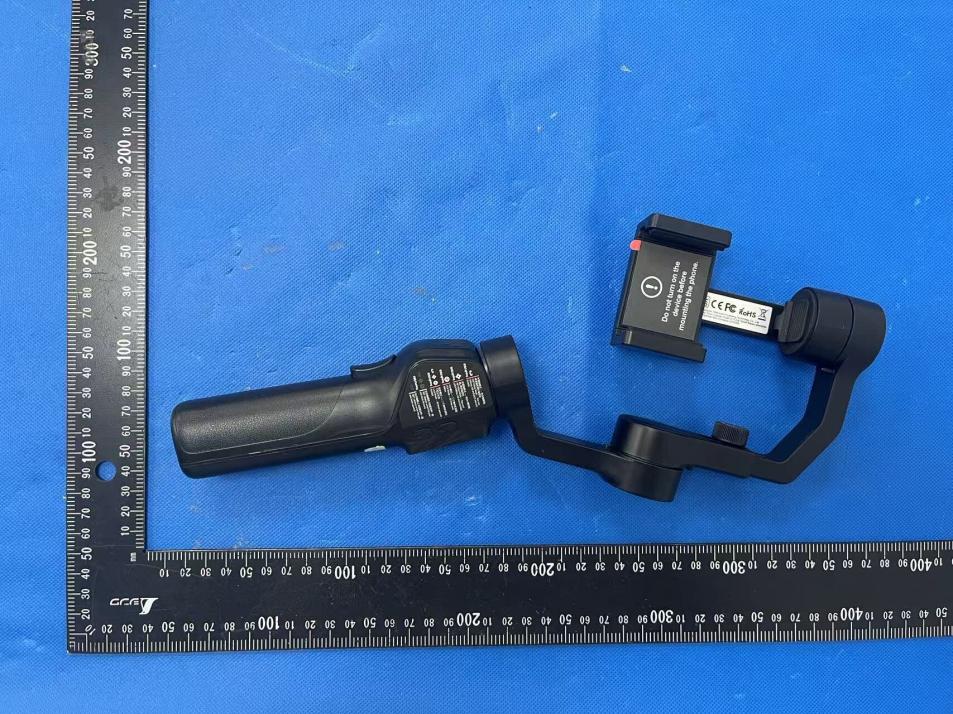

Location： Label FCC ID: 2BEES-S6

Report No.: BCTC2510906944E Internal Photos 2.4G RX Antenna BT Antenna Report No.: BCTC2510906944E Report No.: BCTC2510906944E Report No.: BCTC2510906944E Report No.: BCTC2510906944E Report No.: BCTC2510906944E

RF EXPOSURE EVALUATION METHOD FCC ID: 2BEES-S6 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BLE Mode Frequency(MHz) Maximum Conducted Output Power(PK) (dBm) Conducted Output Power Limit(dBm) GFSK 2402 -2.77 30 2440 -3.48 30 2480 -4.04 30 max possible output power (PK, conducted)：-2±1dBm -1dBm=0.79mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.402=0.245≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.440=0.247≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 0.79/5*√2.48=0.249≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Productspecification This Wiggleantennais usedin normalmodulewithwholelayoutboardwhichsize is 2.73 mm*10.9 mm and thicknessis 0.6 mm（FR4） 3- 1NormalModule wiggleAntenna The performanceof S11 as blowshowand the workingfrequencybandcover2.4G ISM (2.40~2.48G). 3-2 NormalModuleWiggleS11 performance The gain of this antenna2D and 3D as blowshowand the maximumgain is about 0. 55 db i,Test Frequencypoint2.44G NameThetaAngMag m10.00000.0000-3.29 m2180.0000180.0000-3.31 3—3 NormalModuleWigglegain Frequencyvs antennagain table: MarkFrequencyAntennaGain 12400MHZ-0.92dbi 22440MHZ0.55dbi 32480MHZ-0.75dbi

No.：BCTC/RF-ICT-005 Page: 1 of 43 Edition：C.0 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2510906944E Applicant: Shenzhen Huisheng Technology Co., Ltd Product Name: Three axis stabilizer Test Model: S6 Tested Date: 2025-10-11 to 2025-11-06 Issued Date: 2025-11-06 Report No.: BCTC2510906944E No.：BCTC/RF-ICT-005 Page: 2 of 43 Edition：C.0 FCC ID: 2BEES-S6 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Three axis stabilizer Trademark: N/A Model/Type Reference: S6 S6 Pro, S6 SE, S6 Ultra Prepared For: Shenzhen Huisheng Technology Co., Ltd Address: Floor 3, jianan Road 25, Fuhai Street, Baoan District, shenzhen City, China Manufacturer: Shenzhen Huisheng Technology Co., Ltd Address: Floor 3, jianan Road 25, Fuhai Street, Baoan District, shenzhen City, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2025-10-11 Sample Tested Date: 2025-10-11 to 2025-11-06 Issue Date: 2025-11-06 Report No.: BCTC2510906944E Test Standards: FCC Part15.247 ANSI C63.10:2020 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Shanshan. Zhang / Project Handler Zero Zhou/Reviewer Report No.: BCTC2510906944E No.：BCTC/RF-ICT-005 Page: 3 of 43 Edition：C.0 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table of parameters of text software setting ....................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT Operating Conditions .................................................................................. 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test procedure .................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 2…

Text truncated - open the document above for the full version.

Report No.: BCTC2510906944E Conducted emissions Radiated Measurement Photos Report No.: BCTC2510906944E Spurious emissions
