2BEH5-2YBluetooth Communication System

V1.0 English | Deutsch | Italiano | Français | Españo | 日本語 Intelligent Helmet Bluetooth Headset Product Manual 2Y Tech Support：[email protected] English - 2 • PACKAGE CONTENTS • Tech Support MAXRUNON 2Y Main Unit Back Clip3M Glue PlateSpeaker Unit Hybrid Microphone Type-C CableVelcro for SpeakerVelcro for Hybrid MicManual [email protected] English - 3 1 3 5 7 2 4 6 8 English - 4 11 910 English - 5 • Function • Product Specifications Product model2Y Bluetooth nameMAXRUNON 2Y Bluetooth version5.3 Microphone&speaker40mm Speaker Unit Hybrid Microphone Maximum intercom capacity2 people Communication distance500m Voice control Press the button to activate your phone’s voice assistant. Noise reduction capability100 kilometers per hour, clear communication Waterproof ratingIPX5 Battery capacity500mAh Software upgradeNon-support FM functionSupport Fast charging time60 minutes Standby time170 hours Intercom battery life24 hours Music playback battery life22 hours Intercom+music battery life15 hours Automatic audio adjustmentsupport Type-C Charging Port Function button Intercom button Volume - Volume + Audio Interface English - 6 FunctionButton Operation Power On/Off Play Music Pause Music Previous Track Next Track Volume + Volume - Answer CallAny button End Call Reject Call Phone Pairing Group Bluetooth Grouping Group Mode Universal Mode 2S 3S 3S 3S 3S Upon broadcast of number of connected members 2S Enable Bluetooth pairing mode on other headsets. 3S Confirm Activate intercom ×1 Press ×1 Press ×1 Press ×1 Press ×1 Press ×1 Press ×1 Press ×2 Press ×2 Press English - 7 FunctionButton Operation Cancel Group Bluetooth Grouping 2S Note: Cancel the group when the device is in Bluetooth grouping mode. Radio On ×2 Press Radio Off ×2 Press Search Radio Stations Note: When FM is turned on ×1 Press Factory Reset 3S Note: The device will reboot and reset to factory settings. Microphone on/ off 2S Note: Simultaneously long press the intercom button and any volume button for 2s. Active the phone's voice assistant ×2 Press Deutsch - 8 FunktionTastenbedienung Ein/Aus Musik abspielen Musik pausieren Vorheriger Titel Nächster Titel Lautstärke + Lautstärke - Anruf annehmenJede Taste Anruf beenden Anruf ablehnen Telefonkopplung Bluetooth- Gruppenkopplung Gruppenmodus Universal-Modus 2S 3S 3S 3S 3S Mit 2 Geräten verbinden 2S Währenddessen müssen andere Bluetooth-Headsets den Bluetooth-Kopplungsmodus aktivieren. 3S ×2 Taste drücken ×2 Taste drücken Intercom aktivieren zur Bestätigung ×1 Taste drücken ×1 Taste drücken ×1 Taste drücken ×1 Taste drücken ×1 Taste drücken ×1 Taste drücken ×1 Taste drücken Deutsch - 9 FunktionTastenbedienung Bluetooth- Gruppenkopplung löschen 2S Löschen Sie die Gruppe, wenn sich das Gerät im Gruppen-Mesh-Modus befindet. Radio einschalten ×2 Taste drücken Radio ausschalten ×2 Taste drücken Radiosender suchen Hinweis: Nur möglich, wenn FM eingeschaltet ist. ×1 Taste drücken Werksein- stellungen zurücksetzen 3S Hinweis: Das Gerät wird neu gestartet und auf die Werkseinstellungen zurückgesetzt. Mikrofon Ein/Aus 2S Hinweis: Halten Sie gleichzeitig die Sprechtaste und eine beliebige Lautstärketaste für 2 Sekunden gedrückt. Aktivierung des intelligenten Sprachassistenten ×2 Taste drücken Italiano - 10 FunzioneUso del pulsante Accensione/ Spegnimento Riproduci Musica Pausa Musica Precedente Traccia Prossima Traccia Volume + Volume - Rispondi Alla Chiamata Qualsiasi pulsante Termina Chiamata Rifiuta Chiamata Accoppiamento Telefonico Raggruppamen- to Bluetooth Di Gruppo Modalità Gruppo Modalità Universale 2S 3S 3S 3S 3S Gli altri auricolari bluetooth devono attivare la modalità di accoppiamento bluetooth. 3S Premere 2 volte Premere 2 volte Attiva la comunicazione Unisciti a 2 membri. 2S Conferma Premere 1 volte Premere 1 volte Premere 1 volte Premere 1 volte Premere 1 volte Premere 1 volte Premere 1 volte Italiano - 11 FunzioneUso del pulsante Annulla Rag- gruppamento Bluetooth Di Gruppo 2S Nota: annullare il raggruppamento quando ci si trova nello stato di raggruppamento Bluetooth. Radio Accesa Premere 2 volte Spegni Radio Premere 2 volte Cerca Stazioni Radio Nota: quando la radio FM è accesa Premere 1 volte Reset Di Fabbrica 3S Nota: Il dispositivo si riavvierà e ripristinerà le impostazioni di fabbrica. Attivazione/ Disattivazione Del Microfono 2S Nota: Premere contemporaneamente il pulsanto di comunicazione e qualsiasi tasto del volume per 2s Attiva L'assistente Vocale Del Telefono Premere 2 volte Français - 12 FonctionUtilisation du bouton Allumer/ Éteindre Lire La Musique Pause Musique Piste Précédente Piste Suivante Volume + Volume - Repondre A L’appel N’importe quelle touche Terminer L’appel Rejeter L’appel Appariement Téléphonique Groupe Bluetoo- th Regroupe- ment Mode Groupe Mode Universel D'autres appareils entrent dans le couplage Bluetooth 3S ×2 Tapez ×2 Tapez Activer la communication 2S 3S 3S 3S 3S Rejoindre 2 membres. 2S Confirmer ×1 Tapez ×1 Tapez ×1 Tapez ×1 Tapez ×1 Tapez ×1 Tapez ×1 Tapez Français - 13 FonctionUtilisation du bouton Annuler Le Regroupement Bluetooth 2S Remarque : Annulez le groupe lorsque vous êtes dans l’état de mesh du groupe. Radio Allumée ×2 Tapez Éteindre La Radio ×2 Tapez Rechercher Des Stations De Radio Remarque : Lorsque la FM est activée ×1 Tapez Réinitialisation D’usine 3S Remarque : L’appareil redémarrera et rétablira les paramètres d’usine. Activation/Dé- sactivation Du Microphone 2S Remarque : Appuyez simultanément sur la touche de communication et sur n’importe quelle touche de volume pendant 2s. Activer l’assistant vocal du télé- phone ×2 Tapez Español - 14 FunciónOperación del botón Encender/ Apagar Reproducir Música Pausar Música Pista Anterior Pista Siguiente Volume + Volume - Responder una llamada Cualquier botón Terminar la llamada Rechazar la llamada Emparejar telé- fono Emparejamiento Bluetooth en grupo Únase a 2 miembros. 2S Confirmar 1 Clic Modo De Grupo 1 Clic Modo Universal Nota: al mismo tiempo, Otro intercomunicador debe activar el…

Text truncated - open the document above for the full version.

FCCID:2BEH5-2Y FCCID:2BEH5-2Y FCCID:2BEH5-2Y FCCID:2BEH5-2Y

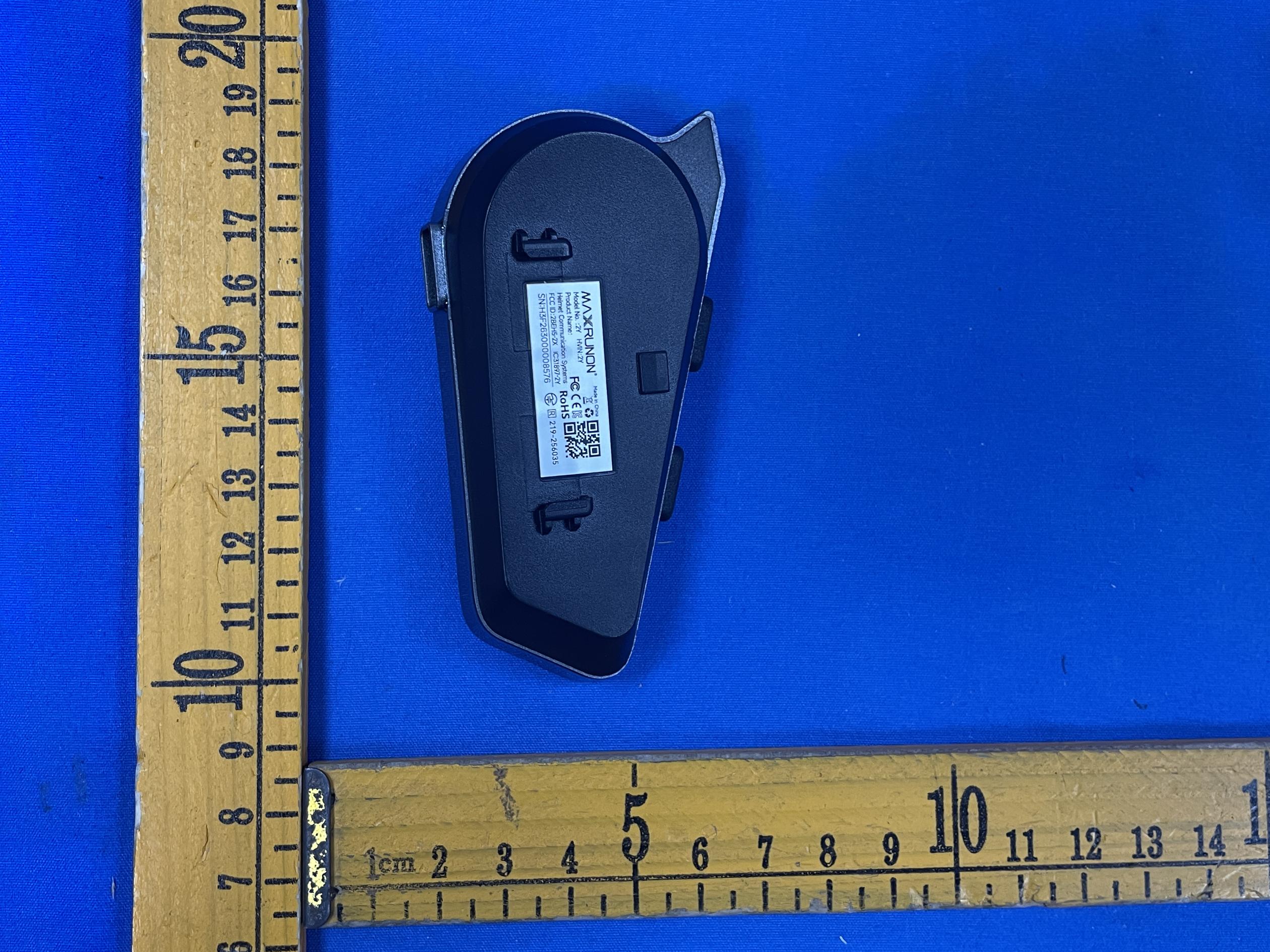

LabelandLabelLocation

FCCID:2BEH5-2Y FCCID:2BEH5-2Y FCCID:2BEH5-2Y FCCID:2BEH5-2Y

Page1of2 RFEXPOSUREEVALUATION FCCID:2BEH5-2Y ProductName: BluetoothCommunicationSystem ModelName: 2Y,2X,M1,W10,8X BluetoothVersion:BTBDR+EDR Operatingfrequency:2402-2480MHz NumbersofChannel:79channelsforBDR+EDR AntennaType:Ceramicantenna AntennaGain:2.32dBi TypeofModulation:GFSK,Π/4-DQPSK,8DPSKForDSS Powersupply: Input:5V ⎓ 0.5A Li-ionbattery:DC3.7V HardwareVersion:WS19_MB_V1.0 SoftwareVersion:MAXRUNON2Y_HW10_A1.0 Page2of2 StandardRequirement Accordingto§15.247(i)and§1.1307b(1),systemsoperatingundertheprovisionsofthis sectionshallbeoperatedinamannerthatensuresthatthepublicisnotexposedtoradio frequencyenergylevelsinexcessoftheCommission’sguidelines.SeeKDB447498D01 GeneralRFExposureGuidancev06,section4.3.1. The1-gand10-gSARtestexclusionthresholdsfor100MHzto6GHzattestseparation distances≤50mmaredeterminedby: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]*[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gSARextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation Theresultisroundedtoonedecimalplaceforcomparison. Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤ 50mmandfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmisappliedtodetermineSARtestexclusion. RoutineSARevaluationreferstothatspecificallyrequiredby§2.1093,usingmeasurements orcomputersimulation.WhenroutineSARevaluationisnotrequired,portabletransmitters withoutputpowergreaterthantheapplicablelowthresholdrequireSARevaluationtoquality forTCBapproval. Channel (MHz) Maximum output power (dBm) Tuneup tolerance (dBm) MaxTune UpPower (mW) Distance (mm) Calculation results Limit Operating Mode 2480 3.393.39±1 2.74789450.8584703 2DH5 AccordingtoKDB447498,ThedeviceonlysupportBTfunction,andnosimultaneousSAR measurementisrequired. Signature SimonPu Manager Date:2026-05-23

ANTD31W05-X2_V01 1/9 3216Chipantenna ForBluetooth/WLANApplications Manufacturer：ShenzhenHaoTianChengWirelessTechnologyCO.Ltd Address：505RunjiBuilding,Lane2,LiuxianyiRoad,BaoanDistrict, Shenzhen，China Dimension(mm) L3.2±0.20 W1.6±0.20 T0.5±0.10 P/N:ANTD31W05-X2 ANTD31W05-X2_V01 2/9 PartNumberInformation ANTD31W05-X2 ABCDEF AProductSeriesAntenna BTypePIFA CDimensionLxW3.2×1.6mm(±0.2mm) DMaterialLowLoss&HighKmaterial EDimensionT0.5±0.10mm FProductNameX2 1.ElectricalSpecification Specification PartNumberANTD31W05-X2 CentralFrequency2450MHz Bandwidth100(Min.)MHz ReturnLoss-10(Max)dB PeakGain2.32dBi Impedance50Ω OperatingTemperature -40～+85°C MaximumPower1W ResistancetoSoldering Heats 10(@260°C) sec. PolarizationLinear AzimuthBeamwidthOmni-directional TerminationCu/Sn(Leadless) ANTD31W05-X2_V01 3/9 2.RecommendedPCBPattern(Unit:mm) a.EvaluationBoardDimension b.LayoutDimensionsinClearancearea ANTD31W05-X2_V01 4/9 3.SuggestedMatchingCircuit 4.MeasurementResults ReturnLoss ANTD31W05-X2_V01 5/9 RadiationPattern XY-PlaneTotalZY-PlaneTotalZX-PlaneTotal Gain-PlaneEfficiency-Plane Frequency(MHz)240024502500 Gain(dBi)2.272.232.32 Efficiency(dB)-1.45-1.25-1.34 Efficiency(%)717473 ANTD31W05-X2_V01 6/9 5.ReliabilityandTestCondictions ITEMREQUIREMENTSTESTCONDITION Solderability1.Wettingshallexceed90%coverage 2.Novisiblemechanicaldamage Pre-heatingtemperature:150°C/60sec. Soldertemperature:230±5°C Duration:4±1sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Solderheat Resistance 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% Pre-heatingtemperature:150°C/60sec. Soldertemperature:260±5°C Duration:10±0.5sec. Solder:Sn-Ag3.0-Cu0.5 Fluxforleadfree:rosin Component Adhesion (Pushtest) 1.NovisiblemechanicaldamageThedeviceshouldbereflow soldered(230±5°Cfor10sec.)toatinned coppersubstrateAdynometerforce gaugeshouldbeappliedthesideofthe component.Thedevicemustwith-ST-F 0.5Kgwithoutfailureofthetermination attachedtocomponent. Component Adhesion (Pulltest) 1.Novisiblemechanicaldamage Insert10cmwireintotheremainingopen eyebend,theendsofevenwirelengths upwardandwindtogether. Terminalshallnotberemarkably damaged. Thermalshock 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% Phase Temperature(°C) Time(min) 1 +85±5°C 30±3 2 Room Temperature Within 3sec 3 -40±2°C 30±3 4 Room Temperature Within 3sec +85°C=>30±3min -40°C=>30±3min Testcycle:10cycles Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto High Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:85±5°C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Resistanceto Low Temperature 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:-40±5°C Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. Humidity 1.Novisiblemechanicaldamage 2.CentralFreq.change:within±6% 3.Nodisconnectionorshortcircuit. Temperature:40±2°C Humidity:90%to95%RH Duration:1000±12hrs Thechipshallbestabilizedatnormal conditionfor2~3hoursbefore measuring. 4±1sec. 60sec TEMP(°C) 150°C 230°C ANTD31W05-X2_V01 7/9 6.SolderingandMounting Mildlyactivatedrosinfluxesarepreferred.Theminimumamountofsoldercan leadtodamagefromthestressescausedbythedifferenceincoefficientsof expansionbetweensolder,chipandsubstrate.Theterminationsaresuitable forallwaveandre-flowsolderingsystems.Ifhandsolderingcannotbe avoided,thepreferredtechniqueistheutilizationofhotairsolderingtools. Recommendedtemperatureprofilesforre-flowsolderinginFigure1. Productsattachmentwithasolderingironisdiscouragedduetotheinherent processcontrollimitations.Intheeventthatasolderingironmustbe employedthefollowingprecautionsarerecommended. ‧Preheatcircuitandproductsto150 °C ‧Nevercontacttheceramicwiththeirontip ‧Usea20wattsolderingironwithtipdiameterof1.0mm ‧280 °C tiptemperature(max) ‧1.0mmtipdiameter(max) ‧Limitsolderingtimeto3sec. SOLDERING COOLING NATURAL PRE-HEATING T E M P E R A T U R E ( ¢ XC ) 60~120 s 10s max. 30~60s 250~260 230 180 150 TIME(sec.) Reflow Soldering SOLDERING COOLING NATURAL PRE-HEATING T E M P E R A T U R E ( ¢ XC ) within 3s Gradualcooling 150 TIME(sec.) Iron Soldering Over 60s 350 300 ANTD31W05-X2_V01 8/9 7.PackagingInformation TapeSpecification appearanceSpecificationstolerance W8.00 ± 0.10 P4.00 ± 0.10appearanceSpecificationstolerance E1.75 ± 0.10Ao1.85 ± 0.10 F3.50 ± 0.05Bo3.50 ± 0.10 P22.00 ± 0.05Ko0.73 ± 0.10 D1.50 +0.10 -0.00 t0.23 ± 0.05 D11.00 ± 0.10 Po4.00 ± 0.10 10Po40.00 ± 0.20 ReelSpecification:(7’’,Φ180mm) TapeWidth(mm)A(mm)B(mm)C(mm)D(mm)Chip/Reel(pcs) 89.0±0.560±213.5±0.5178±26000 ANTD31W05-X2_V01 9/9 8.StorageandTransportationInformation StorageConditions Tomaintainthesolderabilityofterminalelectrodes: 1.Temperatureandhumidityconditions:-10~40 °C and30~70%RH. 2.Recommendedproductsshouldbeusedwithin6monthsfromthetimeof delivery. 3.Thepackagingmaterialshouldbekeptwherenochlorineorsulfurexists intheair. TransportationConditions 1.Productsshouldbehandledwithcaretoavoiddamageorcontamination fromperspirationandskinoils. 2.Theuseoftweezersorvacuumpickupisstronglyrecommendedfor individualcomponents. 3.Bulkhandlingshouldensurethatabrasionandmechanicalshockare minimized.

Report No.: PTC26042022601E-FC01 Page 1 of 87 FCC TEST REPORT FCC ID: 2BEH5-2Y Product : Bluetooth Communication System Model Name : 2Y, 2X, M1, W10, 8X Brand : N/A Report No. : PTC26042022601E-FC01 Prepared for Shenzhen Asmax Infinite Technology Co., Ltd. Room 803 Building B4, Kexing Science Park, No.15 Keyuan Road, Nanshan District, Shenzhen,China Prepared by Precise Testing & Certification Co., Ltd. Building 1, No. 6, Tongxin Road, Dongcheng Street, Dongguan, Guangdong, China Report No.: PTC26042022601E-FC01 Page 2 of 87 1 TEST RESULT CERTIFICATION Applicant’s name : Shenzhen Asmax Infinite Technology Co., Ltd. Address : Room 803 Building B4, Kexing Science Park, No.15 Keyuan Road, Nanshan District, Shenzhen,China Manufacture's name : Chengdu Yunye Shiji Technology Co., Ltd. Address : 53 Jinxian 2nd Road, 1st Floor，Chengdu Hi-Tech Zone，Chengdu, Sichuan Province, P.R.China Product name : Bluetooth Communication System Model name : 2Y, 2X, M1, W10, 8X Standards : FCC CFR47 Part 15 Section 15.247 Test procedure : ANSI C63.10-2020 Test Date : Apr. 30, 2026 to May. 23, 2026 Date of Issue : May. 23, 2026 Test Result : Pass This device described above has been tested by PTC, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTC, this document may be altered or revised by PTC, personal only, and shall be noted in the revision of the document. Test Engineer: Jack zhou / Engineer Technical Manager: Simon Pu / Manager Report No.: PTC26042022601E-FC01 Page 3 of 87 Contents Page 1 TEST RESULT CERTIFICATION .............................................................................................................................. 2 2 TEST SUMMARY ......................................................................................................................................................... 5 3 TEST FACILITY ............................................................................................................................................................ 5 4 GENERAL INFORMATION ........................................................................................................................................ 6 4.1 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 6 4.2 TEST MODE ........................................................................................................................................................ 7 5 EQUIPMENT DURING TEST ..................................................................................................................................... 9 5.1 EQUIPMENTS LIST............................................................................................................................................... 9 5.2 MEASUREMENT UNCERTAINTY ......................................................................................................................... 11 5.3 DESCRIPTION OF SUPPORT UNITS ................................................................................................................... 12 6 CONDUCTED EMISSION ......................................................................................................................................... 13 6.1 E.U.T. OPERATION ........................................................................................................................................... 13 6.2 EUT SETUP ...................................................................................................................................................... 13 6.3 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................................. 14 6.4 MEASUREMENT PROCEDURE: .......................................................................................................................... 14 6.5 CONDUCTED EMISSION LIMIT ........................................................................................................................... 14 6.6 MEASUREMENT DESCRIPTION .......................................................................................................................... 14 6.7 CONDUCTED EMISSION TEST RESULT ............................................................................................................. 14 7 RADIATED SPURIOUS EMISSIONS ..................................................................................................................... 17 7.1 EUT OPERATION .............................................................................................................................................. 17 7.2 TEST SETUP ..................................................................................................................................................... 18 7.3 SPECTRUM ANALYZER SETUP .......................................................................................................................... 19 7.4 TEST PROCEDURE ............................................................................................................................................ 20 7.5 SUMMARY OF TEST RESULTS .......................................................................................................................... 21 8 MAXIMUM PEAK OUTPUT POWER TEST .......................................................................................................... 28 8.1 TEST STANDARD AND LIMIT .............................................................................................................................. 28 8.2 TEST SETUP ..................................................................................................................................................... 28 8.3 TEST PROCE…

Text truncated - open the document above for the full version.

FCCID:2BEH5-2Y ConductedEmissions RadiatedEmissions From30M-1GHz FCCID:2BEH5-2Y Above1GHz
