2BEHE-RS2T58MWireless audio module

1 RS2T58M TX 发射模组 说明书 2 Contents list目录 1.Features特征 5 2.Block Diagram 方块图 6 3.Absolute Maximum Ratings 极限参数 7 4.Operating Conditions操作条件 8 5.Standard Test Conditions 标准试验条 8 6.RF Performance 射频性能 10 7.RF Channel List射频信道列表 11 8.Audio Specification (I2S to I2S)音频规格 12 9.Timing Parametric Requirements Information定时参数要求信息 13 10.Interface Specification接口规范 14 11.The audio signal corresponding to I2S DATA I2S DATA对应的音频信号 15 12.RSR_235M_2T_5.8G connect pin description RSR_235M_2T_5.8G连接引脚说明 16 13.FFC_24P_0.5MM SPECIFICATION FFC_24P_0.5MM规格 17 14.PCB Layout PCB布局 18 15.Reference schematic 参考线路图 19 3 Change history Revision modify the content page Revision date Revised by Draft 2024/03/06 JWP Update 24pin socket and definition, update PCB‘s photo 17-19 2024/04/12 YJX The I2S data corresponding to the 8ch audio signal 4 1.Features特征 RSR_235M_2T_5.8G is a wireless audio transferring module with small size and low power . Its designed based on CC2538 MCU and BK5813 RF chip.Cooperate with RSR_BK58_RX_V1.0 can achieve two sending and eight receiving RSR_235M_2T_5.8G是一款体积小、功耗低的无线音频传输模块。其设计基于CC2538 MCU和 BK5813 RF chip。与RSR_BK58_RX_V1.0配合可实现两发八收。 . 5.2/5.8GHz GFSK modulation . Size：60mmx35mm . PCB Onboard Antenna(Double antenna) or External FPC Antenna . I2S digital audio interface, I2S sampling rate supports16K/32K/44. 1K/48K/88.2K/96K/ 176.4K/ 192K , bit 16bit/24bit . I2C or UART to control external devices . IO input and output configuration . Main and auxiliary audio delay time <25ms . Application: wireless speakers, wireless subwoofer, home Theater 5 2. Block Diagram方块图 6 3.Absolute Maximum Ratings极限参数 Caution : The specifications above the Table define levels at which permanent damage to the device can occur. Function operation is not guaranteed under these conditions. Operating at absolute maximum conditions for extend periods can adversely affect the long-term reliability of the device.下表中的规格定义了可能对设备造成永久性损坏的级别。在这些条件下无 法保证功能运行。在绝对最大条件下长时间运行会对设备的长期可靠性产生不利影响。 Parameter Min Max Unit Storage Temperature -10 85 °C StorageHumidity(@40°C) - 90 % • Other conditions其他条件 1) Do not use or store modules in the corrosive atmosphere, especially where chloride gas, sulfide gas, acid, alkali, salt or the like are contained. 请勿在腐蚀性环境中使用或储存模块，尤其是含有氯化物气体、硫 化物气体、酸、碱、盐等的环境。 Also, avoid exposure to moisture.此外，避免暴露在潮湿环境中。 2) Store the modules where thetemperature and relative humidity do not exceed 5 to 40°C and 20 to 60%. 将模块存放在温度和相对湿度不超过5至40°C和20至60%的地方。 7 4.Operating Conditions操作条件 Parameter Min Typ Max Unit Ambient Temperature 0 - 85 °C Ambient Humidity (40°C) - - 85 % Supply Voltage 4.75 5.0 5.25 Vdc 5.Standard Test Conditions标准试验条件 The Test for electrical specification shall be performed under the following condition Otherwise this following conditions, not guaranteed this performance.电气规范测试应在以下条件下进行，否则以下条件不能保 证该性能。 5‐1. Ambient condition环境条件 Temperature 25±5°C Humidity 65±5% 8 5‐2. Power supply voltages电源电压 Input power Supply Voltage +5.0 +5.0V ±0.25V（5%） 5‐3. Current Consumption电流消耗 Current Consumption Average Current Unit Tx Mode 250 mA 5‐4. RF Performance射频性能 Parameter（Condition） Min Typ Max Unit Channel Range 5150 - 5250 MHz 5725 - 5850 Tx output power 4 7.9 11 dBm Rx sensitivity -80 dBm 20dB Bandwidth - - 4.0 MHz 9 6. RF Performance射频性能 Parameter (Condition) Min Typ Max Unit ChannelRange 5150 - 5250 MHz 5725 - 5850 Tx outputpower 4 7.9 11 dBm Rx sensitivity -80 dBm 20dBBandwidth - - 4 MHz * Normal Condition : 25τ ,VDD=3.3V. * RF characteristics is board limit. It can differ according to standards. * Rx power :Blck RX – (Attenuator + Cable loss) Note：Cable loss=0.2dBm 10 7. RF Channel List射频信道列表 7‐ 1. 5.2G 5155 5163 5171 5179 5187 5195 5203 5211 5219 5227 5235 5241 5159 5167 5175 5183 5191 5199 5207 5215 5223 5231 5239 5245 7‐ 1. 5.8G 5730 5738 5746 5754 5762 5770 5778 5786 5794 5802 5810 5818582658345842 5734 5742 5750 5758 5766 5774 5782 5790 5798 5806 5814 5822383058385848 11 8. Audio Specification (I2S to I2S)音频规格 Item Min Typ Max Unit Note SNR - TBC - dB @ 1kHz THD+ N - TBC - % @ 1kHzstere o Frequencyresponse - TBC - KHZ @48Kstereo Dynamic range - TBC - dB @ 1kHz Delay - 24 ≤30 ms 12 9.Timing Parametric Requirements Information 定时参数要求信息 MIN NOM MAX UNIT a~b IIC setup time ‐ ‐ 100 ms b~c IIS setup time ‐ ‐ 100 ms 13 10. Interface Specification接口规范 I2S Timing Symbol Parameter Min Typ Max Unit tBLR BCKrising toLRCKedge 40 ns tLRB LRCKedge toBCKrise 40 ns tSDS SDATA setuptime 40 ns tSDH SDATAhold time 40 ns 14 11. The audio signal corresponding to I2S DATA I2S DATA对应的音频信号 Tx I2S_DATA AUDIO signal(6CH) AUDIO signal(8CH) TX1 I2S_DIN_0 FL/FR FL（左声道）/FR（右声道） I2S_DIN_1 -/- FLtw（左高音）/FRtw(右高音） TX2 I2S_DIN_2 Lt/Rt Lt（左顶）/Rt（右顶） I2S_DIN_3 CEN/SW CEN（中置）/SW（重低音） 15 12. RSR_235M_2T_5.8G connect pin description连接引脚说明 pin Pin name I/O Type I/O Level I/O Current Functions description 1 VDD(5.0V) P 5V 250mA Power Supply ，connect to VDD5V 2 VDD(5.0V) P 5V Power Supply ，connect to VDD5V 3 GND P 0V Power ground 4 GND P 0V Power ground 5 I2S_DIN3 I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_DATA4_IN(STEREO) 6 GND P 0V Power ground 7 I2S_DIN2 I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_DATA3_IN(STEREO) 8 GND P 0V Power ground 9 I2S_DIN1 I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_DATA2_IN(STEREO) 10 GND P 0V Power ground 11 I2S_DIN0 I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_DATA1_IN(STEREO) 12 GND P 0V Power ground 13 GND P 0V Power ground 14 I2S_LRCK I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_LRCK_IN 15 GND P 0V Power ground 16 I2S_BCK I/O Low:0-0.4V High:2.3-3.3V Default：0V ±8mA I2S_BCK_IN 17 GND P 0V Power ground 18 TX/I2C_SCL I/O Low:0-0.4V High:2.3-3.3V Default：0V ±20mA UART or I2C_SCL control 19 RX/I2C_SDA I/O Low:0-0.4V High:2.3-3.3V Default：0V ±20mA UART or I2C_SCL control 20 GND P 0V Power ground 21 INT I/O Low:0-0.4V High:2.3-3.3V Default：0V ±20mA INT active-low 22 GPIO I/O Low:0-0.4V High:2.3-3.3V Default：0V ±20mA Reserved for future use Default low 23 GND P 0V Power ground 24 PAIR I/O …

Text truncated - open the document above for the full version.

TCL OVERSEAS MARKETING LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHE-RS2T58M FRN: 0034728022 Per section 2.911(d)(7) of the FCC rules, TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: TTE Technology, Inc. Physical U.S. Company Address: 189 Technology Dr Irvine, CA 92618 United States FCC Registration Number: 0032618449 Contact Person: Mr Jonathan King Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Printed name: ERIC wang Printed name: [email protected] Title: Engineer Title: V.P Cooperate and Legal Affairs Company Name: TCL OVERSEAS MARKETING LTD Company Name: TTE Technology, Inc. Date: 7/8/2024 Date: 7/8/2024

TCL OVERSEAS MARKETING LTD Covered Equipment Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHE-RS2T58M TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 6/27/2024

TCL OVERSEAS MARKETING LTD Covered Equipment Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHE-RS2T58M TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 6/27/2024

TCL OVERSEAS MARKETING LTD Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BEHE-RS2T58M Product Name: Wireless audio module Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) Schematics Block diagram Operation description SDR Software These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 7/8/2024

Single Modular approval Declaration letter We, TCL OVERSEAS MARKETING LTD applies single modular approval for Product Name: Wireless audio module Model: RS2T58M FCC ID: 2BEHE-RS2T58M According to 996369 D01 Module Equip Auth Guide v01r04 and 15.212 requirement: 1) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; Answer: Yes, shielded. 2) The module must have buffered modulation/data inputs to ensure that the device willcomply with Part 15 requirements with any type of input signal; Answer: Yes; All inputs to the modules are buffered through logic or microprocessor inputs. 3)The modular transmitter must have its own power supply regulation. Answer: Yes; A low drop out regulator is used for modular power supply regulation. 4) The module must contain a permanently attached antenna, or contain a unique antennaconnector, and be marketed and operated only with specific antenna(s), per Sections15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); Answer: Yes; Device is equipped with PCB antenna. (5) The module must demonstrate compliance in a stand-alone configuration; Answer: Yes，distance between modular and all AEs are bigger than 10cm, refer to setup photo. (6) The module must be labeled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labeling requirements); Answer: Yes; The modular has a permanent fixed label, and below statement was listed in the User Manual; The host device must be labeled to display the FCCID of the module “Contains FCC ID: 2BEHE-RS2T58M” (7) The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; Answer: Yes; The module comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee, Refer to test report and user manual . (8) The module must comply with RF exposure requirements Answer: Yes; Transmitter meets MPE calculation of 47 CFR 1.1307 . Refer to MPE Reports and Refer to modular installation manual. Please contact me if you have any further questions. Thanks for your attention. Best Regards, <Signature> Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD

TCL OVERSEAS MARKETING LTD Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with TCL OVERSEAS MARKETING LTD Address: 5/F. Building 22E, 23 Science Park East Avenue Science Park,Shatin, Hong Kong, Chin.(Applicant Name and address) Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 7/8/2024

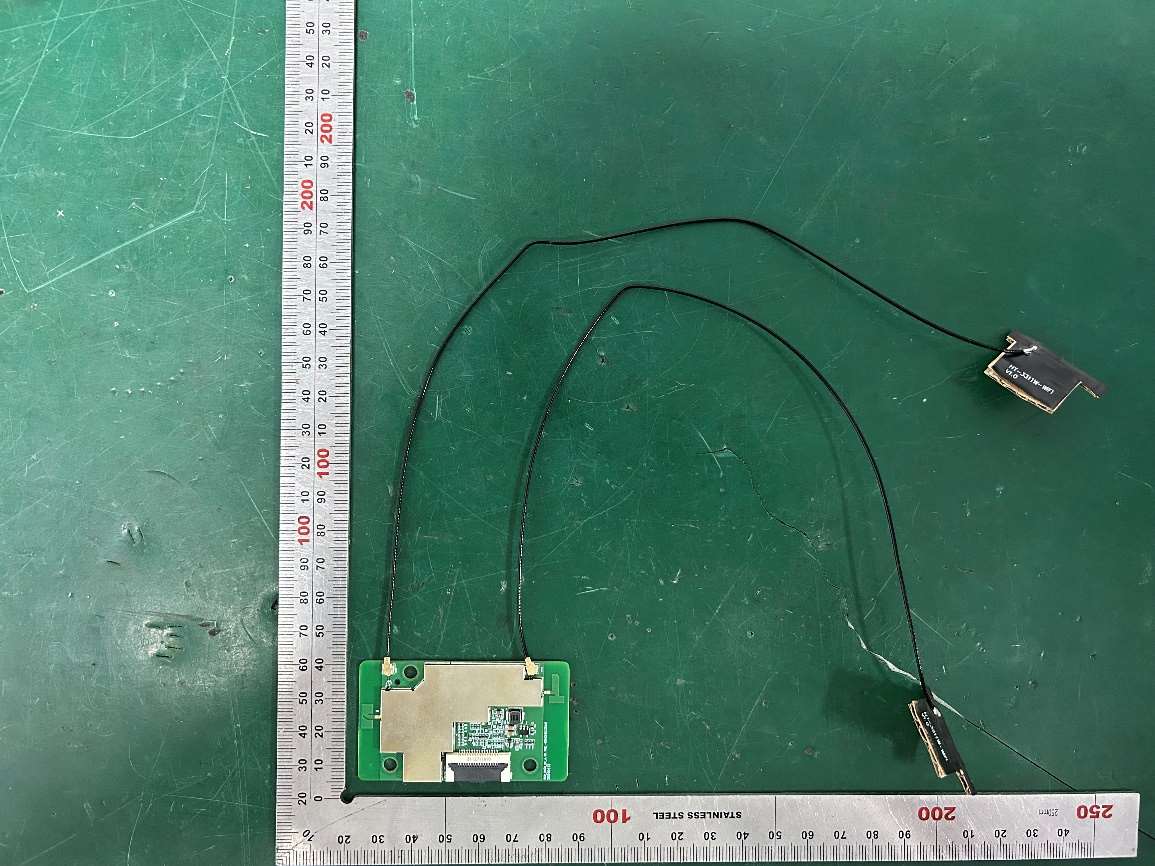

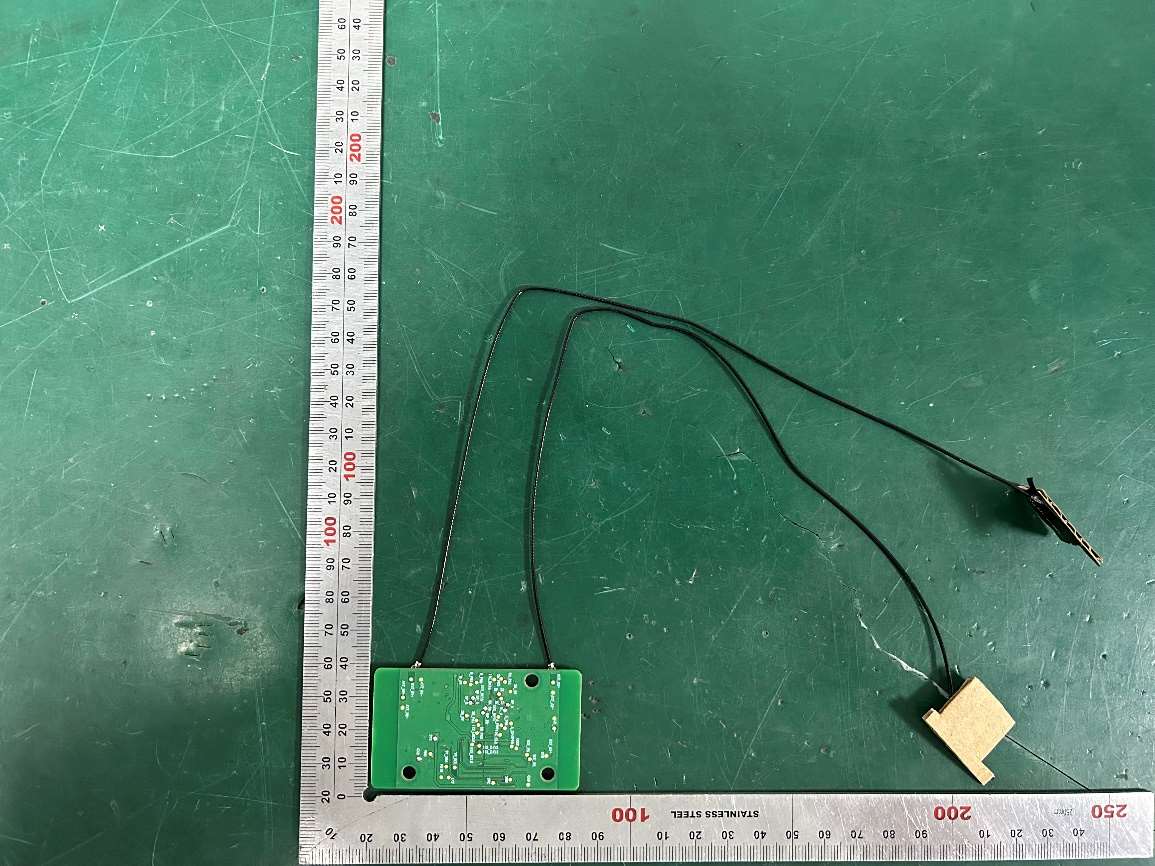

External Photos M/N: RS2T58M External Photos M/N: RS2T58M External Photos M/N: RS2T58M External Photos M/N: RS2T58M

Label

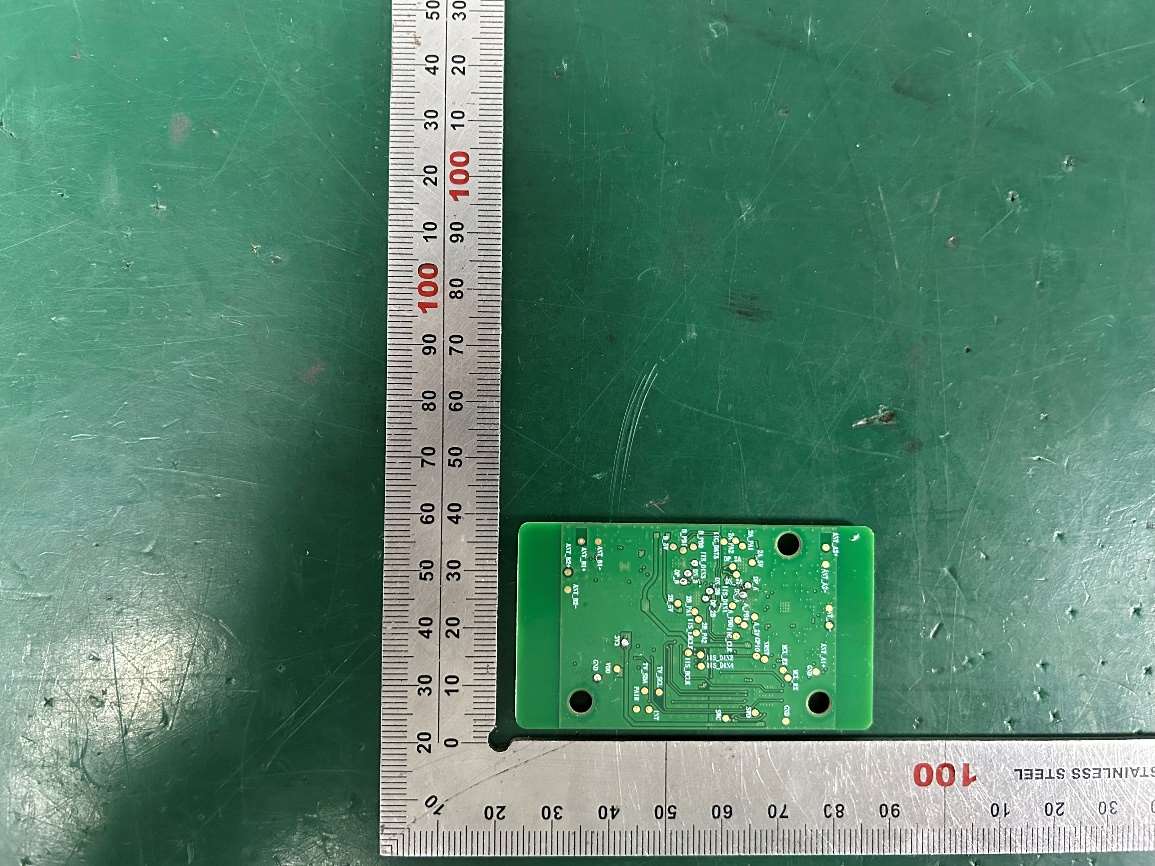

Internal Photos M/N: RS2T58M

Page 1 of 4 Report No. ESTE-R2404280 FCC 47 CFR MPE REPORT TCL OVERSEAS MARKETING LTD Wireless audio module Model Number: RS2T58M FCC ID: 2BEHE-RS2T58M Applicant: TCL OVERSEAS MARKETING LTD Address: 5/F, Building 22E, 22 Science Park East Avenue HongKong Science Park Shatin Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2406280 Date of Test: Mar. 17, 2024 ~ Jun. 24, 2024 Date of Report: Jun. 27, 2024 Page 2 of 4 Report No. ESTE-R2404280 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 4 Report No. ESTE-R2404280 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 4 Report No. ESTE-R2404280 2. Conducted Power Result Mode Frequency (MHz) Peak output power (dBm) Peak output power (mW) GFSK 5155 1.95 1.567 5195 6.00 3.981 5245 6.61 4.581 5730 7.88 6.138 5790 7.58 5.728 5848 -4.12 0.387 3. Calculated Result and Limit Mode Peak output power (dBm) Target power （dBm） MAX Target power （dBm） Antenna gain Power Density (S) (mW /cm2) Limited of Power Density (S) (mW /cm2) Test Result (dBi) (Linear ) 5G Band GFSK 5.2G 6.61 6±1 7 -0.8 0.832 0.00083 1 Complies GFSK 5.8G 7.88 7±1 8 1.36 1.368 0.00172 1 Complies End of Test Report

Page 1 of 76 Report No.ESTE-R2406279 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of TCL OVERSEAS MARKETING LTD Wireless audio module Model Number: RS2T58M FCC ID: 2BEHE-RS2T58M Applicant : TCL OVERSEAS MARKETING LTD Address: 5/F, Building 22E, 22 Science Park East Avenue HongKong Science Park Shatin Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2406279 Date of Test: Mar. 17, 2024 ~ Jun. 24, 2024 Date of Report: Jun. 27, 2024 Page 2 of 76 Report No.ESTE-R2406279 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. The antenna information for EUT ................................................................................................... 6 1.3. Information of RF Cable ................................................................................................................... 6 2. SUMMARY OF TEST ........................................................................................................................... 7 2.1. Summary of test result ..................................................................................................................... 7 2.2. Test Facilities ..................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ............................................................ 9 2.4. Assistant equipment used for test ................................................................................................ 10 2.5. Block Diagram ................................................................................................................................. 10 2.6. Test Mode ........................................................................................................................................ 11 2.7. Channel List ..................................................................................................................................... 12 2.8. Power Setting of Test Software .................................................................................................... 13 2.9. Duty Cycle of Test Signal .............................................................................................................. 14 2.10. Test Equipment List ...................................................................................................................... 15 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................... 17 3.1. Limit ................................................................................................................................................... 17 3.2. Test Setup ........................................................................................................................................ 17 3.3. Spectrum Analyzer Setting ............................................................................................................ 17 3.4. Test Procedure ................................................................................................................................ 18 3.5. Test Result ....................................................................................................................................... 18 4. MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................... 19 4.1. Limit ................................................................................................................................................... 19 4.2. Test Setup ........................................................................................................................................ 19 4.3. Spectrum Analyzer Setting ............................................................................................................ 19 4.4. Test Procedure ................................................................................................................................ 19 4.5. Test Result ....................................................................................................................................... 19 5. Peak Power Spectral Density .................................................................................................... 20 5.1. Limit ................................................................................................................................................... 20 5.2. Test Setup ........................................................................................................................................ 20 5.3. Spectrum Analyzer Setting ............................................................................................................ 20 5.4. Test Procedure ................................................................................................................................ 20 5.5. Test Result ....................................................................................................................................... 20 6. UNWANTED EMISSIONS AND BAND EDGE ...................................................................................... 21 6.1. Limit ................................................................................................................................................... 21 6.2. Test Setup .............................................................................................…
