2BEHEQ60H3.1.2ch Ultra-slim Wireless Soundbar

3.1.2 Channel B&O Sound Bar with Wireless Subwoofer Q60H User Manual Contents 1 Before you begin ......................................................................... 4 2 Welcome ....................................................................................... 4 What’s in the box ..............................................................................................................4 Overview ...........................................................................................................................5 Soundbar ..........................................................................................................................5 Subwoofer ........................................................................................................................5 Set up your Soundbar system ..........................................................................................6 Position your Soundbar and Subwoofer ...........................................................................6 Mount your Soundbar on the wall ....................................................................................6 Mount your Soundbar on moveable floor stand ...............................................................7 3 Connect your Soundbar system ................................................ 8 Connect your Soundbar to power supply .........................................................................8 Connect the Soundbar with your Bluetooth device ..........................................................8 Connect your wireless Subwoofer to the Soundbar .........................................................9 4 Use your Soundbar system ........................................................ 9 Use your Soundbar with the top panel .............................................................................9 Listen to music from your Bluetooth device ...................................................................10 Use the USB cable or device for music playback ..........................................................10 Wireless TV TX ...............................................................................................................10 5 Specifications ............................................................................ 11 6 Notice ......................................................................................... 12 Disposal of your old product and battery .......................................................................12 Trademarks .....................................................................................................................12 7 FAQ ............................................................................................. 13 2 The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates that this product incorporates double insulation between hazardous main voltage and user accessible parts. When servicing, use only identical replacement parts. Warnings • To reduce the risk of fire or electric shock, do not expose this product to rain or moisture. This product should not be exposed to dripping or splashing. No objects filled with liquids, such as vases, should be placed on or near the product. • The product is unstable if it is not properly placed or mounted to the wall. Be sure to follow the wall mounting instructions provided in the user manual to ensur e your safety. • Do not expose batteries to excessive heat such as sunshine, fire, and so forth. • To avoid the danger of suffocation, keep plastic packaging away from pets, babies, and children. Do not use packaging bags in cribs, beds, carriages, or playpens. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Safety Make sure you read all the safety information before you use this product. TCL ELECTRONICS AUSTRALIA PTY LTD bears no responsibility for accidents or damages caused by unauthorized changes, modifications or improper use of the product. User Manual can be found at www.tcl.com/au on the specific product page in the “Download” section. Important safety instructions • Read these instructions - Read all the safety and operating instructions before operating the product. • Retain these instructions - Retain the safety and operating instructions for future reference. • Heed all warnings - Adhere to all warnings on the product and in the operating instructions. • Follow all instructions - Follow all operating and use instructions. • Do not use this apparatus near water - The appliance should not be used near water or moisture – for example, in a wet basement or near a swimming pool and the like. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. • Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. • Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where…

Text truncated - open the document above for the full version.

TCL OVERSEAS MARKETING LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHEQ60H FRN: 0034728022 Per section 2.911(d)(7) of the FCC rules, TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: TTE Technology, Inc. Physical U.S. Company Address: 189 Technology Dr Irvine, CA 92618 United States FCC Registration Number: 0032618449 Contact Person: Mr Jonathan King Agent Email Address: [email protected] The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Printed name: ERIC wang Printed name: [email protected] Title: Engineer Title: V.P Cooperate and Legal Affairs Company Name: TCL OVERSEAS MARKETING LTD Company Name: TTE Technology, Inc. Date: 7/8/2024 Date: 7/8/2024

TCL OVERSEAS MARKETING LTD Covered Equipment Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHEQ60H TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 6/27/2024

TCL OVERSEAS MARKETING LTD Covered Equipment Certification Attestation Letter Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA ATTN.: Reviewing Engineer FCC ID: 2BEHEQ60H TCL OVERSEAS MARKETING LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 6/27/2024

TCL OVERSEAS MARKETING LTD Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2BEHEQ60H Product Name: 3.1.2ch Ultra-slim Wireless Soundbar Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...)  Schematics  Block diagram  Operation description  SDR Software These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 7/8/2024

TCL OVERSEAS MARKETING LTD Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint EST Technology Co., Ltd. Address: Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China (Name of Agent company name and address) to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with TCL OVERSEAS MARKETING LTD Address: 5/F. Building 22E, 23 Science Park East Avenue Science Park,Shatin, Hong Kong, Chin.(Applicant Name and address) Signed: Name: ERIC wang Title: engineer Company: TCL OVERSEAS MARKETING LTD Date: 7/8/2024

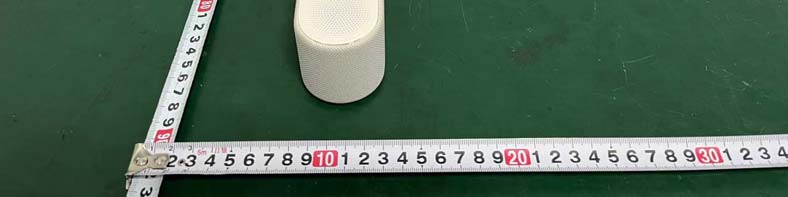

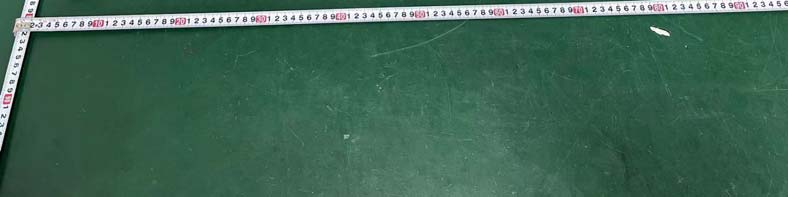

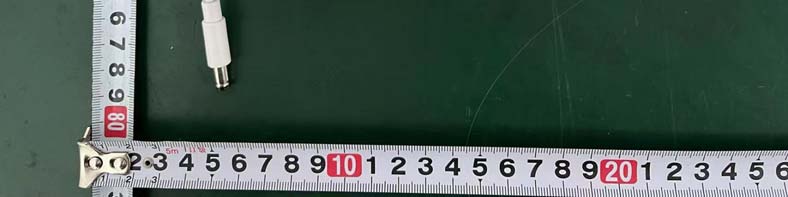

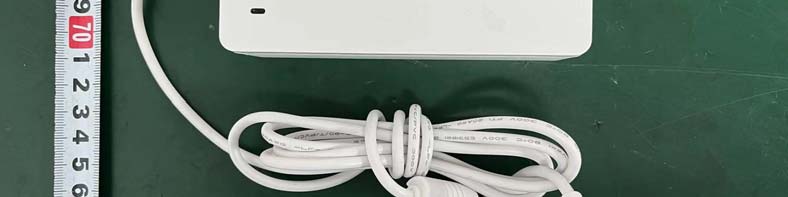

External Photos M/N: Q60H External Photos M/N: Q60H External Photos M/N: Q60H External Photos M/N: Q60H External Photos M/N: Q60H

Model（型号）: Q60H Input（输入）: 24V 2.5A Rated Power（额定功率）：60W USB: 5V 500mA Made in China（中国制造） by TCL OVERSEAS MARKETING LTD 5/F, Building 22E, 22 Science Park East Avenue HongKong Science Park Shatin Hong Kong 3.1.2ch Ultra-slim Wireless Soundbar 3.1.2 超薄无线音响 FCC ID: 2BEHEQ60H IC:26250-Q60H 制 造 商：TCL 王牌电器（惠州）有限公司 Importer: TCL Operations Polska Sp. z o.o. ul. A. Mickiewicza 31/41, 96-300 Żyrardów, Poland CMIIT ID: 24J441T1Q600 CAN ICES (B) / NMB (B) This device complies with Part 15 of the FCC Rules and contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.) Cet appareil est conforme à la partie 15 des règles de la FCC et contient un (des) émetteur(s)/récepteur(s) exempté(s) de licence qui est (sont) conforme(s) aux normes CNR d'Innovation, Science et Développement économique Canada. L'utilisation est soumise aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute interférence reçue, y compris les interférences susceptibles de provoquer un fonctionnement indésirable.

label

Internal Photos M/N: Q60H Internal Photos M/N: Q60H Internal Photos M/N: Q60H Internal Photos M/N: Q60H

Page 1 of 5 Report No. ESTE-R2406285 FCC 47 CFR MPE REPORT TCL OVERSEAS MARKETING LTD 3.1.2ch Ultra-slim Wireless Soundbar Model Number: Q60H FCC ID: 2BEHEQ60H Applicant: TCL OVERSEAS MARKETING LTD Address: 5/F, Building 22E, 22 Science Park East Avenue HongKong Science Park Shatin Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2406285 Date of Test: Jun. 12, 2024 ~ Jun. 24, 2024 Date of Report: Jul. 02, 2024 Page 2 of 5 Report No. ESTE-R2406285 Maximum Permissible Exposure 1. Applicable Standards Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2m normally can be maintained between the user and the device. 1.1. Limits for Maximum Permissible Exposure (MPE) (a) Limits for Occupational/Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-10000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Times ︱E︱ 2 ,︱H︱ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-10000 1.o 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Page 3 of 5 Report No. ESTE-R2406285 1.2. MPE Calculation Method E (V/m) = d G × P × 30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d × 377 G × P × 30 From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained Page 4 of 5 Report No. ESTE-R2406285 2. Conducted Power Result Mode Frequency (MHz) Antenna Peak output power (dBm) Peak output power (mW) GFSK 2402 ant 1 6.04 4.018 2441 ant 1 4.07 2.553 2480 ant 1 3.19 2.084 π/4-DQPSK 2402 ant 1 8.25 6.683 2441 ant 1 6.22 4.188 2480 ant 1 5.33 3.412 8-DPSK 2402 ant 1 8.69 7.396 2441 ant 1 6.68 4.656 2480 ant 1 5.94 3.926 Mode Frequency (MHz) Antena Peak output power (dBm) Peak output power (mW) 5.2G GFSK 5155 ant 1 2.01 1.589 ant 2 2.07 1.611 5195 ant 1 3.67 2.328 ant 2 3.3 2.138 5245 ant 1 4.26 2.667 ant 2 4.25 2.661 5.8G GFSK 5730 ant 1 5.25 3.350 ant 2 5.05 3.199 5790 ant 1 3.6 2.291 ant 2 3.66 2.323 5848 ant 1 -6.75 0.211 ant 2 -6.73 0.212 Page 5 of 5 Report No. ESTE-R2406285 3. Calculated Result and Limit 1.SISO The Worst Mode Antenna Peak output power (dBm) Target power （dBm） MAX Target power （dBm ） Antenna gain Power Density Limited of Power Densit y (S) (mW /cm2) Test Result (dBi) (Linea r) (S) (mW /cm2) 2.4G Band GFSK ant 1 6.04 6±1 7 1.19 1.315 0.0013 1 Complies π/4-DQ PSK ant 1 8.25 8 ±1 9 1.19 1.315 0.0021 1 Complies 8-DPSK ant 1 8.69 8±1 9 1.19 1.315 0.0021 1 Complies 5G Band 5.2G GFSK ant 1 4.26 4 ±1 5 1.23 1.3274 0.0008 1 Complies ant 2 4.25 4 ±1 5 1.96 1.5704 0.0010 1 Complies 5.8G GFSK ant 1 5.25 5 ±1 6 1.93 1.5596 0.0012 1 Complies ant 2 5.05 5 ±1 6 1.92 1.5560 0.0012 1 Complies BT+5G MAX Power Density (S) (mW/cm 2 ) Bluetooth MAX Power Density (S) (mW/cm 2 ) WiFi Total Ratio Limit Ratio Test Result 0.0021 0.0012 0.0033 1 Complies End of Test Report

Page 1 of 93 Report No.ESTE-R2406284 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of TCL OVERSEAS MARKETING LTD 3.1.2ch Ultra-slim Wireless Soundbar Model Number: Q60H FCC ID: 2BEHEQ60H Applicant : TCL OVERSEAS MARKETING LTD Address: 5/F, Building 22E, 22 Science Park East Avenue HongKong Science Park Shatin Hong Kong Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2406284 Date of Test: Jun. 12, 2024 ~ Jun. 24, 2024 Date of Report: Jul. 02, 2024 Page 2 of 93 Report No.ESTE-R2406284 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. The antenna information for EUT ................................................................................................... 6 1.3. Information of RF Cable ................................................................................................................... 6 2. SUMMARY OF TEST ........................................................................................................................... 7 2.1. Summary of test result ..................................................................................................................... 7 2.2. Test Facilities ..................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ............................................................ 9 2.4. Assistant equipment used for test .................................................................................................. 9 2.5. Block Diagram ................................................................................................................................... 9 2.6. Test Mode ........................................................................................................................................ 10 2.7. Channel List ..................................................................................................................................... 11 2.8. Power Setting of Test Software .................................................................................................... 12 2.9. Duty Cycle of Test Signal .............................................................................................................. 13 2.10. Test Equipment List ...................................................................................................................... 14 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................... 16 3.1. Limit ................................................................................................................................................... 16 3.2. Test Setup ........................................................................................................................................ 16 3.3. Spectrum Analyzer Setting ............................................................................................................ 16 3.4. Test Procedure ................................................................................................................................ 17 3.5. Test Result ....................................................................................................................................... 17 4. MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................... 18 4.1. Limit ................................................................................................................................................... 18 4.2. Test Setup ........................................................................................................................................ 18 4.3. Spectrum Analyzer Setting ............................................................................................................ 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ....................................................................................................................................... 19 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 20 5.1. Limit ................................................................................................................................................... 20 5.2. Test Setup ........................................................................................................................................ 20 5.3. Spectrum Analyzer Setting ............................................................................................................ 20 5.4. Test Procedure ................................................................................................................................ 20 5.5. Test Result ....................................................................................................................................... 20 6. UNWANTED EMISSIONS AND BAND EDGE ...................................................................................... 21 6.1. Limit ................................................................................................................................................... 21 6.2. Test Setup .......................................................................................…

Text truncated - open the document above for the full version.

Page 72 of 93 Report No.ESTE-R2406284 TX-Ant1-5730-PASS TX-Ant2-5730-PASS TX-Ant1-5790-PASS Page 73 of 93 Report No.ESTE-R2406284 TX-Ant2-5790-PASS TX-Ant1-5848-PASS TX-Ant2-5848-PASS Page 74 of 93 Report No.ESTE-R2406284 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict GFSK Ant1 5155 -0.35 ≤11.00 PASS GFSK Ant2 5155 -0.92 ≤11.00 PASS GFSK Ant1 5195 1.79 ≤11.00 PASS GFSK Ant2 5195 1.05 ≤11.00 PASS GFSK Ant1 5245 1.27 ≤11.00 PASS GFSK Ant2 5245 1.66 ≤11.00 PASS GFSK Ant1 5730 0.25 ≤30.00 PASS GFSK Ant2 5730 -0.62 ≤30.00 PASS GFSK Ant1 5790 -1.31 ≤30.00 PASS GFSK Ant2 5790 -1.46 ≤30.00 PASS GFSK Ant1 5848 -9.30 ≤30.00 PASS GFSK Ant2 5848 -9.36 ≤30.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Page 75 of 93 Report No.ESTE-R2406284 Test Graphs TX-Ant1-5155-PASS TX-Ant2-5155-PASS TX-Ant1-5195-PASS Page 76 of 93 Report No.ESTE-R2406284 TX-Ant2-5195-PASS TX-Ant1-5245-PASS TX-Ant2-5245-PASS Page 77 of 93 Report No.ESTE-R2406284 TX-Ant1-5730-PASS TX-Ant2-5730-PASS TX-Ant1-5790-PASS Page 78 of 93 Report No.ESTE-R2406284 TX-Ant2-5790-PASS TX-Ant1-5848-PASS TX-Ant2-5848-PASS Page 79 of 93 Report No.ESTE-R2406284 Appendix E: Band edge measurements Test Result B4 TestMode Antenna ChName Frequency[MHz] FreqRange [MHz] Result [dBm] Limit [dBm] Verdict GFSK Ant1 Low 5730 5720~5725 -24.53 ≤25.52 PASS GFSK Ant1 Low 5730 5700~5720 -36.79 ≤10.64 PASS GFSK Ant1 Low 5730 5650~5700 -43.83 ≤-26.96 PASS GFSK Ant1 Low 5730 5760~5650 -43.21 ≤-27 PASS GFSK Ant2 Low 5730 5720~5725 -27.01 ≤17.65 PASS GFSK Ant2 Low 5730 5700~5720 -37.25 ≤12.02 PASS GFSK Ant2 Low 5730 5650~5700 -43.8 ≤-26.19 PASS GFSK Ant2 Low 5730 5760~5650 -43.42 ≤-27 PASS GFSK Ant1 High 5848 5850~5855 -29.24 ≤26.81 PASS GFSK Ant1 High 5848 5855~5875 -43.18 ≤10.21 PASS GFSK Ant1 High 5848 5875~5925 -44.57 ≤-26.51 PASS GFSK Ant1 High 5848 5925~5935 -43.59 ≤-27 PASS GFSK Ant2 High 5848 5850~5855 -28.82 ≤26.81 PASS GFSK Ant2 High 5848 5855~5875 -44 ≤10.10 PASS GFSK Ant2 High 5848 5875~5925 -42.64 ≤-25.71 PASS GFSK Ant2 High 5848 5925~5935 -42.28 ≤-27 PASS Page 80 of 93 Report No.ESTE-R2406284 Test Graphs B4 TX-Ant1-5730-PASS TX-Ant2-5730-PASS TX-Ant1-5848-PASS Page 81 of 93 Report No.ESTE-R2406284 TX-Ant2-5848-PASS Page 82 of 93 Report No.ESTE-R2406284 Appendix G: Frequency Stability Test Result TestMode Antenna Frequency[ MHz] Voltage [Vdc] Temperatu re (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict GFSK Ant1 5155 NV NT -24000.00 -4.655674 20 PASS GFSK Ant1 5155 LV NT -24000.00 -4.655674 20 PASS GFSK Ant1 5155 HV NT -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV NT -24000.00 -4.655674 20 PASS GFSK Ant2 5155 LV NT -24000.00 -4.655674 20 PASS GFSK Ant2 5155 HV NT -24000.00 -4.655674 20 PASS GFSK Ant1 5730 NV NT -8000.00 -1.396161 20 PASS GFSK Ant1 5730 LV NT -8000.00 -1.396161 20 PASS GFSK Ant1 5730 HV NT -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV NT -8000.00 -1.396161 20 PASS GFSK Ant2 5730 LV NT -8000.00 -1.396161 20 PASS GFSK Ant2 5730 HV NT -8000.00 -1.396161 20 PASS TestMode Antenna Frequency[ MHz] Voltage [Vdc] Temperatu re (°C) Deviation (Hz) Deviation (ppm) Limit (ppm) Verdict GFSK Ant1 5155 NV -30 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV -20 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV -10 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 0 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 10 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 20 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 30 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 40 -24000.00 -4.655674 20 PASS GFSK Ant1 5155 NV 50 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV -30 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV -20 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV -10 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 0 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 10 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 20 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 30 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 40 -24000.00 -4.655674 20 PASS GFSK Ant2 5155 NV 50 -24000.00 -4.655674 20 PASS GFSK Ant1 5730 NV -30 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV -20 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV -10 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 0 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 10 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 20 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 30 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 40 -8000.00 -1.396161 20 PASS GFSK Ant1 5730 NV 50 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV -30 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV -20 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV -10 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 0 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 10 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 20 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 30 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 40 -8000.00 -1.396161 20 PASS GFSK Ant2 5730 NV 50 -8000.00 -1.396161 20 PASS Page 83 of 93 Report No.ESTE-R2406284 11. TEST SETUP PHOTO Conducted Test Page 84 of 93 Report No.ESTE-R2406284 Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Page 85 of 93 Report No.ESTE-R2406284 12. EUT PHOTO External Photos M/N: Q60H Page 86 of 93 Report No.ESTE-R2406284 External Photos M/N: Q60H Page 87 of 93 Report No.ESTE-R2406284 External Photos M/N: Q60H Page 88 of 93 Report No.ESTE-R2406284 External Photos M/N: Q60H Page 89 of 93 Report No.ESTE-R2406284 External Photos M/N: Q60H Page 90 of 93 Report No.ESTE-R2406284 Internal Photos M/N: Q60H Page 91 of 93 Report No.ESTE-R2406284 Internal Photos M/N: Q60H Page 92 of 93 Report No.ESTE-R2406284 Internal Photos M/N: Q60H Page 93 of 93 Report No.ESTE-R2406284 Internal Photos M/N: Q60H End of Test Report

TestingReport CustomerName:SHENZHENSHIXINZHONGXINTECHNOLOGY.CO. ,LTD ProductName: BT Antenna SampleModel:F-6168 ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd 149-1979 Issue Date: 2024 .04 . 28 Engineer: Date: 2024 .04 . 28 Auditor: Date: 2024 .04 . 28 Approver: Date: 2024 .04 . 28 1. GeneralInformation 1 . 1 GeneralInformationof testinginstitutions Name ShenzhenHetuoTechnologyCo . ,Ltd . Address Room1202 B , BuildingC6 , HengfengIndustrialCity , Xixiang, Ba oan District, Shenzhen Tel 18665849001 E- mail [email protected] Equipm ent Agilent507 1C 1.2 Testingprinciple AntennaPhoto& Lenght(mm )_ANT1: PCBantenna AntennaPhoto& Lenght(mm )_ANT2: PCBantenna 1.3 Test equipment Equipment ModelNo.SerialNo.Manufacturer Calibration date Next calibration date 24probe microwave chamber 4*3*3NASATIMO2024 .0 3.2920 24 .0 4.29 Network Analyzer 5071CNA Agilent 20 24 .0 3.29 20 24 .0 4.29 1.4 Test environment Temperature 2 4 C± 1 . 5 C Humidity 45% RH Pressure 101 kPa 1. 5Brief summaryof Proc edure uppercomputer software 1. SATIMOturn on the UpperComputerSoftware,Name:VeryView99.exe,VersionNo.: V1.10; 2. VeryView99via GPIB(GeneralPurposeInterfaceBus) to controlthe shieldingroom(darkroom)'s SATIMO; 3. Meanwhiel,GPIBcontrolthe Agilent5071Cto read the Antennadata by 24 Probe; 4. Agilent5071Cwill analysethe dat a and generatethe result; 5. Agilent5071Cwill feedbackto VeryView99softwareto generatethe test report. 2. SampleInformation 2.1 Clientinformation Name SHENZHENSHIXINZHONGXINTECHNOLOGY.CO .,LTD Address A1 , ShajingDonghuanIndustrialZone , Bao' an District, Shenzhen Contacts Ma Chao Tel 18218809918 E- mail machao@ c- chip . com . cn 2.2 Descriptionof EUT (S) ProductName 5.2G/5.8GAntenna SampleModel F-6168 AntennaSize ANT1:9.1*5.2…
