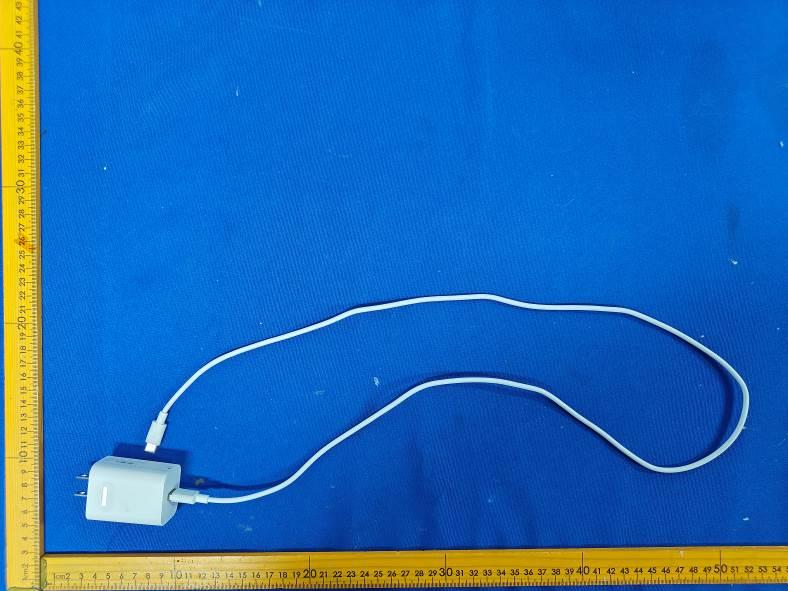

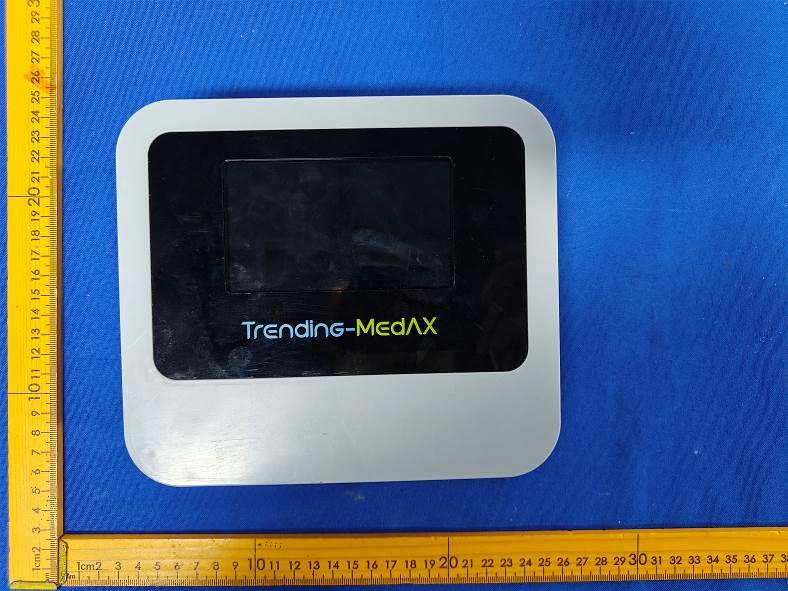

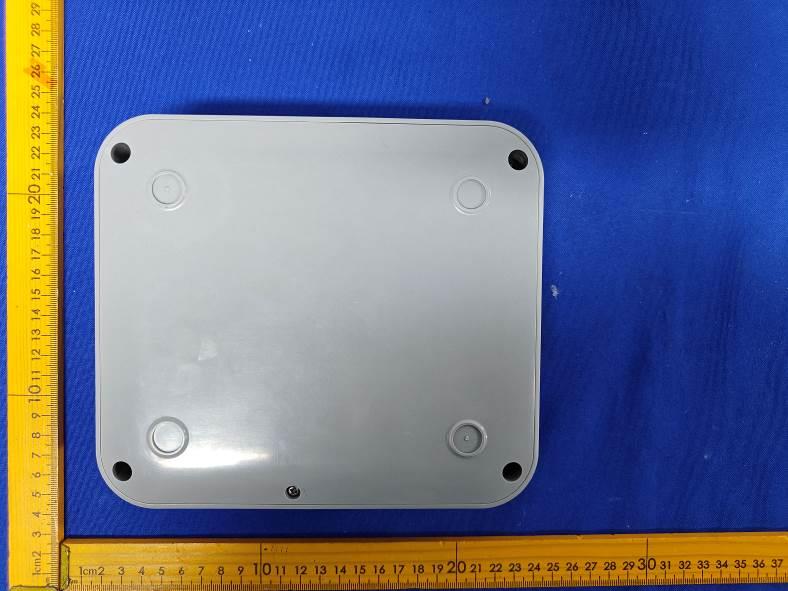

2BF4P-HS100THS 1 Home HealthScan

THS 1 Home HealthScan USER MANUAL Model: EQ-HS100 Notes THS 1 Home HealthScan is a detection device based on Loop-Mediated Isothermal Amplification (LAMP) reaction spectroscopy, specially developed for home health monitoring. We guarantee that the THS 1 Home HealthScan you use has passed comprehensive testing and meets all the usage requirements specified in this manual. The use of this instrument must comply with the guidelines and safety warnings provided in this user manual; otherwise, any damage or malfunction will not be covered by the product warranty. Built-in Software: All software related to this product is provided to customers as a service component, which is an essential tool for the normal operation of the instrument. Software Ownership: We hold the exclusive copyright of the software and grant customers a non-exclusive right to use the software. Software Modification: To improve operational performance and reliability, we reserve the right to modify software functions or designs with or without prior notice to customers. We own all intellectual property rights of all modified software versions. Responsibility: We shall not be liable for any direct, indirect or incidental damages arising from failure to comply with the operating procedures in this manual or improper use of the THS 1 Home HealthScan. Only our professional technical personnel or authorized agencies can inspect or provide spare parts for the instrument. We shall not be liable for any damages caused by unauthorized disassembly or replacement of spare parts by users. Our liability is limited to repairing the instrument and replacing genuine accessories. We shall not be responsible for interpreting test results or any consequences arising from the application of such results. Please read this user manual carefully before using the THS 1 Home HealthScan to ensure optimal test results. CHAPTER 1 SAFETY PRECAUTIONS Before using the THS 1 Home HealthScan (Model: EQ-HS100), users must carefully read and follow all safety instructions! 1.1 Operational Requirements The THS 1 Home HealthScan (Model: EQ-HS100) shall only be operated by trained and proficient personnel. ► Strictlyfollow the safety instructionsmarkedon the instrument. ► Only genuinespare parts and accessoriesprovidedby our companyor authorized agents can be used for replacement. ► Do not open the instrumentduring operation,as this will cause permanentdamageto the instrument. ► The instrumentmust be installedin a clean and well-ventilatedindoor environment, away from corrosivegases, strong magneticinterference,and direct sunlightor strong light sources. ► Wear safety gogglesand protectivegloves when handlingtoxic, corrosiveor infectioussubstances. ► Beforestoppingthe equipmentfor maintenanceor handling,removeall samplesand disinfectthe instrumentsurfacethoroughly. ► Only professionaltechniciansfrom the instrumentmanufacturercan perform maintenanceand repair work; users are not allowedto open the instrumentor replaceany componentswithoutpermission.Instrumentdamagecausedby unauthorizedoperationis not coveredby the warranty. ► If dangeroussubstancesleak onto the equipmentsurfaceor into the equipmentinterior, take appropriatedisinfectionmeasuresimmediately.Do not use cleaningagents or disinfectantsthat may react chemicallywith equipmentcomponentsor internalmaterials and cause danger.If you have any doubtsabout the compatibilityof cleaningor disinfectionproductswith the equipment,please consultthe manufactureror its authorizedagent. 1.2 ElectricalSafety ► The electricalsafety protectionclass of the instrumentis Class II (IEC standard). ► To preventelectricshock hazards,the instrumentmust be chargedwith a USB charger that meets CCC certificationstandards. ► Do not allow the power cord to come into contactwith the hot surfacesof the instrument. ►Donotcleantheinstrumentwhenitispoweredon. ►Turnoffthepowerwhentheinstrumentisnotinuseforanextendedperiod. CHAPTER 2 OVERVIEW 2.1 Product Name THS 1 Home HealthScan 2.2 Model/Specification EQ-HS100 2.3 Product Features ► Compactsize and light weightfor easy portability. ► Equippedwith high-definitiontouch screen for simpleand fast operation. ► Intuitivesoftwareinterfacewith guidedoperationfor ease of use. 2.4 IntendedUse Based on the Loop-MediatedIsothermalAmplification(LAMP)technologyprinciple, this productis used in conjunctionwith the matchingLAMPtest reagentcard for qualitativedetectionof target samplesfor home health monitoring. 2.5 ApplicationFields ► Home health monitoring ► Personalhealth indicatordetection 2.6 ProductServiceLife The servicelife of this productis 5 years, determinedbased on failure data analysisof key components.Duringuse, users shall maintain,serviceand repair the productin accordancewith the requirementsof this manual.Productsthat can still maintainbasic safety and effectivenessafter maintenance,serviceor repair can continueto be used normally. 2.7 SystemParameters Basic PerformanceParameters ItemParameterItemParameter OverallDimensions190×170× 56mm (L ×W×H) Weight850g Power SupplyBuilt-inlithium battery12V, Noise Level40 dB 3000mAh InputInterfaceUSBType-C12V, 15V Communication Interface USB,WIFI, Bluetooth Throughput2channelsDisplayScreenTouchscreen, 800×480resolution OperatingEnvironmentParameters ItemParameterItemParameter Operating Temperature 0～40°C OperatingRelative Humidity ≤85% Transport&Storage Temperature -20 ～ 50°C Transport&Storage RelativeHumidity ≤85% CHAPTER 3 INSTRUMENT INSTALLATION The installation of THS 1 Home HealthScan is simple and can be completed by customers themselves with the following steps. 3.1 Transportation and Storage ► The productmust be transportedin its originalpackagingto preventdamageduring transit. ► The packagedproductshouldbe stored in an environmentwith temperature- 20°C ~50°C , relativehumidity≤85%, and free of corrosivegases. ► The instrumentis packedin a carton with horizontalfixationand pearl cotton cushioningaroundto preventvibrationdamageduring transpor…

Text truncated - open the document above for the full version.

Page 1 of 9 Report No.: AiTSZ-260206028FW3 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : THS 1 Home HealthScan Brand Name : N/A Model : EQ-HS100 Series Model : EQ-PS100, EQ-FS100, EQ-MS100, EQ-GS100, YQ-HS100, YQ-PS100, YQ-FS100, YQ-MS100, YQ- GS100, IM-HS100, IM-PS100, IM-FS100, IM-MS100, IM-GS100 FCC ID : 2BF4P-HS100 Applicant : Changzhou Trendi Medical Technology Co., Ltd Address : No.403, Legend Holdings Lianhong New Material Innovation R&D Building, Changzhou Science and Education City,Jiangsu Province, China Manufacturer : Changzhou Trendi Medical Technology Co., Ltd Address : No.403, Legend Holdings Lianhong New Material Innovation R&D Building, Changzhou Science and Education City,Jiangsu Province, China Standard(s) : 47CFR §1.1310, 47CFR §2.1091 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Feb. 06, 2026 Date of Test : Feb. 06, 2026~ Mar. 17, 2026 Issued Date : Mar. 17, 2026 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 9 Report No.: AiTSZ-260206028FW3 Report Revise Record Report Version Issued Date Notes M0 Mar. 17, 2026 Initial Release Page 3 of 9 Report No.: AiTSZ-260206028FW3 Contents 1 GENERAL INFORMATION .......................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 6 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 6 2 METHOD OF MEASUREMENT ................................................................................................................................... 7 2.1 APPLICABLE STANDARD .................................................................................................................................................. 7 2.2 LIMIT ......................................................................................................................................................................... 7 2.3 MPE CALCULATION METHOD ......................................................................................................................................... 8 2.4 MANUFACTURING TOLERANCE ........................................................................................................................................ 8 2.5 STANDALONE MPE RESULT ............................................................................................................................................ 9 2.6 CONCLUSION ............................................................................................................................................................... 9 Page 4 of 9 Report No.: AiTSZ-260206028FW3 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: THS 1 Home HealthScan Model/Type reference: EQ-HS100 Serial Model: EQ-PS100, EQ-FS100, EQ-MS100, EQ-GS100, YQ-HS100, YQ-PS100, YQ-FS100, YQ-MS100, YQ- GS100, IM-HS100, IM-PS100, IM-FS100, IM-MS100, IM-GS100 Model different: All models are identical in terms of structure, dimensions, appearance, and circuitry, with no impact on the product’s electromagnetic compatibility or radio frequency characteristics. Differences lie solely in the target regions and industries for which they are intended. Power Rating: DC 11.1V by Rechargeable Li-ion Battery or DC 12V by adapter Adapter information: Model: F103Q-24W Input: 100-240V AC 50/60Hz, 0.8A Max Output: 3.6V-6.5V3.0A; 6.5V-9.0V2.0A; 9.0V-12.0V2.0A; 24.0W Max Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-260206028-1(Normal sample) AiTSZ-260206028-2(Engineer sample) Bluetooth LE: Supported type: Bluetooth LE 1M/2M Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: PCB Antenna Antenna gain: 3.26dBi 2.4G WIFI: Supported type: 802.11b/802.11g /802.11n(HT20)/802.11n(HT40) Modulation: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM Operation frequency: 802.11b/802.11g/802.11n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Channel number: 802.11b/802.11g/802.11n(HT20): 11 802.11n(HT40): 7 Page 5 of 9 Report No.: AiTSZ-260206028FW3 Channel separation: 5…

Text truncated - open the document above for the full version.

Page 1 of 2 FCC ID: 2BF4P-HS100 Page 2 of 2 FCC ID: 2BF4P-HS100

Page 38 of 46 Report No.: AiTSZ-260206028FW2 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Page 39 of 46 Report No.: AiTSZ-260206028FW2 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 40 of 46 Report No.: AiTSZ-260206028FW2 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV Page 41 of 46 Report No.: AiTSZ-260206028FW2 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 42 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Page 43 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Page 44 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Page 45 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 46 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV ********************** End of Report **********************

Page 1 of 46 Report No.: AiTSZ-260206028FW2 Appendix RF test data for WIFI2.4G Page 2 of 46 Report No.: AiTSZ-260206028FW2 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 8.383 8.693 96.43 0.16 1.43 2437 8.384 8.674 96.66 0.15 1.32 2462 8.386 8.650 96.95 0.13 1.02 802.11g SISO 2412 1.393 1.599 87.12 0.60 1.99 2437 1.393 1.653 84.27 0.74 4.35 2462 1.393 1.663 83.76 0.77 5.32 802.11n (HT20) SISO 2412 1.174 1.435 81.81 0.87 5.52 2437 1.174 1.354 86.71 0.62 0.61 2462 1.174 1.462 80.30 0.95 7.00 802.11n (HT40) SISO 2422 0.588 0.874 67.28 1.72 10.42 2437 0.588 0.875 67.20 1.73 10.42 2452 0.587 0.838 70.05 1.55 7.50 Page 3 of 46 Report No.: AiTSZ-260206028FW2 1.2 Test Graph 1.2.1 Ant1 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 4 of 46 Report No.: AiTSZ-260206028FW2 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 5 of 46 Report No.: AiTSZ-260206028FW2 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 6 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 7 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Page 8 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Page 9 of 46 Report No.: AiTSZ-260206028FW2 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 11.961 / Pass 2437 1 11.912 / Pass 2462 1 11.979 / Pass 802.11g SISO 2412 1 16.496 / Pass 2437 1 16.493 / Pass 2462 1 16.604 / Pass 802.11n (HT20) SISO 2412 1 17.543 / Pass 2437 1 17.591 / Pass 2462 1 17.660 / Pass 802.11n (HT40) SISO 2422 1 36.046 / Pass 2437 1 36.329 / Pass 2452 1 37.217 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 9.889 >=0.5 Pass 2437 1 9.753 >=0.5 Pass 2462 1 9.902 >=0.5 Pass 802.11g SISO 2412 1 16.210 >=0.5 Pass 2437 1 16.306 >=0.5 Pass 2462 1 16.418 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.123 >=0.5 Pass 2437 1 16.908 >=0.5 Pass 2462 1 17.460 >=0.5 Pass 802.11n (HT40) SISO 2422 1 34.466 >=0.5 Pass 2437 1 34.951 >=0.5 Pass 2452 1 36.270 >=0.5 Pass Page 10 of 46 Report No.: AiTSZ-260206028FW2 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 11 of 46 Report No.: AiTSZ-260206028FW2 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 12 of 46 Report No.: AiTSZ-260206028FW2 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 13 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 14 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Page 15 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Page 16 of 46 Report No.: AiTSZ-260206028FW2 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 17 of 46 Report No.: AiTSZ-260206028FW2 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 18 of 46 Report No.: AiTSZ-260206028FW2 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 19 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 20 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Page 21 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Page 22 of 46 Report No.: AiTSZ-260206028FW2 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 15.36 <=30 Pass 2437 15.00 <=30 Pass 2462 14.30 <=30 Pass 802.11g SISO 2412 13.95 <=30 Pass 2437 13.97 <=30 Pass 2462 13.28 <=30 Pass 802.11n (HT20) SISO 2412 14.23 <=30 Pass 2437 14.27 <=30 Pass 2462 13.65 <=30 Pass 802.11n (HT40) SISO 2422 14.52 <=30 Pass 2437 15.11 <=30 Pass 2452 15.41 <=30 Pass Note1: Antenna Gain: Ant1: 3.16dBi; Page 23 of 46 Report No.: AiTSZ-260206028FW2 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 3.69 <=8 Pass 2437 3.57 <=8 Pass 2462 2.52 <=8 Pass 802.11g SISO 2412 -4.61 <=8 Pass 2437 -4.61 <=8 Pass 2462 -5.99 <=8 Pass 802.11n (HT20) SISO 2412 -4.55 <=8 Pass 2437 -4.46 <=8 Pass 2462 -5.53 <=8 Pass 802.11n (HT40) SISO 2422 -6.66 <=8 Pass 2437 -5.93 <=8 Pass 2452 -5.59 <=8 Pass Note1: Antenna Gain: Ant1: 3.16dBi; Page 24 of 46 Report No.: AiTSZ-260206028FW2 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Page 25 of 46 Report No.: AiTSZ-260206028FW2 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Page 26 of 46 Report No.: AiTSZ-260206028FW2 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Page 27 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Page 28 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Page 29 of 46 Report No.: AiTSZ-260206028FW2 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Page 30 of 46 Report No.: AiTSZ-260206028FW2 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level o…

Text truncated - open the document above for the full version.

Page 1 of 29 Report No.: AiTSZ-260206028FW1 Appendix RF test data for BLE Page 2 of 29 Report No.: AiTSZ-260206028FW1 1. Duty Cycle 1.1 Test Result 1.1.1 Ant1 Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 1M SISO 2402 1.679 1.875 89.55 0.48 0.03 2440 1.679 1.875 89.55 0.48 0.03 2480 1.679 1.876 89.50 0.48 0.03 2M SISO 2402 0.865 1.250 69.20 1.60 0.06 2440 0.866 1.250 69.28 1.59 0.06 2480 0.866 1.250 69.28 1.59 0.03 Page 3 of 29 Report No.: AiTSZ-260206028FW1 1.2 Test Graph 1.2.1 Ant1 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 4 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 5 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 6 of 29 Report No.: AiTSZ-260206028FW1 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 1.009 / Pass 2440 1 1.012 / Pass 2480 1 1.012 / Pass 2M SISO 2402 1 2.013 / Pass 2440 1 2.014 / Pass 2480 1 2.017 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 1M SISO 2402 1 0.666 >=0.5 Pass 2440 1 0.666 >=0.5 Pass 2480 1 0.666 >=0.5 Pass 2M SISO 2402 1 1.173 >=0.5 Pass 2440 1 1.162 >=0.5 Pass 2480 1 1.173 >=0.5 Pass Page 7 of 29 Report No.: AiTSZ-260206028FW1 2.2 Test Graph 2.2.1 OBW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 8 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 9 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 10 of 29 Report No.: AiTSZ-260206028FW1 2.2.2 6dB BW 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 11 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 12 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 13 of 29 Report No.: AiTSZ-260206028FW1 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Peak Conducted Output Power (dBm) Verdict ANT1 Limit 1M SISO 2402 1.85 <=30 Pass 2440 2.68 <=30 Pass 2480 1.95 <=30 Pass 2M SISO 2402 1.92 <=30 Pass 2440 2.70 <=30 Pass 2480 1.97 <=30 Pass Note1: Antenna Gain: Ant1: 3.26dBi; Page 14 of 29 Report No.: AiTSZ-260206028FW1 3.2 Test Graph 3.2.1 Power 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 15 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 16 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 17 of 29 Report No.: AiTSZ-260206028FW1 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 1M SISO 2402 1.29 <=8 Pass 2440 2.16 <=8 Pass 2480 1.49 <=8 Pass 2M SISO 2402 1.10 <=8 Pass 2440 1.88 <=8 Pass 2480 1.21 <=8 Pass Note1: Antenna Gain: Ant1: 3.26dBi; Page 18 of 29 Report No.: AiTSZ-260206028FW1 4.2 Test Graph 4.2.1 PSD 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 19 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 20 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 21 of 29 Report No.: AiTSZ-260206028FW1 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 1M SISO 2402 1 1.33 2440 1 2.15 2480 1 1.47 2M SISO 2402 1 1.07 2440 1 1.86 2480 1 1.21 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 1M SISO 2402 1 1.33 -18.67 Pass 2440 1 2.15 -17.85 Pass 2480 1 1.47 -18.53 Pass 2M SISO 2402 1 1.07 -18.93 Pass 2440 1 1.86 -18.14 Pass 2480 1 1.21 -18.79 Pass Page 22 of 29 Report No.: AiTSZ-260206028FW1 5.2 Test Graph 5.2.1 Ref 1M_LCH_2402MHz_Ant1_NTNV 1M_MCH_2440MHz_Ant1_NTNV Page 23 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 24 of 29 Report No.: AiTSZ-260206028FW1 2M_MCH_2440MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV Page 25 of 29 Report No.: AiTSZ-260206028FW1 5.2.2 CSE 1M_LCH_2402MHz_Ant1_NTNV 1M_LCH_2402MHz_Ant1_NTNV Page 26 of 29 Report No.: AiTSZ-260206028FW1 1M_MCH_2440MHz_Ant1_NTNV 1M_HCH_2480MHz_Ant1_NTNV Page 27 of 29 Report No.: AiTSZ-260206028FW1 1M_HCH_2480MHz_Ant1_NTNV 2M_LCH_2402MHz_Ant1_NTNV Page 28 of 29 Report No.: AiTSZ-260206028FW1 2M_LCH_2402MHz_Ant1_NTNV 2M_MCH_2440MHz_Ant1_NTNV Page 29 of 29 Report No.: AiTSZ-260206028FW1 2M_HCH_2480MHz_Ant1_NTNV 2M_HCH_2480MHz_Ant1_NTNV ********************** End of Report **********************

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-WROOM-02 Model ESP-ANT B Report No. Y2102A0260-T3 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T3 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …

Text truncated - open the document above for the full version.

Page 1 of 27 Report No.: AiTSZ-260206028FW2 Note: This device has been tested and …

Text truncated - open the document above for the full version.
