2BFEP-DBM30Smart Wi-Fi Doorbell Camera

M20 Smart Wi-Fi Doorbell Camera Scan the code to view the user manual User Manual 1.0 - USB Version Features 8. Reset Button 9. Micro USB Port (for Battery Charging) 1. 2. Wide-angle Lens 3. Indicator Light 4. Speaker 5. Microphone 6. Infrared Lights 7. Doorbell Button Motion Sensor 8 4 3 2 1 5 6 7 9 Indicator light Flashing RED Flashing RED and BLUE Alternately The device is disconnected from Wi-Fi. It will attempt to reconnect automatically. If it fails, please reset the device and pair it again in the app. Flashing BLUE The device is recording. Solid RED The device is charging. RED Light Turns OFF When the device is fully charged. Low battery. Please recharge the device. Indicator Light Recharge your doorbell Remove the mounting bracket 1. Remove the battery tab 2. To do this, insert the included mounting bracket removal tool into the hole at the top of the doorbell. Push in until the bracket slides off. Use the provided micro-USB cable to charge your doorbell. It takes approximately 10 hours to fully charge, depending on the power source. Please note that you should use a power source of at least 5V1A. A solid RED light indicates that the doorbell is charging. When the doorbell is fully charged, the RED light will turn off. Recharge Your Doorbell Before First3. Create an account in the Kement app Scan the QR code provided or search for Kement in the Apple App Store or Google Play. Then download and install the app. 1. Android/iOS App Download 2. Open the Kement app on your cellphone and tap Sign up. Enter your email address, set a password, and tap Sign up. 3. After activating your account with the email link, log in to the app using your email and password. 4. LoginSign up Welcome Sign up Email Address Confirm Email Address Password Sign up Login We have sent an email to [email protected] you email and tap the link to verify. If you don’t see the email,check your spam,or tap“Resend email”below. Please Log in Resend email(55 s) Re-open the Kement app, enter your email address and password, and tap Log in. 5. Set up your doorbell in the Kement app Open the Kement app and sign in to your account. 1. To add your camera, tap the Add device icon (+). 2. Choose Video Doorbell and then select the M30 model. 3. Press and hold the doorbell button until the red light starts flashing. You will hear Entering pairing mode. 4. 5. Before setting up the camera, ensure your cellphone's Bluetoothis turned on Video Doorbell Select Device M30 Install your doorbell Remove the mounting bracket1. To do this, insert the included mounting bracket removal tool into the hole at the top of the doorbell. Push in until the bracket slides off. The device supports only the 2.4GHz Wi-Fi network. Navigate to your cellphone's Wi-Fi settings, connect to a 2.4GHz Wi-Fi network, and tap “Yes.” (Note: 5GHz Wi-Fi is not supported). For Connection Setup: Select your 2.4GHz Wi-Fi network name, input the password, and tap Next. 6. Tap Confirm. 7. 8. Use the device’s camera to scan the QR code on your phone. 9. Once you hear Device registration successful, you are all set. 10. Prepare for mounting2. Mark the drill holes and use a bit to drill into your wall. Insert the anchors and secure your back plate with the provided mounting screws. Reattach the doorbell3. Place the doorbell back on by slotting it in at the bottom and clicking it into place. How to reset your doorbell Remove the mounting bracket1. Press RESET button on the back of the doorbell2. To do this, insert the included mounting bracket removal tool into the hole at the top of the doorbell. Push in until the bracket slides off. Reset Button Set up your wireless chime Wireless Chime Pairing Button Connect the doorbell camera to the wireless chime and receive an instant alert in your home when someone rings the doorbell. The chime plugs into any USB port, allowing you to place it anywhere in your home. Plug the chime into a USB port and press the pairing button Before beginning the setup process, ensure that your video doorbell is connected to your phone. Then, plug the chime into a USB port and press the pairing button. 1. Set up your wireless chime2. Press the doorbell button3. Press the doorbell button to pair it with the chime. Press the doorbell button again to verify that the chime and doorbell are working properly. Please note that the volume of the chime is not adjustable. Open the Kement app and tap on Settings . From there, you can share the device via QR code or email, and even transfer ownership of the device. The new user must first download the Kement app and create their own account. Only the owner account can change settings, delete videos, and share the device. Shared accounts do not have these options. The owner account can share the device with up to 8 other accounts. Up to 3 users may view the video feed at once, but only 1 user can use the intercom. Frequently asked questions 1. How can I share the device with family members ? Your camera may be too far from your wireless router, or there may be obstructions reducing signal strength. You might want to reposition your router or get a signal extender/repeater. 5. Why is my Wi-Fi signal weak? 2. Why can't I change the settings? 3. How many users can view the device at the same time? No, the camera only works with 2.4GHz Wi-Fi. Please separate two Wi-Fi bands by giving the 2.4 GHz and 5 GHz networks each a unique separate SSID (network name). Then connect your device to the 2.4GHz Wi-Fi. 4. Is the 5GHz Wi-Fi supported? Open the Kement app and tap on Settings. Next, tap on Motion Settings. Here, you can select the desired human detection accuracy from three options: low, medium, and high. We recommend choosing medium. The high setting provides the strictest detection level, meaning the device will be triggered only when it is entirely certain that the moving object is a human. However, this stringent setting might cause the device to overlook a human figure, resulting in a missed notification. 7.…

Text truncated - open the document above for the full version.

2.911 (d)(5)(i) Equipment Type Attestation v1.2 CONVERGE BEAUTY LIMITED Section 2.911(d)(5)(i) Certification – EquipmentType Company name: CONVERGE BEAUTY LIMITED Address: FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Product Name: Smart Wi-Fi Doorbell Camera FCC ID: 2BFEP-DBM30 Model(s): M20, M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 2.911(d)(5)(i) EquipmentType We, [CONVERGE BEAUTY LIMITED] (“the applicant”) certify that the equipment for which authorization is sought through certification is not: •Pr ohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. •Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Edison Yichun zhang Date:2024-04-24 Tit le and Company name: Manager /CONVERGE BEAUTY LIMITED NOTE 1 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist Ref erences; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

2.911 (d)(5)(ii) Applicant Attestation v1.3 CONVERGE BEAUTY LIMITED Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: CONVERGE BEAUTY LIMITED Address: FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Product Name: Smart Wi-Fi Doorbell Camera FCC ID: 2BFEP-DBM30 Model(s): M20, M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 2.911(d)(5)(ii) Applicant filing We, [CONVERGE BEAUTY LIMITED] (“the applicant”) certify that, as of the date of the filing of the application, the applic ant is not identified NOTE 1 on the “Covered List” NOTE 2 ,established pursuant to §1.50002 of this chapter,as an entity producing coveredcommunications equipment. Yours sincerely, Name: Edison Yichun zhang Date:2024-04-24 Tit le and Company name: Manager /CONVERGE BEAUTY LIMITED NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List ”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist Ref erences; 1)986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

CONVERGE BEAUTY LIMITED U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“Baihetian Innovative Solutions) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: Apr 25, 2024 Signed by (Printed Name/Title): Kenneth Young/Manger The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: CONVERGE BEAUTY LIMITED Grantee Code: 2BFEP FRN: 0035115658 Contact Name: Edison Yichun zhang Street Address: FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON City/Province/Zip: HONG KONG China Telephone No: 18688982589 Email: [email protected] Applicant Signature: Date:2024-04-24 Signed by (Printed Name/Title): Edison Yichun zhang/ Manager FCC ID: 2BFEP-DBM30 Apr 2024

CONVERGE BEAUTY LIMITED Date: 2024-04-24 Office of Engineering Technology Federal Communications Commis sion 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Long Term Confidentiality FCC ID: 2BFEP-DBM30 T o Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure I t is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. S incerely, S ignature: N ame: Edison Yichun zhang T itle: Manager

CONVERGE BEAUTY LIMITED FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Agent Authorization Company: CONVERGE BEAUTY LIMITED Address: FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Product Name: Smart Wi-Fi Doorbell Camera M odel Number(s): M20, M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 Product Description: Smart Wi-Fi Doorbell Camera We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024-04-24 Name: Edison Yichun zhang Title: Manager Company: CONVERGE BEAUTY LIMITED

CONVERGE BEAUTY LIMITED FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Statement Product: Smart Wi-Fi Doorbell Camera Model: M20 Additional Model: M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 Trademark : N/A We hereby state that M20 is tested model, other models are derivative models. The models are identical in circuit and PCB layout, only different on the model names, colors and appearance. So the test data of M20 can repres ent the remaining models.. Your assistance on this matter is highly appreciated. Yo urs sincerely, Si gnature: Date: 2024/04/24 Nam e: Edison Yichun zhang Company Name: CONVERGE BEAUTY LIMITED Address: FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Tel / Fax: 18688982589/+N/A E- Mail: [email protected]

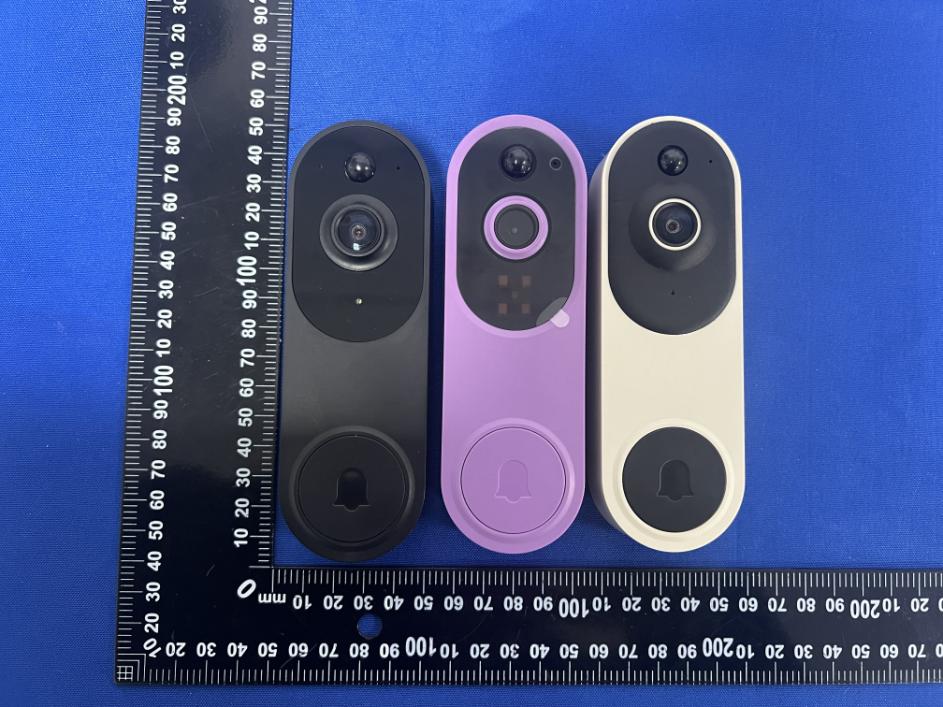

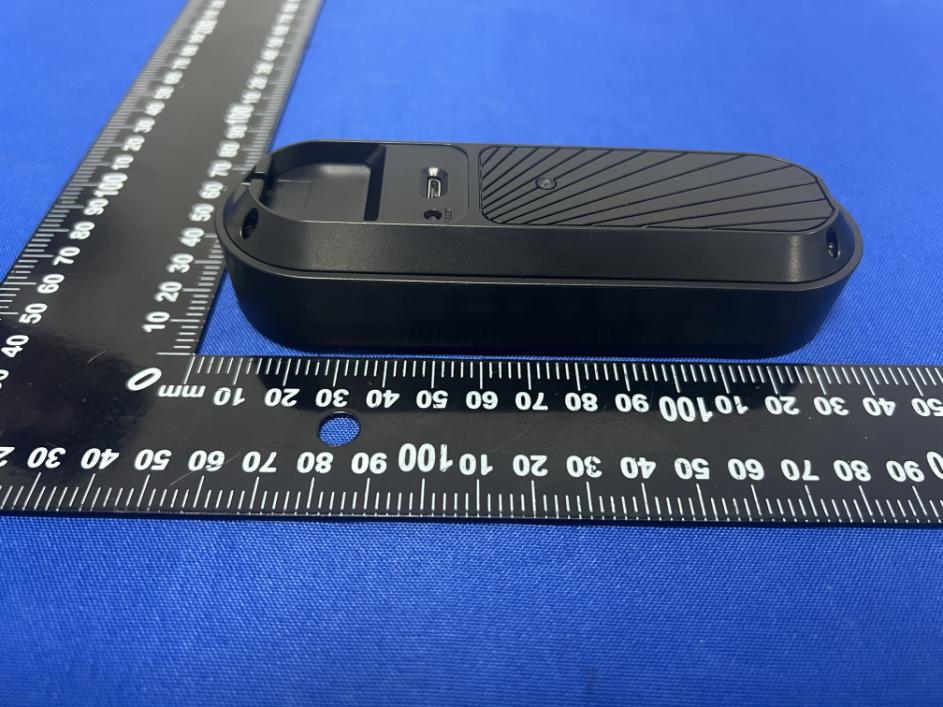

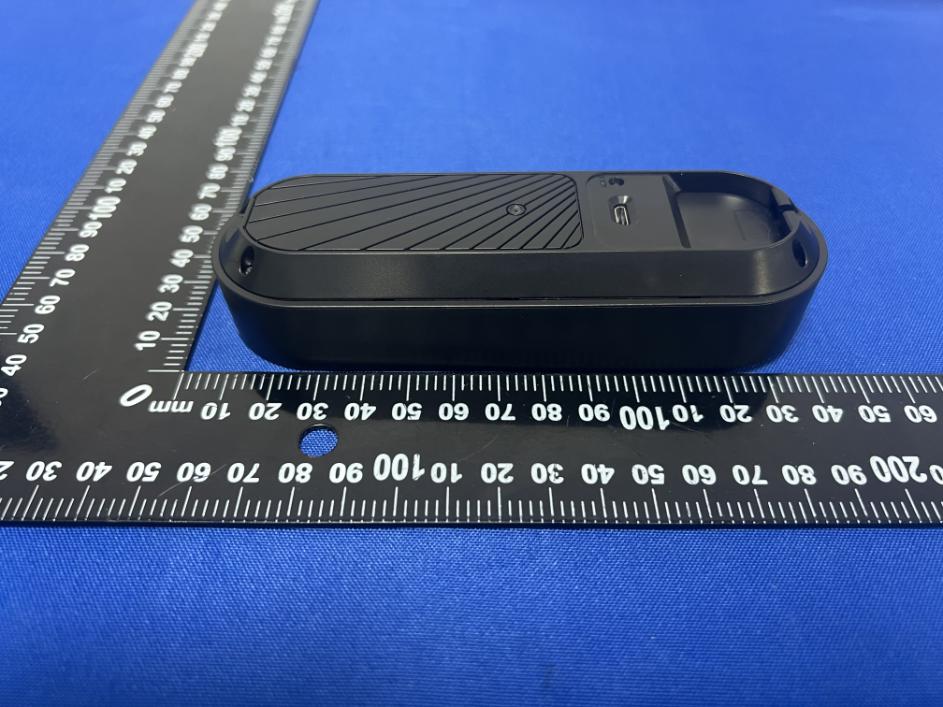

Page 1 of 3 Appendix B: Photographs of EUT Product: Smart Wi-Fi Doorbell Camera Model: M20 External Photos Page 2 of 3 Page 3 of 3

LabelArtworkandLocation Model:M20 Label: Size:L*W=45*15mm SmartWi-FiDoorbellCamera Model:M20 FCCID:2BFEP-DBM30 Location

Page 1 of 5 Appendix B: Photographs of EUT Product: Smart Wi-Fi Doorbell Camera Model: M20 Internal Photos Page 2 of 5 BLE/2.4G WIFI Antenna SRD Antenna Page 3 of 5 Page 4 of 5 Page 5 of 5

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2BFEP-DBM30 Test Report No. ............... : TCT240321E041 Date of issue ................... : Apr. 23, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : CONVERGE BEAUTY LIMITED Address ........................... : FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Manufacturer's name ... : Shenzhen Puge Electronics Co., Ltd. Address ........................... : Building E, Urban Construction Industrial Zone, No. 1 Fenghuang Lingxia Road, Fuyong Street, Baoan District, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 1.1307 Product Name ................. : Smart Wi-Fi Doorbell Camera Trade Mark ...................... : N/A Model/Type reference..... : M20, M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 Rating(s).......................... : Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Mar. 21, 2024 Date (s) of performance of test ................................... : Mar. 21, 2024 ~ Apr. 23, 2024 Tested by (+signature) ... : Onnado YE Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240321E041 Page 2 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. General Information ................................................................................. 4 2.1. Test environment and mode ................................................................................. 4 2.2. Description of Support Units ................................................................................ 4 3. Facilities and Accreditations .................................................................. 5 3.1. Facilities ................................................................................................................. 5 3.2. Location ................................................................................................................. 5 4. Test Results and Measurement Data ..................................................... 6 Report No.: TCT240321E041 Page 3 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Smart Wi-Fi Doorbell Camera Model/Type reference........... : M20 Sample Number....................: TCT240321E038-0101 Operation Frequency ........... : For BLE: 2402MHz~2480MHz For 2.4G WIFI: 2412MHz~2462MHz (802.11b/802.11g/802.11n(HT20) For SRD: 433.92MHz Modulation Type ................... : For BLE: GFSK For 2.4G WIFI: 802.11b: Direct Sequence Spread Spectrum (DSSS) 802.11g/802.11n: Orthogonal Frequency Division Multiplexing(OFDM) For SRD: FSK Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : For BLE/2.4G WIFI: 1.65dBi For SRD: -1.74dBi Rating(s)................................ : Rechargeable Li-ion Battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list No. Model No. Tested with 1 M20 Other models M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 Note: M20 is tested model, other models are derivative models. The models are identical in circuit and PCB layout, only different on the model names, colors and appearance. So the test data of M20 can represent the remaining models. Report No.: TCT240321E041 Page 4 of 6 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 2. General Information 2.1. Test environment and mode Item Normal condition Temperature +25ºC Voltage DC 3.7V Humidity 56% Atmospheric Pressure: 1008 mbar Test Mode: Transmitting Mode: Keep the EUT in continuous transmitting by select channel 2.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 20dB Occupied Bandwidth, Carrier Frequencies Separation, Hopping Channel Number, Dwell Time, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: TCT240321E041 Page 5 of 6 Hotline: 400-6611-140 Tel: 86-7…

Text truncated - open the document above for the full version.

Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. Antennaspecification AntennaSampleConfirmationFrom Nameof supplier ShenZhenAihuiTechnologyCo.，Ltd Customer name AiJian Samplename M50-433MSpring model Thedoorbell Samplesize Inspection item Performance test Visual inspection Structure Inthe news Test results Notes QualityAudit ProjectAudit Business confirm ation Thefollowingistobecompletedbytheclient Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. Customer feedback Customer signature/seal date: AntennaTestReport TestUnit:ShenzhenAihuiTechnologyCo.,Ltd. Materials Coaxialline+Copperpipes Antenna form PIFA Polarizationmode Linear Application scenario 433Mhz Workingband 433MhzVSWR≤2 Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. Power Max：2W Impedance50Ω dBi≥ TestEquipmentHPE5071C、ShieldingRoom、3Dautomaticturntable AntennaDescription:： 1.Groundingprocessingandpicturedescription:no 2.Needtochangethemotherboardtomatch:no  Testvoltage:3.6V,checktheantennacontactisgoodbeforetesting. TheRFcableoftheintegratedtesteriskeptinanaturalstateandcannotbe curled. Specification:testthespecifiedpowerlevel,allindicatorsmustconformtothe specifications. Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 1.ProjectImage 2.TestFixture 3.Antennamatchingcircuit 4.S11test 5.Antennapassiveefficiencyandgain 6.Darkroomtestequipmentanddata 7.Schematicdiagramofantennaassembly 8.Antennaenvironmenthandling 9.Antennamassproductionindex 10.Structuraldrawing Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 1.ProjectImage Thefinalverificationantennaperformanceprototypeinourcompanyforatleastoneyear, easytoanalyzeandsolvetheproblemofantennamassproduction,toensurethequality ofantennashipment 2.TestFixture Objective:totestthepassiveparametersofantennaasaccuratelyaspossible.Making Method:thehandsetismadeofa50ohmcoaxialcable,oneendofwhichisconnectedto thetestpointofthebackendofthematchingcircuitofthehandsetmotherboard(frontend oftheRFtesthole),andtheotherendisconnectedtotheSMAjoint.Thediagramisas follows: 3、Antennamatchingcircuit Modify E01E02E03 NoNoNo Note:Thematchisunmodified. Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 4.S11test 4.0 4.0s11testmethoddescriptionoftestequipment:NetworkAnalyzer(E5071C)test method:a50ohmCABLEisusedtoexportfromtheinstrumenttestport.TheSMA connectorforconnectingthehandsetiscalibratedusingacalibrationpiece,recordthe echolossandstandingwaveratiocorrespondingtotherelevantfrequencypoints.The testschematicisasfollows: Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 5.Darkroomtestequipmentanddata 6.TestEquipment Testsystem:shieldeddarkroom Thetemperaturewas22°C±3°Candthe humiditywas50%±15% Testequipment:whentestingpassivedata,usetheNetworkanalyzerAGILENTE5071C totestactivedata,usetheomnibusCMW500 Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 7.Activeantennatestdata WIFITestData: 433Mhz:433 Frequency （MHZ） Efficiency （%） Gain （dbi） 43029.58-1.51 43129.36-1.30 43230.11-1.65 43332.25-1.74 43434.25-1.88 43531.65-1.98 43630.11-1.55 43729.60-1.98 43828.47-2.05 Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. 433Mhz 6.Thepanelmatchesthechangeschematic / 7.Antennaenvironmenthandling / Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd. Theoriginalenvironment,wedonotdo processing 8.Antennamassproductionindex Whentheantennaismass-produced,the standingwaveratioistakenasthe mass-producedteststandard. Basedonthedifferencesoftheprojectitself,the followingcriteriaaregiven: Frequency Standardforvolumeproduction 433Mhz VSWR(MassProductionperformance)& LT;VSWR(recognitionperformance)0.5 9.Structuraldrawings Address:402TEL:0755-23203435fax:0755-23203435,BlockC,JuxinScienceand TechnologyIndustrialPark,Nanchangcommunity,xixiang,BaoanDistrict,Shenzhen ShenzhenAihuiTechnologyCo.,Ltd.

Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com TEST REPORT FCC ID. ............................ : 2BFEP-DBM30 Test Report No. ............... : TCT240321E040 Date of issue ................... : Apr. 23, 2024 Testing laboratory .......... : SHENZHEN TONGCE TESTING LAB Testing location/ address: 2101 & 2201, Zhenchang Factory, Renshan Industrial Zone, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, 518103, People's Republic of China Applicant's name ............ : CONVERGE BEAUTY LIMITED Address ........................... : FLAT/RM C 22/F FORD GLORY PLAZA 37 WING HONG STREET LAI CHI KOK KOWLOON HONG KONG China Manufacturer's name ... : Shenzhen Puge Electronics Co., Ltd. Address ........................... : Building E, Urban Construction Industrial Zone, No. 1 Fenghuang Lingxia Road, Fuyong Street, Baoan District, Shenzhen, China Standard(s) ..................... : FCC CFR Title 47 Part 15 Subpart C Section 15.231 Product Name ................. : Smart Wi-Fi Doorbell Camera Trade Mark ...................... : N/A Model/Type reference..... : M20, M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, P30, P20, P10, Q30, Q20, Q10, V30, V20, V10 Rating(s).......................... : Rechargeable Li-ion Battery DC 3.7V Date of receipt of test item ......................................... : Mar. 21, 2024 Date (s) of performance of test ................................... : Mar. 21, 2024 ~ Apr. 23, 2024 Tested by (+signature) ... : Onnado YE Check by (+signature) .... : Beryl ZHAO Approved by (+signature): Tomsin General disclaimer: This report shall not be reproduced except in full, without the written approval of SHENZHEN TONGCE TESTING LAB. This document may be altered or revised by SHENZHEN TONGCE TESTING LAB personnel only, and shall be noted in the revision section of the document. The test results in the report only apply to the tested sample. Report No.: TCT240321E040 Page 2 of 27 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com Table of Contents 1. General Product Information .................................................................. 3 1.1. EUT description ..................................................................................................... 3 1.2. Model(s) list ............................................................................................................ 3 2. Test Result Summary .............................................................................. 4 3. General Information ................................................................................. 5 3.1. Test Environment and Mode ................................................................................. 5 3.2. Description of Support Units ................................................................................ 6 4. Facilities and Accreditations .................................................................. 7 4.1. Facilities ................................................................................................................. 7 4.2. Location ................................................................................................................. 7 4.3. Measurement Uncertainty ..................................................................................... 7 5. Test Results and Measurement Data ..................................................... 8 5.1. Antenna Requirement ........................................................................................... 8 5.2. Conducted Emission ............................................................................................. 9 5.3. Radiated Emission Measurement ...................................................................... 13 5.4. Manually Activated Transmitter ......................................................................... 23 5.5. Occupied Bandwidth ........................................................................................... 25 Appendix A: Photographs of Test Setup Appendix B: Photographs of EUT Report No.: TCT240321E040 Page 3 of 27 Hotline: 400-6611-140 Tel: 86-755-27673339 Fax: 86-755-27673332 http://www.tct-lab.com 1. General Product Information 1.1. EUT description Product Name ....................... : Smart Wi-Fi Doorbell Camera Model/Type reference........... : M20 Sample Number....................: TCT240321E038-0101 Operation Frequency ........... : 433.92MHz Modulation Technology ....... : FSK Antenna Type ........................ : Internal Antenna Antenna Gain ........................ : -1.74dBi Rating(s)................................ : Rechargeable Li-ion Battery DC 3.7V Note: The antenna gain listed in this report is provided by applicant, and the test laboratory is not responsible for this parameter. 1.2. Model(s) list No. Model No. Tested with 1 M20 Other models M10, M30, M60, T30, T20, T10, U30, U20, U10, N30, N20, N10, …

Text truncated - open the document above for the full version.
