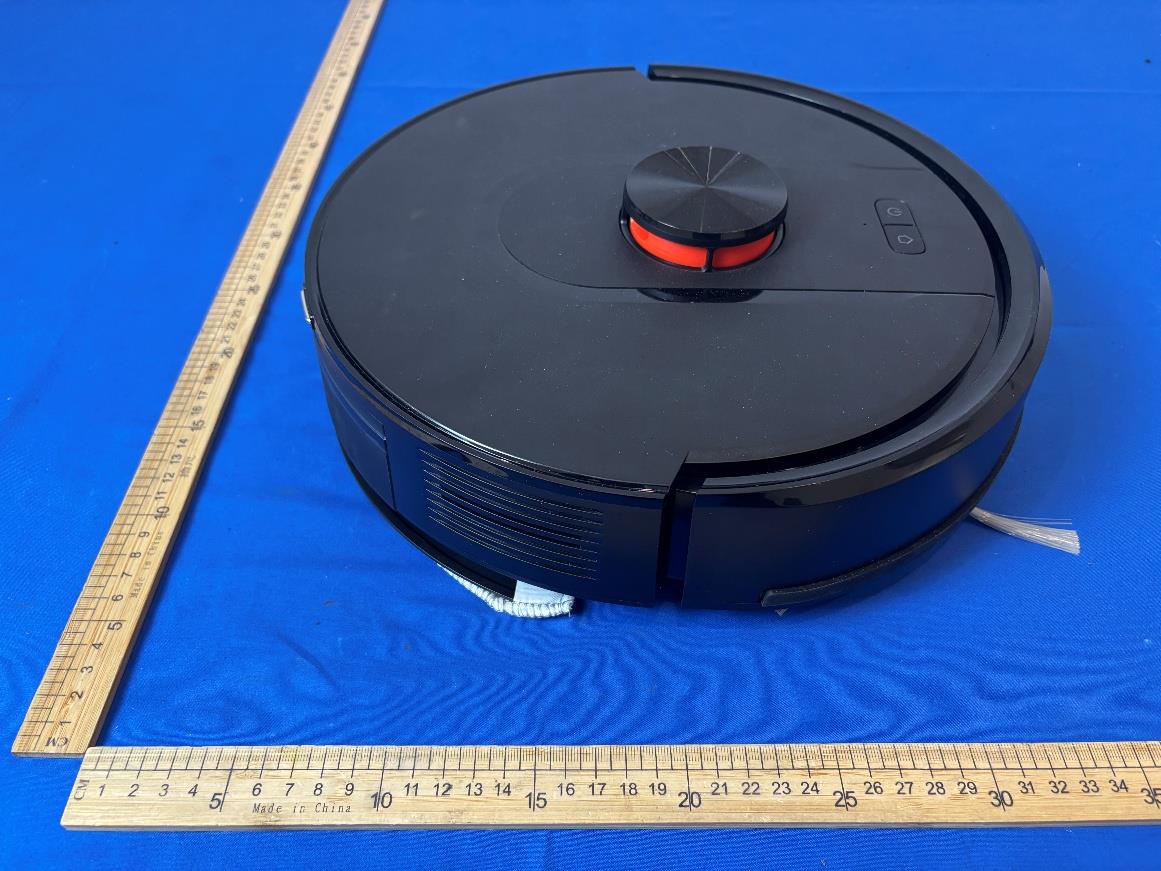

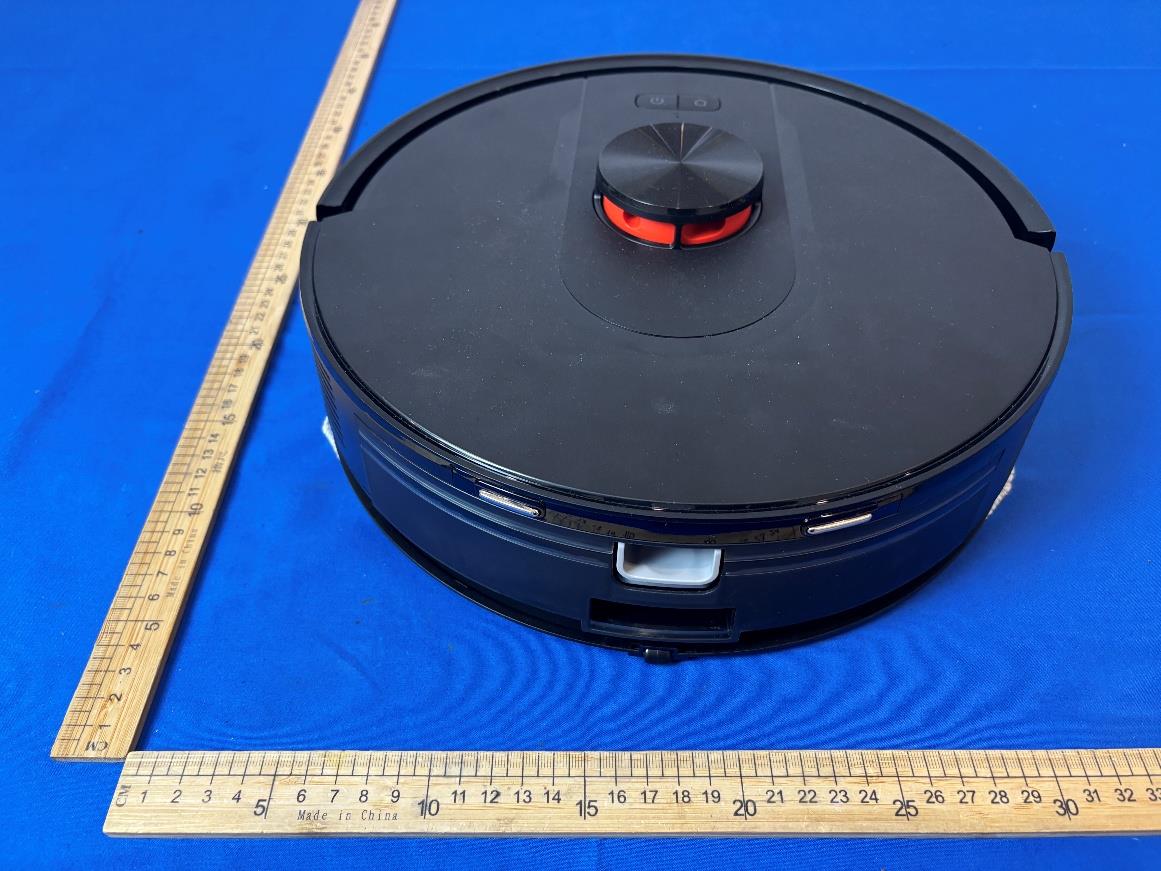

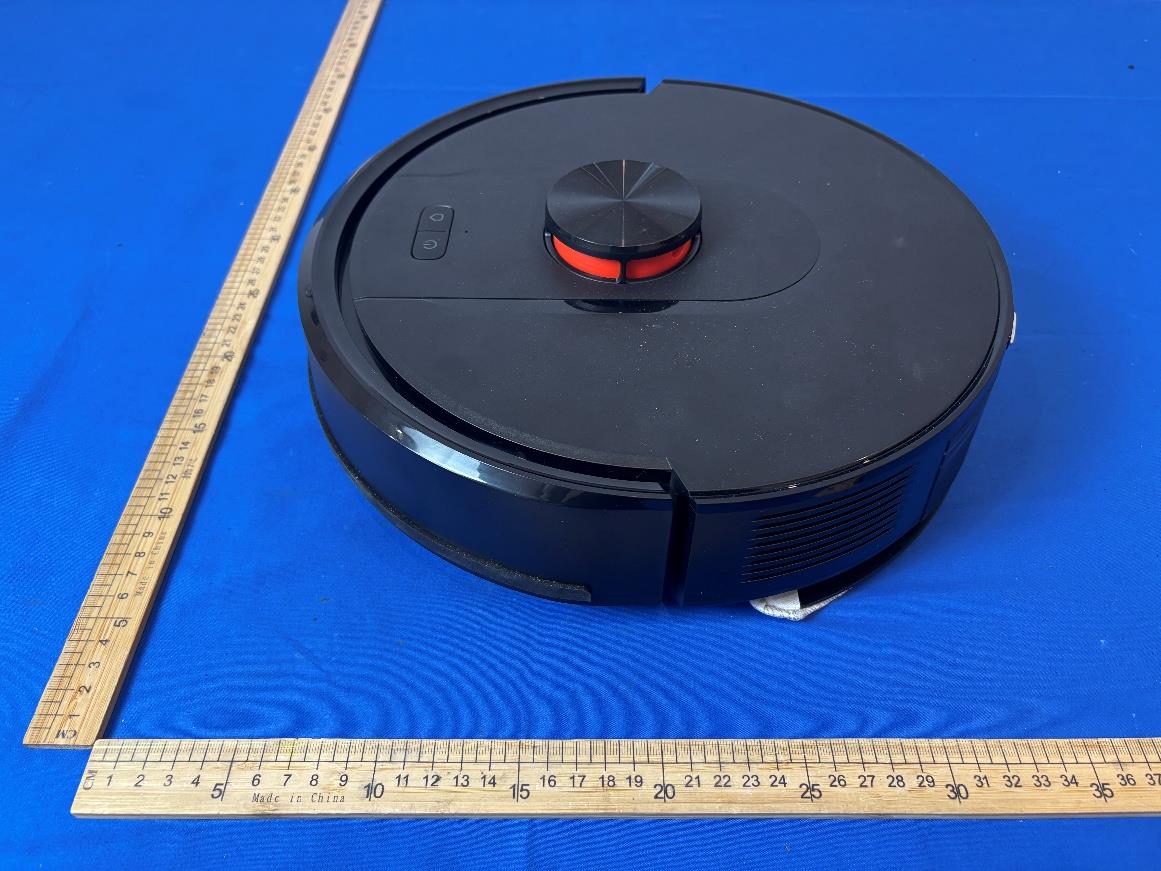

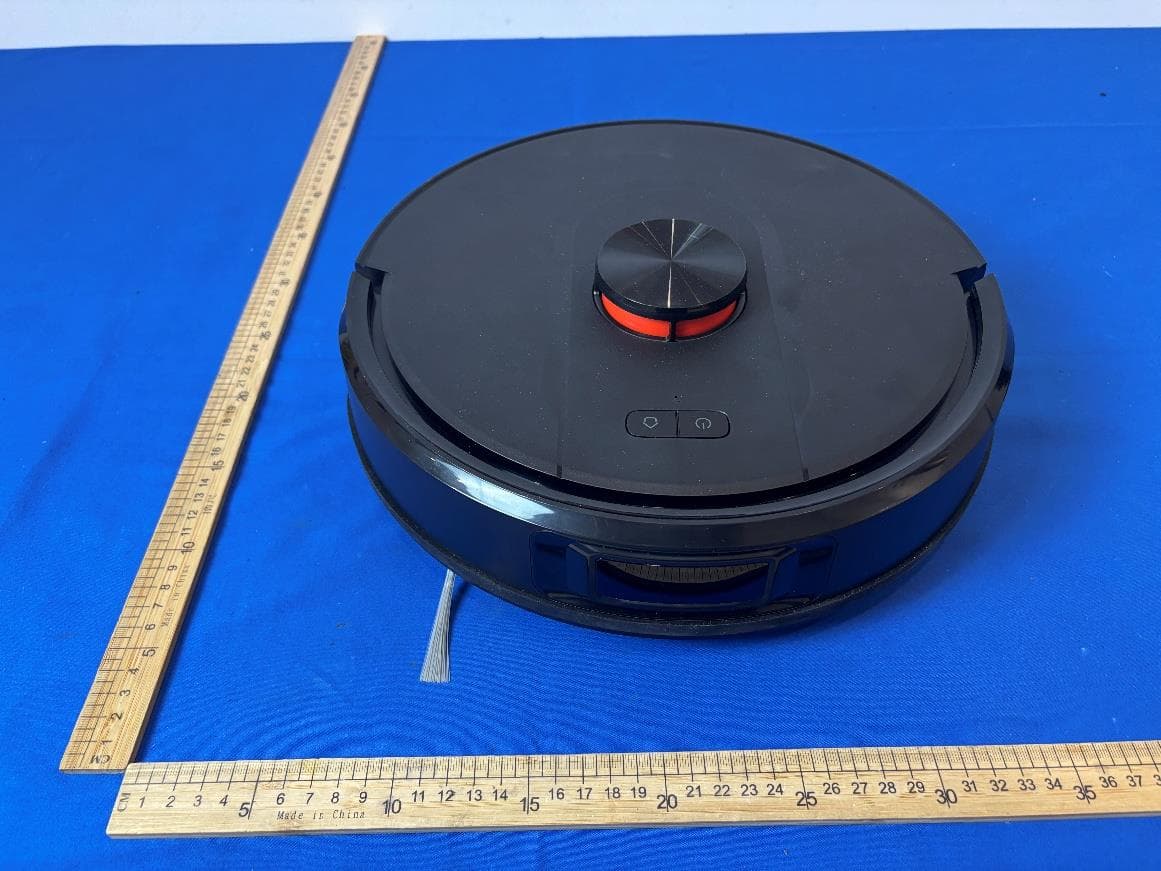

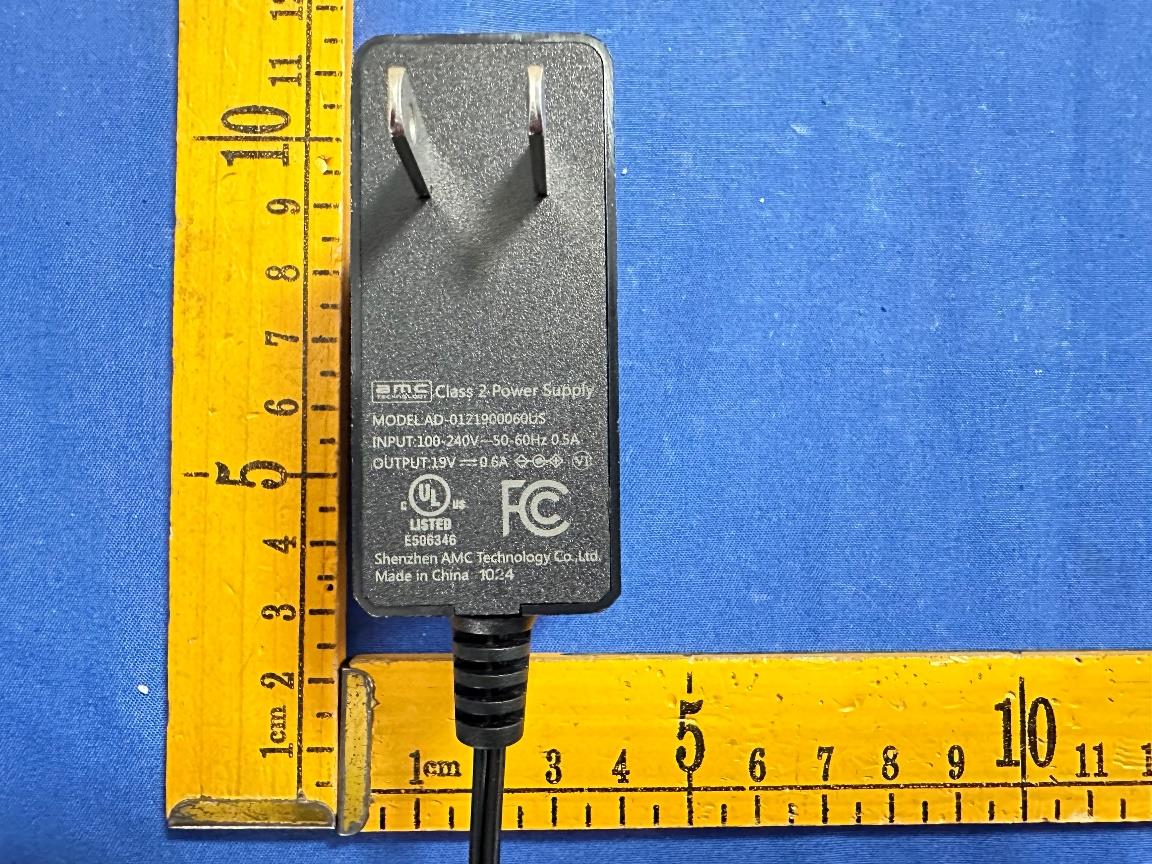

2BFFA-L100W0Laser sweep and mop integrated robot

Manual of Laser sweep and mop integrated robot Please read this Manual carefully before use and keep it properly; the Product applies to the areas with an altitude below 2,000m only Maintenance prompts Environmental Impact Report for User Contents The Product should be maintained by professional maintenance personnel who have passed the training with the corresponding qualification only. It is forbidden to repair the Product arbitrarily, in order to avoid serious consequences such as electric shock. For any fault of the Product, please refer to the Common Faults and Troubleshooting before contacting the customer service personnel. If the fault still exists, please unplug the power plug to cut off power supply and contact us. Please read the Manual carefully in order to use the Product correctly. 1. All packages are eco-friendly and recyclable. Please handle these packages on an environmentally-friendly manner, in order to protect the environment. 2. Do not let children play with the plastic film and package box for fear of suffocation. The package is not a toy, keep it beyond children's reach. 3. Please handle the Product until it cannot be used any longer before scrapping it. The product to be scrapped contains recyclable materials. Please handle them properly or recycle them, in order to protect our environment. Product Introduction ...........................................1 Installation ............................................................4 Use .........................................................................5 Wi-Fi Connection .................................................6 Daily Maintenance ................................................7 Basic Parameters ...................................................11 Names and Concentrations of Hazardous Substances in the Product ....................................11 Troubleshooting ....................................................12 Precautions ............................................................13 Please read the Manual carefully in order to use the Product correctly. Network Connection Intelligent recharge Under power-on status, press and hold key and key for 5s, it will broadcast "WIFI has been reset" to enter network configuration. Press "ON" to start intelligent recharging If yellow indicator flashes, it means recharging is required/low battery Wifi indicator Infrared receiving sensor If it flashes, network pairing in progress If it is normally on, network pairing succeeds If it is off, network pairing or network connection fails ON-OFF/planned cleaning Press On/pause cleaning Press and hold it for 3s to power on or off If the yellow indicator is normally on, recharging If the green indicator flashes, charging in progress If the green indicator normally on, fully recharged If the green indicator normally on, running/standby If the green indicator flashes, firmware upgrade/recover factory settings If the red indicator flashes/ is normally on, abnormal status Off, shutdown/sleep 1 Product Introduction Unit Rolling brush cover Mop module Rolling brush Right side wheel Cliff sensor Laser radar Charging electrode head Dust box release button Dust box suction port Cliff sensor Universal wheel Left side wheel 2 Product Introduction 2-in-1 water tankDust collector (for dust collection and recharging) Dust box Upper cover Suction inlet Suck waste from main device to the dust bag through the suction inlet Dust bag Indicator Infrared lens Charging shrapnel of dust collector Open the upper cover, put in/take out of the dust bag Dust box buckle Mop holder Dust suction inlet of dust box 2-in-1 water tank release button Water tank cover/water filling nozzle 3 Product Introduction Indicator If the red indicator flashes: The dust bag is full or not installed properly If the white indicator normally on: Power supply is connected If the white indicator flashes slowly: Charging in progress If the white indicator flashes quickly: Dust collection in progress *Red indicator flashes/ is normally on when the dust collector has a fault Indicator will be off after power-off. Introduction Remarks: RedWhiteOff Status descriptions of indicator lamps for dust collection charging pile Fan filter Place it against wall Dust bag handle Dust bag 4 Product IntroductionInstallation Dust bag (dust collector is mounted with 1 dust bag) Prompt: Dust bag is consumable and is not recyclable. Please replace it regularly. Dust collector 1. Put the dust collector flat, insert the power plug into the socket that meets the requirements, and connect the power supply. 2. Make sure there are no obstacles within 1.2m at front, or within 0.5m at both sides of the dust collector. Note: Do not put it on the carpet to avoid affecting the functions 5 Instructions for Use 1. On/off Press and hold " " key for 3s: The power indicator will flash slowly in green for 4s until it is normally on in green, then the Product will enter standby status. When the Product is static, press and hold " " key for 3s to power off, and the power indicator will be off. The Product will enter sleep status when it is idled for 10min; under this status, press any key to wake it up. Prompt: The Product can't be powered off or enter sleep status during charging. 2. Cleaning Under startup status, press " " key and it will give out a voice prompt "Start cleaning". During cleaning, press " " key to pause cleaning. Prompt: Cleaning function will be disabled when battery is low. 3. Auto/manual recharging After finishing cleaning, it will give out a voice prompt "Cleaning completes, start recharging" and the Product will start auto recharging automatically. When battery is low during cleaning, the Product will enable auto recharging. 4. Fill water to the water tank or clean mop during operation Press " " key to pause the Robot, remove the mop module/2-in-1 water tank, fill water or clean the mop, install back the mop module, press the key again to continue operation or mopping. 5. Network pai…
