2BFIZ-L018DRLED PROJECTOR

157g铜版纸 76x130mm 折页 分割线无需印刷 Safety Instructions Read all instructions before you use this device. Do not make any changes or create settings that are not described in this manual. If physical damage, loss of data or damage is caused by failure to follow instructions, the warranty does not apply. 1. To reduce the risk of fire or electric shock, do not expose the device to rain or moisture. Objects filled with liquids, such as vases, should not be placed on this device. 2. Do not place this device on soft surfaces such as tablecloths or carpets, otherwise the device could be a fire hazard. 3. Do not place this device in areas susceptible to excessive dust and dirt or near any appliance generating a strong magnetic field. 4. To prevent overheating, do not block or clog the ventilation holes. 5. Never place this device in a confined space. Always leave enough space around this device for ventilation. 6. Protect this device from overexposure to direct sunlight, heat, large temperature fluctuations and moisture. Avoid extreme temperatures. 7. When this device is running for a long period of time, the surface may become hot. Shut it down immediately and unplug the charger. Resume operation after this device has cooled down. 8. Always handle this device with care. Avoid touching the lens. Do not allow children to handle the device without supervision. 9. Use attachments or accessories specified by the manufacturer only. 10. Avoid extreme vibration as it may damage the internal components. User Manual Tips: 1. Blurry Image Go to Settings - Projection Settings - Auto Four Keystone Correction - Turn on the Auto Four Keystone Correction or enter Manual Keystone to adjust the image. Press the focus button on remote control to get the best clarity. 2. Mounting Hole Adopting a single mounting hole dual-use design, the projector is compatible with the standard camera tripod and 1/4 inch screw projector tripod stand. Package ListOverview Projector × 1Remote Control × 1 (Batteries are not included) Projector User Manual × 1 On / Off Power Cable × 1HDMI Cable × 1 IR receiver 3.5mm Stereo Jack USB InputIR receiver HDMl lnput Power Socket Power Switch Focus Volume - Return Mute Right Volume + Remote Control Attention: 1. Do not submerge the remote control in the water. 2. Do not put the remote control near fire or in wet or hot places. 3. Do not use old and new batteries together in the remote control. 4. Please take the batteries out if not using the remote control for a long time to avoid battery leakage. 5. Please point the remote control toward the IR receiver. 6. Please use the remote control within 6 meters distance and 30 degree angle. Up Switch to mouse control Down Home Left Menu OK Clean Tool × 1 Getting Started Tips: Make sure the projector is horizontal to the projector screen. Plug the power cable to the projector. Press power button to turn on the projector. Use the manual focus by pressing the "Focus" button on the remote control. Cleaning Method 1. Get the screwdriver ready, unscrew the screws. 2. Clean the projector by the cotton swab. 3. Reinstall the bottom cover after cleaning. Settings - Bluetooth- Bluetooth Settings > Turn on Bluetooth Switch. Click Search for Bluetooth devices and pair the device that you want to connect to. Settings - Network Settings- WiFi Switch > Turn on WiFi Switch. Choose the network and type the password that you want to connect to. Bluetooth Setting Network Setting Clear memory shortcut. When the system is stuck or too many applications are opened, click this icon, the background can be cleared. Wallpaper shortcut. Support to change the background picture. Bluetooth shortcut. Turn to Bluetooth settings. Network shortcut. Turn to network settings. Insert the U disk, click the FileManager icon on the homepage. The content of U disk could be read, such as video, audio, picture, etc. File Management Homepage status bar icon This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. FCC STATEMENT: English: This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including i…

Text truncated - open the document above for the full version.

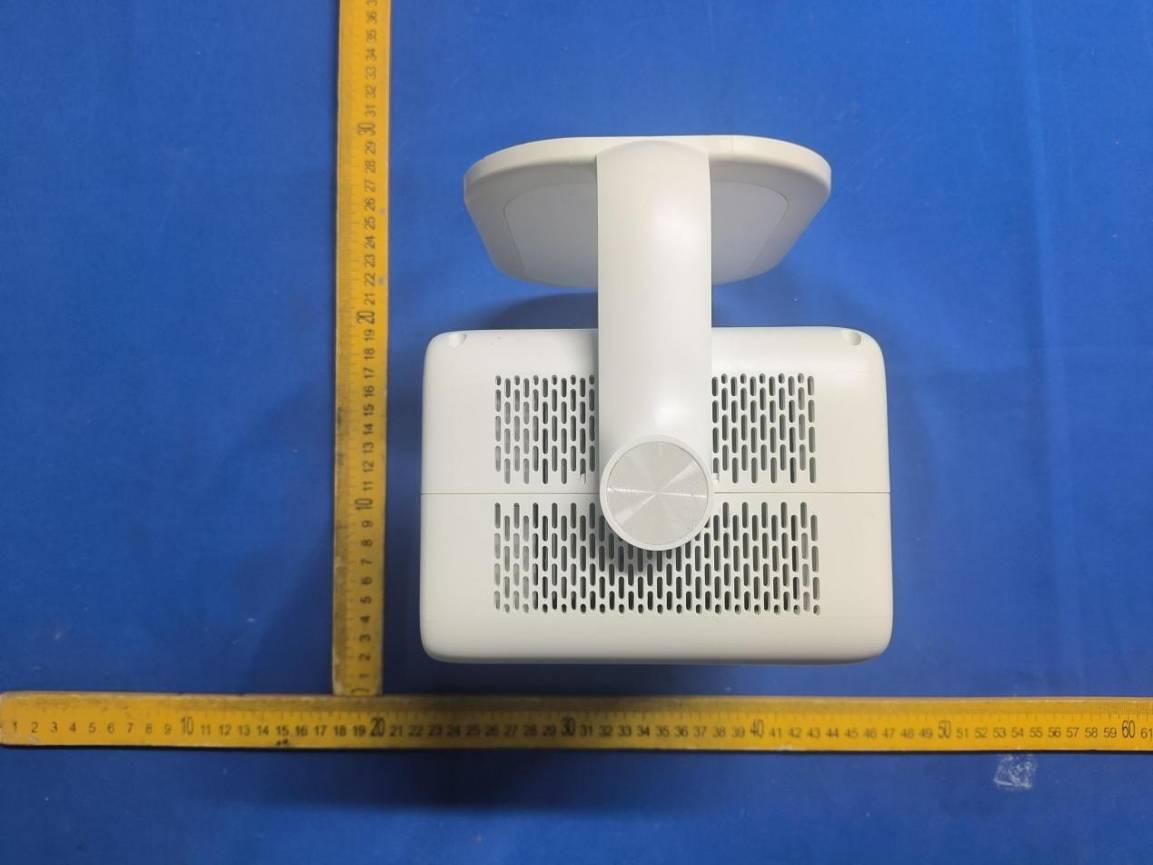

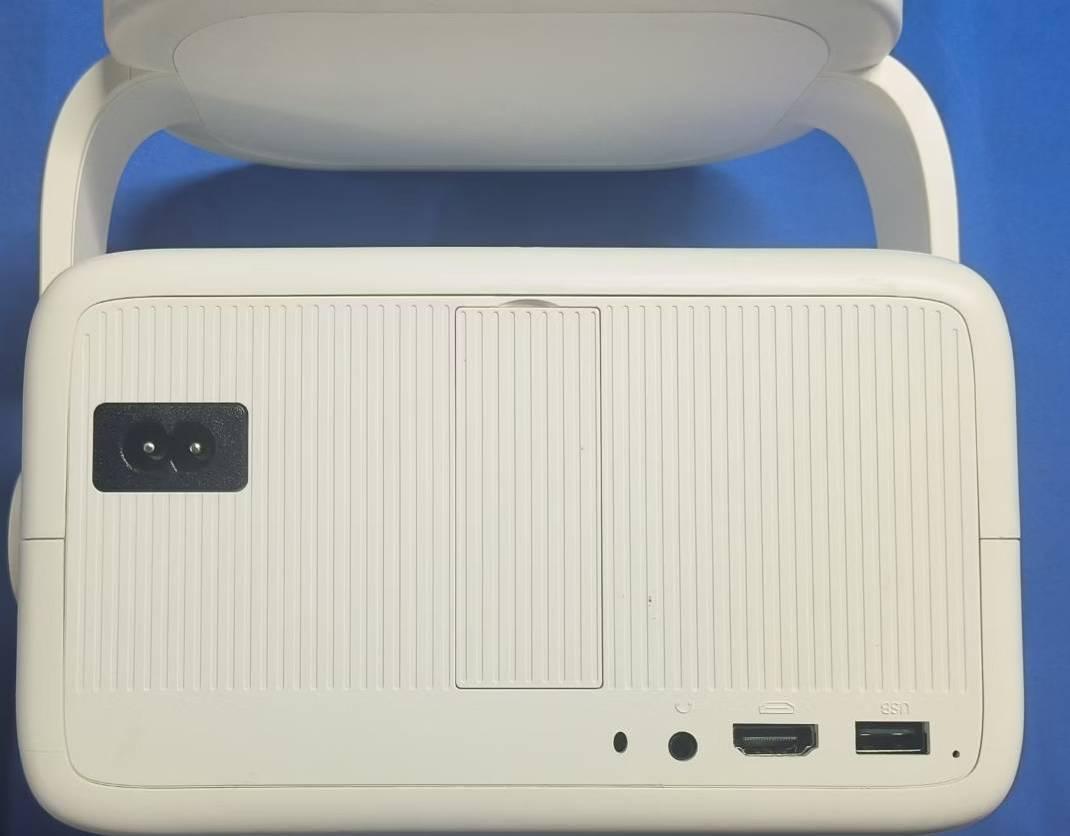

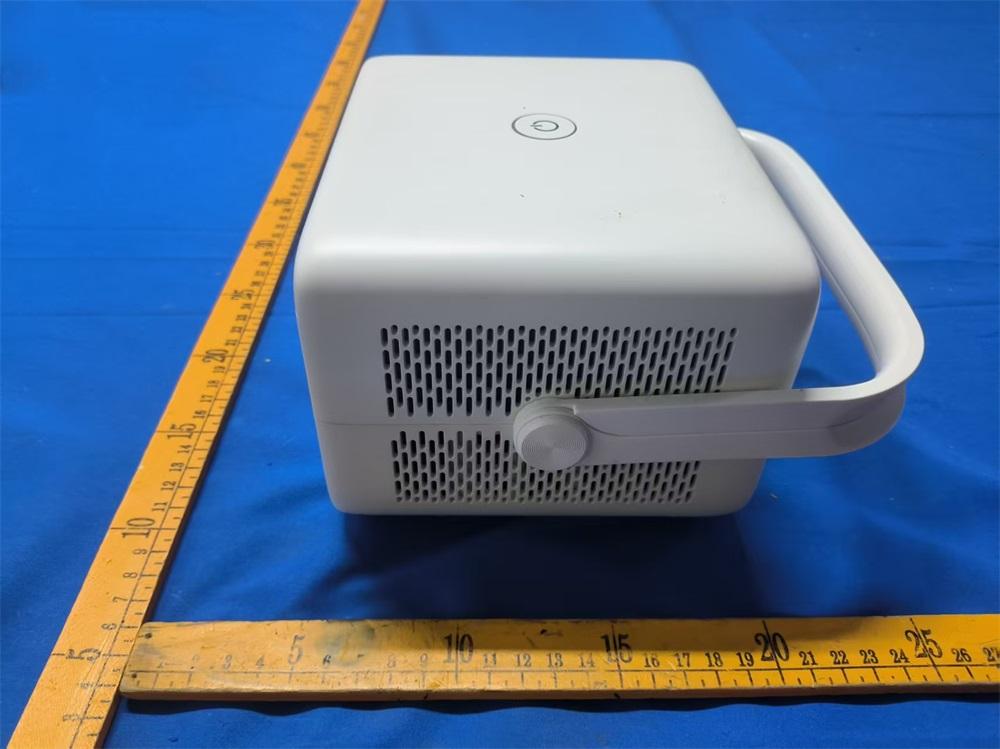

FCC ID: 2BFIZ-L018DR L018DR Fig. 1 L018AR Fig. 2 FCC ID: 2BFIZ-L018DR L018BR Fig. 3 Fig. 4 FCC ID: 2BFIZ-L018DR Fig. 5 Fig. 6 Wifi Antenna 1 BT Antenna 2 FCC ID: 2BFIZ-L018DR Fig. 7 Fig. 8 FCC ID: 2BFIZ-L018DR Fig. 9 Fig. 10 FCC ID: 2BFIZ-L018DR Fig. 11 Fig. 12 FCC ID: 2BFIZ-L018DR Fig. 13

FCC ID:2BFIZ-L018DR _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID:2BFIZ-L018DR _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 4 Fig. 5

8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 1 - Shenzhen Lxc Electronics Technology Co ., Ltd 深圳市连兴创电子科技有限公司 APPROVAL SHEET 承认书 客户（Customer）:________和天创__________ 产品（Product）:_(L018)BT,WIFI 天线(L=95MM) 型号（Model）: XBY240035 料号（Part Number）:__ L018 __ 制作人（Written By）:_____ 唐红交__________ 签发时间（Issued Date）:___2025-01-07______ 客户 CUSTOMER 频率范围Frequency range WIFI:(2.4/5.85)（MHz） 驻波比系数VSWR <2.0 输入阻抗Input Impedance 50（Ω） 极化方式Polarization 垂直极化 Vertical Polarization 半功率波束（3dB）HPW 180°H-plane 120°E-plane RF by Checked by ME by Date Customer Confirm 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 2 - Revision History Date Revision Description of Changes 2025-01-07 RA Measured with SUS301 sample. 深圳市连兴创电子科技有限公司 .................................................................................. 1 PROJECT ................................................................................................................. 2 ANTENNA COMPONENTST ..................................................................................... 3 1 TECHNICAL SUMMARY ...................................................................................... 3 2 GENERAL DESCRIPTION ................................................................................... 3 2.1 Components/Part revisions ....................................................................................................................... 3 3 MECHANICAL DESCRIPTION ............................................................................. 3 4 ELECTRICAL PERFORMANCE ........................................................................... 3 4.1 Set-up .......................................................................................................................................................... 3 4.1.1 VSWR ................................................................................................................................................. 3 4.1.2 Gain & Radiation Patterns ............................................................................................................... 3 4.1.3 Matching Circuit Description ........................................................................................................... 3 4.2 Measurement Data .................................................................................................................................... 3 4.2.1 Active result（GSM） ........................................................................................................................ 3 6 Mechanical drawing .......................................................................................................................................... 5 7 RELIABILITY TESTS .......................................................................................... 12 7.1 Test content .............................................................................................................................................. 12 7.2 Test results ............................................................................................................................................... 12 8 CONCLUSION ...................................................................................................... 9 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 3 - 1 Technical Summary This report summarizes the electrical results of the proposed antenna to support the program. We test the antenna with the latest version handset. And it seems to be acceptable. 2 General Description 2.1 Components/Part revisions VSWR: Voltage Standing Wave Rate. 3 Mechanical Description 4 Electrical Performance 4.1 Set-up 4.1.1 VSWR VSWR measurements (S11) were performed using an Agilent 8753D Network Analyzer and the previously described test fixture. Coaxial chokes were used to mitigate surface currents on the outside of the cabling. The testing was performed in free space. 4.1.2 Gain & Radiation Patterns The gain of the antenna was measured in the Lxc’s anechoic chamber. Coaxial chokes on the feed cable were used to mitigate surface currents. The chamber provides less than –30 dB reflectivity from 800 MHz through 3 GHz and an 18” diameter spherical quite zone. The measurement results are calibrated using both dipole and leaky wave horn standards. 4.1.3 Matching Circuit Description 4.2 Measurement Data 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 4 - 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 5 - 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 6 - 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 7 - 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc Electronics Technology Co ., Ltd - 8 - 8Project: Author:Wang L018 Date: 2025-01-07 TEST: Language: Check: Zhong A English 地址: 深圳市龙华区大浪街道华芳路 12 号金瑞华工业园 C 栋 4 楼 电话：0755-29195258 传真：0755-29590286 Shenzhen Lxc…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20250903022-1-12 2BFIZ-L018DR Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Oct.22, 2025 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong,China Applicant’s name ............................ : Chengdu Hotack Technology Co., Ltd. Address ............................................ : 501-502, Unit 3, Building 13, No. 666 Jinfenghuang Avenue, High- tech Industry Park, Jinniu District, Chengdu City, Si Chuan Province,China. Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : LED PROJECTOR Trade Mark ....................................... : N/A Manufacturer .................................... : Chengdu Hotack Technology Co., Ltd. Model/Type reference ...................... : L018DR Listed Models .................................. : L018AR, L018, L018AA, L018AQ, C18AR, C18UR, HT1, HT2, HT3, HT4, HT5, HT6, HT7, HT8, HT9, SMOON 520, L018BR, TP350, TP350 NTV, Gimbal A6 Pro, Gimbal N6 Pro, L018DA Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : Input:100-240V~,50/60Hz, 1.5A Result ............................................... : PASS Report No.: GTS20250903022-1-12 Page 2 of 32 T E S T R E P O R T Test Report No. : GTS20250903022-1-12 Oct.22, 2025 ____________________________________________________________________________________ Date of issue Equipment under Test : LED PROJECTOR Model /Type : L018DR Listed model : L018AR, L018, L018AA, L018AQ, C18AR, C18UR, HT1, HT2, HT3, HT4, HT5, HT6, HT7, HT8, HT9, SMOON 520, L018BR, TP350, TP350 NTV, Gimbal A6 Pro, Gimbal N6 Pro, L018DA Applicant : Chengdu Hotack Technology Co., Ltd. Address : 501-502, Unit 3, Building 13, No. 666 Jinfenghuang Avenue, High-tech Industry Park, Jinniu District, Chengdu City, Si Chuan Province,China. Manufacturer : Chengdu Hotack Technology Co., Ltd. Address : 501-502, Unit 3, Building 13, No. 666 Jinfenghuang Avenue, High-tech Industry Park, Jinniu District, Chengdu City, Si Chuan Province,China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20250903022-1-12 Page 3 of 32 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 5 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT ....................…

Text truncated - open the document above for the full version.

FCCID:2BFIZ-L018DR 38 Appendix E.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 5650~5700 -40.46 ≤-26.53 PASS 5700~5720 -28.57 ≤15.05 PASS 5720~5725 -26.2 ≤17.13 PASS 5760~5650 -39.7 ≤-27 PASS High 5825 5850~5855 -33.66 ≤18.50 PASS 5855~5875 -31.55 ≤15.54 PASS 5875~5925 -37.37 ≤-26.71 PASS 5925~5935 -38.31 ≤-27 PASS 11N20SI SO Ant1 Low 5745 5650~5700 -40.1 ≤-26.70 PASS 5700~5720 -28.86 ≤14.02 PASS 5720~5725 -27.59 ≤16.08 PASS 5760~5650 -39.49 ≤-27 PASS High 5825 5850~5855 -33.5 ≤16.34 PASS 5855~5875 -30.92 ≤14.18 PASS 5875~5925 -37.58 ≤-26.21 PASS 5925~5935 -38.26 ≤-27 PASS 11N40SI SO Ant1 Low 5755 5650~5700 -38.61 ≤-26.70 PASS 5700~5720 -22.09 ≤12.71 PASS 5720~5725 -20.91 ≤16.66 PASS 5780~5650 -38.72 ≤-27 PASS High 5795 5850~5855 -30.59 ≤16.41 PASS 5855~5875 -28.02 ≤15.38 PASS 5875~5925 -39.45 ≤-26.95 PASS 5925~5935 -38.23 ≤-27 PASS 11AC20S ISO Ant1 Low 5745 5650~5700 -39.59 ≤-26.62 PASS 5700~5720 -20.99 ≤15.18 PASS 5720~5725 -21.72 ≤17.13 PASS 5760~5650 -38.82 ≤-27 PASS High 5825 5850~5855 -22.64 ≤16.34 PASS 5855~5875 -25.3 ≤15.35 PASS 5875~5925 -38.47 ≤-25.41 PASS 5925~5935 -38.26 ≤-27 PASS 11AC40S ISO Ant1 Low 5755 5650~5700 -39.22 ≤-26.10 PASS 5700~5720 -23.96 ≤12.97 PASS 5720~5725 -22.7 ≤15.74 PASS 5780~5650 -39.89 ≤-27 PASS FCCID:2BFIZ-L018DR 39 High 5795 5850~5855 -29.04 ≤17.16 PASS 5855~5875 -32.2 ≤11.59 PASS 5875~5925 -38.89 ≤-26.59 PASS 5925~5935 -38.71 ≤-27 PASS 11AX20SI SO Ant1 Low 5745 5650~5700 -40.36 ≤-26.70 PASS 5700~5720 -29.14 ≤14.89 PASS 5720~5725 -27.37 ≤16.08 PASS 5760~5650 -39.94 ≤-27 PASS High 5825 5850~5855 -32.53 ≤16.34 PASS 5855~5875 -31.41 ≤15.05 PASS 5875~5925 -38.96 ≤-26.91 PASS 5925~5935 -37.74 ≤-27 PASS 11AX40SI SO Ant1 Low 5755 5650~5700 -39.61 ≤-26.80 PASS 5700~5720 -29.46 ≤11.57 PASS 5720~5725 -29.3 ≤16.04 PASS 5780~5650 -39.53 ≤-27 PASS High 5795 5850~5855 -39.76 ≤16.03 PASS 5855~5875 -38.87 ≤10.20 PASS 5875~5925 -38.14 ≤-26.59 PASS 5925~5935 -38.14 ≤-27 PASS FCCID:2BFIZ-L018DR 40 Test GraphsB4 11A_Ant1_Low_5745 11A_Ant1_High_5825 11N20SISO_Ant1_Low_5745 FCCID:2BFIZ-L018DR 41 11N20SISO_Ant1_High_5825 11N40SISO_Ant1_Low_5755 FCCID:2BFIZ-L018DR 42 11N40SISO_Ant1_High_5795 11AC20SISO_Ant1_Low_5745 11AC20SISO_Ant1_High_5825 FCCID:2BFIZ-L018DR 43 11AC40SISO_Ant1_Low_5755 11AC40SISO_Ant1_High_5795 FCCID:2BFIZ-L018DR 44 11AX20SISO_Ant1_Low_5745 11AX20SISO_Ant1_High_5825 11AX40SISO_Ant1_Low_5755 FCCID:2BFIZ-L018DR 45 11AX40SISO_Ant1_High_5795 FCCID:2BFIZ-L018DR 46 Appendix E.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5745 30~5650 5446.37 -40.53 ≤-27 PASS 5925~27000 24208.27 -31.63 ≤-27 PASS 5785 30~5650 5468.47 -39.89 ≤-27 PASS 5925~27000 24293.97 -32.13 ≤-27 PASS 5825 30~5650 5470.91 -40.07 ≤-27 PASS 5925~27000 24313.64 -30.72 ≤-27 PASS 11N20SISO Ant1 5745 30~5650 5461.36 -40.16 ≤-27 PASS 5925~27000 26940.99 -31.51 ≤-27 PASS 5785 30~5650 2721.61 -40.74 ≤-27 PASS 5925~27000 26889.71 -29.61 ≤-27 PASS 5825 30~5650 5429.13 -39.35 ≤-27 PASS 5925~27000 25625.21 -31.71 ≤-27 PASS 11N40SISO Ant1 5755 30~5650 5473.16 -40.49 ≤-27 PASS 5925~27000 26010.88 -30.81 ≤-27 PASS 5795 30~5650 2699.5 -39.74 ≤-27 PASS 5925~27000 24128.18 -31.4 ≤-27 PASS 11AC20SISO Ant1 5745 30~5650 5465.85 -40.92 ≤-27 PASS 5925~27000 24230.04 -31.92 ≤-27 PASS 5785 30~5650 5530.11 -40.11 ≤-27 PASS 5925~27000 26556.02 -31 ≤-27 PASS 5825 30~5650 5462.1 -40.53 ≤-27 PASS 5925~27000 25222.68 -31.58 ≤-27 PASS 11AC40SISO Ant1 5755 30~5650 3188.07 -40.61 ≤-27 PASS 5925~27000 26005.26 -32.51 ≤-27 PASS 5795 30~5650 5450.49 -39.42 ≤-27 PASS 5925~27000 26043.9 -31.57 ≤-27 PASS 11AX20SISO Ant1 5745 30~5650 3163.71 -40.84 ≤-27 PASS 5925~27000 24240.58 -32.2 ≤-27 PASS 5785 30~5650 5337.53 -40.01 ≤-27 PASS 5925~27000 25030.19 -31.76 ≤-27 PASS 5825 30~5650 5411.15 -39.95 ≤-27 PASS 5925~27000 25602.03 -31.64 ≤-27 PASS 11AX40SISO Ant1 5755 30~5650 2624.94 -40.22 ≤-27 PASS 5925~27000 24310.13 -31.58 ≤-27 PASS 5795 30~5650 2670.28 -40.06 ≤-27 PASS 5925~27000 25949.06 -30.8 ≤-27 PASS FCCID:2BFIZ-L018DR 47 Test Graphs 11A_Ant1_5745_30~5650 11A_Ant1_5745_5925~27000 11A_Ant1_5785_30~5650 FCCID:2BFIZ-L018DR 48 11A_Ant1_5785_5925~27000 11A_Ant1_5825_30~5650 FCCID:2BFIZ-L018DR 49 11A_Ant1_5825_5925~27000 11N20SISO_Ant1_5745_30~5650 11N20SISO_Ant1_5745_5925~27000 FCCID:2BFIZ-L018DR 50 11N20SISO_Ant1_5785_30~5650 11N20SISO_Ant1_5785_5925~27000 FCCID:2BFIZ-L018DR 51 11N20SISO_Ant1_5825_30~5650 11N20SISO_Ant1_5825_5925~27000 11N40SISO_Ant1_5755_30~5650 FCCID:2BFIZ-L018DR 52 11N40SISO_Ant1_5755_5925~27000 11N40SISO_Ant1_5795_30~5650 FCCID:2BFIZ-L018DR 53 11N40SISO_Ant1_5795_5925~27000 11AC20SISO_Ant1_5745_30~5650 11AC20SISO_Ant1_5745_5925~27000 FCCID:2BFIZ-L018DR 54 11AC20SISO_Ant1_5785_30~5650 11AC20SISO_Ant1_5785_5925~27000 FCCID:2BFIZ-L018DR 55 11AC20SISO_Ant1_5825_30~5650 11AC20SISO_Ant1_5825_5925~27000 11AC40SISO_Ant1_5755_30~5650 FCCID:2BFIZ-L018DR 56 11AC40SISO_Ant1_5755_5925~27000 11AC40SISO_Ant1_5795_30~5650 FCCID:2BFIZ-L018DR 57 11AC40SISO_Ant1_5795_5925~27000 11AX20SISO_Ant1_5745_30~5650 11AX20SISO_Ant1_5745_5925~27000 FCCID:2BFIZ-L018DR 58 11AX20SISO_Ant1_5785_30~5650 11AX20SISO_Ant1_5785_5925~27000 FCCID:2BFIZ-L018DR 59 11AX20SISO_Ant1_5825_30~5650 11AX20SISO_Ant1_5825_5925~27000 11AX40SISO_Ant1_5755_30~5650 FCCID:2BFIZ-L018DR 60 11AX40SISO_Ant1_5755_5925~27000 11AX40SISO_Ant1_5795_30~5650 FCCID:2BFIZ-L018DR 61 11AX40SISO_Ant1_5795_5925~27000 FCCID:2BFIZ-L018DR 62 Appendix E.8:Emissions in Restricted Bands Test Result TestMode Antenna ChName Freq(MHz) Detector Freq [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant1 Low 5745 Peak 5650.000 -38.847 ≤-27.00 PASS Peak 5700.000 -40.1 ≤10.00 PASS Peak 5720.000 -30.14 ≤15.60 PASS Peak 5725.000 -24.73 ≤27.00 PASS High 5825 Peak 5850.000 -35.391 ≤27.00 PASS Peak 5855.000 -35.66 ≤15.60 PASS Peak 5875.000 -36.42 ≤10.00 PASS Peak 5925.000 -37.67 ≤-27.00 PASS 11N20SISO Ant1 Low 5745 Peak 565…

Text truncated - open the document above for the full version.

FCCID:2BFIZ-L018DR 1 Case No. : GTS20250903022-1-12 Ambient Condition: 22 °C, 48 %RH According Standard: ■Part15E Test Date: 2025.9.13-2025.10.21 Test Engineer: Evan ouyang Appendix E.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 17.907 5735.9952 5753.9022 --- --- 5785 17.945 5775.9623 5793.9073 --- --- 5825 17.947 5815.8949 5833.8419 --- --- 11N20SISO Ant1 5745 19.012 5735.4380 5754.4500 --- --- 5785 19.013 5775.4321 5794.4451 --- --- 5825 19.010 5815.4314 5834.4414 --- --- 11N40SISO Ant1 5755 37.451 5736.3277 5773.7787 --- --- 5795 37.665 5776.1304 5813.7954 --- --- 11AC20SISO Ant1 5745 19.132 5735.4171 5754.5491 --- --- 5785 19.091 5775.4144 5794.5054 --- --- 5825 19.018 5815.4300 5834.4480 --- --- 11AC40SISO Ant1 5755 37.516 5736.2089 5773.7249 --- --- 5795 37.743 5776.0974 5813.8404 --- --- 11AX20SISO Ant1 5745 19.639 5735.1507 5754.7897 --- --- 5785 19.706 5775.1647 5794.8707 --- --- 5825 19.681 5815.1341 5834.8151 --- --- 11AX40SISO Ant1 5755 38.642 5735.7169 5774.3589 --- --- 5795 38.597 5775.7609 5814.3579 --- --- FCCID:2BFIZ-L018DR 2 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BFIZ-L018DR 3 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 4 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 5 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 6 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 7 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 8 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 9 FCCID:2BFIZ-L018DR 10 Appendix E.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] Limit[MHz] Verdict 11A Ant1 5745 16.400 0.5 PASS 5785 16.360 0.5 PASS 5825 16.360 0.5 PASS 11N20SISO Ant1 5745 17.600 0.5 PASS 5785 17.640 0.5 PASS 5825 17.640 0.5 PASS 11N40SISO Ant1 5755 36.400 0.5 PASS 5795 36.400 0.5 PASS 11AC20SISO Ant1 5745 17.600 0.5 PASS 5785 17.640 0.5 PASS 5825 17.600 0.5 PASS 11AC40SISO Ant1 5755 36.320 0.5 PASS 5795 36.320 0.5 PASS 11AX20SISO Ant1 5745 19.000 0.5 PASS 5785 19.000 0.5 PASS 5825 19.040 0.5 PASS 11AX40SISO Ant1 5755 38.080 0.5 PASS 5795 38.080 0.5 PASS FCCID:2BFIZ-L018DR 11 Test Graphs B4 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BFIZ-L018DR 12 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 13 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 14 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 15 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 16 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 17 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 18 FCCID:2BFIZ-L018DR 19 AppendixE.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant1 5745 2.03 2.27 89.43 0.49 0.49 5785 1.39 1.43 97.20 0.12 0.72 5825 2.03 2.20 92.27 0.35 0.49 11N20SISO Ant1 5745 1.89 2.08 90.87 0.42 0.53 5785 1.89 2.09 90.43 0.44 0.53 5825 1.89 2.10 90.00 0.46 0.53 11N40SISO Ant1 5755 0.93 1.15 80.87 0.92 1.08 5795 0.93 1.12 83.04 0.81 1.08 11AC20SISO Ant1 5745 1.90 2.02 94.06 0.27 0.53 5785 1.90 2.07 91.79 0.37 0.53 5825 1.90 2.08 91.35 0.39 0.53 11AC40SISO Ant1 5755 0.94 1.16 81.03 0.91 1.06 5795 0.93 1.14 81.58 0.88 1.08 11AX20SISO Ant1 5745 1.47 1.67 88.02 0.55 0.68 5785 1.47 1.68 87.50 0.58 0.68 5825 1.46 1.70 85.88 0.66 0.68 11AX40SISO Ant1 5755 0.77 1.05 73.33 1.35 1.30 5795 0.76 0.99 76.77 1.15 1.32 FCCID:2BFIZ-L018DR 20 Test Graphs 11A_Ant1_5745 11A_Ant1_5785 11A_Ant1_5825 FCCID:2BFIZ-L018DR 21 11N20SISO_Ant1_5745 11N20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 22 11N20SISO_Ant1_5825 11N40SISO_Ant1_5755 11N40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 23 11AC20SISO_Ant1_5745 11AC20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 24 11AC20SISO_Ant1_5825 11AC40SISO_Ant1_5755 11AC40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 25 11AX20SISO_Ant1_5745 11AX20SISO_Ant1_5785 FCCID:2BFIZ-L018DR 26 11AX20SISO_Ant1_5825 11AX40SISO_Ant1_5755 11AX40SISO_Ant1_5795 FCCID:2BFIZ-L018DR 27 FCCID:2BFIZ-L018DR 28 Appendix E.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Freq(MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5745 10.18 89.43 0.49 10.67 ≤30.00 PASS 5785 10.70 97.20 0.12 10.82 ≤30.00 PASS 5825 10.43 92.27 0.35 10.78 ≤30.00 PASS 11N20SISO Ant1 5745 10.43 90.87 0.42 10.85 ≤30.00 PASS 5785 10.86 90.43 0.44 11.30 ≤30.00 PASS 5825 10.83 90.00 0.46 11.29 ≤30.00 PASS 11N40SISO Ant1 5755 10.91 80.87 0.92 11.83 ≤30.00 PASS 5795 12.76 83.04 0.81 13.57 ≤30.00 PASS 11AC20SISO Ant1 5745 13.34 94.06 0.27 13.61 ≤30.00 PASS 5785 13.41 91.79 0.37 13.78 ≤30.00 PASS 5825 13.55 91.35 0.39 13.94 ≤30.00 PASS 11AC40SISO Ant1 5755 7.54 81.03 0.91 8.45 ≤30.00 PASS 5795 13.13 81.58 0.88 14.01 ≤30.00 PASS 11AX20SISO Ant1 5745 9.59 88.02 0.55 10.14 ≤30.00 PASS 5785 9.93 87.50 0.58 10.51 ≤30.00 PASS 5825 9.47 85.88 0.66 10.13 ≤30.00 PASS 11AX40SISO Ant1 5755 9.38 73.33 1.35 10.73 ≤30.00 PASS 5795 9.23 76.77 1.15 10.38 ≤30.00 PASS FCCID:2BFIZ-L018DR 29 Appendix E.5: Maximum power spectral density Test Result TestMode Ante…

Text truncated - open the document above for the full version.
