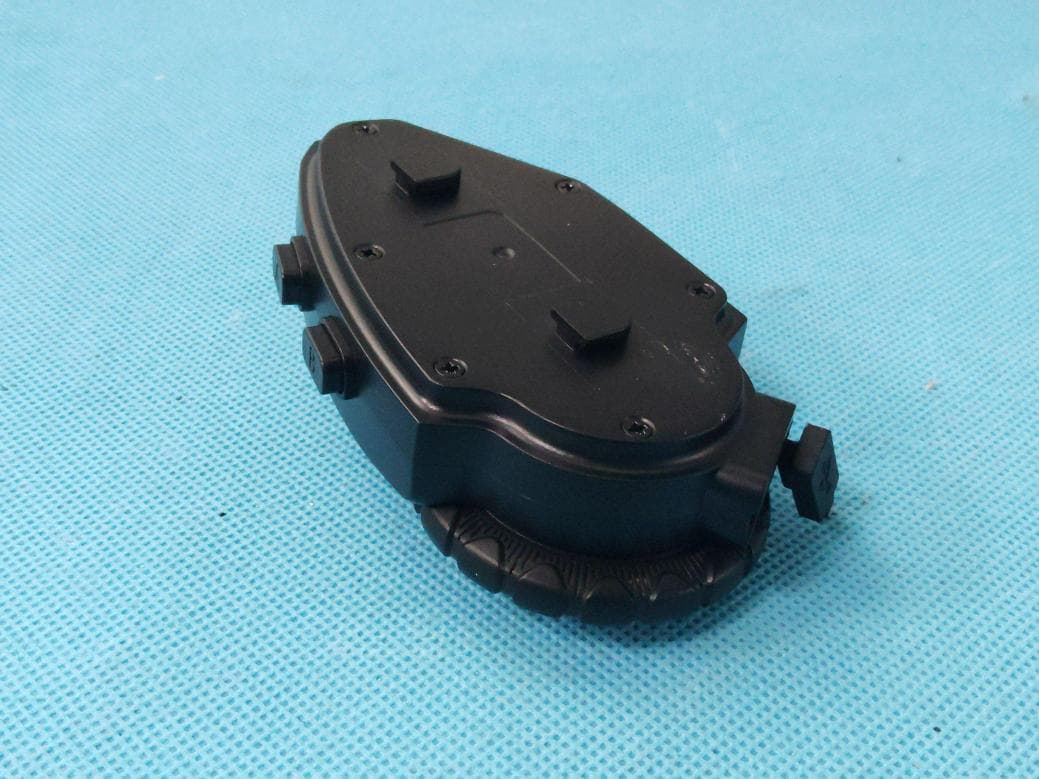

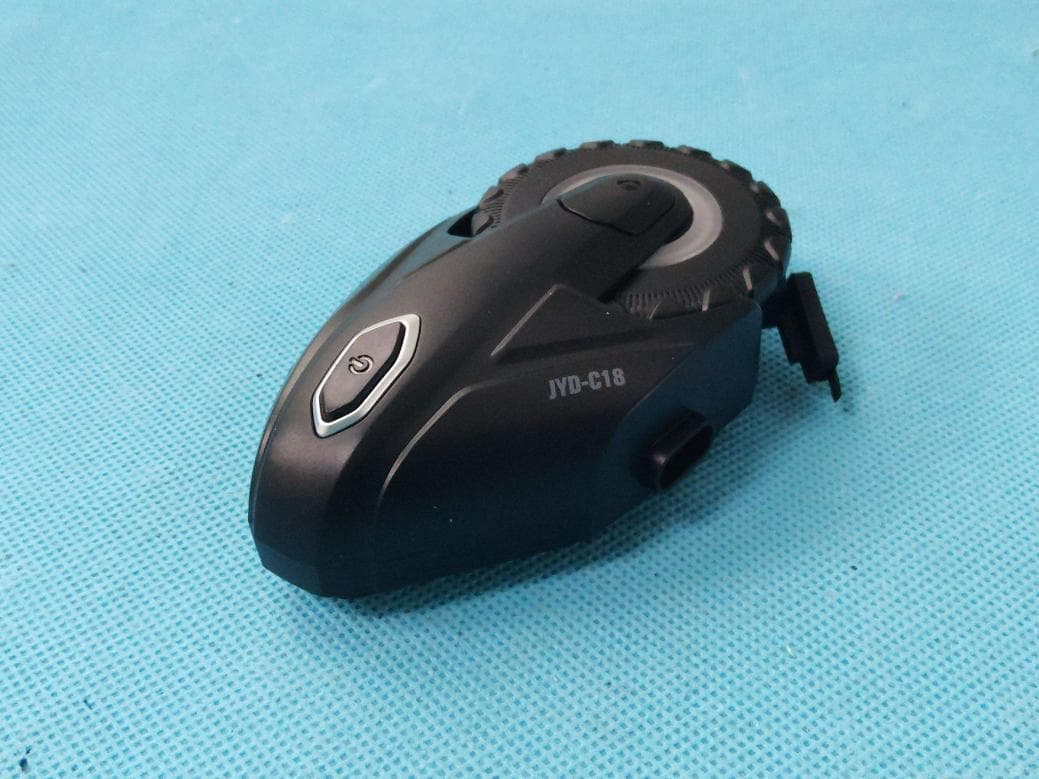

ReportNo.:CISRR26081227901 Page 71 of 76 9.EXTERNALANDINTERNALPHOTOS 9.1.ExternalPhotos ReportNo.:CISRR26081227901 Page 72 of 76 ReportNo.:CISRR26081227901 Page 73 of 76

Label Size:10mm*5mm FCC ID: 2BFL4-JYD-C18 Label Location

ReportNo.:CISRR26081227901 Page 74 of 76 9.2.InternalPhotos ReportNo.:CISRR26081227901 Page 75 of 76 ReportNo.:CISRR26081227901 Page 76 of 76 ------Endofthereport-----

ReportNo.: CISRR26081227902 Reporttemplateversion:CISE-TR-001-A0Page:1of5 TESTREPORT RFExposureEvaluation ReportNo.: CISRR26081227902 ProjectNo.: CISR260812279 FCCID:2BFL4-JYD-C18 Applicant:ShenzhenJiayoudaElectronicsCo.,Ltd Address: 711,BuildingC,LangkouBaokeIndustrialZone,Longhua District,Shenzhen City,China Manufacturer: ShenzhenJiayoudaElectronicsCo.,Ltd Address: 711,BuildingC,LangkouBaokeIndustrialZone,Longhua District,Shenzhen City,China ProductName: WirelessEarphone TradeMark: - Model/Typereference: JYD-C18 ListedModel(s):- Standard:47CFRPart2.1093 DateofsamplereceiptAugust12,2026 TestdateAugust12,2026toAugust19,2026 IssuedateAugust19,2026 Testresult:Complied Reviewedby:GenryLong Approvedby:HansHu Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangceTesting TechnologyCo.,Ltd. ReportNo.: CISRR26081227902 Reporttemplateversion:CISE-TR-001-A0Page:2of5 1.APPLICABLESTANDARD 47CFRPart2.1093:Radiofrequencyradiationexposureevaluation:portabledevices ANSIC95.1–2019:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortableDevicesRF ExposureProceduresandEquipmentAuthorizationPolicies. 47CFRPart1.1307:Actionsthatmayhaveasignificantenvironmentaleffect,forwhichEnvironmental Assessments(EAs)mustbeprepared. 2.REPORTVERSION VersionNo.IssuedateDescription 00August19,2026Original ReportNo.: CISRR26081227902 Reporttemplateversion:CISE-TR-001-A0Page:3of5 3.RADIOSPECIFICATIONDESCRIPTION Bluetooth Supportedtype:BREDRLE-1Mbps LE-2Mbps Note:PleaserefertoRFreportfordetailedtechnicalspecifications 4.SIMULTANEOUSTRANSMISSIONANALYSIS Thesedevicesusetwotransmittingmodulesandantennastosimultaneouslyconductvoice(VoIP)and Bluetooth(BT)communications.Bluetoothenablessimultaneoustransmission. ReportNo.: CISRR26081227902 Reporttemplateversion:CISE-TR-001-A0Page:4of5 5.TESTRESULT 5.1.Standalonetransmission Limit: KDB447498D01v06,Clause4.3.1a) For100MHzto6GHzandtestseparationdistances≤50mm,the1-gand10-g SARtestexclusionthresholdsaredeterminedbythefollowing: [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparation distance,mm)]*[√f(GHz)]≤3.0for1-gSAR,and≤7.5for10-gextremitySAR,where f(GHz)istheRFchanneltransmitfrequencyinGHz PoweranddistanceareroundedtothenearestmWandmmbeforecalculation31The resultisroundedtoonedecimalplaceforcomparison Thevalues3.0and7.5arereferredtoasnumericthresholdsinstepb)below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm, andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingto4.1f)isappliedtodetermine SARtestexclusion. Result: Passed TestData Radiotype Frequency (GHz) Maximum output power #1 (dBm) Antenna gain #2 (dBi) Maximum EIRP #3 (dBm) Maximum tune-up EIRP #4 (dBm) Minimum distance (mm) Evaluated value LimitResult Bluetooth- Ant1 2.402-3.202.5-0.700.05.000.31003.00PASS Bluetooth- Ant2 2.402-2.892.5-0.390.05.000.31003.00PASS Note #1:ThisvaluecomesfromtheRFtestreport. #2:Thisvalueisdeclaredbytheapplicant. #3:EIRP=Maximumoutputpower+Antennagain. #4:Thisvalueisdeclaredbytheapplicant. ReportNo.: CISRR26081227902 Reporttemplateversion:CISE-TR-001-A0Page:5of5 5.2.Simultaneoustransmission Limit: KDB447498D01v06,Clause4.3.2,47CFRPart1.1307 InthecaseofxedRFsourcesoperatinginthesametime-averagingperiod,orof multiplemobileorportableRFsourceswithinadeviceoperatinginthesametime averagingperiod,ifthesumofthefractionalcontributionstotheapplicablethresholds islessthanorequalto1asindicatedinthefollowingequation. Where a=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(B)ofthissectionforP,includingexistingexempttransmittersandthosebeing added. b=numberoffxed,mobile,orportableRFsourcesclaimingexemptionusingparagraph (b)(3)(i)(C)ofthissectionforThresholdERP,includingexistingexempttransmittersand thosebeingadded. c=numberofexistingfixed,mobile,orportableRFsourceswithknownevaluationforthespeci edminimumdistanceincludingexistingevaluatedtransmitters. P j =theavailablemaximumtime-averagedpowerortheERP,whicheverisgreater,forxed, mobile,orportableRFsourceiatadistancebetween0.5cmand40cm(inclusive). P th,j =theexemptionthresholdpower(P)accordingtoparagraph(b)(3)(i)(B)ofthissectionfor xed,mobile,orportableRFsourcei. ERP j =theERPoffixed,mobile,orportableRFsourcej. ERP th,j =exemptionthresholdERPforfixed,mobile,orportableRFsourcej,atadistanceofat leastλ/2πaccordingtotheapplicableformulaofparagraph(b)(3)(i)(C)ofthissection. Evaluated k =themaximumreportedSARorMPEoffixed,mobile,orportableRFsourcekeither inthedeviceoratthetransmittersitefromanexistingevaluationatthelocationofexposure. ExposureLimit k =eitherthegeneralpopulation/uncontrolledmaximumpermissibleexposure (MPE)orspecicabsorptionrate(SAR)limitforeachxed,mobile,orportableRFsourcek, asapplicablefrom§1.1310ofthischapter. Result:Passed TESTDATA Type Evaluated value Standalone Limit RaitoValue (Evaluated value/ Standalone Limit) Sum Simultaneous Limit Result Bluetooth- Ant1 0.310030.103 0.2061.000PASS Bluetooth- Ant2 0.310030.103 --------EndofReport--------

ReportNo.:CISRR26081227901 Thetestresultsrelateonlytothetestedsamples. ThetestreportshouldnotbereproducedexceptinfullwithoutthewrittenapprovalofShenzhenBangce TestingTechnologyCo.,Ltd. Page1of68 TESTREPORT ReportNo.CISRR26081227901 ProjectNo.CISR260812279 FCCID2BFL4-JYD-C18 ApplicantShenzhenJiayoudaElectronicsCo.,Ltd Address 711,BuildingC,LangkouBaokeIndustrialZone,Longhua District,Shenzhen City,China ManufacturerShenzhenJiayoudaElectronicsCo.,Ltd Address 711,BuildingC,LangkouBaokeIndustrialZone,Longhua District,Shenzhen City,China ProductNameWirelessEarphone Trademark- Model/TypereferenceJYD-C18 ListedModel(s)- Standard 47CFRPart15.247 DateofsamplereceiptAugust12,2026 TestdateAugust12,2026toAugust19,2026 IssuedateAugust19,2026 TestresultComplied Reviewedby:GenryLong Approvedby:HansHu ReportNo.:CISRR26081227901 Page 2 of 68 Contents 1.STANDARDANDAPPLICABLETESTMETHODS........................................................................................3 2.REPORTVERSION..........................................................................................................................................3 3.TESTDESCRIPTION.......................................................................................................................................4 4.SUMMARY........................................................................................................................................................5 4.1.ProductDescription*..................................................................................................................................5 4.2.RadioSpecificationDescription*..............................................................................................................5 4.3.ModificationofEUT.....................................................................................................................................6 4.4.Deviationfromstandards...........................................................................................................................6 4.5.TestingSite...................................................................................................................................................6 5.TESTCONFIGURATION.................................................................................................................................7 5.1.Testfrequencylist.......................................................................................................................................7 5.2.Descriptionsoftestmode...........................................................................................................................7 5.3.Supportunitusedintestconfiguration....................................................................................................7 5.4.Testsampleinformation.............................................................................................................................7 5.5.Environmentalconditions...........................................................................................................................7 5.6.Statementofthemeasurementuncertainty.............................................................................................8 5.7.EquipmentUsedduringtheTest................................................................................................................9 6.TESTRESULTS.............................................................................................................................................11 6.1.EvaluationResults(Evaluation)...............................................................................................................11 6.1.1.AntennaRequirement.............................................................................................................................11 6.2.RadioSpectrumMatterTestResults(RF)...............................................................................................12 6.2.1.ConductedEmissionatACpowerline.................................................................................................12 6.2.2.20dBBandwidth......................................................................................................................................15 6.2.3.MaximumConductedOutputPower.....................................................................................................17 6.2.4.ChannelSeparation................................................................................................................................18 6.2.5.NumberofHoppingFrequencies..........................................................................................................19 6.2.6.DwellTime...............................................................................................................................................20 6.2.7.Conductedbandedgeandspuriousemission...................................................................................22 6.2.8.Radiatedbandedgeemission...............................................................................................................24 6.2.9.RadiatedSpuriousEmission(below1GHz).........................................................................................29 6.2.10.RadiatedSpuriousEmission(Above1GHz)......................................................................................32 7.APPENDIXREPORT......................................................................................................................................39 7.1.ConductedPeakOutputPower................................................................................................................39 7.2.20dBBandwidth.........................................................................................................................................44 7.3.NumberOfHoppingChannel.................................................................................................................…

Text truncated - open the document above for the full version.

ReportNo.:CISRR26081227901 Page 50 of 68 7.4.CarrierFrequenciesSeparation TestResult Ant1： ModulationPacket Ant1Center frequency (MHz) Ant2Center frequency (MHz) Hopping Frequency Separation (MHz) Minimum Limit(MHz) Result GFSKDH52439.99072440.98910.99840.93PASS π/4DQPSK2-DH52439.99022440.990.99990.813PASS 8DPSK3-DH52440.00122441.00211.00080.793PASS TestGraphs GFSKπ/4DQPSK 8DPSK Ant2： ModulationPacket Ant1Center frequency (MHz) Ant2Center frequency (MHz) Hopping Frequency Separation (MHz) Minimum Limit(MHz) Result GFSKDH52440.00192441.01381.01190.93PASS π/4DQPSK2-DH52440.01722441.01430.99720.787PASS 8DPSK3-DH52440.01112441.00420.99300.793PASS TestGraphs ReportNo.:CISRR26081227901 Page 51 of 68 GFSKπ/4DQPSK 8DPSK ReportNo.:CISRR26081227901 Page 52 of 68 7.5.DutyCycle TestResult Ant1： ModulationPacketsChannel OnTime (ms) Period (ms) Duty Cycle(%) Duty Cycle (linear) Duty Cycle Factor (dB) 1/T GFSKDH5 02.9103.74877.640.77641.09910.3436 392.9103.74877.640.77641.09910.3436 782.9103.74877.640.77641.09910.3436 π/4DQPSK2-DH5 02.9163.74877.800.77801.09020.3429 392.9163.74877.800.77801.09020.3429 782.9163.74877.800.77801.09020.3429 8DPSK3-DH5 02.9163.74877.800.77801.09020.3429 392.9183.74877.850.77851.08740.3427 782.9163.74877.800.77801.09020.3429 TestGraphs GFSK(DH5)_Channel0GFSK(DH5)_Channel39 GFSK(DH5)_Channel78π/4DQPSK(2-DH5)_Channel0 ReportNo.:CISRR26081227901 Page 53 of 68 π/4DQPSK(2-DH5)_Channel39π/4DQPSK(2-DH5)_Channel78 8DPSK(3-DH5)_Channel08DPSK(3-DH5)_Channel39 8DPSK(3-DH5)_Channel78 Ant2： ModulationPacketsChannel OnTime (ms) Period (ms) Duty Cycle(%) Duty Cycle (linear) Duty Cycle Factor (dB) 1/T GFSKDH5 02.9103.74877.640.77641.09910.3436 392.9103.74877.640.77641.09910.3436 782.9103.74877.640.77641.09910.3436 π/4DQPSK2-DH5 02.9143.74877.750.77751.0930.3432 392.9163.74877.800.77801.09020.3429 782.9143.74877.750.77751.0930.3432 8DPSK3-DH502.9163.74877.800.77801.09020.3429 ReportNo.:CISRR26081227901 Page 54 of 68 392.9183.74877.850.77851.08740.3427 782.9183.74877.850.77851.08740.3427 TestGraphs GFSK(DH5)_Channel0GFSK(DH5)_Channel39 GFSK(DH5)_Channel78π/4DQPSK(2-DH5)_Channel0 π/4DQPSK(2-DH5)_Channel39π/4DQPSK(2-DH5)_Channel78 ReportNo.:CISRR26081227901 Page 55 of 68 8DPSK(3-DH5)_Channel08DPSK(3-DH5)_Channel39 8DPSK(3-DH5)_Channel78 ReportNo.:CISRR26081227901 Page 56 of 68 7.6.DwellTime TestResult Ant1： ModulationPacketChannel Pulse Width(ms) Numberof Pulsesin 31.6 seconds DwellTime (ms) Limit(ms)Result GFSKDH5 Hopping 2.912105305.76 <400 PASS π/4DQPSK2-DH52.928102298.66PASS 8DPSK3-DH52.928110322.08PASS Note:Dwelltime=Pulsetime(ms)*NumberofPulsesin31.6seconds TestGraphs PulseWidth GFSK_DH5 NumberofPulsesin31.6seconds GFSK_DH5 PulseWidth π/4DQPSK_2-DH5 NumberofPulsesin31.6seconds π/4DQPSK_2-DH5 ReportNo.:CISRR26081227901 Page 57 of 68 PulseWidth 8DPSK_3-DH5 NumberofPulsesin31.6seconds 8DPSK_3-DH5 Ant2： ModulationPacketChannel Pulse Width(ms) Numberof Pulsesin 31.6 seconds DwellTime (ms) Limit(ms)Result GFSKDH5 Hopping 2.912110320.32 <400 PASS π/4DQPSK2-DH52.928113330.86PASS 8DPSK3-DH52.928105307.44PASS Note:Dwelltime=Pulsetime(ms)*NumberofPulsesin31.6seconds TestGraphs PulseWidth GFSK_DH5 NumberofPulsesin31.6seconds GFSK_DH5 PulseWidthNumberofPulsesin31.6seconds ReportNo.:CISRR26081227901 Page 58 of 68 π/4DQPSK_2-DH5π/4DQPSK_2-DH5 PulseWidth 8DPSK_3-DH5 NumberofPulsesin31.6seconds 8DPSK_3-DH5 ReportNo.:CISRR26081227901 Page 59 of 68 7.7.ConductedOutOfBandEmission TestResult Ant1： Non-Hopping ModulationPacketChannel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result GFSKDH5 0 2396.85-47.431-24.07-23.361PASS 2400.00-50.090-24.07-26.020PASS 4803.80-34.683-24.07-10.613PASS 394882.09-36.396-25.17-11.226PASS 78 2483.50-48.880-25.1-23.780PASS 4960.33-36.316-25.1-11.216PASS π/4DQPSK2-DH5 0 2392.74-47.826-24.42-23.406PASS 2400.00-50.210-24.42-25.790PASS 4803.80-41.074-24.42-16.654PASS 394881.25-41.330-25.39-15.940PASS 78 2483.50-47.570-25.16-22.410PASS 4960.33-33.000-25.16-7.840PASS 8DPSK3-DH5 0 2392.85-47.361-24.32-23.041PASS 2400.00-49.650-24.32-25.330PASS 4803.80-39.498-24.32-15.178PASS 394882.09-41.266-25.53-15.736PASS 78 2483.50-49.050-25.04-24.010PASS 4960.33-33.523-25.04-8.483PASS Note:inputcompensationcoeffcient(dB)=CableLoss(dB) Hopping ModulationPacketChannel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) OverLimit (dB) Result GFSKDH5 Hopping 2400.00-46.250-24.03-22.220PASS 2483.50-46.430-24.59-21.840PASS π/4DQPSK2-DH5 2397.00-46.655-24.27-22.385PASS 2400.00-48.590-24.27-24.320PASS 2483.50-47.650-24.57-23.080PASS 8DPSK3-DH5 2396.38-46.523-23.97-22.553PASS 2400.00-47.490-23.97-23.520PASS 2483.50-47.080-24.62-22.460PASS Note:inputcompensationcoeffcient(dB)=CableLoss(dB) TestGraphs ReportNo.:CISRR26081227901 Page 60 of 68 OutOfBandEmission GFSK_DH5_Channel0 OutOfBandEmission π/4DQPSK_2-DH5_Channel0 30.0MHz-25000.0MHz GFSK_DH5_Channel0 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel0 OutOfBandEmission GFSK_DH5_Channel39 OutOfBandEmission π/4DQPSK_2-DH5_Channel39 ReportNo.:CISRR26081227901 Page 61 of 68 30.0MHz-25000.0MHz GFSK_DH5_Channel39 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel39 OutOfBandEmission GFSK_DH5_Channel78 OutOfBandEmission π/4DQPSK_2-DH5_Channel78 30.0MHz-25000.0MHz GFSK_DH5_Channel78 30.0MHz-25000.0MHz π/4DQPSK_2-DH5_Channel78 ReportNo.:CISRR26081227901 Page 62 of 68 OutOfBandEmission 8DPSK_3-DH5_Channel0 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel0 OutOfBandEmission 8DPSK_3-DH5_Channel39 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel39 OutOfBandEmission 8DPSK_3-DH5_Channel78 30.0MHz-25000.0MHz 8DPSK_3-DH5_Channel78 ReportNo.:CISRR26081227901 Page 63 of 68 OutOfBandEmission(Ant1) GFSK_DH5_ChannelHopping OutOfBandEmission(Ant1) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Ant2) GFSK_DH5_ChannelHopping OutOfBandEmission(Ant2) π/4DQPSK_2-DH5_ChannelHopping OutOfBandEmission(Ant1) 8DPSK_3-DH5_ChannelHopping OutOfBandEmission(Ant2) 8DPSK_3-DH5_ChannelHopping Ant2： Non-Hopping ModulationPacketChannel OOB Emission Frequency (MHz) OOB Emission Leve…

Text truncated - open the document above for the full version.

深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Add:412, Building 7, Phase II, Nanshan Yungu Entrepreneurship Park, No. 2 Pingshan 1st Road, Pingshan Community, Taoyuan Street, Nanshan District, Shenzhen Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 1 OF 12 3.2X1.6X1.0 (mm) WiFi/Bluetooth Ceramic Chip Antenna Engineering Specification 1. Product Number (1)Product Type Chip Antenna (2)Size Code 3.2x1.6x1.0mm (3)Type Code H3 (4)Packing Plastic Packaging (5)Frequency 2.45GHz 5 4 3 2 1 2G45 X H3 3216 YF 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 2 OF 12 2. Features *Stable and reliable in performances *Low temperature coefficient of frequency *Low profile, compact size *RoHS compliance *SMT processes compatible 3. Applications *Bluetooth earphone systems *Hand-held devices when WiFi /Bluetooth functions are needed, e.g., Smart phone. *IEEE802.11 b/g/n *ZigBee *Wireless PCMCIA cards or USB dongle 4. Description Yingfeng chip antenna series are specially designed for WiFi/Bluetooth applications. Based on yingfeng proprietary design and processes, this chip antenna has excellent stability and sensitivity to consistently provide high signal reception efficiency. 5. Electrical Specifications (80 x 40 mm 2 ground plane) 5-1. Electrical Table Characteristics Specifications Unit Outline Dimensions 3.2x1.6x1.0 mm Working Frequency 2400~2500 MHz VSWR 2 Max. Impedance 50  Polarization Linear Polarization Gain Peak 4(typical) dBi Efficiency 80 (typical) % 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 3 OF 12 5-2. Return Loss & VSWR Return Loss (S 11 ) VSWR(S 11 ) 6. Antenna Dimensions & Test Board (unit: mm) a. Antenna Dimensions b. Test Board with Antenna 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 4 OF 12 80 40 Unit: mm 7. Radiation Pattern (80 x 40 mm 2 ground plane) 7-1. 3D Gain Pattern @ 2442 MHz Z X Y 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 5 OF 12 7-2. 3D Efficiency Table Frequency( MHz) 2400 2410 2420 2430 2442 2450 2460 2470 2480 2490 2500 Efficiency (dB) -1.4 -1.0 -0.9 -0.7 -0.7 -0.8 -0.9 -1.1 -1.2 -1.3 -1.4 Efficiency (%) 72.8 73.7 74.3 74.4 75.5 75.0 74.0 73.6 73.1 72.6 71.5 Gain (dBi) 2.1 2.2 2.3 2.4 2.5 2.5 2.4 1.8 1.7 1.6 1.4 Y X Z Y X X Y Z 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 6 OF 12 7-3. 3D Efficiency vs. Frequency 8. Layout Guide a. Solder Land Pattern: Land pattern for soldering (gray marking areas) is as shown below. Depending on Customer’s requirement, matching circuit as shown below is also recommended. Efficiency vs. Frequency 50 60 70 80 90 100 24002410242024302442245024602470248024902500 Frequency(MHz) Efficiency(%) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 7 OF 12 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 8 OF 12 9. Frequency tuning a. Chip antenna tuning scenario： b. Matching circuit：(Center frequency is about 2442 MHz @ 80 x 40 mm 2 ground plane) System Matching Circuit Component Location Description Vendor Toleranc e 1 1.2 pF* Murata (0402) ±0.1 pF 2 10PF* Murata(0402) ±0.5 PF 3 N/A* - - Fine tuning element 4 1.5 pF* Murata (0402) ±0.1 pF *Typical reference values which may need to be changed when circuit boards or part vendors are different. Matching circuit Feed 4. Fine tuning elemet 1 2 3 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 9 OF 12 c. Fine tuning element vs. Center frequency 10. Soldering Conditions a. Typical Soldering Profile for Lead-free Process Time 60-180s 60-150s 20- Pre- 150-200° 217°C 260° Temperature (°C) 深圳市迎丰天线技术有限公司 SHEN ZHEN YINGFENG ANTENNA TECHNOLOYCO.,LTD Prepared by : JIEXI Designed by : Jason Checked by : Jason Approved by：MR.FANG TITLE：3.2 x 1.6 x 1.0(mm) WiFi/Bluetooth Ceramic Chip Antenna (YF3216H3) Engineering Specification DOCUMENT YF3216H3X2G45 REV. NO. D PAGE 10 OF 12 11. Packing (1) Quantity/Reel: 3000 pcs/Reel: Packaging Information  Tape Specification: W Ao Bo Ko P F E D D1 Po P2 t 8.0 ±0.30 1.80 ±0.05 3.51 ±0.10 1.59 ±0.10 4.00 ±0.05 3.50 ±0.05 1.75 ±0.10 1.50 ±0.10 0.00 ±0.10 4.00 ±0.10 2.00 ±0.05 0.25 ±0.05  Reel Specificatio…

Text truncated - open the document above for the full version.

ReportNo.:CISRR26081227901 Page 69 of 76 8.TESTSETUPPHOTOS ConductedEmissionatACpowerline Radiatedbandedgeemission RadiatedSpuriousEmission(Above1GHz) ReportNo.:CISRR26081227901 Page 70 of 76 RadiatedSpuriousEmission(below1GHz)
