2BFPX-5003Wcar player

Product Name 5''SingleDinMP5Wireless CPAA ModelNo.：5003W Specificati ons MainBoard/VersionAllwinnerF133MainChip Memory512M MCUControlICAB5301H BluetoothICAB5301H wifimoduleAIC8800D(WIFI6) FM/RDSRadioIC8035 AmplifierIC7388 ScreenGradeA5inchHDIPS/Resolution854*480 TouchScreenINCEll Frontpanelplastic USBPlayback+Charging+Type-C Charging+Reset+MIC+DualknobButtons MetalUniversalSingle-DinMountingSize MachineStructureUniversalSingle-Din InstallationMethodUniversalSingle-DinMountingSize50*180MM StandardAccessoriesStandard：ISOcable8+5+5/RemoteControl/UseManual OptionalAccessories SteeringWheelControl/Rear-mountedMicrophone/12 lightscamera Product Functions VideoInputSupport1channelVideoinput AudioOutput Support1channelsubwooferand2channelL/Raudio output VideoOutputSupport1chanel/SimultaneousDisplay FrontUSBMediaPlaybackandCharging FrontType-CCharging BluetoothFunction Bluetooth5.2/SupportsMobileBluetooth Music/BluetoothHands-Free RearViewSupoorts1channelFastRearview/CVBSCamera RadioFrquencyAreaAsia,Europe,Russia,USA-1,USA-2,Japan,SoutheastAsia AudioFormat MP3、WMA、AAC、RM、FALCetcMP3、WMA、AAC、 RM、FALC VideoFormat MPEG-1/2/4、H264、H263、VC1、RV、RMVB、DivX、 SorensonSparK、Spark、VP8、AVSStream PhotoFormatJPG/BMP/JEPG/GIF/PNG MirrorLinkWire&WirelessMirrorLink/Carplay/Androidauto SpecialFunctionSingleDin5inchDoubleKnobbuttons OtherFunctions Multilingual/MultipleBootScreens/MultipleEQSound effects/Clock/Memory Parameter s Voltage12V,8Amax OutputPower4*25W USBTypeUSB2.0 OperatingTemperature-30~80°C ExtremeTemperature-35~85°C USBVoltage：Vcc_3.3V PackingList Qty./CTN20pcs GiftboxSize21.1*10.9*13.4CM CartonSize56.3*44*29.3CM CBM/CTN0.073CBM N.W/pcs0.5KG G.W/pcs0.7KG N.W/ctn14KG G.W/ctn15.2KG FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

LocalRepresentativeLetter ForCertificationServiceintheUSA FederalCommunicationsCommission EquipmentAuthorizationDivision,ApplicationProcessingBranch 7435OaklandMillsRoad Columbia,MD21048 Towhomitmayconcern PursuanttoSection2.911(d)(7),oftheCommission’sRules(47C.F.R.)weattestasfollowsfor theproductlistedbelow: FCCIDModelname 2BFPX-5003W5003W,2026C,2027C,2028C,2029C, 2025C,4022D,4168AI,4062AI,5001W, 5002W,5005W,5006W,5007W,5008W, 5009W,5010W,5011W,5012W,5013W, 5015W,5016W,5017W,5018W,5019W, 5001A,5003A,5005A,5008A,5009A, 5010A,5011A,5015A,5016A,5005C, 5009C,7311C,7315C,7316C,7312W, 7313W,7315W,7316W,7317W,7318W, 7319W,7335W,7336W,7337W,7338W, 7339W,7057W,7058W,7059W,7060W, 7061W,7062W,7063W,7065W,7066W, 7067W,7315A,7316A,7317A,7318A, 7319A,7335A,7336A,7337A,7338A, 7339A,7057A,7058A,7059A,7060A, 7061A,7062A,7063A,7065A,7066A, 7067A,7270W,7280W,7290W,9601W, 9601C,7270A,7280A,7290A,9601A, 6287W,6380W,6381W,6382W,6383W, 6385W,6386W,6387W,6388W,6389W, 6288W,6283A,6380A,6381A,6382A, 6383A,6385A,6386A,6387A,6388A, 6389A,6288A,9310W,9312W,9582W, 9510W,9010A,9113A,9311A,9026W, 1082W,1332W,1333W,1531A,1332A, 1333A,6509W,6510W,6511W,6512W, 6513W,6515W,6516W,6517W,6518W, 6510A,6511A,6512A,6513A,6515A, 6516A,6517A,6518A,T10,T20,T30,T40, T50,T60,T70,T80,T90 Weherebyacknowledgeasfollows: i.bothsigneesconfirmthatthepointofcontactacceptsresponsibilitytoactasaUS- AmericanRepresentativeonbehalfoftheapplicant ii.thepointofcontactprovidesthephysicalU.S.addressandemailaslistedbelow iii.bothpartiesmaintaintherequirementsofthisagreementfornolessthanoneyear afterthegranteehasterminatedallmarketingandimportationortheconclusionof anyCommission-relatedproceedinginvolvingtheequipment. iv.Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,the granteeisobligatedtonotifytheFCCwithin30daysviathegrantingTCB. US-AmericanPointofContactApplicant/ApprovalHolder SignatureDate:2026-2-3SignatureDate:2026-2-3 CompanyName:GLOCERTSTECHNOLOGYINCSHENZHENGOBETTER TECHNOLOGYCO.,LTD FRN:00363397370035246776 ContactName:HuiyingFanLongLi Address:19784SUNKISSEDRIDGEDR, RIVERSIDE,CA92507UnitedStates 3F,BuildingB,Hengchao IndustrialZone,Zhoushi Road,ShiyanTown,Bao’an District,ShenzhenCity,China Phone:(626)588-8039+8613923874975 Email:[email protected]@qq.com

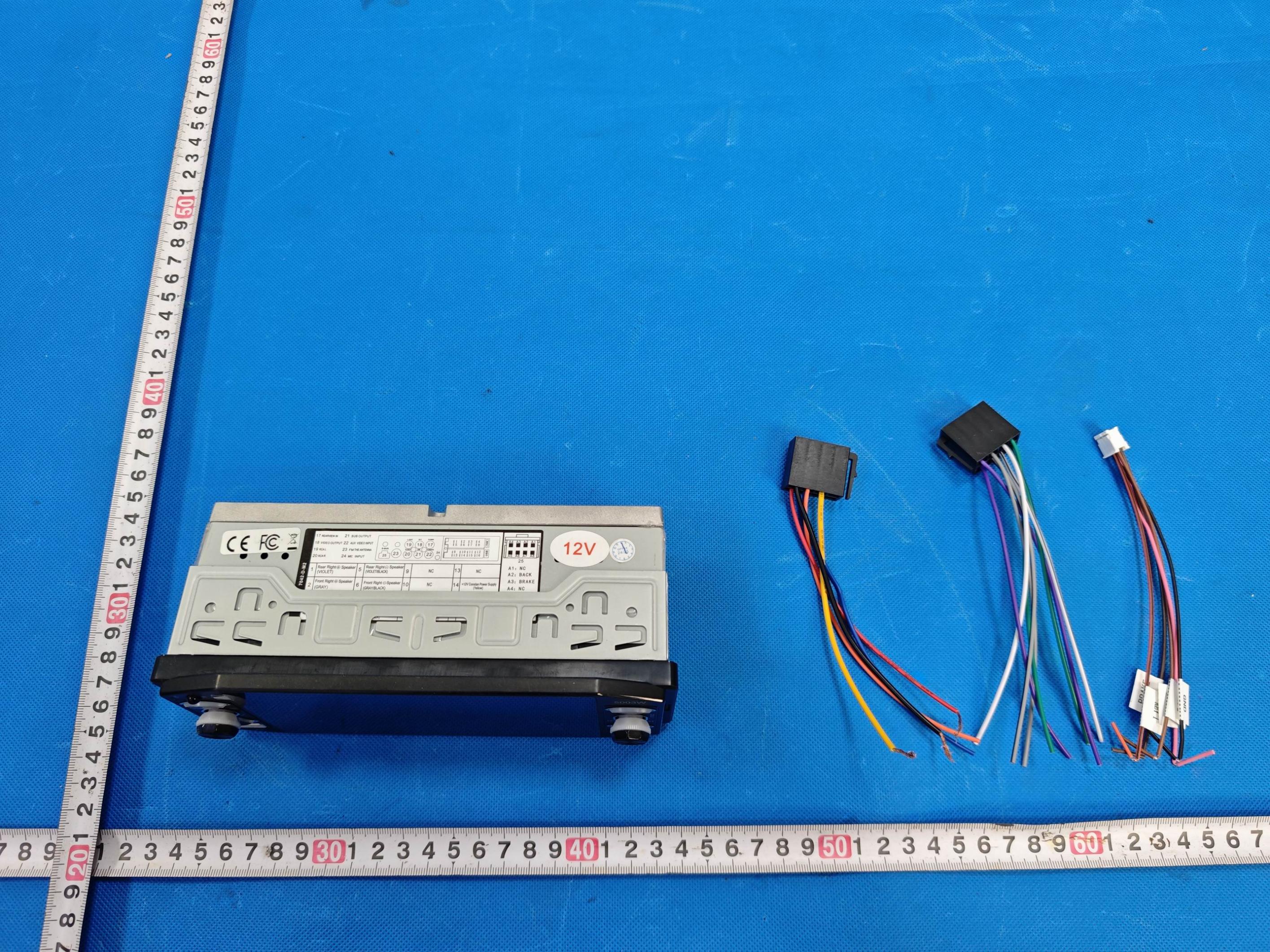

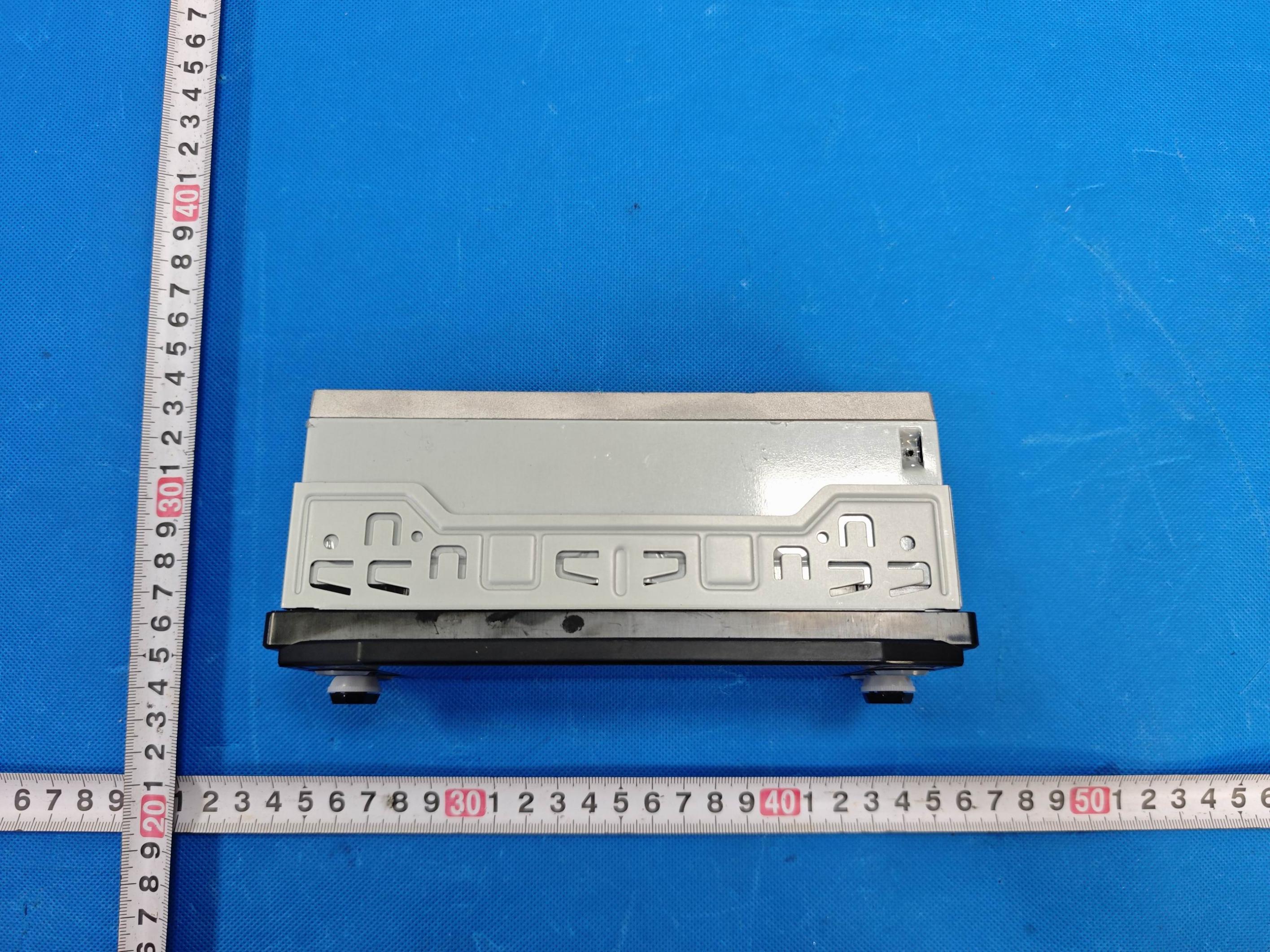

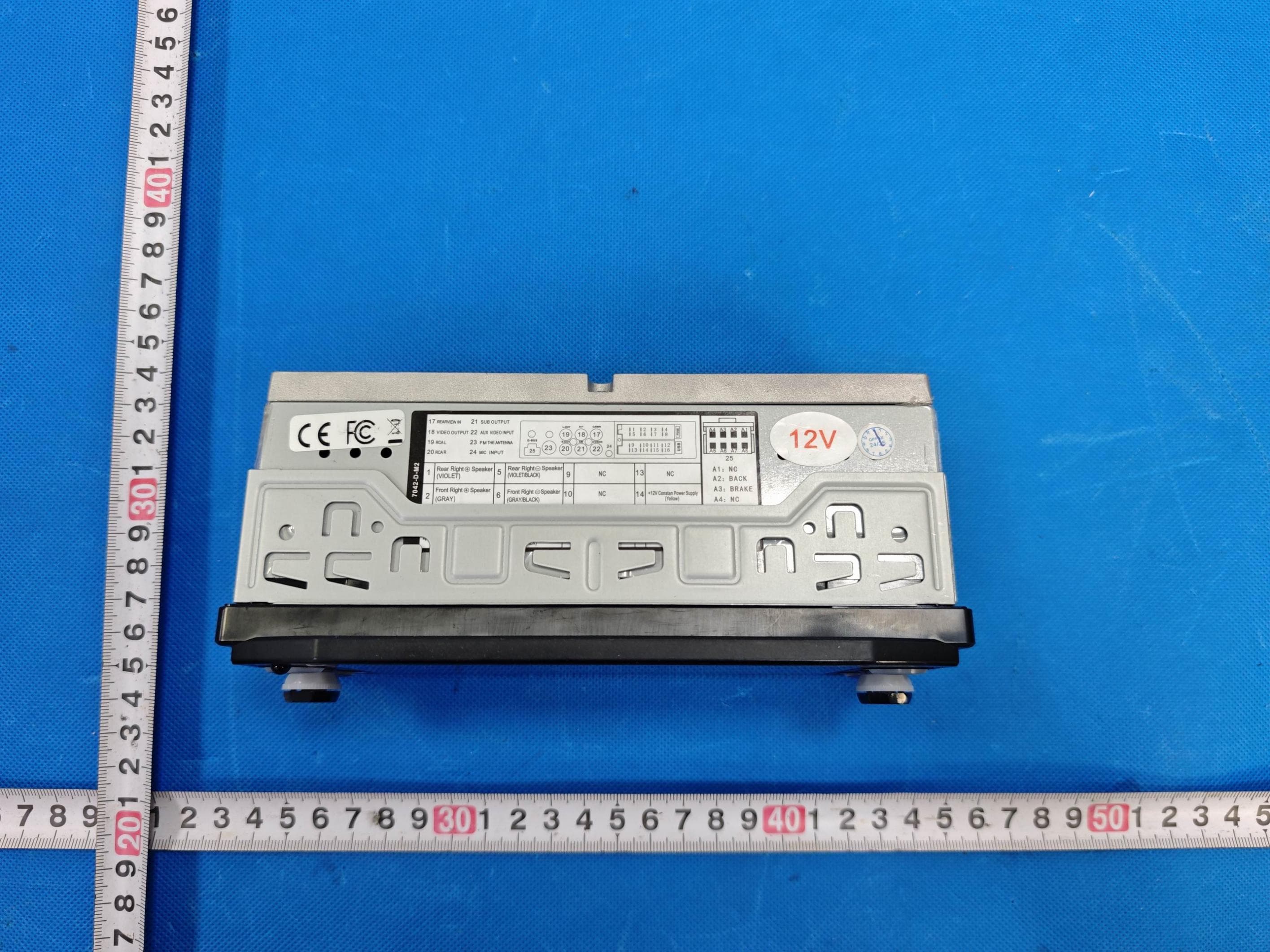

Page1of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China ExternalPhotos Photo1 Photo2 Page2of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China Photo3 Photo4 Page3of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China Photo5 Photo6 Page4of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China Photo7 Photo8 Page5of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China Photo9 Photo10 Page6of6FCCID: 2BFPX-5003W GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China Photo11 ------End------

Label FCCID:2BFPX-5003W

Page 1 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Internal Photos Photo 1 Photo 2 FM RX ANT Port Page 2 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 3 Photo 4 BT Antenna WIFI Antenna Unused Antennas Page 3 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 5 Photo 6 Page 4 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 7 Photo 8 Page 5 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 9 Photo 10 Page 6 of 6FCC ID: 2BFPX-5003W GuangdongAsia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Photo 11 Photo 12 ------End------

Page1of10ReportNo.:AiTDG-260106003W3 Note:Thisdevicehasbeentestedandfoundtocomplywiththestandard(s)listed,thistestreportmerelycorrespondstothe testsample.Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory.This reportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofGuangdongAsiaHongkeTestTechnologyLimited. Ifthereisaneedtoalterorrevisethisdocument,therightbelongstoGuangdongAsiaHongkeTestTechnologyLimited,and itshouldgiveapriorwrittennoticeoftherevisiondocument.Thistestreportmustnotbeusedbytheclienttoclaimproduct endorsement. GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China. RFExposureevaluation ProductName:carplayer BrandName:N/A Model:5003W SeriesModel:Pleaserefertopage4fordetail. FCCID:2BFPX-5003W Applicant:SHENZHENGOBETTERTECHNOLOGYCO.,LTD Address: 3F,BuildingB,HengchaoIndustrialZone,ZhoushiRoad,Shiyan Town,Bao’anDistrict,ShenzhenCity,China Manufacturer:SHENZHENGOBETTERTECHNOLOGYCO.,LTD Address: 3F,BuildingB,HengchaoIndustrialZone,ZhoushiRoad,Shiyan Town,Bao’anDistrict,ShenzhenCity,China Standard(s): 47CFR§1.1310,47CFR§2.1091 KDB447498D01GeneralRFExposureGuidancev06 DateofReceipt:Jan.06,2026 DateofTest:Jan.06,2026~Jan.26,2026 IssuedDate:Jan.27,2026 IssuedBy: GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet, Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+860755-230967639Fax.:+860755-230967639 Reviewedby:Approvedby: Aalen.YeAllenWang Page 2 of 10 ReportNo.:AiTDG-260106003W3 ReportReviseRecord ReportVersionIssuedDateNotes M0Jan.27,2026InitialRelease Page 3 of 10 ReportNo.:AiTDG-260106003W3 Contents 1GENERALINFORMATION..............................................................................................................................4 1.1ENVIRONMENTALCONDITIONS....................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT................................................................................................................4 1.3TESTFACILITY...........................................................................................................................................6 1.4MEASUREMENTUNCERTAINTY....................................................................................................................6 2METHODOFMEASUREMENT......................................................................................................................7 2.1APPLICABLESTANDARD.............................................................................................................................7 2.2LIMIT.........................................................................................................................................................7 2.3MPECALCULATIONMETHOD.....................................................................................................................8 2.4ANTENNAINFORMATION.............................................................................................................................8 2.5MANUFACTURINGTOLERANCE...................................................................................................................8 2.6STANDALONEMPERESULT.....................................................................................................................10 2.7CONCLUSION...........................................................................................................................................10 Page 4 of 10 ReportNo.:AiTDG-260106003W3 1GENERALINFORMATION 1.1Environmentalconditions Duringthemeasurementtheenvironmentalconditionswerewithinthelistedranges: NormalTemperature:25°C RelativeHumidity:55% AirPressure:101kPa 1.2GeneralDescriptionofEUT ProductName:carplayer Model/Typereference: 5003W SerialModel: 2026C,2027C,2028C,2029C,2025C,4022D,4168AI,4062AI,5001W, 5002W,5005W,5006W,5007W,5008W,5009W,5010W,5011W,5012W, 5013W,5015W,5016W,5017W,5018W,5019W,5001A,5003A,5005A, 5008A,5009A,5010A,5011A,5015A,5016A,5005C,5009C,7311C, 7315C,7316C,7312W,7313W,7315W,7316W,7317W,7318W,7319W, 7335W,7336W,7337W,7338W,7339W,7057W,7058W,7059W, 7060W,7061W,7062W,7063W,7065W,7066W,7067W,7315A,7316A, 7317A,7318A,7319A,7335A,7336A,7337A,7338A,7339A,7057A, 7058A,7059A,7060A,7061A,7062A,7063A,7065A,7066A,7067A, 7270W,7280W,7290W,9601W,9601C,7270A,7280A,7290A,9601A, 6287W,6380W,6381W,6382W,6383W,6385W,6386W,6387W, 6388W,6389W,6288W,6283A,6380A,6381A,6382A,6383A,6385A, 6386A,6387A,6388A,6389A,6288A,9310W,9312W,9582W,9510W, 9010A,9113A,9311A,9026W,1082W,1332W,1333W,1531A,1332A, 1333A,6509W,6510W,6511W,6512W,6513W,6515W,6516W,6517W, 6518W,6510A,6511A,6512A,6513A,6515A,6516A,6517A,6518A, T10,T20,T30,T40,T50,T60,T70,T80,T90 ModelDifference: PCBboard,structureandinternalofthesemodel(s)arethesame,Sono additionalmodelsweretested. PowerSupply:DC12V,8Amax HardwareVersion:N/A SoftwareVersion:N/A Sample(s)Status:AiTDG-260106003-1 Bluetooth: Supportedtype:BluetoothBR/EDR Modulation:GFSK,π/4DQPSK,8DPSK Operationfrequency:2402MHz~2480MHz Channelnumber:79 Channelseparation:1MHz Antennatype:PCBAntenna Antennagain:-2.9dBi Page 5 of 10 ReportNo.:AiTDG-260106003W3 5GWIFI: Supportedtype: 20MHzsystem40MHzsystem80MHzsystem 160MHz system 802.11a 802.11n 802.11ac 802.11ax 802.11n 802.11ac 802.11ax N/AN/A Operationfrequency:5745-5825MHz5755-5795MHzN/AN/A Modulation:OFDM/OFDMAOFDM/OFDMAN/AN/A Channelnumber:94N/A N/A Channelseparation:20MHz40MHzN/AN/A Antennatype: PCBAntenna Antennagain:U-NII3:2.75dBi Remark: TheaboveDUT'sinformationwasdeclaredbymanufacturer.Formoredetailedfeaturesdescription, pleaserefertothemanufacturer’sspecificationsortheUser'sManual. Page 6 of 10 ReportNo.:AiTDG-260106003W3 1.3TestFacility TestLaboratory: GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,F…

Text truncated - open the document above for the full version.

Page1of29ReportNo.:AiTDG-260106003W1 Note:Thisdevicehasbeentestedandfoundtocomplywiththestandard(s)listed,thistestreportmerelycorrespondstothe testsample.Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory.This reportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofGuangdongAsiaHongkeTestTechnologyLimited. Ifthereisaneedtoalterorrevisethisdocument,therightbelongstoGuangdongAsiaHongkeTestTechnologyLimited,and itshouldgiveapriorwrittennoticeoftherevisiondocument.Thistestreportmustnotbeusedbytheclienttoclaimproduct endorsement. GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet,Bao'anDistrict,Shenzhen, Guangdong,China. TESTREPORT ProductName:carplayer BrandName:N/A Model: 5003W SeriesModel: Pleaserefertopage6fordetail. FCCID:2BFPX-5003W Applicant:SHENZHENGOBETTERTECHNOLOGYCO.,LTD Address: 3F,BuildingB,HengchaoIndustrialZone,ZhoushiRoad,Shiyan Town,Bao’anDistrict,ShenzhenCity,China Manufacturer:SHENZHENGOBETTERTECHNOLOGYCO.,LTD Address: 3F,BuildingB,HengchaoIndustrialZone,ZhoushiRoad,Shiyan Town,Bao’anDistrict,ShenzhenCity,China Standard(s):FCCCFRTitle47Part15SubpartCSection15.247 DateofReceipt:Jan.06,2026 DateofTest:Jan.06,2026~Jan.26,2026 IssuedDate:Jan.27,2026 IssuedBy: GuangdongAsiaHongkeTestTechnologyLimited B1/F,Building11,JunfengIndustrialPark,ChongqingRoad,HepingCommunity,FuhaiStreet, Bao'anDistrict,Shenzhen,Guangdong,China Tel.:+860755-230967639Fax.:+860755-230967639 Reviewedby:Approvedby: Aalen.YeAllenWang Page 2 of 29 ReportNo.:AiTDG-260106003W1 ReportReviseRecord ReportVersionIssuedDateNotes M0Jan.27,2026InitialRelease Page 3 of 29 ReportNo.:AiTDG-260106003W1 Contents 1TESTSUMMARY............................................................................................................................................4 1.1TESTSTANDARDS......................................................................................................................................4 1.2TESTSUMMARY.........................................................................................................................................4 1.3TESTFACILITY...........................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY....................................................................................................................5 2GENERALINFORMATION..............................................................................................................................6 2.1ENVIRONMENTALCONDITIONS....................................................................................................................6 2.2GENERALDESCRIPTIONOFEUT................................................................................................................6 2.3DESCRIPTIONOFTESTMODESANDTESTFREQUENCY...............................................................................7 2.4SPECIALACCESSORIES..............................................................................................................................8 2.5EQUIPMENTLISTFORTHETEST.................................................................................................................8 3TESTCONDITIONSANDRESULTS............................................................................................................10 3.1CONDUCTEDEMISSIONSTEST..................................................................................................................10 3.2RADIATEDEMISSIONSANDBANDEDGE...................................................................................................12 3.3MAXIMUMPEAKOUTPUTPOWER.............................................................................................................19 3.420DBBANDWIDTH...................................................................................................................................20 3.5OCCUPIEDBANDWIDTH............................................................................................................................21 3.6FREQUENCYSEPARATION........................................................................................................................22 3.7NUMBEROFHOPPINGFREQUENCY...........................................................................................................23 3.8TIMEOFOCCUPANCY(DWELLTIME)........................................................................................................24 3.9OUT-OF-BANDEMISSIONS........................................................................................................................25 3.10PSEUDORANDOMFREQUENCYHOPPINGSEQUENCE.................................................................................27 3.11ANTENNAREQUIREMENT..........................................................................................................................28 4TESTSETUPPHOTOGRAPHSOFEUT.....................................................................................................29 5PHOTOSOFEUT..........................................................................................................................................29 Page 4 of 29 ReportNo.:AiTDG-260106003W1 1TESTSUMMARY 1.1TestStandards Thetestswereperformedaccordingtofollowingstandards: FCCRulesPart15.247:FrequencyHopping,DirectSpreadSpectrumandHybridSystemsthatarein operationwithinthebandsof902-928MHz,2400-2483.5MHz,and5725-5850MHz ANSIC63.10:2020:AmericanNationalStandardforTestingUnlicensedWirelessDevices KDB558074D0115.247MeasGuidancev05r02:GuidanceforComplianceMeasurementsonDigital TransmissionSystem,FrequencyHoppingSpredaSpectrumSystem,andHybridSystemDevices OperatingUnderSection15.247oftheFCCRules 1.2TestSummary TestItemSectionin47CFRResult MaximumConductedOutputPower§15.247(b)Pass 20dBBandwidth§15.247(a) Pass FrequencySeparation§15.247(a)Pass NumberOfHoppi…

Text truncated - open the document above for the full version.

RODUCTSPECIFICATION 20 24 - 10-09 A1 02.PCB.7388.111 Huizhou Lizhen Electronics Co.,Ltd. PCB board mounted 2.4G antenna- Village Tail Group, Pusang Village, Longxi Sub-district, Boluo County, Guangdong Province, China 1 Product specification Quick Reference Antenna model information Antenna Type PCB Frequency 2400-2500MHz Ant Port Input Pwr dBm. .() 0 Typ BT class 2 output power (. ) Tot Rad Pwr dBm...() -5 8 Input pwr . ( -loss pwr ) Peak EIRP dBm () -2 9. Directivity dBi() 1 ( )all direction antenna E fficiency dB( ) -5 8. ( . %)26 03 Gain dBi() -2 9 Peak Gain XY. ( -plane) Maximum Power(dB m) -2 9. ( XY-plane) Minimum Power dBm() -7 9. ( XY-plane) Average Power dBm() -4 5. ( XY-plane) Max/ ( )Min Ratio dB 5( XY-plane) Max/ R( )Avg atio dB 1 6 XY. (-plane) Min Avg atio dB / R( ) -3 4 XY. (-plane) Average Gain dB ( ) -4 5 Avg Ga. ( in XY-plane) Antenna module & Size Antenna Gain Gain Table Unit in dB2 44 @ . GH z XY-plane X Z-plane Y Z-plane Efficiency Peak Avg Peak Avg Peak Avg -4 5.-2 9.-3 7.-6 9.-2 9.-6 1 .26.03% 2 3 3D radiation pattern diagram X Y-plane 4 X Z-plane YZ-plane

Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 1 of 53 Appendix RF test data for BT (Conducted Measurement) Product Name: car player Trade Mark: N/A Test Model: 5003W Environmental Conditions Temperature: 24.6  C Relative Humidity:52.4% ATM Pressure:100.0 kPa Test Engineer:Aalen.Ye Supervised by:Allen Wang Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 2 of 53 Contents Page COVER PAGE 1 Duty Cycle........................................................................................................................................................................................ 3 1.1Test Result............................................................................................................................................................................3 1.2Test Graphs...........................................................................................................................................................................4 2 Maximum Conducted Peak Output Power........................................................................................................................................ 9 2.1Test Result............................................................................................................................................................................9 2.2Test Graphs.........................................................................................................................................................................10 3 20dB Bandwidth..............................................................................................................................................................................15 3.1Test Result..........................................................................................................................................................................15 3.2Test Graphs.........................................................................................................................................................................16 4 Carrier Frequency Separation.........................................................................................................................................................21 4.1Test Result..........................................................................................................................................................................21 4.2Test Graphs.........................................................................................................................................................................22 5 Hopping Channel Number...............................................................................................................................................................24 5.1Test Result..........................................................................................................................................................................24 5.2Test Graphs.........................................................................................................................................................................25 6 Dwell Time...................................................................................................................................................................................... 27 6.1Test Result..........................................................................................................................................................................27 6.2Test Graphs.........................................................................................................................................................................28 7 RF Conducted Spurious Emissions.................................................................................................................................................31 7.1Test Result..........................................................................................................................................................................31 7.2Test Graphs.........................................................................................................................................................................32 8 Band-edge for RF Conducted Emissions........................................................................................................................................41 8.1Test Result..........................................................................................................................................................................41 8.2Test Graphs.........................................................................................................................................................................42 Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 3 of 53 1 Duty Cycle 1.1 Test Result ModeFrequency (MHz)Duty Cycle (%)Correction Factor 1/T (kHz) 1-DH1240232.814.842.5 1-DH1244132.814.842.5 1-DH1248032.84.842.5 2-DH1240233.614.742.44 2-DH1244133.64.742.44 2-DH1248033.64.742.44 3-DH1240233.384.772.44 3-DH1244133.64.742.44 3-DH1248033.224.792.44 Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 4 of 53 1.2 Test Graphs Test Graphs 1-DH1 2402MHz 1-DH1 2441MHz Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 5 of 53 1-DH1 2480MHz 2-DH1 2402MHz Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 6 of 53 2-DH1 2441MHz 2-DH1 2480MHz Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 7 of 53 3-DH1 2402MHz 3-DH1 2441MHz Guangdong Asia Hongke Test Technology Limited…

Text truncated - open the document above for the full version.

Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 33 of 53 GFSK_MCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 34 of 53 GFSK_HCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 35 of 53 π/4DQPSK_LCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 36 of 53 π/4DQPSK_MCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 37 of 53 π/4DQPSK_HCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 38 of 53 8DPSK_LCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 39 of 53 8DPSK_MCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 40 of 53 8DPSK_HCH_Graphs Pref Puw Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 41 of 53 8 Band-edge for RF Conducted Emissions 8.1 Test Result Mode Channe l Carrier Frequency [MHz] Frequenc y Hopping Max Spurious Level [dBc] Limit [dBc] Verdict GFSK LCH2402 Off-47.72-20Pass On-46.43-20Pass HCH2480 Off-48.97-20Pass On-45.75-20Pass π/4DQPSK LCH2402 Off-48.39-20Pass On-46.81-20Pass HCH2480 Off-48.66-20Pass On-46.31-20Pass 8DPSK LCH2402 Off-47.03-20Pass On-45.04-20Pass HCH2480 Off-48.82-20Pass On-46.38-20Pass Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 42 of 53 8.2 Test Graphs Test Graphs Pref GFSK/LCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 43 of 53 Ref GFSK/LCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 44 of 53 Ref GFSK/HCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 45 of 53 Ref. GFSK/HCH/Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 46 of 53 Ref π/4DQPSK/LCH/No Hop Guangdong Asia Hongke Test Technology Limited Report No.: AiTDG-260106003W1 FCC ID: 2BFPX-5003W Page 47 of 53 Ref π/4DQPSK/LCH/Hop Guangdong Asia Hongke Test Technology Limited Report No…

Text truncated - open the document above for the full version.
