2BFX6-QB09Game boxing disc

WuyiJinhengHouseholdgoodsCo.,Ltd 2.911(d)(5)(i)EquipmentTypeAttestationv1.2 Section2.911(d)(5)(i)Certification–EquipmentType Companyname:WuyiJinhengHouseholdgoodsCo.,Ltd Address:No.9,WeijiuEastRoad,TongqinIndustrialZone,WuyiCountyJinhuaChina570100 ProductName:Gameboxingdisc FCCID:2BFX6-QB09 Model(s):QB09,QB10,QB11,QB12,QB13,QB14,QB15,QB16,QB17,QB18,QB19 2.911(d)(5)(i)EquipmentType We,[WuyiJinhengHouseholdgoodsCo.,Ltd](“theapplicant”)certifythattheequipmentforwhich authorizationissoughtthroughcertificationisnot: Prohibitedfromreceivinganequipmentauthorizationpursuantto§2.903;oftheFCCrules. Identifiedasanequipmenttypeinthe“CoveredList” NOTE1 Yourssincerely, Name:ChirsLiuDate:2024.8.12 TitleandCompanyname:Manager/WuyiJinhengHouseholdgoodsCo.,Ltd NOTE1 “CoveredList ” ;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

WuyiJinhengHouseholdgoodsCo.,Ltd 2.911(d)(5)(ii)ApplicantAttestationv1.3 Section2.911(d)(5)(ii)Certification–Applicant(CoveredList) Companyname:WuyiJinhengHouseholdgoodsCo.,Ltd Address:No.9,WeijiuEastRoad,TongqinIndustrialZone,WuyiCountyJinhuaChina570100 ProductName:Gameboxingdisc FCCID:2BFX6-QB09 Model(s):QB09,QB10,QB11,QB12,QB13,QB14,QB15,QB16,QB17,QB18,QB19 2.911(d)(5)(ii)Applicantfiling We,[WuyiJinhengHouseholdgoodsCo.,Ltd](“theapplicant”)certifythat,asofthedateofthefiling oftheapplication,theapplicantisnotidentified NOTE1 onthe“CoveredList” NOTE2 ,established pursuantto§1.50002ofthischapter,asanentityproducingcoveredcommunicationsequipment. Yourssincerely, Name:ChirsLiuDate:2024.8.12 TitleandCompanyname:Manager/WuyiJinhengHouseholdgoodsCo.,Ltd NOTE1 Deleteoptionnotapplicabletothisapplication. NOTE2 “CoveredList”;istheListofEquipmentandServicesCoveredBySection2ofTheSecureNetworksAct,availableat https://www.fcc.gov/supplychain/coveredlist References; 1)986446D01CoveredEquipmentv01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2)FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

WuyiJinhengHouseholdgoodsCo.,Ltd 2.911(d)(7)USAAgentv1.5 Section2.911(d)(7)USAAgentforServiceofProcess Companyname:WuyiJinhengHouseholdgoodsCo.,Ltd Address:No.9,WeijiuEastRoad,TongqinIndustrialZone,WuyiCounty,JinhuaCity, ZhejiangProvince,China. ProductName:Gameboxingdisc FCCID:2BFX6-QB09 Model(s):QB09,QB10,QB11,QB12,QB13,QB14,QB15,QB16,QB17,QB18,QB19 2.911(d)(7)USADesignatedAgentforServiceofProcess We,[WuyiJinhengHouseholdgoodsCo.,Ltd](“theapplicant”)designate[GSS SERVICEINC] NOTE1 forthepurposeofacceptingserviceofprocessonbehalfofthe applicant. Applicantconsent:Weacknowledgeourconsenttoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipment,andatthephysicalU.S. addressandemailaddressofthedesignatedagentandacknowledgeour acceptanceofourobligationtomaintainanagentforserviceofprocessintheUnited Statesfornolessthanoneyearaftereitherwethegranteehavepermanently terminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S., orattheconclusionofanyCommission-relatedadministrativeorjudicialproceeding involvingtheequipment,whicheverislater. Agentobligation:Weacknowledgeourobligationtoacceptserviceofprocessinthe UnitedStatesformattersrelatedtotheapplicableequipmentatourphysicalU.S. addressandemailaddressfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipment withintheU.S.,orattheconclusionofanyCommission-relatedadministrativeor judicialproceedinginvolvingtheequipment,whicheverislater. USAAgent Companyname:GSSSERVICEINC USAAddress:6547NAcademyBlvd#2266 ColoradoSpringsCo80918USA FRNNumber:0033402082 ContactName:MichouxLogan TelephoneNo:001-949-2990192 Email:[email protected] Applicant Companyname:WuyiJinhengHousehold goodsCo.,Ltd Address:No.9,WeijiuEastRoad,Tongqin IndustrialZone,WuyiCounty,JinhuaCity, ZhejiangProvince,China. GranteeFRNNumber:0035301472 FCCGranteeCode:2BFX6 ContactName:ChirsLiu TelephoneNo:+86-15397968808 Email:[email protected] WuyiJinhengHouseholdgoodsCo.,Ltd 2.911(d)(7)USAAgentv1.5 Signature: Title:Manager Signature: Title:Manager Date:2024-08-12Date:2024-08-12 NOTE1:AnapplicantlocatedintheUnitedStatesmaydesignateitselfastheagentforservice ofprocess. Reference;FederalRegisterdocument2022-28263publishedon02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

WuyiJinhengHouseholdgoodsCo.,Ltd AgentAuthorization Company:WuyiJinhengHouseholdgoodsCo.,Ltd Address:No.9,WeijiuEastRoad,TongqinIndustrialZone,WuyiCountyJinhuaChina 570100 ProductName:Gameboxingdisc ModelNumber(s):QB09,QB10,QB11,QB12,QB13,QB14,QB15,QB16,QB17,QB18, QB19 ProductDescription:Gameboxingdisc WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2024.8.12 Name:ChirsLiu Title:Manager Company:WuyiJinhengHouseholdgoodsCo.,Ltd

Wuyi Jinheng Household goods Co., Ltd Model Difference Product description: Game boxing disc Model name: QB09, QB10, QB11, QB12, QB13, QB14, QB15, QB16, QB17, QB18, QB19 FCC ID:2BFX6-QB09 Only the model name is different. Regards Sincerely Client’s signature: Client’s name / title: Chirs Liu / Manager Contact information / address: No.9, Weijiu East Road, Tongqin Industrial Zone, Wuyi County, Jinhua City, Zhejiang Province, China.

WuyiJinhengHouseholdgoodsCo.,Ltd OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2024.8.12 Subject;RequestforConfidentiality FCCID:2BFX6-QB09 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:ChirsLiu Title:Manager

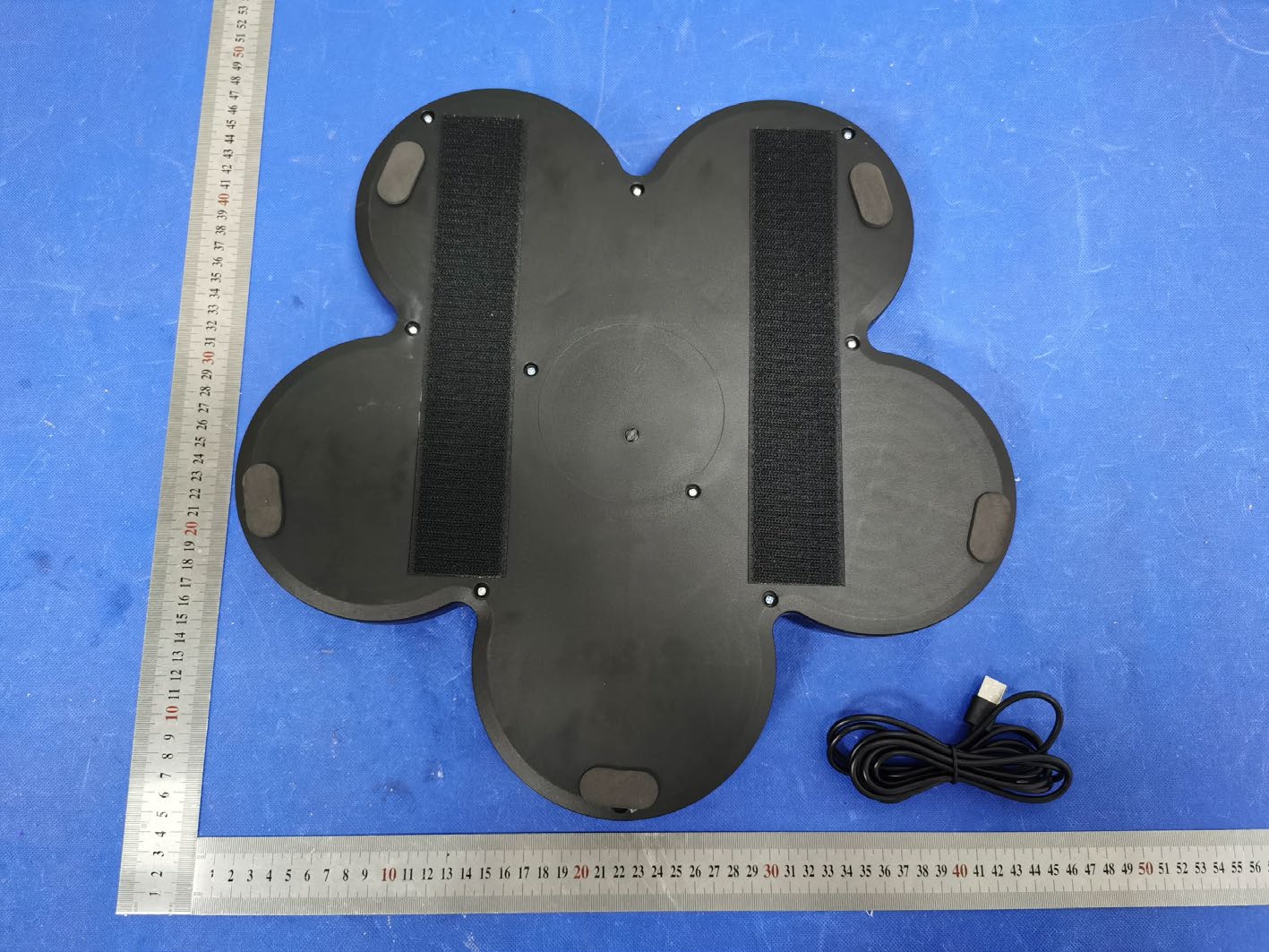

EUT PHOTO(External Photos)

Label & label location 20mm*10mm FCC ID:2BFX6-QB09 Label location

EUT PHOTO(Internal Photos) ANT

RF EXPOSURE EVALUATION METHOD FCC ID:2BFX6-QB09 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. EDR Mode Max Power(dBm) Max Power(mW) Frequency(MHz) Min. distance(mm) Calc. thresholds limit GFSK -3.769 0.42 2402 5 0.13 3.0 π/4DQPSK -3.030 0.50 2402 5 0.15 3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Horizontal Vertical 2400MHz 2400MHz2500MHz2400MHz2400MHz 2500MHz Center Frequency -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dB Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 38.20mm Manufacture ZHUHAI JIELI TECHNOLOGY CO.,LTD Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -1.26174 -30.0801 -7.18716 2450 -0.765802 -36.5604 -7.48023 2500 -0.585582 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Gain(dB) Frequency (MHz) Max Min Avg 2400 -5.2537 -22.1424 -12.4294 2450 -2.4652 -24.5837 -10.4702 2500 -1.86120 -29.5214 -9.20432 ANT Test Labs：Attestation of Global Compliance Co., Ltd.

Project No.: ZKT-2408019175E Page 1 of 58 FCC TEST REPORT FCC ID:2BFX6-QB09 Report Number. ................................ : ZKT-2408019175E Date of Test ..................................................: Aug. 01, 2024 to Aug. 08, 2024 Date of issue ..................................... : Aug. 08, 2024 Total number of pages ....................... 58 Test Result ...................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address ........................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Wuyi Jinheng Household goods Co., Ltd Address ........................................... : No.9, Weijiu East Road, Tongqin Industrial Zone, Wuyi County, Jinhua City, China.570100 Manufacturer's name ................... : Wuyi Jinheng Household goods Co., Ltd Address ........................................... : No.9, Weijiu East Road, Tongqin Industrial Zone, Wuyi County, Jinhua City, China.570100 Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method .............. : N/A Test Report Form No. .................... : / Test Report Form(s) Originator .... : ZKT Testing Master TRF ................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : Game boxing disc Trademark ....................................... : N/A Model/Type reference ....................... : QB09 QB10, QB11, QB12, QB13, QB14, QB15, QB16, QB17, QB18, QB19 Ratings .............................................. : Input: 5V 1A Battery: 3.7V 1200mAh, 4.44Wh Project No.: ZKT-2408019175E Page 2 of 58 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Jim Liu Tested by (name + signature) .................... : Jeff Fu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-2408019175E Page 3 of 58 Table of Contents Page 1. VERSION .............................................................................................................. 5 2. TEST SUMMARY .................................................................................................. 6 2.1 TEST FACILITY ................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY ...................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT .................................................................... 8 3.2 Test Setup Configuration ..................................................................................... 9 3.3 Support Equipment .............................................................................................. 9 4. EMC EMISSION TEST ........................................................................................ 12 4.1 Conducted emissions ........................................................................................ 12 4.1.1 POWER LINE CONDUCTED EMISSION Limits ............................................ 12 4.1.2 TEST PROCEDURE ...................................................................................... 12 4.1.3 DEVIATION FROM TEST STANDARD .......................................................... 12 4.1.4 TEST SETUP ................................................................................................. 13 4.1.5 EUT OPERATING CONDITIONS ................................................................... 13 4.1.6 Test Result ..................................................................................................... 14 4.2 Radiated emissions ........................................................................................... 16 4.2.1 Radiated Emission Limits ............................................................................... 16 4.2.2 TEST PROCEDURE ...................................................................................... 16 4.2.3 DEVIATION FROM TEST STANDARD .......................................................... 17 4.2.4 TEST SETUP ................................................................................................. 17 4.2.5 EUT OPERATING CONDITIONS ................................................................... 18 4.2.6 TEST RESULTS ............................................................................................. 18 5. RADIATED BAND EMISSION MEASUREMENT ............................................... 25 5.1 Test Requirement: ............................................................................................. 25 5.2 TEST PROCEDURE ......................................................................................... 25 5.3 DEVIATION FROM TEST STANDARD ............................................................. 26 5.4 TEST SETUP .................................................................................................... 26 5.5 EUT OPERATING CONDITIONS ...................................................................... 26 5.6 TEST RESULT .............…

Text truncated - open the document above for the full version.

EUT TEST PHOTO
