Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Dongguan Yinqu Technology Co., Ltd ADD: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Tel: +86-13480128981 Email: [email protected] Date: 2024-8-9 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 We, Dongguan Yinqu Technology Co., Ltd hereby declare that: Product Name: ELECTRIC GUITAR ASSORTED Model No.: MIEG-1000-PK, JT001, MIEG-1000-BK FCC ID: 2BFXU-JT001 For BT Mode: BLE 1M/2M are disable by software For Below are activated: Bluetooth BDR(GFSK), EDR(π/4‐DQPSK), EDR(8DPSK) Except for the manufacturer, the end user does not have any capability to modify/change the RF parameters. We acknowledge that it is the manufacturer’s responsibility to provide the radio configurations to ensure compliance with Commission’s rules. Sincerely Yours, Signature: Printed Name: Nancy Liu Title: R&D test team leader
Dongguan Yinqu Technology Co., Ltd ADD: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Tel: +86-13480128981 Email: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter Attestation Letter Date: 08/09/2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2BFXU-JT001 Dongguan Yinqu Technology Co., Ltd certifies that the equipment for which authorization is sought, is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Nancy Liu Title: R&D test team leader
Dongguan Yinqu Technology Co., Ltd ADD: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Tel: +86-13480128981 Email: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007-A RC 02-08-2023 Attestation Letter Date: 08/09/2024 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2BFXU-JT001 Dongguan Yinqu Technology Co., Ltd certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Nancy Liu Title: R&D test team leader
BLOCK DIAGRAM ANT 2402MHZ-2480MHZ XTAL 24MHZ FLASH OSCILLATOR DAC AC6956C SPEAKER SD CARD DC 3.7V from battery or DC 5V from USB port
Dongguan Yinqu Technology Co., Ltd ADD: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Tel: +86-13480128981 Email: [email protected] FCC Authorization Date: 2024-8-9 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Dongguan Yinqu Technology Co., Ltd, the undersigned, hereby authorize Bay Area Compliance Laboratories Corp. (Shenzhen) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. (Shenzhen) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature: Printed Name: Nancy Liu Title: R&D test team leader
Dongguan Yinqu Technology Co., Ltd ADD: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Tel: +86-13480128981 Email: [email protected] Product Similarity Declaration Date: 2024-8-9 To: FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir/Madam, We, Dongguan Yinqu Technology Co., Ltd, hereby declare that we have a product named as ELECTRIC GUITAR ASSORTED (model: JT001, FCC ID: 2BFXU-JT001) was tested by Bay Area Compliance Laboratories Corp. (Shenzhen), Meanwhile, for our marketing purpose, we would like to list some series models (MIEG-1000-PK, MIEG-1000-BK) on reports and certificate, all the models are identical in electrically. The difference refer to the following table for details: Model No. Product Remark JT001 Bluetooth adapter Bluetooth adapter MIEG-1000-PK Pink Electric Guitar Pink Electric Guitar sell with Bluetooth adapter MIEG-1000-BK Black Electric Guitar Black Electric Guitar sell with Bluetooth adapter We confirm that all information above is true, and we’ll be responsible for all the consequences. Please contact me if you have any question. Sincerely, Signature: Printed Name: Nancy Liu Title: R&D test team leader

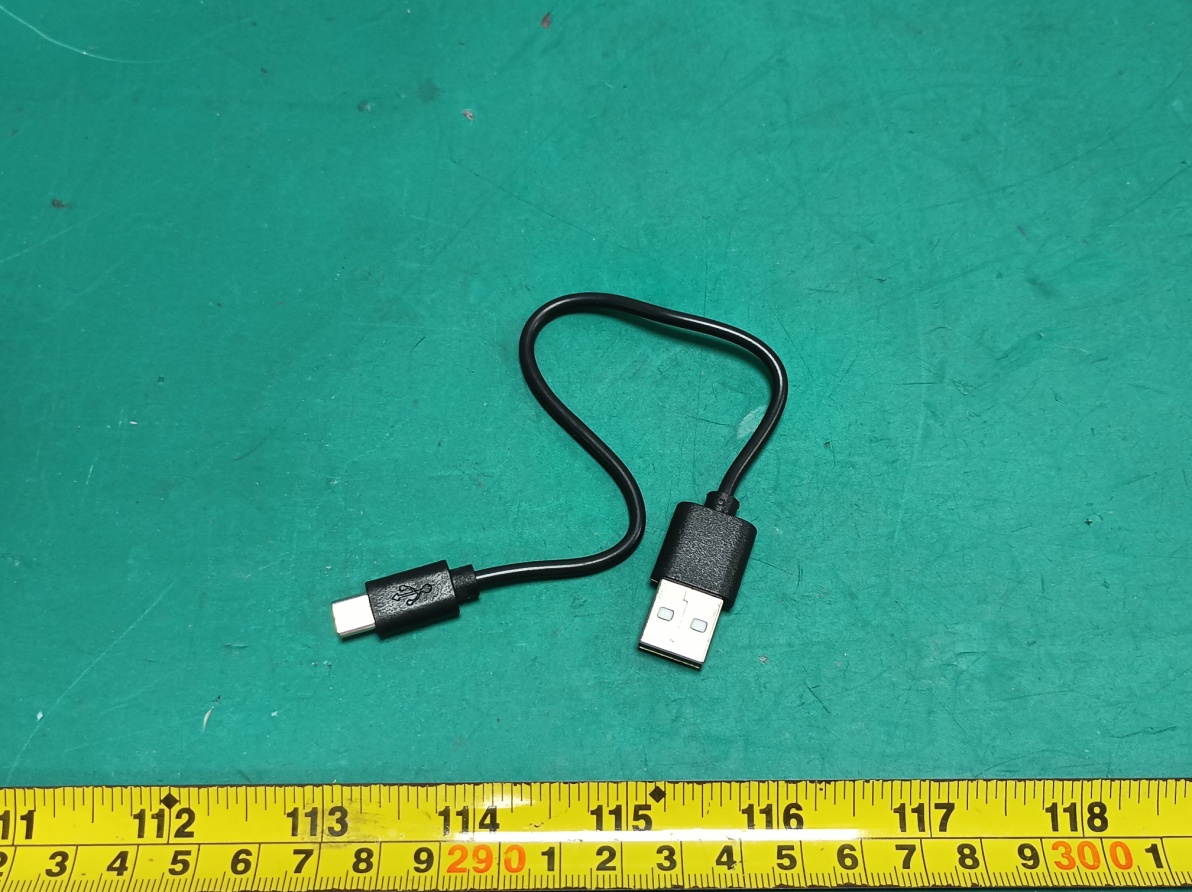

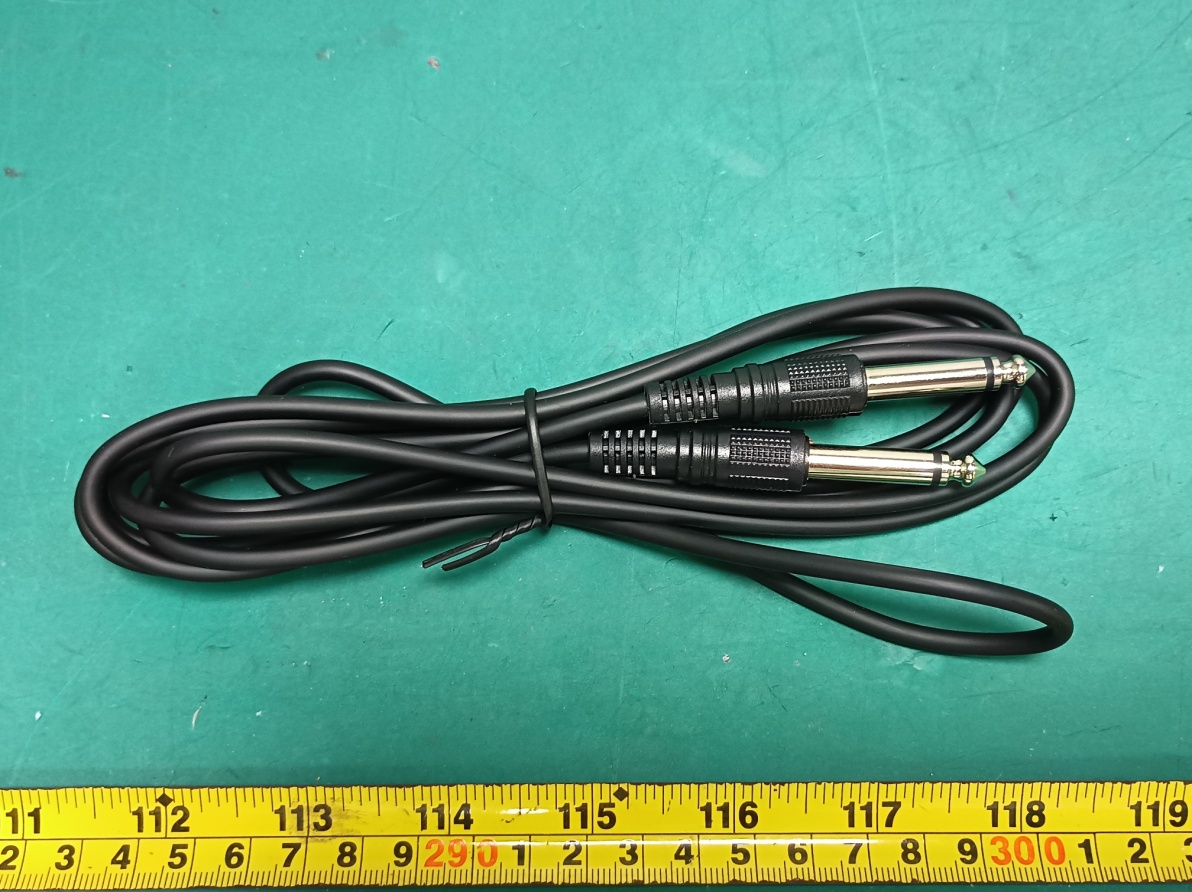

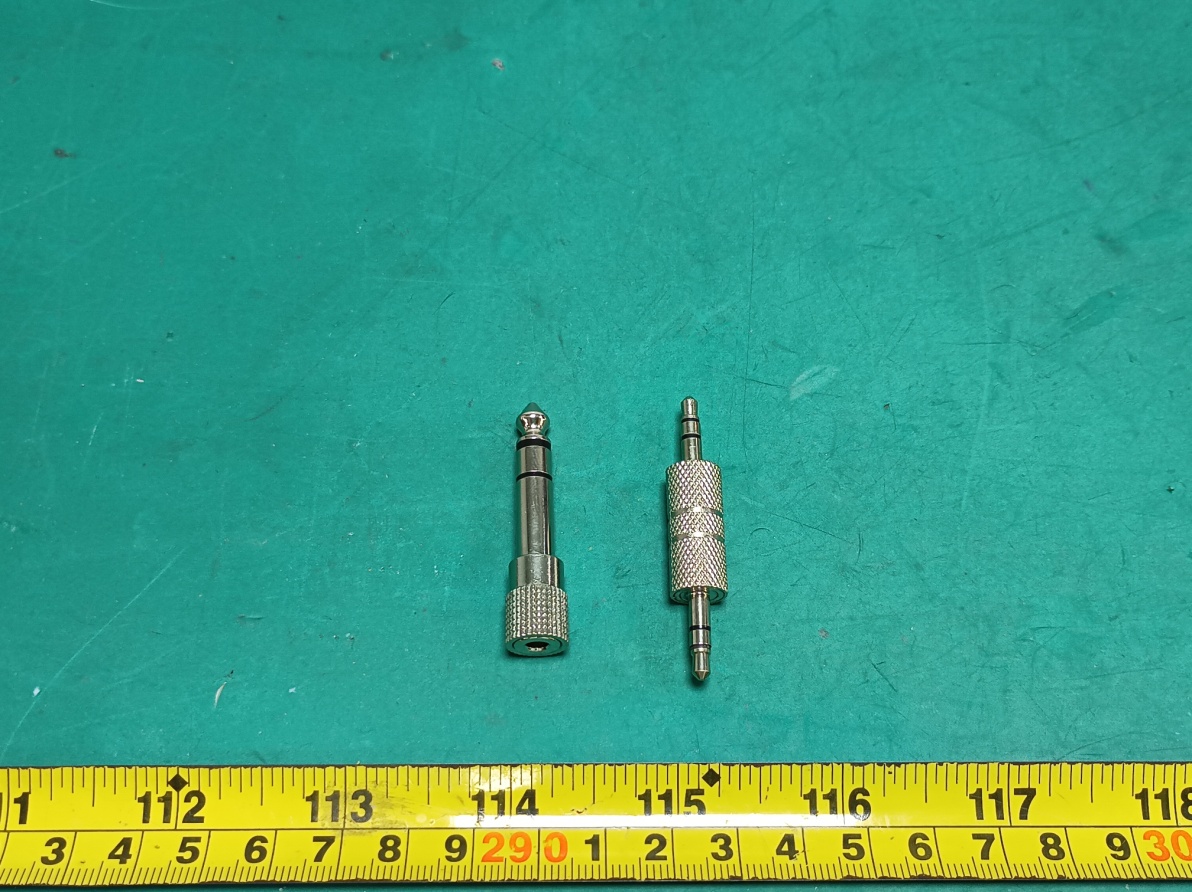

Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page1 of 5 EUT EXTERNAL PHOTOGRAPHS Model: MIEG-1000-PK Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page3 of 5 Model: JT001 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page5 of 5
Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V57813E-RF EXHIBIT A - FCC ID LABEL AND LOCATION Model: JT001 FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V57813E-RF Model: MIEG-1000-PK FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401V57813E-RF Model: MIEG-1000-BK FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)
Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page1 of 3 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page2 of 3 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401V57813E-RF Page3 of 3 Antenna
Circuit Description The 24MHz crystal oscillator drives the base of Y1. The modulation provided by AC6956C(U2). The output of AC6956C module has the matching network consisting of R10 and R9 that limit the harmonic content and effect the proper coupling of the antenna to the output stage. Antenna, Ground and Power Source The antenna consists of a 2.4GHz PCB antenna There is no external ground connection. The ground is only that of the printed circuit board. Electric current is supplied by a 3.7 Volt primary battery Feature: Frequency Range: 2402MHz-2480MHz Modulation Type: GFSK, π/4-DQPSK, 8DPSK Antenna Type: PCB Antenna Antenna Gain: 2.499dBi Crystal: 24MHz
Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V57813E-RF-00A TR-EM-RF001 Page 55 of 57 Version 3.0 RF EXPOSURE EVALUATION RF EXPOSURE Applicable Standard According to FCC §2.1093 and §1.1307(b) (1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 General RF Exposure Guidance The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where 1. f(GHz) is the RF channel transmit frequency in GHz. 2. Power and distance are rounded to the nearest mW and mm before calculation. 3. The result is rounded to one decimal place for comparison. 4. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test Exclusion. Measurement Result For worst case: Mode Frequency (MHz) Max tune-up conducted power # (dBm) Max tune-up conducted power # (mW) Distance (mm) Calculated value Threshold (1-g SAR) SAR Test Exclusion BT 2402-2480 -3.5 0.45 5 0.1 3 Yes Result: Compliant
B 11 REV: SIZE: CODE: DRAWN: DATED: DATED: CHECKED:QUALITY CONTROL: DATED: DATED: RELEASED: COMPANY:TITLE: DRAWING NO: SHEET: OF SCALE: REVISION RECORD APPROVED: ECO NO: ABD DATE: 1 2 3 4 5 6 DCAB C LTR BLUE TOOTH 1 VCOM 2 DACL 3 DACR 4 FMIP 5 PB11/SD_PWR 6 PB10/SD0CMDB/AUX2R/ADC9 7 PB9/SD0CLKB/AUX2L 8 PB8/SD0DATB/AUX1R/ADC8 9 LDO_IN/PB5 10 VBAT 11 BTAVDD 12 PB3/PR1/ADC6 13 PB2/PR0 14 PB1/ADC5 15 PB0 16 BT_RF 17 BT_OSCI 18 BT_OSCO 19 ADC13/SD1CLKA/PC5 20 ADC10/SD1CMDA/PC4 21 SD1DATA/PC3 22 PC2 23 ADC4/PA12/USBDM 24 ADC12/USBDP 25 ADC3/PA10 26 PA9 27 ADC0/AUX0R/PA1 28 AUX0L/PA0 29 MIC_BIAS/PC7 30 MIC 31 VDDIO 32 DACVSS 33 GND U2 AC6956C 1 DM 1 DP 1 VDD 1 GND R13 2.2R C13 102/16V 1243 Y1 R10 1.8PF R9NC 12 K1 12 K2 12 K3 R1 6.2K R2 15K R5 22K R21 0R TP1 1 5V 2 DM 3 DP 45 GND 9 8 7 6 P1 P2 USB1 MIRCO 10 GND 9 DET 3 CMD 4 VDD 5 CLK 6 VSS 7 DATA0 11 GND 12 GND 13 GND 14 NC 15 NC 1 NC 2 NC 8 NC TF1 TF MIRCO C1 NC R19 2.7R R6 3.3K R7 1K 2 1 LED3 RED 2 1 LED2 BLUE 1234 PJ1 3.5MM ERJIZUO 1 VM 2 VDD 3 GND U6 XB3153IS C4 104 R22 100R R8 NC R11 3.3K C2 106 C3 106 R12 NC 1 OUTPUT 2 GND MIC2 C5 104 C6 105/16V C7 105/16V C14 105 C15 105/16V 1 B+ 1 B- 1 B-1 1 B+1 1 2 ANT1 R3 10K R4 10K C8 224 C9 224 R14 100K R15 NTC100K VCOMDACL SD-DATSD-CMDSD-CLK SD-PG LDO-IN BAT+3V7 BT-AVDD AD-KEY BT-ANT-IC OSC24MIOSC24MODPDM 3V3 LEDB/R DMDP BAT+3V7 DC+5V LDO-IN GND GND OSC24MI OSC24MO BT-ANT-IC BT-ANT BT-ANT AD-KEY 3V3 GND AGND SD-CMD3V3-SDSD-CLKSD-DATSD-DET SD-PG3V3-SD SD-DETSD-CLK LEDB/R 3V3 BAT+3V7 BATT- AU-DET DACR DACLDACR MIC MIC_BIAS MIC MIC_BIAS AU-DET GND VCOM 3V3 BAT+3V7 GND BT-AVDD AUXL AUXR AUXRAUXL DP DM 24MHz
2.4G-2.48G SPECIFICATIONS Frequency(MHz)2400-2480 PeakGain(dBi)2.499 VSWR<3.2 Impedance(Ω)50Ω AntennaTypePlannarInvertedFAntennaonboard PolarizationLinear Z X Y PCB antenna test report Model 2.4G BT ANT Test environment: Manufacturer JIANGXI XINGSHENGJIE CIRCUIT CO.,LTD Building 2, Fuxiang Industrial Park, West Xinfeng Industrial Park, Ganzhou City, Jiangxi Province Antenna Photo Frequency(MHz)Gain(dBi)Effciency(%)AverageGain(dBi)Efficiency(dB) 2400 1.43359.329%-2.717-2.267 24100.92751.861%-3.416-2.852 24200.82952.112%-3.166-2.831 2430 0.88149.299%-3.258-3.072 24401.19250.672%-3.144-2.952 24501.68853.067%-2.735-2.752 2460 2.19459.423%-2.276-2.260 24702.11856.680%-2.438-2.466 24802.49961.727%-2.112-2.095 Average 1.52954.908%-2.806-2.616 Peak2.49961.727%-2.112-2.095 VSWR 、 ReturnLoss Antenna passive S parameters: and Smith chart Antenna efficiency and gain 2440MHz2D-ThetaPattern Antenna 2440MHz2D-PhiPattern Antenna 2440MHz3D-HorizontalPattern Antenna 2440MHz3D-VerticalPattern Antenna 2440MHz3D-TotalPattern
Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 57 Version 3.0 TEST REPORT Applicant Name: Dongguan Yinqu Technology Co., Ltd Address: Room 201, Building 1, No. 65 ZhengWei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province, China Report Number: 2401V57813E-RF-00A FCC ID: 2BFXU-JT001 Test Standard (s) FCC PART 15.247 Sample Description Product Type: ELECTRIC GUITAR ASSORTED Model No.: JT001 Multiple Model(s) No.: MIEG-1000-PK, MIEG-1000-BK Trade Mark: Prime Audio Date Received: 2024-07-02 Issue Date: 2024-08-26 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Ekko Wu Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401V57813E-RF-00A TR-EM-RF001 Page 2 of 57 Version 3.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 8 TEST EQUIPMENT LIST ........................................................................................................................................... 9 REQUIREMENTS AND TEST PROCEDURES ..................................................................................................... 10 AC LINE CONDUCTED EMISSIONS .............................................................................................................................. 10 RADIATED EMISSIONS ................................................................................................................................................ 12 20 DB EMISSION BANDWIDTH .................................................................................................................................... 15 CHANNEL SEPARATION TEST ..................................................................................................................................... 17 QUANTITY OF HOPPING CHANNEL TEST .................................................................................................................... 18 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................................................ 19 PEAK OUTPUT POWER MEASUREMENT ...................................................................................................................... 20 BAND EDGES .............................................................................................................................................................. 21 ANTENNA REQUIREMENT .................................................................................................................................... 22 TEST DATA AND RESULTS .................................................................................................................................... 23 RADIATED EMISSIONS ................................................................................................................................................ 23 20 DB EMISSION BANDWIDTH .................................................................................................................................... 37 CHANNEL SEPARATION .............................................................................................................................................. 40 NUMBER OF HOPPING FREQUENCY ............................................................................................................................ 43 TIME OF OCCUPANCY (DWELL TIME) ....................................................................................…
Text truncated - open the document above for the full version.
Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401V57813E-RF-00A Page1 of 3 TEST SETUP PHOTOGRAPHS Radiated Emissions View (9 kHz- 30MHz) Radiated Emissions View (30 MHz-1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401V57813E-RF-00A Page2 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401V57813E-RF-00A Page3 of 3 Close-up View
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 400.00 µW |
