2BFXU-LEB42Wireless Earphones with Neckband

Q U I C K STA RT GUIDE GUIDE DE DÉMARRAGE RAPIDE GUÍA DE INICIO RÁPIDO Wireless Neckband Headphones Écouteurs Sans fil avec Tour de Cou Auriculares Inalámbricos de Collar QFIT ® Bluetooth Version: v5.4 Frequency: 20Hz-20KHz Driver Output: 12mW Supported Profile: A2DP / HFP / HSP / AVRCP Playback Time: Up to 12 hours Standby Time: Up to 180 hours Battery Type: 3.7V Li-polymer rechargeable battery SPECIFICATIONS Wireless Neckband Headphones USB-A to USB-C Charging Cable Gel Ear-Tips WHAT’S INSIDE 1 2 3 123 QFIT BUTTONS & CONTROLS 1 Phone Button • Short Press = play/pause music & answer/end phone calls • Long Press = ignore/decline phone calls/power on/ off • Double Press = re-dial the last number called 2 4 5 7 1 3 6 QFIT BUTTONS & CONTROLS 2 3 4 5 6 7 [+] Button • Short Press = skip to next song • Long Press = increase volume [–] Button • Short Press = skip to previous song • Long Press = decrease volume Microphone LED Indicator Light USB-C Charging Port Magnetic Closure Plug USB-C into headphones and USB-A into a compatible port (such as a wall charger, car charger, or computer). Light is RED while charging and turns BLUE when fully charged. *Wall/Car charger not included CHARGE HEADPHONES STEP 1 PAIRING YOUR DEVICE On the side of the QFit neckband, press and hold the PHONE button until you see the LED indicator flashing between red and blue and hear “Power on, pairing.” In your devices Bluetooth settings look for “QFit” to appear as an option and select to complete pairing. STEP 2 START LISTENING When you’re ready to use your QFit, press the PHONE button to turn your QFit on. Use the + and - buttons on the neckband to adjust volume and skip songs. Use the PHONE button to play/pause music and answer, end, decline, and re-dial phone calls, and power on/off. STEP 3 Version Bluetooth : v5.4 Fréquence : 20 Hz à 20 kHz Sortie du pilote : 12 mW Profil pris en charge : A2DP/HFP/HSP/AVRCP Temps de lecture : jusqu’à 12 heures En veille : jusqu’à 300 heures Type de batterie : batterie rechargeable Li-polymère 3,7 V CARACTÉRISTIQUES TECHNIQUES FRENCH CONTENU FRENCH Écouteurs à bandeau sans fil Câble de recharge USB-A vers USB-C Embouts en gel 1 2 3 123 FRENCH CONTRÔLES POUR LES QFIT 1 Bouton du téléphone • Appuyez brièvement = écoutez/mettez en pause la musique et répondez/mettez fin aux appels téléphoniques • Appuyer longuement = ignorer/refuser les appels téléphoniques/allumer/éteindre • Appuyez deux fois = recomposer le dernier numéro appelé 2 4 5 7 1 3 6 FRENCH CONTRÔLES POUR LES QFIT 2 3 4 5 6 7 Bouton[+] • Appuyez brièvement = passez à la chanson suivante • Appuyer longuement = augmenter le volume Bouton [–] • Appuyez brièvement = passez à la chanson précédente • Appuyez longuement = diminuez le volume Microphone Voyant DEL Port de charge USB-C Fermeture magnétique Branchez l’USB-C sur les écouteurs et l’USB-A sur un port compatible (chargeur mural, chargeur de voiture ou ordinateur). La lumière est ROUGE pendant la charge et devient BLEUE lorsqu’elle est complètement chargée. * Chargeur mural/de voiture non inclus CHARGER LES ÉCOUTEURS É TA P E 1 FRENCH É TA P E 2 FRENCH COUPLAGE DE VOTRE APPAREIL Sur le côté du bandeau QFit, appuyez sur le bouton PHONE (TÉLÉPHONE) et maintenez-le enfoncé jusqu’à ce que l’indicateur DEL clignote entre le rouge et le bleu et que vous entendiez “ Power on, pairing “ (mise sous tension, appairage). Dans les paramètres Bluetooth de vos appareils, recherchez « QFit » pour qu’il apparaisse en option et sélectionnez pour terminer l’appariement. É TA P E 3 FRENCH COMMENCEZ À ÉCOUTER Lorsque vous êtes prêt à utiliser votre QFit, appuyez sur le bouton du PHONE (TÉLÉPHONE) pour allumer votre QFit. Utilisez les boutons + et - du bandeau pour régler le volume et sauter des chansons. Utilisez le bouton du PHONE (TÉLÉPHONE) pour lire/mettre en pause la musique et répondre, terminer, refuser et recomposer les appels téléphoniques, et allumer/ éteindre. Versión Bluetooth: v5.4 Frecuencia: 20Hz-20KHz Salida del controlador: 12mW Perfil compatible: A2DP / HFP / HSP / AVRCP Tiempo de reproducción: hasta 12 horas Tiempo en espera: hasta 180 horas Tipo de batería: batería recargable de polímero de litio de 3.7V ESPECIFICACIONES SPANISH Audífonos inalámbricos con banda para el cuello Cable de carga de USB-A a USB-C Almohadillas de gel para los audífonos QUÉ HAY ADENTRO 1 2 3 123 CONTROLES PARA QFIT 1 Botón de teléfono • Pulsación corta = reproducir/pausar la música y contestar/finalizar llamadas telefónicas • Pulsación larga = ignorar/rechazar llamadas telefónicas/encendido/apagado • Doble pulsación = volver a marcar el último número llamado 2 4 5 7 1 3 6 CONTROLES PARA QFIT 2 3 4 5 6 7 B o t ó n [+] • Pulsación corta = saltar a la siguiente canción • Pulsación larga = subir el volumen B o t ó n [–] • Pulsación corta = saltar a la canción anterior • Pulsación larga = bajar el volumen Micrófono Luz LED Indicadora Puerto de carga USB-C Cierre magnético Conecte el USB-C a los auriculares y el USB-A a un puerto compatible (como un cargador de pared, un cargador de automóvil o una computadora). La luz está ROJA mientras se carga y se vuelve AZUL cuando están completamente cargados. *Cargador de pared/automóvil no incluido CARGAR LOS AUDÍFONOS PASO 1 SPANISH En el lateral de la banda de cuello QFit, mantenga presionado el botón del TELÉFONO hasta que vea el indicador LED parpadear entre rojo y azul y escuche “Encendido, emparejamiento”. En la configuración de Bluetooth de sus dispositivos, busque “QFit” para que aparezca como una opción y seleccione para completar el emparejamiento. EMPAREJAMIENTO DE TU DISPOSITIVO PASO 2 SPANISH EMPIECE A ESCUCHAR Cuando esté listo para usar su QFit, presione el botón de TELÉFONO para encenderlo. Use los botones + y - en la banda del cuello para ajustar el volumen y saltar canciones. Utilice el botón del TELÉFONO para reproducir/pausar la música y responder, finalizar, rechazar y volver a marcar llamadas telefónicas, y encender/apagar. PASO 3 SPANISH Q…

Text truncated - open the document above for the full version.

Attestation Statements Date: 2024-08-12 TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2BFXU-LEB42) Dongguan Yinqu Technology Co,Ltd, the undersigned, hereby authorize Cleveland International Trade Agency to act as our designated U.S. agent for service of process, Dongguan Yinqu Technology Co,Ltd accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Cleveland International Trade Agency accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: Dongguan Yinqu Technology Co,Ltd Contact Name: Nancy Liu Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Telephone No: 13480128981 Email: [email protected] FRN: 0035301001 Signature: Nancy Liu U.S. Agent Information: Company Name: Cleveland International Trade Agency Address: 4033 St Clair Ave, Cleveland, OH 44103, USA FRN: 0033401837 Contact Name: Becky Deng Telephone No: 216.600.0606 Email: [email protected] Signature: Becky Deng

Antenna describe Antenna plate PCB antenna Model Name2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2400MHz 2500MHz 2400MHz 2400MHz 2500MHz -1.26 -0.76 -0.58 -5.25 -2.46 -1.86 MAX. Gain -0.58dBi Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance50 Ohm Antenna Length38.20mm Antenna Photo & Length (mm) Manufacture: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dBi) Max Min Avg 2400 -1.26 -30.0801 -7.18716 2450 -0.76 -36.5604 -7.48023 2500 -0.58 -22.0315 -6.59127 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -5.25 -22.1424 -12.4294 2450 -2.46 -24.5837 -10.4702 2500 -1.860 -29.5214 -9.20432

Dongguan Yinqu Technology Co,Ltd Declaration Letter of Model Difference Date: 2024-07-26 Tested Model Number: QFITV2-BLK Adding Model Number(s): QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED Based on the same internal PCBA, principle, and model differences that do not affect safety, under electromagnetic compatibility and RF testing conditions, the model differences are only differences in appearance color and model naming.. Yours Sincerely, Applicant: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Contact Person: Nancy Liu Tel.: 13480128981 Email: [email protected] Sincerely, Signature:

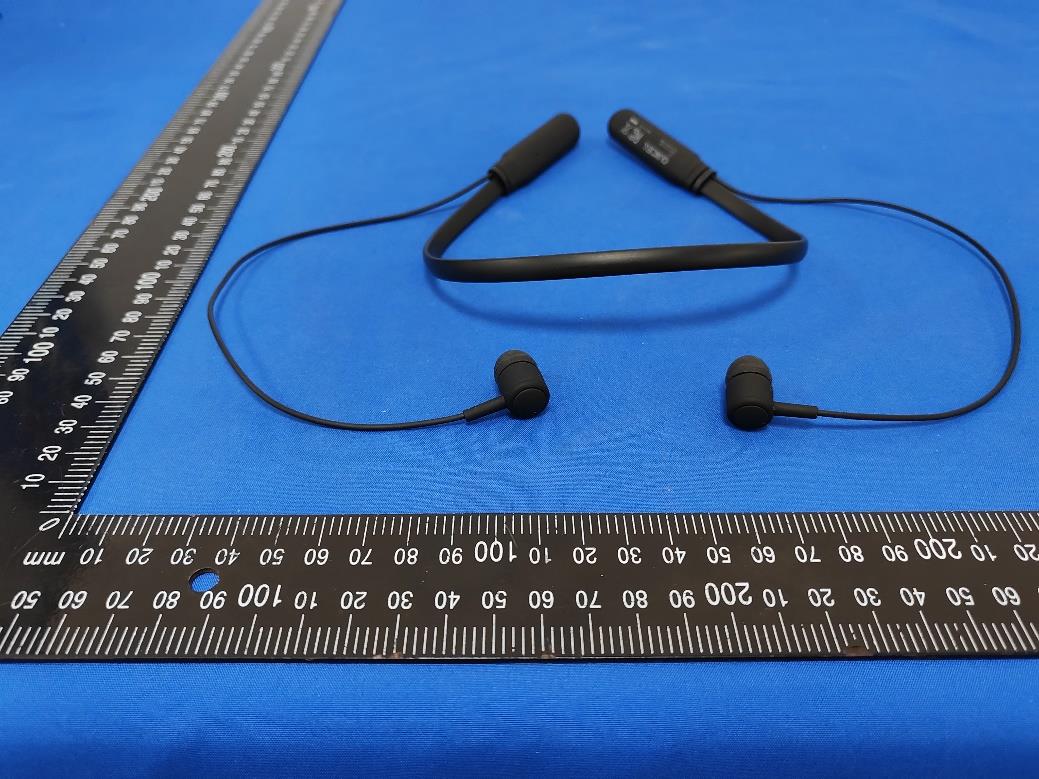

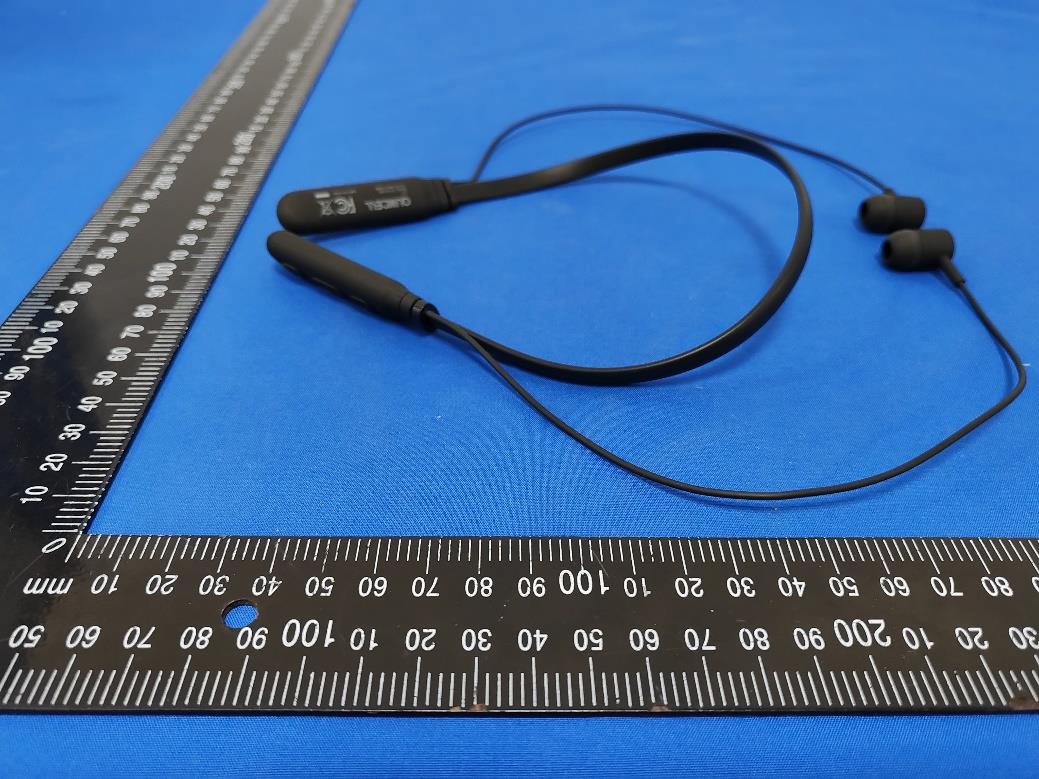

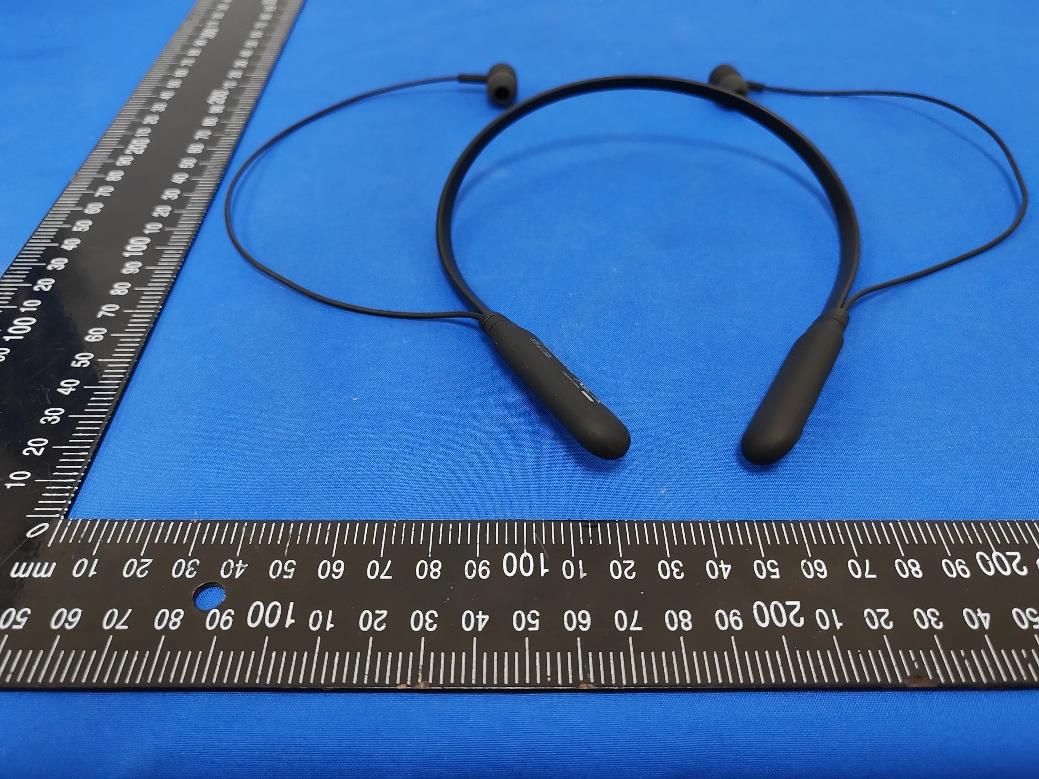

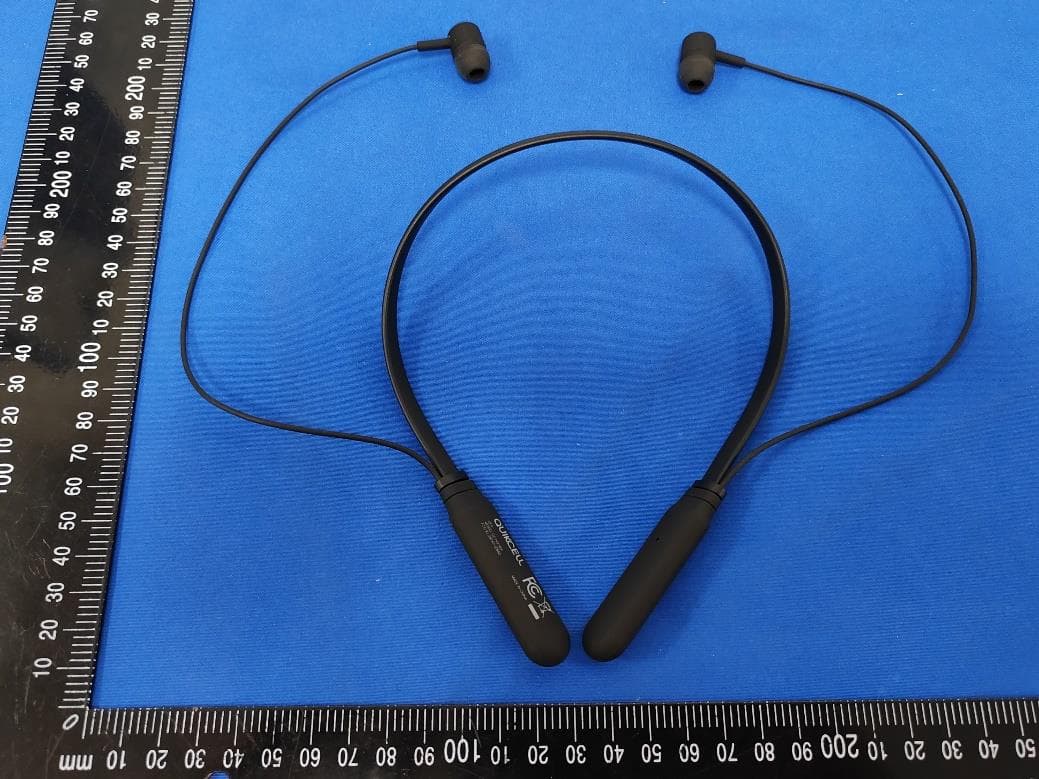

Page 1 of 9 Report No.: LGT24G086 Appendix - External Photographs of EUT Constructional Details Model: QFITV2-BLK Photo 1 Photo 2 Page 2 of 9 Report No.: LGT24G086 Photo 3 Photo 4 Page 3 of 9 Report No.: LGT24G086 Photo 5 Photo 6 Page 4 of 9 Report No.: LGT24G086 Photo 7 Photo 8 Page 5 of 9 Report No.: LGT24G086 Photo 9 Photo 10 Page 6 of 9 Report No.: LGT24G086 Photo 11 Photo 12 Page 7 of 9 Report No.: LGT24G086 Photo 13 Photo 14 Page 8 of 9 Report No.: LGT24G086 Photo 15 Photo 16 Page 9 of 9 Report No.: LGT24G086 Photo 17

Label FCC ID: 2BFXU-LEB42

Page 1 of 3 Report No.: LGT24G086 Appendix - Internal Photographs of EUT Constructional Details Model: QFITV2-BLK Photo 1 Photo 2 Page 2 of 3 Report No.: LGT24G086 Photo 3 Photo 4 Page 3 of 3 Report No.: LGT24G086 Photo 5 Photo 6 BT ANT

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Wireless Earbuds with Neckband Model Name: QFITV2-BLK, QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2- RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED FCC ID: 2BFXU-LEB42 Issued For : Dongguan Yinqu Technology Co,Ltd Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24G086HA01 Sample Received Date: Jul. 11, 2024 Date of Test: Jul. 11, 2024 – Jul. 26, 2024 Date of Issue: Jul. 26, 2024 Report No.: LGT24G086HA01 Page 2 of 9 TEST REPORT CERTIFICATION Applicant: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Manufacture: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Product Name: Wireless Earbuds with Neckband Trademark: QUIKCELL Model Name: QFITV2-BLK, QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47 CFR §2.1093 KDB 447498 D01 General RF Exposure Guidance v06 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24G086HA01 Page 3 of 9 TABLE OF CONTENTS 1 . GENERAL INFORMATION 5 1.1 GENERAL DESCRIPTION OF THE EUT 5 1.2 TEST LABORATORY 5 2 . FCC 47CFR §2.1093 REQUIREMENT 6 2.1 TEST STANDARDS 6 2.2 LIMIT 6 2.3 TEST RESULT 8 APPENDIX I - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS 9 Report No.: LGT24G086HA01 Page 4 of 9 Revision History Rev. Issue Date Revisions 00 Jul. 26, 2024 Initial Issue Report No.: LGT24G086HA01 Page 5 of 9 1. GENERAL INFORMATION 1.1 GENERAL DESCRIPTION OF THE EUT Product Name: Wireless Earbuds with Neckband Trademark: QUIKCELL Model Name: QFITV2-BLK Series Model: QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED Model Difference: Based on the same internal PCBA, principle, and model differences that do not affect safety, under electromagnetic compatibility and RF testing conditions, the model differences are only differences in appearance color and model naming. Frequency Bands: Bluetooth 2402 – 2480 MHz Battery: Model: 401025 Rated Voltage: 3.7V Capacity: 70mAh, 0.259Wh Manufacturer: Dongguan Yinqu Technology Co., Ltd Hardware Version: N/A Software Version: N/A 1.2 TEST LABORATORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 Report No.: LGT24G086HA01 Page 6 of 9 2. FCC 47CFR §2.1093 REQUIREMENT 2.1 TEST STANDARDS The limit for Maximum Permissible Exposure (MPE) specified in KDB 447498 D01 General RF Exposure Guidance v06 is followed. The gain of the antennas used in the product is extracted from the Antenna data sheets provided and also the maximum total power input to the antenna is measured. Through the Friis transmission formula and the maximum gain of the antenna, we can calculate the distance, away from the product, where the limit of MPE is reached. Although the Friis Transmission formula is far field assumption, the calculated result of that is an over-prediction for near field power density. It is taken as worst case to specify the safety range. 2.2 LIMIT Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. Report No.: LGT24G086HA01 Page 7 of 9 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] • [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz. Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Report No.: LGT24G086HA01 Page 8 of 9 2.3 TEST RESULT Turn up Result Mode Turn up Power BT-GFSK 1.5±1dBm BT-π/4-DQPSK 2±1dBm The MPE result of worst mode: RF Function Frequency (MHz) Max Turn up Power (dBm) Max Turn up Power (mW) Estimated SAR Limit Ratio Result BT 2440 3.00 2.00 0.623 3 0.208 Pass Note: 1. The estimated SAR≤ 3.0 for 1-g SAR, Separation distance ≤ 5mm, complies with the exemption requirements. Report No.: LGT24G086HA01 Page 9 of 9 APPENDIX I - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Note: Please see the attached QFITV2-BLK_EUT Photos. ※※※※※END OF THE REPORT※※※※※

The test report is effective only with both signature and specialized stamp. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report only apply to the tested sample. Shenzhen LGT Test Service Co., Ltd. Tel: 0755-89668180 E-mail:[email protected] Web: www.lgt-cert.com Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China RF TEST REPORT Product Name: Wireless Earbuds with Neckband Model Name: QFITV2-BLK, QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED FCC ID: 2BFXU-LEB42 Issued For : Dongguan Yinqu Technology Co,Ltd Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Issued By : Shenzhen LGT Test Service Co., Ltd. Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Report Number: LGT24G086RF01 Sample Received Date: Jul. 11, 2024 Date of Test: Jul. 11, 2024 – Jul. 26, 2024 Date of Issue: Jul. 26, 2024 Report No.: LGT24G086RF01 Page 2 of 70 TEST REPORT CERTIFICATION Applicant: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Manufacturer: Dongguan Yinqu Technology Co,Ltd Address: Room 201, Building 1, No. 65 Zhengwei 4th Road, Dongkeng Town, Dongguan City, Guangdong Province Product Name: Wireless Earbuds with Neckband Trademark: QUIKCELL Model Name: QFITV2-BLK, QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WHT, QFIT-RED Sample Status: Normal APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Part 15.247, Subpart C ANSI C63.10-2013 PASS Prepared by: Approved by: Zane Shan Vita Li Engineer Technical Director Report No.: LGT24G086RF01 Page 3 of 70 Table of Contents Page 1. SUMMARY OF TEST RESULTS 6 1.1 TEST FACTORY 7 1.2 MEASUREMENT UNCERTAINTY 7 2. GENERAL INFORMATION 8 2.1 GENERAL DESCRIPTION OF THE EUT 8 2.2 DESCRIPTION OF THE TEST MODES 10 2.3 FREQUENCY HOPPING SYSTEM REQUIREMENTS 10 2.4 TABLE OF PARAMETERS OF TEST SOFTWARE SETTING 12 2.5 DESCRIPTION OF NECESSARY ACCESSORIES AND SUPPORT UNITS 12 2.6 EQUIPMENTS LIST 13 3. EMC EMISSION TEST 14 3.1 CONDUCTED EMISSION MEASUREMENT 14 3.2 RADIATED EMISSION MEASUREMENT 18 4. CONDUCTED SPURIOUS & BAND EDGE EMISSION 30 4.1 LIMIT 30 4.2 TEST PROCEDURE 30 4.3 TEST SETUP 31 4.4 EUT OPERATION CONDITIONS 31 4.5 TEST RESULTS 31 5. NUMBER OF HOPPING CHANNEL 32 5.1 LIMIT 32 5.2 TEST PROCEDURE 32 5.3 TEST SETUP 32 5.4 EUT OPERATION CONDITIONS 32 5.5 TEST RESULTS 32 6. AVERAGE TIME OF OCCUPANCY 33 6.1 LIMIT 33 6.2 TEST PROCEDURE 33 6.3 TEST SETUP 33 6.4 EUT OPERATION CONDITIONS 33 6.5 TEST RESULTS 33 7. HOPPING CHANNEL SEPARATION MEASUREMEN 34 7.1 LIMIT 34 7.2 TEST PROCEDURE 34 Report No.: LGT24G086RF01 Page 4 of 70 7.3 TEST SETUP 34 7.4 EUT OPERATION CONDITIONS 34 7.5 TEST RESULTS 34 8. BANDWIDTH TEST 35 8.1 LIMIT 35 8.2 TEST PROCEDURE 35 8.3 TEST SETUP 35 8.4 EUT OPERATION CONDITIONS 35 8.5 TEST RESULTS 35 9. OUTPUT POWER TEST 36 9.1 LIMIT 36 9.2 TEST PROCEDURE 36 9.3 TEST SETUP 36 9.4 EUT OPERATION CONDITIONS 36 9.5 TEST RESULTS 36 10. ANTENNA REQUIREMENT 37 10.1 STANDARD REQUIREMENT 37 10.2 EUT ANTENNA 37 APPENDIX I - TEST RESULTS 38 DUTY CYCLE 38 MAXIMUM PEAK CONDUCTED OUTPUT POWER 41 -20DB BANDWIDTH 42 OCCUPIED CHANNEL BANDWIDTH 45 CARRIER FREQUENCIES SEPARATION 48 BAND EDGE 51 BAND EDGE(HOPPING) 55 CONDUCTED RF SPURIOUS EMISSION 59 NUMBER OF HOPPING CHANNEL 64 DWELL TIME 66 APPENDIX II - MEASUREMENT PHOTOS 69 APPENDIX III - PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS 70 Report No.: LGT24G086RF01 Page 5 of 70 Revision History Rev. Issue Date Revisions 00 Jul. 26, 2024 Initial Issue Report No.: LGT24G086RF01 Page 6 of 70 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: KDB 558074 D01 15.247 Meas Guidance v05r02. FCC Part 15.247, Subpart C Standard Section Test Item Judgment Remark 15.207 Conducted Emission PASS -- 15.247(a)(1) Hopping Channel Separation PASS -- 15.247(a)(1)&(b)(1) Output Power PASS -- 15.209 Radiated Spurious Emission PASS -- 15.247(d) Conducted Spurious & Band Edge Emission PASS -- 15.247(a)(1)(iii) Number of Hopping Frequency PASS -- 15.247(a)(1)(iii) Dwell Time PASS -- 15.247(a)(1) Bandwidth PASS -- 15.205 Restricted bands of operation PASS -- Part 15.247(d)/part 15.209(a) Band Edge Emission PASS -- 15.203 Antenna Requirement PASS -- NOTE: (1) ‘N/A’ denotes test is not applicable in this Test Report. (2) All tests are according to ANSI C63.10-2013. Report No.: LGT24G086RF01 Page 7 of 70 1.1 TEST FACTORY Company Name: Shenzhen LGT Test Service Co., Ltd. Address: Room 205, Building 13, Zone B, Zhenxiong Industrial Park, No.177, Renmin West Road, Jinsha, Kengzi Street, Pingshan District, Shenzhen, Guangdong, China Accreditation Certificate A2LA Certificate No.: 6727.01 FCC Registration No.: 746540 CAB ID: CN0136 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2, providing a level of confidence of approximately 95 %. No. Item Uncertainty 1 RF output power, conducted ±0.68dB 2 Unwanted Emissions, conducted ±2.988dB 3 All emissions, radiated 9K-30MHz ±2.84dB 4 All emissions, radiated 30M-1GHz ±4.39dB 5 All emissions, radiated 1G-6GHz ±5.10dB 6 All emissions, radiated>6G ±5.48dB 7 Conducted Emission (9KHz-150KHz) ±2.79dB 8 Conducted Emission (150KHz-30MHz) ±2.80dB Note: The measurement uncertainty is not included in the test result. Report No.: LGT24G086RF01 Page 8 of 70 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF THE EUT Product Name: Wireless Earbuds with Neckband Trademark: QUIKCELL Model Name: QFITV2-BLK Series Model: QFITV2-BLU, QFITV2-WHT, LEB42, QFITV2-RED, QFITV2, QFIT, QFIT-BLK, QFIT-BLU, QFIT-WH…

Text truncated - open the document above for the full version.

Page 1 of 2 Report No.: LGT24G086 Appendix - Test Setup photos Set-up for Radiated Spurious Emission, Below 1GHz Set-up for Radiated Spurious Emission, Above 1GHz Page 2 of 2 Report No.: LGT24G086 Set-up for Conducted Emission
