2BFYM-LBS175WIRELESS ANTENNA SPEAKER

JINGSHAN JINGYANG ELECTRONICS CO., LTD

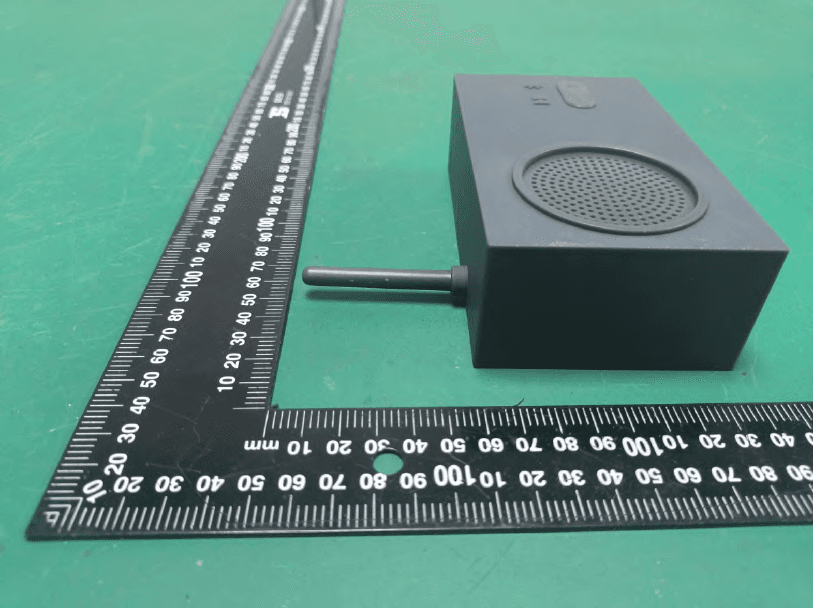

WIRELESS ANTENNA SPEAKER - FCC ID 2BFYM-LBS175 - JINGSHAN  JINGYANG ELECTRONICS CO., LTD
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Jan 24, 2025
Application Purpose
Original Equipment
Equipment Note
WIRELESS ANTENNA SPEAKER
Frequency Range
2402.00000000 - 2480.00000000
Company
JINGSHAN JINGYANG ELECTRONICS CO., LTD
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗
↗
↗
↗

Block Diagram

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Schematics

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

5 NOTE:Please charge the speaker after turn o and do not charge the speaker when using. Rotate the hole end of the antenna into the antenna hole on the top of the speaker to search and use the FM function. FCC ID: 2BFYM-LBS175 © 2025 PRIMEAUDIO

ID Label/Location Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401A54668E-RF EXHIBIT A - FCC ID LABEL AND LOCATION Model: PABS-1005-BL FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401A54668E-RF Model: PABS-1005-PK FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: 2401A54668E-RF Model: PABS-1005-BK FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Test Setup Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401A54668E-RF Page1 of 3 TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401A54668E-RF Page2 of 3 Radiated Emissions View (Below 30MHz) Radiated Emissions View (Below 1 GHz) Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.:2401A54668E-RF Page3 of 3 Radiated Emissions View (1-18 GHz) Radiated Emissions View (18-25 GHz)

Test Report

Note: The information marked # is provided by the applicant, the laboratory is not responsible for its authenticity and this information can affect the validity of the result in the test report. Customer model name, addresses, names, trademarks etc. are included. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government. This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “▼”. Bay Area Compliance Laboratories Corp. (Shenzhen) 5F(B-West) , 6F, 7F, the 3rd Phase of Wan Li Industrial Building D, Shihua Rd, FuTian Free Trade Zone, Shenzhen, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn TR-EM-RF001 Page 1 of 71 Version 4.0 TEST REPORT Applicant Name: JINGSHAN JINGYANG ELECTRONICS CO., LTD Address: Group 1, Sanyang Village, Sanyang Town, Jingshan City, Jingmen City, Hubei Province, China Report Number: 2401A54668E-RF-00 FCC ID: 2BFYM-LBS175 Test Standard (s) FCC PART 15.247 Sample Description Product Type: WIRELESS ANTENNA SPEAKER Model No.: PABS-1005-BL Multiple Model(s) No.: PABS-1005-PK, PABS-1005-BK, LBS175 Trade Mark: Prime Audio Date Received: 2024-12-03 Issue Date: 2025-01-10 Test Result: Pass ▲ ▲ In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Allen Bai Michelle Zeng RF Engineer RF Supervisor Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401A54668E-RF-00 TR-EM-RF001 Page 2 of 71 Version 4.0 TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 3 GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 4 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 REQUIREMENTS AND TEST PROCEDURES ..................................................................................................... 11 AC LINE CONDUCTED EMISSIONS .............................................................................................................................. 11 RADIATED EMISSIONS ................................................................................................................................................ 13 20 DB EMISSION BANDWIDTH .................................................................................................................................... 16 CHANNEL SEPARATION TEST ..................................................................................................................................... 18 QUANTITY OF HOPPING CHANNEL TEST .................................................................................................................... 19 TIME OF OCCUPANCY (DWELL TIME) ........................................................................................................................ 20 PEAK OUTPUT POWER MEASUREMENT ...................................................................................................................... 21 BAND EDGES .............................................................................................................................................................. 22 ANTENNA REQUIREMENT .................................................................................................................................... 23 TEST DATA AND RESULTS .................................................................................................................................... 24 AC LINE CONDUCTED EMISSIONS .............................................................................................................................. 24 RADIATED EMISSIONS ................................................................................................................................................ 27 20 DB EMISSION BANDWIDTH .................................................................................................................................... 48 CHANNEL SEPARATION .............................................................................................................................................. 52 NUMBER OF HOPPING FREQUENCY ...............................................................................…

Text truncated - open the document above for the full version.

Test Report

2.4G-2.48G SPECIFICATIONS Frequency(MHz)2400-2480 PeakGain(dBi)2.499 AverageGain(dBi) VSW >-3 R<3.2 Impedance(Ω)50Ω AntennaType PCB PolarizationLinear Z X Y PCB Antenna Report Model Manufacturer Test Environment: Antenna Photo Dachuan Technology Industry Co.,Ltd. 2nd Floor,Building 3,Dingfeng Science and Technology Park,Sha Yi Village,Shajing Town,Bao'an District,Shenzhen City BT ANT VSWR 、 ReturnLoss Antenna Passive S-Parameters Smith Chart Frequency(MHz)Efficiency(dB)percentage(%)Gain(dBi) 2400-2.26759.33%1.433 2410-2.85251.86%0.927 2420-2.83152.11%0.829 2430-3.07249.30%0.881 2440-2.95250.67%1.192 2450-2.75253.07%1.688 2460-2.260 59.42%2.194 2470-2.46656.68%2.118 2480-2.09561.73%2.499 Antenna efficiency and gain 、 2440MHz3DPattern 2440MHz3D Pattern Antenna Antenna Pattern 2440MHz3DPattern Antenna

RF Exposure Info

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: 2401A54668E-RF-00 TR-EM-RF001 Page 69 of 71 Version 4.0 RF EXPOSURE EVALUATION MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. According to KDB 447498 D04 Interim General RF Exposure Guidance V01 MPE-Based Exemption: General frequency and separation-distance dependent MPE-based effective radiated power(ERP) thresholds are in Table B.1 [Table 1 of § 1.1307(b)(3)(i)(C)] to support an exemption from further evaluation from 300 kHz through 100 GHz. Ris the minimum separation distance in meters f = frequency in MHz Result Mode Frequency (MHz) Tune up conducted power # (dBm) Antenna Gain # ERP Evaluation Distance (m) ERP Limit (W) (dBi) (dBd) (dBm) (W) Bluetooth 2402-2480 1.5 2.499 0.349 1.849 0.002 0.2 0.768 Note: The tune up conducted power and antenna gain was declared by the applicant. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant

Operational Description

Circuit Description This product is a Bluetooth speaker that can input audio signals through Bluetooth connection. It contains charging management, Bluetooth module, power amplifier module, radio module, button module and other parts. 1. Charging management: DC 5V voltage is input from the TYPE-C socket, input through the 16th pin of the main control AC6965E4, and after internal voltage reduction and voltage regulation, it outputs 4.2V voltage through the 17th pin of the AC6965E4 to charge the lithium battery. The lithium battery supplies power to the main control AC6965E4 through the 17th pin of the AC6965E4. 2. The Bluetooth module receives and transmits RF signals through the 22nd pin antenna of the main control AC6965E4 to pair with other Bluetooth devices. The audio received by Bluetooth is output to the power amplifier LTK8002D through the 12th pin of the main control AC6965E4, and then output to the load speaker to make sound. AC6965E4 also supports FM function. 3. The power amplifier module is the main control AC6965E4. The received audio signal is transmitted to the power amplifier through pin 12. At the same time, it is controlled and powered by VBAT through pin 14, and the audio is output from pins 5 and 8 of the power amplifier. Frequency Range: Bluetooth: 2402~2480MHz FM: 87.5-108MHz (RX) Modulation Technique: Bluetooth: GFSK, π/4-DQPSK, 8DPSK FM: FM

Internal Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page1 of 5 EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page2 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page3 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page4 of 5 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page5 of 5 Antenna

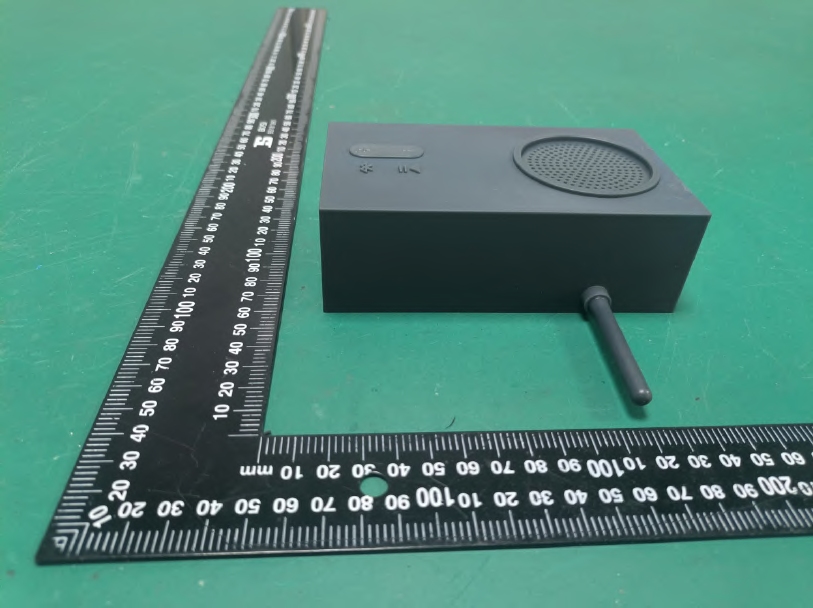

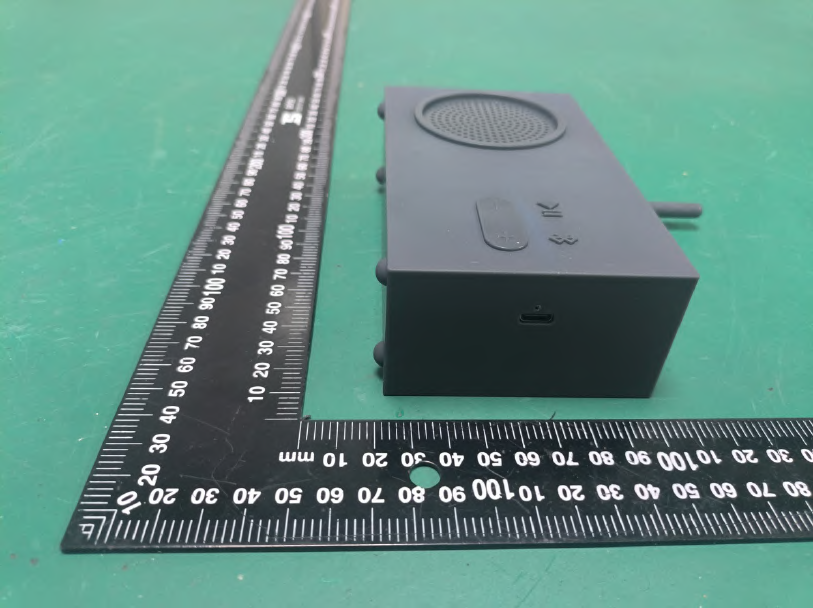

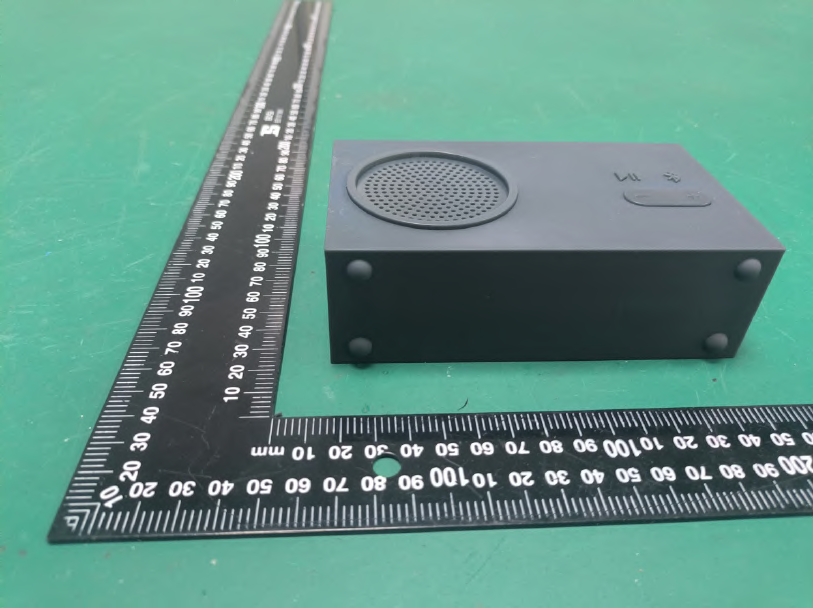

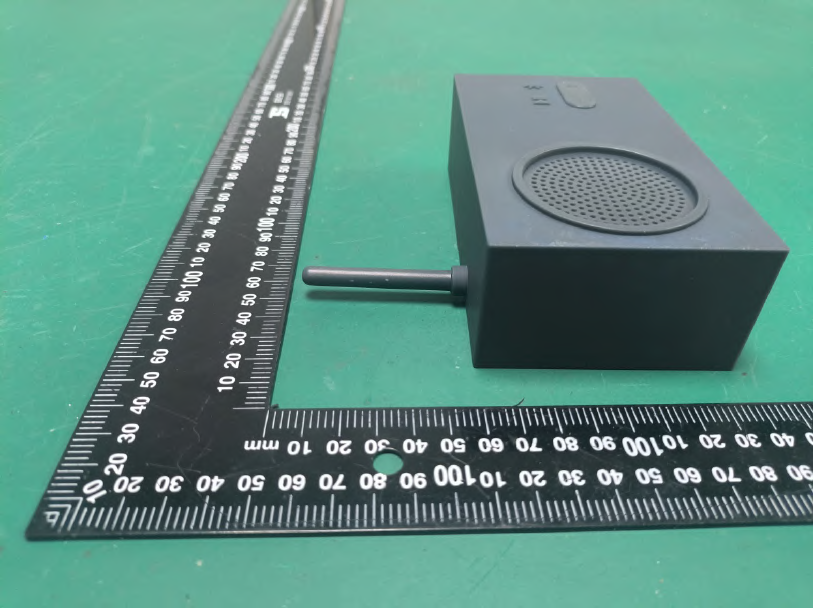

External Photos

Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page1 of 10 EUT EXTERNAL PHOTOGRAPHS PABS-1005-PK PABS-1005-BK PABS-1005-BL Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page2 of 10 PABS-1005-BL Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page3 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page4 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page5 of 10 PABS-1005-PK Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page6 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page7 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page8 of 10 PABS-1005-BK Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page9 of 10 Bay Area Compliance Laboratories Corp. (Shenzhen) No.:2401A54668E-RF Page10 of 10

Block Diagram

AC6965E4 2.402GHz-2.480GHz DC 5V voltage Step-down system Lithium battery Voltage protection Charging Power on Antenna Microphone Audio output Button 24MHz MCU system indicator light indicator light Crystal FM Antenna (Only RX)

Contact Information

Applicant

Ella Fang
[email protected]Fax: 0755 8936 6592

Test Firm

Bay Area Compliance Laboratories Corp (Shenzhen)Nana Liu
[email protected]

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz1.20 mW
Grant Notes
Output power listed is conducted. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter product procedures. End-users must be provided with instructions and operating conditions for satisfying RF exposure compliance.
