2BG2G-ADSAudio display stand

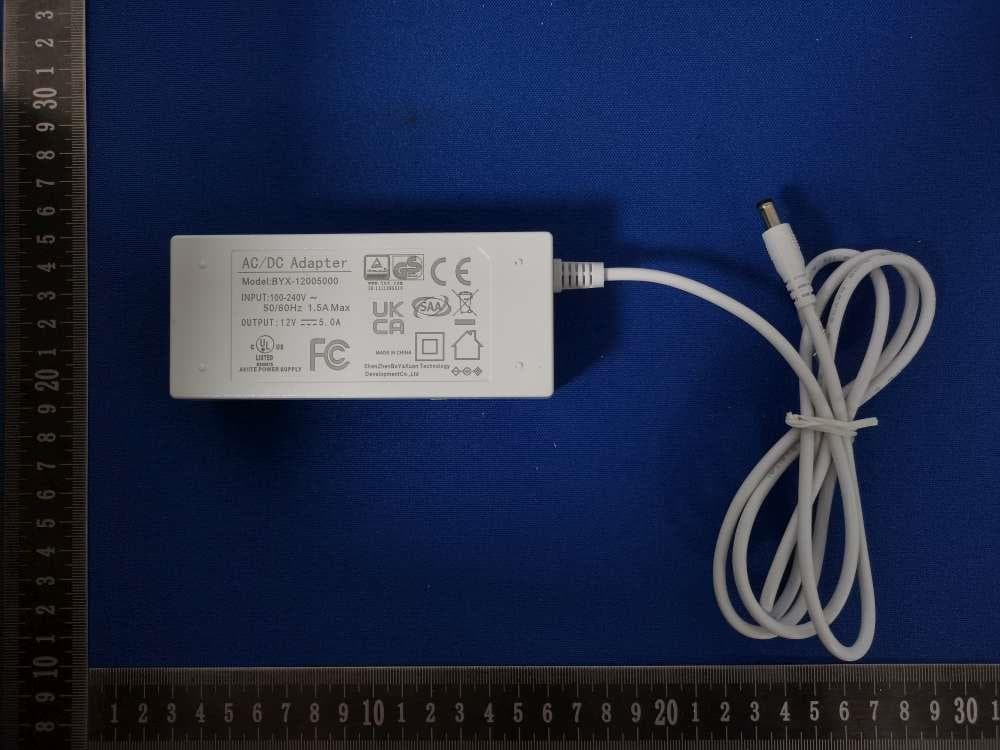

Beyerdynamic's Amiron200/Zero Props *The final interpretation right of this manual belongs to Shanghai Forsungindustry Co.,Ltd USER MANUAL Beyerdynamic's Amiron200/Zero props user manual 2. Parameter Specifications 2.1 USB Ports: 4 x USB 2.0 standard ports for headphone charging 2.2 Input Voltage: 12V Output Voltage: 5V 2.3 Supply Current: ≥300mA 2.4 Operating Current: >50mA 2.5 Operating Temperature: [-40° C] --[80 °C] 2.6 Humidity: 5% ~ 95% 2.7 Power adapter complies with CE/FCC/PSE certifications. Input: 100-240V~1.6A, 50-60Hz. Output: 12V, 3A. 3. Props Structural Components Description (Note: The prop back panel utilizes the Verio 200 back panel and is not distributed separately) 3.1 Prop Front View Illuminated logo Lightbox + Light Panel Information signs*2 Props Main Rack Connecting Mobile Device Audio 3.5mm Jack × 2 / Lightning Connector × 2 / Type-C Connector × 2 LED light strips*2 Display Amirom200 Display Amiron Zero 3.2 Internal Description of the Base 1.Overview The Bluetooth functionality of this accessory has been configured such that the pairing button and indicator light on the mainboard correspond exclusively to the Amiron200 or AmironZero headphone models. It cannot connect to other headphones. Headphone charging cable routing holes*2 Anti -theft device*4 Cable Organizer*3 USB Power Output Ports (for charging headphones) *4 USB ports*2 (reserved) Audio input cables*2 3.3 Back Panel Buttons and Connectors Light Guide Panel Power Input Connector Amiron200 Bluetooth Pairing Button: Press and release five times in quick succession to enter Bluetooth pairing mode AmironZero Bluetooth Indicator Light Slow flash: Powering on and reconnecting Fast flash: Pairing in progress Solid light: Pairing successful AmironZero Bluetooth Pairing Button: Press and release the button five times in quick succession to enter Bluetooth pairing mode. Amiron200 Bluetooth Indicator Light Slow flash: Powering on and reconnecting Fast flash: Pairing in progress Solid light: Pairing successful 12V Power Input Port 5. Playback Function 5.1 Connect your mobile device using an appropriate audio cable. 5.2 Wearing the headphones and adjusting the anti-theft cable to the appropriate position. 5.3 Play your music, recommend high resolution music source, WAV, Flac etc. 5.4 Enjoy the music. 3.5mm audio input Lightning audio input Type-C audio input Select the appropriate audio cable to connect to your mobile device, put on your headphones, and control “Play, Pause, Previous Track, Next Track, Volume Up, Volume Down” via your mobile device. 4.Bluetooth Pairing Method 4.1 Press the “Bluetooth Pairing” button on the back of the device 5 times in quick succession. The blue indicator light will flash rapidly, indicating the device has entered Bluetooth pairing mode. (Both the AmironZ and Amiron200 Bluetooth devices can enter pairing mode simultaneously, or you may pair one first before pairing the other.) 4.2 Press and hold the Bluetooth pairing button on the charging case for over 5 seconds. The indicator light will flash red and white alternately, indicating the headphones have entered Bluetooth pairing mode. 4.3 Wait for pairing... 4.4 The device's indicator light will remain solid blue. When the headphone indicator light turns solid white and then turns off, pairing is successful. 6.4 Back Panel Image Replacement Instructions 6. Installation and Use 6.1 Finished Product Photos 6.2 Accessories(Note: Only the prop base is supplied. The prop backing plate, adapter, and connecting screws utilize Verio 200 materials and are not supplied separately.) 6.3 Installation Instructions 6.3.4 Follow the text instructions to insert the plugs on the back panel and the power plug into their corresponding sockets. Ensure the plugs are inserted correctly; otherwise, it may cause damage to the equipment. Front The reverse sideRight 45°left 45 ° 1 piece of exhibition stand back panel 1 display shelf base1 set of power adapter 3 connecting screws + 2 hex wrenches 6.3.1 Place the base of the display stand flat on the table 6.3.2 Install the back panel of the display rack behind the base and fix it with 3 connecting screws 6.3.3 Rotate the screws to the right and tighten 3 screws 6.4.1 Gently remove the cover from the groove of the right cover plate outward 6.4.2 Pull out the photo from the pull handle reserved for the photo, and then insert the photo to be replaced along the position where the photo was removed, adjust the position of the photo, and then cover the right cover, and the photo replacement is completed. question Solution Headphones and props disconnected, unable to play 1.【Prototype】EnterBluetooth pairing mode; 2.【Accessory】Pressthe Bluetooth pairing button 5 times in quick succession to re-pair; 3.【Complete】Prototypeindicator turns white, accessory indicator stays lit, indicating successful connection; Props power on No lights illuminated Check the power supply before trying again. Headphones disconnected 1.【Prototype】EnableBluetooth pairing mode on the headphones; 2.【Props】Checkindicator light status: 【Steady on】Readyfor use; 【Slow flashing】Poweroff and restart the headphones; 3.【Complete】Reconnect(refer to Issue 1 procedure) to finalize pairing; Props Indicator Light Quick Flash 【Prototype】Verifyif the prototype is powered on; 【Props】Restartthe props; 7. Frequently Asked Questions and Solutions 8. After-Sales Support If you encounter any issues with this display stand, please call our after-sales service hotline at 400 103 6861 to report the problem,wewill address it promptly. FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio com…

Text truncated - open the document above for the full version.

Shanghai Forsung industry Co.,Ltd No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2025/11/25 U.S. Agent Designation Shanghai Forsung industry Co.,Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BG2G-ADS): Name and company of U.S. agent: GLOCERTS TECHNOLOGY INC Physical U.S. address of agent: 19784 SUNKISSED RIDGE DR RIVERSIDE, CA 92507 United States FRN of U.S. agent: 0036339737 Email address of U.S. agent: [email protected] GLOCERTS TECHNOLOGY INC acknowledges their obligation to accept service of process on behalf of Shanghai Forsung industry Co.,Ltd Shanghai Forsung industry Co.,Ltd with the FRN [0035567817] accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission- related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Cathy Hong Manager Shanghai Forsung industry Co.,Ltd Signature Huiying Fan Director GLOCERTS TECHNOLOGY INC 48_[mo del] US_Agent_2.911(d)(7) - U, V0 5

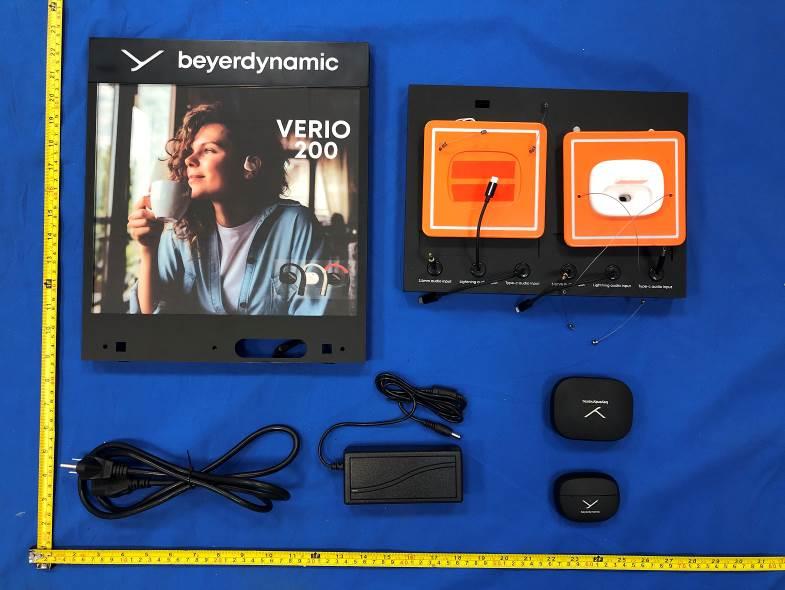

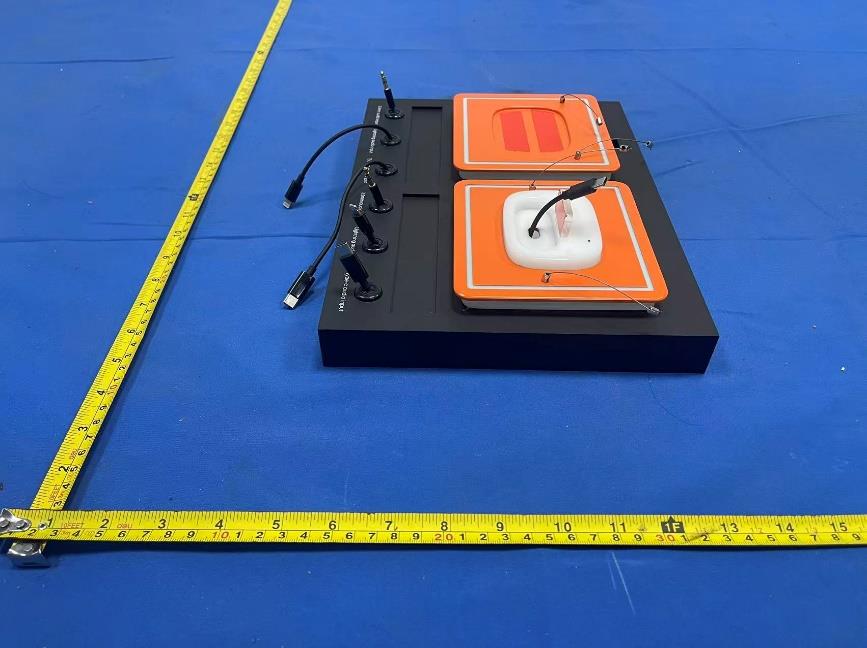

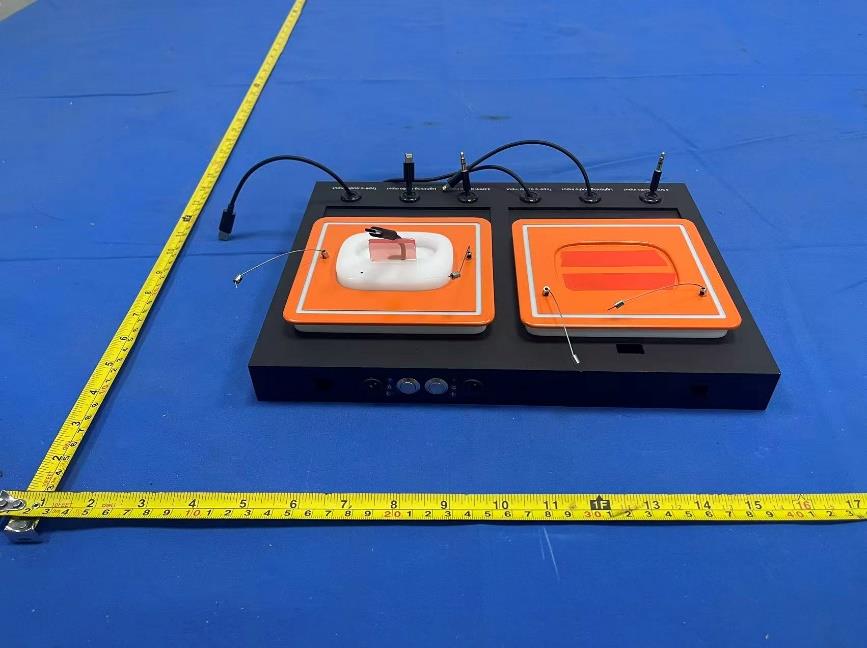

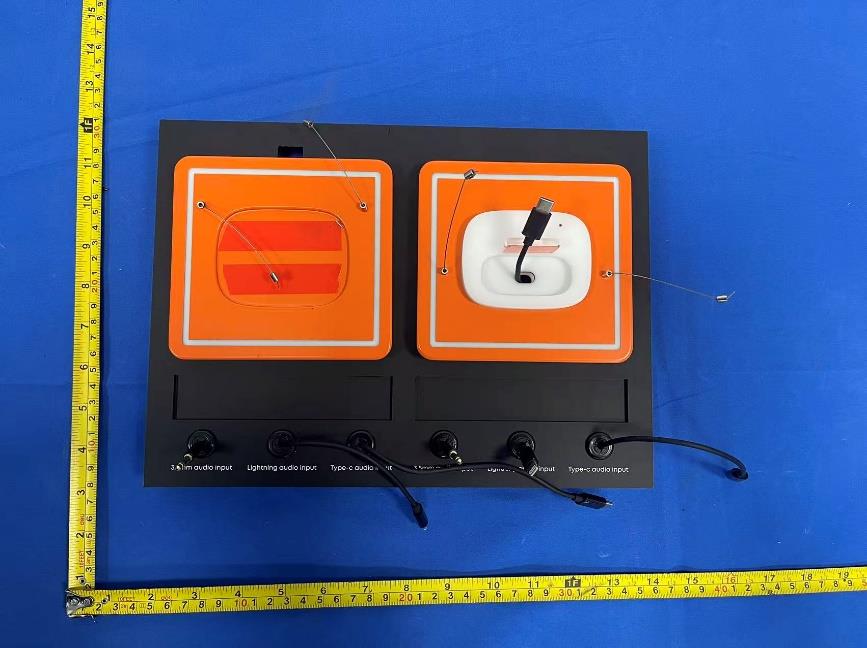

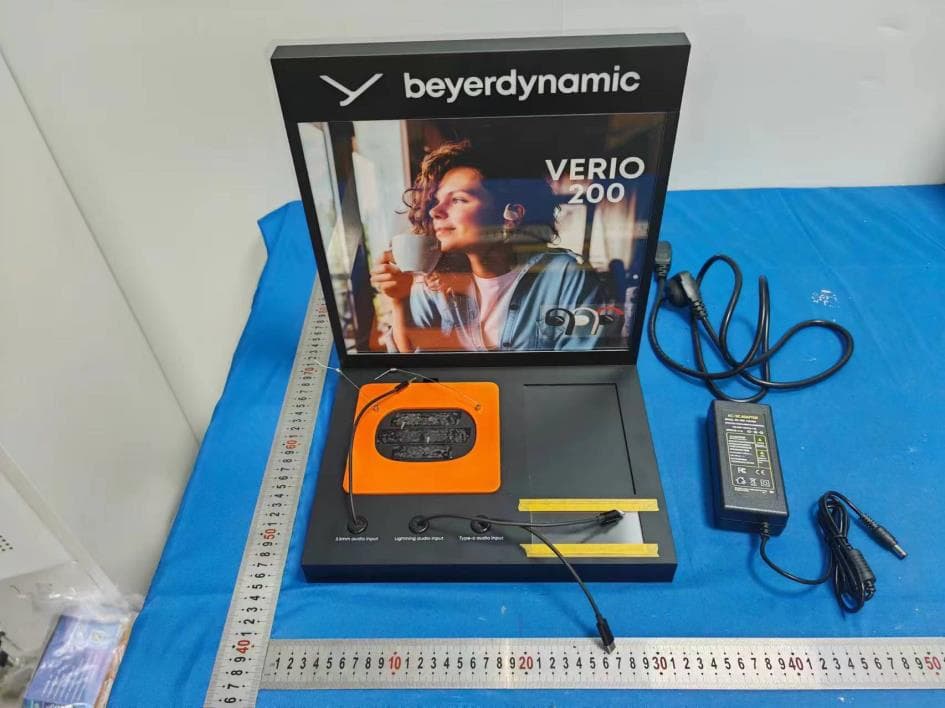

FCC ID: 2BG2G-ADS External Photos of the EUT FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS

Label and Location Size: L: 4.0cm*W: 3.0cm Label and Location FCC ID : 2BG2G-ADS

FCC ID: 2BG2G-ADS Internal Photos of the EUT FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS ANT FCC ID: 2BG2G-ADS FCC ID: 2BG2G-ADS

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn RF Exposure evaluation Report Reference No. ..................... : FCC ID............................................. : CTA25110501102 2BG2G-ADS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 14, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ............................ : Shanghai Forsung industry Co.,Ltd Address............................................ : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Standard ........................................... : 47CFR §1.1310 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purpses as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Audio display stand Trade Mark ....................................... : N/A Manufacturer .................................... : Shanghai Forsung industry Co.,Ltd Model/Type reference ...................... : ADS-BY-G-04(AM 200&Zero) Listed Models ................................... : DC-832-1203000 Ratings ............................................. : Input: 12V3A Result ............................................... : PASS Report No.: CTA25110501102 Page 2 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Audio display stand Model /Type : ADS-BY-G-04(AM 200&Zero) Listed Models : DC-832-1203000 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shanghai Forsung industry Co.,Ltd Address : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Manufacturer : Shanghai Forsung industry Co.,Ltd Address : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110501102 Page 3 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ............................................................................................................ 4 2 SUMMARY .......................................................................................................................... 5 2.1 General Remarks ..................................................................................................... 5 2.2 Product Description ................................................................................................. 5 2.3 Special Accessories ................................................................................................. 5 2.4 Modifications ............................................................................................................ 5 3 TEST ENVIRONMENT ....................................................................................................... 6 3.1 Address of the test laboratory .................................................................................. 6 3.2 Test Facility .............................................................................................................. 6 3.3 Statement of the measurement uncertainty ............................................................. 6 4 Test limit .............................................................................................................................. 7 4.1 Requirement ............................................................................................................ 7 4.2 Conducted Power Results ....................................................................................... 7 4.3 Manufacturing tolerance .......................................................................................... 7 4.4 Evaluation Result ..................................................................................................... 8 4.5 Simultaneous Transmission for SAR Exclusion ...................................................... 8 5 Conclusion ........................................................................................................................... 8 Report No.: CTA25110501102 Page 4 of 8 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:cta@cta-tes…

Text truncated - open the document above for the full version.

1. Antenna Description: Antenna type PCB antenna Model ADS-BY-G-04(AM 200&Zero) Frequency range 2400-2500MHz Manufacturer Shanghai Forsung industry Co.,Ltd Address No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. ANT Peak Gain 0.8 dBi 2. Antenna Photo: Length :15.00mm Width:5.19mm 3. Test Equipment & Conditions 3.1 Test instrument VSWR is tested using Agilent E5071B connected to a hand mechanism, and the status is free space. 3.2 Test environment and methods 4．Antenna Radiation Pattern 2400MHz 2450MHz 2500MHz

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn FCC PART 15 SUBPART C TEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ........................................... : CTA25110501101 2BG2G-ADS Compiled by ( position+printed name+signature) . : File administrators Zoey Cao Supervised by ( position+printed name+signature) . : Project Engineer Ace Chai Approved by ( position+printed name+signature) . : RF Manager Eric Wang Date of issue .................................... : Nov. 14, 2025 Testing Laboratory Name .............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Shanghai Forsung industry Co.,Ltd Address ............................................ : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Test specification ........................... : Standard ........................................... : FCC Part 15.247 Shenzhen CTA Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTA Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTA Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Audio display stand Trade Mark ....................................... : N/A Manufacturer .................................... : Shanghai Forsung industry Co.,Ltd Model/Type reference ...................... : ADS-BY-G-04(AM 200&Zero) Listed Models ................................... : DC-832-1203000 Modulation ....................................... : GFSK, Π/4DQPSK Frequency ........................................ : From 2402MHz to 2480MHz Ratings ............................................. : Input: 12V3A Result ............................................... : PASS Report No.: CTA25110501101 Page 2 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn T E S T R E P O R T Equipment under Test : Audio display stand Model /Type : ADS-BY-G-04(AM 200&Zero) Listed Models : DC-832-1203000 Model difference : The PCB board, circuit, structure and internal of these models are the same, Only model number and colour is different for these model. Applicant : Shanghai Forsung industry Co.,Ltd Address : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Manufacturer : Shanghai Forsung industry Co.,Ltd Address : No.8, Lane 2248, Liuxiang Road, Jiading District, Shanghai, China. Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: CTA25110501101 Page 3 of 41 Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Tel:+86-755 2322 5875 E-mail:[email protected] Web:http://www.cta-test.cn Contents 1 TEST STANDARDS ...................................................................................................................................... 4 2 SUMMARY .................................................................................................................................................... 5 2.1 General Remarks .............................................................................................................................. 5 2.2 Product Description ........................................................................................................................... 5 2.3 Equipment Under Test ....................................................................................................................... 5 2.4 Short description of the Equipment under Test (EUT) ...................................................................... 5 2.5 EUT configuration .............................................................................................................................. 6 2.6 EUT operation mode ......................................................................................................................... 6 2.7 Block Diagram of Test Setup ............................................................................................................. 6 2.8 Related Submittal(s) / Grant (s) ......................................................................................................... 6 2.9 Modifications ...................................................................................................................................... 6 3 TEST ENVIRONMENT ................................................................................................................................. 7 3.1 Address of the test laboratory ........................................................................................................... 7 3.2 Test Facility........................................................................................................................................ 7 3.3 Environmental conditions ....................................................................................…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for BT FCC ID : 2BG2G-ADS Company : Shanghai Forsung industry Co.,Ltd EUT : Audio display stand Model Number : ADS-BY-G-04(AM 200&Zero) Report No. : CTA25110501101 Reviewed By : Eric Wang 2 Appendix A: 20dB Emission Bandwidth Test Result TestMode Antenna Freq(MHz) 20dB EBW[MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.936 2401.553 2402.489 --- --- 2441 0.954 2440.547 2441.501 --- --- 2480 0.945 2479.550 2480.495 --- --- 2DH5 Ant1 2402 1.317 2401.349 2402.666 --- --- 2441 1.314 2440.352 2441.666 --- --- 2480 1.332 2479.343 2480.675 --- --- 3 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 4 2DH5_Ant1_2402 2DH5_Ant1_2441 5 2DH5_Ant1_2480 6 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict DH5 Ant1 2402 0.87872 2401.5730 2402.4517 --- --- 2441 0.86217 2440.5757 2441.4378 --- --- 2480 0.87384 2479.5717 2480.4456 --- --- 2DH5 Ant1 2402 1.1918 2401.4158 2402.6076 --- --- 2441 1.1843 2440.4185 2441.6028 --- --- 2480 1.1936 2479.4138 2480.6074 --- --- 7 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 8 2DH5_Ant1_2402 2DH5_Ant1_2441 9 2DH5_Ant1_2480 10 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict DH5 Ant1 2402 0.05 ≤20.97 PASS 2441 0.00 ≤20.97 PASS 2480 0.03 ≤20.97 PASS 2DH5 Ant1 2402 -0.79 ≤20.97 PASS 2441 -0.81 ≤20.97 PASS 2480 -0.74 ≤20.97 PASS 11 Appendix D: Carrier frequency separation Test Result TestMode Antenna Freq(MHz) Result[MHz] Limit[MHz] Verdict DH5 Ant1 Hop 1.024 ≥0.954 PASS 2DH5 Ant1 Hop 1.088 ≥0.888 PASS 12 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 13 Appendix E: Time of occupancy Test Result TestMode Antenna Freq(MHz) BurstWidth [ms] TotalHops [Num] Result[s] Limit[s] Verdict DH1 Ant1 Hop 0.390 315 0.123 ≤0.4 PASS DH3 Ant1 Hop 1.650 163 0.269 ≤0.4 PASS DH5 Ant1 Hop 2.900 94 0.273 ≤0.4 PASS 2DH1 Ant1 Hop 0.390 313 0.122 ≤0.4 PASS 2DH3 Ant1 Hop 1.650 167 0.276 ≤0.4 PASS 2DH5 Ant1 Hop 2.890 103 0.298 ≤0.4 PASS 14 Test Graphs DH1_Ant1_Hop DH3_Ant1_Hop 15 DH5_Ant1_Hop 16 2DH1_Ant1_Hop 2DH3_Ant1_Hop 17 2DH5_Ant1_Hop 18 19 Appendix F: Number of hopping channels Test Result TestMode Antenna Freq(MHz) Result[Num] Limit[Num] Verdict DH5 Ant1 Hop 79 ≥15 PASS 2DH5 Ant1 Hop 79 ≥15 PASS 20 Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop 21 Appendix G: Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -0.24 -57.63 ≤-20.24 PASS High 2480 -0.49 -54.41 ≤-20.49 PASS Low Hop_2402 -4.68 -59.3 ≤-24.68 PASS High Hop_2480 -4.18 -63.77 ≤-24.18 PASS 2DH5 Ant1 Low 2402 -3.62 -61.4 ≤-23.62 PASS High 2480 -5.09 -55.65 ≤-25.09 PASS Low Hop_2402 -3.78 -56.47 ≤-23.78 PASS High Hop_2480 -3.56 -57.65 ≤-23.56 PASS 22 Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 23 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 24 2DH5_Ant1_High_2480 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 25 26 Appendix H: Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 Reference -0.82 -0.82 --- PASS 30~1000 -0.82 -67.88 ≤-20.82 PASS 1000~26500 -0.82 -43.01 ≤-20.82 PASS 2441 Reference -1.01 -1.01 --- PASS 30~1000 -1.01 -64.75 ≤-21.01 PASS 1000~26500 -1.01 -41.23 ≤-21.01 PASS 2480 Reference -0.91 -0.91 --- PASS 30~1000 -0.91 -59.56 ≤-20.91 PASS 1000~26500 -0.91 -43.23 ≤-20.91 PASS 2DH5 Ant1 2402 Reference -5.21 -5.21 --- PASS 30~1000 -5.21 -56.03 ≤-25.21 PASS 1000~26500 -5.21 -33.13 ≤-25.21 PASS 2441 Reference -4.67 -4.67 --- PASS 30~1000 -4.67 -32.91 ≤-24.67 PASS 1000~26500 -4.67 -46.7 ≤-24.67 PASS 2480 Reference -4.64 -4.64 --- PASS 30~1000 -4.64 -60.87 ≤-24.64 PASS 1000~26500 -4.64 -48.85 ≤-24.64 PASS 27 Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 28 DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 29 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 30 DH5_Ant1_2480_1000~26500 2DH5_Ant1_2402_0~Reference 31 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_0~Reference 32 2DH5_Ant1_2441_30~1000 2DH5_Ant1_2441_1000~26500 33 2DH5_Ant1_2480_0~Reference 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 34 35 Appendix I: Duty Cycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] DC [%] xFactor Limit Verdict DH5 Ant1 2402 2.91 3.75 77.60 1.10 --- --- 2441 2.91 3.75 77.60 1.10 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 2DH5 Ant1 2402 2.92 3.75 77.87 1.09 --- --- 2441 2.92 3.75 77.87 1.09 --- --- 2480 2.92 3.75 77.87 1.09 --- --- 36 Test Graphs DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 37 2DH5_Ant1_2402 2DH5_Ant1_2441 38 2DH5_Ant1_2480

FCC ID: 2BG2G-ADS Test Setup Photos of the EUT FCC ID: 2BG2G-ADS
